Rtech XL Series User manual

R TECH ENGINEERING
#3/940, Vetrivelava Nagar, Poochiyur, Narasimhanaicken Palayam,
Coimbatore – 641031 Tamil Nadu
Customer Care : [phone] / www.treeclimber.in / i[email protected]
MUST WEAR SAFETY HARNESS & HELMET
1. Check whether the both frames are fitted suitably on
the tree and ensure the safety belt fixings on the
frame are in order. Satisfy yourself that the fittings
are fixed suitably.
2. Visually inspect the device before start climbing
make sure all the Bolts & Nuts are fastened properly
or not.
3. During the Raining Time precautions is must and
avoid to climb if Trunk has algae

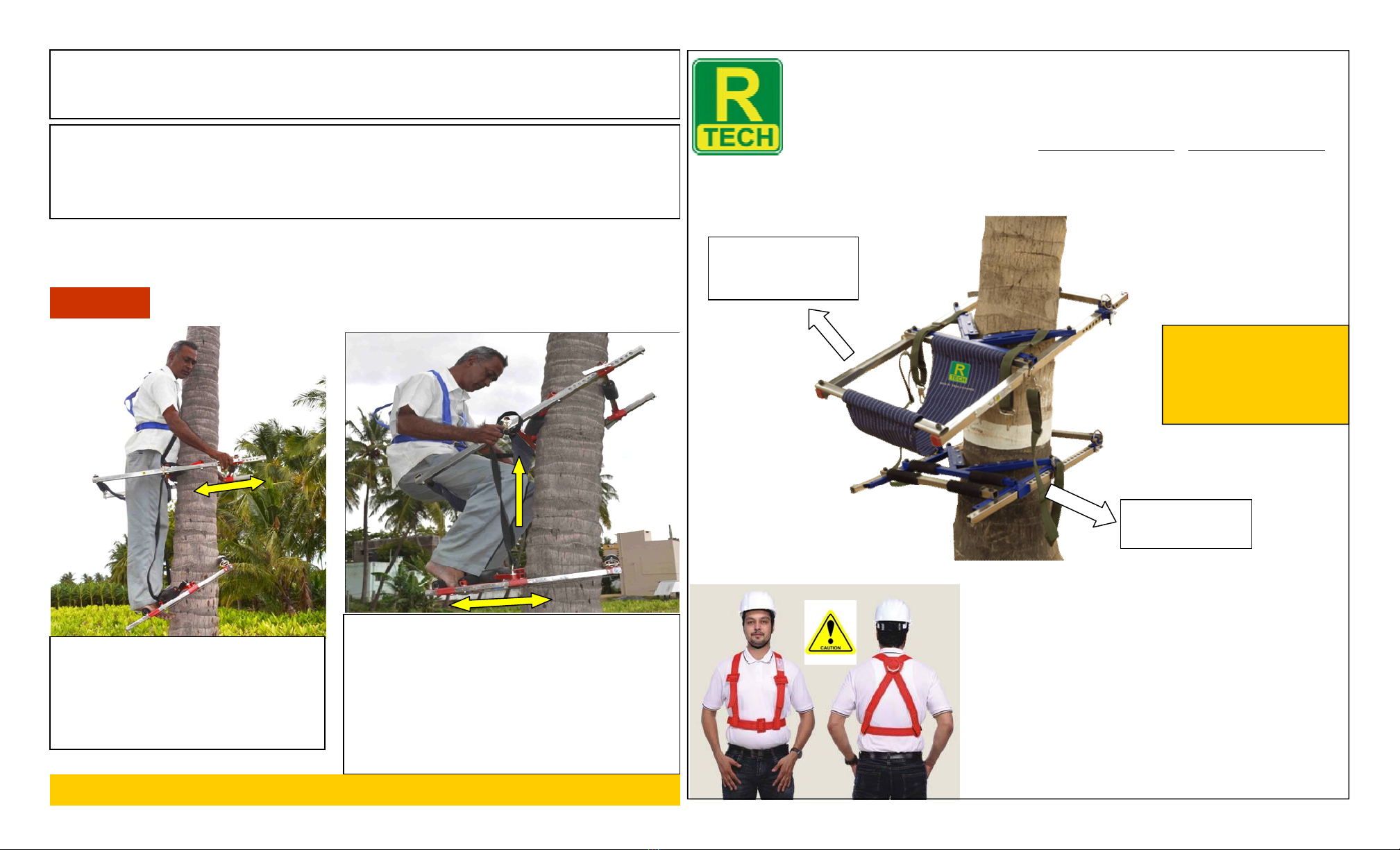

Upper Frame (or)
Sitting Frame
Bottom Frame
(or) Leg Frame
USER MANUAL - MULTI TREE CLIMBER – XL SERIES
Now, in sitting position, put your feet in the bottom frame foot rests cushion gaps and lift
the bottom frame upwards by using both feet simultaneously.
Now you climbed one step and can stand on the bottom frame.
Lift the upper frame (while standing on the bottom frame) by using both hands and place
the frame around the tree tightly.
Always maintain 2 Inch or 2 fingers gap between the Trunk & Front Rubber Rollers in
both frames.
As shown here make the frame
straight and with support of your
thighs hold to the trunk and then us-
ing Hand Levers adjust the Trunk
Girth
STEP 6 TRUNK GIRTH ADJUSTMENTS FOR UPPER & BOTTOM
As shown here make the Bottom frame
straight and Pull the Link Belts upwards (this
releases the lock pin) then Using your leg
push it backwards to adjust the Trunk Girth
(it automatically moves forward once you pull
both the link belts, it is attached with a spring
assisted mechanism)
For coming down act upon as per the instructions in 4th and the 5th one by one recipro-
cally.
FOR DEMO VIDEO
VISIT
www.treeclimber.in/
demo
YOUTUBE VIDEO LINK - https://bit.ly/2wU4OON

PARTS OVERVIEW
LINCH PIN
HAND LEVER
LINK BELTS
SAFETY
SEAT – Do
not sit on this
SIT HERE
(oval frame)
RUBBER CUSHION
RUBBER PADS
SAFETY HARNESS
LINK BELTS
First fix the instruments bottom frame on the tree by using the attachments (LINCH PIN) in
the frame and then fix the upper frame accordingly. Fix the joining link belt with both frames
which joins the both frames.
For Link Belt height adjustment, adjust the distance between the bottom frame and upper
frame according to the tree climbing person’s height.
STEP 1
STEP 2
2) Place your feet in the space provided for standing purpose. In standing position lift the up-
per frame slowly with both hands and place the frame in sliding position on the tree and sit
on the upper frame. (Not on Tarpaulin / Canvas Seat)
->Always keep your hands in the centre of the frame to balance evenly.
3) Now connect the safety belt with upper frame by using the belt fixtures, in the approxi-
mate places of the frame.
STEP 3
STEP 4
STEP 5
&
CLIMBING UP /
DOWN
