RTimes RTSO-6003 User manual

RTSO-6003
Product Manual
Realtimes Beijing Technology Co., LTD.
Fax：[phone]
Email: [e-mail]
Web Page: https://www.realtimesai.com
Address: 11th Floor, Block B, 20th Heping Xiyuan, Pingxi Street, Chaoyang
District, Beijing 100013,P.R.China

Realtimes Beijing Technology Co.,LTD www.realtimesai.com
RTSO-6003 Product Manual V1.0
1
Product manual update history
Revision
Date
Reason for change
Applicable hardware version
V1.0
2020-12
Initial release
V1.1
V1.1
2021-8
Add sub-model, add component location map
V1.1

Realtimes Beijing Technology Co.,LTD www.realtimesai.com
RTSO-6003 Product Manual V1.0
2
Electronic components and circuits are very sensitive to electrostatic discharge. Although our
company designs anti-static protection for the main interfaces on the card when designing circuit
board products, it is difficult to achieve anti-static safety protection for all components and circuits.
Therefore, it is recommended to observe anti-static safety precautions when handling any circuit
board component (including RTS0-6003). Anti-static safety protection measures include, but are not
limited to the following:
a) The smart box should be placed in an anti-static bag during transportation and storage, and then
the board should not be taken out during installation and deployment.
b) Before touching the smart box, discharge the static electricity stored in the body: wear a
discharge grounding wrist strap.
c) Operate the smart box only within the safe area of the electrostatic discharge point.
d) Avoid moving smart boxes in carpeted areas.
Precautions and after-sales maintenance
matters needing attention
Before using the product, please read this manual carefully and keep it for future reference;
⚫Please pay attention to and follow all warning and guidance information marked on the product;
⚫Please use matching power adapter to ensure the stability of voltage and current;
⚫Please use this product in a cool, dry and clean place;
⚫Do not use this product in cold and hot alternate environment to avoid condensation damage
components;
⚫Do not splash any liquid on the product. Do not use organic solvent or corrosive liquid to clean
the product;
⚫Do not use the product in dusty and messy environment. If it is not used for a long time, please
pack the product;
⚫Do not use in the environment with excessive vibration, any dropping or knocking may damage
the circuit and components;
⚫Do not plug and unplug the core board and peripheral modules when power is on;
⚫Please do not repair or disassemble the product by yourself. In case of any fault, please contact
our company in time for maintenance;

Realtimes Beijing Technology Co.,LTD www.realtimesai.com
RTSO-6003 Product Manual V1.0
3
⚫Do not modify or use unauthorized accessories by yourself, and the damage caused will not be
warranted;
After sales maintenance
1) Warranty period
⚫Base plate, core plate : 3 year (non-human damage)
⚫Other peripherals sold by the company:1year(non-human damage)
2) Warranty description
⚫Within 7 days: the product (base plate, core module) is not damaged by human, our company
will replace / repair it free of charge, and bear the return freight; (because the core module needs
NVIDIA to confirm that it can meet the requirements of repair, it will take a long time, we will
coordinate as soon as possible, please forgive for the inconvenience)
⚫From 7 days to 36 months: the product (base plate, core module) is not damaged by human, our
company will repair it free of charge, and bear the return freight; (because the core module needs
NVIDIA to confirm that it can meet the requirements of repair, it will take a long time, we will
coordinate as soon as possible, please forgive for the inconvenience)
⚫Artificial damage in more than 3 year or 3 year: the product (carrier plate) shall be tested after it
is sent to the customer, and the customer shall be informed of whether it can be repaired and the
maintenance cost in detail. After reaching an agreement, the product shall be repaired and returned to
the customer, and the company shall bear the return freight;
⚫The starting time shall be subject to the date of express delivery receipt;
3) Contact information
Official website: www.realtimesai.com
Taobao website: https://shop340963258.taobao.com/
Address: 11, block B, Heping Xiyuan, Heping West Street, Chaoyang District, Beijing
Attention: RMA
Tel: [phone]
Mailing notice: contact with the company's sales department in advance, arrange technical support
personnel to check and eliminate errors caused by misoperation as soon as possible, fill in the product
after-sale return to factory maintenance form after verification, and send it to [e-mail] Mail
box, please attach the list of items to facilitate verification, so as to avoid loss and loss in the process
of express delivery. The company does not receive any delivery
Technical support and development customization
1. Scope of technical support
1) The company releases the electrical characteristics and use of industrial carrier boards and
modules;
2) Physical dimension of hardware, relevant structure diagram and line sequence definition of
specific interface;
3) Burn in verification of all BSP support packages provided by the company;
4) The company released burn environment construction, entry-level use. ;
5) Various peripheral module drivers released by the company;
6) The company's product fault diagnosis and after-sales maintenance services;
2. Scope of technical discussion
Due to the wide range of embedded system knowledge and various types of involvement, we can not

Realtimes Beijing Technology Co.,LTD www.realtimesai.com
RTSO-6003 Product Manual V1.0
4
guarantee that all kinds of questions can be answered one by one. The following content is not
available for technical support, only suggestions can be provided.
1) Knowledge beyond the course published by our company;
2) Specific software program design;
3) Technical support for industrial carrier not issued by the company;
4) All kinds of driving support for industrial carrier board not issued by the company;
5) Hardware principle and drive design of peripheral module not issued by our company;
3. Technical support mode
1)Official website or email questions (recommended):https://www.realtimesai.com/cn/download.html
[e-mail]
2) Official Taobao through Alibaba Wangwang consultation: https://shop340963258.taobao.com/
3) Wechat group consultation (wechat Group No. consults Taobao customer service or sales, and
Taobao purchase order No. needs to be provided for verification);
4) Technical support email: [e-mail]
5) Tel: [phone]
4. Technical support time
Monday to Friday; 8:30-12:00 am; 1:00-17:30 PM;
The company arranges the rest according to the national legal holidays, during which it may not be
able to provide technical support, please send the problem to the technical support email. We will
reply to you as soon as possible on weekdays.
5. Complaints and suggestions
If you are not satisfied with us or have suggestions, you can send an email to yu.qin @ realtimes.cn
For feedback, please call 010-84284669 for further improvement.
6. Customized development services
The company provides the embedded operating system driver based on NVIDIA Jetson series and the
paid customized development service of hardware carrier board to shorten your product development
cycle.
Please email the request to [e-mail]
Data acquisition and subsequent update
1. Access to information
Download on our website
The company's website contains supporting information of its products, including product user
manual, NVIDIA Jetson series module data manual, BSP driver support package for carrier
board, supporting peripheral driver files, interface test verification method, FAQ, system burning
guide, etc. get into www.realtimesai.com , select "data download" in the
navigation bar, find the data you need, and click download.
2. . Subsequent updates
Updates of subsequent documents, BSP, driver files and other official account will be updated in
time. We will pay close attention to our developments in order to ensure that your information is up to
date. We will push through WeChat public.
2) Specific software program design;
3) Technical support for industrial carrier not issued by the company;

Realtimes Beijing Technology Co.,LTD www.realtimesai.com
RTSO-6003 Product Manual V1.0
5
4) All kinds of driving support for industrial carrier board not issued by the company;
5) Hardware principle and drive design of peripheral module not issued by our company;
3. Technical support mode
1) Official website or email questions (recommended): https://www.realtimesai.com/cn/download.html
[email protected]
2) Official Taobao through Alibaba Wangwang consultation: https://shop340963258.taobao.com/
3) Wechat group consultation (wechat Group No. consults Taobao customer service or sales, and Taobao purchase
order No. needs to be provided for verification);
4) Technical support email: [email protected]
5) Tel: [phone]
4. Technical support time
Monday to Friday; 8:30-12:00 am; 1:00-17:30 PM;
The company arranges the rest according to the national legal holidays, during which it may not be able to provide
technical support, please send the problem to the technical support email. We will reply to you as soon as possible on
weekdays.
5. Complaints and suggestions
If you are not satisfied with us or have suggestions, you can send an email to yu.qin @ realtimes.cn For feedback,
please call 010-84284669 for further improvement.
6. Customized development services
The company provides the embedded operating system driver based on NVIDIA Jetson series and the paid customized
development service of hardware carrier board to shorten your product development cycle.
Please email the request to [email protected]
Data acquisition and subsequent update
3. Access to information
Download on our website
The company's website contains supporting information of its products, including product user manual, NVIDIA
Jetson series module data manual, BSP driver support package for carrier board, supporting peripheral driver
files, interface test verification method, FAQ, system burning guide, etc.get into www.realtimesai.com , select
"data download" in the navigation bar, find the data you need, and click download.
4. Subsequent updates
Updates of subsequent documents, BSP, driver files and other official account will be updated in time. We will pay
close attention to our developments in order to ensure that your information is up to date. We will push through
WeChat public.

Realtimes Beijing Technology Co.,LTD www.realtimesai.com
RTSO-6003 Product Manual V1.0
6
Catalogue
1 ABSTRACT...............................................................................................................................................................7
1.1 FEATURES...........................................................................................................................................................7
1.2 ORDERING INFORMATION...................................................................................................................................8
2 CONNECTOR LOCATIONS..................................................................................................................................9

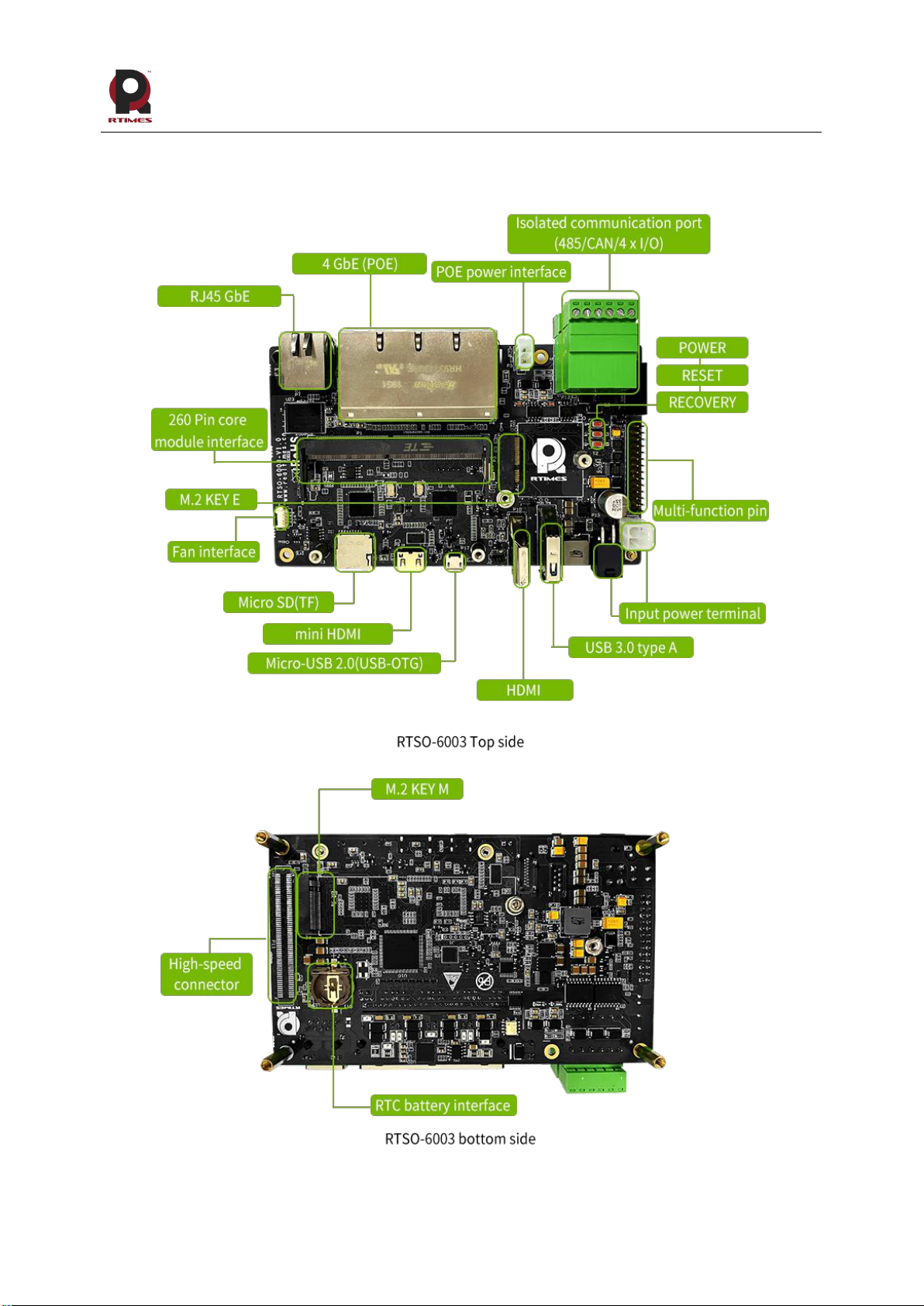

2.1 COMPONENT LOCATION DIAGRAM............................................................................................................................. 10
2.2FUNCTIONAL CONNECTOR.................................................................................................................................. 11
2.3LED................................................................................................................................................................... 11
2.4BUTTONS............................................................................................................................................................ 11
3 INSTALLATION AND USE..................................................................................................................................12
3.1 PICTURE OF PRODUCTS.....................................................................................................................................12
3.2DRIVE.................................................................................................................................................................12
3.3USAGE.............................................................................................................................................................. 13
3.4RECOVERY MODE...........................................................................................................................................13
4 CONNECTORS DESCRIPTION......................................................................................................................... 14

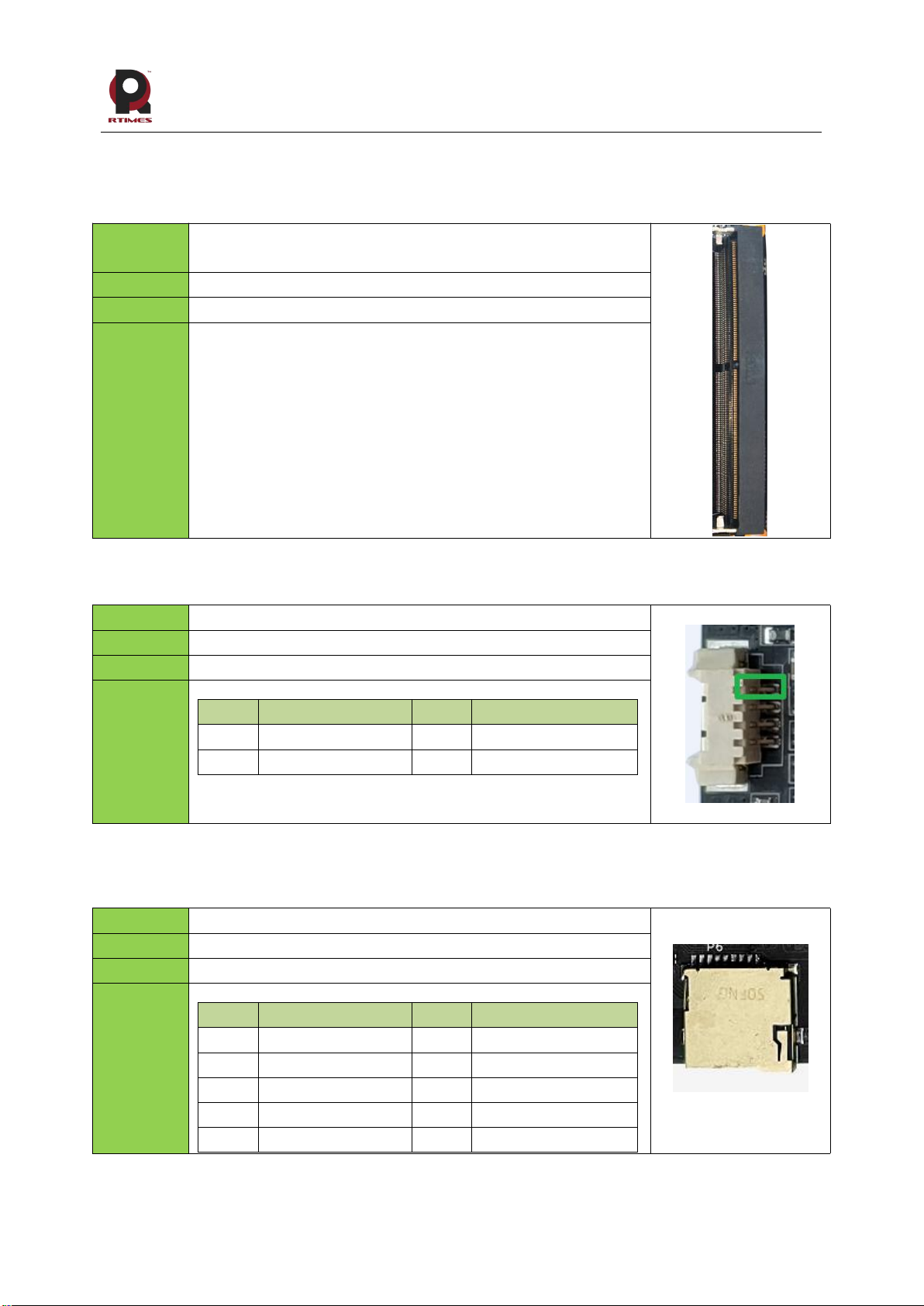

4.1 MODULE INTERFACE......................................................................................................................................... 14
4.2 FAN INTERFACE................................................................................................................................................ 14
4.3 MICRO SD CARD SLOT.....................................................................................................................................14
4.4 HDMI2.0 INTERFACE....................................................................................................................................... 15
4.5 MINI HDMI INTERFACE................................................................................................................................... 15
4.6 RTC BATTERY INTERFACE................................................................................................................................ 15
4.7 M.2 KEY E SLOT............................................................................................................................................. 16
4.8 M.2 KEY M SLOT............................................................................................................................................17
4.9 POWER INPUT INTERFACE 1..............................................................................................................................18
4.10 POWER INPUT INTERFACE 2............................................................................................................................18
4.11 NETWORK INTERFACE.................................................................................................................................... 19
4.12 4 INTEGRATED FRONT-END PORTS(POE)........................................................................................................ 19
4.13POE POWER CONNECTOR.............................................................................................................................. 19
4.14USB3.0 INTERFACE........................................................................................................................................20
4.15USB2.0 OTG................................................................................................................................................. 20
4.16 ISOLATED COMMUNICATION PORT.................................................................................................................. 20
4.17 MULTI-FUNCTION NEEDLE INSERTION............................................................................................................21
4.18 HIGH SPEED CONNECTOR............................................................................................................................... 22
5 HARDWARE UPDATE HISTORY...................................................................................................................... 24
6 PRODUCT SIZE.....................................................................................................................................................24
TERMS OF WARRANTY........................................................................................................................................ 25

Realtimes Beijing Technology Co.,LTD www.realtimesai.com
RTSO-6003 Product Manual V1.0
7
1 Abstract
NVIDIA Jetson Nano/Xavier NX/TX2 NX are NVIDIA's deep learning processors with powerful
computing power and modules the size of a credit card. Mainly aimed at the rapid development of artificial
intelligence market in recent years, such as unmanned aerial vehicle, automatic driving system, etc., has a
relatively broad application prospect. RTSO-6003 is an industrial-grade load plate for Jetson Nano/Xavier
NX/TX2 NX, operating temperature -40~+80℃, low power consumption, high safety level, can meet all kinds
of harsh conditions.
1.1 Features
Type distinction:
Interface comparison:
Difference
6003
6003E
6003L
6003LE
POE power supply
Have
Have
Without
Without
Onboard eMMC
Without
Have
Without
Have
Type
Interface
6003
6003E
6003L
6003LE
Adaptation
core
Xavier NX/TX2 NX/Nano
USB
1 x USB3.0 Type-A port, support USB3.0 signal, provide 1A output current, 1 x Micro
USB2.0 OTG port, support USB host and USB device mode, provide 1A output current
HDMI
1x HDMI 2.0 interface，1x Mini HDMI 2.0 interface
Network Port
1 x GbE （10/100/1000 BASE-T），
4x GbE（POE）
1 x GbE （10/100/1000 BASE-T），4x GbE
POE Interface
1 x POE power interface
(4 integrated network ports)
Without
Communicatio
n port
1 x Isolated communication port (485, CAN, 4 I/O ports)
(with Nano core without CAN function)
High-speed
connector
1 x High-speed connector
(can be connected to 6003T1/6003T2 function expansion board)
M.2 Interface
1x M.2 KEY M 2280 interface，1x M.2 KEY E 2230 interface
RTC Interface
1x RTC battery interface
Multi-function
1 x Multi-function Pin
SD/EMMC
1 x Micro SD
1 x128G EMMC
1 x Micro SD
1 x 128G EMMC
FAN Interface
1x FAN interface
Dimensions
150mm*94mm*28mm
Power
+12V
Temperature
-40~+80℃
Weight
About 165g

Realtimes Beijing Technology Co.,LTD www.realtimesai.com
RTSO-6003 Product Manual V1.0
8
1.2 Ordering Information
Model Options
Description
RTSO-6003
Support NANO/Xavier NX/TX2 NX module, 1 x GbE, 4 x GbE
(POE 802.3af/at), 4 x GPIO (2 X isolated input, 2 X isolated
output), 1 x RS-485 (isolated), 1 x CAN (isolated), 2 x UART
(3.3V), 2 x I2C (3.3V), 2 x SPI (3.3V), 1 x USB3.0, 1 x USB
OTG, 1 x HDMI, 1 x Mini HDMI, 1 x microSD, 1 x M.2 KEY
M, 1 x M.2 KEY E, RoHS Compliant, providing Realtimes
Linux4Tegra software support package.
RTSO-6003E
Support NANO/Xavier NX/TX2 NX module, 1 x GbE, 4 x GbE
(POE 802.3af/at), 4 x GPIO (2 X isolated input, 2 X isolated
output), 1 x RS-485 (isolated), 1 x CAN (isolated), 2 x UART
(3.3V), 2 x I2C (3.3V), 2 x SPI (3.3V), 1 x USB3.0, 1 x USB
OTG, 1 x HDMI, 1 x Mini HDMI, 128GB eMMC, 1 x M.2
KEY M, 1 x M.2 KEY E, providing Realtimes Linux4Tegra
software support package.
RTSO-6003L
Support NANO/Xavier NX/TX2 NX module, 5 x GbE, 4 x
GPIO (2 X isolated input, 2 X isolated output), 1 x RS-485
(isolation), 1 x CAN (isolation), 2 x UART (3.3 V), 2 x I2C
(3.3V), 2 x SPI (3.3V), 1 x USB3.0, 1 x USB OTG, 1 x HDMI,
1 x Mini HDMI, 1 x microSD, 1 x M.2 KEY M , 1 x M.2 KEY
E, provide Realtimes Linux4Tegra software support package.
RTSO-6003LE
Support NANO/Xavier NX/TX2 NX module, 5 x GbE, 4 x
GPIO (2 X isolated input, 2 X isolated output), 1 x RS-485
(isolation), 1 x CAN (isolation), 2 x UART (3.3 V), 2 x I2C
(3.3V), 2 x SPI (3.3V), 1 x USB3.0, 1 x USB OTG, 1 x HDMI,
1 x Mini HDMI, 128GB eMMC, 1 x M.2 KEY M, 1 x M.2 KEY
E, providing Realtimes Linux4Tegra software support package
RTSS-NWL(optional)
M.2 WIFI/Bluetooth module (including antenna)
NVME-SSD-256(optional)
Industrial grade 256GB NVME solid state drive (2280)
RTSV-6902(optional)
RTSV-6904(optional)
RTSV-6906(optional)
M.2 video capture card, RTSV-6902 (dual channel SDI video
input), RTSV-6904 (four channel SDI video input), RTSV-6906
(single channel 4K SDI video input)
Order online
https://shop340963258.taobao.com
https://mall.jd.com/index-824786.html

Realtimes Beijing Technology Co.,LTD www.realtimesai.com
RTSO-6003 Product Manual V1.0
9
2 Connector Locations

Realtimes Beijing Technology Co.,LTD www.realtimesai.com
RTSO-6003 Product Manual V1.0
10
2.1 Component location diagram
Positioning of front components
Location of components on the back

Realtimes Beijing Technology Co.,LTD www.realtimesai.com
RTSO-6003 Product Manual V1.0
11
2.2 Functional connector
Mandatory Sign
Functional Description
P11
High speed connector
P14
FAN interface
P1
260 Pin SO-DIMM，Used to connect to the NVIDIA Jetson
Nano/Xavier NX/TX2 NX core module
BT1
RTC battery interface
P6
Micro SD（TF）card slot
P2
M.2 KEY M interface
P3
M.2 KEY E interface
P9
Mini HDMI Display interface
P17
Micro-USB 2.0（USB-OTG）interface
P10
HDMI Display interface
P18
USB3.0 type A interface
P15,P16
Input power terminal
P12
Multi-function needle insertion
P13
Isolated communication port（485，CAN，4x I/O）
P5
POE Power interface(6003L/6003LE does not have this interface)
P4
Four integrated gigabit network port(POE)
P7
RJ45 Gigabit Ethernet
2.3 LED
Mandatory Sign
Functional Description
State
D43
12V Power light
Steady bright--normal
D14
POE Power light
Steady bright--normal
D40
3.3V Power light
Steady bright--normal
D2
M.2 KEY M working station indicator
nvme flashes when reading and
writing
D37
Indicator light for board running status
Flashing-normal
D3,D4
M.2 KEY E working station indicator
M.2 LED1，M.2 LED2
2.4 Buttons
Mandatory Sign
Functional Description
SW1
The POWER button is used for system shutdown and POWER on after soft
shutdown
SW2
The RESET button is used to restart the core module
SW3
The RECOVERY button to enable the core module to enter recovery mode

Realtimes Beijing Technology Co.,LTD www.realtimesai.com
RTSO-6003 Product Manual V1.0
12
3 Installation and use
3.1 picture of products
3.2 Drive
The RTSO-6002 carrier board works on a system burned with the official original version of NVIDIA
Linux For Tegra (L4T). HDMI, Gigabit Ethernet, USB2.0, serial port, GPIO, SD card, I2C bus can all be
supported. But Mini-PCIe, USB3.0, fan interface, etc. cannot work normally.
RTSO-6002 carrier board interface is fully supported, and the supporting driver patch needs to be loaded.
The original NVIDIA LT4 software package (for system programming) can be downloaded from the link
below:
https://developer.nvidia.com/embedded/linux-tegra
RTSO-6002 driver patch support package (for system programming) download link:
http:// www.realtimes.cn/download/
System burning method (help document):
https://www.realtimes.cn/cn/help.html
Note: The account password of Ruitai Cloud Space must be obtained by contacting technical
support.

Realtimes Beijing Technology Co.,LTD www.realtimesai.com
RTSO-6003 Product Manual V1.0
13
3.3 usage
a) Ensure that all external system voltages are switched off
b) Install the Jetson Nano/Xavier NX/TX2 NX core module on the 260 Pin SO-DImm connector.
During the installation, please pay attention to the alignment between the connectors, apply force
evenly, and install the fixing screws.
c) Install necessary external cables. (e.g., the display cable to the HDMI display, the power input cable
to power the system, the USB cable to link the keyboard and mouse...)
d) Connect the power cord to the power supply.
e) RTSO-6003 adopts the automatic/manual power-on design. Power is turned on and the system starts
to work.
f) For the system without protective enclosure, please avoid moving the whole system after the system
is powered on. It is strictly prohibited to use the body to touch the circuit board and its electronic
components.
3.4 Recovery MODE
Jetson Nano/Xavier NX/TX2 NX core module can work in normal mode and Recovery mode, under
which file system update, kernel update, Boot Loader update, BCT update and other operations can be
carried out.
The steps to enter the Recovery mode are as follows:
a) Turn off the power supply to the system.
b) Use USB cable to connect RTSO-6003's OTG-USB port (P17) with Jetson to develop host USB
port.
c) Press and hold the RECOVERY button to supply power to the system. The power supply should be
maintained for more than 3 seconds, and then release the RECOVERY button.
d) The system enters the Recovery mode, and subsequent operations can be carried out at this point.

Realtimes Beijing Technology Co.,LTD www.realtimesai.com
RTSO-6003 Product Manual V1.0
14
4 Connectors Description
4.1 module interface
Function
Connect to the NVIDIA Jetson Nano/Xavier NX/TX2 NX core
module
Marking
P1
Type
260 Pin SO-DIMM
Pin define
For the pin definition of the connector, see the pin definition
instructions in the NVIDIA Jetson Nano/Xavier NX/TX2 NX Core
Module data Book.
4.2 Fan interface
Function
Connect external cooling fan
Marking
P14
Type
Molex PicoBlade Header
Pin define
Pin-1：the mark in the green box of the picture on the right.
Pin
Signal
Pin
Signal
1
GND
2
VDD5V
3
TACH
4
PWM
4.3 Micro SD card slot
Function
Micro SD（TF）card slot
Marking
P6
Type
Micro SD（TF）
Pin define
Pin
Signal
Pin
Signal
1
SD_D2
2
SD_D3/CD
3
SD_CMD
4
SD_VDD
5
SD_CLK
6
GND
7
SD_D0
8
SD_D1
9
CD

Realtimes Beijing Technology Co.,LTD www.realtimesai.com
RTSO-6003 Product Manual V1.0
15
4.4 HDMI2.0 interface
Function
HDMI2.0 interface
Marking
P10
Type
HDMI2.0
Pin define
Pin
Signal
Pin
Signal
1
TMDS Data2+
2
TMDS Data2 shield
3
TMDS Data2-
4
TMDS Data1+
5
TMDS Data1 shield
6
TMDS Data1-
7
TMDS Data0+
8
TMDS Data0 shield
9
TMDS Data0-
10
TMDS Clock+
11
TMDS Clock shield
12
TMDS Clock-
13
CEC
14
Reserved
15
SCL
16
SDA
17
DDC/CEC_GND
18
+5V Power
19
Hot Plug Detect
4.5 Mini HDMI interface
Function
HDMI interface
Marking
P9
Type
Mini HDMI
Pin define
Pin
Signal
Pin
Signal
1
TMDS Data2 shield
2
TMDS Data2+
3
TMDS Data2-
4
TMDS Data1 shield
5
TMDS Data1+
6
TMDS Data1-
7
TMDS Data0 shield
8
TMDS Data0+
9
TMDS Data0-
10
TMDS Clock shield
11
TMDS Clock+
12
TMDS Clock-
13
DDC/CEC Ground
14
CEC
15
SCL
16
SDA
17
Reserved
18
+5V Power
19
Hot Plug Detect
4.6 RTC battery interface
Function
RTC battery interface
Marking
BT1
Type
CR1220-S8411-45R
Pin define
Pin
Signal
Pin
Signal
1
+
2
-

Realtimes Beijing Technology Co.,LTD www.realtimesai.com
RTSO-6003 Product Manual V1.0
16

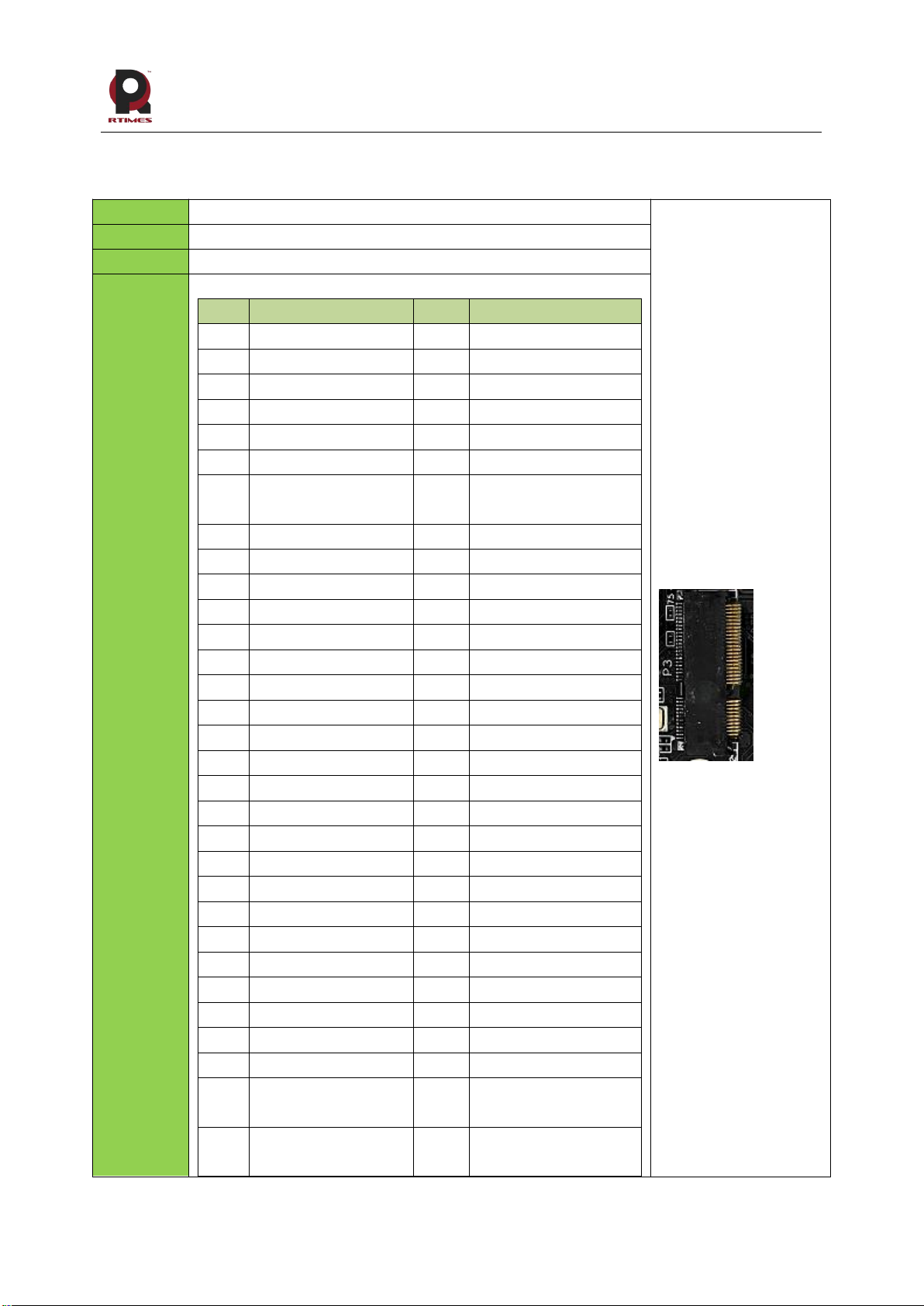

4.7 M.2 KEY E slot
Function
M.2 KEY E interface
Marking
P3
Type
M2 connector 2199230-4
Pin define
Pin
Signal
Pin
Signal
1
GND
2
3.3V
3
USB_DP
4
3.3V
5
USB_DM
6
LED#
7
GND
8
PCM_CLK/12S SCK
9
SDIO CLK
10
PCM_SYNC/12S WS
11
SDIO CMD
12
AP_PCM_IN/12S SD_IN
13
SDIO DATA0
14
AP_PCM_OUT/12S
SD_OUT
15
SDIO DATA1
16
LED2#
17
SDIO DATA2
18
GND
19
SDIO DATA3
20
UART_WAKE#
21
SDIO WAKE#
22
AP_UART_RXD
23
SDIO RESET#
32
AP_UART_TXD
33
GND
34
AP_UART_CTS
35
AP_PETP0
36
AP_UART_RTS
37
AP_PETN0
38
VENDOR_DEFINED
39
GND
40
VENDOR_DEFINED
41
AP_PERP0
42
VENDOR_DEFINED
43
AP_PERN0
44
COEX3
45
GND
46
COEX2
47
REFCLKP0
48
COEX1
49
REFCLKN0
50
SUSCLK_32KHZ
51
GND
52
PERST0#
53
CLKREQ0#
54
W_DISABLE2#
55
PEWAKE0#
56
W_DISABLE1#
57
GND
58
I2C_DATA
59
AP_RESERVED/PETP1
60
I2C_CLK
61
AP_RESERVED/PETN1
62
ALERT#
63
GND
64
RESERVED
65
AP_RESERVED/PERP1
66
UIM_SWP/PERST1#
67
AP_RESERVED/PERN1
68
UIM_POWER_SNK/CLK
REQ1#
69
GND
70
UIM_POWER_SRC/GPIO
1/PEWAKE1#

Realtimes Beijing Technology Co.,LTD www.realtimesai.com
RTSO-6003 Product Manual V1.0
17
71
RESERVED/REFCLKP1
72
3.3V
73
RESERVED/REFCLKN1
74
3.3V
75
GND
4.8 M.2 KEY M slot
Function
M.2 KEY M interface
Marking
P2
Type
M2 connector 1-2199230-4
Pin define
Pin
Signal
Pin
Signal
1
GND
2
3V3
3
GND
4
3V3
5
PER3_N
6
NC
7
PER3_P
8
NC
9
GND
10
LED
11
PET3_N
12
3V3
13
PET3_P
14
3V3
15
GND
16
3V3
17
PER2_N
18
3V3
19
PER2_P
20
NC
21
GND
22
NC
23
PET2_N
24
NC
25
PET2_P
26
NC
27
GND
28
NC
29
PER1_N
30
NC
31
PER1_P
32
NC
33
GND
34
NC
35
PET1_N
36
NC
37
PET1_P
38
NC
39
GND
40
SMB_CLK
41
PER0_N
42
SMB_DATA
43
PER0_P
44
ALERT*
45
GND
46
NC
47
PET0_N
48
NC
49
PET0_P
50
PERST#
51
GND
52
CLKREQ#
53
REFCLK_N
54
PEWAKE#
55
REFCLK_P
56
NC
57
GND
58
NC

Realtimes Beijing Technology Co.,LTD www.realtimesai.com
RTSO-6003 Product Manual V1.0
18
67
NC
68
SUSCLK(32KHZ)
69
NC
70
3V3
71
GND
72
3V3
73
GND
74
3V3
75
GND
4.9 Power input interface 1
Function
Power input terminal
Marking
P16
Type
Pin seat connector - through hole -4- position-0.165"（4.20mm）
39281043
Pin define
Pin1：Marked in the green box on the right
Pin2：Marked in the red box on the right
Pin
Signal
Pin
Signal
1
POWER_IN
2
POWER_IN
3
GND
4
GND
4.10 Power input interface 2
Function
Power input interface 1
Marking
P15
Type
Pin seat connector - through hole -4- 位 置 -0.165" （4.20mm ）
1724480004
Pin define
Pin1：Marked in the green box on the right
Pin2：Marked in the red box on the right
Pin
Signal
Pin
Signal
1
POWER_IN
2
POWER_IN
3
GND
4
GND

Realtimes Beijing Technology Co.,LTD www.realtimesai.com
RTSO-6003 Product Manual V1.0
19
4.11 Network interface
Function
Gigabit Ethernet connector
Marking
P7
Type
RJ45 packaging
Pin define
Pin
Signal
Pin
Signal
1
TP0+
2
TP0-
3
TP1+
4
TP2+
5
TP2-
6
TP1-
7
TP3+
8
TP3-
4.12 4 Integrated front-end ports(POE)
Function
Four gigabit Ethernet connectors（POE）
Marking
P4
Type
HR931474CE
Pin define
Pin
Signal
Pin
Signal
1
TP0+
2
TP0-
3
TP1+
4
TP2+
5
TP2-
6
TP1-
7
TP3+
8
TP3-
Note: 6003L/6003LE has no POE power supply function.
4.13 POE Power connector
Function
POE Power connector
Marking
P5
Type
Vertical joint connector, 4.2MM pitch double row 2PIN
Pin define
Pin
Signal
Pin
Signal
1
POE_VCC
2
POE_GND
Pin1：Marked in the green box on the right
Note: 6003L/6003LE does not have this interface.
