RTimes Z509 User manual

Z509
Product Manual
Realtimes Beijing Technology Co., LTD.
Fax：[phone]
Email: [e-mail]
Web Page: https://www.realtimesai.com
Address: 11th Floor, Block B, 20th Heping Xiyuan, Pingxi Street, Chaoyang
District, Beijing 100013,P.R.China

Z509 Reference Manual V1.1
Revision History
Revision
Date
Reason for change
Applicable
hardware version
Modified by
V1.0
2020-02
Initial release
V1.0
V1.1
2022-1-17
Add a description of the software version
V1.0
RT0086

Realtimes Beijing Technology Co.,LTD www.realtimesai.com
Z509 Reference Manual V1.1
Table of Contents
Product presentation................................................................................................................................................... 6
1INTRODUCTION............................................................................................................................................................6
1.1 Features........................................................................................................................................................ 6
1.2 Ordering Information................................................................................................................................... 7
PRODUCT SPECIFICATIONS............................................................................................................................................8
1EXTERNAL INTERFACE FUNCTION AND LOCATION...................................................................................................8
2CONNECTORS DESCRIPTION.................................................................................................................................... 9

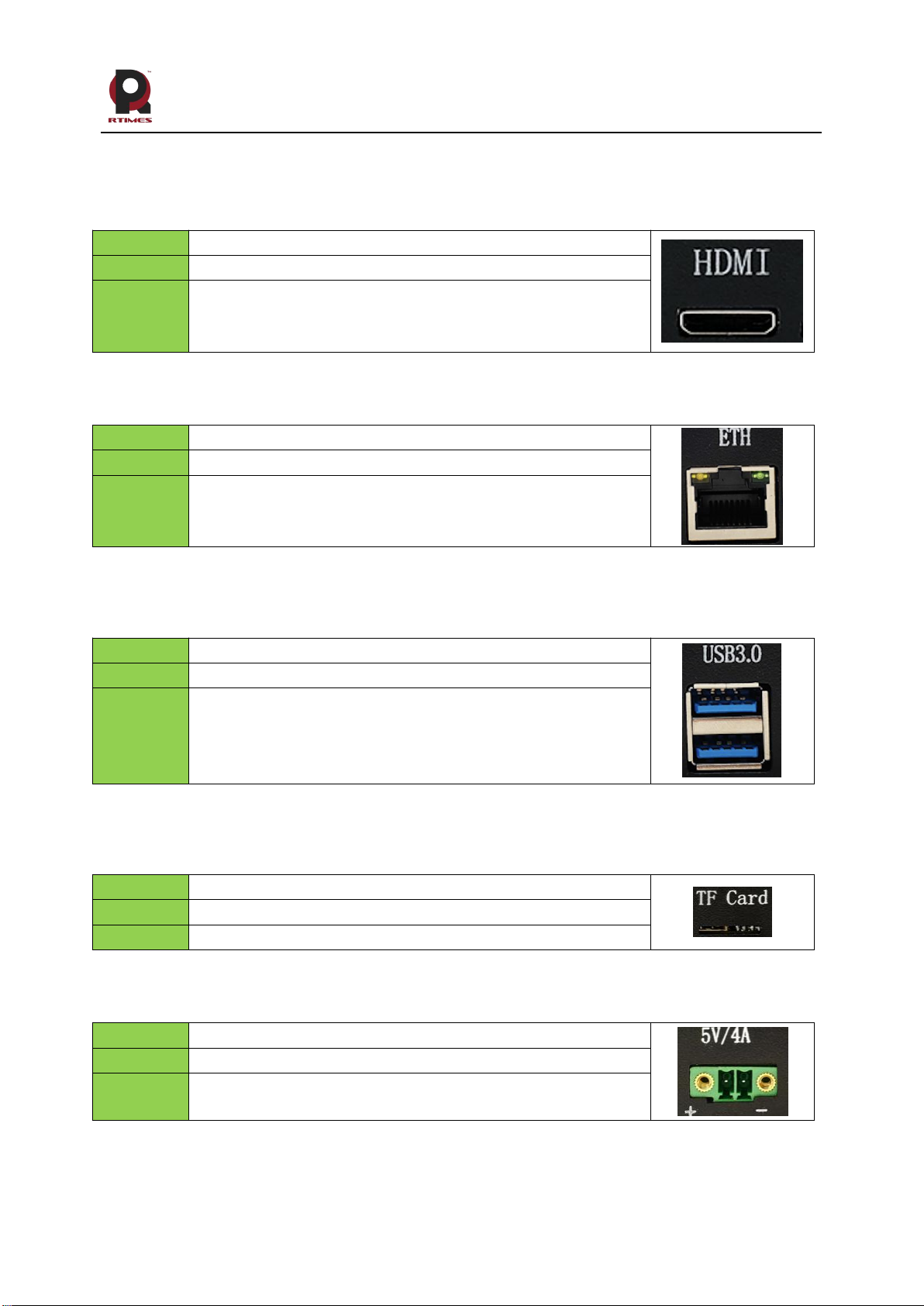

2.1 Mini HDMI interface....................................................................................................................................9
2.2 Ethernet connector....................................................................................................................................... 9
2.3 USB3.0 interface.......................................................................................................................................... 9
2.4 SD card slot.................................................................................................................................................. 9
2.5Power input interface....................................................................................................................................9
2.6 OTG-USB2.0 interface............................................................................................................................... 10
2.7 FDP-Link III camera interface................................................................................................................... 10
2.8 Multifunction connector............................................................................................................................. 10
2.8 wifi antenna interface..................................................................................................................................11

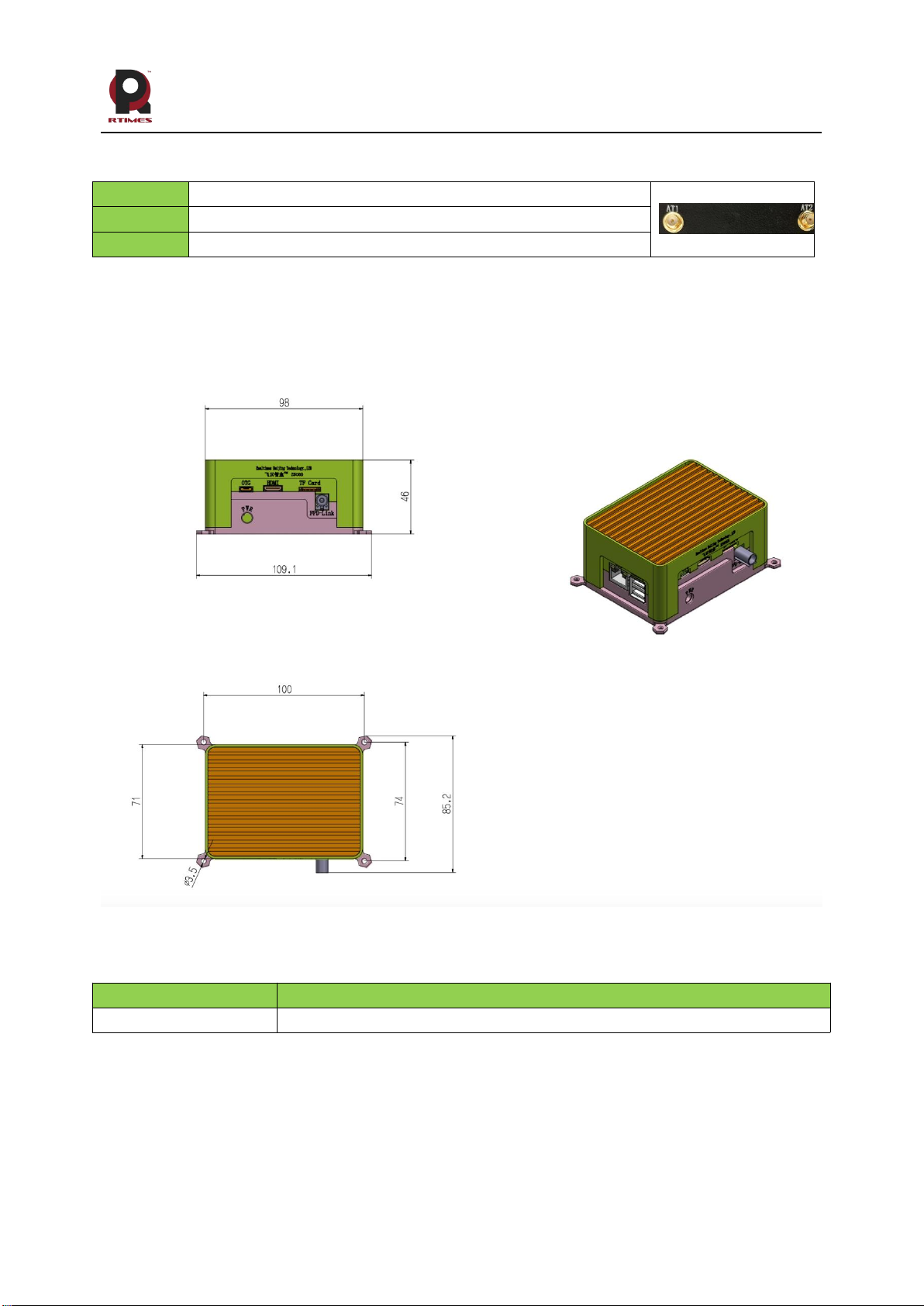

3PRODUCT SIZE DIAGRAM.......................................................................................................................................11
4HARDWARE UPDATE HISTORY................................................................................................................................11
SOFTWARE VERSION SUPPORTING INSTRUCTIONS................................................................................. 12
1USE......................................................................................................................................................................12
1.1 Smart box power on and start.................................................................................................................... 12
1.2 Recovery Mode.............................................................................................................................................. 12
2 L4T（LINUX FOR TEGRA ABBREVIATION“L4T”）............................................................................................ 12
3 JETPACK.............................................................................................................................................................. 13
3.1 Jetpack Component summary.....................................................................................................................13
3.2 How to install Jetpack................................................................................................................................ 13
3.3 Sample application..................................................................................................................................... 15
3.4 Developer tools...........................................................................................................................................15
3.5 Documentation........................................................................................................................................... 16
TERMS OF WARRANTY........................................................................................................................................ 17
COPYRIGHT NOTICE............................................................................................................................................ 18

Realtimes Beijing Technology Co.,LTD www.realtimesai.com
Z509 Reference Manual V1.1
Electronic components and circuits are very sensitive to electrostatic discharge. Although our
company designs anti-static protection for the main interfaces on the card when designing circuit
board products, it is difficult to achieve anti-static safety protection for all components and circuits.
Therefore, it is recommended to observe anti-static safety precautions when handling any circuit
board component (including Z509). Anti-static safety protection measures include, but are not limited
to the following:
a) The smart box should be placed in an anti-static bag during transportation and storage, and then
the board should not be taken out during installation and deployment.
b) Before touching the smart box, discharge the static electricity stored in the body: wear a
discharge grounding wrist strap.
c) Operate the smart box only within the safe area of the electrostatic discharge point.
d) Avoid moving smart boxes in carpeted areas.
Precautions and after-sales maintenance
matters needing attention
Before using the product, please read this manual carefully and keep it for future reference;
⚫Please pay attention to and follow all warning and guidance information marked on the product;
⚫Please use matching power adapter to ensure the stability of voltage and current;
⚫Please use this product in a cool, dry and clean place;
⚫Do not use this product in cold and hot alternate environment to avoid condensation damage
components;
⚫Do not splash any liquid on the product. Do not use organic solvent or corrosive liquid to clean
the product;
⚫Do not use the product in dusty and messy environment. If it is not used for a long time, please
pack the product;
⚫Do not use in the environment with excessive vibration, any dropping or knocking may damage
the circuit and components;
⚫Do not plug and unplug the core board and peripheral modules when power is on;
⚫Please do not repair or disassemble the product by yourself. In case of any fault, please contact
our company in time for maintenance;
⚫Do not modify or use unauthorized accessories by yourself, and the damage caused will not be

Realtimes Beijing Technology Co.,LTD www.realtimesai.com
Z509 Reference Manual V1.1
warranted;
After sales maintenance
1) Warranty period
⚫Base plate, core plate : 3 year (non-human damage)
⚫Other peripherals sold by the company:1year(non-human damage)
2) Warranty description
⚫Within 7 days: the product (base plate, core module) is not damaged by human, our company
will replace / repair it free of charge, and bear the return freight; (because the core module needs
NVIDIA to confirm that it can meet the requirements of repair, it will take a long time, we will
coordinate as soon as possible, please forgive for the inconvenience)
⚫From 7 days to 36 months: the product (base plate, core module) is not damaged by human, our
company will repair it free of charge, and bear the return freight; (because the core module needs
NVIDIA to confirm that it can meet the requirements of repair, it will take a long time, we will
coordinate as soon as possible, please forgive for the inconvenience)
⚫Artificial damage in more than 3 year or 3 year: the product (carrier plate) shall be tested after it
is sent to the customer, and the customer shall be informed of whether it can be repaired and the
maintenance cost in detail. After reaching an agreement, the product shall be repaired and returned to
the customer, and the company shall bear the return freight;
⚫The starting time shall be subject to the date of express delivery receipt;
3) Contact information
Official website: www.realtimesai.com
Taobao website: https://shop340963258.taobao.com/
Address: 11, block B, Heping Xiyuan, Heping West Street, Chaoyang District, Beijing
Attention: RMA
Tel: [phone]
Mailing notice: contact with the company's sales department in advance, arrange technical support
personnel to check and eliminate errors caused by misoperation as soon as possible, fill in the product
after-sale return to factory maintenance form after verification, and send it to [e-mail] Mail
box, please attach the list of items to facilitate verification, so as to avoid loss and loss in the process
of express delivery. The company does not receive any delivery
Technical support and development customization
1. Scope of technical support
1) The company releases the electrical characteristics and use of industrial carrier boards and modules;
2) Physical dimension of hardware, relevant structure diagram and line sequence definition of
specific interface;
3) Burn in verification of all BSP support packages provided by the company;
4) The company released burn environment construction, entry-level use. ;
5) Various peripheral module drivers released by the company;
6) The company's product fault diagnosis and after-sales maintenance services;
2. Scope of technical discussion
Due to the wide range of embedded system knowledge and various types of involvement, we can not
guarantee that all kinds of questions can be answered one by one. The following content is not
available for technical support, only suggestions can be provided.

Realtimes Beijing Technology Co.,LTD www.realtimesai.com
Z509 Reference Manual V1.1
1) Knowledge beyond the course published by our company;
2) Specific software program design;
3) Technical support for industrial carrier not issued by the company;
4) All kinds of driving support for industrial carrier board not issued by the company;
5) Hardware principle and drive design of peripheral module not issued by our company;
3. Technical support mode
1) Official website or email questions (recommended):
https://www.realtimesai.com/cn/download.html [e-mail]
2) Official Taobao through Alibaba Wangwang consultation: https://shop340963258.taobao.com/
3) Wechat group consultation (wechat Group No. consults Taobao customer service or sales, and
Taobao purchase order No. needs to be provided for verification);
4) Technical support email: techsupp[email protected]n
5) Tel:[phone]
4. Technical support time
Monday to Friday; 8:30-12:00 am; 1:00-17:30 PM;
The company arranges the rest according to the national legal holidays, during which it may not be
able to provide technical support, please send the problem to the technical support email. We will
reply to you as soon as possible on weekdays.
5. Complaints and suggestions
If you are not satisfied with us or have suggestions, you can send an email to yu.qin @ realtimes.cn
For feedback, please call 010-84284669 for further improvement.
6. Customized development services
The company provides the embedded operating system driver based on NVIDIA Jetson series and the
paid customized development service of hardware carrier board to shorten your product development
cycle.
Please email the request to [e-mail]
Data acquisition and subsequent update
1. Access to information
Download on our website
The company's website contains supporting information of its products, including product
Product Manual, NVIDIA Jetson series module data manual, BSP driver support package for
carrier board, supporting peripheral driver files, interface test verification method, FAQ, system
burning guide, etc. get into www.realtimesai.com , select "data download" in the
navigation bar, find the data you need, and click download.
2. . Subsequent updates
Updates of subsequent documents, BSP, driver files and other official account will be updated in
time. We will pay close attention to our developments in order to ensure that your information is up to
date. We will push through WeChat public.

Realtimes Beijing Technology Co.,LTD www.realtimesai.com
Z509 Reference Manual V1.1
Product presentation
1Introduction
RTSS - Z509 to one based on NVIDIA Jetson ™ Xavier NX series ™ module design of your new
feiyun box, built-in integration 384 nuclear Volta architecture of GPU Xavier NX module, Ubuntu 18.04
operating system, with 21 tops the AI processing capacity of floating point arithmetic, using super strong light
aluminum alloy material design, transmitting heat, good heat dissipation ability, The overall size is small and
light, good structure of human body engineering, obligate has easy wing structure, installation site 7 x24 hours
long MTBF and stable operation ability, can be applied to robots, unmanned delivery vehicles, intelligent
brake machine, intelligent selling customized machine, such as container is the edge of the end calculate force
deployment AI ideal vehicle for the in-depth study.
External interface resources provided by Z509 include: 1 X GbE,1 x Mini PCIE, 1 x USB3.0, 1 x
USB2.0, 1 x USB OTG,2 x 3.3V UART, 1 x FPD-Link III,1 x MIPI,12 X GPIO(optional),1 X Mini HDMI,1 x
Micro SD, 1 x Micro SIM,4G LTE(optional), the products have passed CCC certification and CE certification
of EU.
1.1 Features
Arithmetic unit：Integration NVIDIA Jetson™ Xavier NX
GPU: NVIDIA Jetson™ Xavier NX 384 core with NVIDIA Maxwell™ architecture
CPU: NVIDIA Carmel ARM v8.2 (6-core) @ 1.4GHz (6MB L2 + 4MB L3)
Preassemble: Linux operating system
Memory：8GB LPDDR4
Storage：Built-in 16GB or TF card
1x USB3.0,1x USB2.0,1x USB2.0 OTG
2x UART
2x I2C and 2x SPI
1x Mini PCIE interface
1x Gigabit Ethernet（10/100/1000 BASE-T）
1x FDP-LINK III camera interface
1x Micro SD card slot
1x Micro SIM card slot
1x Mini HDMI 2.0 interface
Size：109.1mm×77mm×46mm
Power input：+12V
Temperature：-20℃--+65℃
Weight：406g

Realtimes Beijing Technology Co.,LTD www.realtimesai.com
Z509 Reference Manual V1.1
1.2 Ordering Information
Model Options
Functional Description
Z509
Xavier NX Cloud intelligence box guide cold edition, built-in
Xavier NX module, pre-installed Ubuntu 18.04, built-in 16GB
eMMC; 1x USB 3.0,1 x USB 2.0,1 x USB OTG, 1x miniHDMI,
1x GbE, 1x Micro SD, 3x 3.3V UART, 2 x SPI, 2 x I2C, 1x
MiniPCIe, 4G module optional; Power indicator light, power
switch button, -20 -- +65℃; Including cable package (HDMI,
serial port, SPI, I2C); Includes power adapter, provides Ruitai
new Era Linux4Tegra software support package, passed THE 3C
and CE certification
Z509-S
Xavier NX Cloud intelligence box guide cold edition, built-in
Xavier NX module, pre-installed Ubuntu 18.04, built-in 16GB
eMMC; 1x USB 3.0,1 x USB 2.0,1 x USB OTG, 1x miniHDMI,
1x GbE, 1x Micro SD, 3x 3.3V UART, 2 x SPI, 2 x
I2C,FPD-Link,1 x MiniPCIe, 4G module optional; Power
indicator light, power switch button, -20 -- +65℃; Including
cable package (HDMI, serial port, SPI, I2C); Includes power
adapter, provides Ruitai new Era Linux4Tegra software support
package, passed THE 3C and CE certification
RTS-IMX390-F120 (optional)
The Z509-S is compatible with FPD-Link III serial cameras
Cable-RTS-XF120 (optional)
Fpd-link III serial camera cable, length X=2,5,10m
RTSV-6911i (optional)
RTSV-6901(optional)
RTSV-6941(optional)
Mini-pcie Video Capture Card ，RTSV-6911i (8-channel D1
NTSC/PAL video input), RTSV-6901 (single-channel SDI video
input), RTSV-6941 (single-channel HDMI Video Input)
Mini-pcie 4G Module
(optional)
mini-PCIe Full netcom 4G module
Order online:
https://shop340963258.taobao.com
https://mall.jd.com/index-824786.html

Realtimes Beijing Technology Co.,LTD www.realtimesai.com
Z509 Reference Manual V1.1
Product specifications
1 External interface function and location
Z509 FRONT
Z509 BACK

Realtimes Beijing Technology Co.,LTD www.realtimesai.com
Z509 Reference Manual V1.1
2 Connectors Description
2.1 Mini HDMI interface
Function
HDMI output interface
marking
HDMI
Pin define
Mini HDMI connector
2.2 Ethernet connector
Function
Gigabit Ethernet connector
marking
Ethernet
Type
RJ45
2.3 USB3.0 interface
Function
USB3.0 interface
marking
USB3.0
Type
Type-A
2.4 SD card slot
Function
SD card slot
marking
TF card
Type
Micro SD（TF）
2.5 Power input interface
Function
Power input interface
marking
5V/4A
Type
2 pin terminal

Realtimes Beijing Technology Co.,LTD www.realtimesai.com
Z509 Reference Manual V1.1
2.6 OTG-USB2.0 interface
Function
USB2.0（OTG）function
marking
OGT
Type
UBS2.0 Micro Type-B
2.7 FDP-Link III camera interface
Function
FDP-Link video input
marking
FDP-Link III
Type
FDP-LINK III interface, Z509-S has this function interface, Z509
does not have this interface.
2.8 Multifunction connector
Function
Serial port
marking
URT/I2C
Type
DB9 interface
Pin define
Pin
Signal
Pin
Signal
1
UART2_TXD
2
UART2_RTS
3
UART3_TXD
4
UART3_RTS
5
GND
6
UART2_RXD
7
UART2_CTS
8
UART3_RXD
9
UART3_CTS
Function
Multi-function pin
marking
Button
Type
DB9 interface
Pin define
Pin
Signal
Pin
Signal
1
GND
2
GND
3
GND
4
GND
5
GND
6
DEV_3V3
7
DEV_3V3
8
BUTTON_PWR_ON
9
FORCE_RECOVER
Y

Realtimes Beijing Technology Co.,LTD www.realtimesai.com
Z509 Reference Manual V1.1
2.8 wifi antenna interface
Function
wifi antenna interface
marking
AT1、AT2
Type
ipex to sma female
3 Product size diagram
4Hardware update history
Z509 Board card hardware update history
Revision
Reason for change
V1.0
Initial release

Realtimes Beijing Technology Co.,LTD www.realtimesai.com
Z509 Reference Manual V1.1
Software version supporting instructions
Z509 is a complete product with Jetson Xavier NX module as the core. Provide developers with one-stop
terminal equipment to assist developers in application development.
Z509 Feiyun Smart Box supporting software includes:
- L4T (Linux for Tegra): L4T provides "OS" for your Feiyun Smart Box, including Linux kernel, boot
loader, board support package (BSP) and sample file system. (By default, the pure system has been
installed for the device, Jetpack needs to be installed by itself)
- Jetpack: Jetpack sdk is the most comprehensive solution for building AI applications. It includes
software libraries and apis, examples, developer tools and documentation for the latest and previous
versions of Jetson products.
1 use
1.1 Smart box power on and start
a) Make sure the Z509 power switch is turned off .
b) Install necessary external cables.（For example: the display cable to the HDMI display, the power
input cable to power the system, the USB cable to the keyboard and mouse...）
c) Turn on Z509 power switch and the system starts to work.
1.2 Recovery Mode
Jetson Xavier NX core module can work in normal mode and Recovery mode, under which file system
update, kernel update, Boot Loader update, BCT update and other operations can be carried out.
The steps to enter the Recovery mode are as follows:
a) Turn off the power supply to the system.
b) Use a USB cable connection RTSS-Z509’s OTG-USB port with Jetson develop host USB port.
c) Short connect 1 and 9 pins of Button connector and supply power to the system. The power supply
shall be maintained for more than 3 seconds, and then disconnect 1 and 9 pin short wiring of Button
connector.
d) The system enters the Recovery mode, and subsequent operations can be carried out at this point.
2 L4T（Linux for Tegra Abbreviation“L4T”）
L4T provides "OS" for your Feiyun Smart Box, including Linux kernel, boot loader, board support
package (BSP) and sample file system.
Z509 Smart Box is working on a system burned with the official original version of NVIDIA Linux For
Tegra (L4T). HDMI, Gigabit Ethernet, USB2.0, serial port, GPIO, SD card, I2C bus can all be supported. But
Mini-PCIe, M.2, USB3.0, fan interface, etc. cannot work normally.
For all support of Z509 smart box interface, the supporting driver patch (BSP: Board Support Package)
needs to be loaded. Use the flash method to program the system. SDK Manager to install all other JetPack
components except L4T to make your Feiyun Smart Box up and running quickly.
For system programming documentation, please refer to "Xavier NX system programming instruction
manual"

Realtimes Beijing Technology Co.,LTD www.realtimesai.com
Z509 Reference Manual V1.1
L4T and BSP can be downloaded from Ruitai Cloud Space, and L4T can also be downloaded directly
from the L4T main page on the Jetson developer site.
Please contact sales for the user and password of Ruitai Cloud Space.
3 Jetpack
Nvidia jetpack sdk is the most comprehensive solution for building AI applications. It includes software
libraries and apis, examples, developer tools and documentation for the latest and previous versions of Jetson
products.
3.1 Jetpack Component summary
This section briefly introduces each component of JetPack. For more detailed information about these
components, please refer to JetPack's online documentation.
OS Image
JetPack includes a reference file system derived from Ubuntu. (Development kit system, no need to
install)
Libraries and APIs
JetPack library and API include:
•TensorRT and cuDNN for high-performance deep learning applications
•CUDA for multi-domain GPU accelerated applications
•NVIDIA Container Runtime for containerized GPU accelerated applications
•Multimedia API package for camera application and sensor driver development
•VisionWorks, OpenCV and VPI for visual computing applications
•Sample application
3.2 How to install Jetpack
Overview of process steps
Installing JetPack to your Jetson device requires you to perform the following steps:
1. Download and install the NVIDIA SDK Manager on the Linux host.
2. Connect your jetson device to the Linux host (Micro USB or network (same network segment).
3. Test your device can connect via ssh.
4. Use SDK Manager to select and install the required components.
Download and install the NVIDIA SDK Manager on the Linux host.
You must have a Linux host with internet access to run SDK Manager and refresh the developer kit. The
supported host operating systems are:
Ubuntu Linux x64 Version 18.04 or 16.04
Download and install NVIDIA SDK Manager.
sdkmanager Installation package：sdkmanager-[version].[build#].deb
The current version is：sdkmanager_1.2.0

Realtimes Beijing Technology Co.,LTD www.realtimesai.com
Z509 Reference Manual V1.1
sdkmanager install
$ sudo apt install ./sdkmanager-[version].[build#].deb
Connect your jetson device to the Linux host
Prepare your Jetson device for the following settings. (If the equipment system is not initialized, the
system user needs to initialize after power-on)
- Connect the monitor, keyboard and mouse to the Jetson Feiyun smart box device (please refer to the
interface description above).
-Use Micro USB cable to connect Linux host and Jetson Feiyun Smart Box (or network (same
network segment))
-During the setup process, SDK Manager will provide Internet connection for your jetson Feiyun
Smart Box via USB or network connection.
-Connect the supplied power adapter to the DC jack of the Feiyun Smart Box, and plug the AC
interface into an AC power outlet.
Test that your device can connect via ssh.
If connected via Micro USB, enter lsusb under the Linux host terminal to see the nvidia crop
The device can be accessed through ping or ssh commands
$ ping 192.168.55.1
or
$ ssh <jetson_user>@192.168.55.1
If connected via a network, check whether the device ip address is in the same network segment as the
Linux host on the Feiyun Smart Box, and the Feiyun Smart Box device can be accessed through the ping
or ssh command.
$ ping <jetson_ip>
or
$ ssh <jetson_user>@<jetson_device_ip>
Use SDK Manager to select and install the required components
NVIDIA SDK Manager supports installing software to Jetson core (Flying Cloud Smart Box). For
complete instructions, please refer to Chapter 5 of "Xavier NX System Programming Manual".

Realtimes Beijing Technology Co.,LTD www.realtimesai.com
Z509 Reference Manual V1.1
3.3 Sample application
JetPack includes several examples that demonstrate the use of JetPack components.
They are stored in the reference file system and can be compiled in the developer toolkit.
3.4 Developer tools
JetPack includes the following development tools. Some are used directly on the Jetson system, and
some run on a Linux host connected to the Jetson system.
•Application development and debugging tools
•NSight Eclipse version for GPU accelerated application development: runs on a Linux host. Support all
Jetson products.
•CUDA-GDB for application debugging: Run on Jetson system or Linux host. Support all Jetson
products.
•CUDA-MEMCHECKdebug application memory error: run on Jetson system. Support all Jetson
products.
•Application analysis and optimization tools
•NSight Systems for application multi-core CPU evaluation: run on a Linux host. Helps you improve
application performance by identifying the slower parts of the code. Support all Jetson products.
•NVIDIA®Nsight™ compute Kernel Analyzer: An interactive analysis tool for CUDA applications. It
provides detailed performance indicators and API debugging through user interface and command line tools.
•NSight Graphics for graphics application debugging and evaluation: a consolegrade tool for debugging
and optimizing OpenGL and OpenGL ES programs. Run on the Linux host. Support all Jetson products.
Component
Location
TensorRT
/usr/src/tensorrt/samples/
cuDNN
/usr/src/cudnn_samples_/
CUDA
/usr/local/cuda-/samples/
Multimedia API
/usr/src/tegra_multimedia_api/
VisionWorks
/usr/share/visionworks/sources/samples/
/usr/share/visionworks-tracking/sources/samples/
/usr/share/visionworks-sfm/sources/samples/
OpenCV
/usr/share/OpenCV/samples/
VPI
/opt/nvidia/vpi/vpi-/samples

Realtimes Beijing Technology Co.,LTD www.realtimesai.com
Z509 Reference Manual V1.1
3.5 Documentation
Documents related to developers using JetPack include:
•JetPack Documentation
•VisionWorks Documentation
•Nsight Eclipse Edition Documentation
•CUDA-GDB Documentation
•CUDA-MEMCHECK Documentation
•TensorRT Documentation
•cuDNN Documentation
•CUDA Toolkit
•NVIDIA Container Runtime
•OpenCV Documentation
•Jetson Linux Multimedia API Reference
•Nsight Systems
•nvprof
•Visual Profiler
•Nsight Graphics
•Nsight Compute CLI
•VPI–Vision Programming Interface

Realtimes Beijing Technology Co.,LTD www.realtimesai.com
Z509 Reference Manual V1.1
Terms of Warranty
Important note
Each embedded product provided by Realtimes Technology is free from any defects in material and
process,fully in line with the specifications officially issued by the original factory.
Realtimes Technology warranty covers the original products,If the parts configured by the dealer are out of
order, please consult with the dealer to solve the problem. All the baseplate and core modules provided by
Ruitai New Era (Beijing) Technology Co., Ltd. are guaranteed for 3 years, while the other peripherals are
guaranteed for 1 year (life-long maintenance service is provided if the warranty period is beyond the warranty
period).The warranty period starts from the date of delivery, for the products repaired within the warranty
period, the repair parts shall be extended for 12 months.Unless notified by Realtimes Technology, the date
of your original invoice shall be the date of shipment.
How do I get warranty services
If the product does not work properly, Please contact Realtimes Technology or dealer for warranty service,
please show invoice when product warranty(this is the proof for you getting warranty service).
Warranty solution
When you ask for warranty service, please follow Realtimes Technology warranty process,You will need to
receive your first diagnosis from a technicial engineer by phone or by email,at that time,we need you to
cooperate with us to fill in all the questions on the RMA form provided by us. Once we accurately determine
the cause of the fault and the location of the damage ,we will provide the charge list for the out of warranty
products,which needs your confirmation.Realtimes Technology keep the right to repair or replace the products.
If the product is replaced or repaired, the replaced faulty product or the repaired and replaced faulty parts will
be returned to Realtimes Technology.
For products under warranty,the customer shall bear the freight when the product is returned to the
manufacturer,Realtimes Technology will bear the ship cost of the products after maintenance.
The following conditions are not covered by the warranty terms
a) Improper installation, improper use, misuse and abuse of products(Overloading, for example).
b) Improper maintenance and storage（Such as fire, explosion, etc）or natural disasters（such as lightning
stroke,earthquake,typhoon,etc）
c) Personal unauthorized changing the product(such as changing circuit characteristics, mechanical
characteristics, software characteristics,Conformal coating).
d) Other failures which are clearly due to misuse(such as overvoltage,polarity reversal, the pin bent or
broken,the wrong connection,drop damage,transportation damage,damage due to over operating
temperature and so on).
e) The logo and part number on the product have been deleted or removed.
f) The product is out of warranty.
Special concerns

Realtimes Beijing Technology Co.,LTD www.realtimesai.com
Z509 Reference Manual V1.1
If the same fault multiple occurrence for the products,in order to find out the reason causing the problem,we
will request the users to provide the specific documents or information of peripheral equipment,such as
monitor,I/O boards,cables,power supply, diagram and structure of the system,etc.If such documents or
information are not available,we have the right to refuse to perform the warranty, the repairments will be
charged accordingly.
Rev.C 6/2020
Copyright Notice
Realtimes Beijing Technology Co.,LTD.
Realtimes Beijing Technology Co., Ltd. is copyrighted and reserves all rights to this manual and statement.
Without the written permission of the company, no unit or individual may copy, extract, backup, modify,
disseminate, translate into other languages, or use all or part of it for commercial purposes in any way or form.
