RTimes RTSO-9003U User manual

RTSO-9003U
Reference manual
Realtimes Beijing Technology Co., LTD.
Fax：[phone]
Email: [e-mail]
Web Page: https://www.realtimesai.com
Address: 11th Floor, Block B, 20th Heping Xiyuan, Pingxi Street, Chaoyang District,
Beijing 100013,P.R.China

Manual for RTSO-9003U-V2.0
1
Revision History
Revision
Date
Reason for change
Applicable hardware
version
V1.0
2020.2
Initial release
V1.0-V1.7
V2.0
2020.6
Add notes and indicators
V1.0-V1.7

Realtimes Beijing Technology Co.,LTD www.realtimesai.com
Manual for RTSO-9003U-V2.0
2
Electronic components and circuits are very sensitive to electrostatic discharge. Although our company
designs anti-static protection for the main interfaces on the card when designing circuit board products,
it is difficult to achieve anti-static safety protection for all components and circuits. Therefore, it is
recommended to observe anti-static safety precautions when handling any circuit board component
(including RTSO-9003U). Anti-static safety protection measures include, but are not limited to the
following:
a) The smart box should be placed in an anti-static bag during transportation and storage, and then the
board should not be taken out during installation and deployment.
b) Before touching the smart box, discharge the static electricity stored in the body: wear a discharge
grounding wrist strap.
c) Operate the smart box only within the safe area of the electrostatic discharge point.
d) Avoid moving smart boxes in carpeted areas.
Precautions and after-sales maintenance
matters needing attention
Before using the product, please read this manual carefully and keep it for future reference;
⚫Please pay attention to and follow all warning and guidance information marked on the product;
⚫Please use matching power adapter to ensure the stability of voltage and current;
⚫Please use this product in a cool, dry and clean place;
⚫Do not use this product in cold and hot alternate environment to avoid condensation damage
components;
⚫Do not splash any liquid on the product. Do not use organic solvent or corrosive liquid to clean the
product;
⚫Do not use the product in dusty and messy environment. If it is not used for a long time, please pack
the product;
⚫Do not use in the environment with excessive vibration, any dropping or knocking may damage the
circuit and components;
⚫Do not plug and unplug the core board and peripheral modules when power is on;

Realtimes Beijing Technology Co.,LTD www.realtimesai.com
Manual for RTSO-9003U-V2.0
3
⚫Please do not repair or disassemble the product by yourself. In case of any fault, please contact our
company in time for maintenance;
⚫Do not modify or use unauthorized accessories by yourself, and the damage caused will not be
warranted;
After sales maintenance
1) Warranty period
⚫Base plate, core plate : 3 year (non-human damage)
⚫Other peripherals sold by the company:1year(non-human damage)
2) Warranty description
⚫Within 7 days: the product (base plate, core module) is not damaged by human, our company will
replace / repair it free of charge, and bear the return freight; (because the core module needs NVIDIA to
confirm that it can meet the requirements of repair, it will take a long time, we will coordinate as soon
as possible, please forgive for the inconvenience)
⚫From 7 days to 36 months: the product (base plate, core module) is not damaged by human, our
company will repair it free of charge, and bear the return freight; (because the core module needs
NVIDIA to confirm that it can meet the requirements of repair, it will take a long time, we will
coordinate as soon as possible, please forgive for the inconvenience)
⚫Artificial damage in more than 3 year or 3 year: the product (carrier plate) shall be tested after it is
sent to the customer, and the customer shall be informed of whether it can be repaired and the
maintenance cost in detail. After reaching an agreement, the product shall be repaired and returned to
the customer, and the company shall bear the return freight;
⚫The starting time shall be subject to the date of express delivery receipt;
3) Contact information
Official website: www.realtimesai.com
Taobao website: https://shop340963258.taobao.com/
Address: 11, block B, Heping Xiyuan, Heping West Street, Chaoyang District, Beijing
Attention: RMA
Tel: [phone]
Mailing notice: contact with the company's sales department in advance, arrange technical support
personnel to check and eliminate errors caused by misoperation as soon as possible, fill in the product
after-sale return to factory maintenance form after verification, and send it to [e-mail] Mail
box, please attach the list of items to facilitate verification, so as to avoid loss and loss in the process of
express delivery. The company does not receive any delivery
Technical support and development customization
1. Scope of technical support
1) The company releases the electrical characteristics and use of industrial carrier boards and modules;
2) Physical dimension of hardware, relevant structure diagram and line sequence definition of specific
interface;
3) Burn in verification of all BSP support packages provided by the company;
4) The company released burn environment construction, entry-level use. ;
5) Various peripheral module drivers released by the company;
6) The company's product fault diagnosis and after-sales maintenance services;
2. Scope of technical discussion

Realtimes Beijing Technology Co.,LTD www.realtimesai.com
Manual for RTSO-9003U-V2.0
4
Due to the wide range of embedded system knowledge and various types of involvement, we can not
guarantee that all kinds of questions can be answered one by one. The following content is not available
for technical support, only suggestions can be provided.
1) Knowledge beyond the course published by our company;
2) Specific software program design;
3) Technical support for industrial carrier not issued by the company;
4) All kinds of driving support for industrial carrier board not issued by the company;
5) Hardware principle and drive design of peripheral module not issued by our company;
3. Technical support mode
1) Official website or email questions (recommended): https://www.realtimesai.com/cn/download.html
[e-mail]
2) Official Taobao through Alibaba Wangwang consultation: https://shop340963258.taobao.com/
3) Wechat group consultation (wechat Group No. consults Taobao customer service or sales, and
Taobao purchase order No. needs to be provided for verification);
4) Technical support email: [e-mail]
5) Tel:[phone]
4. Technical support time
Monday to Friday; 8:30-12:00 am; 1:00-17:30 PM;
The company arranges the rest according to the national legal holidays, during which it may not be able
to provide technical support, please send the problem to the technical support email. We will reply to
you as soon as possible on weekdays.
5. Complaints and suggestions
If you are not satisfied with us or have suggestions, you can send an email to yu.qin @ realtimes.cn For
feedback, please call 010-84284669 for further improvement.
6. Customized development services
The company provides the embedded operating system driver based on NVIDIA Jetson series and the
paid customized development service of hardware carrier board to shorten your product development
cycle.
Please email the request to [e-mail]
Data acquisition and subsequent update
1. Access to information
Download on our website
The company's website contains supporting information of its products, including product user
manual, NVIDIA Jetson series module data manual, BSP driver support package for carrier board,
supporting peripheral driver files, interface test verification method, FAQ, system burning guide,
etc. get into www.realtimesai.com , select "data download" in the navigation bar, find the
data you need, and click download.
2. . Subsequent updates
Updates of subsequent documents, BSP, driver files and other official account will be updated in time.
We will pay close attention to our developments in order to ensure that your information is up to date.
We will push through WeChat public.

Realtimes Beijing Technology Co.,LTD www.realtimesai.com
Manual for RTSO-9003U-V2.0
5
Table of Contents
1 PRODUCT INTRODUCTION......................................................................................................................................... 6
1.1 FEATURES................................................................................................................................................................6
1.2 ORDERING INFORMATION.......................................................................................................................................... 6
1.3 CABLE KITS AND ACCESSORIES.................................................................................................................................... 7
2 CONNECTOR LOCATIONS............................................................................................................................................8
2.1 FUNCTION CONNECTOR.............................................................................................................................................9
2.2 LED.......................................................................................................................................................................9
2.3 KEY AND CODE SWITCH............................................................................................................................................. 9
3 INSTALLATION AND USE........................................................................................................................................... 10
3.1 PICTURE OF PRODUCTS............................................................................................................................................ 10
3.2 USAGE..................................................................................................................................................................10
3.3 RECOVERY MODE................................................................................................................................................. 10
4 CONNECTORS DESCRIPTION.....................................................................................................................................11
4.1 MODULE INTERFACE................................................................................................................................................11
4.2 FAN INTERFACE..................................................................................................................................................... 11
4.3 MICRO SD CARD SLOT............................................................................................................................................ 12

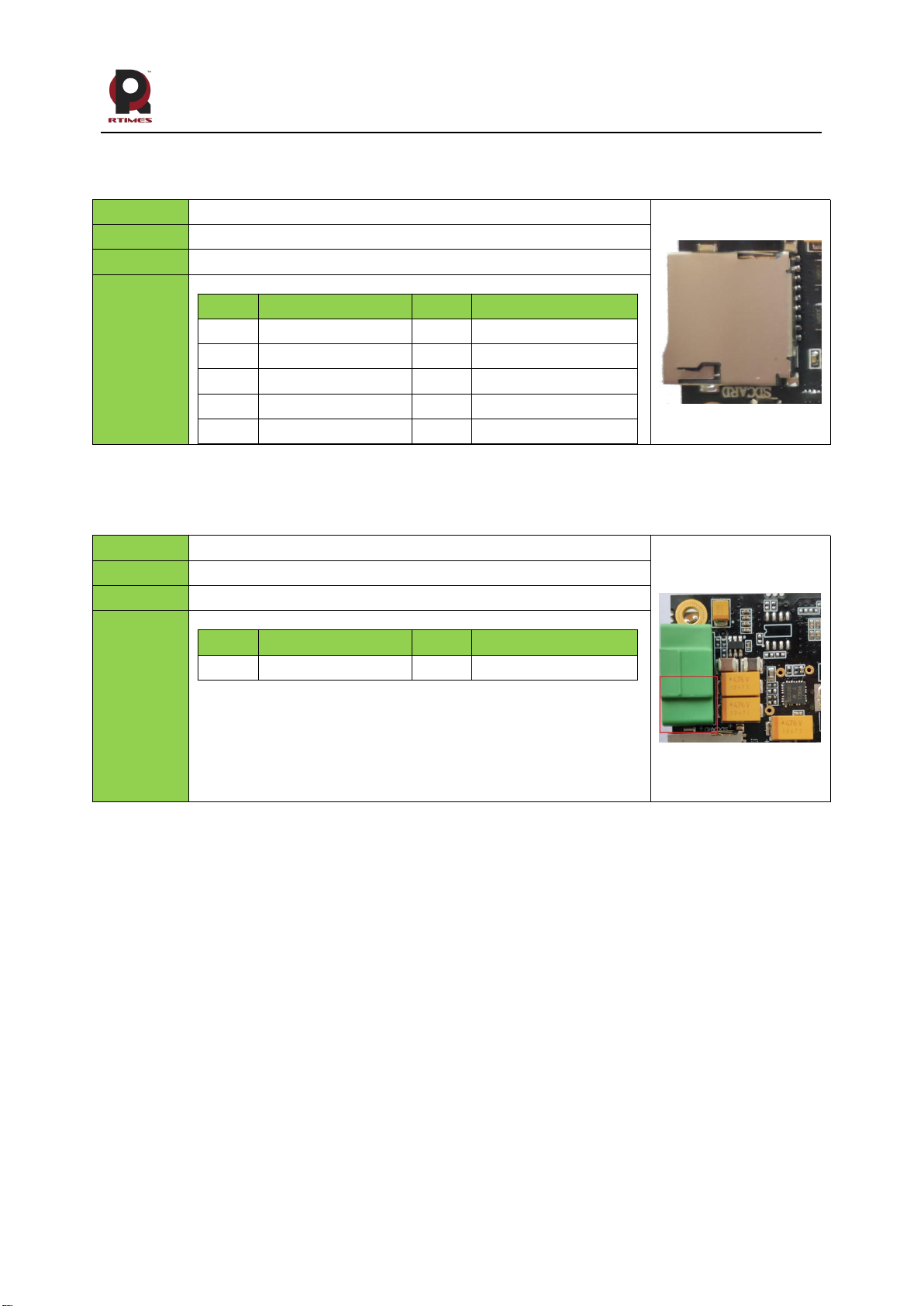

4.4 POWER CONNECTOR............................................................................................................................................... 12

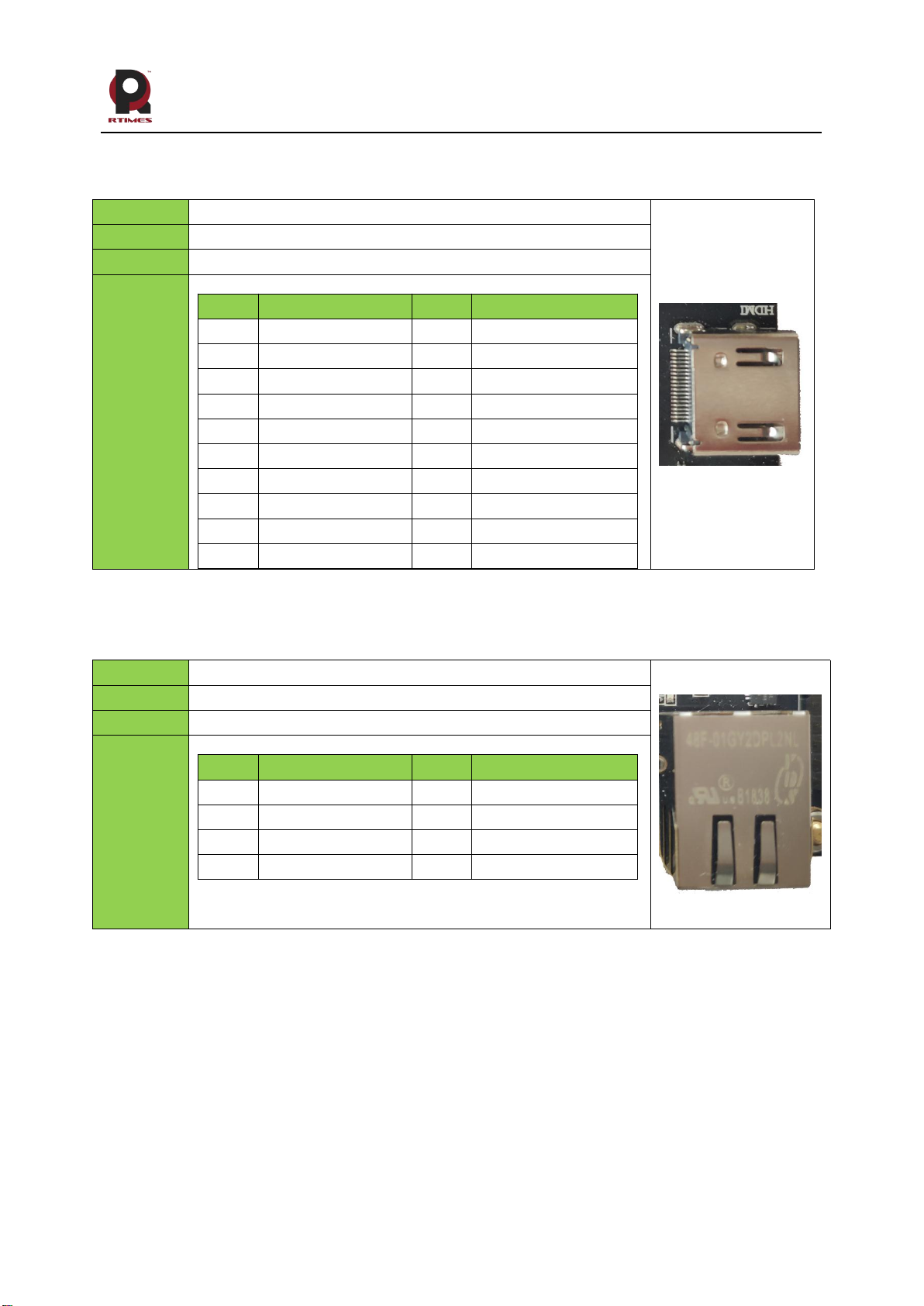

4.5 HDMI TYPE- A INTERFACE...................................................................................................................................... 13
4.6 ETHERNET INTERFACE..............................................................................................................................................13
4.7 USB TYPE-A INTERFACE.......................................................................................................................................... 14
4.8 USB MICRO INTERFACE...........................................................................................................................................14
4.9 MULTIFUNCTIONAL CONNECTOR............................................................................................................................... 15
5 HARDWARE UPDATE HISTORY................................................................................................................................. 16
6 PRODUCT SIZE.......................................................................................................................................................... 17
7 SOFTWARE/BSP DETAILS..........................................................................................................................................18
8 TECHNICAL SUPPORT............................................................................................................... 错误！未定义书签。
TERMS OF WARRANTY................................................................................................................................................ 19

Realtimes Beijing Technology Co.,LTD www.realtimesai.com
Manual for RTSO-9003U-V2.0
6
1 Product introduction
The RTSO-9003U is a low-cost, small-volume payload board with the core NVIDIA®Jetson™ TX2 module.
The payload board length and width are consistent with the NVIDIA Jetson®TX2 module, suitable for compact
deployment requirement. For industrial deployment, the main interface is designed for electrostatic safety
protection, the power supply application scheme with high reliability is adopted, and the whole plate device
adopts wide temperature model.
1.1 Features
Compatible with NVIDIA Jetson TX2/TX2i/TX2 4GB module
2x USB 3.0，(5Gbps,1A max output current）
2个CAN interface
1x 3.3V UART interface
1 x Debug UART interface
1x Gigabit Ethernet(10/100/1000 BASE-T)
4x GPIO compliance with 3.3V voltage level
1x RTC battery interface
1x HDMI TYPE A interface(max 6Gbps，24bpp，4096x2160@60Hz)
1x Micro SD card slot
1x 3.3V I2C interface
1x Fan interface
Size: 87mm×50mm×23mm
Power input：+7~+19V
Temperature: -40~+80℃
Weight：42.6g
1.2 Ordering Information
Model Options
Functional Description
RTSO-9003U
2 x USB 3.0, 1 x USB 2.0, 1 x HDMI, 1 x GbE, 1x Micro SD, 2 x
3.3V UART, 1 x I2C , 4 x GPIO, 2 x CAN, ROHS certificated
Provide RTSO-9003U Linux4Tegra software pack
RTS-TXX-AC/DC(option)
Special power adapter,100-240VAC/12VDC,36W
RTSO-9003U-Cable(option)
RTSO-9003U Cable kits and Accessories
RTS-TXX-HS02(option)
Special radiator for Jetson TX2 module
Order online:
https://shop340963258.taobao.com
https://mall.jd.com/index-824786.html

Realtimes Beijing Technology Co.,LTD www.realtimesai.com
Manual for RTSO-9003U-V2.0
7

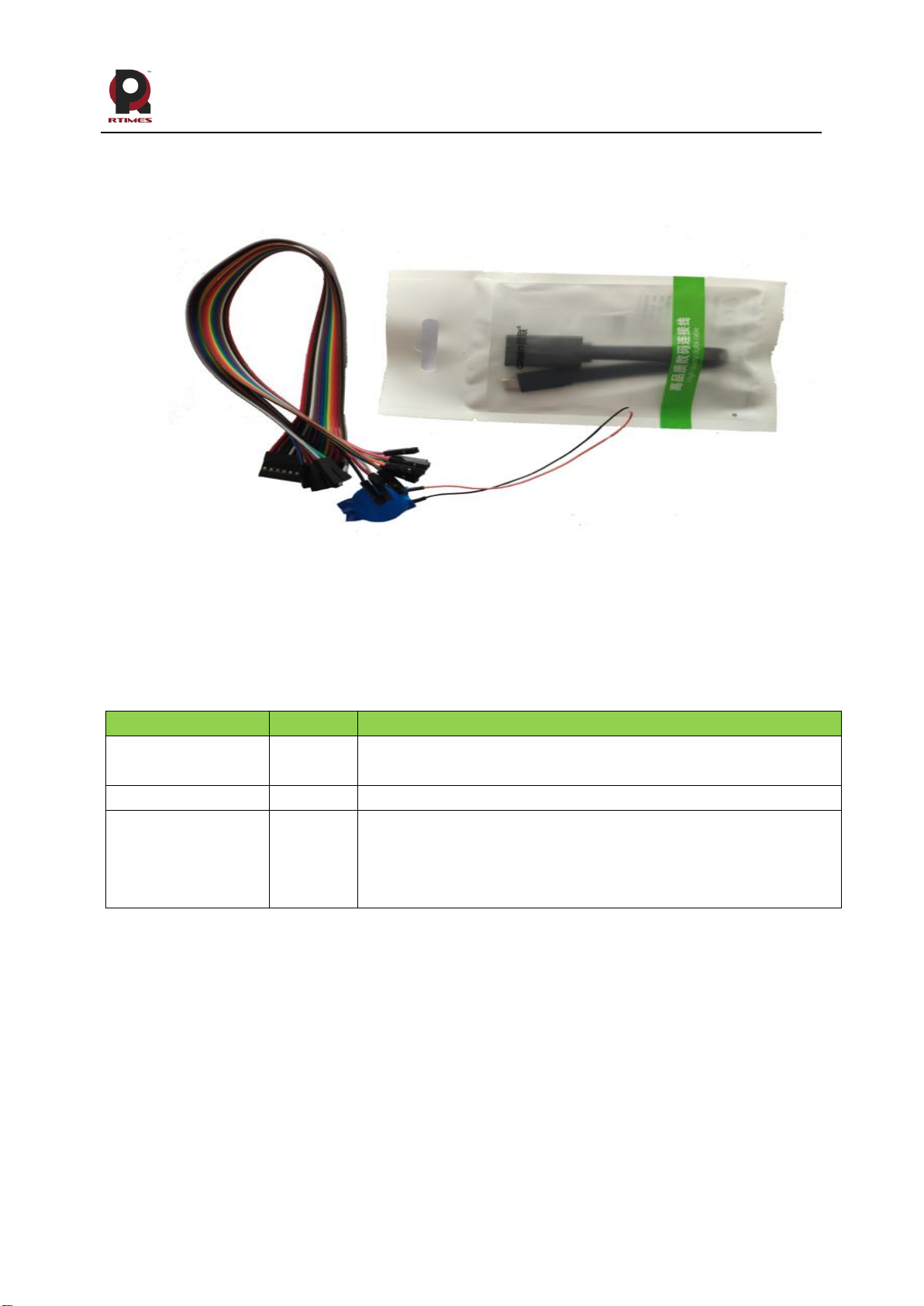

1.3 Cable kits and Accessories
The RTSO-9003U order model of supporting line package is : RTSO-9003U-Cables. Contains the
following components
Subassembly
Quantity
Functional Description
Micro USB to USB
one
Convert the onboard Micro USB2.0 interface to a standard USB2.0
interface
RTC battery
one
3V RTC battery
Multifunctional line
one
The on-board pin laying interface is transformed into a cable laying
outlet, which contains the following interface wires:
1xI2C,4xGPIO,2xCAN
1x debug uart,1x uart ,button wire lead,3V RTC clock line

Realtimes Beijing Technology Co.,LTD www.realtimesai.com
Manual for RTSO-9003U-V2.0
8
2 Connector Locations
RTSO-9003U front
RTSO-9003U back

Realtimes Beijing Technology Co.,LTD www.realtimesai.com
Manual for RTSO-9003U-V2.0
9
2.1 Function Connector
Mandatory Sign
Functional Description
P1
HDMI standard interface
P2
TF Socket
P3
Double USB3.0 connector
P4
USB-OTG Micro-usb 2.0 interface
P5
Keep interface
P6
Fan interface
P7
2x12 Pin Multifuctional connector
P8
Power connector
P9
RJ45 network connector
U1
400 Pin high speed connector，connect the TX2 module
2.2 LED
Mandatory Sign
Functional Description
Status description
D8
3.3V status LED
Normally on - carrier start
2.3 Key and code switch
Mandatory Sign
Functional Description
S1
Power button，For system shutdown and soft shutdown after boot
S2
Recovery button，Used to put the core module into recovery mode
S3
Reset button，Use to restart the core module

Realtimes Beijing Technology Co.,LTD www.realtimesai.com
Manual for RTSO-9003U-V2.0
10
3 Installation and use
3.1 picture of products
3.2 usage
a) Make sure the external system is powered off
b) Install the TX2 core module to the U1 connector ，Please pay attention to the alignment between
connectors during installation，Force uniformity，apply uniform force, and install the fixing screw
at the same time.
c) Install necessary external cables.(e.g., the display cable to the HDMI monitor, the power input cable
to power the system, the USB cable to connect the keyboard and mouse...).
d) Connect the power cord to the power supply.
e) RTSO-9003U adopts automatic power on design. Turn on the power and the system starts to work.
f) For systems without protective enclosure, please avoid moving the whole system after the system is
powered on. It is strictly prohibited to touch the circuit board and its electronic components.
3.3 Recovery MODE
Jetson TX2 core module can work in normal mode and Recovery mode, In the Recovery mode, file system
update, kernel update, boot loader update, BCT update and other operations can be performed.
Procedure to place system in Force USB Recovery Mode:
a) Power down the device.
b) Use USB cable to connect otg-usb port (P4) of RTSO -9003U with Jetson to develop host USB port
c) With the system powered on:
Press and hold the RECOVERY FORCE button.
While depressing the RECOVERY FORCE button, press and release the RESET button.
Wait 3 seconds and release the RECOVERY FORCE button.
d) The system enters recovery mode, and subsequent operations can be performed at this time.

Realtimes Beijing Technology Co.,LTD www.realtimesai.com
Manual for RTSO-9003U-V2.0
11
4 Connectors Description
4.1 module interface
Function
Connecting NVIDIA Jetson TX2 core modules
marking
U1
Type
Samtec：SEAM-50-03.5-S-08-2-A-K
Pin define
Refer to the pin definition instructions in the NVIDIA Jetson TX2
core module data book.
4.2 FAN interface
Function
Connect external cooling fan
Marking
P6
Type
Molex PicoBlade Header
Pin define
Pin-1：The Green box on the right.
Pin
Signal
Pin
Signal
1
GND
2
+5V
3
TACH
4
PWM

Realtimes Beijing Technology Co.,LTD www.realtimesai.com
Manual for RTSO-9003U-V2.0
12
4.3 Micro SD card slot
Function
Micro SD（TF）slot
Marking
P2
Type
Micro SD（TF）
Pin define
Pin
Signal
Pin
Signal
1
SDIO_DATA2
2
SDIO_DATA3
3
SDIO_CMD
4
SDIO_VCC
5
SDIO_CLK
6
GND
7
SDIO_DATA0
8
SDIO_DATA1
9
GND
10
SDIO_CD
4.4 Power connector
Function
Power input terminal
Marking
P8
Type
3.81mm Power terminal
Pin define
Pin-1：The red box on the right.
Input voltage range：+7v~+19v
Do not connect the cable with electricity！
Pin
Signal
Pin
Signal
1
VCC (+)
2
GND (-)

Realtimes Beijing Technology Co.,LTD www.realtimesai.com
Manual for RTSO-9003U-V2.0
13
4.5 HDMI Type- A interface
Function
Connecting the display
Marking
P1
Type
Type-A
Pin define
Pin
Signal
Pin
Signal
1
TMDS Data2+
2
TMDS Data2 GND
3
TMDS Data2-
4
TMDS Data1+
5
TMDS Data1 GND
6
TMDS Data1-
7
TMDS Data0+
8
TMDS Data0 GND
9
TMDS Data0-
10
TMDS Clock+
11
TMDS Clock GND
12
TMDS Clock-
13
CEC
14
No Connect
15
DDC clock
16
DDC data
17
DDC GND
18
+5V Power
19
Hot Plug Detect
4.6 Ethernet interface
Function
Ethernet connector
Marking
P9
Type
RJ45
Pin define
Pin
Signal
Pin
Signal
1
TP0+
2
TP0-
3
TP1+
4
TP2+
5
TP2-
6
TP1-
7
TP3+
8
TP3-

Realtimes Beijing Technology Co.,LTD www.realtimesai.com
Manual for RTSO-9003U-V2.0
14
4.7 USB Type-A interface
Function
USB3.0 connector
Marking
P3
Type
Type-A
Pin define
layer
superstratum
Pin
Signal
Pin
Signal
1
VBUS
2
USB 2.0 D-
3
USB 2.0 D+
4
GND
5
SSRX-
6
SSRX+
7
GND
8
SSTX-
9
SSTX+
layer
substratum
Pin
Signal
Pin
Signal
1
VBUS
2
USB 2.0 D-
3
USB 2.0 D+
4
GND
5
SSRX-
6
SSRX+
7
GND
8
SSTX-
9
SSTX+
4.8 USB Micro interface
Function
USB2.0 connector
Marking
P4
Type
USB 2.0 MicroType-B
Pin define
USB-OTG is in host mode，USB ID pins to float。
USB-OTG is in slave mode，USB ID the pins should be grounded。
Pin
Signal
Pin
Signal
1
VBUS
2
USB 2.0 D-
3
USB 2.0 D+
4
USB ID
5
GND

Realtimes Beijing Technology Co.,LTD www.realtimesai.com
Manual for RTSO-9003U-V2.0
15
4.9 Multifunctional Connector
Function
Multi-function low speed signal interface
Marking
P7
Type
2.54mm ,2x12Pin Double row pins
Pin define
Pin
Signal
Pin
Signal
1
3.3V
2
3.3V
3
UART0_TX
4
UART0_RX
5
UART1_TX
6
UART1_RX
7
GPIO0
8
GPIO1
9
GPIO2
10
GPIO3
11
I2C_CLK
12
I2C_DAT
13
RECOVERY
14
RTC-BAT
15
RESET
16
REMOTE_TX
17
POWER_BUTTON
18
REMOTE_RX
19
GND
20
GND
21
CAN1H
22
CAN1L
23
CAN0H
24
CAN0L
The serial port level is 3.3V TTL logic level.
The mapping files in the/dev directory corresponding to UART0 and
UART1 are ttyS0, ttyTHS2
UART0 is the kernel debugging serial port by default, which is used
to output c-boot, u-boot and Linux kernel information. After Linux
kernel is started, it is used as the serial port of display control
terminal.TX2 The default serial port is set to 115200bps,8N1
The sysfs mapping Numbers of GPIO0~GPIO3 in the TX2 system
are:388,298,480,486
GPIO high level state is 3.3v.
The resulting I2C bus corresponds to the iic-0 bus in the Linux
system.
RTC-BAT pin is RTC Clock power input (+3V)

Realtimes Beijing Technology Co.,LTD www.realtimesai.com
Manual for RTSO-9003U-V2.0
16
5 Hardware update history
RTSO-9003U Board hardware update history
edition
Updata description
V1.0
Initial release
V1.1
Fix power supply circuit error
V1.2
Handle floating IO ports，Remove redundant CAN circuits，Adjust screen printing
information
V1.3
Change the IO interface circuit，Adjust the location of the USB OTG socket，
Adjustable inductance package
V1.4
Change screen information
V1.5
Change key package，Change the logo and other screen printing information
V1.6
Modify IO interface chip package welding resistance layer
V1.7
Replace the power terminal,Replace the power terminal Change the positive and
negative direction of the power terminal,Replace the power chip,Modify USB
earthing mode,Modify the HDMI interface circuit,Adjust interface placement

Realtimes Beijing Technology Co.,LTD www.realtimesai.com
Manual for RTSO-9003U-V2.0
17
6 Product size

Realtimes Beijing Technology Co.,LTD www.realtimesai.com
Manual for RTSO-9003U-V2.0
18
7 Software/BSP Details
The RTSO-9003U board works on systems that burn using the official original NVIDIA Linux For Tegra
(L4T) ,HDMI, gigabit Ethernet, USB2.0, serial port, GPIO, SD card, I2C bus, fan interface, can be supported.
But USB3.0 can't work normally.
The full support of RTSO-9003U rugged machine interface needs to load supporting driver patches.
NVIDIA LT4 package can be downloaded from the following link
https://developer.nvidia.com/embedded/linux-tegra
RTSO-9003U patch support package download
https://www.realtimesai.com

Realtimes Beijing Technology Co.,LTD www.realtimesai.com
Manual for RTSO-9003U-V2.0
19
Terms of Warranty
Important note
Each embedded product provided by Realtimes Technology is free from any defects in material and
process,fully in line with the specifications officially issued by the original factory.
Realtimes Technology warranty covers the original products,If the parts configured by the dealer are out of
order, please consult with the dealer to solve the problem. All the baseplate and core modules provided by Ruitai
New Era (Beijing) Technology Co., Ltd. are guaranteed for 3 years, while the other peripherals are guaranteed
for 1 year (life-long maintenance service is provided if the warranty period is beyond the warranty period).The
warranty period starts from the date of delivery, for the products repaired within the warranty period, the repair
parts shall be extended for 12 months.Unless notified by Realtimes Technology, the date of your original
invoice shall be the date of shipment.
How do I get warranty services
If the product does not work properly, Please contact Realtimes Technology or dealer for warranty service,
please show invoice when product warranty(this is the proof for you getting warranty service).
Warranty solution
When you ask for warranty service, please follow Realtimes Technology warranty process,You will need to
receive your first diagnosis from a technicial engineer by phone or by email,at that time,we need you to
cooperate with us to fill in all the questions on the RMA form provided by us. Once we accurately determine the
cause of the fault and the location of the damage ,we will provide the charge list for the out of warranty
products,which needs your confirmation.Realtimes Technology keep the right to repair or replace the products.
If the product is replaced or repaired, the replaced faulty product or the repaired and replaced faulty parts will be
returned to Realtimes Technology.
For products under warranty,the customer shall bear the freight when the product is returned to the
manufacturer,Realtimes Technology will bear the ship cost of the products after maintenance.
The following conditions are not covered by the warranty terms
a) Improper installation, improper use, misuse and abuse of products(Overloading, for example).
b) Improper maintenance and storage（Such as fire, explosion, etc）or natural disasters（such as lightning
stroke,earthquake,typhoon,etc）
c) Personal unauthorized changing the product(such as changing circuit characteristics, mechanical
characteristics, software characteristics,Conformal coating).
d) Other failures which are clearly due to misuse(such as overvoltage,polarity reversal, the pin bent or
broken,the wrong connection,drop damage,transportation damage,damage due to over operating
temperature and so on).
e) The logo and part number on the product have been deleted or removed.
f) The product is out of warranty.
Special concerns
If the same fault multiple occurrence for the products,in order to find out the reason causing the problem,we will
