RTimes RTSO-9003 User manual

RTSO-9003
Reference Manual
Version 1.1
Realtimes Beijing Technology Co., LTD.
Fax：[phone]
Email: [e-mail]
Web Page: http://www.realtimes.cn
Address: 9th Floor, Block B, 20th Heping Xiyuan, Pingxi Street, Chaoyang
District, Beijing 100013,P.R.China

Rtso-9003 user manual version V2.0
1
Revision History
Revision
Date
Reason for change
V1.0
2017-10
Initial release
V1.1
2017-12
Change USB OTG description
V2.0
2020-06
Add notes

Realtimes Beijing Technology Co.,LTD. www.realtimes.cn
Rtso-9003 user manual version V2.0
2
Precautions and after-sales maintenance
matters needing attention
Before using the product, please read this manual carefully and keep it for future reference;
⚫Please pay attention to and follow all warning and guidance information marked on the product;
⚫Please use matching power adapter to ensure the stability of voltage and current;
⚫Please use this product in a cool, dry and clean place;
⚫Do not use this product in cold and hot alternate environment to avoid condensation damage
components;
⚫Do not splash any liquid on the product. Do not use organic solvent or corrosive liquid to clean
the product;
⚫Do not use the product in dusty and messy environment. If it is not used for a long time, please
pack the product;
⚫Do not use in the environment with excessive vibration, any dropping or knocking may damage
the circuit and components;
⚫Do not plug and unplug the core board and peripheral modules when power is on;
⚫Please do not repair or disassemble the product by yourself. In case of any fault, please contact
our company in time for maintenance;
⚫Do not modify or use unauthorized accessories by yourself, and the damage caused will not be
warranted;
After sales maintenance
1) Warranty period
⚫Base plate, core plate and other peripherals sold by the company: 1 year (non-human damage)
2) Warranty description
⚫Within 7 days: the product (base plate, core module) is not damaged by human, our company
will replace / repair it free of charge, and bear the return freight; (because the core module needs
NVIDIA to confirm that it can meet the requirements of repair, it will take a long time, we will
coordinate as soon as possible, please forgive for the inconvenience)
⚫From 7 days to 12 months: the product (base plate, core module) is not damaged by human, our
company will repair it free of charge, and bear the return freight; (because the core module needs
NVIDIA to confirm that it can meet the requirements of repair, it will take a long time, we will
coordinate as soon as possible, please forgive for the inconvenience)
⚫Artificial damage in more than 1 year or one year: the product (carrier plate) shall be tested after
it is sent to the customer, and the customer shall be informed of whether it can be repaired and the
maintenance cost in detail. After reaching an agreement, the product shall be repaired and returned to
the customer, and the company shall bear the return freight;
⚫The starting time shall be subject to the date of express delivery receipt;
3) Contact information
Official website: www.raltimes.cn
Taobao website: https://shop340963258.taobao.com/
Address: 901, block B, Heping Xiyuan, Heping West Street, Chaoyang District, Beijing
Attention: RMA
Tel: [phone] 84280996
Mailing notice: contact with the company's sales department in advance, arrange technical support

Realtimes Beijing Technology Co.,LTD. www.realtimes.cn
Rtso-9003 user manual version V2.0
3
personnel to check and eliminate errors caused by misoperation as soon as possible, fill in the product
after-sale return to factory maintenance form after verification, and send it to [e-mail] Mail
box, please attach the list of items to facilitate verification, so as to avoid loss and loss in the process
of express delivery. The company does not receive any delivery
Technical support and development customization
1. Scope of technical support
1) The company releases the electrical characteristics and use of industrial carrier boards and
modules;
2) Physical dimension of hardware, relevant structure diagram and line sequence definition of
specific interface;
3) Burn in verification of all BSP support packages provided by the company;
4) The company released burn environment construction, entry-level use. ;
5) Various peripheral module drivers released by the company;
6) The company's product fault diagnosis and after-sales maintenance services;
2. Scope of technical discussion
Due to the wide range of embedded system knowledge and various types of involvement, we can not
guarantee that all kinds of questions can be answered one by one. The following content is not
available for technical support, only suggestions can be provided.
1) Knowledge beyond the course published by our company;
2) Specific software program design;
3) Technical support for industrial carrier not issued by the company;
4) All kinds of driving support for industrial carrier board not issued by the company;
5) Hardware principle and drive design of peripheral module not issued by our company;
3. Technical support mode
1) Official website or email questions (recommended): http://www.realtimes.cn/cn/download.html
[e-mail]
2) Official Taobao through Alibaba Wangwang consultation: https://shop340963258.taobao.com/
3) Wechat group consultation (wechat Group No. consults Taobao customer service or sales, and
Taobao purchase order No. needs to be provided for verification);
4) Technical support email: [e-mail]
5) Tel: [phone]
4. Technical support time
Monday to Friday; 8:30-12:00 am; 1:00-17:30 PM;
The company arranges the rest according to the national legal holidays, during which it may not be
able to provide technical support, please send the problem to the technical support email. We will
reply to you as soon as possible on weekdays.
5. Complaints and suggestions
If you are not satisfied with us or have suggestions, you can send an email to yu.qin @ realtimes.cn
For feedback, please call 010-84284669 for further improvement.
6. Customized development services
The company provides the embedded operating system driver based on NVIDIA Jetson series and the

Realtimes Beijing Technology Co.,LTD. www.realtimes.cn
Rtso-9003 user manual version V2.0
4
paid customized development service of hardware carrier board to shorten your product development
cycle.
Please email the request to [e-mail]
Data acquisition and subsequent update
1. Access to information
Download on our website
The company's website contains supporting information of its products, including product user
manual, NVIDIA Jetson series module data manual, BSP driver support package for carrier
board, supporting peripheral driver files, interface test verification method, FAQ, system burning
guide, etc. get into www.realtimes.cn , select "data download" in the navigation
bar, find the data you need, and click download.
2. . Subsequent updates
Updates of subsequent documents, BSP, driver files and other official account will be updated in
time. We will pay close attention to our developments in order to ensure that your information is up to
date. We will push through WeChat public.

Realtimes Beijing Technology Co.,LTD. www.realtimes.cn
Rtso-9003 user manual version V2.0
5
CONTENTS
1 ABSTRACT..................................................... 6
1.1 INTRODUCTION..................................................................................................................................................6
1.2 FEATURES...........................................................................................................................................................6
1.3 BLOCK DIAGRAM.............................................................................................................................................. 7
1.4 CONNECTOR LOCATIONS..................................................................................................................................8
1.5 ORDERING INFORMATION................................................................................................................................8
1.6 CABLE KITS AND ACCESSORIES..................................................................................................................... 8
2 CONNECTORS.............................................. 9
2.1 CONNECTORS.................................................................................................................................................... 9
3 CONNECTORS DESCRIPTION............. 9
3.1 HDMI(P1)........................................................................................................................................................9
3.2 TF CARD(P2)................................................................................................................................................. 10
3.3 DUAL USB3.0(P3)....................................................................................................................................... 10
3.4 USB-OTG(P4)..............................................................................................................................................10
3.5 FAN(P6).........................................................................................................................................................11
3.6 MULTI-FUNCTION(P7)................................................................................................................................... 11
3.7 POWER INPUT(P8)......................................................................................................................................... 12
3.8 GIGABIT ETHERNET(P9)............................................................................................................................... 12
3.9 BUTTONS..........................................................................................................................................................12
4 SOFTWARE/BSP......................................12
4.1 RTSO-9003 BSP......................................................................................................................................... 12
4.2 NVIDIA JETPACK FOR L4T.......................................................................................................................... 13
4.3 RECOVERY MODE.......................................................................................................................................... 13
APPENDIX.......................................................14

Realtimes Beijing Technology Co.,LTD. www.realtimes.cn
Rtso-9003 user manual version V2.0
6
1 Abstract
1.1 Introduction
RTSO-9003 is a low cost NVIDIA® Jetson™ TX1/TX2 carrier board that has same size with the
NVIDIA Jetson®TX1/TX2. It has many popular interfaces include USB3.0, Gigabit Ethernet,
HDMI2.0,USB 2.0 OTG,UART,GPIO,I2C,CAN,RTC.
1.2 Features
Two USB3.0(5Gbps,1A max output current）
Two CAN
One USB2.0 OTG
Two UART compliance with 3.3V voltage level
One Gigabit Ethernet
Four GPIO compliance with 3.3V voltage level
One RTC battery interface
One HDMI 2.0 (6Gbps，24bpp，4096x2160@60Hz)
One TF card socket
One I2C compliance with 3.3V voltage level
One FAN interface with PWM
Size: 87mm×50mm×16.63
Power input: +7V~+19V
Temperature: -40~+85℃
Weight:34g

Realtimes Beijing Technology Co.,LTD. www.realtimes.cn
Rtso-9003 user manual version V2.0
7
1.3 Block Diagram
Figure 1 RTSO-9003 Block Diagram

Realtimes Beijing Technology Co.,LTD. www.realtimes.cn
Rtso-9003 user manual version V2.0
8
1.4 Connector Locations
Figure 2 RTSO-9003 connect locations

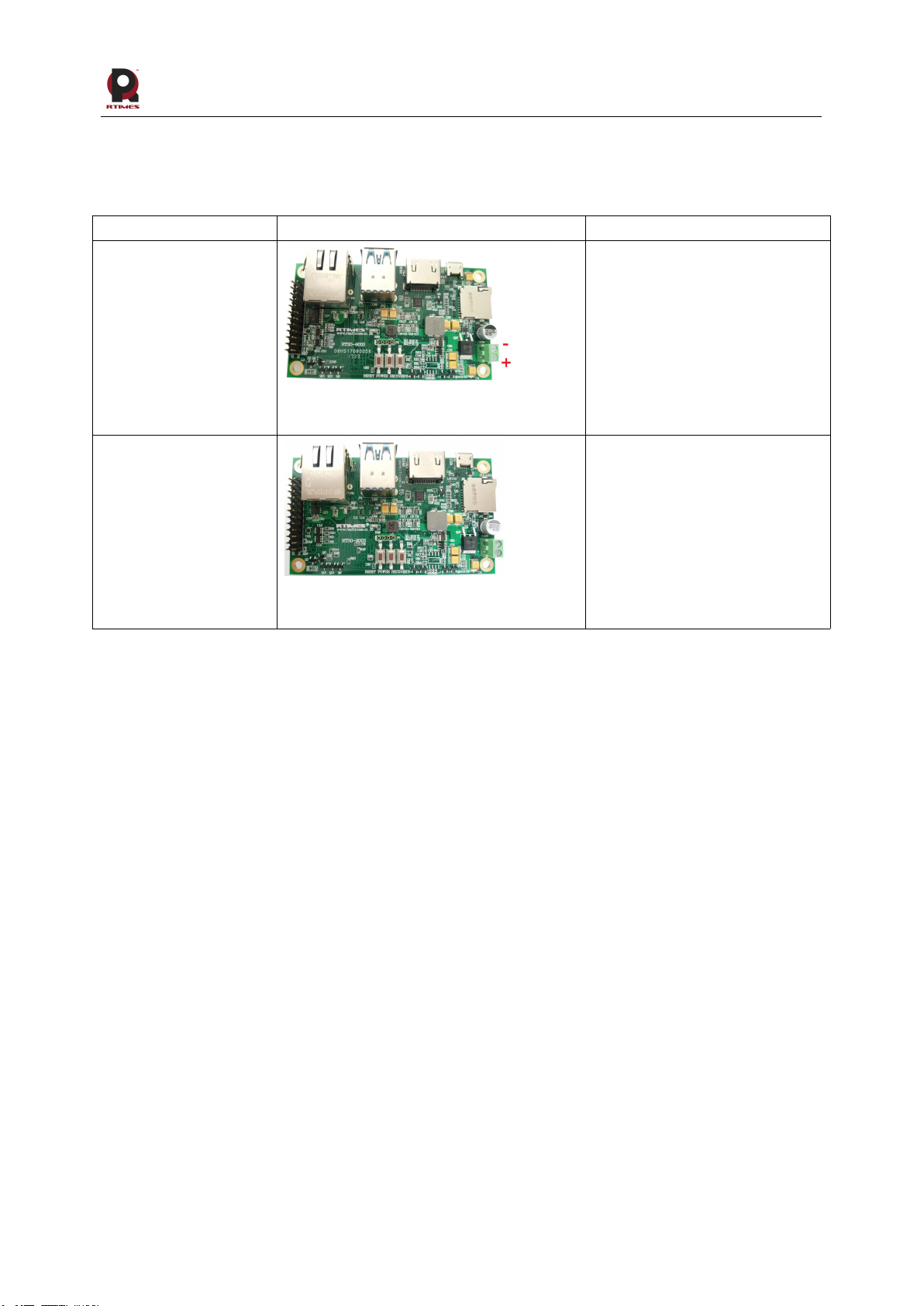

1.5 Ordering Information
RTSO-9003 Model Options:
Part Number
Description
RTSO-9003
NVIDIA Jetson™®TX1/TX2 carrier board
RTSO-9003-Cable
Cables
1.6 Cable Kits and Accessories
For maximum flexibility, Realtimes does not provide cables with the RSTO-9003. You may wish to
purchase the RTSO-9003-Cable cable kit, which contains: one Multi-function Cable(two uart , four
gpio , one I2C , two can).

Realtimes Beijing Technology Co.,LTD. www.realtimes.cn
Rtso-9003 user manual version V2.0
9
2 Connectors
2.1 Connectors
Table 2-1：RTSO-9003 connectors
Connector
Function
Description
P1
HDMI connector
HDMI
P2
TF card connector
TF card
P3
Dual USB3.0 connector
USB3.0
P4
USB-OTG connector
USB2.0 Micro-AB
P5
Manufactures use
Header x4
P6
FAN connector
Picoblade Header
P7
Multi-function connector
Header x24
P8
Power input
3.5mm x 2
P9
Gigabit Ethernet connector
RJ45
3 Connectors Description
3.1 HDMI(P1)
Table 3-1: HDMI connector(P1)
Pin
Signal
Pin
Signal
1
TMDS Data2+
2
TMDS Data2 GND
3
TMDS Data2-
4
TMDS Data1+
5
TMDS Data1 GND
6
TMDS Data1-
7
TMDS Data0+
8
TMDS Data0 GND
9
TMDS Data0-
10
TMDS Clock+
11
TMDS Clock GND
12
TMDS Clock-
13
CEC
14
No Connect
15
DDC clock
16
DDC data
17
DDC GND
18
+5V Power
19
Hot Plug Detect

Realtimes Beijing Technology Co.,LTD. www.realtimes.cn
Rtso-9003 user manual version V2.0
10
3.2 TF card(P2)
Table 3-2: TF card connector(P2)
Pin
Signal
Pin
Signal
1
SDIO_DATA2
2
SDIO_DATA3
3
SDIO_CMD
4
SDIO_VCC
5
SDIO_CLK
6
GND
7
SDIO_DATA0
8
SDIO_DATA1
9
GND
10
SDIO_CD
3.3 Dual USB3.0(P3)
Table 3-3: Dual USB3.0 connector(P3)
Pin
Signal
Pin
Signal
1
VBUS
2
USB 2.0 D-
3
USB 2.0 D+
4
GND
5
SSRX-
6
SSRX+
7
GND
8
SSTX-
9
SSTX+
10
VBUS
11
USB 2.0 D-
12
USB 2.0 D+
13
GND
14
SSRX-
15
SSRX+
16
GND
17
SSTX-
18
SSTX+
3.4 USB-OTG(P4)
Table 3-4: USB-OTG connector(P4)
Pin
Signal
Pin
Signal
1
VBUS
2
USB 2.0 D-
3
USB 2.0 D+
4
USB ID
5
GND
Note: USB-OTG as client when USB ID left unconnected as host when USB ID connect to GND.

Realtimes Beijing Technology Co.,LTD. www.realtimes.cn
Rtso-9003 user manual version V2.0
11
3.5 FAN(P6)
Table 3-5: FAN connector(P6)
Pin
Signal
1
GND
2
+5V
3
TACH
4
PWM
3.6 Multi-function(P7)
Table 3-6: Multi-function connector(P7)
Pin
Signal
Pin
Signal
1
3.3V
2
3.3V
3
UART0_TX
4
UART0_RX
5
UART1_TX
6
UART1_RX
7
GPIO0
8
GPIO1
9
GPIO2
10
GPIO3
11
I2C_CLK
12
I2C_DAT
13
RECOVERY
14
RTC_BAT
15
RESET
16
REMOTE_TX
17
POWER_BUTTON
18
REMOTE_RX
19
GND
20
GND
21
CAN1H
22
CAN1L
23
CAN0H
24
CAN0L
Note:
UART0 = /dev/ttyS0 within Linux for Tegra(Linux console)
UART0 compliance with 3.3V voltage levels
UART1 = /dev/ttyTHS2 within Linux for Tegra
UART1 compliance with 3.3V voltage levels
GPIO0(GPIO8) = sysfs GPIO # 187（TX2==#388）
GPIO1(GPIO9) = sysfs GPIO # 186（TX2==#298）
GPIO2(GPIO_EXP0_INT) = sysfs GPIO # 89(TX2==#480)
GPIO3(GPIO_EXP1_INT) = sysfs GPIO # 202(TX2==#486)
The I2C bus number is 1 with JETSON TX1 and 0 with JETSON TX2
RTC-BAT:3V input for RTC

Realtimes Beijing Technology Co.,LTD. www.realtimes.cn
Rtso-9003 user manual version V2.0
12
3.7 Power input(P8)
Table 3-7: Power input connector(P8)
Pin
Signal
1
VDD (+)
2
GND (-)
Input：+7V~+19V
Reference Appendix for connection.
3.8 Gigabit Ethernet(P9)
Table 3-8: Gigabit Ethernet connector(P9)
Pin
Signal
Pin
Signal
1
TP0+
2
TP0-
3
TP1+
4
TP2+
5
TP2-
6
TP1-
7
TP3+
8
TP3-
3.9 Buttons
Thera are three buttons on RTSO-9003: POWER(S1), RESET(S3), RECOVERY(S2).
Table 3-9: buttons
Button
Description
POWER(S1)
Use this button initiate a system power-on
RECOVERY(S2)
Use this button to perform the Force Recovery
Procedure
RESET(S3)
When button is pressed the system will initiate a
Reset sequence
4 Software/BSP
4.1 RTSO-9003 BSP
Realtimes provide the BSP for RTSO-9003：

Realtimes Beijing Technology Co.,LTD. www.realtimes.cn
Rtso-9003 user manual version V2.0
13
http://www.realtimes.cn/jishuzhichi/_xiazaizhongxin_/
4.2 NVIDIA Jetpack for L4T
NVIDIA JetPack SDK is the most comprehensive solution for building AI applications. Use the
JetPack installer to flash your Jetson Developer Kit with the latest OS image, to install developer
tools for both host PC and Developer Kit, and to install the libraries and APIs, samples, and
documentation needed to jumpstart your development environment.：
https://developer.nvidia.com/embedded/jetpack
4.3 Recovery MODE
To update your system, you will need to be in Force USB Recovery Mode so you can transfer system
software to the developer board. When in Force USB Recovery Mode, you are able to update system
software and write the boot loader, boot configuration table (BCT), and partition configuration to the
device. See the Platform Software documentation for OS specific instructions when updating system
software on your developer board.
Procedure to place system in Force USB Recovery Mode:
1. Power down the device. If connected, remove the AC adapter from the device. The device must be powered
OFF, and not in a suspend or sleep state.
2. Connect the USB cable to the device and the host PC.
3. Connect the power adapter to the device.
4. With the system powered on:
Press and hold the RECOVERY FORCE button.
While depressing the RECOVERY FORCE button, press and release the RESET button.
Wait 2 seconds and release the RECOVERY FORCE button

Realtimes Beijing Technology Co.,LTD. www.realtimes.cn
Rtso-9003 user manual version V2.0
14
Appendix
Version
Description
V1.0
Power supply positive and
negative polarity reference to
the picture (RTSO-9003 is not
marked with positive and
negative electrode screen
printing)
GPIOs can provide current as
5μa
V1.1
Power supply positive and
negative polarity reference to
the board (RTSO-9003 is
marked with positive and
negative electrode screen
printing)
GPIOs can provide current as
12μa

Realtimes Beijing Technology Co.,LTD. www.realtimes.cn
Rtso-9003 user manual version V2.0
15

Realtimes Beijing Technology Co.,LTD. www.realtimes.cn
Rtso-9003 user manual version V2.0
16
