RTX 2254 User manual

Quick Installation Guide V1.10 RTX2254 –Bluetooth RF tester 1
RTX2254
Bluetooth RF Tester
Stand-alone Unit
Quick Installation Guide
Version: 1.10
PBB/MVC 2018.08.07

Quick Installation Guide V1.10 RTX2254 –Bluetooth RF tester 2
TABLE OF CONTENTS
1INTRODUCTION 3
2WORD AND ABBREVIATION LIST 4
3HARDWARE INSTALLATION PROCEDURE 5
3.1 Connection Overview 5
3.2 Installation 6
4SOFTWARE INSTALLATION PROCEDURES 7
4.1 Software Installation File #1 7
4.1.1 RTX2254 Bluetooth RF Tester Software Installation 7
4.1.2 Drivers Installation 10
4.1.3 RTX EAI Port Server Installation 11
4.1.4 UART Bridge Driver Installation 12
4.1.5 Microsoft Drivers Installation 15
4.2 Software Installation File #2 16
4.2.1 RTX Demo Software Installation 16
5SOFTWARE CONFIGURATION 17
5.1 Configuration of RTX EAI Server 17
5.1.1 Find the COM Port to use 17
5.1.2 Setup the RTX EAI Server 19
6THE FIRST TEST 22
6.1 Set-up of HW for First Test 22
6.2 Set-up of SW for First Test 23
6.2.1 Select DUT Test Protocol 25
6.2.2 Setup COM Ports 26
6.2.3 Setup DUT for Test 27
6.3 Starting the Test 28
7SAFETY INFORMATION 30
7.1 General 30
7.2 Electrostatic Discharge 30
7.3 High Voltage 30

Quick Installation Guide V1.10 RTX2254 –Bluetooth RF tester 3
1Introduction
The RTX2254 Bluetooth RF Tester is a highly-optimized, automated test solution for
calibration and functional test in the production of wireless Bluetooth Low Energy (BLE)
devices.
This quick installation guide will describe the hardware and software installation
procedures for the RTX2254 Bluetooth RF Tester –Stand-alone unit, the configuration
and the first test.
Please note that:
A test DUT must be available to complete this quick installation guide.
The DUT must be setup for production test (DTM) with either HCI or 2-Wire
interface. A “Test DUT”with USB is used as example in this description.

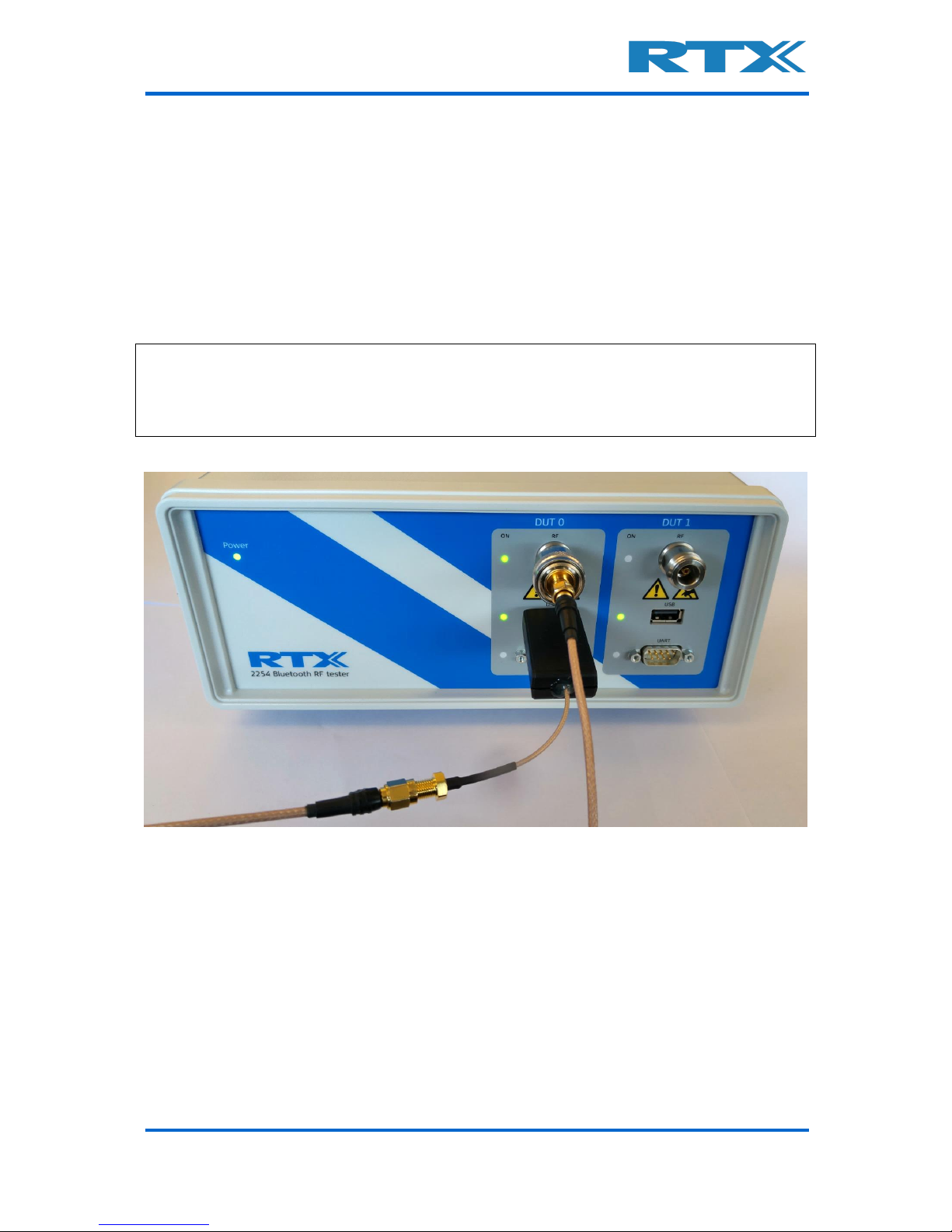

RTX2254 with “Test DUT”on USB
Please note that:
RTX2254 is available as a single ported tester for one DUT (RTX no. 95101347) or as a
dual ported tester for two DUTs (RTX no. 95101348).

Quick Installation Guide V1.10 RTX2254 –Bluetooth RF tester 4
2Word and Abbreviation List
The following words and abbreviations are used in this document:
▪2-Wire Bluetooth SIG specified test protocol where only Tx, Rx and GND is
used and 16-bit commands and events
▪API Application programming interface
▪BER Bit Error Rate
▪BLE Bluetooth low energy
▪BT Bluetooth
▪BTLE Bluetooth low energy
▪COM Serial communication port referred to by a number
▪CW Continuous Waveform
▪DLL Dynamic Link Library
▪Driver SW that interfaces to a HW unit
▪DTM Direct Test Mode, see Bluetooth test specification
▪DUT Device Under Test
▪EAI Enterprise Application Integration
▪ESD Electro-Static Discharge
▪GND Ground
▪GUI Graphical User Interface
▪HCI Host Controller Interface
▪HW Hardware
▪ID Identification
▪IRR Inquiry response rate
▪ISM Industrial Scientific and Medical
▪LL Link Layer
▪LQ Link Quality
▪MAC Media access control
▪PC Personal Computer
▪PDU Protocol data unit
▪PER Packet Error Rate
▪Pop-Up A smaller frame shown in windows
▪PPM Part Per Million
▪RF Radio frequency
▪RS232 Serial port with +-12V signaling
▪RSS Received Signal Strength
▪RSSI Received signal strength indicator
▪RTX2300 Test system with shielding, fixture and test HW
▪Rx Receive
▪SIG Special interest group for BT
▪SW Software (Programs)
▪TI Texas Instruments –Chip manufacturer
▪Tx Transmission
▪UART Serial port with logic level signaling (0-5V)
▪USB Universal Serial Bus

Quick Installation Guide V1.10 RTX2254 –Bluetooth RF tester 5
3Hardware Installation Procedure
The section describes how to connect the RTX2254 Bluetooth RF tester.

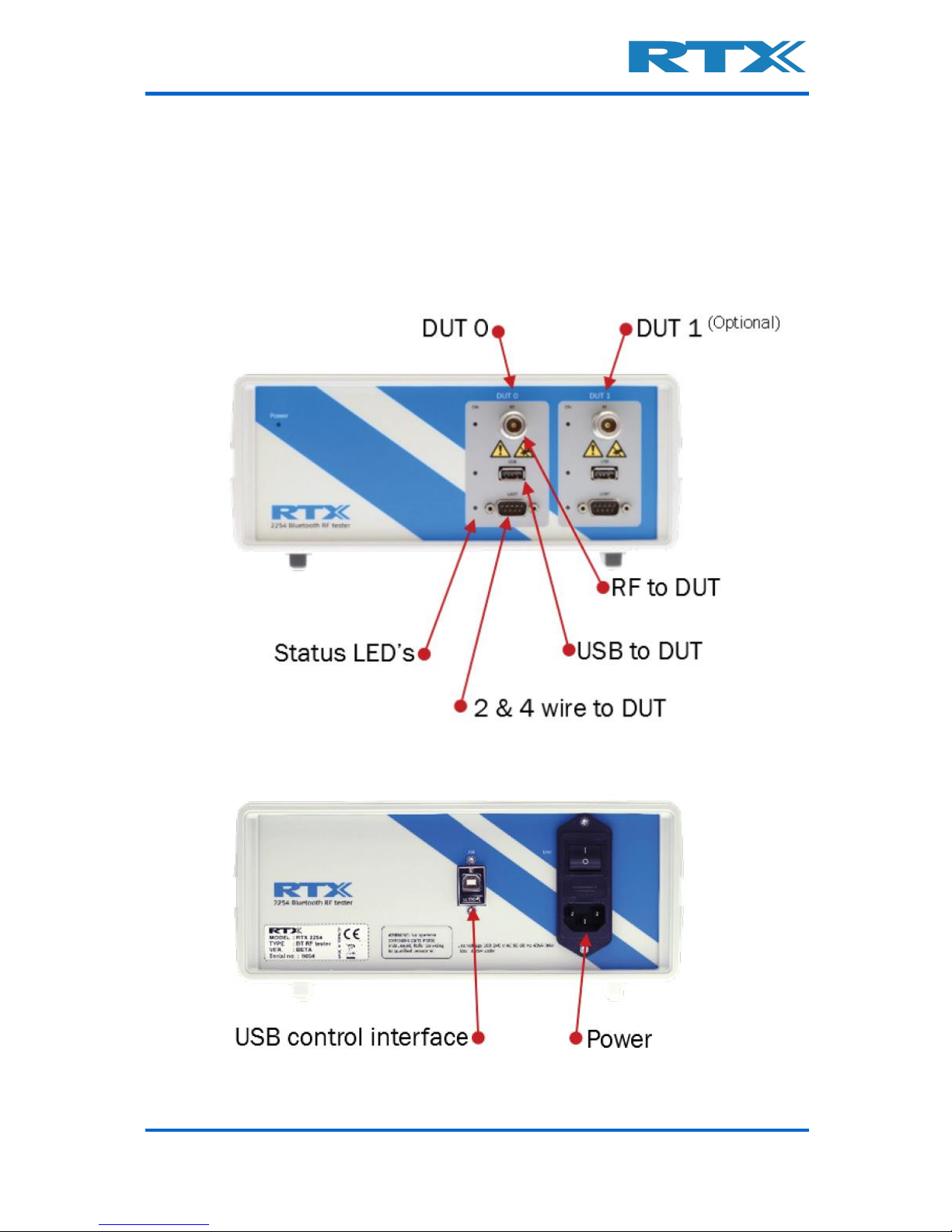

3.1 Connection Overview

Quick Installation Guide V1.10 RTX2254 –Bluetooth RF tester 6
3.2 Installation
The RTX2254 test system comes preassembled and needs only the following:
1. Connect power cord (100-240 V)
2. Prepare, but do not connect a USB cable to PC
3. Turn on power on backside of RTX2254
4. Turn on PC

Quick Installation Guide V1.10 RTX2254 –Bluetooth RF tester 7
4Software Installation Procedures
The RTX2254 SW package includes the necessary drivers and RTX2254 Bluetooth RF
tester software. The following drivers and supporting Windows application are included:
▪RTX EAI Port Server
▪RTX USB Bridge Driver (CP210x USB to UART Bridge)
▪Microsoft Visual Studio C++ 2010 Runtime Library (.net)
▪RTX2254 Bluetooth RF tester application
Please refer to the RTX2254 User Manual for more information on how to use the tester.
4.1 Software Installation File #1
4.1.1 RTX2254 Bluetooth RF Tester Software Installation
Locate the file: “Setup_RTX2254_Bluetooth_RF_Tester_V0110.exe” and execute it.
The following pop-up will appear.
Select the preferred installation folder or stick with the proposed one.
Then click [Next >].

Quick Installation Guide V1.10 RTX2254 –Bluetooth RF tester 8

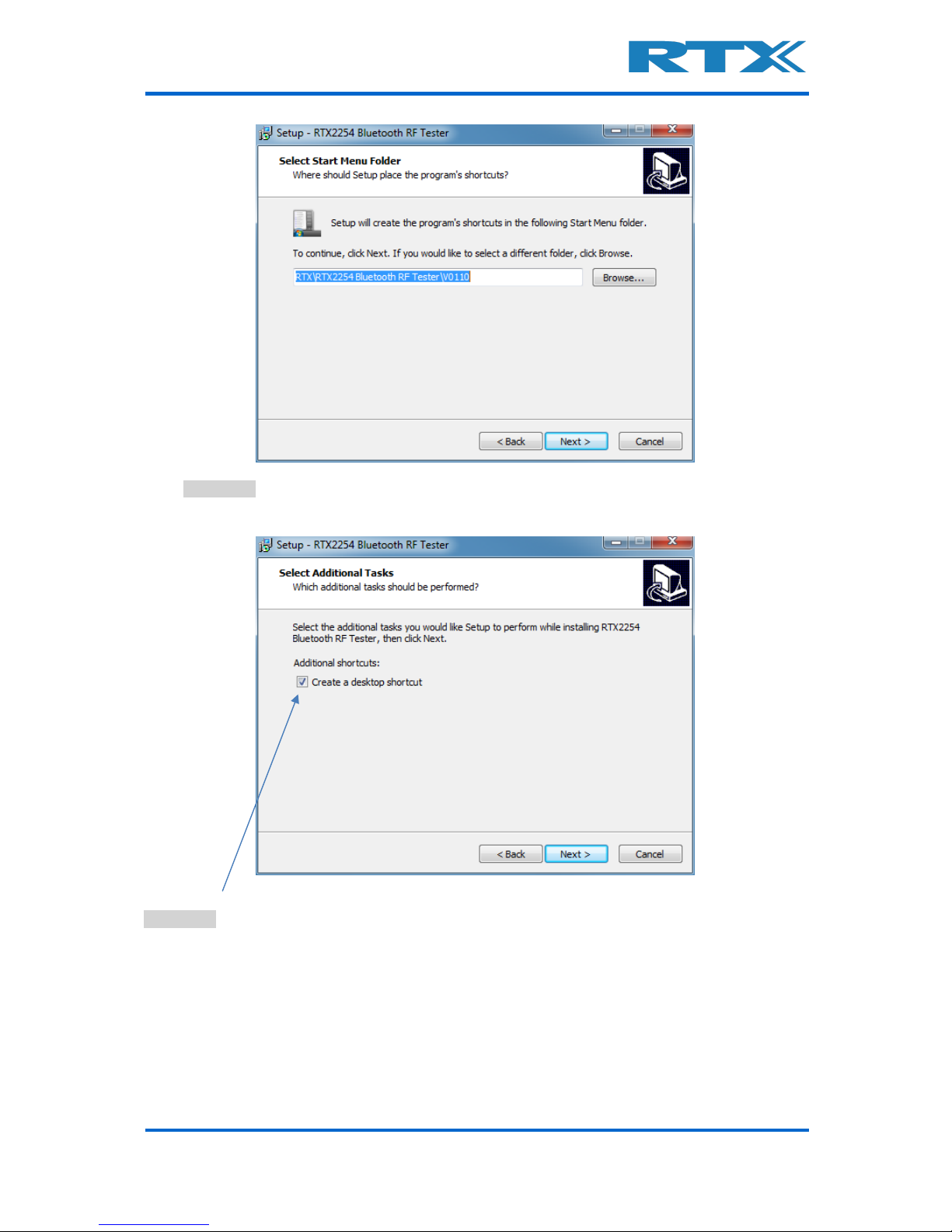

Click [Next >] again to continue
Then select if an application shortcut should be added to the desktop. Then click
[Next >].

Quick Installation Guide V1.10 RTX2254 –Bluetooth RF tester 9

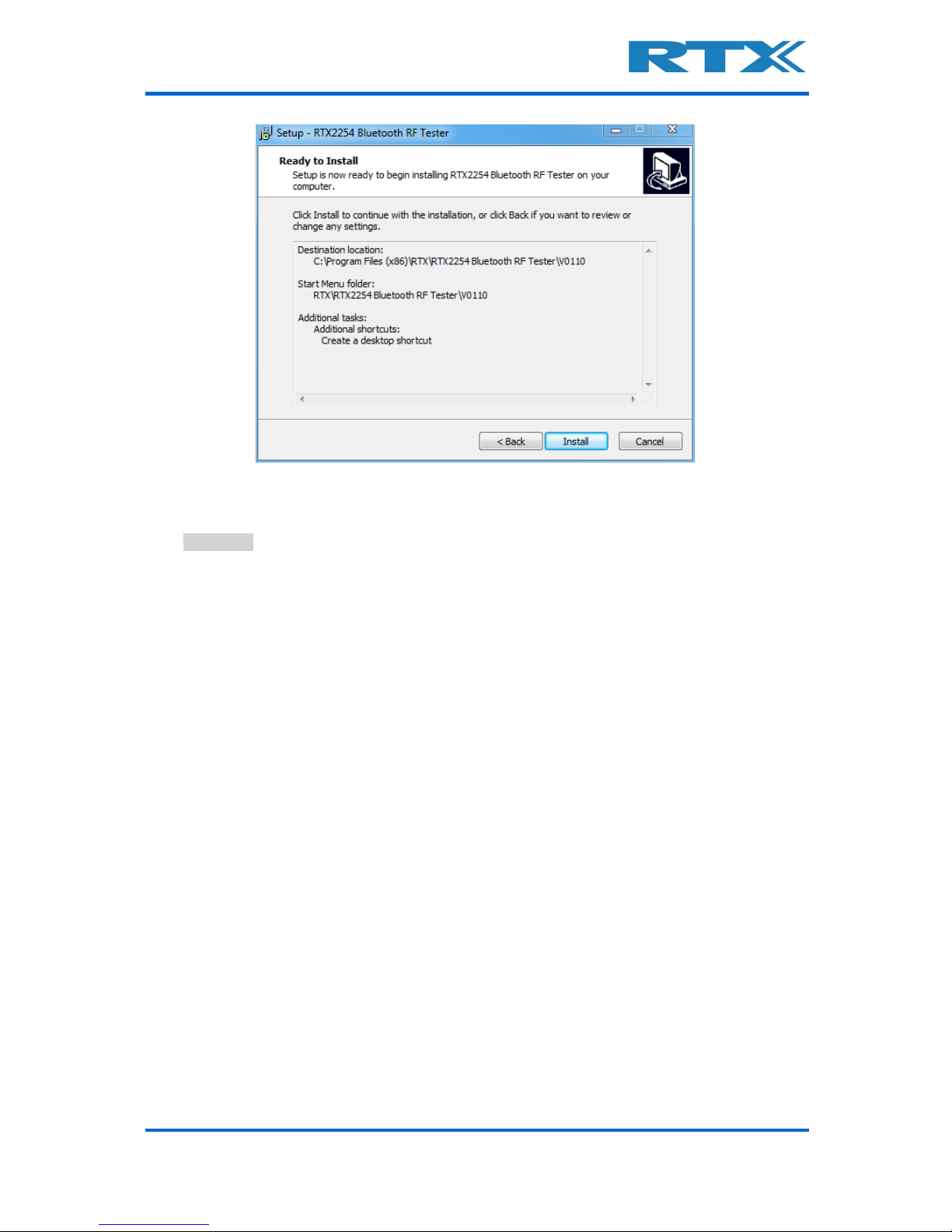

The programs are now ready to be installed.
Click [Install] to install the programs at the shown location.

Quick Installation Guide V1.10 RTX2254 –Bluetooth RF tester 10
4.1.2 Drivers Installation
By default, 2 different drivers and optionally the development environment can be
installed. The installer will present 32 bit (X86) or 64 bit (x64) drivers depending on the
used PC’s operating system.
Furthermore 4 different documents can be automatically opened after installation:
▪Release note The latest changes and information about new firmware
▪Quick Guide This quick guide to get you started
▪User Manual A description of the tester’s features, i.e. how to perform a
test and a more detailed hardware description
▪API Specification A description of the different functions in the API and the
required parameters
Please select the ones you would like to read and then click [Finish].
Please note that:
All the documents can be found in the installation folder.

Quick Installation Guide V1.10 RTX2254 –Bluetooth RF tester 11
4.1.3 RTX EAI Port Server Installation

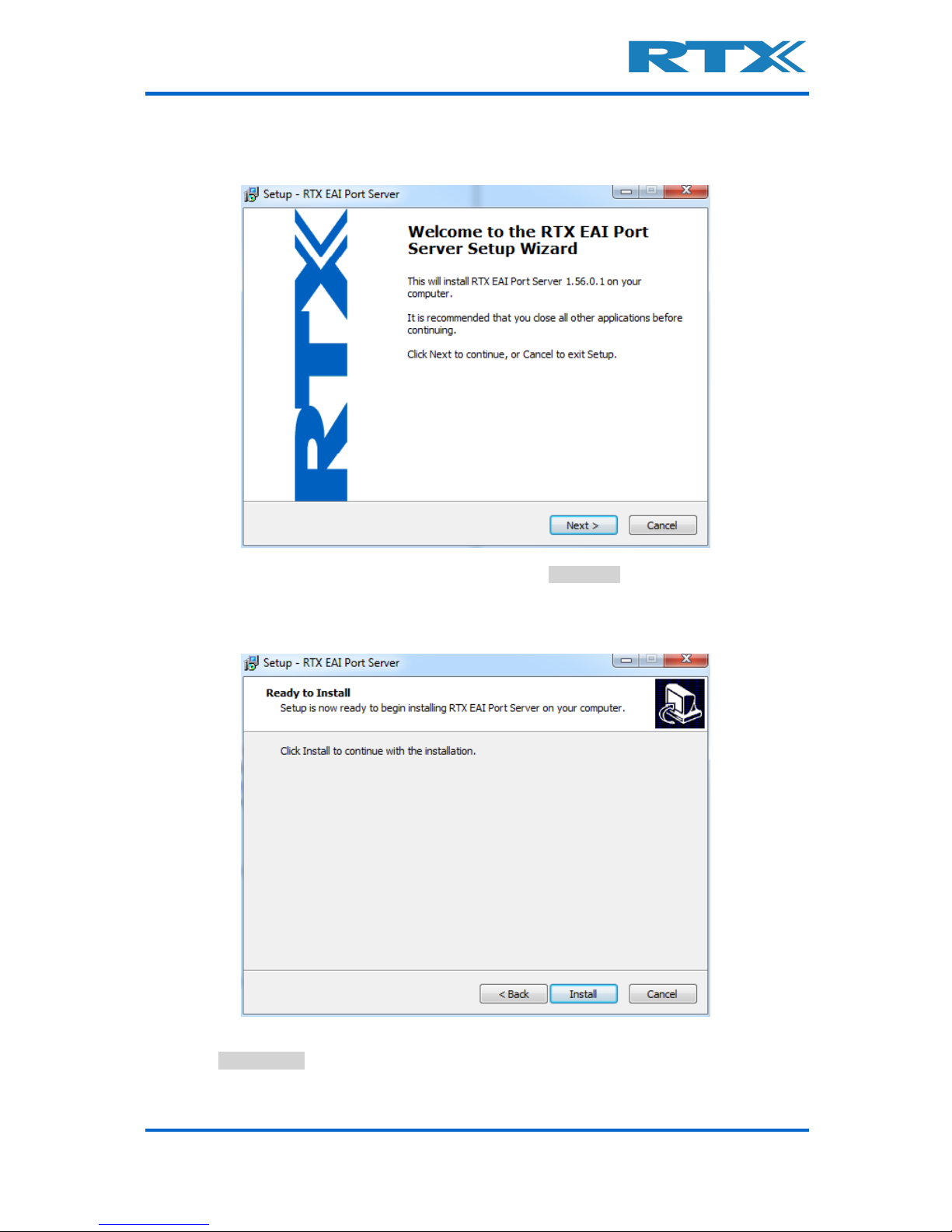

Now the EAI Port Server will be installed. Please click: [Next >].
Now click [Install >].

Quick Installation Guide V1.10 RTX2254 –Bluetooth RF tester 12

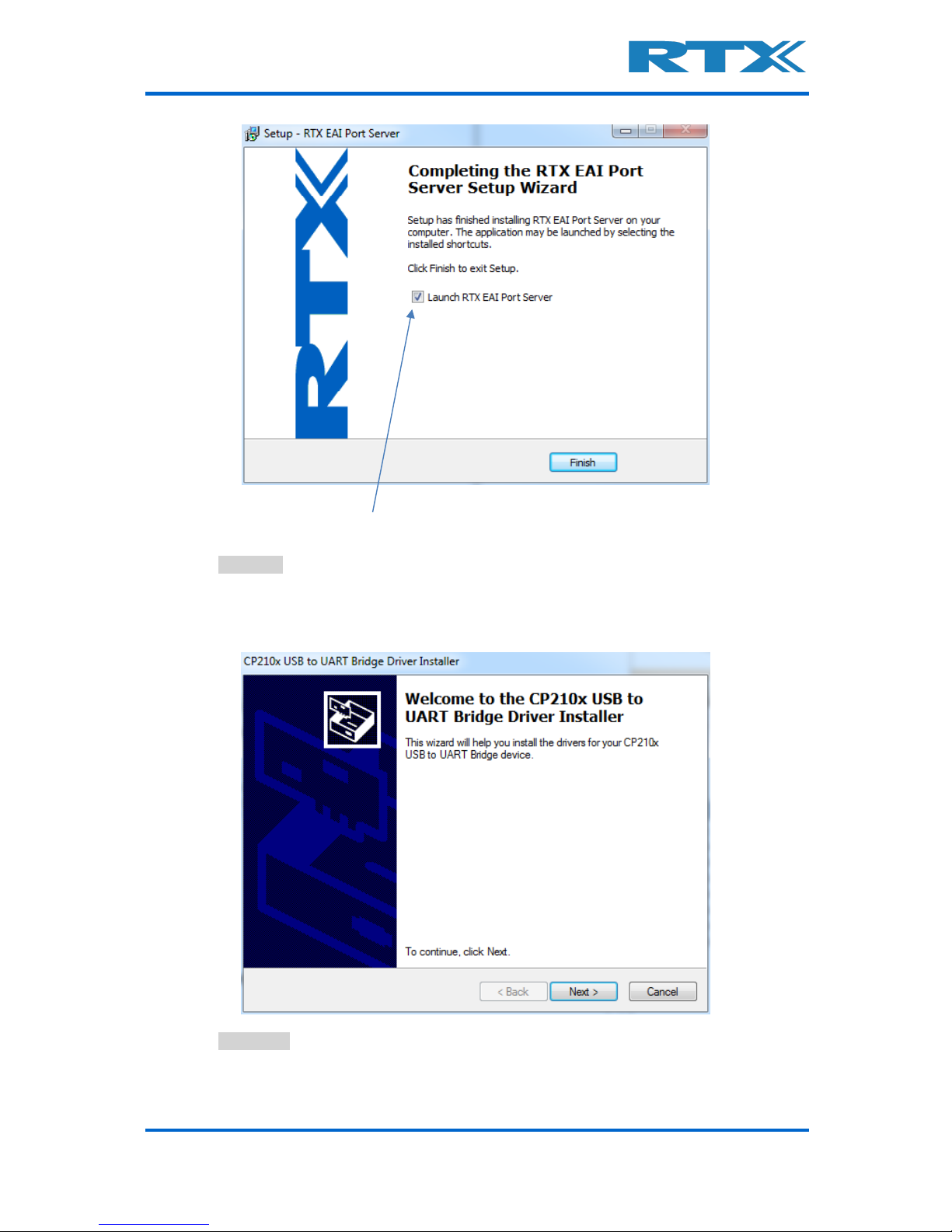

Remove the check mark in Launch RTX EAI Port Server.
Now click [Finish].
4.1.4 UART Bridge Driver Installation
Now click [Next >].

Quick Installation Guide V1.10 RTX2254 –Bluetooth RF tester 13
Please read and select the [I accept this agreement] and then click [Next >].
If this window appears, then please click [Install].

Quick Installation Guide V1.10 RTX2254 –Bluetooth RF tester 14

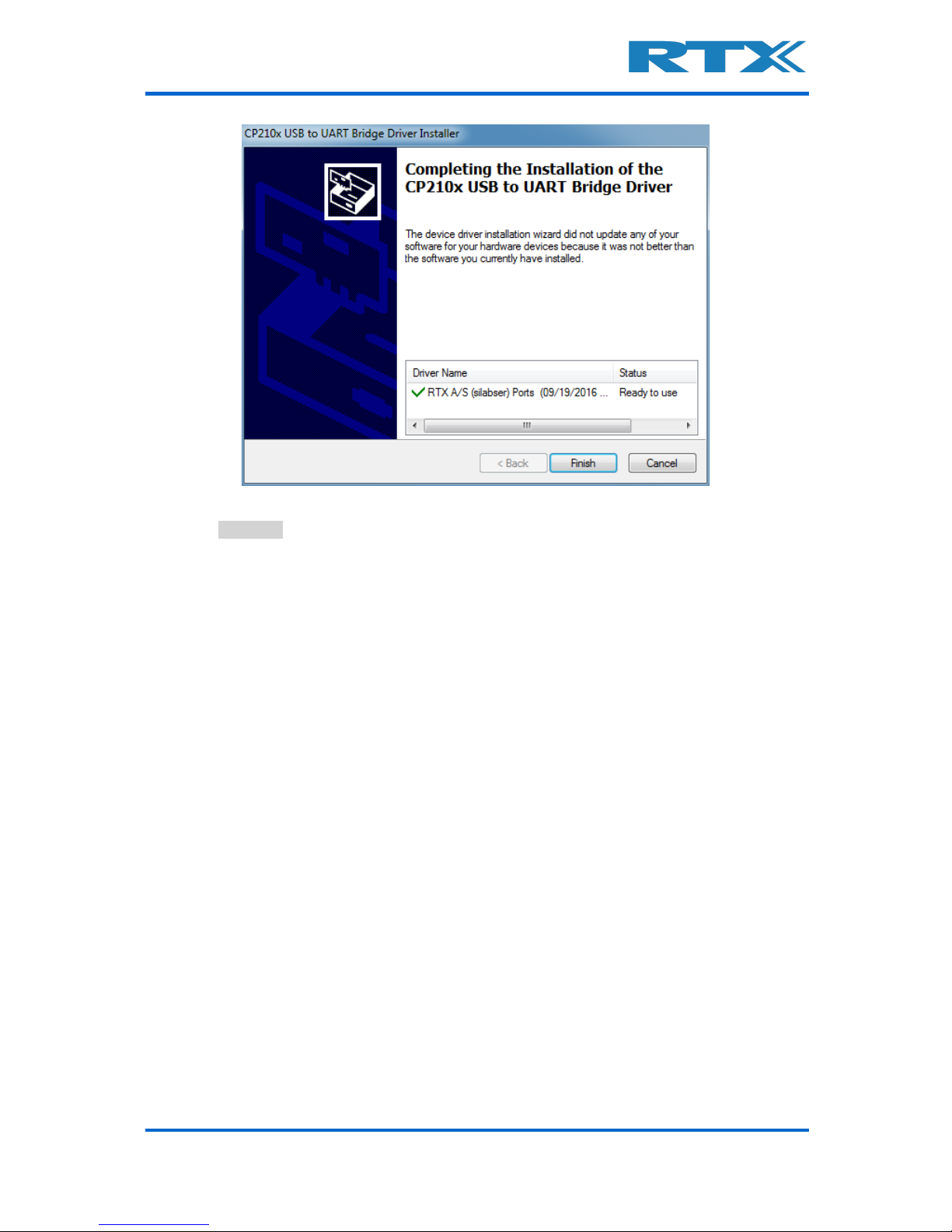

Now click [Finish].

Quick Installation Guide V1.10 RTX2254 –Bluetooth RF tester 15
4.1.5 Microsoft Drivers Installation
The Microsoft C++ run time libraries might already be installed on the PC.
Please read and select the [I have read and accept the license terms] and then click
[Install].
Click [Finish].
Now all needed programs and drivers are installed on your PC.

Quick Installation Guide V1.10 RTX2254 –Bluetooth RF tester 16
4.2 Software Installation File #2
This is a separate delivery containing a demo project which shows how the API is used in
a production test system. Microsoft Visual Studio C++ must be installed.
Please note that:
This is not required for the RTX2254 Bluetooth RF Tester SW to function. If not needed
you can skip this section.
4.2.1 RTX Demo Software Installation
Locate the file: “TestProj_RTX2254_BT-D0110.zip” and unpack it using your
preferred unzip tool.
Please note that:
The most resent version will have the highest version number in the filename. Please use
the newest one for best experience.
Microsoft Visual Studio C++ will automatically start when selecting the file
“TestProj_RTX2254_BT.sln”.
Please enter the COM port number for your system and recompile the project before
running the example.
Refer to the RTX2254 User Manual for more info about the demo test project.
Demo project

Quick Installation Guide V1.10 RTX2254 –Bluetooth RF tester 17

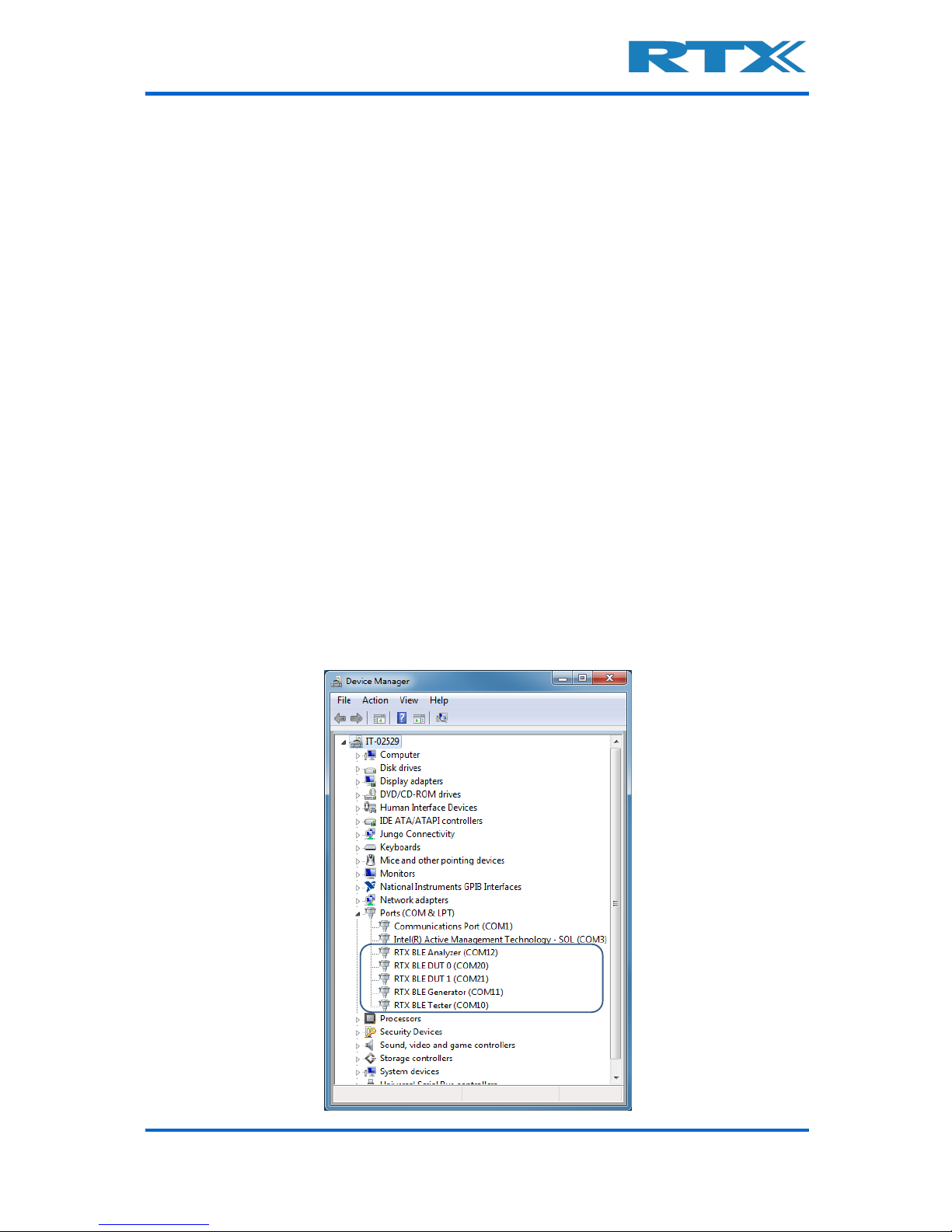

DUT UART COM 20 and 21
RTX2254 COM port 10,11,12
5Software Configuration
The different USB COM port drivers should be configured as shown in the following:
With a powered RTX2254 Bluetooth RF tester and PC, please connect USB cable between
them.
Now the drivers should automatically be installed. If not, then please use the options:
“No, not this time” and “Install the software automatically (Recommended)”,
when or if prompted.
5.1 Configuration of RTX EAI Server
It is strongly emphasized here that it is crucial to configure the RTX EAI Port
Server correctly. Hence, if an error is encountered when launching the RTX2254
Bluetooth RF tester application it is most likely related to an erroneous configuration of
the port server. Please configure it as described below.
5.1.1 Find the COM Port to use
Open the “Device Manager” by selecting “Control Panel”from the Windows main
menu or type “devmgmt.msc” in Windows search.
Then unfold the “Ports (COM & LPT)” line. The COM port numbers shown are system
specific and vary from PC to PC:

Quick Installation Guide V1.10 RTX2254 –Bluetooth RF tester 18

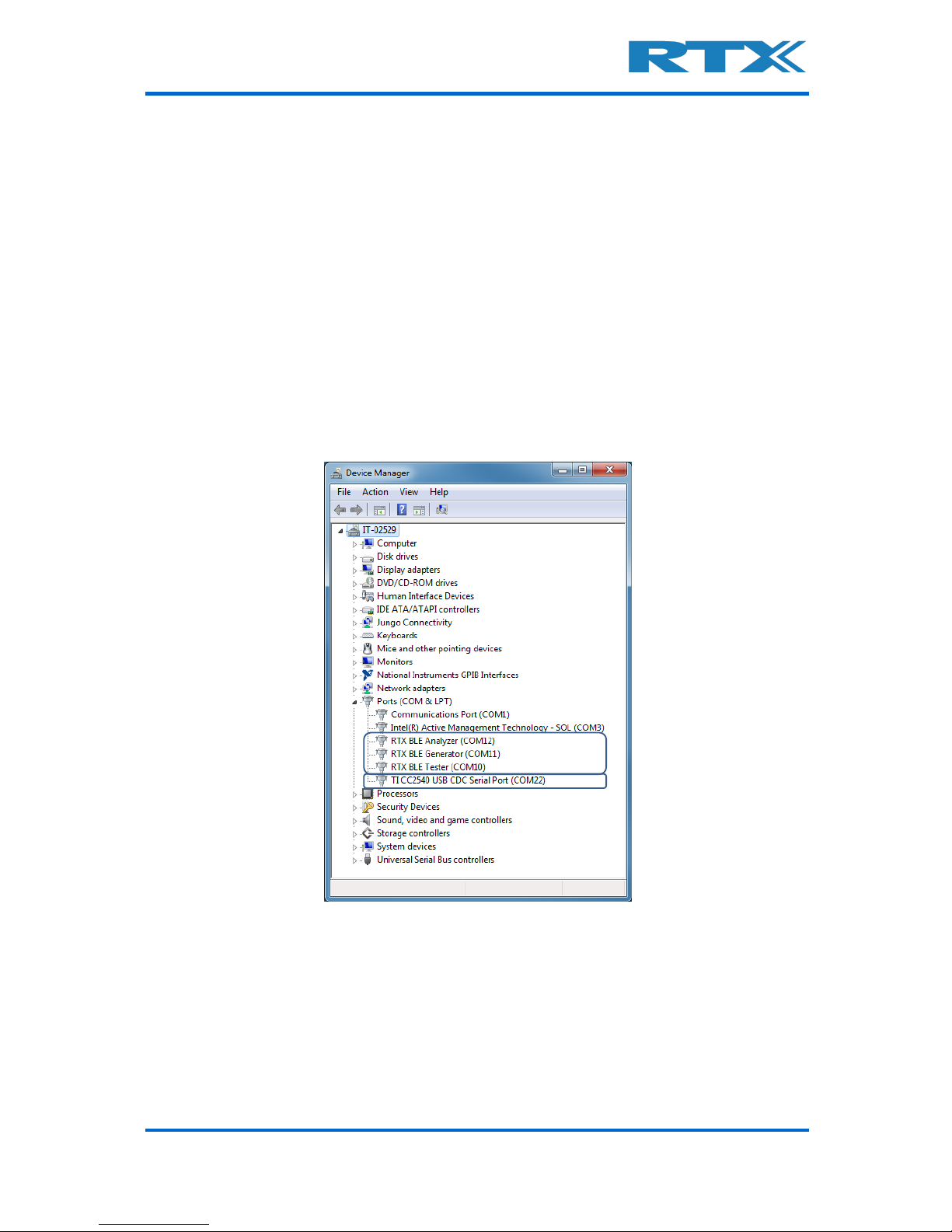

“Test DUT” on USB COM 22
RTX2254 COM port 10,11,12
The “RTX EAI Port Server” needs the communication port number from: “RTX BLE
Tester (COM10)” line
–please note this no. “10”for later use.
The “RTX2254 Bluetooth RF tester SW” needs the communication port number from:
“RTX BLE generator (COM11)” line for the generator communication
–please note this no. “11”for later use.
The “RTX2254 Bluetooth RF tester SW” needs the communication port number from:
“RTX BLE Analyser (COM12)” line for the analyser communication
–please note this no. “12”for later use.
Please note that:
The 2 UART COM ports are shown (See picture above with DUT 0 and DUT 1 as COM20
and COM21). UART is selected by default.
The 2 USB Ports (here only one “Test DUT” is connected as COM22) are only shown when
USB interface is selected from the program.
A minimum of 4 COM port numbers are required. 3 COM ports (Tester, Generator and
Analyzer) for the RTX2254 Bluetooth RF tester and 1 COM port for a test DUT is required
when configuring the program later.
Please note that:
You must first setup the 3 COM ports (Tester, Generator and Analyzer) to be able to
select USB as DUT interface to get the test DUT COM port.

Quick Installation Guide V1.10 RTX2254 –Bluetooth RF tester 19
5.1.2 Setup the RTX EAI Server

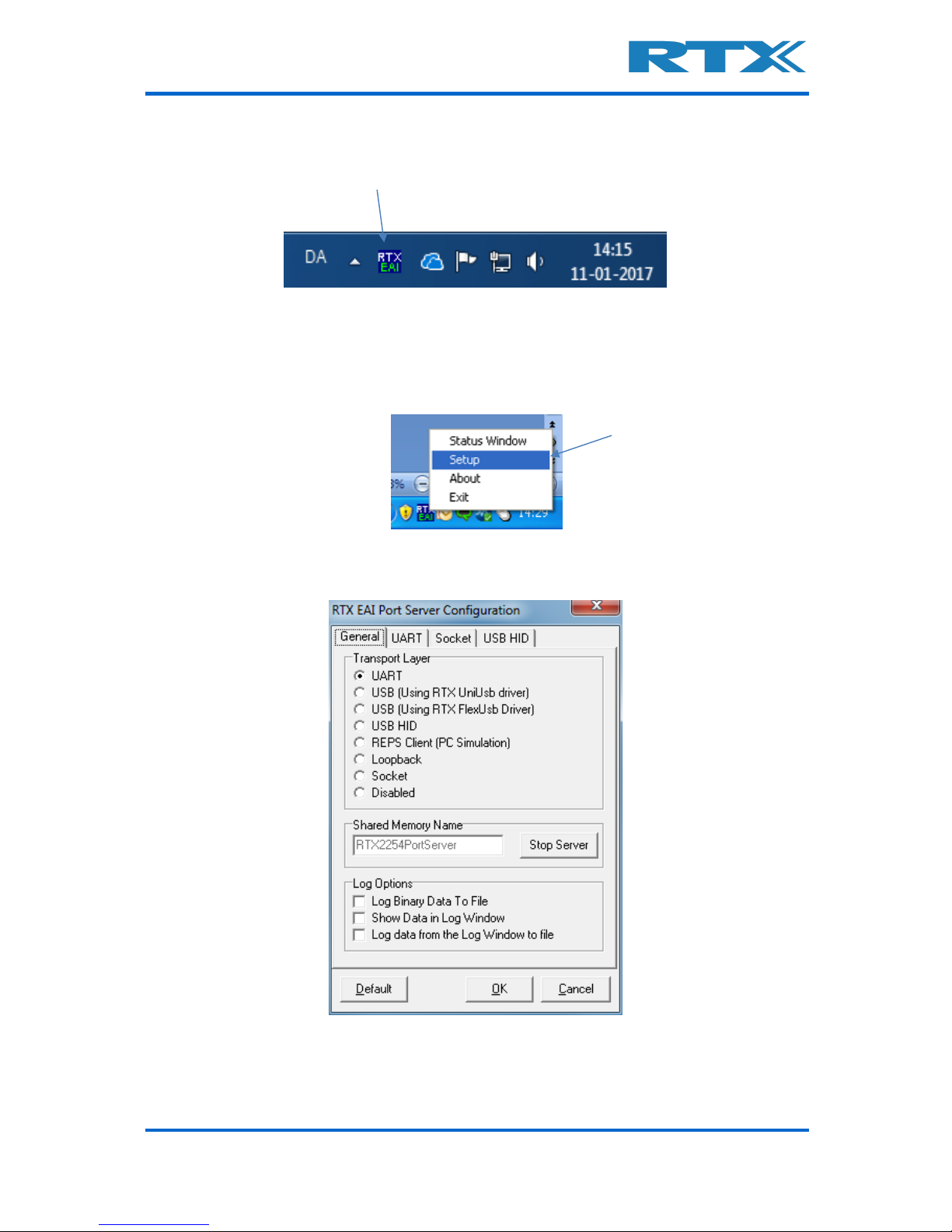

Please check that the icon “RTX EAI” is present in the task bar, like below picture:
If not started, then start it manually from Windows start button:
“Start →All programs →RTX Telecom →RTX EAI Port Server”
Now right click on the icon on the task bar and select the Setup window (see below).
When selecting the Setup line, the following window will pop-up.
Please note that:
The Transport Layer will be set to Disabled if communication is not possible. In that
case –go here, correct the HW problem and enable it again.

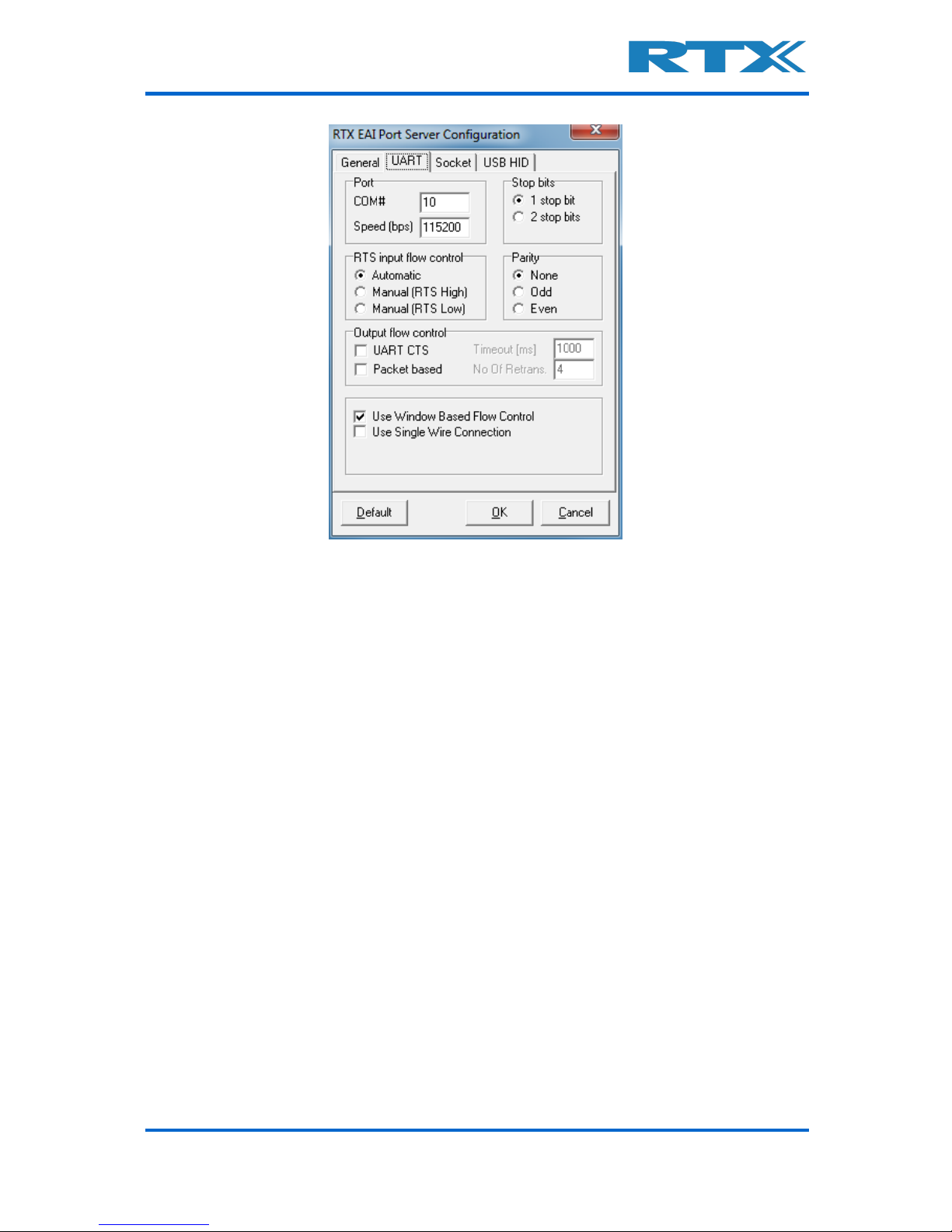

Now please set the “UART” window as shown below.

Quick Installation Guide V1.10 RTX2254 –Bluetooth RF tester 20
Please enter the COM port number from “Device Manager” page. Here it is 10 and be
sure to check that the other fields are set as shown above.
The same apply for the following 2 pages.
Please note that:
The Tester COM port number can also be setup in the RTX2254 application.
In RTX2254 application, set Tester COM = 255 to use the manually setup COM port in the
RTX Portserver application above.
