ruegg Premium Series User manual

PREMIUM-LINE ODEON
INSTALLATION GUIDE

Premium Line ODEON Installation instructions
3
Table of contents
1 Basic principles 5
1.1 Special terms 5
1.2 Figures 5
1.3 Shading 5
1.4 Abbreviations 6
2 Safety 6
2.1 Regulations 6
2.2 Warnings 7
2.3 Self-closing door 7
2.4 Multiple use 8
2.5 Preliminary screed 8
2.6 Subsurface 9
2.7 Safety distance 10
2.8 System parts 11
3 Transport 12
4 Installation 14
4.1 Delivery 14
4.2 Alignment 14
4.3 Covering 14
4.4 Bearer frame 15
5 Combustion air 16
5.1 Supply 16
5.2 Lines 17
5.3 Air flap 17
6 Flue gas system 18
6.1 General 18
6.2 Cross section 18
6.3 Length 18
6.4 Connection piece 19
6.5 Damper flap 19

Premium Line ODEON Installation instructions
4
7 Heat insulation 21
7.1 General 21
7.2 Mineral insulating materials 21
7.3 Alternative insulation materials 22
7.4 Flammable surroundings 23
7.5 Non-flammable surroundings 27
8 Combustion chamber lining 31
9 Additional weights 32
10 Nameplate 32
11 Final check 34
12 Putting into operation for the first time 34
13 Technical data 35

Premium Line ODEON Installation instructions
5
1 Basic principles
1.1 Special terms
The common terms in German-speaking countries can vary. For the purpose of
better understanding, they are simply called the following in these instructions:
Switzerland Germany/Austria English
Cheminéeeinsatz = Kamineinsatz = Chimney insert
Kamin = Schornstein = Chimney/flue
Warmluft = Zuluft = Supply air
Raumluft = Umluft = Ambient air
Frischluft = Aussenluft = Outdoor air
Rauchgasklappe = Drosselklappe = Damper flap
Unterlagsboden = Estrich = Screed
1.2 Figures
The figures used in these instructions are designed so that they are generally
valid, if possible. For this reason, the details of individual figures might deviate
from your product under certain circumstances.
1.3 Shading
In these instructions, the used hatching/shading have the following meanings:
Wood
Air gap; hollow space with our
without active back
-ventilation
Heat insulation (mineral)
Heat insulation;
nbb, RD ≥100 kg/m
3
Wooden beam
Concrete
Masonry or porous
concrete
Solid brick
(chimney stone)
Chamotte;
Covering/outer shell
Fire-protection plate;
nbb

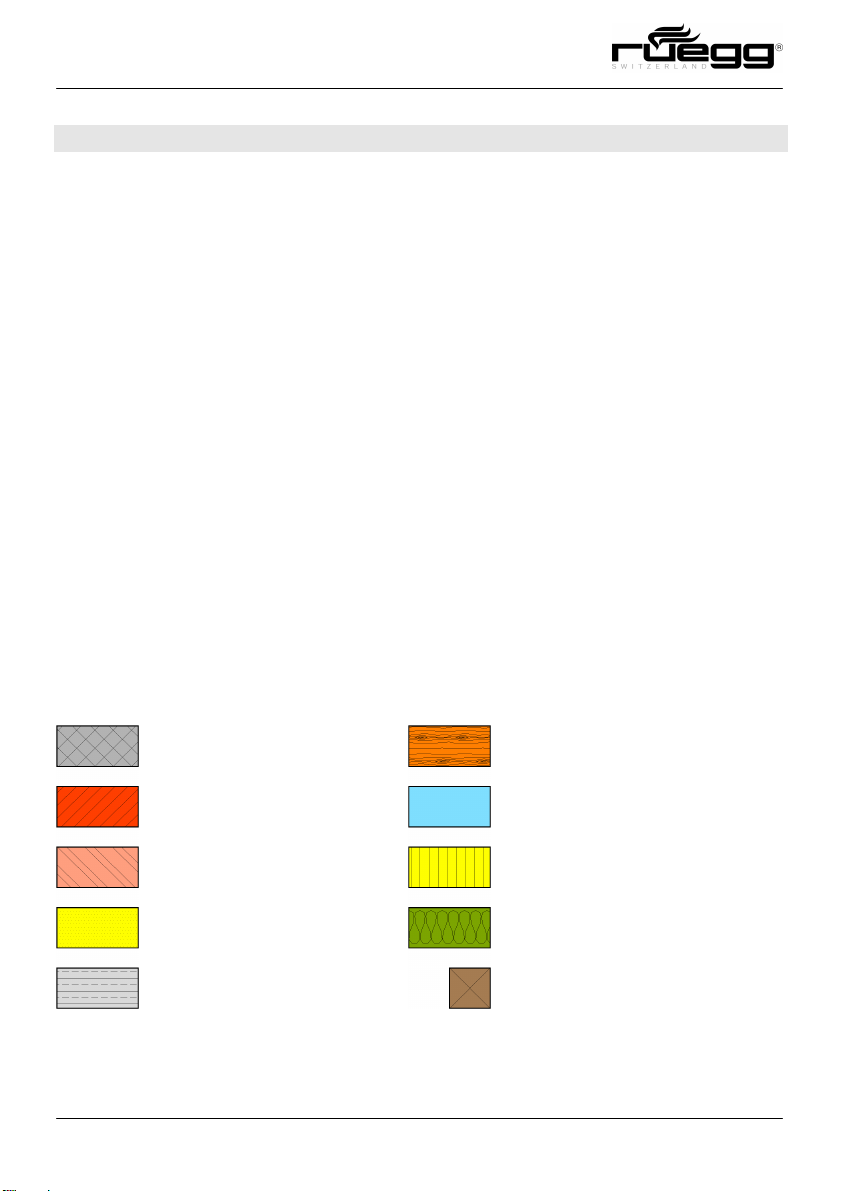

Figure 1: Hatching/shading

Premium Line ODEON Installation instructions
6
1.4 Abbreviations
nbb Non-flammable
bb Flammable
Airwash Airflow system for reducing the mist on the ceramic glass
El 30 (nbb) Fire resistance class; Resistance duration ≥30 minutes
El 60 (nbb) Fire resistance class; Resistance duration ≥60 minutes
El 90 (nbb) Fire resistance class; Resistance duration ≥90 minutes
≥Greater than or equal to
≤Less than or equal to
< Less than
> Greater than
≈Approximately
VL Combustion air
KL Convection air
BImSchV Federal Emissions Protection Ordinance (Germany)
LRV Swiss Clean Air Act (Switzerland)
S device Device with convection panel
V device Device with convection panel and built-in additional fan
K device Device without a convection panel
Tunnel device Chimney insert with door that can be pushed up on both sides
EN 13229 European testing standard for chimney inserts, including open chimneys for solid fuels
15a B-VG Agreement for saving energy (Austria)
VKF Association of Canton Fire Insurance Companies (Switzerland)
VHP Association of Swiss potter and plate businesses (Switzerland)
Tab. 1: Abbreviations
2 Safety
2.1 Regulations
Rüegg chimney inserts are type-tested and approved in acc. with EN 13229.
These installation instructions were created based on the Swiss "State-of-the-art
paper", the VHP and the German "Rules of the German Tiled Stove and Air
Heating Constructors Association".
All local regulations, including the corresponding national and European stand-
ards, must be met.
The fitter of the system is responsible for complying with the national laws.
Installations may only be executed by certified professionals.

Premium Line ODEON Installation instructions
7
2.2 Warnings
Warning and safety information indicate the following hazards:
2.3 Self-closing door
Additional weights can optionally be installed on the doors of the chimney inserts.
Chimney inserts with a self-closing door may only be operated when closed.
Points out a potentially dangerous situ-
ation.
If not avoided, it can lead to
death or very serious injuries.
Points out a potentially dangerous situ-
ation. If not avoided, it can lead to mi-
nor injuries.
Points out a potentially damaging situa-
tion. If not avoided, it can lead to mate-
rial damage on the product or the sur-
roundings.
Figure 2: Warning and safety information
Self
-
closing door
!
This function is for the operational safety of the system.
►Manipulations on the self-closing door are prohibited

Premium Line ODEON Installation instructions
8
2.4 Multiple use
Chimney inserts with a self-closing door
can be connected to a chimney designed
for multiple use.
Chimney inserts with non-self-closing door
may only be mounted individually to a
chimney flue.
The valid local regulations and manufactur-
er instructions must be observed when in-
stalling the flue gas system!
2.5 Preliminary screed
Flammable floors in front of chimney inserts
must be protected by a non-flammable pre-
liminary screed.
Guideline X
[cm] Y [cm]
VKF fire protection application /
State-of-the-art paper, VHP (Version 1.2 / 2011) Switzerland ≥40 ≥10
TR OL (Issued 2010) Germany ≥50 ≥30

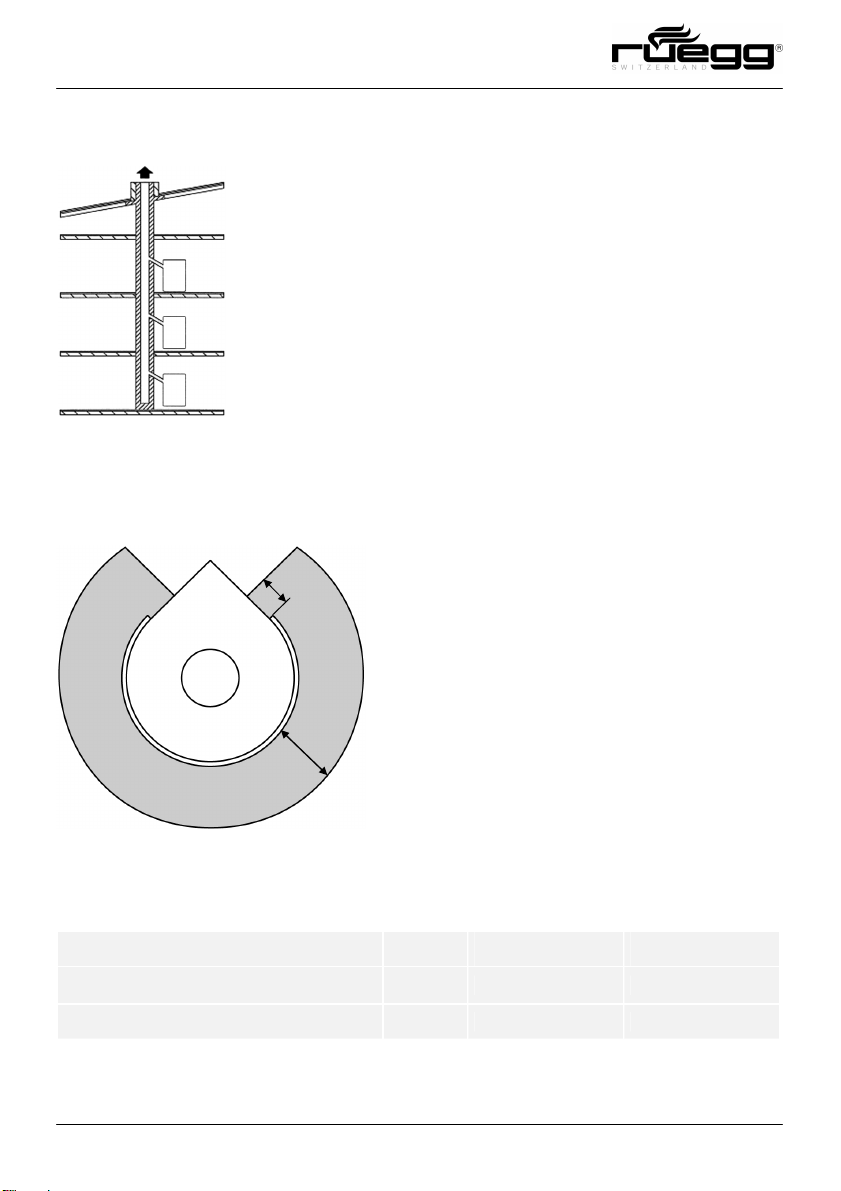

Figure 4: Non-flammable
preliminary
screed
X
Y
Figure 3: Multiple use

Premium Line ODEON Installation instructions
9
2.6 Subsurface
The subsurface, on which the chimney in-
sert, together with the bearer frame and the
covering is installed, must have a sufficient
load-bearing capacity.
The adjustable feet are height-adjustable
and are used to align the chimney insert.
The adjustable feet must be set directly on
the load-bearing subsurface.
Load
-
bearing subsurface
!
To accommodate the complete weight of the heating insert, the subsurface
must have a sufficient load-bearing capacity.
►Check the load-bearing capacity of the subsurface
►Place the adjustable feet directly on the load-bearing subsurface

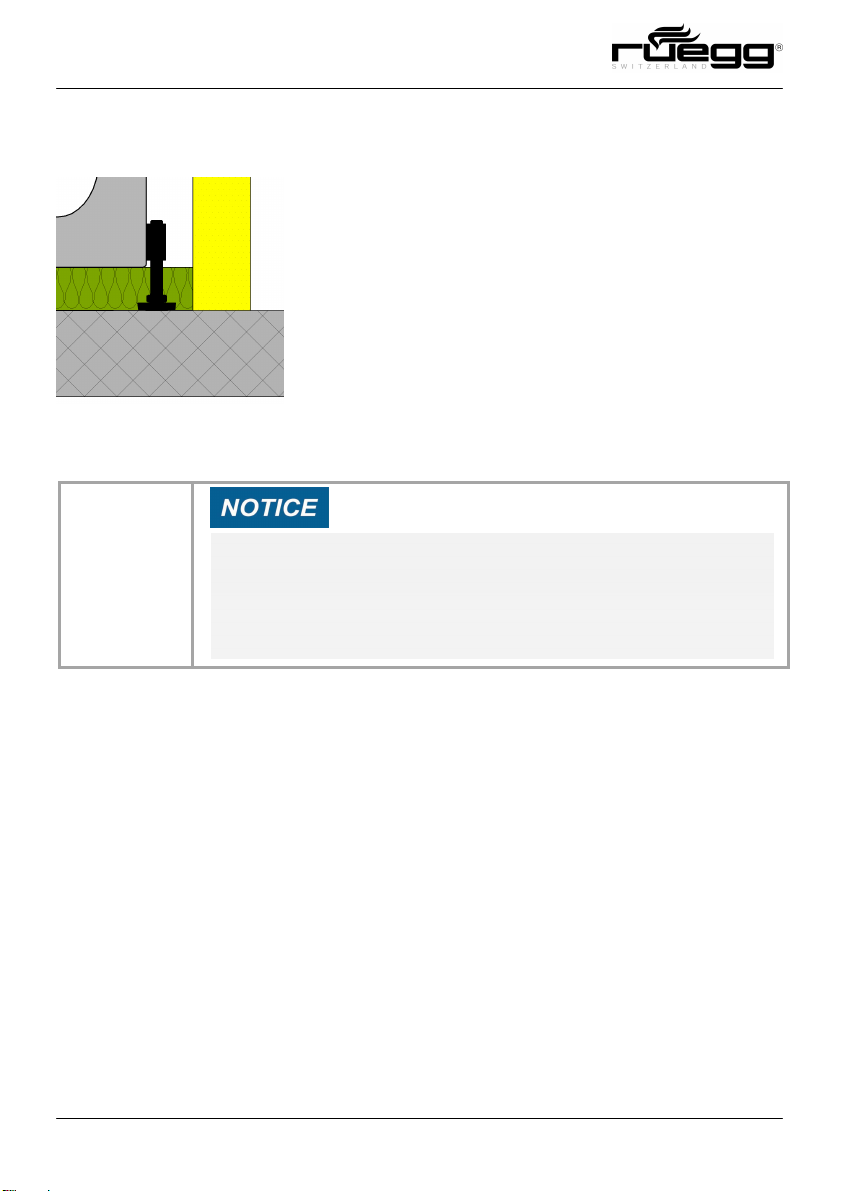

Figure 5: Adjustable foot

Premium Line ODEON Installation instructions
10

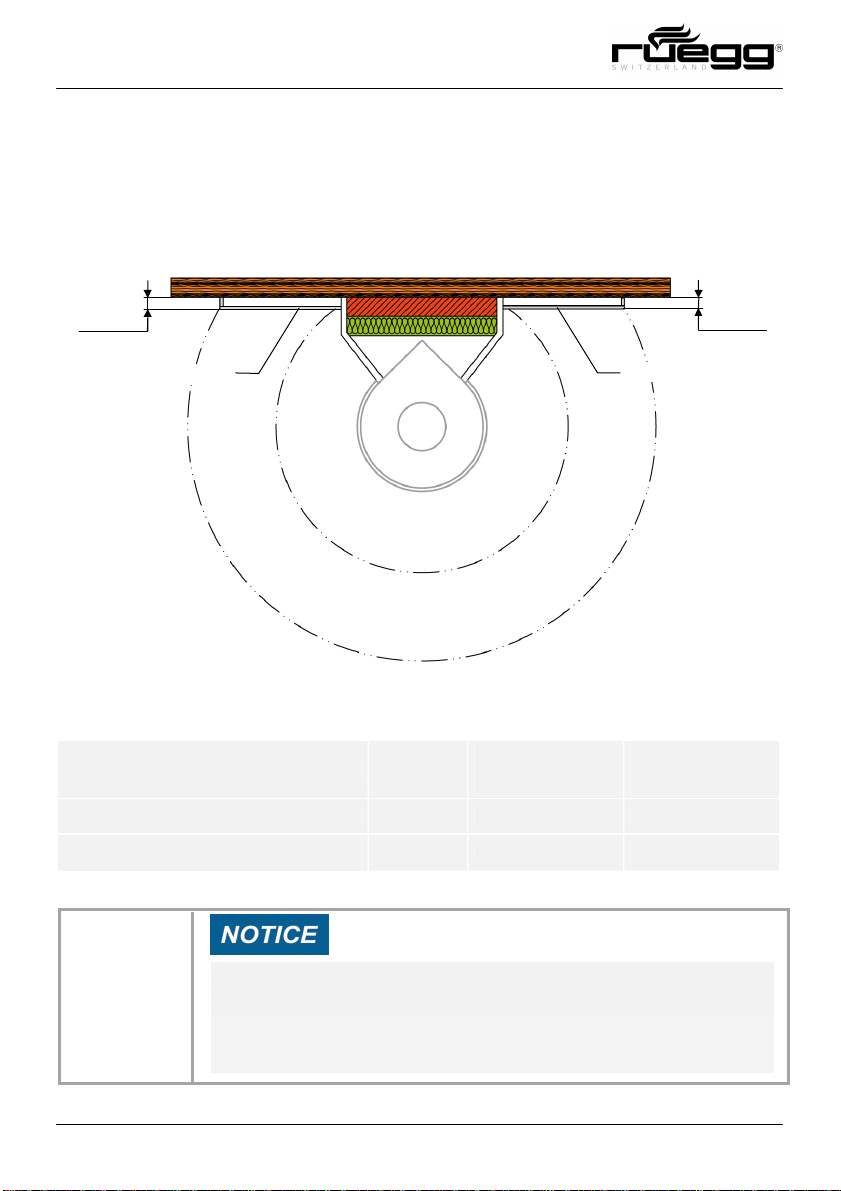

2.7 Safety distance
In the radiation zone of the system, safety distances must be kept from the flam-
mable materials toward the top, toward the front and toward the sides. When radi-
ation protection is installed which is ventilated from both sides at a distance ≥
2 cm, the safety distance can be halved.
Guideline without
Radiation protection
[cm]
with
Radiation protection
[cm]
Test report (EN13229) EU ≥80 ≥40
VKF fire protection application /
State-of-the-art paper, VHP (Version 1.2/2011) Switzerland ≥80 ≥40
Safety distance
!
In Switzerland, the safety distances in acc. with EN 13229 do not apply.
►The safety distances 80 cm or 40 cm apply, according to the fire protec-
tion application of the VKF
Figure 6: Safety distances in the radiation zone
Radiation protection
EU: 40 cm
CH: 40 cm
EU: 80 cm
CH: 80 cm
≥2 cm
Radiation protection
≥2 cm

Premium Line ODEON Installation instructions
11

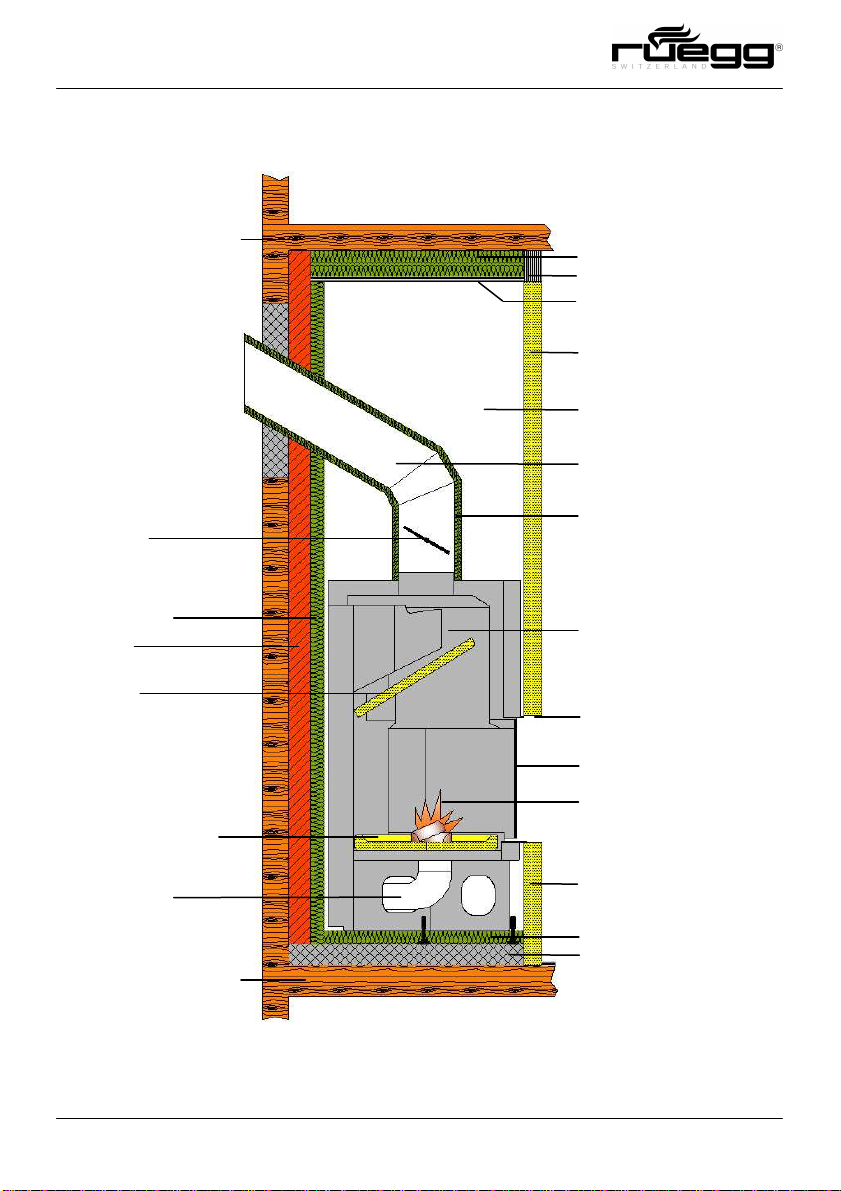

2.8 System parts
Combustion chamber
Concrete base
Smoke funnell
Door
Covering
Figure 7: Overview of system parts
Covering
(active surface)
Hollow space
Heat insulation
Bearing frame
Inactive surface
Top covering
Heat insulation
Connection piece
Heat insulation (optional)
Flammable surroundings
Combustion air
connection
Combustion chamber
lining
Brickwork
Baffle plate
Heat insulation
Damper flap
Flammable surroundings

Premium Line ODEON Installation instructions
12

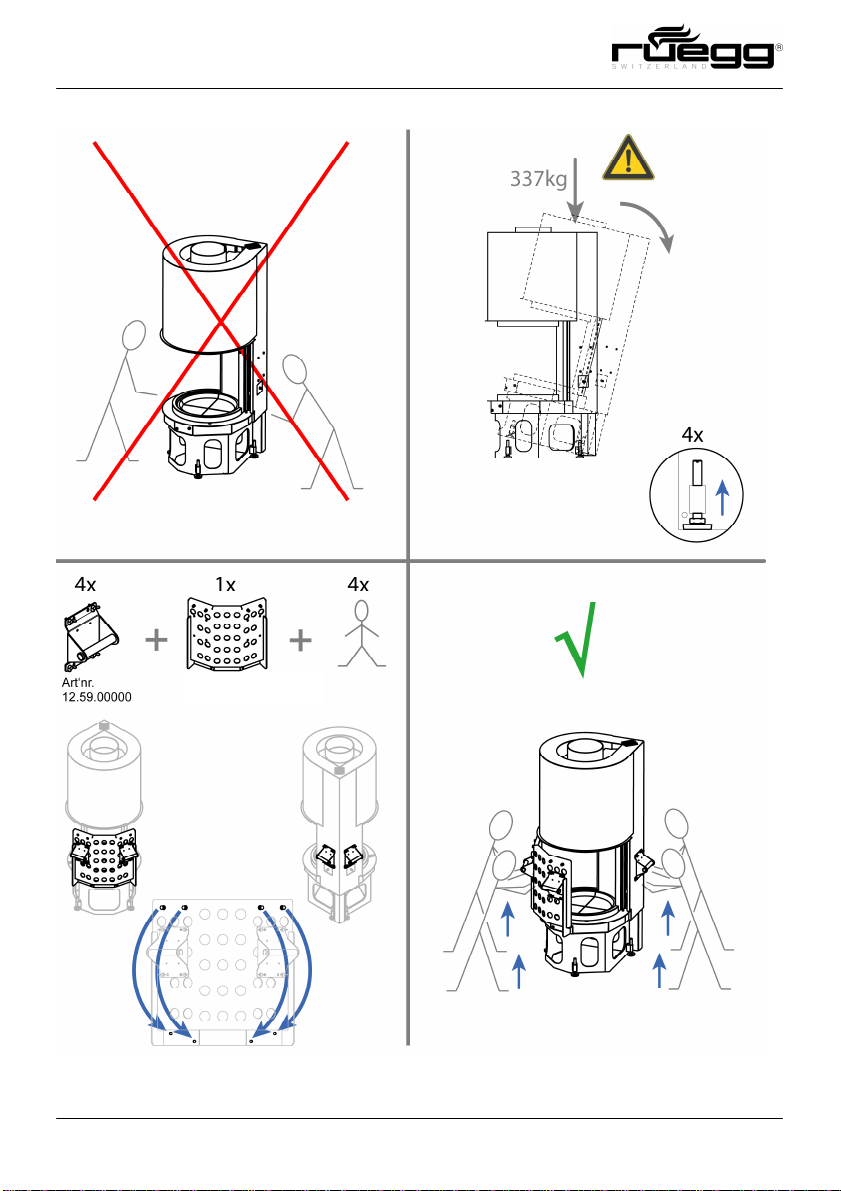

3 Transport
When transporting the chimney insert, observe the following:
Screw the adjustment feet in completely or remove
Avoid transporting in a lying position
Secure the combustion chamber doors with safety screws
Remove loose components from the combustion chamber
Use a handling module (Art. no. 12.59.00006)
Use carrying handles (Art. no. 12.59.00000)
Danger of tipping
!
The chimney insert weighs 337 kg and tends to tip toward the rear wall.
►At least 4 strong people should be assigned
►Use load-carrying aids
►Secure chimney insert against tipping

Premium Line ODEON Installation instructions
13
Figure 8: Brief transport instructions
Art’nr.
12.59.00006

Premium Line ODEON Installation instructions
14

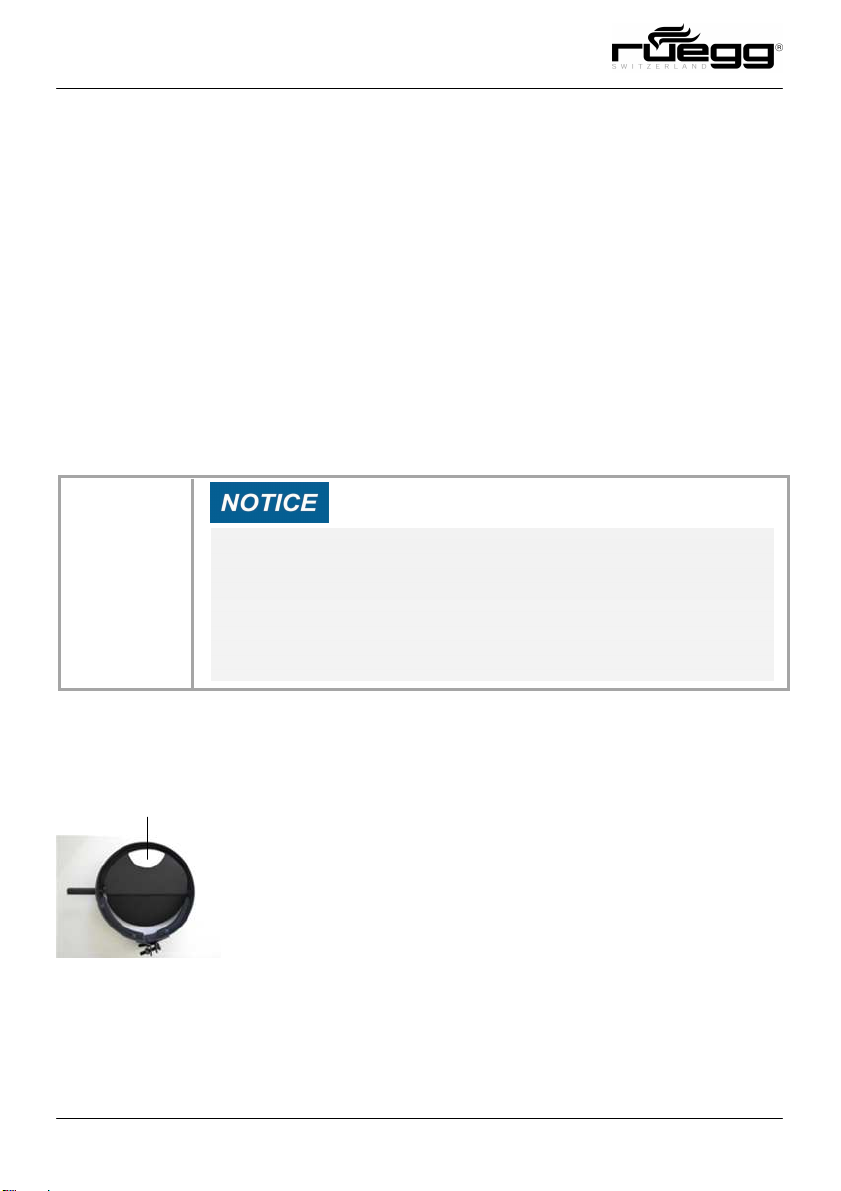

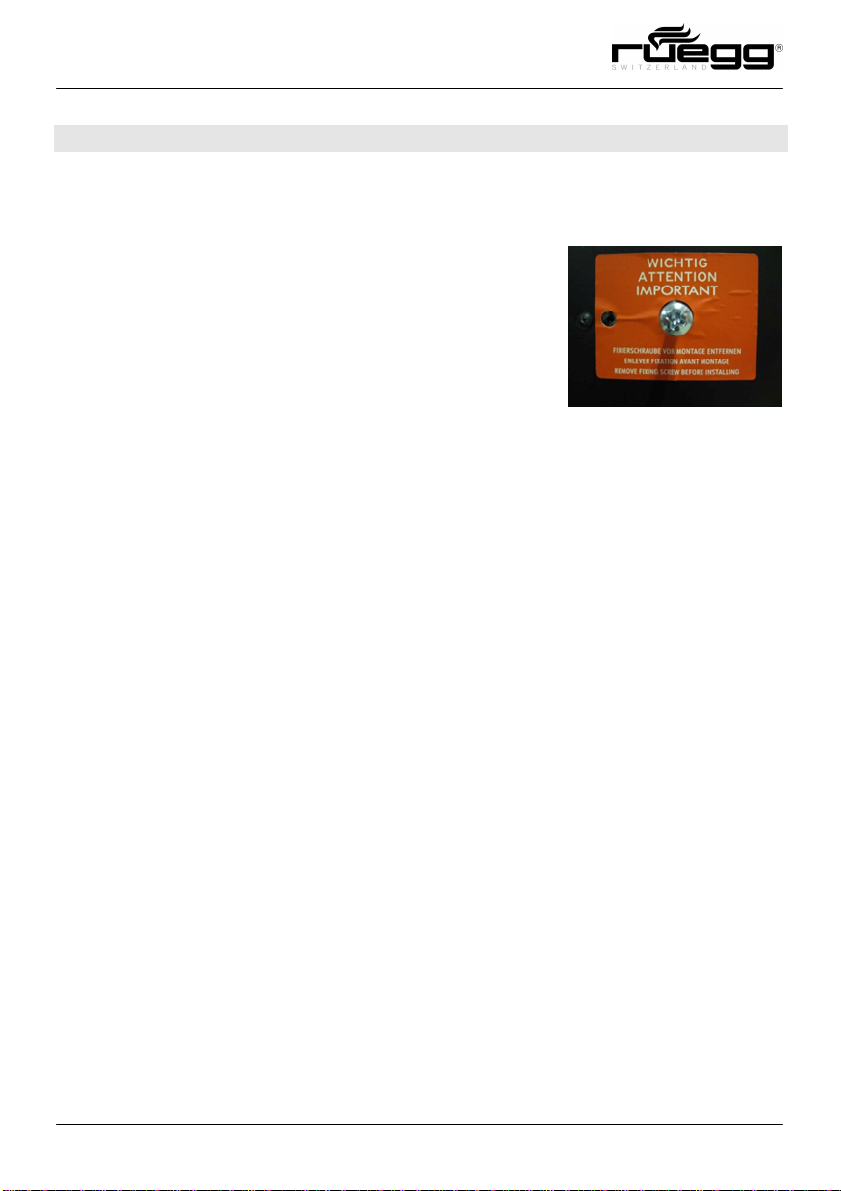

Figure 9: Fixing screw
4 Installation
4.1 Delivery
Upon receipt, immediately check the delivered chim-
ney insert for completeness, transport damage and
dimensional accuracy.
Remove all fixing screws from the counter-weights
and other transport securing devices.
Check the door function before installation.
Report any deficiencies to the responsible Customer
Service before installation.
Read these instructions through carefully before in-
stallation.
4.2 Alignment
The chimney insert must be exactly aligned at the installation site using a spirit
level.
Before the covering is attached, a function check of the door must be carried out.
If the chimney inserts are not exactly aligned, components of the door mechanism
can cause noise.
4.3 Covering
The covering must consist of non-flammable materials.
Between the covering and the chimney insert, glass fabric tape must be mounted
on all sides.
The door must be able to swing out completely when the covering is installed.
The covering must not be heat-insulated if the chimney system is made so that
the free surfaces of the covering and surfaces of the recesses for storing fuel can
heat up to a max. of 85°C. For surfaces made of building materials, e.g. stove
tiles, with the exception of surfaces on which objects can be placed, instead of
the value 85°C, the value 120°C applies.
The valid safety distances must be complied with.
The processing materials must be thermally stable and must not emit a lasting
odor when under a thermal load. Therefore, no materials containing plastic may
be used.

Premium Line ODEON Installation instructions
15

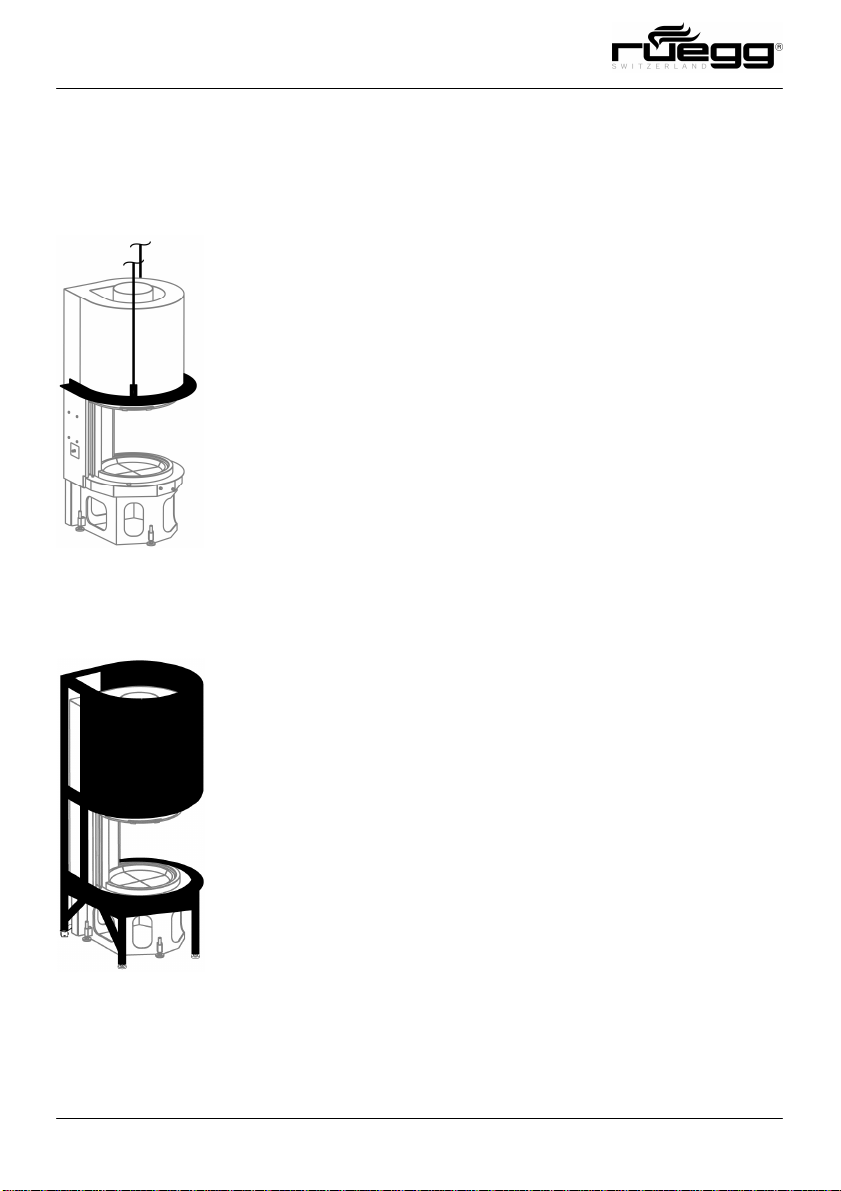

4.4 Bearer frame
Depending on the design of the system, there are two different bearer frames
available for statically supporting the top covering. An expansion joint (e.g. glass
fabric tape) must be applied between the chimney insert and the bearer frame.
"Standard"
The one-piece bearer frame (Art. no.
12.70.00460 or 12.70.02460) is used if the top
covering goes up to the ceiling. The bearer
frame is fixed to the ceiling using a draw bar and
fastening elements suitable for accommodating
the load. Here, the load-bearing capacity of the
ceiling must be taken into account.
Note:
It is imperative that the bearer frame be installed
before installing the flue gas connection pipe!
The cut-out in the rear part of the bearer frame
is smaller than the diameter of the pipe!
"Free-standing"
The multi-part, free-standing bearer frame (Art.
no. 12.70.00465) is used when the covering
does not reach to the room ceiling and is
covered immediately above the chimney insert.
The bearer frame is positioned on the floor
together with the chimney insert and fixed in
place. Here, the load-bearing capacity of the
floor must be taken into account. Detailed
information can be found in the instructions
enclosed with the bearer frame.
Figure 10
: Standard bearer frame
Art. no. 12.70.00460
or
12.70.02460
Figure 11
: Free-standing bearer frame
Art. no. 12.70.00465

Premium Line ODEON Installation instructions
16
5 Combustion air
5.1 Supply
Rüegg chimney inserts are designed such that the combustion air can be sup-
plied to the device for closed operation, separate from the ambient air. Here, the
combustion air is conducted directly into the device from outside of the set-up
room and is fed to the fire internally there.
Cross section 175 cm
2
(connection piece Ø 15 cm)
The combustion air pipe can come from behind, from underneath or from both
sides through the prepared openings to the attachment collar.
Figure 12: Connection variant, combustion air
Connection piece Ø 15 cm
Self
-
supporting construction
!
The bearer frame must be constructed so that it is self-supporting. There
must be no direct connection to the chimney insert, nor may it be supported
on this.
►Check the load-bearing capacity of the floor or ceiling.

Premium Line ODEON Installation instructions
17
5.2 Lines
For supply lines, round cross sections with smooth inner surfaces are preferably
to be used.
Mineral supply lines (e.g. masoned) must have abrasion-proof inner surfaces.
Supply lines must be 3 cm thick over their entire length, be non-flammable and
heat-insulated.
As the supply line terminator, there should always be a fine-mesh, removable
facade screen installed in the facade. The flow resistances declared by the man-
ufacturer are to be taken into account here.
The cross section of 175 cm
2
(Ø 15 cm) must not be reduced.
If smaller cross sections are installed due to calculations, the fitter does so at his
own risk. Perfect system function is not guaranteed.
Outdoor air lines with a cross section of 175 cm
2
(∅15 cm) must not exceed the
following maximum lengths:
with semi-rigid aluminum pipes ("Aluflex"): L
max
= 6 m
with smooth-walled pipes: L
max
= 8 m
5.3 Air flap
To keep cold air from entering, cold bridges and condensate formation, we rec-
ommend the installation of a tight-closing air flap near the facade.

Premium Line ODEON Installation instructions
18
6 Flue gas system
6.1 General
The flue gas system must be designed and approved for the fireplace application
with wood as a fuel. The flue gas system must meet the national and local regula-
tions and they must at least meet the following requirements :
Temperature class: T400 (nominal operating temperature ≥400°C)
Soot-burning resistance class: G(system with soot-burning resistance)
Corrosion resistance class: 2(natural wood)
6.2 Cross section
Recommended cross section: Ø 25 cm or □25x25 cm
If, due to a draft measurement or calculation, smaller or larger cross sections are
installed, the fitter acts at his own risk. The perfect function of the system must
be ensured.
Under certain circumstances, the following malfunctions could occur:
→Condensate formation due to excessive cooling of the flue gases
→Smoke formation due to weak draft conditions
6.3 Length
The determined draft in the flue gas system must lie between 10 - 12 Pa.
Flue gas systems without a flue gas fan with lengths L ≤4 m are not permissible.
The draft conditions must be checked by making suitable measurements before
covering the system.
To achieve stable draft conditions, a flue gas fan can be installed in the flue gas
system.
Static support
!
The flue gas system must be constructed so that it is self-supporting. It must
not be supported on the chimney insert.
►Observe the manufacturer specifications
►Check the load-bearing capacity of the cladding involved in the installa-
tion

Premium Line ODEON Installation instructions
19
6.4 Connection piece
When installing the connection piece, the following requirements must be com-
plied with.
Permissible materials:
Steel sheet thickness ≥2 mm
Chromium-nickel steel sheet thickness ≥1 mm
The connection piece must be directly routed from the chimney insert to the flue
so flow is favorable.
All connection points must have long-term heat resistance and be leak-tight.
Feedthroughs for connection pieces which are routed through flammable sur-
roundings must be properly designed. The national and local regulations must
be complied with.
Options for regular cleaning must be provided.
6.5 Damper flap
There must be a damper flap installed in
the connection piece. The damper flap
must not be tight-closing. It must have a
free cross section.
In "Rüegg flaps", the corresponding cut-
outs are pre-lasered. They can be broken
out with pliers.
The connection points must have long-term
heat resistance and be leak-tight.
Heat insulation
!
In Switzerland, the connection piece must be heat-insulated, except in hot-
air chambers.
►Insulation material: mineral wool in acc. with Table 2
►Insulation thickness ≥3 cm
►Fastening must be solid and have long-term heat resistance ≥700°C
Break-out
Figure 13: Damper flap

Premium Line ODEON Installation instructions
20
Deflagrations
!
When using tight-closing damper flaps, dangerous deflagrations could occur
during operation.
►Install non-tight-closing damper flaps which have a forced opening of at
least 20 cm
2
continuous area or at least 3% of the cross-sectional area
of the wing.
Function check
!
Before installing the covering, check to make sure the damper flap is work-
ing properly.
►Open and close several times
Flexible shaft
!
Flexible shafts must not have direct contact with the chimney insert.
►Mount the spacer
