ruegg Tilia RIII-F User manual

Tilia RIII-F 45x56x46
INSTALLATION MANUAL

Installation manual
__________________________________________________________________________________
2

Installation manual
__________________________________________________________________________________
3
3
Table of contents
Principles............................................................................................................................................... 4
Safety.................................................................................................................................................... 4
Transport............................................................................................................................................. 11
Installation........................................................................................................................................... 11
Combustion air..................................................................................................................................... 12
Flue gas system................................................................................................................................... 13
Fire resistance radiation systems......................................................................................................... 16
Firebox casing..................................................................................................................................... 16
Type plate............................................................................................................................................ 19
Final inspection.................................................................................................................................... 21
Initial start-up....................................................................................................................................... 21
Technical data..................................................................................................................................... 22

Installation manual
__________________________________________________________________________________
4
Principles
Pictures
The pictures used in this manual are designed in such a way that they can be applied generally as far
as possible. For this reason, under certain circumstances the details of individual pictures may differ
from those of your product.

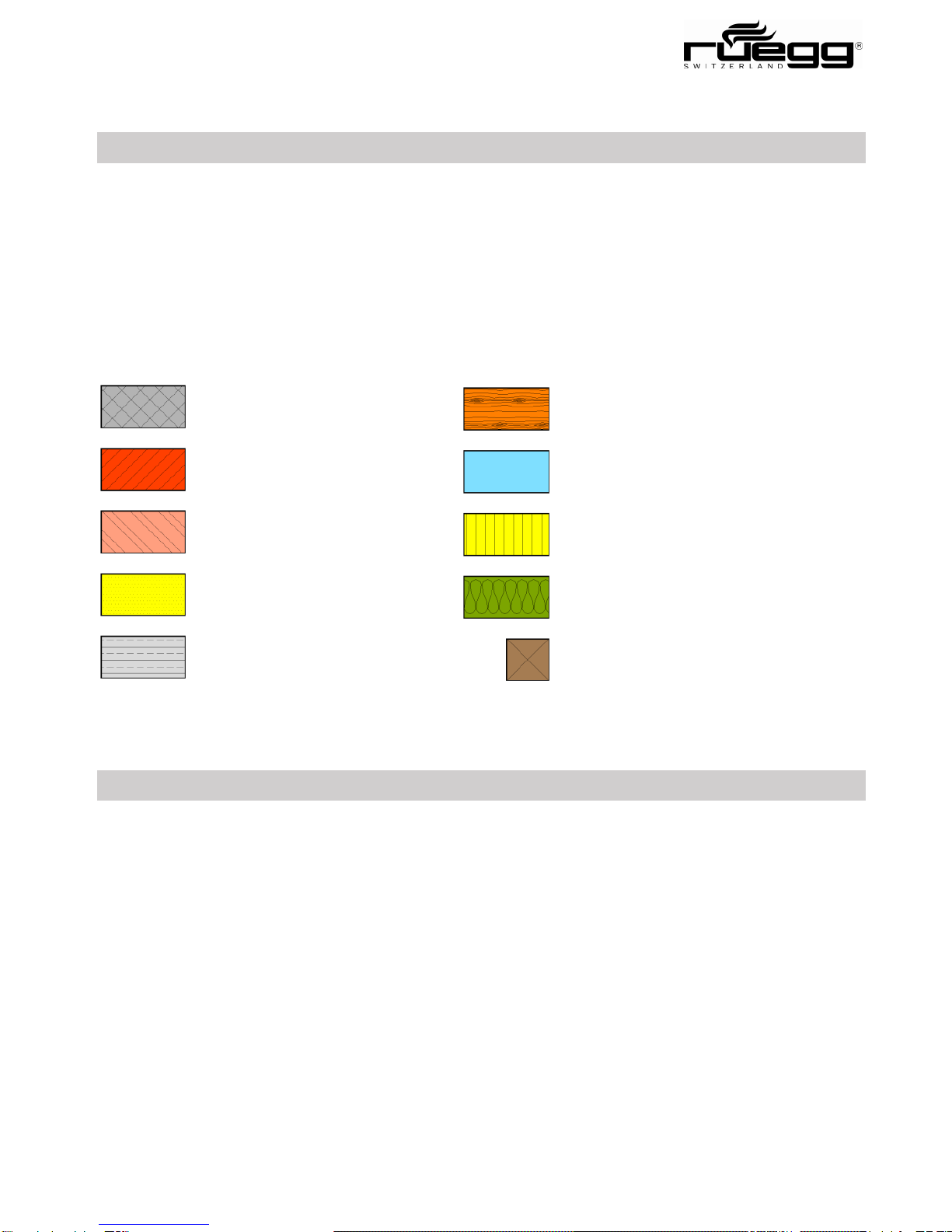

Cross hatches
The cross hatches used in this manual have the following meaning:
Safety
Regulations
Rüegg single-room heaters have been type-tested and approved in accordance with EN 13240.
Values primarily from the EN test are published. Where the test provides no information, country-
specific values from Switzerland and Germany have been used. The installer is responsible for this
validity.
The appliances are tested exclusively for the closed operation.
All local requirements, including the relevant national and European standards, must be met and take
precedence over the installation manual
The installer of the system is responsible for meeting country-specific legislation.
Installations may be undertaken by trained specialists or Rüegg partners only. If this is not the case,
Rüegg shall not accept any warranty or liability.
Wood
Air gap; cavity with or without active
rear ventilation
Thermal insulation (mineral)
Thermal insulation;
nbb, RD ≥ 100 kg/m3
Wooden beams
Concrete
Masonry or porous
concrete
Full brick (chimney bricks)
Fireclay; casing/external
cover
Fire-resistant plate; nbb

Installation manual
__________________________________________________________________________________
5
5
Warnings
Warnings and safety information indicate the following hazards:
Self-closing door
Balancing weights can be removed from the counterweights until the doors close automatically.
Fireplaces with a self-closing door may be operated only when the doors are closed!
Designates a potentially hazardous situation. Can result in death or
severe injuries if not avoided.
Designates a potentially hazardous situation. Can result in slight
injuries if not avoided.
Designates a potentially harmful situation. Can result in physical
damage to the product or the surrounding area if not prevented.

Installation manual
__________________________________________________________________________________
6
RIII
The device is equipped with a handle that has two magnets.
With this handle, the balancing weights can be lifted from the
main weight.
For this to be done, the door must be completely raised.
Insert the handle with the magnets through the gap.
Rotate 90° so that the magnets adhere to the upper weight.
Lift the weight and extend it through the indentation in the
main weight.
Turn the handle with the magnet another 90° and remove
the weight.

Installation manual
__________________________________________________________________________________
7
7

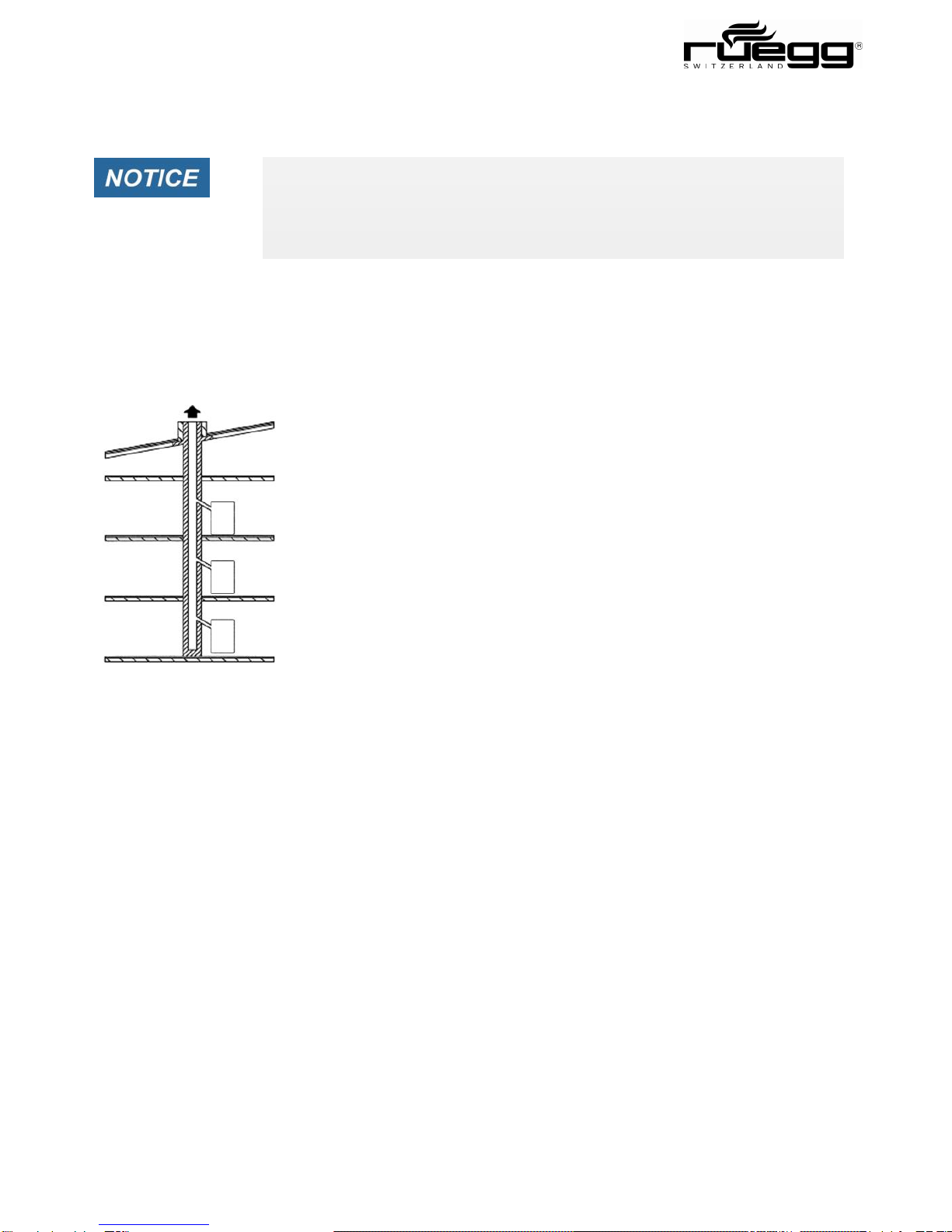

Multiple-use
Fireplaces with a self-closing door may be used on a chimney designed
for multiple connections.
Fireplaces without a self-closing door may only be fitted singly to a
chimney flue.
For the installation of the flue gas system, the applicable local
regulations and manufacturer’s instructions must be followed!
Self-closing door!
This function is to ensure the system’s operating safety.
►Manipulating the self-closing door is prohibited

Installation manual
__________________________________________________________________________________
8
Precoat
Combustible floors in front of fireplaces must be
protected by a combustible precoat in front of
the pane.
Directive
X
[cm]
Y
[cm]
VKF (Association of Swiss Fire Insurers) fireproof application/
VHP state-of-the-art technology paper (version 1.2/2011)
CH
≥ 40
≥ 10
TR OL (issue 2010)
D
≥ 50
≥ 30
Substrate
The substrate on which the fireplace insert is installed
with the casing must be sufficiently load-bearing.
The adjustable feet are height-adjustable and are used
to align the fireplace insert. The adjustable feet must be
placed directly on the load-bearing substrate.
X
X
X
X
Y
Y
Load-bearing substrate!
The substrate must be sufficiently load-bearing to take the full weight of the
heating insert.
►Check the load-bearing capacity of the substrate
►Place the adjustable feet directly on the load-bearing substrate

Installation manual
__________________________________________________________________________________
9
9
Safety distance of three-sided devices (triple-ceramic glass pane)
The safety distances from combustible materials must be maintained in the radiation area of the
installation.
The safety distance can be halved by installing a two-sided ventilated radiation protection at a distance
of ≥ 2 cm.
Device
X
[cm]
Y
[cm]
Z
[cm]
RIII-F 45x56x46
80
80
0

Installation manual
__________________________________________________________________________________
10

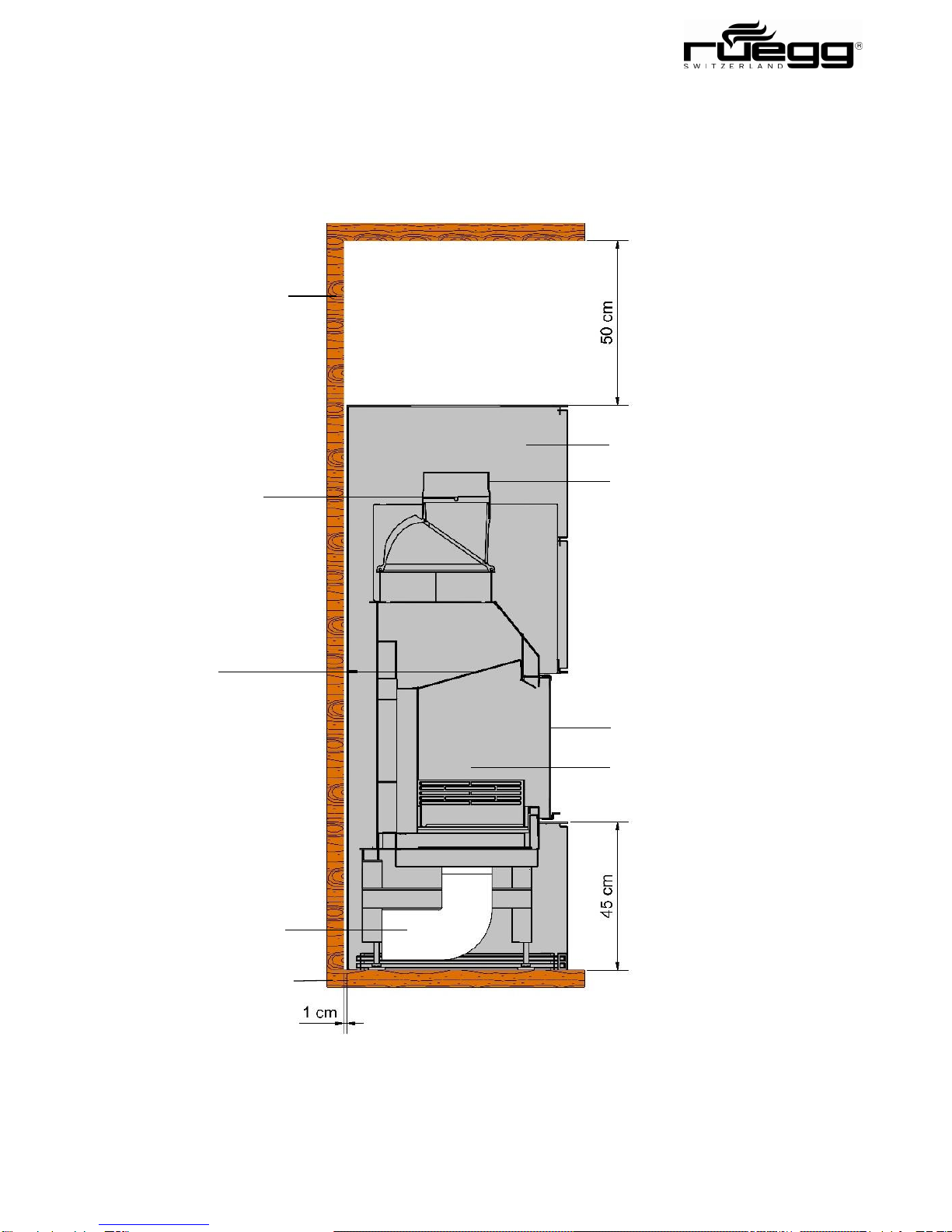

System components
Combustible
environment
Flue gas valve
Baffle
plate
Combustion air
connection
Firebox
Door
Connecting piece
Cavity
Combustible
environment

Installation manual
__________________________________________________________________________________
11
11

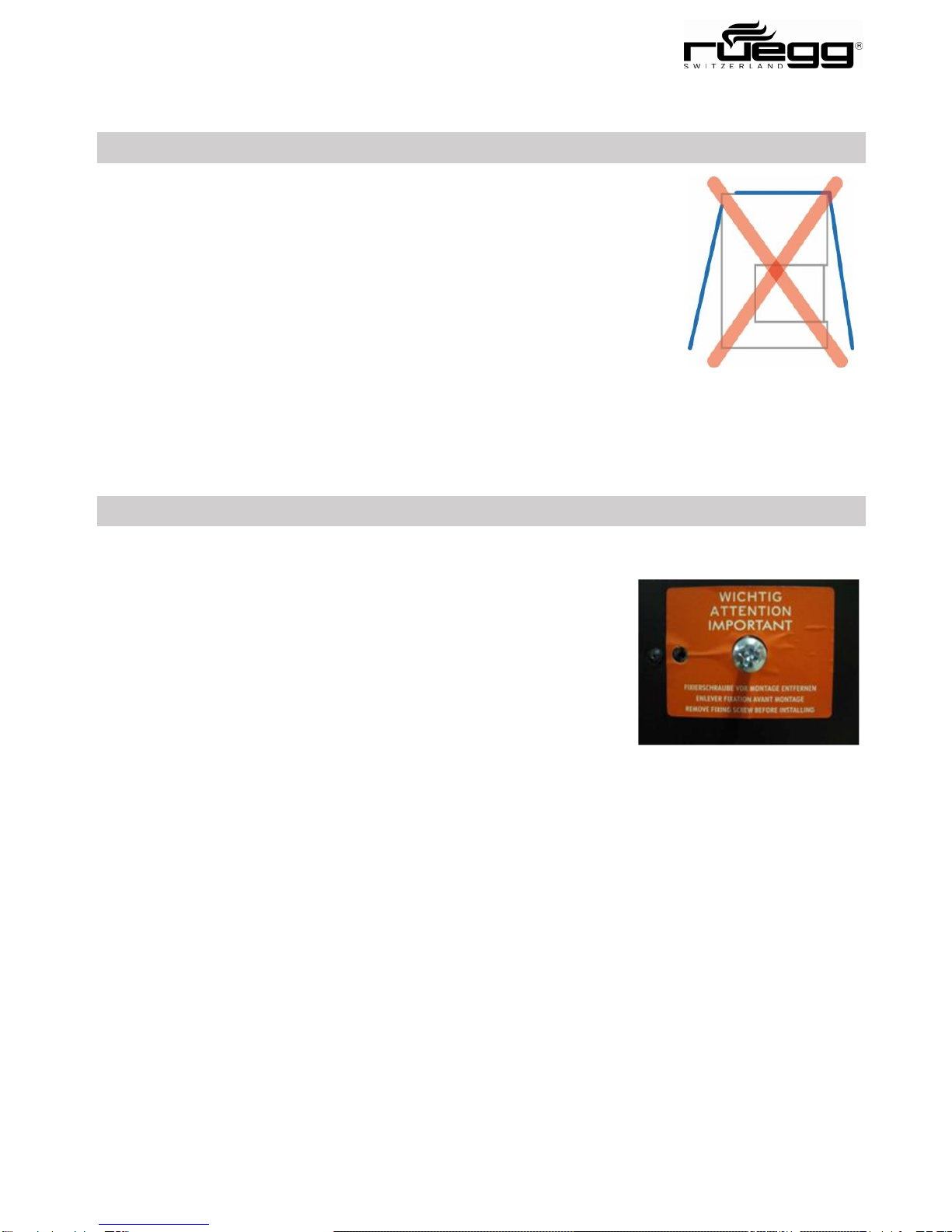

Transport
The following points are to be followed when transporting the fireplace insert:
Secure the fireplace insert so that it can be transported safely
Fully screw in or remove adjustable feet
Avoid transporting in a horizontal position
Secure firebox doors with safety screws
Remove loose single parts from the firebox
The appliances may not be braced over the protective box for the pane.
Otherwise, they will buckle together.
Installation
Delivery
Check the supplied fireplace insert upon receipt for completeness,
for transit damage, and for dimensional accuracy.
Remove all fixing screws of the counterbalances and other transport
supports.
Check that the doors are working before assembly.
Report any damage to the responsible customer service department
prior to assembly.
Read this manual through carefully prior to assembly.
Alignment
The fireplace insert must be aligned exactly at the installation location with the help of a spirit level.
Before the casing is fitted, a functional check must be made of the doors. Door mechanism components
can cause noise if the fireplaces are not aligned exactly.

Installation manual
__________________________________________________________________________________
12

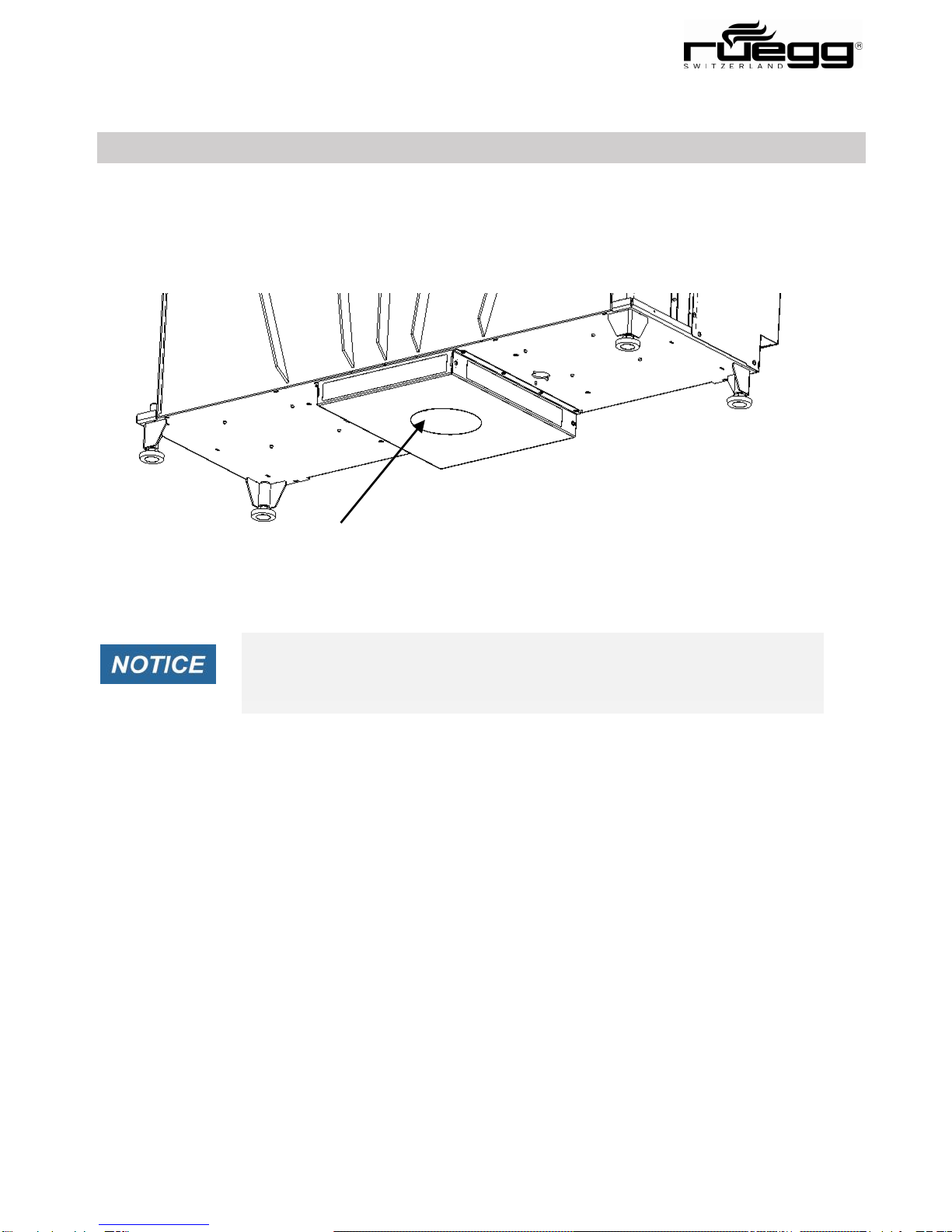

Remove perforation!
To connect the combustion air feed, the corresponding perforation must be
removed.
Combustion air
Supply
Rüegg fireplaces are designed in such a way that the appliance can be supplied with non-ambient
combustion air for the closed operation. The combustion air is fed from outside the installation room
directly into the appliance and then internally to the fire.
Perforation for connecting supports Ø15 cm
Pipelines
For supply lines, round cross-sections with smooth inner surfaces are preferable.
Mineral supply lines (e.g. brickwork) must have wear-resistant internal surfaces.
Supply lines must be a minimum 3 cm thick across the entire length, non-flammable and thermally
insulated.
A fine-mesh, removable facade sieve must always be installed in the facade as a supply line
connection. The flow resistances declared by the manufacturer must be taken into account.
The cross-section of 175 cm2 (15 cm diameter) may not be reduced!
If lower cross-sections are installed because of the calculations, the installer will act at their own risk.
The perfect function of the system is not guaranteed.
External-air lines with a cross-section of 175 cm2(15 cm) may not exceed the following maximum
lengths:
with semi-rigid aluminium pipes (“Aluflex”): Lmax = 6 m
with smooth-walled pipes (“Aluflex”): Lmax = 8 m

Installation manual
__________________________________________________________________________________
13
13
Air valve
To avoid any ingress of cold air, cold bridges and the formation of condensation, we recommend that
you install a tightly sealed air valve close to the facade.
Flue gas system
General
The flue gas system must be designed and approved for use for fireplaces that use wood as a fuel. The
flue gas system must meet national and local regulations and it must satisfy at least the following
requirements:
Temperature class T400 (nominal operating temperature ≥ 400 °C)
Soot fire resistance category: G(system with soot fire resistance)
Corrosion resistance class: 2(natural wood)
Length
The draught calculated on the flue gas system must be between 10-12 Pa.
Flue gas systems without a flue gas fan with lengths L ≤ 4 m are not permitted.
The draught conditions must be checked by taking appropriate measurements before lining the
system.
To achieve stable draught ratios, a flue gas fan can be installed inside the flue gas system.
Static support!
The flue gas system must be erected to be self-supporting. It may not be
supported by the fireplace insert.
►Observe the details provided by the manufacturer
►Check the load-bearing capacity of the building shell involved in the
installation

Installation manual
__________________________________________________________________________________
14
Connecting piece
The following requirements must be met when installing the connecting piece.
Permitted materials:
Steel ≥ 2 mm sheet thickness
Chrome nickel steel ≥ 1 mm sheet thickness
The connecting piece must be fed directly from the fireplace insert to the chimney in a way that aids
the flow.
All connections must withstand long-term thermal resistance and be tight.
Feedthroughs for connecting pieces that feed through flammable environments must be carried out
professionally. The national and local requirements must be met.
Possibilities for regular cleaning must be provided.

Installation manual
__________________________________________________________________________________
15
15
Cross-section
If smaller or larger cross-sections are installed because of a draught measurement or calculation, the
installer will be responsible for any action. The perfect running of the system must be guaranteed.
Under certain circumstances the following faults may occur:
→ Formation of condensation as flue gases cool down too greatly
→ Formation of smoke because the draught conditions are too poor
Triple value
Flue gas valve / butterfly valve
A flue gas valve/butterfly valve is installed on the cast dome and forms part of the appliance. The
appliance is tested with this valve in accordance with EN-13240.
Corresponding cut-outs in the “Rüegg valves” are pre-lasered. These can be snipped out with a pair of
pliers. All connecting pieces must have long-term thermal resistance and be tight.
Device
Standard
outflow
[cm]
Optional
[cm]
Flue gas flow
rate
[g/sec]
Flue gas
temperatur
e
[°C]
Minimum
pressure
head
[Pa]
RIII-F 45x56x46
20
18/25
7.7
303
12
Flue gas temperature
The flue gas temperature is the maximum measured temperature on the
bracket during the test at nominal thermal performance. This can change if
the firing behaviour changes.
Check function!
Before installing the casing, check that the flue gas valve is working
properly.
►Open and close several times
Muffled explosions!
Dangerous muffled explosions can occur when using sealed flue gas
valves.
►Install non-tightly closing flue gas valves that have a mandatory
opening of at least 20 cm2of connecting area or at least 3% of the
smoke outlet cross-section.

Installation manual
__________________________________________________________________________________
16
Fire resistance radiation systems
Radiation systems are a construction model without a hot-air grille. The heat is emitted via the active
casing surface in the form of radiation. As the temperature in the cavity is higher in radiation systems
than in hot-air systems, particular requirements apply to the fire-protection requirements.
The installation method as a radiation system does not form part of the EN inspection. Certain countries
have their own requirements for how such systems have to be integrated.
Firebox casing
Thermobrikk installation
The firebox linings with Thermobrikk® consist of several wall and floor components. The following
images apply to all shapes and sizes of Rüegg fireplaces fitted with Thermobrikk®.
Install the firebox lining in the specified order and dismantle the individual components in the reverse
order.

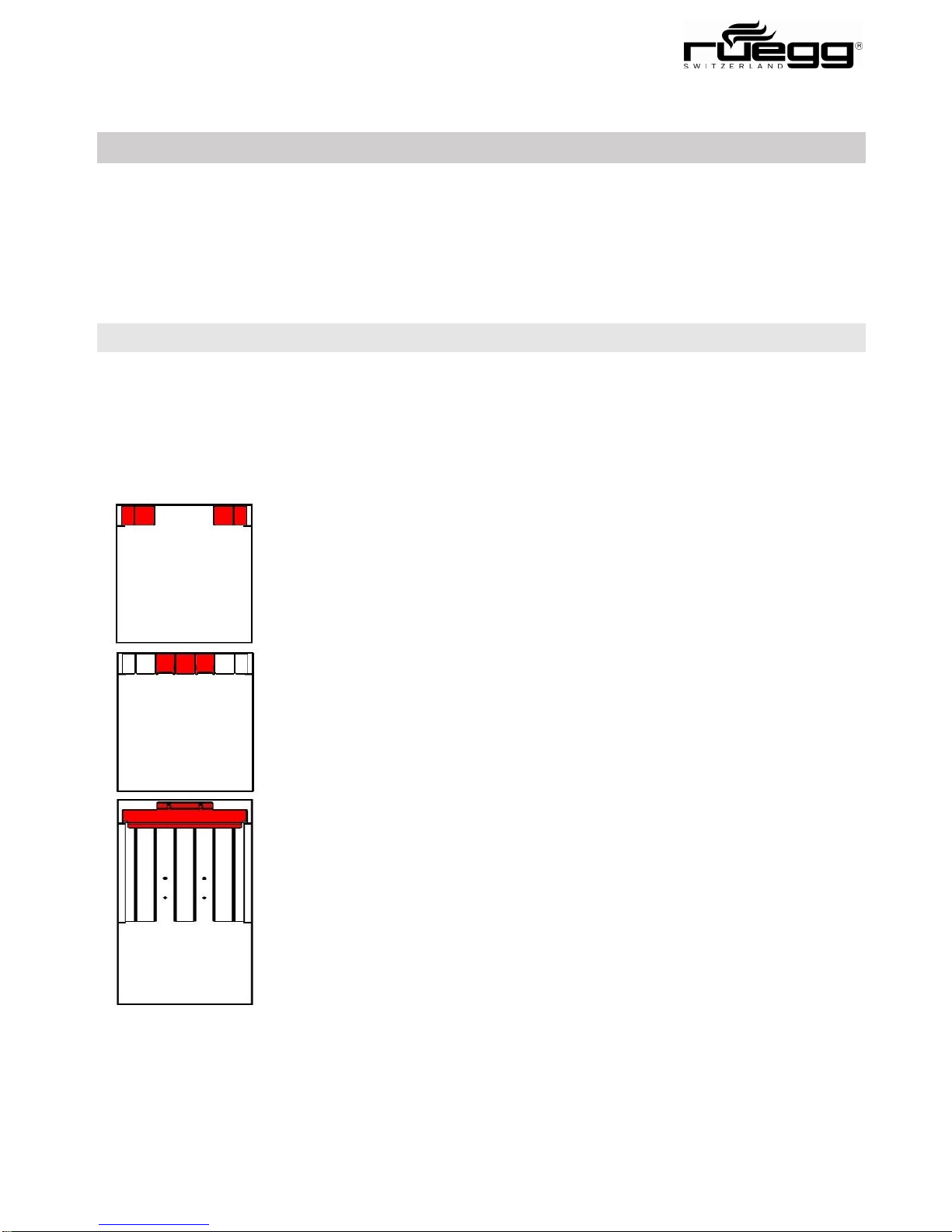

Set up the wall elements in the firebox. Push behind the sheet metal
tab in the area of the firebox opening.
Always place the cut-to-size wall elements forwards in the area of the
firebox opening!
Place wall elements on the back walls. Push wall elements together
without any gap.
Fasten the mounting bracket to the firebox wall with screws.

Installation manual
__________________________________________________________________________________
17
17

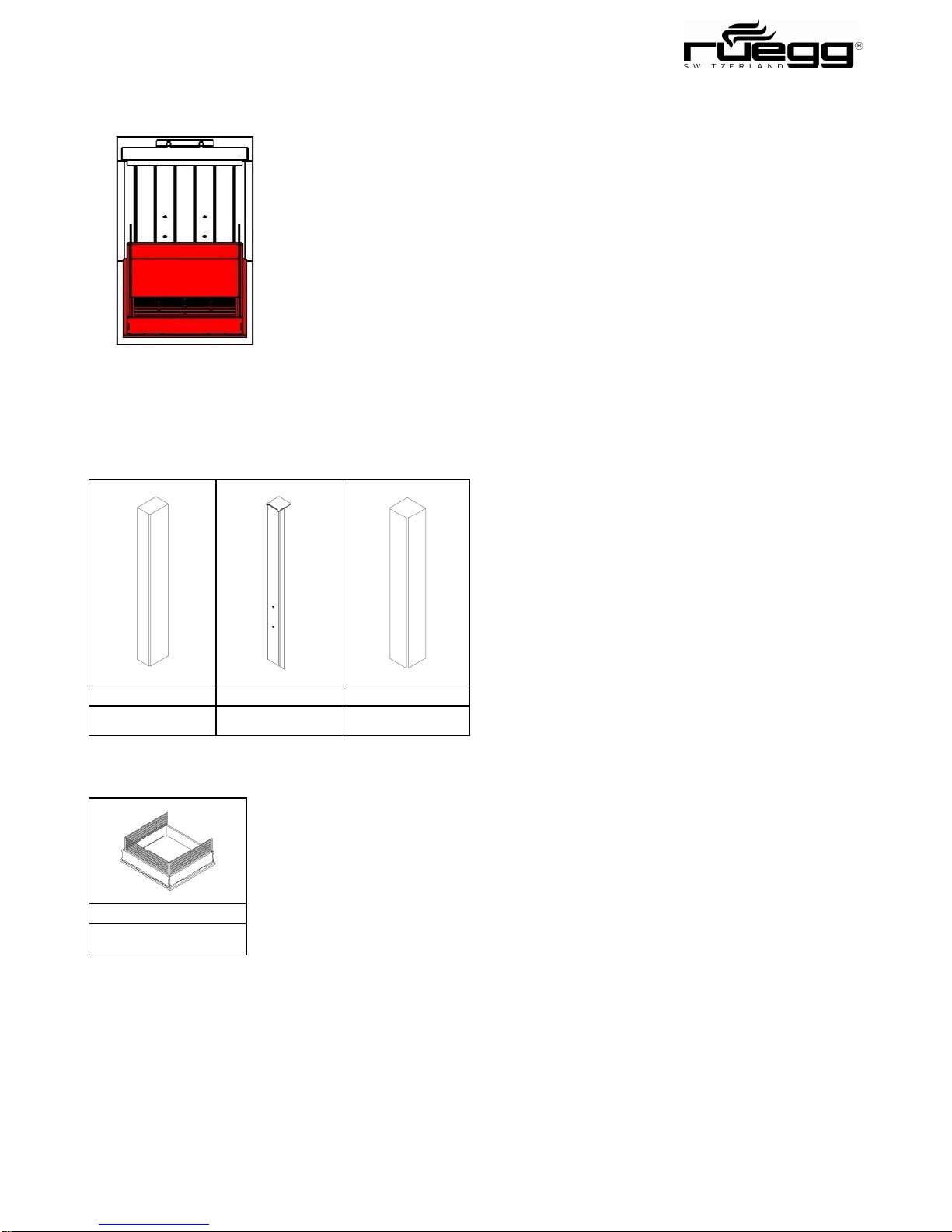

Place all floor elements carefully on the sheet metal base. Evenly
distribute any lateral play between the floor elements.
Firebox bricks
Walls
1
2
3
0.6 elements
Air duct
1 element
shortened
Floor
4
Fire trough
Steel

Installation manual
__________________________________________________________________________________
18

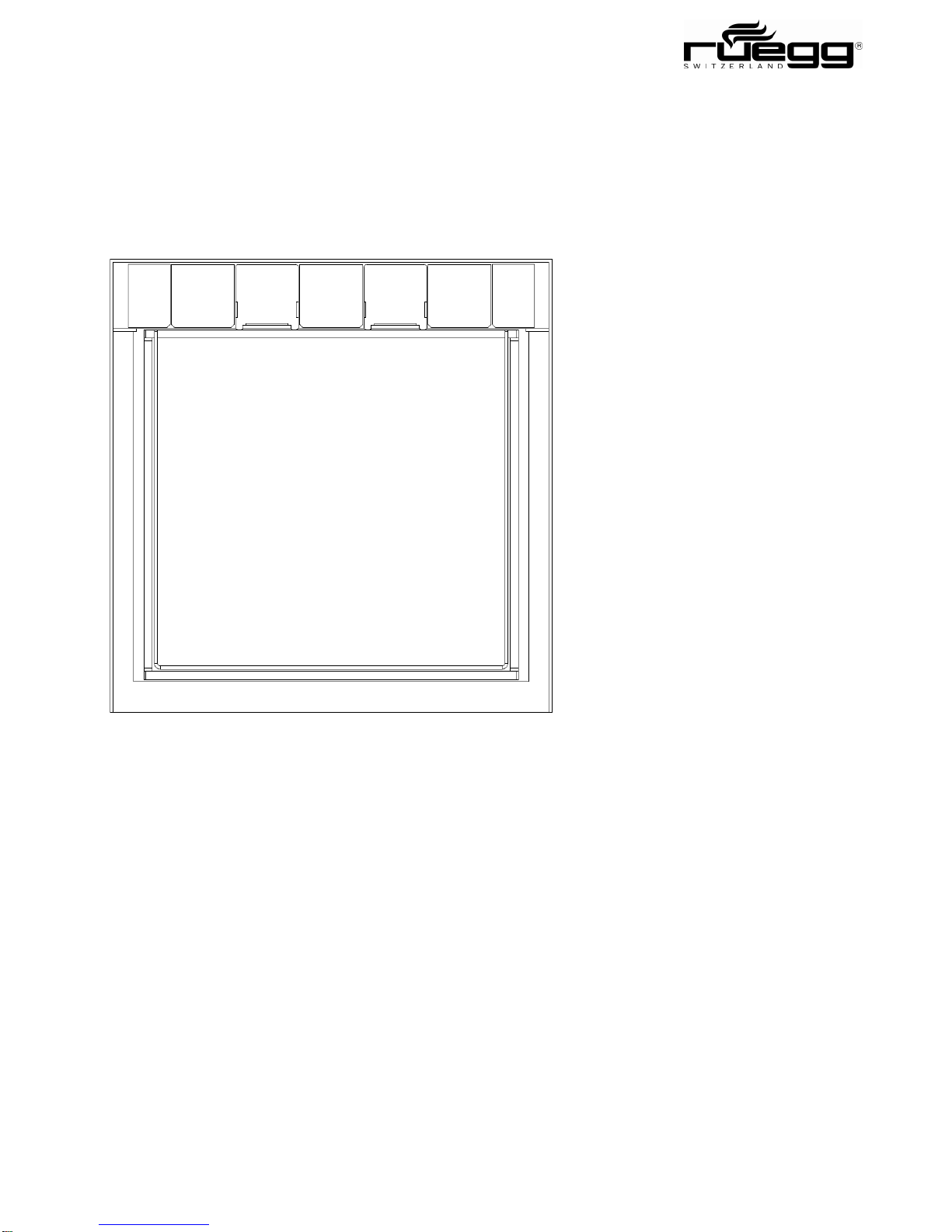

Firebox overview of three-sided devices RIII
RIII-F 45x56x46
1 3 2 3 2 3 1
4

Installation manual
__________________________________________________________________________________
19
19
Installation deflection of three-sided devices
RIII-F 45x56x46
1. Move the deflector back on the fireclay and push it all the way back
2. Fold deflection upwards at the front
3. Push the deflector fully forward and engage with the pin
Type plate
The type plate can be found on the right-hand side
of the appliance on the inside of the glass pane
protective casing.
To guarantee swift service performance we rely on
the following information:
Appliance type:
Manufacturing no.:
Manufacturing date:
Description of problem:
Fig. 24: Type plate location

Installation manual
__________________________________________________________________________________
20
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
21
20
23
25
24
26
22
1
Thermal insulation side wall [cm]
Based on test report in accordance with EN 13240
2
Thermal insulation rear wall [cm]
Based on test report in accordance with EN 13240
3
Thermal insulation floor [cm]
Based on test report in accordance with EN 13240
4
Safe spacing from flammable materials in the heat-radiation area [cm]
Based on test report in accordance with EN 13240
5
Nominal heat performance [kW]
Based on test report in accordance with EN 13240
6
Thermal performance range [kW]
Based on test report in accordance with EN 13240
7
CO [%] + [mg/Nm3]
Based on test report in accordance with EN 13240
8
Dust [mg/Nm3]
Based on test report in accordance with EN 13240
9
Flue gas temperature [°C]
Based on test report in accordance with EN 13240
10
Efficiency [%]
Based on test report in accordance with EN 13240
11
Key indicators of the test centre responsible and accredited for the test
12
Standard in accordance with which the fireplace insert was tested
13
Designation of the chimney insert
W = only wood products are permitted
A = storage operation permitted
14
Number of the VKF fireproof application
(valid only for Switzerland)
15
Multiple-use of the chimney is permitted only with a self-closing door
16
May be operated strictly as a temporary-burning fireplace (INT)
17
Read and follow the operating manual
18
Sole recommended fuel: Natural wood
19
Address of the manufacturer
20
Description and generation of the fireplace insert
21
Serial number
22
Date of manufacture
Day/month/year
23
Mode of operation
K = storage operation
V = fan operation
S = gravity operation
24
Value from EN inspection
25
The thermal insulation values based on the safety test in accordance with EN13229 are
not valid for Switzerland. The details based on VKF apply.
see VKF fireproof application
26
Specification of the reference insulation stone wool
