ruegg Saphir Front User manual

CLASSIC-LINE
ECO-LINE Installation Guide
3
CONTENTS
INTRODUCTION TO THE INSTRUCTIONS 5
Abbreviations 5
Images 6
Hatching 6
Pictograms 6
Terms 7
CURRENTLY APPLICABLE REGULATIONS 7
BEFORE INSTALLATION 8
GENERAL POINTS 9
Location 9
Combustion air intake 9
Fireplaces with door A1 / B1 (self closing) 10
Fireplaces with door A2 / B2 (not self closing) 10
AIR-FLOW MANAGEMENT 11
Operating modes and systems 11
Fireplaces S-type 15
Fireplaces K-type 16
Appliances on a socle 17
Sections for fireplaces with self closing door (A1 / B1) 18
Sections for fireplaces without self closing door (A / B2) 19
Fitting the sleeves 20
Fiiting the fresh air units 21
External air ducts 21
FLUE GAS EVACUATION / CHIMNEY FLUE 24
General guidelines 24
Minimum authorised sections 24
THERMAL INSTALLATION 25
General guidelines 25
Thermal insulating materials 25
Inflamable environment (inf) 26
Non inflamable environment (non-inf) 28
Substitute thermal insulation 30
SAFETY DISTANCES 31
At the front of the appliance 32
Hot air vents 32
Radiation area 33

CLASSIC-LINE
ECO-LINE Installation Guide
4
ADDITIONAL INSTALLATION INSTRUCTIONS 34
Preparation / functional test 34
Protective wall / concrete slab 34
Thermal insulation 34
Air sleeves 35
Placing the fireplace 35
Connecting up the external air 36
Connecting up the ambient air 36
Flue gas exhaust duct 36
Connecting up the convection air 37
Bearer frame 37
Room-side facing 38
Decorative beams 38
CHAMOTTE-LINED FIREPLACES 38
Jade Front / Saphir Front 39
Saphir Giant / Saphir Giant 500 41
Lumo Front 40
Jade Tunnel / Saphir Tunnel 41
Prisma / Prismalo 500 43
Ellipse 44
720 Compact 45
720 46
720 Giant 47
Pi Classic 48
Pi Compact 49
Pi-ccolo Classic 50
Pi-ccolo Compact 51
THERMOBRIKK® FIREPLACES 52
STEEL FIREPLACES 52
ADDITIONAL WEIGHTS FOR A1 APPLIANCES 53
AFTER INSTALLATION 53
USING YOUR FIREPLACE FOR THE FIRST TIME 54
DATA PLATE 54
INSTALLATION WITH HEAT STORAGE MATERIALS 55
Air circulation 55
Thermal insulation 56
Inflamable environment (inf) 57
Non inflamable environment (non-inf) 58
Heat storage jacket 59
Casing 60
TECHNICAL CHARACTERISTICS 61

CLASSIC-LINE
ECO-LINE Installation Guide
5
Introduction to the instructions
Abbreviations
non-inf. non-inflammable
inf Inflammable
Airwash Self-cleaning air system to prevent soot build-up on glass surfaces
El 30 (non-inf) Fire resistance rating, fire resistance ≥ 30 minutes
El 60 (non-inf) Fire resistance rating, fire resistance ≥ 60 minutes
El 90 (non-inf) Fire resistance rating, fire resistance ≥ 90 minutes
AIR-Direct Supply of combustion air, independent of ambient air
≥ Higher than or equal to
≤ Lower than or equal to
< Lower than
> Higher than
≈ About
A1 / B1 fireplace
type
Automatically closing fireplace door
A / B2 fireplace
type
Non-automatically closing fireplace door
VL Combustion air
KL Convection air
BImSchV German law relating to protection against emissions (D)
LRV Swiss law relating to air purity (CH)
S fireplace Fireplace with convection housing
V fireplace Fireplace with convection housing and built-in extra fan
K fireplace Fireplace without convection housing
Tunnel version
fireplace
Fireplaces insert with retractable sliding door
DIN EN 13229 European standard for fireplace inserts, including four open hearth fireplaces for solid fuel
15a B-VG Energy efficiency agreement (AT)
AEAI Association of Cantonal fire insurers organisations (CH)
VHP Swiss Association of stove fitters and tilers (CH)
Label Q Quality label for wood-fired heating systems (CH)
Minergie Module Heating system approved for Minergie standard houses CH)

CLASSIC-LINE
ECO-LINE Installation Guide
6
Images
The explanations in this manual are valid for the entire range of Rüegg „Classic-
Line“ fireplaces. For reasons of simplification all the same elements will be sum-
marized and explained by means of 1 type of fireplace. This explains why some
images may differ from your installation.
Hatching
Pictograms
NOTICE
Handy information and advice
NOTICE
Use a protective glove
WARNING
Warns of a very hot surface
WARNING
Potential risk for the product and the environment
Wood
Vent:
with or without active
retro-ventilation
Thermal insulation (mineral)
Thermal insulation;
non-inf, RD ≥ 100 kg/m3
Wooden lintel
Concrete
Masonry or
cellular concrete
Solid brick
(fireplace break)
Chamotte;
Facing/external surround
Non-inflammable panel

CLASSIC-LINE
ECO-LINE Installation Guide
7
Terms
Mineral materials
Flue gas regulator
with control
Inflammable environment
Cover
Thermal insulation layer
Cavity in the casing
> on K fireplaces also convection
space
Hot air vent
Hearth
Concrete base
Thermal insulation layer
Thermal insulating layer
from the connector
Deflector
Hot air chamber
Hot air duct
(S fireplaces)
Throat
Hearth door
Decorative beam
Casing(non-inf)
Thermal insulation layer
Door protective housing
Casing (non-inf)
Connector duct
Protective wall
Fireplace lining
(chamotte or steel)
Grid on facing
External air
ducts
External air
duct
Fresh air regulator

CLASSIC-LINE
ECO-LINE Installation Guide
8
Currently applicable regulations
● Rüegg fireplace inserts are approved in accordance with European standard
DIN EN13229.
● These instructions are based on the "Document of generally accepted prac-
tices " of the VHP, version 1.1 and on German regulations.
● Fireplace installation must be in conformity with national and local regulations.
When installing a RÜEGG fireplace, in addition to the instructions contained
herein, you must ensure that the installation is in conformity with currently
applicable laws and regulations in your country. These include, for example:
- Building safety regulations, professional regulations and fire regula-
tions
- Laws and regulations relating to emissions
- Air purity laws and regulations
- Regulations and guidelines relating to fireplace fitters
- Laws and regulations regarding fire precautions (chimney sweep)
- Laws and regulations regarding fire insurance
● It is the fitter's responsibility to ensure conformity with the laws and regulations
in force in the country in question.
● Fireplaces should only be installed by qualified fitters.
Before installation
● Check immediately that there are no parts missing from the fireplace and that
it has not suffered any damage in transit. Check also that the dimensions are
correct, that the door opens without undue noise and that the fireplace pre-
sents no defect.
● Check before installation that the fireplace glass door
functions correctly. Remove the security screws from
the counterweight and remove any other transport
safety elements. Any defects, such as operating diffi-
culties or excessive noise, must be reported to your
dealer before starting the installation.
● Read the installation instructions carefully.
● Remove all the documents and accessories from the fireplace and give the
instruction manual to the end-user.

CLASSIC-LINE
ECO-LINE Installation Guide
9
General points
Location
Open hearth fireplaces must not be installed:
- in stairways, except in residential buildings with no more than two apart-
ments
- in shared corridors
- in rooms where inflammable or explosive products are used, stored or
manufactured
- in rooms or apartments where air is removed on a continuous basis by a
fan system. This requirement does not apply to rooms where air is re-
moved by ventilation systems fitted with safety appliances which safely
prevent the formation of a depression in the room in which the fireplace is
installed or which do not allow the formation of a depression under 0.04
mbar. These requirements do not apply to rooms fitted with ventilation
systems for the installation of heating systems sealed against ambient air.
Combustion air intake
Open hearth fireplaces can be installed in rooms which do not have external
combustion air intake flues, provided:
- they have at least one door opening to the outside, or a window that can
be opened, or they are directly or indirectly connected to other rooms
which can provide combustion air intake. If the fireplace is installed in an
apartment or similar, the combustion air intake must be connected only to
the room in question or to those rooms belonging to the apartment. Fire-
places can only be installed in the afore mentioned locations if they have
a combustion air intake of at least 360 m³ per hour per m² of hearth open-
ing. These requirements do not apply to fireplaces that can be operated
independently or separately from ambient air.
Open-hearth fireplaces can be installed in rooms with direct external combustion
air intake, provided:
- An external air flue corresponding to the fireplace insert is connected to
the exterior from the room in question. The flue must be fitted with an
hermetically-closing regulator in the room in which the fireplace is in-
stalled. The regulator position must be clearly visible.
- External air flues are manufactured and installed in conformity with na-
tional construction regulations, so that in apartment buildings of more
than two floors, they fit over the firewalls so as to prevent the spread of
fire or smoke to other floors or rooms.

CLASSIC-LINE
ECO-LINE Installation Guide
10
A1/B1 fireplaces
A1 and B1 fireplaces are fitted with an automatically closing door, certified and
tested in conformity with European standard DIN EN 13229 - A1. Open hearth
operation is forbidden, nor can these fireplaces be converted for open hearth
operation. The fireplace insert can be connected to a chimney flue for multiple
use. The effective height of the chimney flue must be at least 4 m, from the flue
gas intake. European standard DIN 4705/EN 13384-1 applies for the dimensions
of the chimney flue for the installation of a fireplace insert. Calculations for type AI
fireplace inserts are based on the volume of combustion air when the fireplace is
operating with its door closed. Type AI fireplace inserts meet the following re-
quirements:
● Automatically closing door
● Efficiency > 70 %
● Nominal heating capacity < 11 kW
A2/B2 fireplaces
A2 and B2 fireplace inserts can also operate under open hearth conditions. It is
forbidden for the chimney flues to have multiple connections. The fireplace insert
must be connected to its own chimney flue, in other words only one heating unit
can be installed per chimney flue.
NOTICE
You should enquire as to whether multiple connections are legal in
your country.

CLASSIC-LINE
ECO-LINE Installation Guide
11

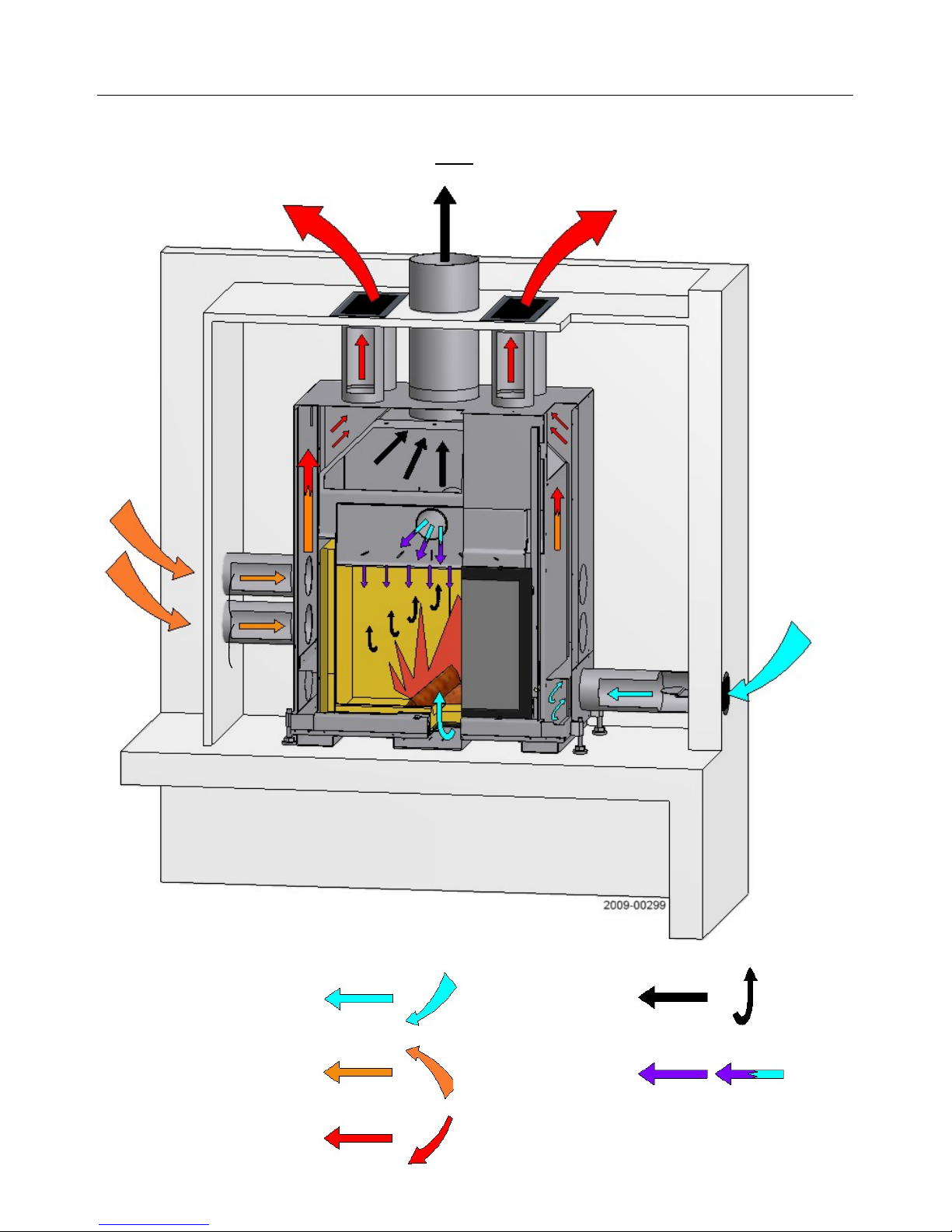

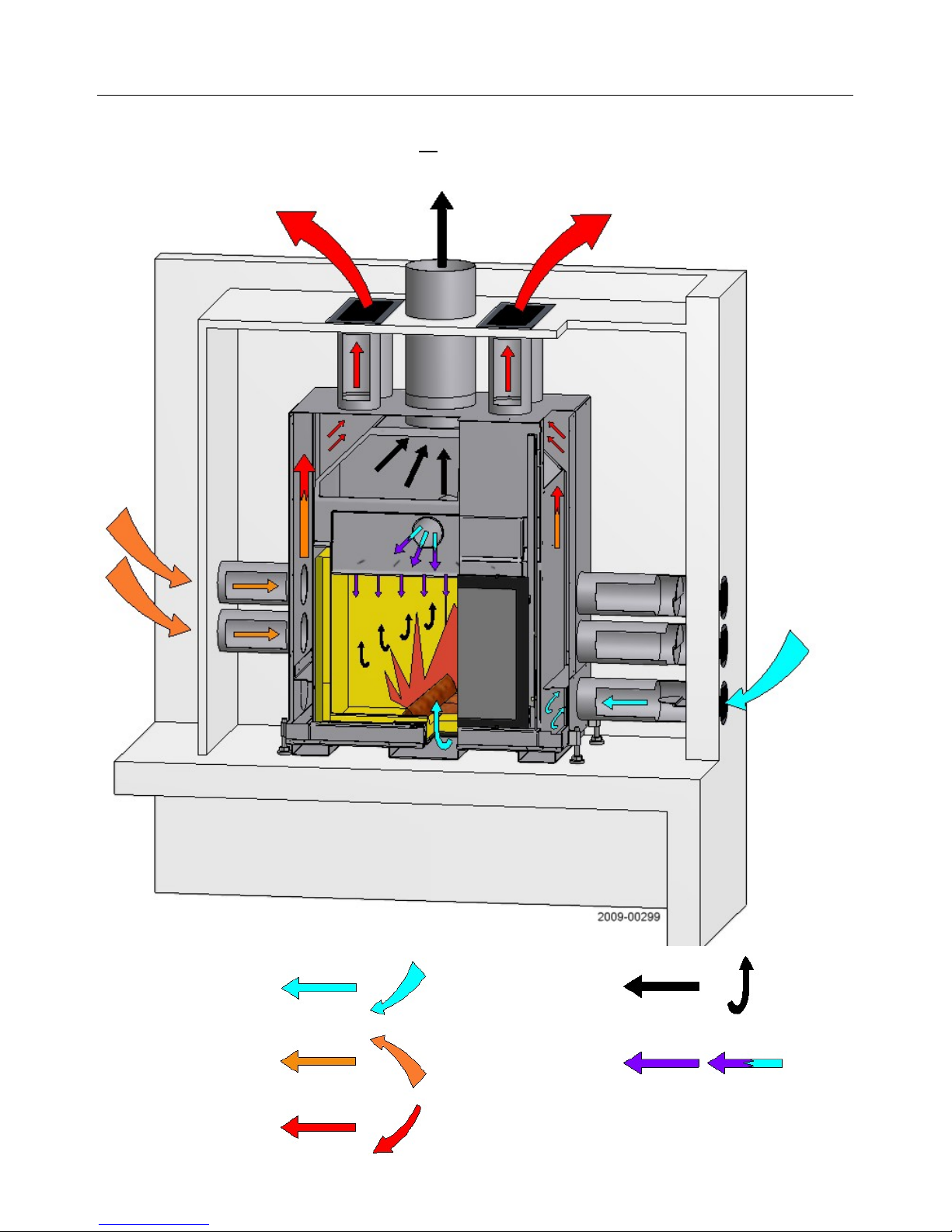

Air-flow management
Operating modes and systems
● Rüegg fireplace inserts are designed so that the combustion air can be
drawn to the fireplace separately from the ambient air, for closed-door opera-
tion. The combustion air is taken from outside the room in which the fireplace
is installed and is channelled directly to the fireplace where it is drawn into the
fire. The system is called AIR-Direct (= separate from ambient air)
● The second system for drawing air into the fireplace is the convection air
system, which is used mainly for heating the ambient air. Fireplaces in which
the convection air is guided by a convection jacket are called S fireplaces,

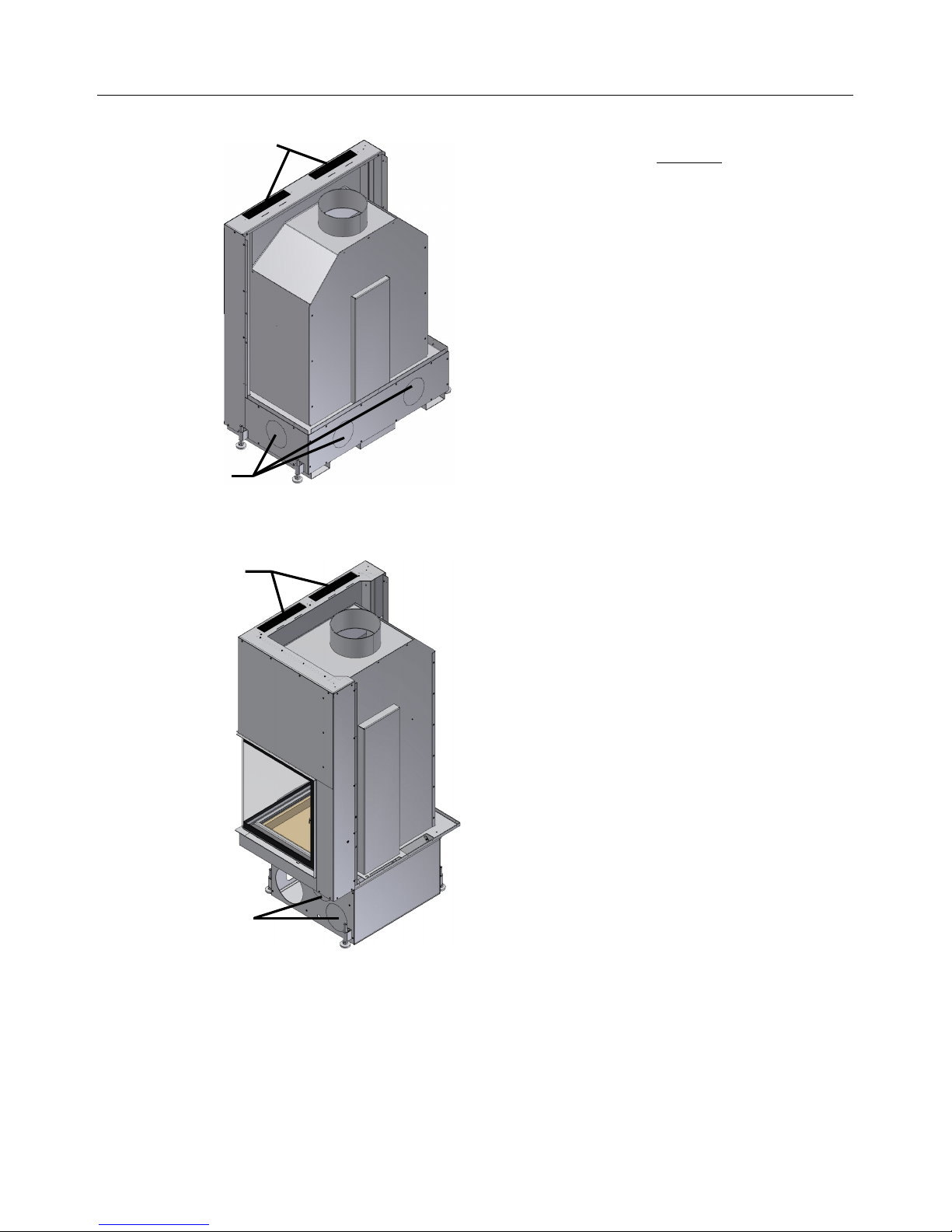

while those without the jacket are called K fireplaces. In this system, the con-
vection air is taken in through a cavity in the fireplace casing and comes out
into the room through vents in the fireplace apron.
● If the fireplace insert also needs to operate with the door open, the convection
air system must be connected to an external air source. This means that the
external air will be heated by the convection air system and drawn into the
room and will arrive in the fireplace as combustion air, going through the open
door.
WARNING
If an open fired appliance is only supplied with fresh air by the AIR
DIRECT system, and the room is characterized by an airtight con-
struction, a trouble free function cannot be guaranteed!
WARNING
Internal or external fans may never be attached to the combustion
air supply (AIR DRECT system) they are only used for advanced
convection air supply.
The diagrams below show a number of possible variations, with their correspond-
ing airflows.

CLASSIC-LINE
ECO-LINE Installation Guide
12
Fireplace type: Fireplace S, type A/B2
Operating modes: open or closed
(→ closed in the diagram)
External air
Ambient air
Convection air
Airwash air
Flue gas

CLASSIC-LINE
ECO-LINE Installation Guide
13
Fireplace type: Fireplace S, type A/B2
Operating modes: open or closed
(→ open in the diagram)
External air
Ambient air
Convection air
Airwash
Flue gas

CLASSIC-LINE
ECO-LINE Installation Guide
14
Fireplace type : Fireplace S, type A1/B1
Operating modes: closed only
External air
Ambient air
Convection air
Airwash air
Flue gas

CLASSIC-LINE
ECO-LINE Installation Guide
15
S-Fireplaces
On S fireplaces without a base/fan
chamber, the openings for the com-
bustion air inlet sleeves (VL) and the
convection air inlet sleeves (KL) are
laser pre-cut in the housing.
Depending on your installation, the
blanking pieces can be removed on
the side or at the rear, and Ø150
mm air inlet sleeves fitted. You
should take into account the amount of
air required..
The convection air outlet sleeves
(KL) are factory fitted.
NOTICE
The lids of not used open-
ings may never be taken
away!
Convection air inlets
Attachments for fresh
air units (optional)
Convection air outlet (KL)
Fresh air inlet (VL)
A
Am mb bi ie en nt t a ai ir r i in nl le et t ( (K KL L) )
Convection air outlet (KL)
Attachments for fresh
air units (optional)
nschlüsse für
Frisch-
A
A
m
m
b
b
i
i
e
e
n
n
t
t
a
a
i
i
r
r
i
i
n
n
l
l
e
e
t
t
(
(
K
K
L
L
)
)
L)
Convection air outlet
(KL)
Attachments for fresh
air units (optional)
lüsse für
Frischluft-
A
A
m
m
b
b
i
i
e
e
n
n
t
t
a
a
i
i
r
r
i
i
n
n
l
l
e
e
t
t
(
(
K
K
L
L
)
)

CLASSIC-LINE
ECO-LINE Installation Guide
16
K-fireplaces
On K fireplaces without a base/ fan
chamber, the openings for the com-
bustion air inlet sleeves (VL) are la-
ser pre-cut on the housing. Depend-
ing on your installation, the blanking
pieces can be removed on the side
or at the rear, and Ø150 mm air inlet
sleeves fitted. You should take into
account the amount of air required.
As K fireplaces are not fitted with a
convection jacket, the convection air
will circulate within the casing
through the openings that you will
have made for this. Make sure that
the inner lining of the casing is dust
free and abrasion resistant.
For casings made of heat storage
and radiation materials, for which a
convection circuit is generally not fit-
ted, there must be a sufficient supply
of external air to the room in ques-
tion for open hearth operation. The
openings are therefore precut by la-
ser in the top of the glass panel pro-
tective housing. For casings made of
heat storage and radiation materials,
without convection, these openings
can be connected up, in line with air
requirements. The openings are fit-
ted with fresh-air connector units
with sleeves (article no. 12.59.0050),
to which a fresh air conduit of
Ø150 mm can be fitted.
Attachments for fresh air
units (optional)
External air inlet (VL)
A
A
m
m
b
b
i
i
e
e
n
n
t
t
a
a
i
i
r
r
i
i
n
n
l
l
e
e
t
t
(
(
K
K
L
L
)
)
Attachments for fresh air
units (optional)

CLASSIC-LINE
ECO-LINE Installation Guide
17
Appliances on a socle
On appliances with a socle or venti-
latorbox there are only openings
precut for the ambient air inlet (KL)
Der Eintrittsstutzen für die Verbren-
nungsluft (VL) ist bereits ab Werk
montiert.
NOTICE
The lids of not used openings may never be taken away!
For a trouble free open use of the fireplace, the room must be suffi-
ciently supplied with fresh air from outside. The only use of the com-
bustion air entry (VL) in this case is absolutely not sufficient.
External air inlet
(VL)

CLASSIC-LINE
ECO-LINE Installation Guide
18
Sections for fireplaces with self closing door (A1/B1)
For K fireplaces, the sections are the same as the V/S fireplaces (Ø150 mm =
175 cm²).
For A1 fireplaces with an automatically closing door (= solely in closed-door
operating mode), the table below shows the minimum requirements in terms of
number of connections:
* Colar-ø 125 mm
VL inlet
(external air)
KL inlet
(ambient air)
KL inlet
(external air)
KL outlet
Axinit Front S
1
4
0
4
175
cm
2
700
cm
2
0
cm
2
700
cm
2
Ellipse S/K
1
2
0
2
175 cm
2
350 cm
2
0 cm
2
350 cm
2
Ellipse V
1
2
0
2
175
cm
2
350
cm
2
0
cm
2
350
cm
2
Jade Front S/K
1
2
0
2
175
cm
2
350
cm
2
0
cm
2
350
cm
2
Jade Tunnel S/K
1
2
0
2
175
cm
2
350
cm
2
0
cm
2
350
cm
2
Larimar Front S
1
2
0
2
175
cm
2
350
cm
2
0
cm
2
350
cm
2
Lumo S/K
1
2
0
2
175 cm
2
350 cm
2
0 cm
2
350 cm
2
Pi Classic V/S
1
4
0
4
175 cm
2
700 cm
2
0 cm
2
700 cm
2
Pi Compact V/S
1
4
0
4
175 cm
2
700
cm
2
0 cm
2
700 cm
2
Pi-ccolo Classic V/S
1
2
0
2
* 123 cm
2
350 cm
2
0 cm
2
350 cm
2
Pi-ccolo Compact V/S
1
2
0
2
* 123 cm
2
350 cm
2
0 cm
2
350 cm
2
Prisma S/K
1
2
0
2
175
cm
2
350
cm
2
0
cm
2
350
cm
2
Prisma V
1
2
0
2
175
cm
2
350
cm
2
0
cm
2
350
cm
2
Prismalo 500 S/K
1
2
0
2
175
cm
2
350
cm
2
0
cm
2
350
cm
2
Prismalo 500 V
1
2
0
2
175
cm
2
350
cm
2
0
cm
2
350
cm
2
Saphir Front S/K
1
4
0
4
175
cm
2
700
cm
2
0
cm
2
700
cm
2
Saphir Tunnel S/K
1
4
0
4
175
cm
2
700
cm
2
0
cm
2
700
cm
2
Saphir Giant S/K
1
4
0
4
175
cm
2
700
cm
2
0
cm
2
700
cm
2
Saphir Giant 500 S/K
1
4
0
4
175
cm
2
700
cm
2
0
cm
2
700
cm
2
720 Compact K
1
-
0
-
175
cm
2
75
0
cm
2
0
cm
2
75
0
cm
2
720 S/K (ECO)
1
2
0
2
175
cm
2
350
cm
2
0
cm
2
350
cm
2
720 V
1
2
0
2
175
cm
2
350
cm
2
0
cm
2
350
cm
2
720 Giant S/K
1
2
0
2
175
cm
2
350
cm
2
0
cm
2
350
cm
2
720 Giant V
1
2
0
2
175
cm
2
350
cm
2
0
cm
2
350
cm
2

CLASSIC-LINE
ECO-LINE Installation Guide
19
Sections for fireplaces without self closing door (A/B2)
For type A fireplaces (= open and closed door operation), the table below shows
the minimum requirement in terms of number of connections:
VL inlet
(external air)
KL inlet
(ambient air)
KL inlet
(external air)
KL outlet
Axinit Front S
1
2
2
4
175
cm
2
350
cm
2
350
cm
2
700
cm
2
Ellipse S/K
1
2
2
4
175
cm
2
350
cm
2
350
cm
2
700
cm
2
Ellipse V
1
1
1
2
175
cm
2
175
cm
2
175
cm
2
350
cm
2
Jade Front S/K
1
2
1
3
175
cm
2
350
cm
2
175
cm
2
525
cm
2
Jade Tunnel S/K
1
2
2
4
175
cm
2
350
cm
2
350
cm
2
700
cm
2
Larimar Front S
1
2
1
3
175
cm
2
350
cm
2
175
cm
2
525
cm
2
Lumo S/K
1
2
1
3
175
cm
2
350 cm
2
175 cm
2
525 cm
2
Pi Classic V/S
1
2
2
4
175 cm
2
350 cm
2
350 cm
2
700 cm
2
Pi Compact V/S
1
2
2
4
175 cm
2
350 cm
2
350 cm
2
700 cm
2
Pi-ccolo Classic V/S
1
1
1
2
* 123 cm
2
175 cm
2
175 cm
2
350 cm
2
Pi-ccolo Compact V/S
1
1
1
2
* 123 cm
2
175
cm
2
175 cm
2
350 cm
2
Prisma S/K
1
2
2
4
175
cm
2
350
cm
2
350
cm
2
700
cm
2
Prisma V
1
1
1
2
175
cm
2
175
cm
2
175
cm
2
350
cm
2
Prismalo 500 S/K
1
2
1
3
175
cm
2
350
cm
2
175
cm
2
525
cm
2
Prismalo 500 V
1
1
1
2
175
cm
2
175
cm
2
175
cm
2
350
cm
2
Saphir Front S/K
1
2
2
4
175
cm
2
350
cm
2
350
cm
2
700
cm
2
Saphir Tunnel S/K
1
2
2
4
175
cm
2
350
cm
2
350
cm
2
700
cm
2
Saphir Giant S/K
1
2
2
4
175
cm
2
350
cm
2
350
cm
2
700
cm
2
Saphir Giant 500 S/K
1
2
2
4
175
cm
2
350
cm
2
350
cm
2
700
cm
2
720 Compact K
1
0
0
0
175
cm
2
0
cm
2
0
cm
2
0
cm
2
720 S/K (ECO)
1
2
2
4
175
cm
2
350
cm
2
350
cm
2
700
cm
2
720 V
1
1
1
2
175
cm
2
175
cm
2
175
cm
2
350
cm
2
720 Giant S/K
1
2
2
4
175
cm
2
350
cm
2
350
cm
2
700
cm
2
720 Giant V
1
1
1
2
175cm
2
175
cm
2
175
cm
2
350
cm
2
* colar-ø 125 mm
WARNING
In V-appliances (with built in ventilator) the number of collars can be
reduced because of the forced higher air volume. The ambient air in-
takes must be mounted symmetrically on the fireplace to ensure the
air heats evenly ant that the installation will not overheat on one
side!

CLASSIC-LINE
ECO-LINE Installation Guide
20
Fitting the sleeves
Tools: – Hammer
– Pozidriv PZ 3 screwdriver
– Silicon seal (thermal resistance ≥ 250 °C)
1. Use a hammer to break out the blanking piece
2. Remove the blanking pieces
3. Install the Ø150 mm air sleeves
4. Fit the sleeve tabs into the slots in the opening
5. Fold down all the tabs 90°
NOTICE
The sleeves must be firmly fitted without any play. The connection can
be sealed with silicon sealer of temperature resistance ≥ 250° C.

CLASSIC-LINE
ECO-LINE Installation Guide
21
Fitting the fresh air units
Blanking pieces
1. Use a hammer at the points marked
in red to break out the blanking piec-
es
The last point should be broken by
by bending, instead of using the
hammer
5. Check that the fresh air units are
correctly fitted.
2. You can install one or two addi-
tional fresh air units. Make sure
you remove the corresponding
blanking piece when positioning
the unit on the left and/or on the
right
4. Fit each fresh air unit using the
Parker screws supplied.
3. Use a hammer to break out the
blanking pieces and fit the
sleeves as in the instructions on
page 19. To avoid any damage,
you can use a wooden block
placed inside the unit
Tools : – Hammer
– Wooden block 75x75 mm
– Pozidriv PZ 3 screwdriver
Wooden block H ≈ 75 mm

CLASSIC-LINE
ECO-LINE Installation Guide
22
External air ducts
● Use, if possible, round air supply ducts with a smooth internal surface.
● The internal surface of air supply ducts made of mineral materials or masonry
should be abrasion resistant
● The air supply ducts must be directly connected at their base or laterally to the
fireplace.
● The air supply ducts must be insulated with a non-inflammable material 3 cm
thick.
● The end of the air supply duct must be fitted with a removable fine mesh grid,
to prevent animals entering.
● All the systems must have an adequate supply of fresh air, with the appropri-
ate ducts and opening diameters, otherwise the system will not operate prop
perly in open or closed door modes.
● If the fitter estimates that ducts of smaller diameter will satisfy combustion air
requirements, then any such installation is at his own risk and responsibility, as
the manufacturer cannot guarantee proper operation under these conditions.
● Do not place the end of the external air conduit next to
a chimney flue or air exhaust outlet. Avoid also draw-
ing external air from an area giving onto a road with
heavy traffic.
● Convection air ducts:
→ To prevent cold air ingress, thermal bridges or condensation,
hermetically closing valves should be fitted.
● Combustion air ducts:
→ To prevent cold air ingress, thermal bridges or condensation, non-
hermetically-closing valves should be fitted, and a free section of 10 cm2
should be kept, which corresponds to an opening of Ø 3 cm. This prevents
dangerous build-up of gases.
