Russell Hobbs RHCVH4002 User manual

Model Number:
RHCVH4001
RHCVH4002
220-240V AC 50Hz 1800W - 2000W
This product is only suitable for well insulated spaces or occasional use
Convection Heater
For Customer Services & Spare Parts please call0345 2097461
Or visit us at https://mda.russellhobbs.com
PLEASE RETAIN
FOR FUTURE REFERENCE

Page(s)
Safety Instructions and Electrical Safety
3 - 5
Feature
Diagram 6
Base
Assembly 7
Using
your Convection Heater 8-9
Using
the Timer (selected models) 10-12
Cleaning
and Care 13
Problem
Solving 14
Guarantee
and Customer Services 15
Spare
Parts 16
Connection
to the Mains Supply 17
Specification
18-19
Disposable
Information 20
CONTENTS
Page 2

SAFETY INSTRUCTIONS
When using electrical appliances, basic safety precautions should always be observed,
including the following:
•Read all instructions.
•Check that the your mains voltage corresponds with the rating on the appliance.
•This appliance must be positioned upright on the floor away from curtains,
furniture or wall coverings and other flammable items.
•The appliance must not be left unattended while it is connected to the mains
supply.
•Do not touch hot surfaces. Use the handle or the controls.
•To protect against electrical shock do not immerse cord, plug, or appliance in
water or other liquid. Do not operate with wet hands.
•Do not let the cord hang over the edge of a worktop, table etc. or touch hot
surfaces.
•Do not operate any appliance with a damaged cord or plug, or after the appliance
malfunctions or is dropped or damaged in any manner. The supply cord cannot be
replaced. If the cord is damaged the appliance should be scrapped.
•The use of accessory attachments not recommended by the appliance
manufacturer may cause fire, electric shock or injury.
•This appliance must not be immersed in any liquid
•To disconnect remove the plug from the mains outlet. Do not pull the plug out by
the cord.
•Never remove parts from the appliance, such as the feet, screws and so on.
•Never use the appliance near a bath, shower or a swimming pool.
•Never place flammable objects or clothing on top of the appliance.
•Allow a 100cm safe area around the appliance on the top and sides and a 150cm
safe area at the front.
•Never use the appliance in a room with explosive gas such as petrol, or while
using any kinds of flammable glues, sprays or solvents.
•Prevent overheating of the appliance by keeping the air inlets and outlets clean
and free of anything that may cause blockage. Check all inlets and outlets regulary
for accumulated dust. DO NOT COVER.
•Do not place any part of your body near the air inlet, outlet or on the fins ,to avoid
personal injury, electric shock or fire.
•If overheating should occur, the built-in overheating safety device will shut the
appliance off.
Page 3

SAFETY INSTRUCTIONS
•Caution: Some parts of this product can become very hot and cause burns. Particular
attention must be given when children and vulnerable people are present.
•Do not insert any foreign objects into the grill.
•Keep all grills clear of any draped fabric or curtains.
•The appliance must not be located immediately below a mains socket. Do not use
the appliance with a programmer, timer or any other device that switches the
appliance on automatically. A fire risk exists if the appliance is covered or positioned
incorrectly.
•Do not operate this appliance for any thing other than its intended use.
•This appliance is not intended for commercial use
•This product is intended for household use only. Do not use outdoors.
•This product is only intended for heating.
•Warning: It is hazardous for anyone other than a competent person to carry out any
service or repair operation which involves the removal of a cover which gives
protection against exposure to electrical parts.
•Warning: Children of less than 3 years should be kept away unless continuously
supervised.
•Children aged from 3 years and less than 8 years shall only switch on/off the
appliance provided that it has been placed or installed in its intended normal
operating position and they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the hazards involved.
•Children aged from 3 years and less than 8 years shall not plug in, regulate and clean
the appliance or perform user maintenance.
•Warning: This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning use
of the appliance by a person responsible for their safety. Children should be
supervised to make sure that they do not play with or use the appliance.
•Warning: In order to avoid overheating, do not cover the heater
Page 4

SAFETY INSTRUCTIONS
Electrical Safety
THIS APPLIANCE MUST BE PLUGGED INTO AN EARTHED SOCKET
•Before switching on, make sure that the voltage of your electricity supply is the same
as that indicated on the rating plate. This product is designed to operate on 220 -
240V AC; 50Hz. Connection to any other power source may damage the unit.
•This product may be fitted with a non re-wireable plug. If it is necessary to change
the fuse in the plug, the fuse cover must be refitted. If the fuse cover becomes lost or
damaged, the plug must not be used until a suitable replacement is obtained.
•If the plug has to be changed because it is not suitable for your socket, or becomes
damaged in any way, it should be cut off and an appropriate plug fitted. This should
be carried out by a qualified electrician. The plug removed must be disposed of
safely, as insertion into a 13 Amp socket is likely to cause an electrical hazard.
Page 5

FEATURE DIAGRAM
For Customer Services & Spare Parts please call 0345 209 7461
Or visit us at https://mda.russellhobbs.com

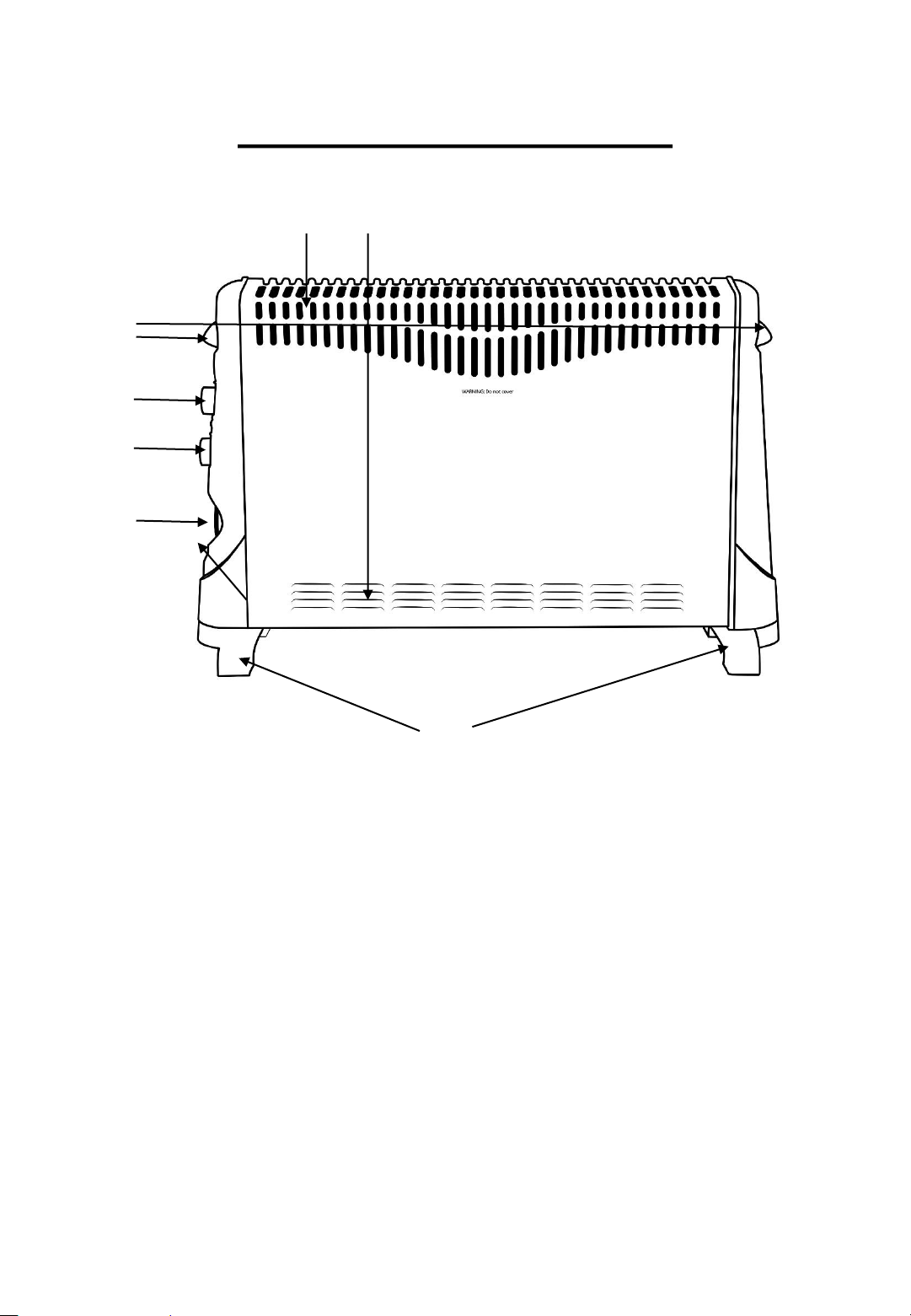

1. Air inlet
2. Air outlet
3. Handles
4. Power/heat setting switches
5. Thermostat control
6. Timer control (certain
models)
7. Feet
Page 6
1
3
7
4
5
6
2

BASE ASSEMBLY
Page 7

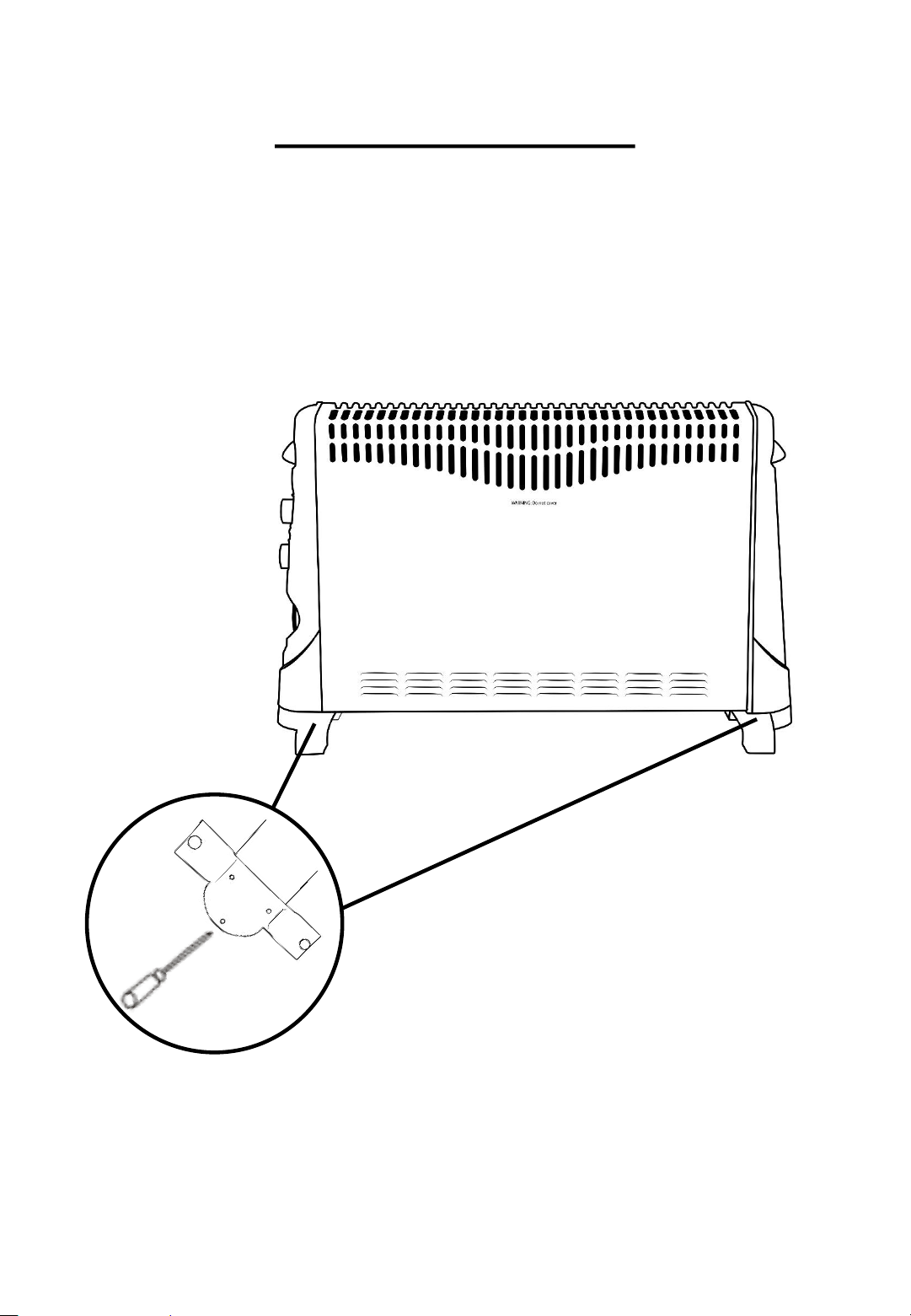

Before using the heater, the feet must be fitted to the unit.
These are to be attached to the base of the heater using the 6
screws provided. Carefully lie the heater on its side and insert
the screws, taking care to ensure that they are located
correctly in the bottom ends of the plastic mouldings.

USING YOUR CONVECTION HEATER
Page 8
Note: For models with a Timer control please see page 10 - 12
1. Before connecting your appliance to the mains socket,
position the appliance upright on the floor away from
curtains, furniture or wall coverings.
2. Insert the mains plug into a suitable 13 Amp mains socket.
3. The appliance has 3 heating elements. Turn the Power Control
dial to the required position
4. Turn the Thermostat Control to the desired position. It is
recommended to select the highest position to pre heat the
appliance. It will take 5 -10 minutes for the appliance to fully
heat up, the time taken for the heater to heat the room it is
located in will be dependent on the size of the room and the
ambient temperature of the room. The indicator light will
illuminate when the unit is working, but the light will cycle on
and off when the thermostat control is set on a low setting
and the heater is then maintaining the room temperature.
Note: this appliance will not operate if the thermostat has been
set too low.
Note: If the thermostat dial is set toward the maximum setting
and the power control is set to off then the indicator light will stay
illuminated. No heat will be emitted as the power to the heating
elements is off.
0 - Power OFF Off
I - Low heat ON 750W
II - Medium heat ON 1250W
III - High heat ON 2000W

Page 9
5. A small amount of smoke may be produced during first
time use or when the appliance has not been used for a
long period of time, this is normal and will quickly
disappear.
6. When the room reaches the desired temperature, the
heater will temporarily go off.
7. If the room temperature falls below the desired
temperature, the heating elements will turn on again until
the room temperature reaches the desired temperature
The appliance is fitted with an over heat protection system.
•Overheat protection - the power to the heating elements
will automatically cut off if the temperature of the heating
elements exceeds a certain limit. In the event of
overheating, the heater will stop operating. Once the
appliance has completely cooled the appliance will then
resume operating as normal.
USING YOUR CONVECTION HEATER

Note: The timer clock will only operate when the product is
connected to the mains supply.
Operation modes
There are 3 operating modes on the timer; Manual operation,
Timer operation and OFF. The operation mode is set using the
slide switch on the timer
Manual operation (Position - I) - This setting allows power to
the product uninterrupted by the timer, however other
product controls will continue to function as normal.
Timer operation (Position - ) - This setting allows the heater
to be controlled by the timer. The product will be switched on
and off depending on the pre-set timer program.
Page 10
USING THE TIMER (SELECTED MODELS)
Slide
switch

Page 11
Off (Position - 0) - The unit is powered off even if the power
controls are turned on.
Setting the time of day
To set the time of day, rotate the timer dial clockwise
(indicated by the arrow) until the correct time of day is
opposite the reference mark. The 24-hour clock is used ; e.g. 4
pm is ‘16’ (16:00hrs).
Setting the ‘Auto’ ON and OFF times
To set the timer:
•Using your finger tip or the tip of a pencil, push in as many
segments as necessary around the dial, according to the
times you don’t require heat. Each segment pushed in
switches the heater OFF for that part of the hour. All other
segments will be ON.
•You can select as many ON periods as you like, within the
24-hour day. The settings will repeat every day until
changed.
•To change ON and OFF times, simply push in any ‘ON’
segments you wish to cancel and pull out new ‘ON’
segments as required.
USING THE TIMER (SELECTED MODELS)

Page 12
Switching to Timer
Ensure the thermostat and/or the heat selector are set for the
desired heat output. Check that the clock shows the correct
time of day. Set the mode slide switch to , the heater will
switch ON and OFF according to the timer settings.
Note: Remember to observe all safety warnings when
operating the heater on auto setting unattended or attended.
If the mains supply to the heater is interrupted, the timer
clock will stop until power is restored ; reset the time of day
to ensure correct ON and OFF times
USING THE TIMER (SELECTED MODELS)
Timer
mode

CLEANING AND CARE
Page 13
WARNING: Electrical Shock Hazard.
Before you clean the appliance, disconnect the mains plug from
the wall socket.
•Allow the appliance to cool down completely before
cleaning.
•Do not immerse cord, plug or appliance in any liquid or allow
moisture to come into contact with electrical parts.
•Clean the outer surface using a moist cloth and wipe over
with a dry, soft cloth.
•Do not use harsh detergents, abrasives or spray on cleaners.
•Don’t allow water to seep into the openings or come into
contact with electrical connections.
•Allow sufficient drying time before operating again.
•Clean the air inlets and outlets regularly with a vacuum
cleaner using the brush attachment (with regular use, at
least twice a year).
•When the appliance is not in use. We recommend that, the
heater is re-packed in its original packaging and stored in a
cool, dry place.

PROBLEM SOLVING
Page 14
My appliance does not work when I turn it on:
1. Check that your appliance is plugged in and the power is
turned on at the mains socket.
2. Try another mains socket.
3. Check the appliance is in an upright position.
4. Check that the thermostat setting has not been set too low.
5. If the appliance still doesn’t work, do not try to repair it
yourself.
6. Check the timer setting (if your model has a timer)
If your appliance power is automatically cut off, follow the step
below:
1. Unplug your appliance from the mains socket and allow it to
completely cool down.
2. Inspect your appliance. Clean the air inlet and air outlet with
a vacuum cleaner if necessary. If there are any signs of
physical damage (e.g. melting, or burning of the case), do
not attempt to use the appliance. Please leave all
maintenance work to qualified personnel.
3. Plug in the appliance and switch it on again. If it cuts off
again, move the appliance to a better ventilated location.

At Russell Hobbs, we take all our customer feedback seriously.
Feel free to contact our Customer Service Team, on 0345 209 7461,
who will be more than happy to assist you.
This product is guaranteed for 12 months from the date of the original
purchase. If any defect arises due to faulty materials or workmanship,
the faulty product must be returned to the place of purchase.
Refund or replacement is at the discretion of the retailer.
The following conditions apply:
• The product must be returned to the retailer with the original proof of
purchase.
• The product must be installed and used in accordance with the
instructions contained in this instruction guide and any other
instructions for use which are supplied.
• It must be used for domestic purposes only and for its intended use.
• This warranty does not cover wear and tear, damage, misuse or
consumable parts.
This does not affect your statutory rights.
Imported by
G2S LIMITED
WIGAN
WN2 4AY
GUARANTEE AND CUSTOMER
SERVICES
Page 15
For Customer Services & Spare Parts please call 0345 209 7461
Or visit us at https://mda.russellhobbs.com

SPARE PARTS
Page 16
To check the availability of the following spare parts, simply
contact our friendly Customer Services team using the details
provided at the bottom of this page.
For Customer Services & Spare Parts please call 0345 209 7461
Or visit us at https://mda.russellhobbs.com
Feet and screws

CONNECTION TO THE MAINS
SUPPLY
Page 17
This appliance is designed to operate from a mains supply of
220-240V~50Hz.
Check that the voltage marked on the product corresponds
with your supply voltage.
How to change the fuse
1. Slot the end of a screwdriver into the recess in the fuse
holder of the plug.
2. Pull the fuse holder upwards until free of the plug and slide
the fuse out.
3. Replace the fuse and replace fuse holder, pushing down
until locked into place.
Important: Only ever use a 13 amp fuse.

SPECIFICATION
Page 18
Model number RHCV4001
Rated voltage 220V -240V ~ 50Hz
Power consumption 1800W - 2000W
Product dimensions (CMS) (H)45 x (W)69.5 x (D)20
Model number RHCV4002
Rated voltage 220V -240V ~ 50Hz
Power consumption 1800W - 2000W
Product dimensions (CMS) (H)45 x (W)69.5 x (D)20
Model number
RHCV4001
Item Symbol Value Unit Item Unit
Heat output
Type of heat input, for electric storage local space heaters only
Nominal heat
output
Pnom 1.9 kW
manual heat charge control, with
integrated thermostat
NA
Minimum
heatoutput
(indicative)
Pmin 0 kW
manual heat charge control with
room and/or outdoor temperature
feedback
NA
Maximum
continuous heat
output
Pmax,c 1.9 kW
electronic heat charge control with
room and/or outdoor temperature
feedback
NA
fan assisted heat output
NA
Auxiliary electricity consumption
Type of heat output/room temperature control
At nominal heat
output
elmax 0 kW
single stage heat output and no
room temperature control
No
At minimum heat
output
elmin 0 kW
Two or more manual stages, no
room temperature control
No
In standby mode
elSB 0kW
with mechanic thermostat room
temperature control
Yes
with electronic room temperature
control
No
electronic room temperature
control plus day timer
No
electronic room temperature
control plus week timer
No
Other control options (multiple selections possible)
room temperature control, with
presence detection
No
room temperature control, with
open windowdetection
No
with distance control option
No
with adaptive start control
No
with working time limitation
No
with black bulb sensor
No
Contact details
G2S LIMITED
WIGAN, WN2 4AY

SPECIFICATION
Page 19
Model number
RHCV4002
Item Symbol Value Unit Item Unit
Heat output
Type of heat input, for electric storage local space heaters only
Nominal heat
output
Pnom 1.9 kW
manual heat charge control, with
integrated thermostat
NA
Minimum
heatoutput
(indicative)
Pmin 0.0002 kW
manual heat charge control with
room and/or outdoor temperature
feedback
NA
Maximum
continuous heat
output
Pmax,c 1.9 kW
electronic heat charge control with
room and/or outdoor temperature
feedback
NA
fan assisted heat output
NA
Auxiliary electricity consumption
Type of heat output/room temperature control
At nominal heat
output
elmax 0 kW
single stage heat output and no
room temperature control
No
At minimum heat
output
elmin 0 kW
Two or more manual stages, no
room temperature control
No
In standby mode
elSB 0kW
with mechanic thermostat room
temperature control
Yes
with electronic room temperature
control
No
electronic room temperature
control plus day timer
No
electronic room temperature
control plus week timer
No
Other control options (multiple selections possible)
room temperature control, with
presence detection
No
room temperature control, with
open windowdetection
No
with distance control option
No
with adaptive start control
No
with working time limitation
No
with black bulb sensor
No
Contact details
G2S LIMITED
WIGAN, WN2 4AY

Page 20
This symbol is known as the 'Crossed-out wheelie bin Symbol'. When
this symbol is marked on a product/batteries, it means that the
product/batteries should not be disposed of with your general
household waste. Only discard electrical/electronic/battery items in
separate collection schemes, which cater for the recovery and recycling
of materials contained within. Your co-operation is vital to make sure the
success of these schemes and for the protection of the environment. For
your nearest disposal facility, visit www.recycle-more.co.uk or ask in
store for details. We reserve the right due to possible changes to design
to alter the instruction manual without prior notice.
Revision 1
Model Number:
RHCVH4001
RHCVH4002
For Customer Services & Spare
Parts please call 03452097461
Or visit us at
https://mda.russellhobbs.com
