ORIGINAL INSTRUCTIONS
Cordless Blower/
Vacuum

Important!
It is essential that you read the instructions in this manual before assembling,
operating, and maintaining the product.
Subject to technical modification.
Important!
It is essential that you read the instructions in this manual before assembling,
operating, and maintaining the product.
Subject to technical modification.

Safety, performance, and dependability have
been given top priority in the design of your
cordless blower/vacuum.
INTENDED USE
The cordless blower/vacuum is intended only
for use outdoors in dry and well-illuminated
conditions.
The product is not intended to be used by
children or persons with reduced physical,
mental, or sensory capabilities.
The product is designed for blowing or
vacuuming light debris, such as leaves, grass,
and other garden refuse. It is intended to
vacuum and mulch debris and deposit it into
the collection bag.
The product is not designed to suck in water
or other liquids.
Do not use the product for any other purpose.
GENERAL SAFETY WARNINGS
WARNING
Read all safety warnings and all
instructions. Failure to follow the warnings
and instructions may result in electric shock,
re, and/or serious injury. Save all warnings
and instructions for future reference.
WARNING
Never allow children, persons with reduced
physical, sensory or mental capabilities
or lack of experience and knowledge, or
people unfamiliar with these instructions
to use the product. Local regulations may
restrict the age of the operator.
TRAINING
■Read the instructions carefully. Be familiar
with the controls and the correct use of the
product.
■Keep in mind that the operator or user
is responsible for accidents or hazards
occurring to other people or their property.
■Do not use the product while tired, ill or
under the influence of alcohol, drugs, or
medication.
PREPARATION
■Some regions have regulations that restrict
the use of the product to some operations.
Check with your local authority for advice.
■Wear hearing protection at all times while
operating the product. The product is noisy,
and permanent hearing injury may result if
precautions to limit your exposure, reduce
noise, and wear hearing protection are not
strictly adhered to.
■Wear full eye protection at all times while
operating the product. The manufacturer
strongly suggests a full face mask or fully
enclosed goggles. Normal spectacles or
sunglasses are not adequate protection.
Objects can be thrown at high speed by
the powerful air jet at any time and may
rebound from hard surfaces toward the
operator.
■While operating the product, always wear
substantial footwear and long trousers.
Do not operate the product when barefoot
or wearing open sandals. Avoid wearing
clothing with loose fitting or that has
hanging cords or ties.
■Do not wear loose clothing or jewellery that
can be drawn into the air inlet. Secure long
hair so it is above shoulder level to prevent
entanglement in moving parts.
■Before each use, ensure that all controls
and safety devices function correctly. Do
not use the product if the off switch does
not stop the product.
■Operate the product in a recommended
position and only on a firm and level
surface.
■Do not operate the product on a paved
or gravel surface where ejected material
could cause injury.
■Before each use, always inspect the
housing for damage. Ensure that guards
and handles are in place and properly
secured. Replace worn or damaged
components in sets to preserve balance.
Replace damaged or unreadable labels.
■Never operate the product while people,
especially children, or pets are nearby.
■Keep all cooling air inlets clear of debris.
■Use rakes and brooms to loosen debris
before blowing.
■Clear the work area before each use.
Remove all objects such as rocks, broken
glass, nails, wire, or string that can be
blown a considerable distance by high
velocity air.
1

WARNING
Before using the product in vacuum mode,
you must assemble the upper and lower
vacuum tubes together. This is a one–time
operation only. Never operate the vacuum
with only the upper vacuum tube tted.
The risk of personal injury is signicantly
increased if you fail to follow this warning.
BATTERY TOOL USE AND CARE
■Recharge only with the charger specified
by the manufacturer. A charger that is
suitable for one type of battery pack may
create a risk of fire when used with another
battery pack.
■Use power tools only with specifically
designated battery packs. Use of any other
battery packs may create a risk of injury
and fire.
■When battery pack is not in use, keep it away
from other metal objects, like paper clips,
coins, keys, nails, screws or other small
metal objects that can make a connection
from one terminal to another. Shorting the
battery pack terminals together may cause
burns or a fire.
■Under abusive conditions, liquid may
be ejected from the battery pack; avoid
contact. If contact accidentally occurs,
flush with water. If liquid contacts eyes,
additionally seek medical help. Liquid
ejected from the battery pack may cause
irritation or burns.
■Do not use a battery pack or tool that is
damaged or modified. Damaged or modified
batteries may exhibit unpredictable
behaviour resulting in fire, explosion, or
risk of injury.
■Do not expose a battery pack or tool to fire
or excessive temperatures. Exposure to
fire or excessive temperature above 130°C
may cause explosion.
■Follow all charging instructions and do not
charge the battery pack or tool outside
the temperature range specified in the
instructions. Charging improperly or at
temperatures outside the specified range
may damage the battery and increase the
risk of fire.
OPERATION
■Before starting the product, make sure the
feeding chamber is empty.
■Keep your face and body away from the
feed intake opening.
■Operate the product only at reasonable
hours—not early in the morning or late at
night when people might be disturbed.
■Never operate the product in an explosive
atmosphere.
■Avoid using the product in bad weather
conditions especially when there is a risk
of lightning.
■Do not operate the product in poor lighting.
The operator requires a clear view of the
work area to identify potential hazards.
■Keep bystanders, children, and pets 15 m
away from the area of operation. Stop the
product if anyone enters the area.
■Operating similar tools nearby increases
both the risk of hearing injury and the
potential for other persons to enter your
working area.
■Always be sure of your footing on slopes.
Walk, never run.
■Do not allow hands or any other part of
the body or clothing inside the feeding
chamber, discharge chute, or near any
moving part.
■Keep proper footing and balance. Do not
overreach. Overreaching can result in loss
of balance.
■Never use the product with defective guards
or shields, or without safety devices, such
as debris collector, in place.
■Do not modify the product in any way or
use parts and accessories that are not
recommended by the manufacturer.
WARNING
If the product is dropped, suffers heavy
impact, or begins to vibrate abnormally,
immediately stop the product and inspect
for damage or identify the cause of the
vibration. Any damage should be properly
repaired or replaced by an authorised
service centre.
■To reduce the risk of injury associated with
contacting rotating parts, always turn off
the product and remove the battery pack.
2

Make sure that all moving parts have come
to a complete stop:
–before leaving the product unattended
–before clearing blockages or
unclogging chute
–before checking, cleaning, or working
on the product
–before inspecting the product after
striking a foreign object
–whenever the product starts to vibrate
abnormally (inspect immediately)
■Immediately turn off and remove the
battery pack in the event of accident or
breakdown. Do not operate the product
again until it has been fully checked by an
authorised service centre.
■The product is provided with a cruise
control lever near the trigger. Cruise control
sets the speed at a convenient level to
provide enough power to achieve the task.
Low running speed helps reduce noise
and vibration. Cruise control helps reduce
operator fatigue.
■Press the turbo boost button to increase
air flow to the maximum velocity. The turbo
boost overrides the cruise control feature.
The blower returns to the previously
selected speed when the button is released.
WARNING
Your blower/vacuum may be supplied with
a harness. Carefully adjust the harness
to comfortably help to support the weight
of the product. Identify the quick release
mechanism and practice using it before
you start using the product. Its correct use
may prevent serious injury in the case of an
emergency. Never wear additional clothing
over the harness or otherwise restrict
access to the quick release mechanism.
BLOWER SAFETY WARNINGS
■Wear a face filter mask in dusty conditions
to reduce the risk of injury associated with
the inhalation of dust.
■Slightly dampen surfaces in dusty
conditions.
■Do not use the product near open windows.
■Use the full blower nozzle extension so that
the air stream can work close to the ground
and perform effectively.
■Do not point the blower nozzle in the
direction of people or pets.
■Never place objects inside the blower
tubes.
■Do not place product on top of or near
loose debris. Debris can be sucked into the
intake vent, resulting in possible damage
to the product.
VACUUM SAFETY WARNINGS
WARNING
Never operate the vacuum with only the
upper vacuum tube tted. Failure to follow
this warning increases the risk of personal
injury.
Note: Without the lower vacuum tube tted,
it is much easier to reach up inside the tube
towards the fan blade.
■Do not operate the vacuum without the
debris collector bag assembly installed.
Flying debris could cause serious injury.
Make sure that the debris collector bag is
in good condition and completely closed
before operating the product.
■Move the vacuum from side to side along
the outer edge of the debris. To avoid
clogging, do not place the vacuum tube
directly into the debris pile.
■Hold the motor higher than the inlet end of
the vacuum tube.
■To avoid serious injury to the operator
or damage to the product, do not try to
vacuum up rocks, broken glass, bottles, or
similar objects.
■Avoid situations that could cause fire in
the debris collector bag. Do not operate
the product near an open flame. Do not
vacuum up warm ash from fireplaces and
barbecue pits. Do not vacuum up discarded
cigars or cigarettes unless the cinders are
completely cool.
■Keep all parts of your body away from any
moving part. Rotating fan blades can cause
severe injury. Stop the motor and ensure
that fan blades have stopped rotating
before opening the vacuum door, installing
or changing tubes, or opening or removing
debris bag.
■When feeding material into the product,
make sure that the pieces of metal, rocks,
3

bottles, cans, or other foreign objects are
not included.
■Do not allow processed material to build
up in the discharge zone. This may prevent
proper discharge and can result in kickback
of material through the intake opening.
■If the product becomes clogged, stop
the product and remove the battery pack
before cleaning the debris.
ADDITIONAL BATTERY SAFETY
WARNINGS
WARNING
To reduce the risk of re, personal injury,
and product damage due to a short circuit,
never immerse your tool, battery pack or
charger in uid or allow a uid to ow inside
them. Corrosive or conductive uids, such
as seawater, certain industrial chemicals,
and bleach or bleach-containing products,
etc., can cause a short circuit.
TRANSPORTATION AND STORAGE
■Turn off the product, remove the battery
pack, and allow it to cool down before
storing or transporting.
■Clean all foreign materials from the product.
Store the product in a cool, dry, and well-
ventilated place that is inaccessible to
children. Keep away from corrosive agents,
such as garden chemicals and de-icing
salts. Do not store the product outdoors.
■For transportation in a vehicle, secure the
product against movement or falling to
prevent injury to persons or damage to the
product.
TRANSPORTING LITHIUM BATTERIES
Transport the battery pack in accordance with
local and national provisions and regulations.
Follow all special requirements on packaging
and labelling when transporting batteries by a
third party. Ensure that no batteries can come
in contact with other batteries or conductive
materials while in transport by protecting
exposed connectors with insulating, non-
conductive caps or tape. Do not transport
battery packs that are cracked or leaking.
Check with the forwarding company for further
advice.
MAINTENANCE
WARNING
Use only original manufacturer’s
replacement parts, accessories and
attachments. Failure to do so can cause
possible injury, can contribute to poor
performance and may void your warranty.
WARNING
Servicing requires extreme care and
knowledge and should be performed only by
a qualied service technician. For service,
have the product serviced by an authorised
service centre only. When servicing, use
only original replacement parts.
■Do not make adjustments and repairs that
are not described in this manual. For other
repairs, contact an authorised service
centre.
■After each use, clean the product with a
soft, dry cloth.
■Check all nuts, bolts, and screws at
frequent intervals for proper tightness to
ensure that the product is in safe working
condition. Any part that is damaged should
be properly repaired or replaced by an
authorised service centre.
■Bring the product to an authorised service
centre to replace damaged or unreadable
labels.
CLEARING A BLOCKAGE
■To reduce the risk of injury associated with
contacting rotating parts, always turn off
the product, remove the battery pack, and
make sure all moving parts have come to a
complete stop.
■Remove the tubes to inspect for blockage.
Clear the tubes if required.
■Remove the debris collector bag. Check
that the bag adaptor is free from obstruction.
■Inspect the opening to the fan enclosure
and the tube to the debris bag for evidence
of a blockage. Remember, even though
the battery pack is removed, the fan or
mulching blades may move as you clear
any blockage. Keep fingers away from the
fan or mulching blades at all times.
■Do not attempt to remove the fan or
mulching blade. If it is necessary to remove
4

the fan or mulching blades, bring the
product to an authorised service centre.
■Reinstall the tubes and the debris collector
bag before installing the battery pack and
starting the product.
RESIDUAL RISK
Even when the product is used as prescribed,
it is still impossible to completely eliminate
certain residual risk factors. The following
hazards may arise during use and the
operator should pay special attention to avoid
the following:
■injury caused by vibration
–Always use the right tool for the job, hold
the product by the designated handles
and use the lowest speed necessary to
achieve the task.
■injury caused by exposure to noise
–Wear ear protection and limit exposure.
■injury caused by flying objects from the
blower tube airflow
–Wear eye protection at all times.
RISK REDUCTION
It has been reported that vibrations from
handheld tools may contribute to a condition
called Raynaud’s Syndrome. Symptoms may
include tingling, numbness, and blanching of
the ngers, usually apparent upon exposure
to cold. Hereditary factors, exposure to cold
and dampness, diet, smoking, and work
practices are all thought to contribute to the
development of these symptoms. There are
measures that can be taken by the operator to
possibly reduce the effects of vibration:
■Keep your body warm in cold weather.
When operating the product, wear gloves
to keep the hands and wrists warm. It is
reported that cold weather is a major factor
contributing to Raynaud’s Syndrome.
■After each period of operation, exercise to
increase blood circulation.
■Take frequent work breaks. Limit the
amount of exposure per day.
If you experience any of the symptoms of this
condition, immediately discontinue use and
see your physician.
WARNING
Injuries may be caused or aggravated by
prolonged use of a tool. When using any
tool for prolonged periods, ensure you take
regular breaks.

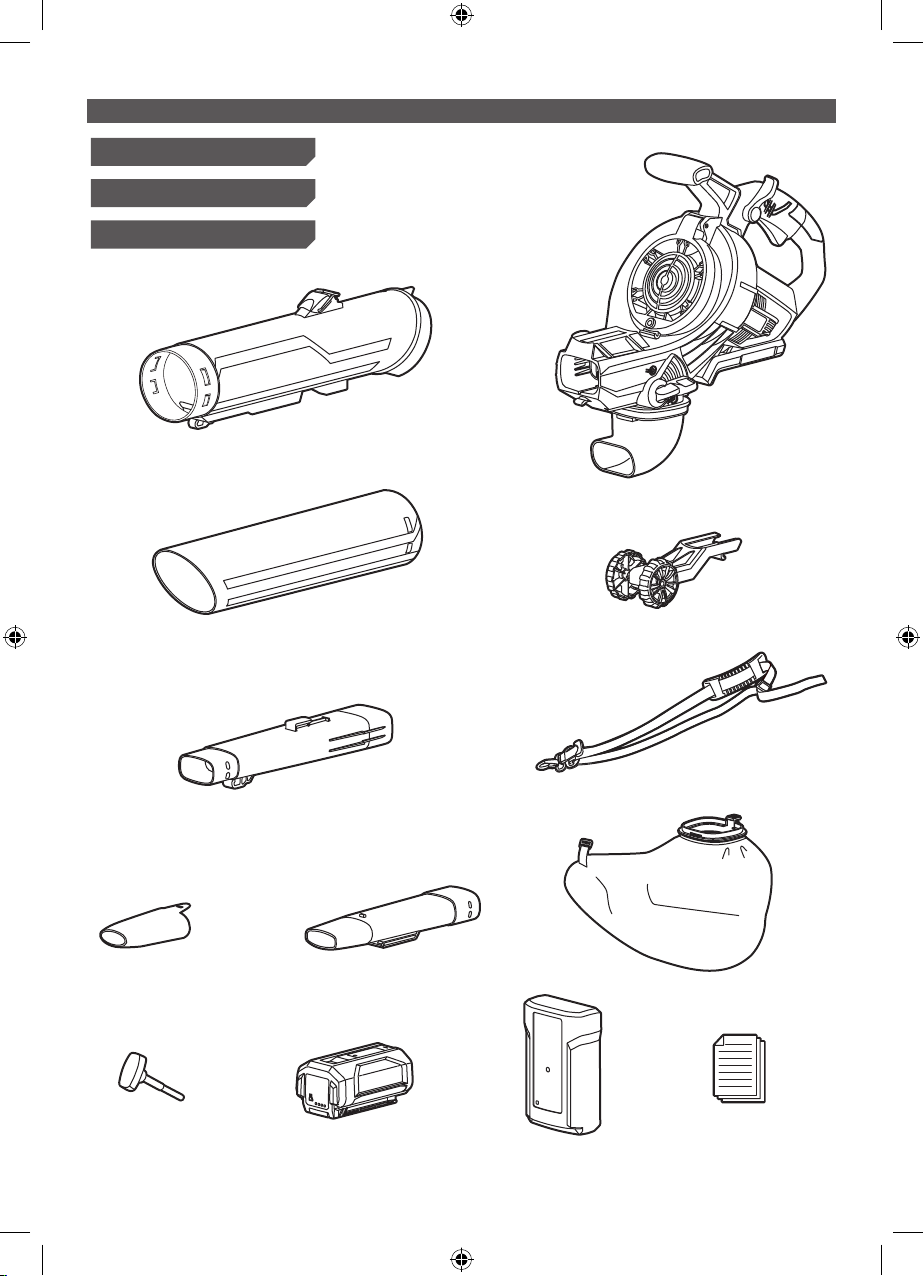

WHAT’S IN THE BOX
■Blower/vacuum housing x 1
■Upper vacuum tube x 1
■Lower vacuum tube x 1
■Upper blower tube x 1
■Lower blower tube x 1
■High speed nozzle x 1
■Guide wheels x 1
■Quick release harness x 1
■Vacuum bag x 1
■Battery x 1
■Charger x 1
■Manual x 1
■Locking screw x 1
NOTE: For RBV3600, the battery and charger
are sold separately.
NOTE: When replacing the vacuum bag,
ensure to keep the plastic collar that holds
the bag. The collar is needed to install a new
vacuum bag.
SYMBOLS ON THE PRODUCT
Safety alert
Read and understand
all instructions before
operating the product. Follow
all warnings and safety
instructions.
Beware of thrown or ying
objects. Keep all bystanders,
especially children and pets,
at least 15 m away from the
operating area.
Rotating fans. Keep hands
and feet out of openings while
the product is running.
5

6
Wear ear protection.
Wear eye protection.
Do not expose the product to
rain or damp condition.
Regulatory Compliance
Mark (RCM). This product
meets applicable regulatory
requirements.
Waste electrical products
should not be disposed of
with household waste. Please
recycle where facilities exist.
Check with your local authority
or retailer for recycling advice.
Blower mode
Vacuum mode
SYMBOLS IN THIS MANUAL
Note
Warning
Parts or accessories are sold
separately
The following signal words and meanings
are intended to explain the levels of risk
associated with this product.
DANGER
Indicates an imminently hazardous
situation, which, if not avoided, will result in
death or serious injury.
WARNING
Indicates a potentially hazardous situation,
which, if not avoided, could result in death
or serious injury.
CAUTION
Indicates a potentially hazardous situation,
which, if not avoided, may result in minor or
moderate injury.
CAUTION
Without safety alert symbol
Indicates a situation that may result in
property damage.

7
WHAT’S IN THE BOX
x 1
x 1
x 1x 1
x 1
x 1 x 1
x 1
x 1
x 1
x 1
x 1
x 1
RBV3650D
RBV365
RBV3640
* Kit includes battery and charger.

8
WHAT’S IN THE BOX
x 1
x 1
x 1x 1
x 1 x 1
x 1
x 1
x 1
x 1
x 1
RBV3600
* Battery and charger are sold separately.

9

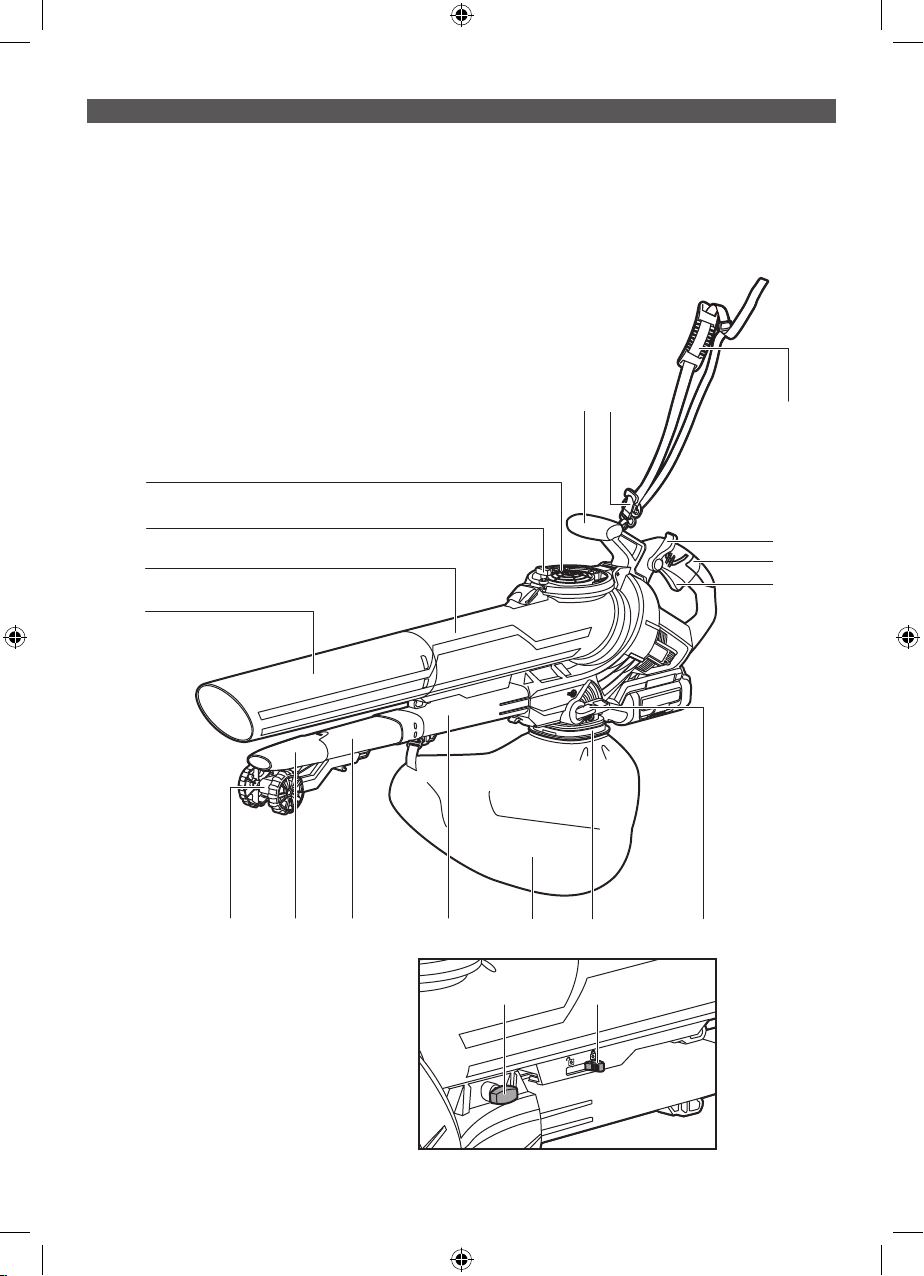

Know your product
KNOW YOUR PRODUCT
12
3
4
111213 10 9 8 7
17
16
15
14
5
6
19 18
1. Front handle
2. Quick release handle
3. Shoulder/strap pad
4. Cruise control lever
5. Rear handle
6. On/Off trigger
7. Blower/vacuum mode selection lever
8. Bag adaptor
9. Vacuum bag
10. Upper blower tube
11. Lower blower tube
12. High speed nozzle
13. Guide wheels
14. Lower vacuum tube
15. Upper vacuum tube
16. Locking screw
17. Fan cover
18. Sliding lock
19. Locking pin

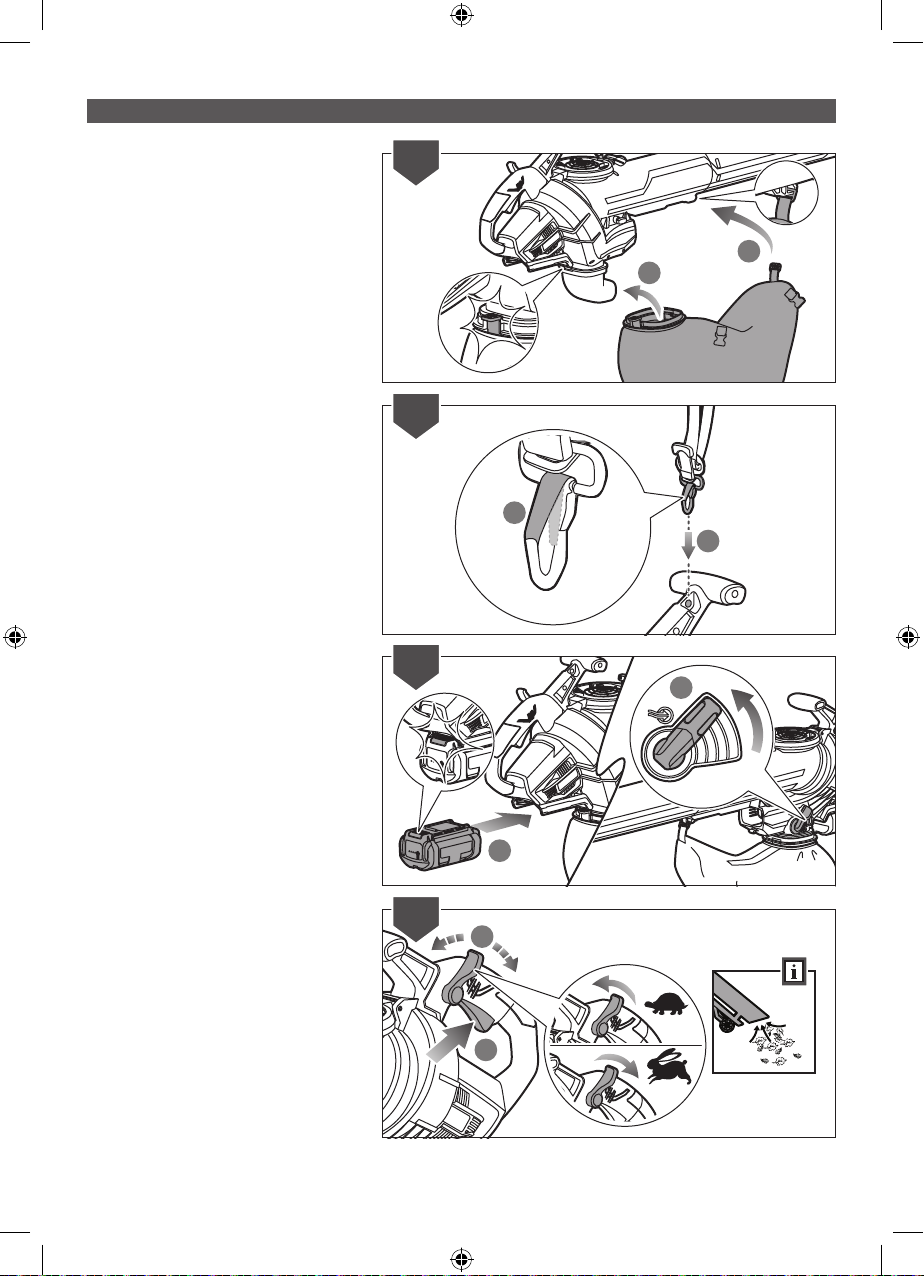

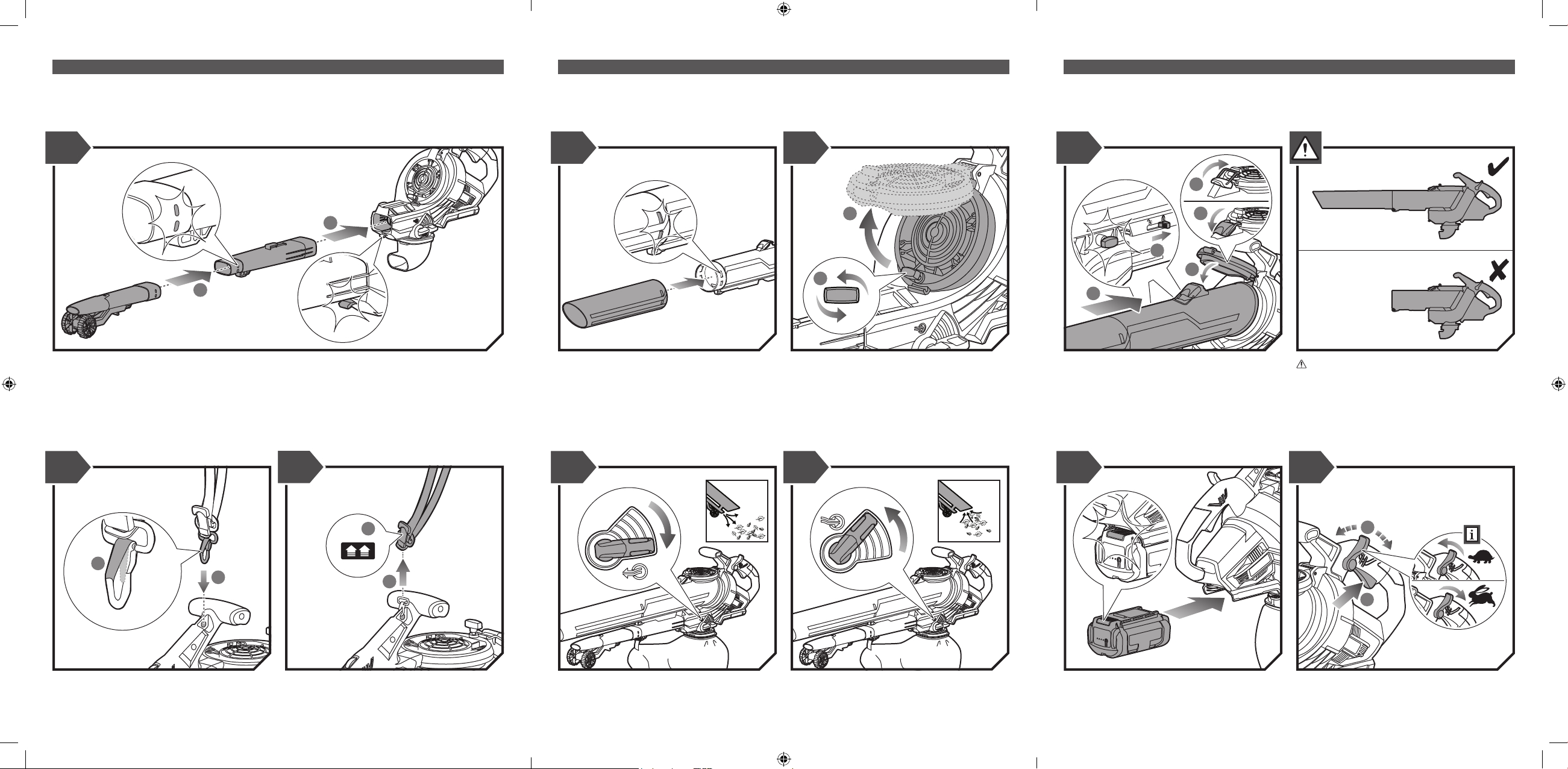

GETTING STARTED
1
2
1 2
2
1
7
Hook the vacuum bag to the lower blower tube. Guide the vacuum bag opening over the bag adaptor, then
snap the vacuum bag opening into place.
Wear full eye and ear protection, substantial footwear, and
long trousers at all times while operating the product. Do
not operate the product when barefoot or wearing open
sandals.
Push the high speed nozzle into the lower blower tube until
it locks into place. Slide the guide wheels onto the lower
blower tube.
NOTE: Use the tab on the rear side to slide the guide
wheels up or down and adjust its position.
10

GETTING STARTEDGETTING STARTED GETTING STARTED
1
2
2
1
89
1
2
3
Connect the high speed nozzle/lower blower tube to the upper blower tube, then push until you hear an audible click, and
the tube locks into place. Connect the high speed nozzle/blower tube to the housing opening, then push the nozzle/blower
tube until you hear an audible click and the tube locks into place.
Hook the harness to the front handle. Pull the quick release handle to easily remove the harness
from the product.
2
1
54
10a 10b
Push the lower vacuum tube into the upper vacuum tube
until you hear an audible click and the tube locks into
place .
Turn the locking screw counterclockwise to unlock the fan
cover. Rotate the fan cover upward to open the fan housing.
Set the mode selection lever to the bottom position to set
the product to blower mode.
Set the mode selection lever to the top position to set the
product to vacuum mode.
1
3
4
5
2
2
1
11 12
6
11
Squeeze the trigger to operate the product. Use the cruise
control lever to lock the product to the desired power.
Push the lower/upper vacuum tube into the fan housing
until it clicks into place. Slide the lock lever to the lock
position to secure the vacuum tubes. Rotate the fan cover
downward until it rests on the upper vacuum tube. Hook the
lock clip to the fan cover and press the lock clip downward
to secure the fan cover.
NOTE: Ensure that the vacuum tube is inserted correctly,
and that the lock clip is secure and tight.
WARNING: Never operate the vacuum with only the
upper vacuum tube tted. Failure to follow this warning
increases the risk of personal injury and damage to the
product.
At the rear side of the housing, insert the battery pack until
you hear an audible click and the battery locks into place.

12

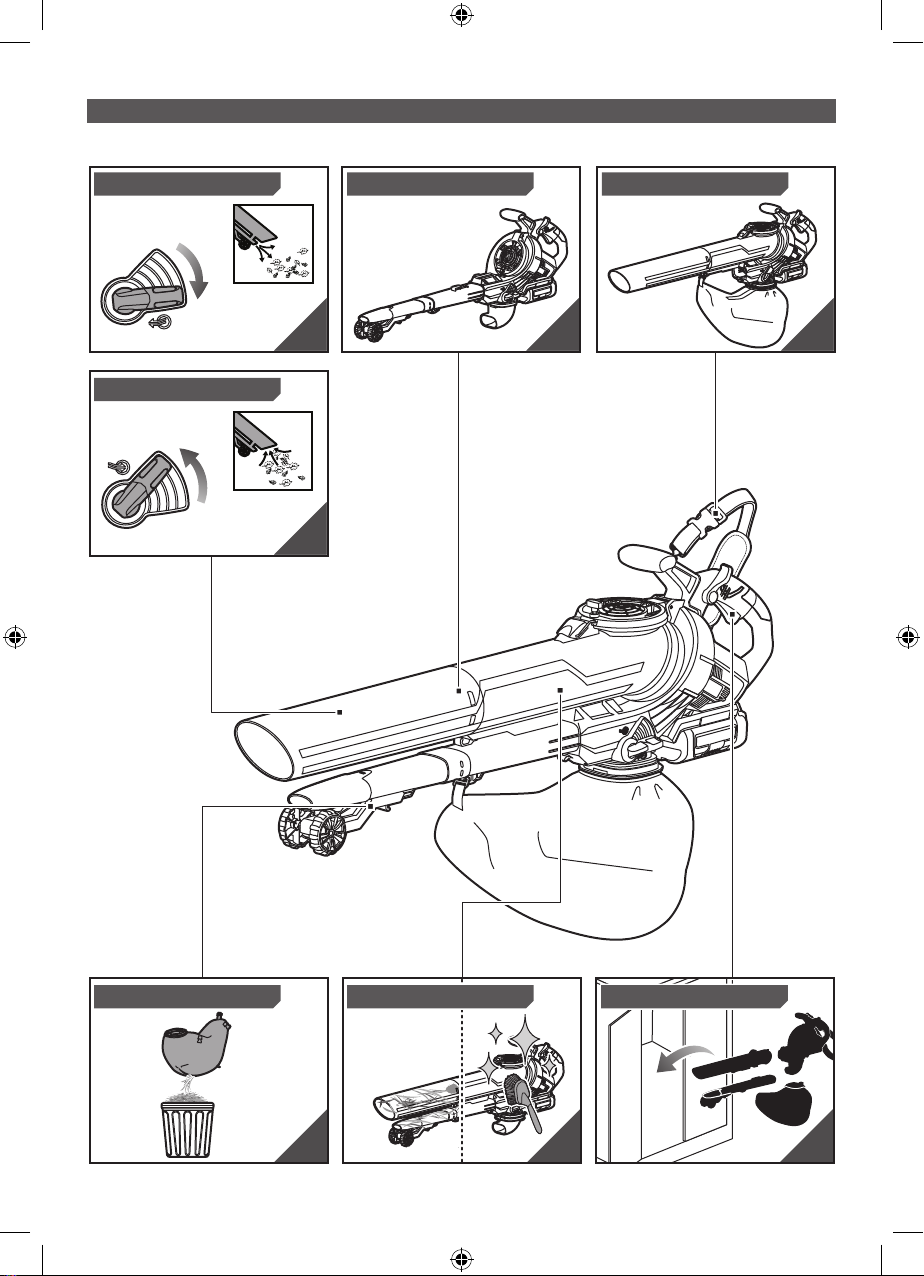

OVERVIEW
13
Blower mode
Vacuum mode
Blower setup Vacuum setup
Emptying the vac bag Maintenance Storage
p.14
p.14
p.17p.15
p.20 p.21p.19

OPERATION
14
1
2
1
2
1
2
1
2
2
2
1
1
BLOWER MODE
1. At the rear side of the housing, insert the
battery pack until you hear an audible
click and the battery locks into place. Set
the mode selection lever to the bottom
position to set the product to blower
mode.
2. Squeeze the trigger to operate the
blower. Use the cruise control lever to
lock the blower to the desired power.
VACUUM MODE
1. At the rear side of the housing, insert the
battery pack until you hear an audible
click and the battery it locks into place.
Set the mode selection lever to the top
position to set the product to vacuum
mode.
2. Squeeze the trigger to operate the
product. Use the cruise control lever to
lock the product to the desired power.

OPERATION
15
1
2
1
1
2
1
2
12
2
3
4
BLOWER SETUP
1. Remove the battery pack.
Press the latch to unlock and then pull
the battery pack out of the housing.
2. Attach the high speed nozzle and guide
wheels to the lower blower tube.
Push the high speed nozzle into the
lower blower tube until it locks into place.
Slide the guide wheels onto the lower
blower tube. Use the tab on the rear side
to slide the guide wheel up or down and
adjust its position.
3. Install the lower blower tube assembly,
and upper blower tube to the housing.
Push the lower blower tube assembly
into the upper blower tube until you hear
and audible click and the tube locks into
place.
Push the blower tube assembly into the
housing until it locks into place.
4. Close the fan cover.
Rotate the fan cover downward to close
the fan housing. Rotate the locking
screw clockwise to secure the cover.
NOTE: Ensure to fully tighten the locking
screw to engage the micro switch. If the
screw is not tight, the unit will not work.

OPERATION
16
1
2
6
5
1
2
7
8
5. Hook the harness to the front handle.
6. At the rear side of the housing, insert the
battery pack until you hear an audible
click and the battery locks into place.
7. Set the mode selection lever to the
bottom position to set the product to
blower mode.
8. Squeeze the trigger to operate the
product. Use the cruise control lever to
lock the product to the desired power.

OPERATION
17
1
2
1
2
1
1
4
3
2
2
3
4
VACUUM SETUP
1. Remove the battery pack.
Press the latch to unlock and then pull
the battery pack out of the housing.
2. Push the lower vacuum tube into the
upper vacuum tube until you hear and
audible click and the tube locks into
place.
3. Turn the locking screw counterclockwise
to unlock the fan cover. Rotate the fan
cover upward to open the fan housing.
4. Install the vacuum tube assembly.
Push the vacuum tube assembly into
the fan housing until it clicks into place.
Slide the lock lever to the lock position
to secure the vacuum tubes. Rotate the
fan cover downward until it rests on the
upper vacuum tube. Hook the lock clip
to the fan cover and press the lock clip
downward to secure the cover.
NOTE: Ensure that the vacuum tube is
inserted correctly, and that the lock clip
is secure and tight.
WARNING: Never operate the
vacuum with only the upper vacuum
tube tted. Failure to follow this warning
increases the risk of personal injury.

OPERATION
18
1
2
5
1
2
1
2
1
2
6
7
8
5. Guide the vacuum bag opening over the
bag adaptor and then snap the rear side
of the bag to secure it in place. Hook the
vacuum bag to the lower blower tube.
6. Hook the harness to the front handle.
7. At the rear side of the housing, insert the
battery pack until you hear an audible
click and the battery locks into place.
Set the mode selection lever to the top
position to set the product to vacuum
mode.
8. Squeeze the trigger to operate the
product. Use the cruise control lever to
lock the product to the desired power.
NOTE: Do not vacumm damp leaves
and debris, water and liquids, twigs or
barks, tough plants, gravel, stones, and
rocks. This may result in damage to the
product.
