Ryobi RPW130S User manual

WARNING! Do not use the appliance without reading the instruction
sheet.
RPW130S/ RPW140S
ELECTRIC PRESSURE WASHER

RPW130S RPW140S


English
IMPORTANT SAFETY INSTRUCTIONS
WARNING:
Read and understand all instructions. Failure
to follow all instructions listed below may result in
electric shock, which will cause death or serious
personal injury.
READ ALL INSTRUCTIONS BEFORE USING THIS
PRODUCT
nKNOW YOUR MACHINE. Read the operator’s
manual carefully. Learn the machine’s applications
and limitations as well as the specific potential
hazards related to this machine.
nTO REDUCE THE RISK OF INJURY, keep children
and visitors away. All visitors should wear safety
glasses and be kept a safe distance from the work
area.
n KEEP THE AREA OF OPERATION CLEAR OF
ALL PERSONS, particularly small children, and pets.
WARNING: do not use the appliance within range of
persons unless they wear protective clothing.
n Do not direct the jet against yourself or others in order
to clean clothes or foot-wear.
nUSE THE RIGHT MACHINE. Don’t force the machine
or attachment to do a job it was not designed for.
Don’t use it for a purpose not intended.
nDRESS PROPERLY. Do not wear loose clothing,
gloves, neckties, or jewellry. They can get caught
and draw you into moving parts. Rubber gloves and
nonskid footwear are recommended when working
outdoors. Also wear protective hair covering to
contain long hair.
n DO NOT OPERATE THE EQUIPMENT WHILE
BAREFOOT OR WHEN WEARING SANDALS OR
SIMILAR LIGHTWEIGHT FOOTWEAR. Wear protec-
tive footwear that will protect your feet and improve your
footing on slippery surfaces.
n EXERCISE CAUTION TO AVOID SLIPPING OR
FALLING.
nALWAYS WEAR SAFETY GLASSES WITH SIDE
SHIELDS. Everyday eyeglasses have only impact-
resistant lenses; they are NOT safety glasses.
nDON'T OVERREACH OR STAND ON UNSTABLE
SUPPORT. Keep proper footing and balance at all
times.
nUSE RECOMMENDED ACCESSORIES ONLY
WITH THIS MACHINE. The use of improper
accessories may cause risk of injury.
WARNING:
High pressure hoses, fittings and couplings
are important for safety of the appliance.
Use only hoses, fittings and couplings
recommended by the manufacturer.
nNEVER STAND ON THE MACHINE. Serious injury
could occur if the machine is tipped.
nCHECK DAMAGED PARTS. Do not use the
appliance if a supply cord or important parts of the
appliance are damaged, e.g. safety devices, high
pressure hoses, trigger gun. If the supply cord is
damaged, it must be replaced by the manufacturer,
its service agent or similarly qualified persons in
order to avoid a hazard. Before further use of the
machine, a guard or other part that is damaged
should be carefully checked to determine that it will
operate properly and perform its intended function.
Check for alignment of moving parts, binding of
moving parts, breakage of parts, mounting and
any other conditions that may affect its operation.
A guard or other part that is damaged must be
properly repaired or replaced by an authorised
service centre to avoid risk of personal injury.
nTo ensure appliance safety, use only original spare
parts from the manufacturer or approved by the
manufacturer.
nNEVER LEAVE THE MACHINE RUNNING
UNATTENDED. TURN THE POWER OFF. Don’t
leave the machine until it comes to a complete
stop.
n FOLLOW MANUFACTURER’S RECOMMENDATIONS
FOR SAFE LOADING, UNLOADING, TRANSPORT,
AND STORAGE OF THE MACHINE.
nBE THOROUGHLY FAMILIAR WITH THE
CONTROLS. Know how to stop the product and
release bleed pressure quickly.
nKEEP MACHINE DRY, CLEAN, AND FREE FROM
OIL AND GREASE. Always use a clean cloth when
cleaning. Never use brake fluids, petrol, petroleum-
based products, or any solvents to clean machine.
nSTAY ALERT AND EXERCISE CONTROL. Watch
what you are doing and use common sense. Do not
operate the tool when you are tired. Do not rush.
n DO NOT OPERATE THE PRODUCT WHILE UNDER
THE INFLUENCE OF DRUGS, ALCOHOL, OR ANY
MEDICATION.
n CHECK THE WORK AREA BEFORE EACH USE.
Remove all objects such as rocks, broken glass,
nails, wire, or string which can be thrown or become
entangled in the machine.
n DO NOT USE THE MACHINE IF THE SWITCH
DOES NOT TURN IT ON AND OFF. Have defective
switches replaced by an authorised service centre.
n BEFORE CLEANING, REPAIRING, OR INSPECTING,
shut off the engine and make certain all moving parts
have stopped. Disconnect from the electrical power
supply before carrying out user maintenance.
Disconnect the main power supply, and keep the wire
away from the plug to prevent accidental starting.
English


English
nAVOID DANGEROUS ENVIRONMENTS. Don’t use
in damp or wet locations or expose to rain. Keep
the work area well lit.
nThis appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience
and knowledge, unless they have been given
supervision or instruction concerning use of the
appliance by a person responsible for their safety.
Children should be supervised to ensure that they
do not play with the appliance.
SPECIFIC SAFETY RULES
nDO NOT OPERATE AROUND dry brush, twigs,
cloth rags, or other flammable materials.
WARNING:
RISK OF INJECTION OR INJURY – Do not
direct discharge stream at persons.
nNEVER DIRECT A WATER STREAM TOWARDS
PEOPLE OR PETS, OR ANY ELECTRICAL
DEVICE.
n BEFORE STARTING ANY CLEANING OPERATION,
close doors and windows. Clear the area to be
cleaned of debris, toys, outdoor furniture, or other
objects that could create a hazard.
n NEVER PICK UP OR CARRY A MACHINE WHILE
THE MOTOR IS RUNNING.
nNEVER START THE MACHINE if ice has formed
in any part of the equipment.
WARNING:
This appliance has been designed for use with
the cleaning agent supplied or recommended
by the manufacturer.The use of other cleaning
agents or chemicals may adversely affect the
safety of the appliance.
nDO NOT USE ACIDS, ALKALINES, SOLVENTS,
FLAMMABLE MATERIAL, OR INDUSTRIAL
GRADE SOLUTIONS in this product. These
products can cause physical injuries to the
operator and irreversible damage to the machine.
nALWAYS OPERATE THE MACHINE on a level
surface. If the engine is at an incline, it could seize
due to improper lubrication (even at the maximum
oil level).
nWARNING: HIGH PRESSURE JETS CAN BE
DANGEROUS IF SUBJECT TO MISUSE. The
jet must not be directed at persons, animals, live
electrical equipment, or the appliance itself.
n NEVER ATTEMPT TO MAKE ANY ADJUSTMENTS
WHILE THE MOTOR IS RUNNING (except where
specifically recommended by the manufacturer).
n KEEP THE ENGINE AWAY FROM FLAMMABLES
AND OTHER HAZARDOUS MATERIALS.
n HIGH PRESSURE CLEANERSSHALL NOT
BE USED BY CHILDREN OR UNTRAINED
PERSONNEL.
n USE PROTECTIVE HEARING EQUIPMENT WHEN
OPERATING THIS MACHINE.
WARNING:
USE ONLY HOSES, FITTINGS AND COUPLINGS
RECOMMENDED BY THE MANUFACTURER.
n WHEN SERVICING USE ONLY IDENTICAL RYOBI
REPLACEMENT PARTS. Use of any other parts
may create a hazard or cause product damage.
n USE COLD WATER ONLY.
n MAKE SURE MINIMUM CLEARANCE of m is
maintained from combustible materials.
n SAVE THESE INSTRUCTIONS. Refer to them
frequently and use them to instruct other users. If you
loan someone this tool, loan them these instructions
also.
n DISCHARGE RESIDUAL PRESSURE before
disconnecting the cleaner hose.
n Before using the cleaner CHECK EVERY TIME THAT
THE SCREWS ARE FULLY TIGHTENED and that
there are no broken or worn parts.
n ONLY USE DETERGENT WHICH WILL NOT
CORRODE the coating materials of the high pressure
hose / electrical cable.
n DO NOT USE THE CLEANER IF THE ELECTICAL
CABLE OR HIGH PRESSURE HOSE IS DAMAGED.
n THE ELECTRIC SUPPLY CONNECTING SHALL
BE MADE BY A QUALIFIED ELECTRICAL AND
COMPLY WITH IEC 60364-1.
n It is recommended that the electric supply to this
appliance should include either a residual current
device that will interrupt the supply if the leakage
current to earth exceeds 30 mA for 30 ms or a device
that will prove the earth circuit.
n Appliance not suitable for connection to the drinking
water mains without backflow preventer.
English

3
English

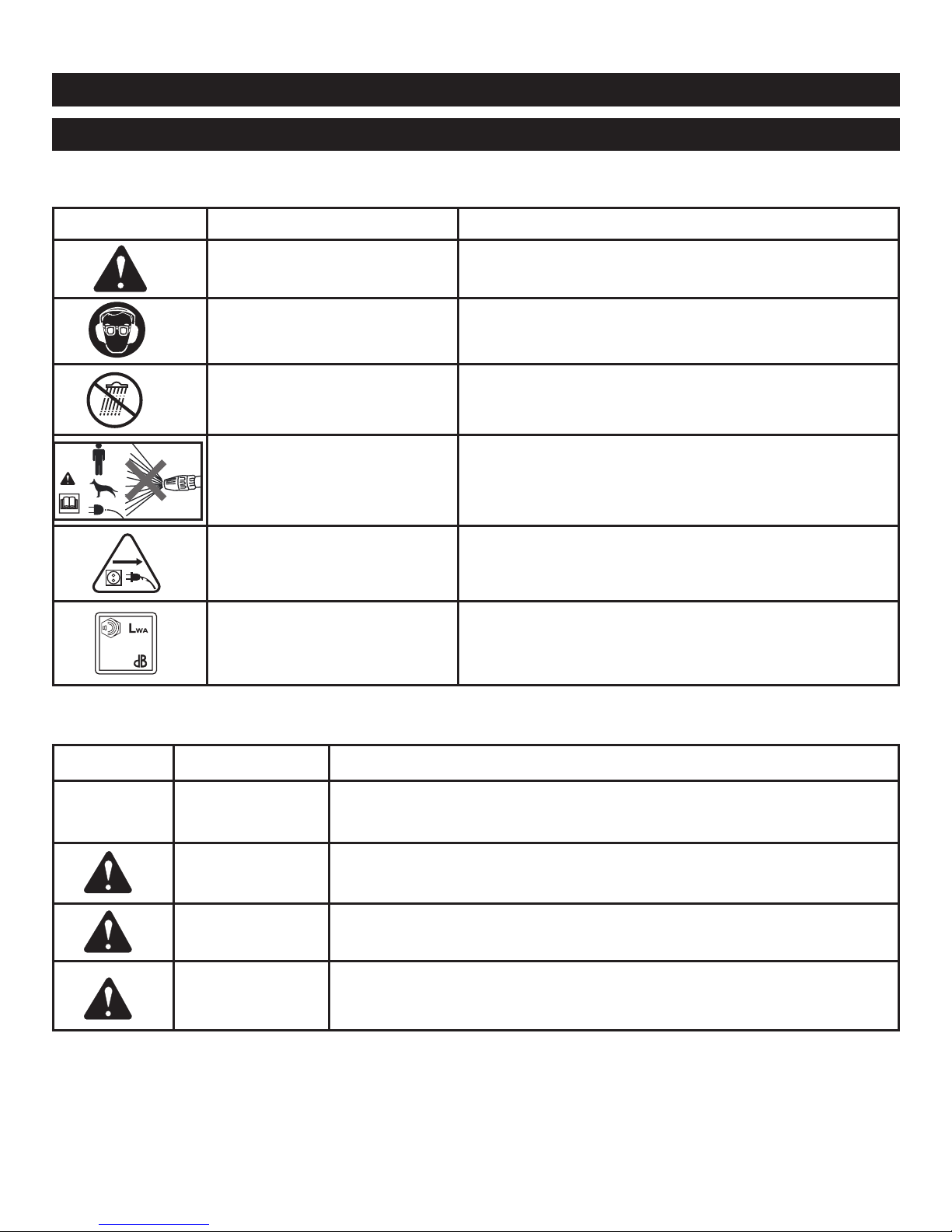

SYMBOLS
Some of the following symbols may be used on this product. Please study them and learn their meaning for safe
operation.
SYMBOL NAME EXPLANATION
Safety Alert Precautions that involve your safety.
Eye Protection Always wear safety goggles or safety glasses with side
shields or a full face shield when operating this product.
Wet Conditions Alert Do not expose to rain or use in damp locations.
Read the Operator’s Manual
and keep Bystanders Away
To reduce the risk of injury, user must read and understand
operator’s manual before using this product and keep all
bystanders at least 5m away.
Electric Shock Precaution Remove plug from the mains immediately if cable is
damaged or cut.
Sound power level Sound power level is 86dB(A)
The following signal words and meanings are intended to explain the levels of risk associated with this product.
SYMBOL SIGNAL MEANING
DANGER Indicates an imminently hazardous situation, which, if not avoided, will result
in death or serious injury.
WARNING Indicates a potentially hazardous situation, which, if not avoided, could result
in death or serious injury.
CAUTION Indicates a potentially hazardous situation, which, if not avoided, may result
in minor or moderate injury.
CAUTION (Without Safety Alert Symbol) Indicates a situation that may result in property
damage.
English
86


EnglishEnglish
SERVICE
Servicing requires extreme care and knowledge and should
be performed only by a qualified service technician. For
service we suggest you return the product to your nearest
AUTHORISED SERVICE CENTRE for repair. When
servicing, use only identical replacement parts.
WARNING:
To avoid serious personal injury, do not
attempt to use this product until you read
thoroughly and understand completely the
operator’s manual. Save this operator’s
manual and review it frequently for continuing
safe operation and instructing others who may
use this product.
SAVE THESE INSTRUCTIONS
FEATURES
PRODUCT SPECIFICATIONS
RPW30S RPW0S
Rated voltage V~/Hz 0-0/50 0-0/50
Rated Pressure Bar (Mpa) 00(0) 0()
Permissible Pressure Bar (Mpa) 30(3) 50(5)
Power Rating W 800 000
Maximum Water Flow L/min 6 6.67
Maximum Water Inlet pressure Bar (Mpa) 7(0.7) 7(0.7)
LWA(sound power level) dB(A) 86 86
LpA(sound pressure level) dB(A) 7 7
Protection Degree IEC 6059 IPX5 IPX5
Vibration r.m.s. acceleration m/s. .
DESCRIPTION
. Trigger gun with safety lock
. Lance with adjustable spraying nozzle
3. Water outlet (OUTLET)
. Water inlet (INLET)
5. Electrical Cable
6. High Pressure Hose
7. Instruction Manual
8. Nozzle cleaning tool
9. Main power switch
0. Detergent tank
. Female coupler
. Handle
3. Hose Reel
. Roller handle
5. Cord hook
6. Wheel
WARNING:
The cross-section of any extension cables
used must be proportional to their length, i.e.
the longer the extension cable, the greater the
cross-section; cables with a protection level of
ìIPX5î must be used. See Table a.
Table a.
MOTOR
Votage
volts
Extension
cable
up to 5 m
Extension
cable
up to 50 m
0 - 0 section
3 x .5 mmsection 3 x .5 mm
nIf an extension cord is used, the plug and socket must
be of watertight construction.

5
EnglishEnglish
WARNING:
Inadequate extension cords can be dangerous.
n Position the cleaner as NEAR as possible to the water
supply.
n The cleaner must be used standing on a secure,
stable surface, positioned as shown. (Fig. )
INTENDED USE
n The cleaner is intended only for the cleaning of
vehicles, machines, boats, buildings, etc., by the
removal of stubborn dirt using clean water and
chemical detergents. .
n For domestic use only, not for professional use, and
only for operation at temperatures above 0° C .
n Compliant with EN 60335--79/A standard.
n When using chemical detergents, use only highly
biodegradable types.
n Only clean vehicle engines in areas in which suitable
oil traps are installed.
SAFETY VALVE
n The safety valve also functions as a pressure limiting
valve. When the gun trigger is released, the safety
valve opens and the water recirculates through the
pump inlet.
ASSEMBLY
CAUTION:
When connecting the appliance to the water
supply mains, please observe the local
regulations of local boards or local water supplier.
CAUTION:
To ensure that there is no feedback of contaminant
into the water supply, the appliance must not be
connected directly to the public drinking water
supply mains.
CAUTION:
If the appliance is connected to potable water
mains, backflow prevention devices should be
incorporated in or fixed to the water supply system.
The installation should be accepted by local boards or
water supplier and should be conducted by professional
technical personnel. The backflow prevention devices
should be appropriate to fluid categories and comply
with the requirement to avoid backsiphonage according
to EN 60335--79/A: 007.
n Fit the lance into the gun. Rotate it until the two parts
are completely locked. (Fig. 3)
n Connect the gun to the high pressure hose. (Fig. )
n Connect the high pressure hose to the water outlet
on the cleaner. (Fig.5)
n Connect the water supply hose to the female coupler
(Fig. 6), then connect to the water inlet of the
cleaner. The supply hose must have an internal
diameter of at least 3mm (/ in.) and must be
reinforced. The water supply must be at least equal
to the cleaner delivery capacity.
WARNING:
The intake water temperature must not exceed
0°C (0° F). The water supply must not exceed
5 bar (0.5Mpa)
CAUTION:
The cleaner must only be used with clean water;
use of unfiltered water or corrosive chemicals will
damage the cleaner.
n Turn the motor switch to the “OFF” position. (Fig.9)
n Check that the electrical supply voltage and
frequency (Volt/Hz) correspond to those specified on
the cleaner rating plate. (Fig.7) If the power supply is
correct, you may now plug in the cleaner.
n The cleaner must only be connected to power
sockets with regulation earth connection. A differential
safety breaker (30mA) will increase the safety of
operators.
OPERATION
n Turn on the water supply tap fully.
n Release the safety lock (Fig.8), then press the
trigger for a few seconds to allow air to escape
and to discharge residual pressure in the pipes.
n Keeping the trigger pressed, push the switch to start
the motor. (Fig.9)
n When re-starting the motor, always keep the
trigger pressed.
USE DETERGENT(OPTIONAL ACCESSORY)
CAUTION:
Liquid detergent must be sprayed at low pressure.
n Fill the detergent tank to the level indicated through
the inlet. (Fig.0)
CORRECT USE OF STANDARD ACCESSORIES
n The cleaner is equipped with the adjustable nozzle,
which provides some important functions:

6
English
n LOW PRESSURE operation (for suction and
spraying of detergent.)
n HIGH PRESSURE operation (for high pressure
washing and rinsing).
n Jet adjustment from pencil to fan. (Fig.)
RECOMMENDED CLEANING PROCEDURE
n Dissolve dirt by applying detergent with the fan jet
to the dry surface. On vertical surfaces, work from
the bottom upwards. Leave the detergent to act for
 to  minutes, but do not allow to dry out. Apply the
high pressure jet, keeping the nozzle at least 30cm
(0 in.) from the surface, working from the bottom
upwards.
n Avoid allowing the rinsing water to run on to
unwanted surfaces.
STORAGE
n Switch off the cleaner.
n Turn off the water supply tap.
n After use, the detergent residuals should be removed
from the tank.
n Discharge residual pressure by pressing the trigger
until no more water comes out of the adjustable
nozzle.
n Engage the gun safety lock.
n Remove the plug from the socket.
n Operate the cleaner with non-corrosive/ non-toxic
antifreeze before storing for the winter.
MAINTENANCE
CAUTION:
Before working on the cleaner, disconnect the
plug from the power supply socket.
n To ensure good performance, check and clean the
suction and detergent filters after every 50 hours of
operation. (Fig.)
n Clean the nozzle with the tool provided. Remove the
lance from the gun, (Fig.3), remove any dirt from
the nozzle hole (Fig.) and rinse.
DISPOSAL
Waste electrical products should not be disposed of
together with household waste. Please recycle where
facilities exist.
English

LIMITED WARRANTY
TTI warrants this outdoor product to be free of defects in material and workmanship for  months from the date of
purchase by the original purchaser, subject to the limitations below. Please keep your invoice as proof of date of
purchase.
This warranty is only applicable where the product is used for personal and non-commercial purposes.
This warranty does not cover damage or liability caused by / due to misuse, abuse, accidental or intentional acts by
user, improper handling, unreasonable use, negligence, failure by end user to follow operating procedures outlined
in the user’s manual, attempted repair by non-qualified professional, unauthorised repair, modification, or use of
accessories and/or attachments not specifically recommended by the authorised party. Please see your local
dealer for list of authorised service centres in your area.
This warranty does not cover belts, brushes, bags, bulbs or any part which ordinary wear and tear results in
required replacement during warranty period. This warranty does not cover transportation cost or consumable
items such as fuses and batteries.
This limited warranty is void if the product’s original identification (trade mark, serial number, etc.) markings have
been defaced, altered or removed or if product is not purchased from an authorised reseller or if product is sold AS
IS and / or WITH ALL FAULTS.
Where permitted, the provisions of this limited warranty are in lieu of any other written warranty, whether express
or implied, written or oral, including any warranty of MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE. IN NO EVENT SHALL WE BE LIABLE FOR SPECIAL, INCIDENTAL, CONSEQUENTIAL OR
INCIDENTAL DAMAGES. OUR MAXIMUM LIABILITY SHALL NOT EXCEED THE ACTUAL PURCHASE PRICE
PAID BY YOU FOR THE PRODUCT.
This warranty is valid only in the European Union, Australia and New Zealand. Outside these areas, please contact
your authorised Ryobi dealer to determine if another warranty applies.
DECLARATION OF CONFORMITY
We declare on our own responsibility that this product conforms to the following standards or standardizing
documentation:
EN60335--79:00+A:006, EN60335-:00+A:00+A:00+A:006, EN50366:003+A:006,
EN550-:000+A+A, EN550-:997+A, EN6000-3-:000+A, EN6000-3-3:995+A
RPW130S/RPW140S
Measured Sound Noise Level: 86 dB (A)
Guarantee Sound Noise Level: 86 dB (A)
Date of issuance: July, 009
Issue By: TUV Rheonland Group China - Shanghai
This product has been assessed to conform to the relevant noise limit by means of unit verification by TUV
Rheonland Group China - Shanghai.
Technical documents are kept by the Project Manager (Testing & Standards), Homelite Far East Co. Ltd. /F.,
CDW Building, 388 Castle Peak Road, Tsuen Wan, Hong Kong.

Electric Pressure Washer
 
 
 
 
RPW130S / RPW140S




TECHTRONIC INDUSTRIES EMEA
Medina House, Fieldhouse Lane, Marlow,
Buckinghamshire,
SL7 TB, UNITED KINGDOM
RYOBI TECHNOLOGIES (UK) LIMITED.
Medina House,
Fieldhouse Lane, Marlow,
Buckinghamshire,
SL7 TB,
UNITED KINGDOM
Tel: +  (0) 68 8900
Fax: +  (0) 68 890
Technical Helpline : +  (0) 800 389 0305
TECHTRONIC INDUSTRIES FRANCE SAS
Immeuble Le Grand Roissy
Z.A. du Gué - 35 rue de Guivry
77990 LE MESNIL AMELOT FRANCE
Phone: + 33(0) 60 9 69 70
Fax: + 33(0) 60 9 69 79
RYOBI BELGIUM
Avenue des Pâquerettes, 55
Zoning artisanal - bâtiment 5
B - 0 Waterloo
BELGIQUE
Tel : + 3(0) 357 80
Fax : + 3(0) 357 89
TTI ITALIA SRL
Via Fratelli Gracchi, 39
009 Cinisello Balsamo (MI)
Italia
Tel : + 39(0) 593 808
Fax : + 39(0) 59 6960
TECHTONIC INDUSTRIES IBERIA S.L
Av. De la Industria,5
Coslada – Madrid – Espaâa
Tel: 9 85  0
TECHTRONIC INDUSTRIES SOUTH AFRICA
CO. (PTY) LTD
P.O Box 83888, South Hills, Johannesburg, 36
South Africa
TECHTRONIC INDUSTRIES (ASIA) CO., LTD.
/F, CDW Building,
388 Castle Peak Road,
Tsuen Wan, Hong Kong.
Tel : + 85 0 6888
RYOBI TECHNOLOGIES GMBH
Itterpark 
D-07 Hilden
DEUTSCHLAND
Tel: + 9 (0) 03 958-0
Fax: + 9 (0) 03 958-9
RYOBI TECHNOLOGIES GMBH
Vertriebsbüro Österreich
Schinitzgasse 3
A-8605 Kapfenberg
Tel.: + 3 (0) 386 3590-0
Fax: + 3 (0) 386 3590-5
TECHTRONIC INDUSTRIES AUSTRALIA PTY LIMITED.
Building B, Rosehill Industrial Estate,
3 Shirley Street,
Rosehill NSW 
AUSTRALIA
Tel: (0) 889 800 or 300 36 505
Fax: 800 807 993
TECHTRONIC INDUSTRIES (NZ) LIMITED.
7 Clemow Drive, Mt Wellington
PO Box -806, Penrose, Auckland
NEW ZEALAND
Tel: + 6 (0) 9 573 030
Free Call: +6 0800 79 6
Fax: + 6 (0) 9 573 03
A&M MIDDLE EAST FZCO
P.O.Box 65
Jedel Ali, Dubai,
UNITED ARAB EMIRATES
Tel.: + 97 886399
Fax: + 97 88600
TECHTRONIC INDUSTRIES DENMARK APS
Stamholmen 7, .
DK-650 Hvidovre
Denmark
Tlf 3 56 55 55, Fax 3 56 55 56
E-mail: [email protected]
TECHTRONIC INDUSTRIES NORWAY AS
Tlf.: 800  93, Faks: 800  9
E-mail: [email protected]
TECHTRONIC INDUSTRIES SWEDEN AB
Tel (+6) 08  60 30. fax (+6) 08  60 3.
E-mail: [email protected]
TECHTRONIC INDUSTRIES FINLAND OY
Tel. 0800  09000, Fax 0800  0900
Email: [email protected]
