Ryobi RACPWS22 User manual

FRONT PAGE
RACPWS22
RACPWS23

2
Original Instructions
IMPORTANT!
It is essential that you read the instructions
in this manual before assembling, operating,
and maintaining the product.
Subject to technical modication.
Safety, performance, and dependability have
been given top priority in the design of your
electric high pressure cleaner.
INTENDED USE
The electric high pressure cleaner is intended
only for outdoor use. For safety reasons, the
product must be adequately controlled by a
two-handed operation.
The product is designed for home or domestic
use. It is intended to clean machines, vehicles,
buildings, tools, facades, terraces, oors, and
concrete walkways by removal of stubborn
dirt using clean water with or without cleaning
detergent.
The product should be used in well-illuminated
conditions.
Do not use the product for any other purpose.
WARNING! The product is designed for
use with a neutral cleaning agent supplied or
recommended by the manufacturer. The use
of other cleaning agents or chemicals may
adversely aect the safety of the product.
GENERAL SAFETY WARNINGS
WARNING! Read all safety warnings and
all instructions. Failure to follow the warnings
and instructions may result in electric shock,
re, and/or serious injury.
■The product is not intended for use by
children or persons with reduced physical,
sensory, or mental capabilities, or lack of
experience and knowledge. Children should
be adequately supervised to ensure they do
not play with the product.

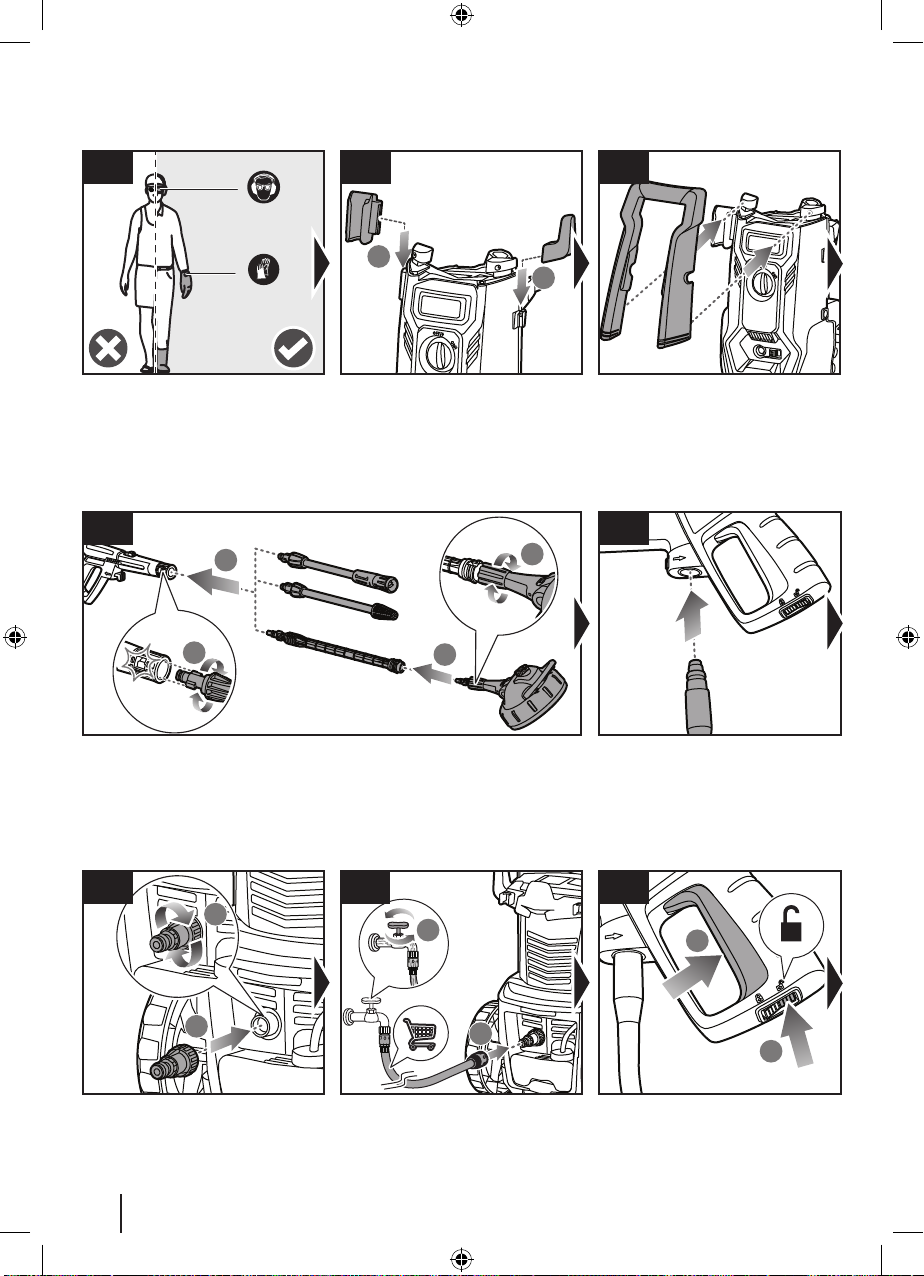

■Wear a complete personal protective
equipment when operating the product,
such as boots, safety gloves, safety helmets
with visor, and hearing protection. Use
high-impact visors only with liquid splash
protection.
WARNING! Do not use the product when
people are within range unless they wear
protective clothing.
■To reduce the risk of injury, keep children
and visitors away. All visitors should wear
safety glasses and be kept at a safe
distance from the work area.
■Ensure that the safety devices are in good
working condition. Make sure that all safety
devices are operating properly before each
use.
■Do not use the product if important parts
such as safety devices, high-pressure
hoses, or trigger gun are damaged.
■Exercise caution when opening the trigger.
Hold the trigger handle firmly with two hands
to avoid injury when the trigger handle kicks
back.
WARNING! During use of high pressure
cleaners, aerosols may be formed. Inhalation
of aerosols can be hazardous to health.
Depending on the application, shielded nozzles
can be used for high pressure cleaning, which
will reduce the emission of hydrous aerosols.
However, not all applications allow the use
of such a device. If shielded nozzles are not
applicable for the protection against aerosols,
a respiratory mask of class FFP 2or equivalent
may be needed, depending on the cleaning
environment.
■Always stop the product when you leave it
unattended.
■High pressure jets can be dangerous if
misused. Do not direct the jet to people, live
electrical equipment, or the product itself.
■To avoid a risk of explosion, do not spray
flammable liquids.
■Do not direct the jet against yourself or
others to clean clothes or footwear.
■Do not use the product to clean electronic
devices, clothes, or footwear.
■High pressure hoses, ttings, and couplings
are important for the safety of the product.
Use only hoses, ttings, and couplings
recommended by the manufacturer.
■Injuries may be caused, or aggravated, by
prolonged use of a tool. When using any
tool for prolonged periods, ensure to take
regular breaks.
CAUTION! The product must not be used
on the drinking water supply without a backow
preventer. Water owing through a backow
preventer is considered non-drinkable. Always
observe the regulations of your local water
utility company when connecting the product
to a water supply line.

3
Original Instructions
ELECTRICAL SAFETY WARNINGS
■The plug must match the outlet. Never
modify the plug in any way. Unmodified
plugs and matching outlets reduces the risk
of electric shock.
■Do not use the product if the power cord
or other important parts, such as safety
devices, are damaged.
■Check the power cord and the extension cord
for damage before each use. If the power
cord or the extension cord is damaged, it
must be replaced by the manufacturer, its
service agent, or similarly qualified persons
in order to avoid a hazard.
■Before every use, examine the supply cord
for damage. If there are signs of damage,
it must be replaced by a qualified person
at an authorised service centre to avoid a
hazard.
■Keep the power cord away from heat, oil,
and sharp edges.
■Never touch the mains plug and the socket
with wet hands.
■Inadequate extension cords can be
dangerous. If an extension cord is used,
it shall be suitable for outdoor use, and
the connection has to be kept dry and off
the ground. Use a cord wheel to keep the
socket at least 60 mm above the ground.
■The electric supply connection shall
be made by a qualified electrician. It is
recommended that the electric supply to
this product should include either a residual
current device that will interrupt the supply
if the leakage current to earth exceeds 30
mA for 30 ms or a device that will prove the
earth circuit.
ADDITIONAL SAFETY WARNINGS
■Some regions have regulations that restrict
the use of the product in some operations.
Check with your local authority for advice.
■Before each use, check the product for
damage. A damaged high-pressure hose
must be replaced immediately. Ensure that
all connections, such as high-pressure hose
and nozzle, are secure. Unwind the hose
properly so that they may not get twisted or
kinked.
■Do not allow children or untrained individuals
to use the product.
■Before starting any cleaning operation,
close doors and windows. Clear the area to
be cleaned of debris, toys, outdoor furniture,
or other objects that could create a hazard.
■Never pick up or carry the product while the
motor is running.
■Do not use the product in temperatures
below 0°C.
■Do not use acids, alkalines, solvents,
flammable material, bleaches, or industrial
grade solutions in the product. These
products can cause physical injuries to the
operator and irreversible damage to the
product.

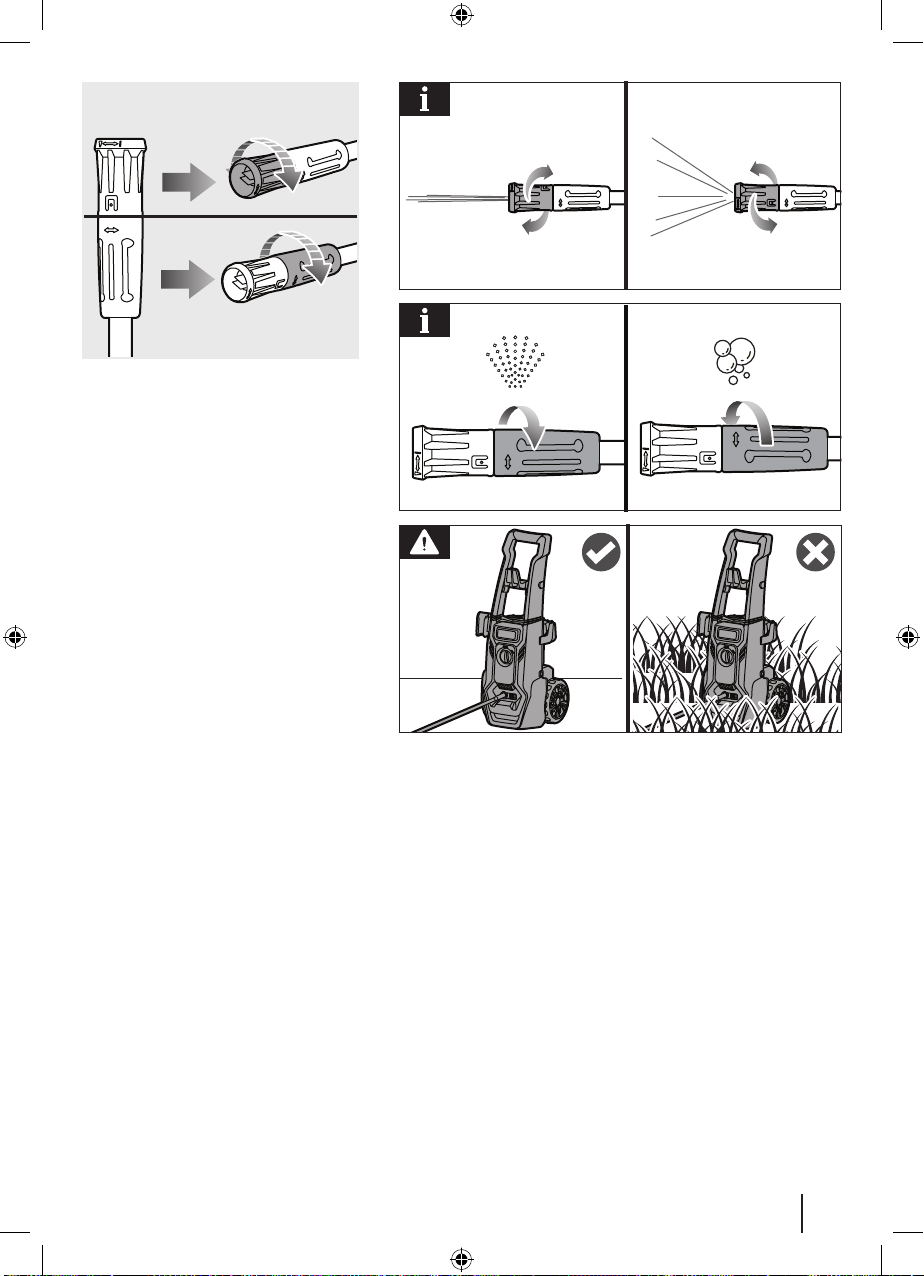

■Always operate the product on a level
surface.
WARNING! High pressure jet can be
dangerous if subject to misuse. The jet must
not be directed to people, animals, electrical
devices, or the product itself.
■Hold the trigger handle securely with both
hands. Expect the trigger handle to move
when the trigger is pulled due to reaction
forces. Failure to do so could cause loss of
control and injury to yourself and others.

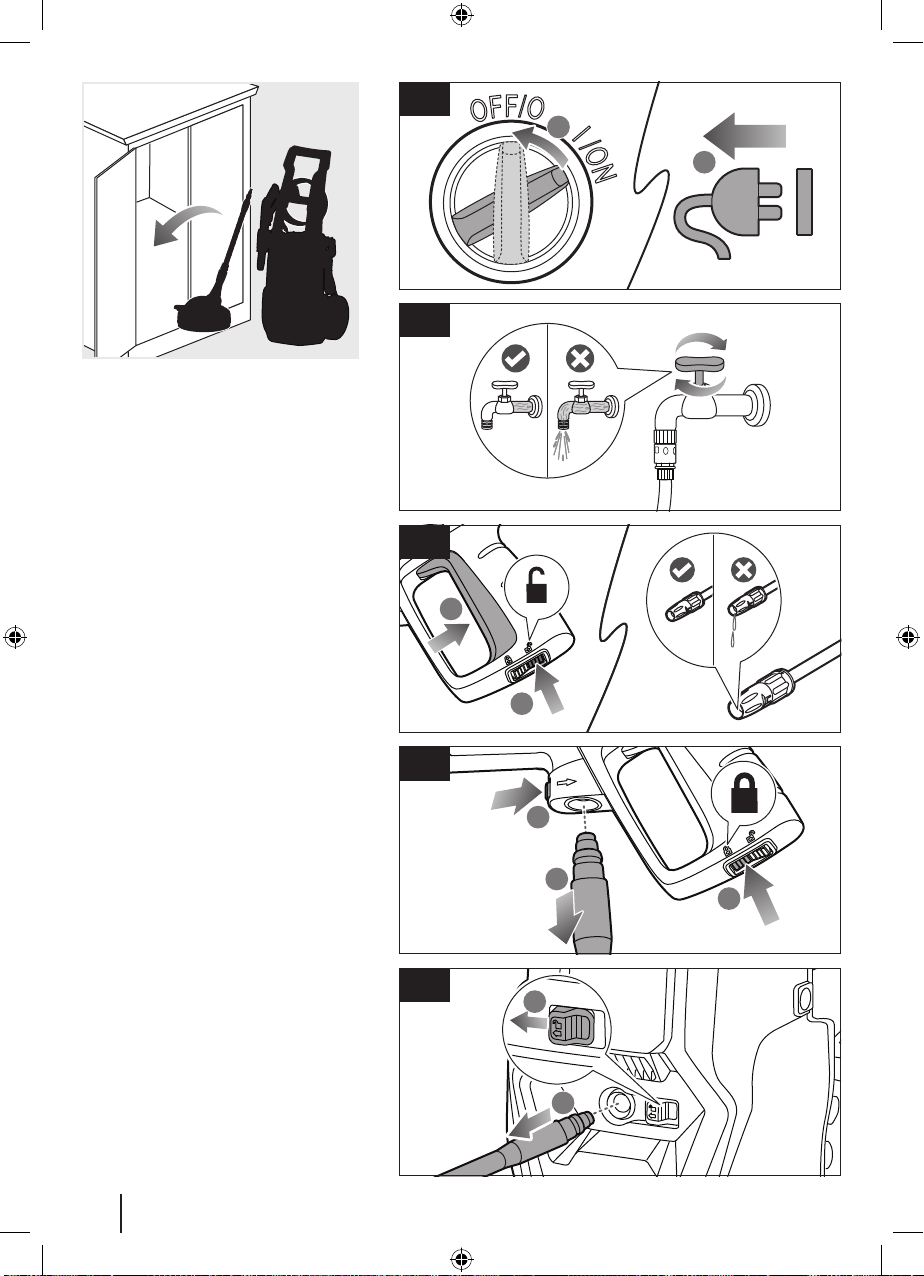

■Make sure that the air in the hose and pump
is released before you turn on the product.
To remove the air in the hose and pump,
connect the water supply to the pump using
a garden hose, connect the trigger handle
to the pump using the high-pressure hose,
disengage the trigger handle lock, and
press the trigger until there is a steady flow.
■Exercise caution to avoid slipping or falling.
■Keep firm footing and balance. Do not
overreach. Overreaching can result in loss
of balance.
■Use only accessories that are recommended
by the manufacturer. The use of improper
accessories may cause injury.
■Never leave the product running unattended.
Turn off the product. Do not leave the
product until it comes to a complete stop.
■Be familiar with the controls. Know how to
turn off the product and bleed the pressure
quickly.
■Stay alert, and exercise control. Watch what
you are doing, and use common sense.
■Do not use the product while tired, ill, or
under the influence of drugs, alcohol, or
medication. A moment of inattention while

4
Original Instructions
operating the product may result in serious
personal injury.
■Do not use the product if the switch does not
turn it on and off. Any product that cannot
be controlled with a switch is dangerous
and must be repaired.
■Keep a minimum distance of 30 cm when
cleaning vehicles. The high pressure jet
may damage or burst vehicle tires and/or
tire valves.
■Use a garden hose with a maximum length
of 15 m and compatible with 12 mm hose
connector.
■Before each use, ensure that the accessory
is securely attached to the trigger gun.
OVERLOAD PROTECTION
The product has an overload protection device
that is activated when overheating or when a
current spike occurs, automatically shutting
down the power within the product. To resume
operation, disconnect the product from the
power supply, wait for about 15 minutes, and
reconnect the product to the power supply.
TRANSPORTATION AND STORAGE
CAUTION! Mind the weight of the product
when selecting the storage location and during
transportation to prevent accidents or injuries.
■Stop the product, disconnect from the power
supply, and allow the product to cool down.
Disconnect the product from the water
supply before storing or transporting. Never
place the product in any position other than
upright.
■Clean all foreign materials from the
product. Storing the product in an area
with temperature below 0°C will damage
the product Store it in a cool, dry, and
well-ventilated place that is inaccessible
to children. Keep the product away from
corrosive agents such as garden chemicals
and de-icing salts. Store the product indoors
only.
■Remove water from all hoses and the pump,
and empty the detergent tank before storing
the product.
■For transportation in a vehicle, secure the
product against movement or falling to
prevent injury to persons or damage to the
product.
■Store the product indoor only. Storing the
product in an area with temperature below
0°C will damage the product.
MAINTENANCE
■Use only original manufacturer’s
replacement parts, accessories, and
attachments. Failure to do so can cause
possible injury, can contribute to poor
performance, and may void your warranty.
■Servicing requires extreme care and
knowledge and should be performed only
by a qualified service technician. Have the
product serviced by an authorised service
centre only.

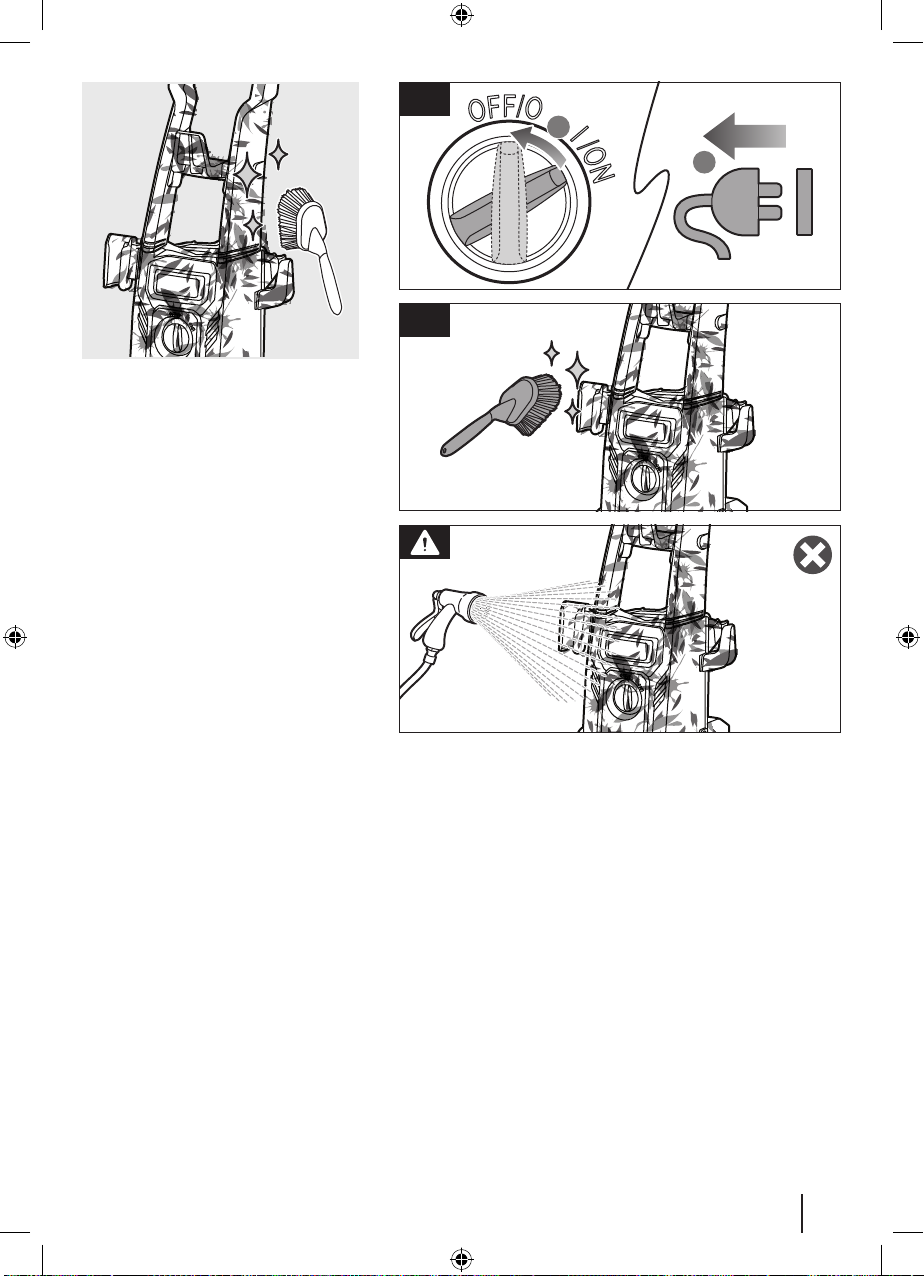

■Turn off the product, disconnect from the
power supply, and allow the product to cool
down. Make sure that all moving parts have
come to a complete stop:
●before cleaning the product
●before maintaining the product
●before replacing spare parts
■You may make adjustments or repairs
described in this manual. For other repairs,
have the product serviced by an authorised
service centre only.
■Regularly inspect and maintain the product
for safe operation. RYOBI recommends
inspecting the product every 6 months.
■Check all nuts, bolts, and screws at frequent
intervals for proper tightness to ensure that
the product is in safe working condition. Any
part that is damaged should be properly
repaired or replaced by an authorised
service centre.
SAFETY DEVICES
■On/off switch
–The on/off switch prevents unintentional
operation of the product.
■Trigger handle lock
–The trigger handle lock locks the trigger
and prevents unintentional opening of
the high-pressure jet.
■Pressure switch
–The overflow valve prevents the
permissible working pressure from being
exceeded. If the lever on the trigger gun
is released, the pressure switch turns
off the pump and the high-pressure jet
stops. If the lever is pulled, the pump
turns on again.

5
Original Instructions
■Overload protection
–A thermal sensor protects the product
from overloading. The product will
automatically shut the power down while
overheating.

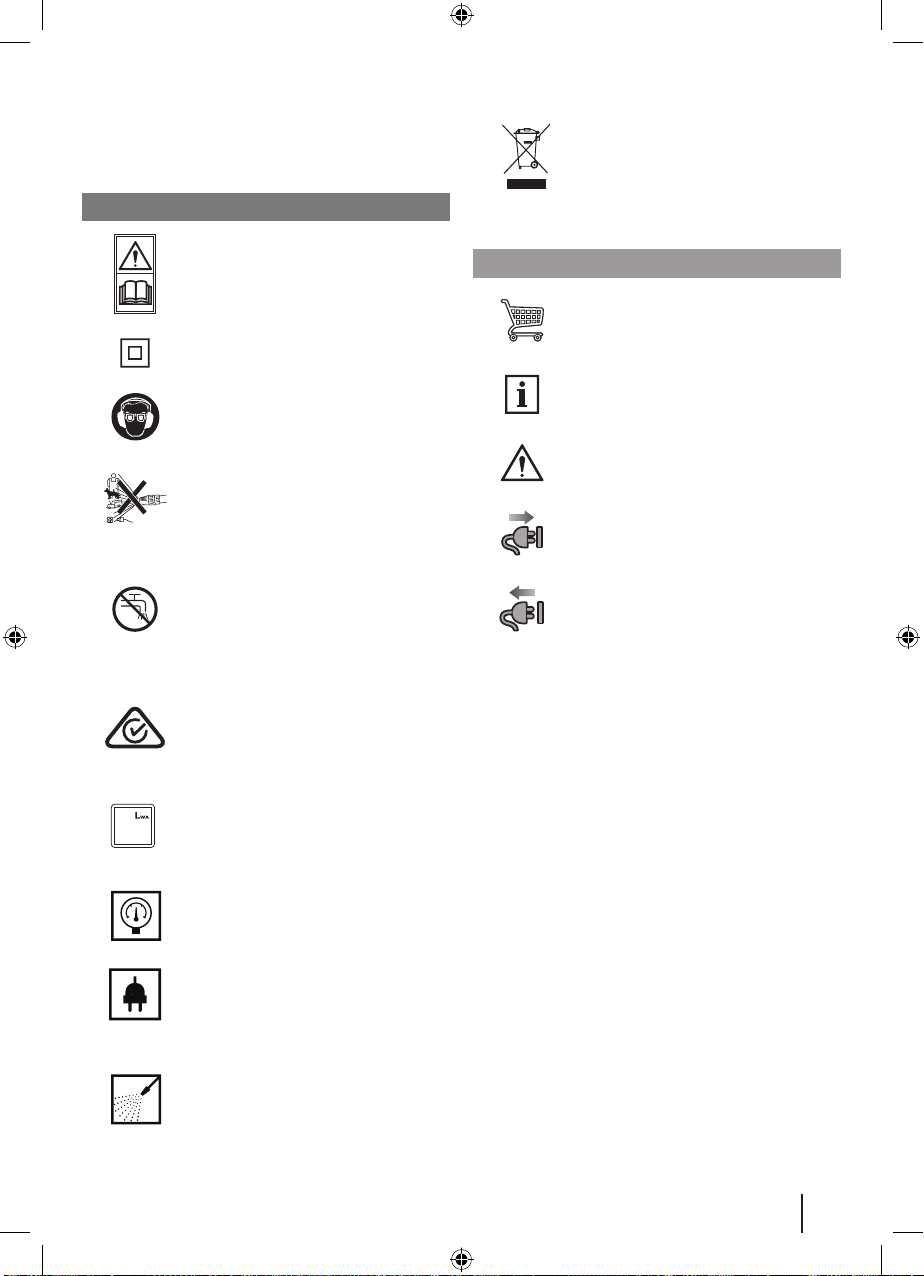

SYMBOLS ON THE PRODUCT
Read and understand all
instructions before operating
the product. Follow all warnings
and safety instructions.
Class II tool, double insulation
Wear eye and hearing
protection.
Never point the gun to
human, animals, the product,
power supply, or any electric
appliances
The product is not suitable
for connection to the drinking
water supply without backow
preventer.
Regulatory Compliance
Mark (RCM). Product
meets applicable regulatory
requirements.
91 Guaranteed sound power level
Maximum pressure
Power
Turn the bottom portion of the
nozzle all the way to the right
to activate low pressure mode
for foaming/detergent.
Waste electrical products
should not be disposed of with
household waste. Recycle
where facilities exist. Check
with your local authority or
retailer for recycling advice.
SYMBOLS IN THIS MANUAL
Parts or accessories sold
separately
Note
Warning
Connect to the power outlet.
Disconnect from the power
outlet.

6

7

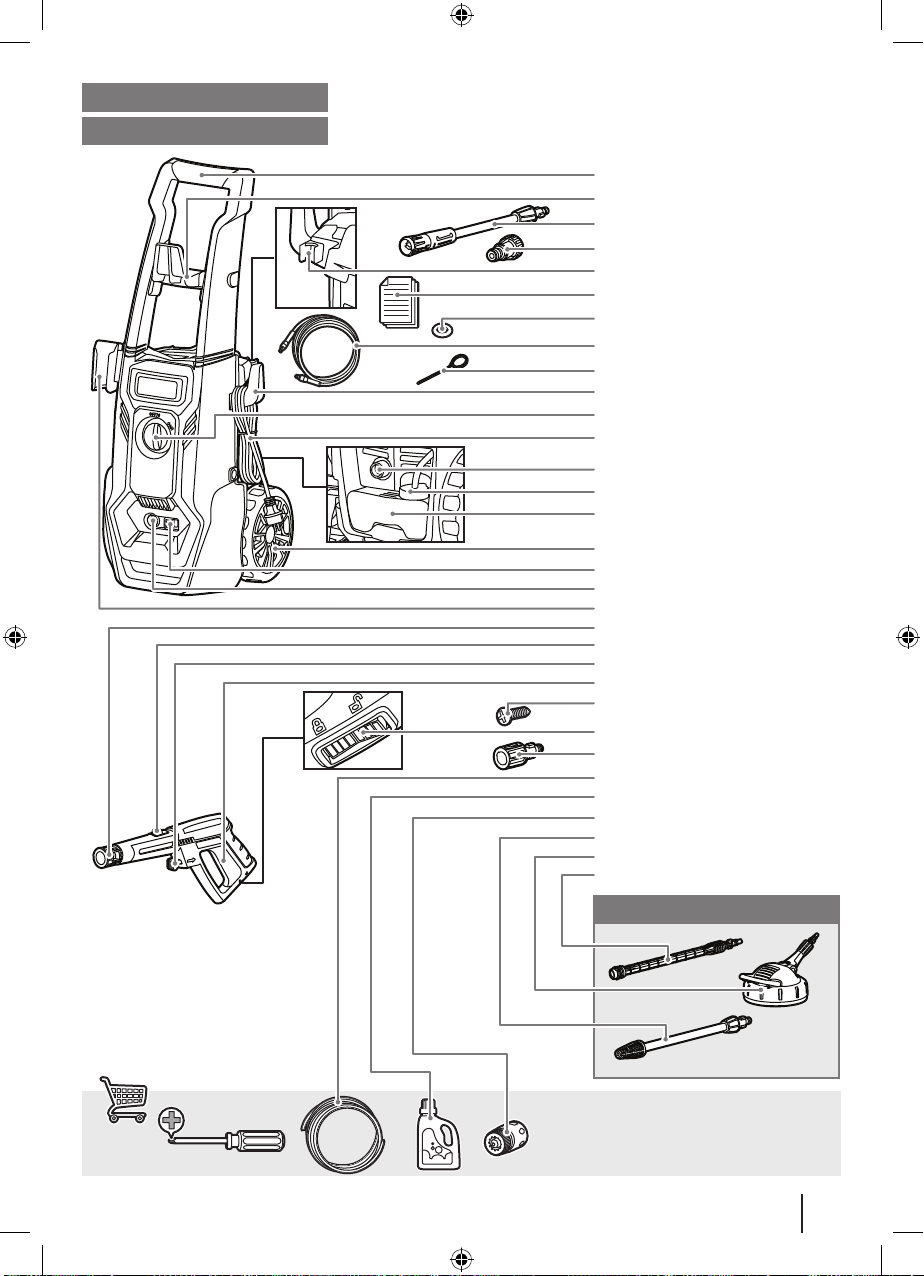

Know your product
RACPWS22
RACPWS23
RACPWS23
x 4
x 6
Carry handle
Hose hanger
Lance extension
Power cord holder
Lance hook
Nozzle cleaning tool
Power cord
Water inlet port
Detergent tank cap
Detergent tank
Wheel
Hose release button
Water outlet port
Garden hose
Vario lance
Operator’s manual
Turbo lance
Hose lock button
RACPW to RPWA series adapter
RYOBI detergent
Handle screws
O-rings
Trigger handle holder
Water inlet filter
On/off switch
Spray angle
Spray angle lock button
Trigger
Trigger handle lock
High pressure hose
Surface cleaner
Garden hose connector

8
Getting started
1
2
1 2 3
14
23
1
2
7 8
13
1
2
2
1
11 12
Connect one end of the garden hose to
the inlet filter and the other end to the
garden tap. Turn on the water source
to allow water to flow into the product.
Set the trigger handle lock to the unlock
position. Squeeze the trigger to release
the existing air pressure within the
product.
Install the preferred accessory. To install the vario lance or turbo lance into the
spray angle, and turn the lance clockwise until it clicks into place. To install the
surface cleaner, insert the end of the lance extension into the spray angle, and
turn the lance until it clicks into place. Insert the surface cleaner into to the lance
extension and turn the surface cleaner clockwise until it clicks into place.
Insert the high pressure hose into the
trigger handle.
NOTE: The hose lock button
automatically slides out when the hose
is inserted.
Wear full eye and ear protection,
protective gloves, substantial footwear,
and long trousers at all times while
operating the product. Do not operate
the product when barefoot or wearing
open sandals.
Push down the trigger handle holder
until the buttons click, securing the
handle in place. Push down the power
cord holder until the buttons click,
securing the handle in place.
Attach the carry handle onto the
product.
Connect and turn the water inlet filter
clockwise to secure it to the water inlet
port. Avoid cross-threading the filter
and port to avoid water leaks.

9
Getting started
1
2
4 5
7
30 sec
5
1
6
3
2
47
12
1
2
910
14 15
6
11
Insert the high pressure hose into the
water outlet port.
NOTE:The hose release button
automatically slides outward when the
hose is inserted.
On one end of the garden hose insert a hose coupler. Insert a garden hose
connector into the hose coupler and turn the connector clockwise to secure it.
Connect the garden hose connector to the garden tap. On the other end of the
garden hose, insert a hose coupler. Insert a garden hose connector into the hose
coupler and turn the connector clockwise to secure it.
Squeeze the trigger to operate the
product.
Connect the product to a power outlet.
Turn the on/off switch to the on position.
NOTE: Continue to squeeze the trigger
until water flows normally. Always
remove the existing air pressure within
the product before operation.
Secure the carry handle in place using
handle screws. Turn the handle screws
clockwise to tighten.
Attach the hose hanger onto the carry
handle.
Secure the hose hanger using handle screws.
Turn the handle screws clockwise to tighten.

10

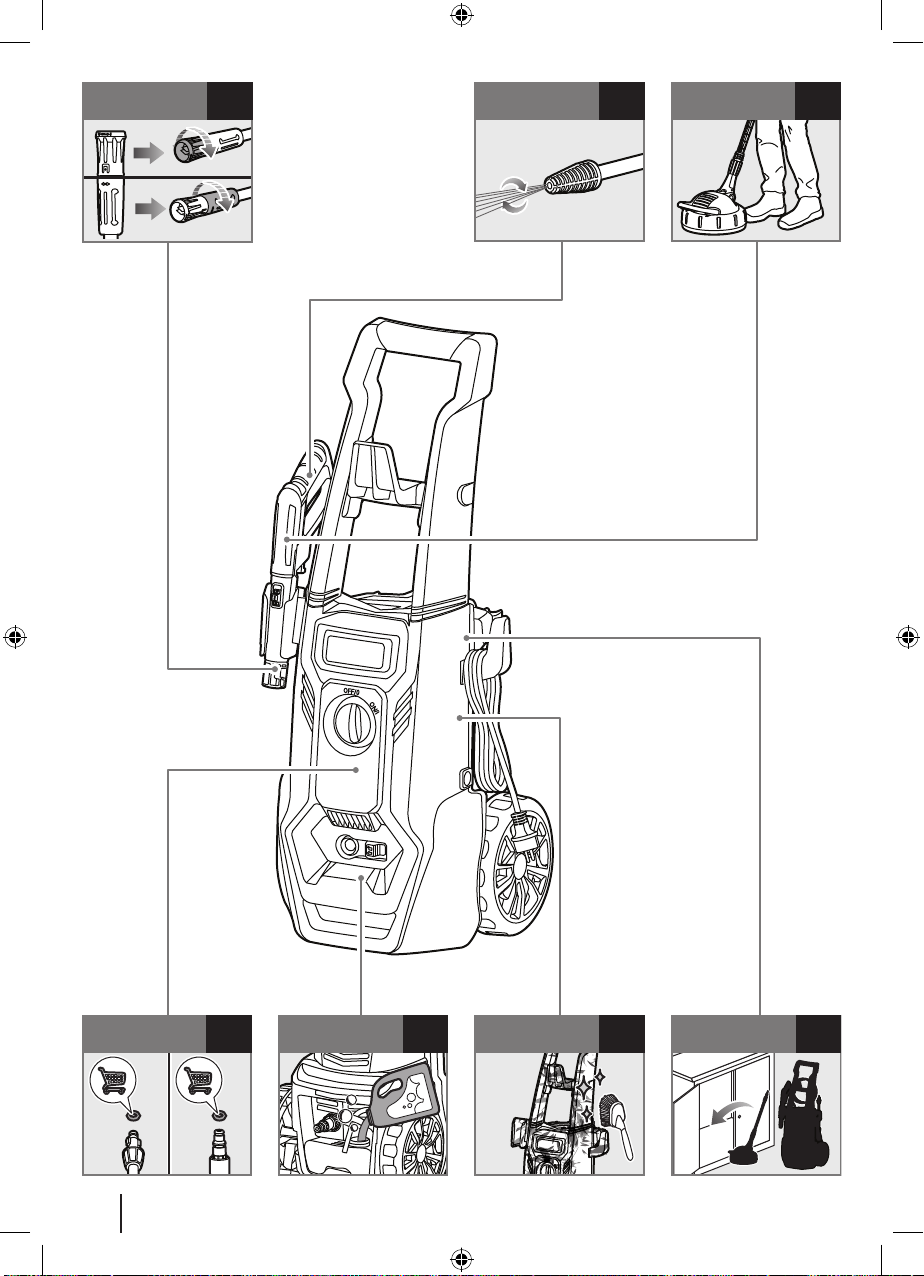

p.12 p.13
p.17p.16 p.18
p.11
Using the vario
lance
Storing the productCleaning the
product
Replacing the
o-ring
Using the turbo
lance
Using the surface
cleaner
Using detergent
solution p.14

11
Operation
USING THE VARIO LANCE
NOTE: Turn the front end of the nozzle
clockwise for a focused stream. Turn
counterclockwise for a wider spray pattern.
NOTE: Turn the rear end of the nozzle
counterclockwise or clockwise to increase
or decrease water pressure. Use low
water pressure for soaping applications.
WARNING: Check the work area before
each use. Remove all objects, such as rocks,
broken glass, nails, wire, or string, which
can be thrown or become entangled in the
product.

12
Operation
1
2
1
2
1
2
1
2
1
2
3
3

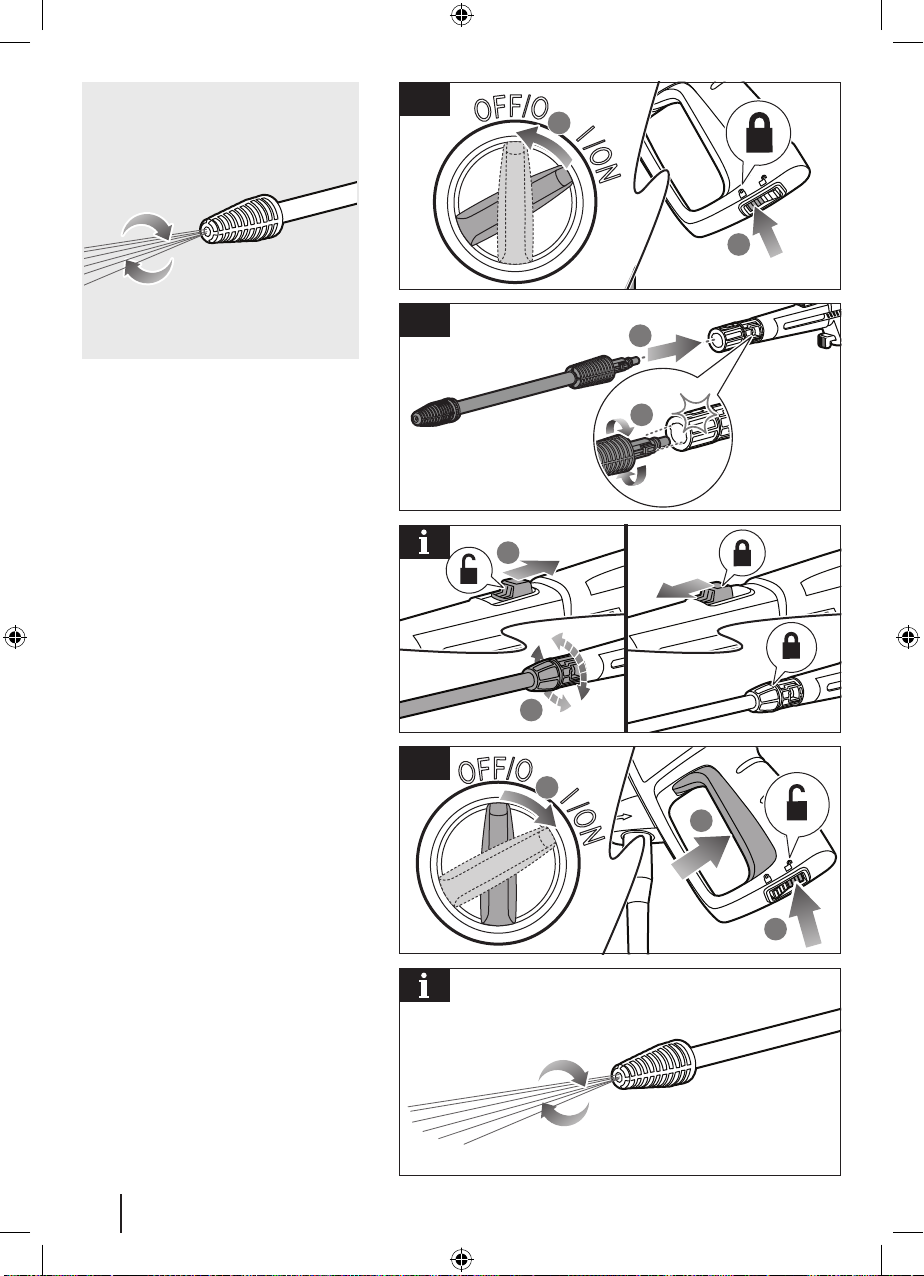

USING THE TURBO LANCE
WARNING: Do not point the lance towards
people, animals, live electrical equipment,
or the product. The high pressure water
immediately flows out after the product is
turned on.
1. Turn the on/off switch to the off position.
Set the trigger handle lock to the lock
position.
2. Insert the the turbo lance into the spray
angle. Turn the turbo lance until it clicks
into place.
NOTE: Slide the spray angle lock button
outward or inward to lock or unlock the turbo
lance from the spray angle.
3. Turn the on/off switch to the on position.
Set the trigger handle lock to the unlock
position. Squeeze the trigger to operate
the product.
NOTE: Water flows out when the trigger is
squeezed.

13
Operation
1
2
1
1
2
3
4
2
4
3
1
2
3

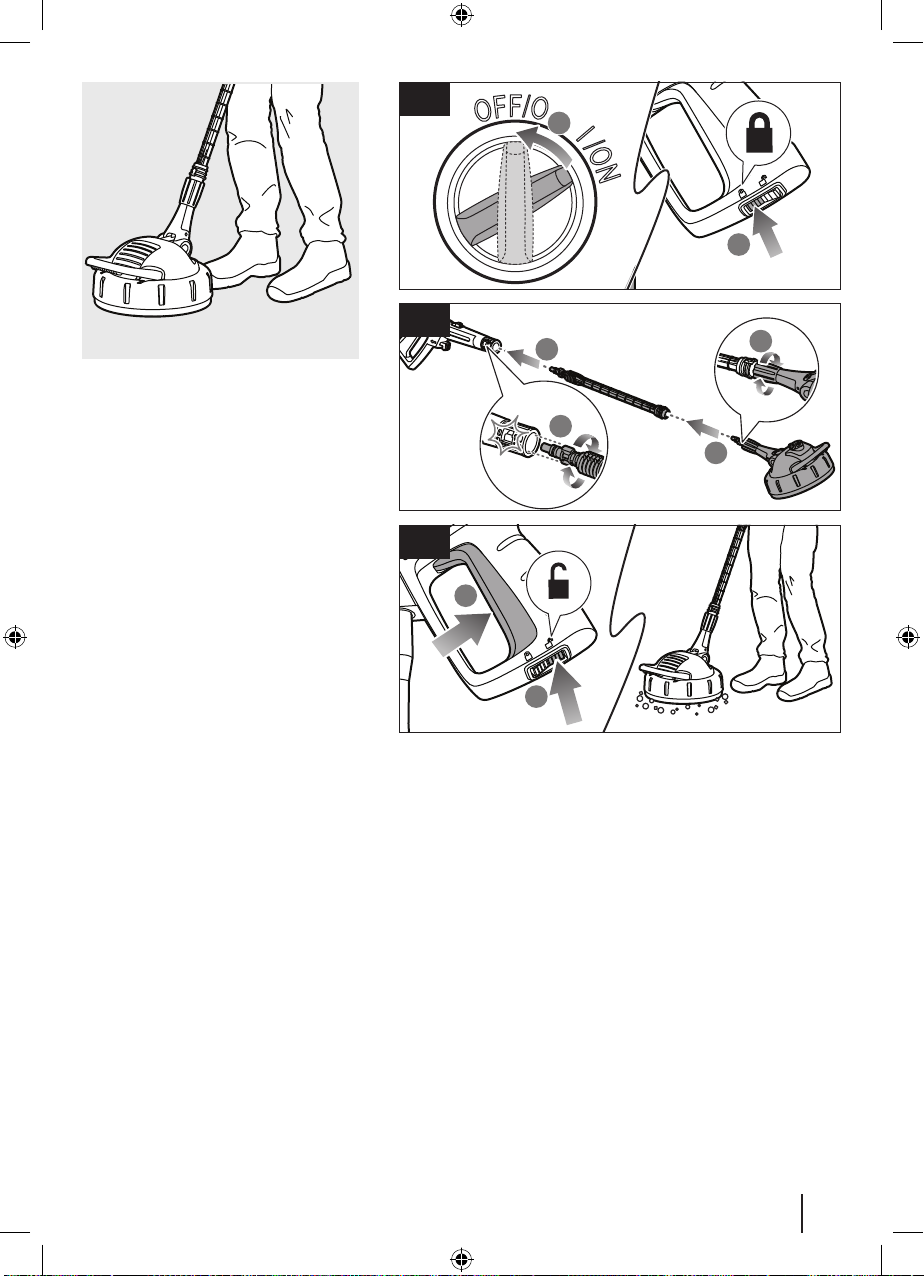

USING THE SURFACE CLEANER
1. Turn the on/off switch to the off position
Set the trigger handle lock to the lock
position.
2. Insert the lance extension into the spray
angle. Turn the extension until it clicks
into place. Insert the surface cleaner into
the extension. Turn the surface cleaner
clockwise until it is secured.
3. Set the trigger handle lock to the unlock
position. Squeeze the trigger to operate
the product.

14
Operation
USING DETERGENT SOLUTION
WARNING: Do not point the lance towards
people, animals, live electrical equipment, or
the product.
1. Turn the on/off switch to the off position.
Remove the cap from the detergent tank.
2. Fill the tank with detergent solution.
3. Close the tank with the cap.
4. Insert the vario lance into the spray angle.
Turn the lance clockwise until it clicks into
place.
5. Turn the rear end of the nozzle
counterclockwise to decrease the water
pressure.
1
2
1
2
3
1
2
4
5

15
Operation
1
2
1
2
3
6

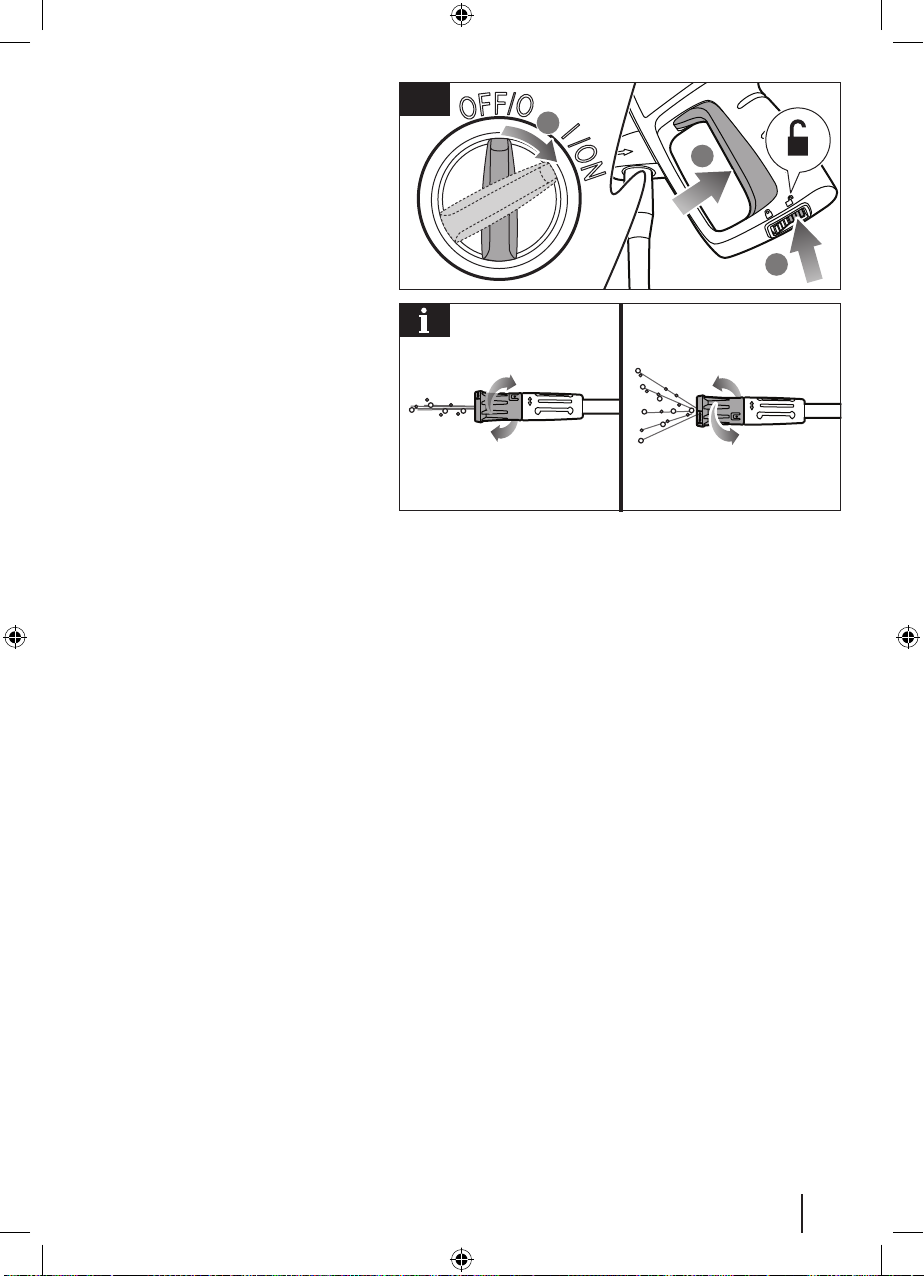

6. Turn the on/off switch to the on position.
Set the trigger lock to the unlock position.
Squeeze the trigger to operate the
product.
NOTE: Turn the front end of the nozzle
clockwise or counterclockwise to get a
focused or spray water pattern.

16
Maintenance

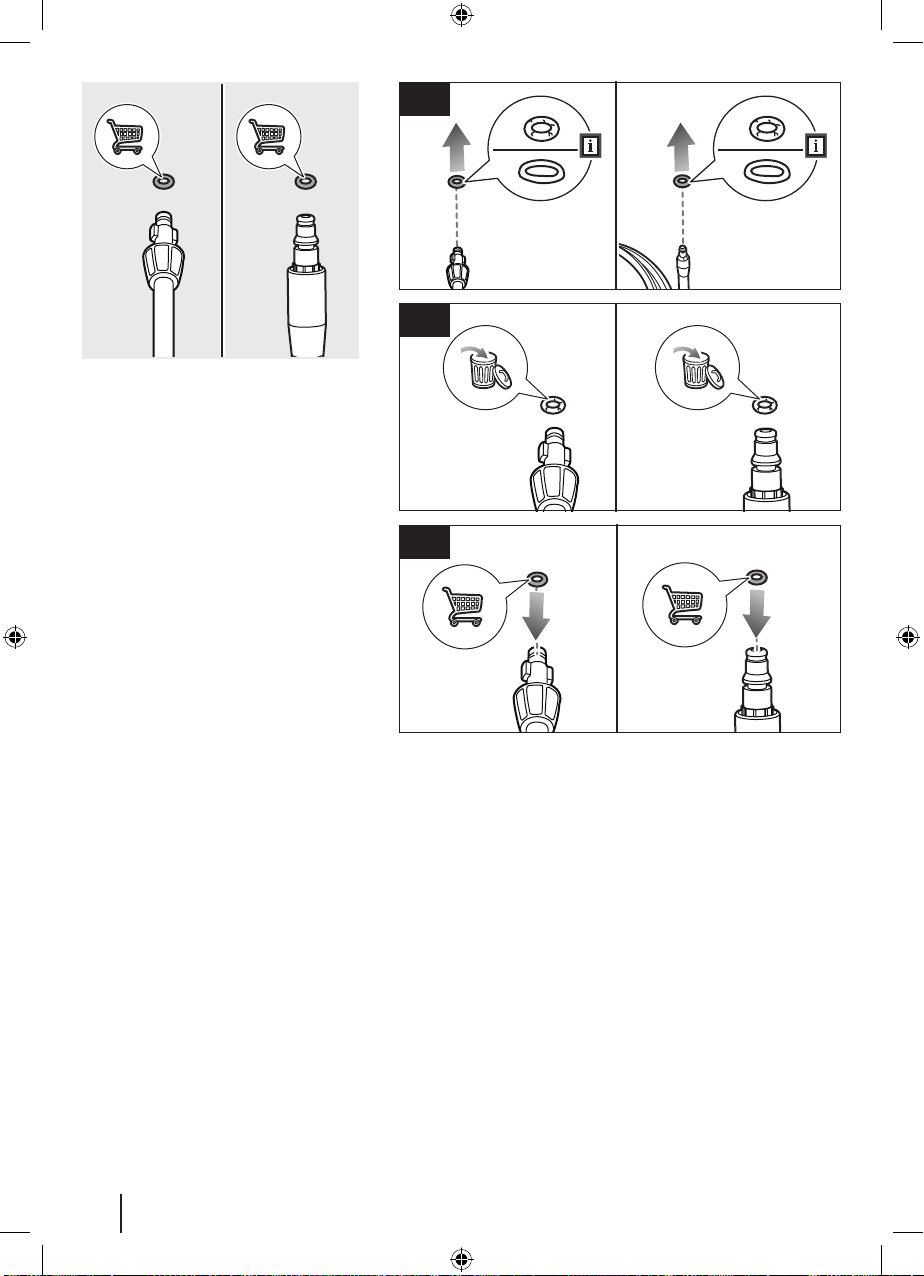

REPLACING THE O-RING
1. Remove any damaged or cracked o-ring
from the nozzle wand end or hose end.
NOTE: Check the nozzle wand end or
hose end for stretched, cracked, or split
o-ring.
2. Dispose of the damaged o-ring properly.
Contact your local distributor for the
suitable replacement o-ring.
3. Insert the o-ring into the intended groove
of the nozzle wand end or hose end.
1
2
3

17
Maintenance
CLEANING THE PRODUCT
1. Turn the on/off switch to the off position.
Disconnect the product from the power
outlet.
2. Clean the product using a brush.
WARNING: Avoid using solvents when
cleaning plastic parts. Most plastics are
susceptible to damage from various types
of commercial solvents. Use clean cloths to
remove dirt, dust, oil, grease, etc.
1
2
1
2

18
Storage
1
2
2
1
2
1
2
3
3
4
1
1
2
5
STORING THE PRODUCT
1. Turn the on/off switch to the off position.
2. Disconnect the product from the power
outlet.
3. Turn off the water supply.
4. Set the trigger handle lock to the unlock
position. Squeeze the trigger until no
more water flows out of the product.
5. Set the trigger handle lock to the lock
position. Push the hose release button
towards the outlet port, and disconnect
the hose.

19
Storage
20220317v1
2
1
6
1
2
3
1
2
3
7
6. Disconnect the garden hose from the
water inlet port and garden tap.
NOTE: If the product is pulsating intermittently
or water is not exiting the nozzle smoothly,
the nozzle may be blocked. Use the nozzle
cleaning tool to remove blockages and clean
the nozzle. Insert the cleaning tool into the
nozzle and turn the tool to remove the
blockages.
NOTE: Make sure to return the parts in their
designated storage compartments.
8. Store the product in a cool, dry, and
well-ventilated place that is inaccessible to
children. Keep it away from corrosive agents,
such as garden chemicals and de-icing salts.
Do not store the product outdoors.

PRODUCT SPECIFICATIONS
Electric high pressure cleaner
Model
RACPWS22 RACPWS23
Rated voltage
220 - 240 V a.c.
Frequency 50 Hz
Power
1600 W
Weight 7.97 kg 9.37 kg
Maximum pressure 130 bar (1885 psi)
Rated pressure
90 bar (1305 psi)
Degree of protection
IPX5
Rated ow
6 L/min
Max. ow
7 L/min
Max. inlet water pressure
12 bar (174 psi)
Detergent tank
0.9 L
Power cord length
5 m
Sound pressure level (LPA) (in
accordance with EN 60335-
2-79)
73.5 dB(A)
Uncertainty
3 dB
Sound power level (LWA) (in
accordance with EN 60335-
2-79)
87.5 dB(A)
Uncertainty
3 dB
Vibration value (in accordance
with EN 60335-2-79)
<2.5m/s2
Maximum garden hose length
15 m
Garden hose connection
18 mm (3/4 in.)
ACCESSORIES
RPW1 Patio cleaner
RPW2 Detergent bottle
RPW3 Turbo lance
RPW4 Fixed brush
RPW5 Rotary brush
RPW6 8m hose replacement
RPW7 RACPWS product to RPWA
accesories adapter
WARNING! The declared vibration total
values and the declared noise emission values
given in this instruction manual have been
measured in accordance with a standardised
test and may be used to compare one tool with
another. They may be used for a preliminary
assessment of exposure.
The declared vibration and noise emission
values represent the main applications of the
tool. However, if the tool is used for dierent
applications, used with dierent accessories,
or poorly maintained, the vibration and noise
emission may dier. These conditions may
signicantly increase the exposure levels
over the total working period. An estimation
of the level of exposure to vibration and noise
should take into account the times when the
tool is turned o or when it is running idle.
These conditions may signicantly reduce the
exposure level over the total working period.
Identify additional safety measures to protect
the operator from the eects of vibration and
noise, such as maintaining the tool and the
accessories, keeping the hands warm (in case
of vibration), and organising work patterns.
This manual suits for next models
1
Table of contents
Other Ryobi Pressure Washer manuals

Ryobi
Ryobi RY141612 User manual

Ryobi
Ryobi RY142711 User manual

Ryobi
Ryobi AJP-2200GQ Operation manual

Ryobi
Ryobi RY142300 User manual

Ryobi
Ryobi RY141600 User manual

Ryobi
Ryobi RY803001 User manual

Ryobi
Ryobi RPW3200 User manual

Ryobi
Ryobi RY803600 User manual

Ryobi
Ryobi EHP-371 User guide

Ryobi
Ryobi RPW150XRB User manual

Ryobi
Ryobi PPW-3000 Owner's manual

Ryobi
Ryobi RY803000E User manual

Ryobi
Ryobi RY141812G User manual

Ryobi
Ryobi RY803100 User manual

Ryobi
Ryobi RY150PWA User manual

Ryobi
Ryobi RPW150XRB User manual

Ryobi
Ryobi RY803300H User manual

Ryobi
Ryobi OWA1800 User manual

Ryobi
Ryobi RY141820 User manual

Ryobi
Ryobi AJP-1621 Instructions for use
