Ryobi RMS180S User manual

ORIGINAL INSTRUCTIONS
Multi-pad Sander
RMS180

Important!
It is essential that you read the instructions in this manual before assembling,
operating, and maintaining the product.
Subject to technical modification.

Safety, performance, and dependability have been given
top priority in the design of your multi sander.
INTENDED USE
The multi sander is intended to be used only by adults who
have read and understood the instructions and warnings in
this manual, and can be considered responsible for their
actions.
The product is intended for sanding and nishing metal,
wood, plastic or similar materials using the abrasive pads
or sheets provided. The product should only be used in well
ventilated areas.
The product is designed for dry sanding only. Do not use
for wet sanding.
The product is intended for consumer use only.
Do not use the product for any other purpose. Use of the
product for operations different from intended could result
in a hazardous situation.
GENERAL POWER TOOL SAFETY WARNINGS
WARNING
Read all safety warnings, instructions, illustrations
and specifications provided with this power tool.
Failure to follow all instructions listed below may result in
electric shock, re and/or serious injury.
Save all warnings and instructions for future reference.
The term “power tool’’ in the warnings refers to your
mains-operated (corded) power tool or battery-operated
(cordless) power tool.
WORK AREA SAFETY
■Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
■Do not operate power tools in explosive
atmospheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
■Keep children and bystanders away while operating
a power tool. Distractions can cause you to lose
control.
ELECTRICAL SAFETY
■Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any adapter
plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk
of electric shock.
■Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
■Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of
electric shock.
■Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords increase
the risk of electric shock.
■When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of electric
shock.
■If operating a power tool in a damp location is
unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of
electric shock.
PERSONAL SAFETY
■Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under the
influence of drugs, alcohol or medication. A moment
of inattention while operating power tools may result in
serious personal injury.
■Use personal protective equipment. Always wear
eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat or hearing
protection used for appropriate conditions will reduce
personal injuries.
■Prevent unintentional starting. Ensure the switch
is in the off-position before connecting to power
source and/or battery pack, picking up or carrying
the tool. Carrying power tools with your finger on the
switch or energising power tools that have the switch
on invites accidents.
■Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached to
a rotating part of the power tool may result in personal
injury.
■Do not overreach. Keep proper footing and balance
at all times. This enables better control of the power
tool in unexpected situations.
■Dress properly. Do not wear loose clothing or
jewellery. Keep your hair and clothing away from
moving parts. Loose clothes, jewellery or long hair can
be caught in moving parts.
■If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection
can reduce dust-related hazards.
■Do not let familiarity gained from frequent use of
tools allow you to become complacent and ignore
tool safety principles. A careless action can cause
severe injury within a fraction of a second.
POWER TOOL USE AND CARE
■Do not force the power tool. Use the correct power
tool for your application. The correct power tool will
do the job better and safer at the rate for which it was
designed.
■Do not use the power tool if the switch does not turn
it on and off. Any power tool that cannot be controlled
with the switch is dangerous and must be repaired.
■Disconnect the plug from the power source and/
or remove the battery pack, if detachable, from
1

the power tool before making any adjustments,
changing accessories, or storing power tools. Such
preventive safety measures reduce the risk of starting
the power tool accidentally.
■Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the power
tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained
users.
■Maintain power tools and accessories. Check for
misalignment or binding of moving parts, breakage
of parts and any other condition that may affect the
power tool’s operation. If damaged, have the power
tool repaired before use. Many accidents are caused
by poorly maintained power tools.
■Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
■Use the power tool, accessories and tool bits etc.
in accordance with these instructions, taking into
account the working conditions and the work to
be performed. Use of the power tool for operations
different from those intended could result in a
hazardous situation.
■Keep handles and grasping surfaces dry, clean
and free from oil and grease. Slippery handles and
grasping surfaces do not allow for safe handling and
control of the tool in unexpected situations.
SERVICE
■Have your power tool serviced by a qualified repair
person using only identical replacement parts.
This will ensure that the safety of the power tool is
maintained.
MULTI SANDER SAFETY WARNINGS
■Clamp workpiece with a clamping device.
Unclamped workpieces can cause severe injury and
damage. Do not hold the material you are sanding by
hand.
■Do not use sanding paper larger than needed. Extra
paper extending beyond the sanding pad can also
cause serious lacerations.
■Always wear safety goggles and a dust mask when
sanding, especially sanding over-head.
■Do not use sanding paper larger than needed. Extra
paper extending beyond the sanding pad can also
cause serious lacerations.
■The dust collection box shall be equipped with the
tool. It should be emptied frequently. To connect dust
collection box, insert the adapter of dust box to the dust-
collection opening on the rear end of the sander.
WARNING
Do not throw sanding dust into an open fire because
materials in fine particle form may be explosive.
WARNING
A suitable breathing respirator must be worn while
sanding lead paint, some woods and metal to avoid
breathing the harmful/toxic dust or air.
WARNING
Dust from certain paints, coatings, and materials may
cause irritation or allergic reactions. Dust from wood,
such as oak, beech, MDF, and others are carcinogenic.
Materials containing asbestos should only be worked on
or processed by qualied specialist operators.
RESIDUAL RISKS
Even when the product is used as prescribed, it is still
impossible to completely eliminate certain residual risk
factors. The following hazards may arise and the operator
should pay special attention to avoid the following:
■Injury caused by dust
–Using the product will produce considerable amount
of dust and fine particles. Use the dust collection
device or connect a dust extraction vacuum when
operating the product. Wear dust masks containing
filters appropriate to the materials being worked
on. Ensure adequate workplace ventilation. Do not
eat, drink, or smoke in the work area. Only operate
on materials which are specified in the Intended
use section. Do not operate on materials (e.g.,
asbestos) which present a health hazard.
■Injury caused by noise and vibration
–Wear ear protection during the sanding operation.
Do not operate the product for long periods of time.
See “Risk reduction”.
RISK REDUCTION
It has been reported that vibrations from handheld tools
may contribute to a condition called Raynaud’s Syndrome
in certain individuals. Symptoms may include tingling,
numbness and blanching of the ngers, usually apparent
upon exposure to cold. Hereditary factors, exposure to
cold and dampness, diet, smoking and work practices
are all thought to contribute to the development of these
symptoms. There are measures that can be taken by the
operator to possibly reduce the effects of vibration:
■Keep your body warm in cold weather. When operating
the unit wear gloves to keep the hands and wrists
warm. It is reported that cold weather is a major factor
contributing to Raynaud’s Syndrome.
■After each period of operation, exercise to increase
blood circulation.
■Take frequent work breaks. Limit the amount of
exposure per day.
If you experience any of the symptoms of this condition,
immediately discontinue use and see your doctor about
these symptoms.
2

WARNING
Injuries may be caused or aggravated by prolonged use
of a tool. When using any tool for prolonged periods,
ensure you take regular breaks.

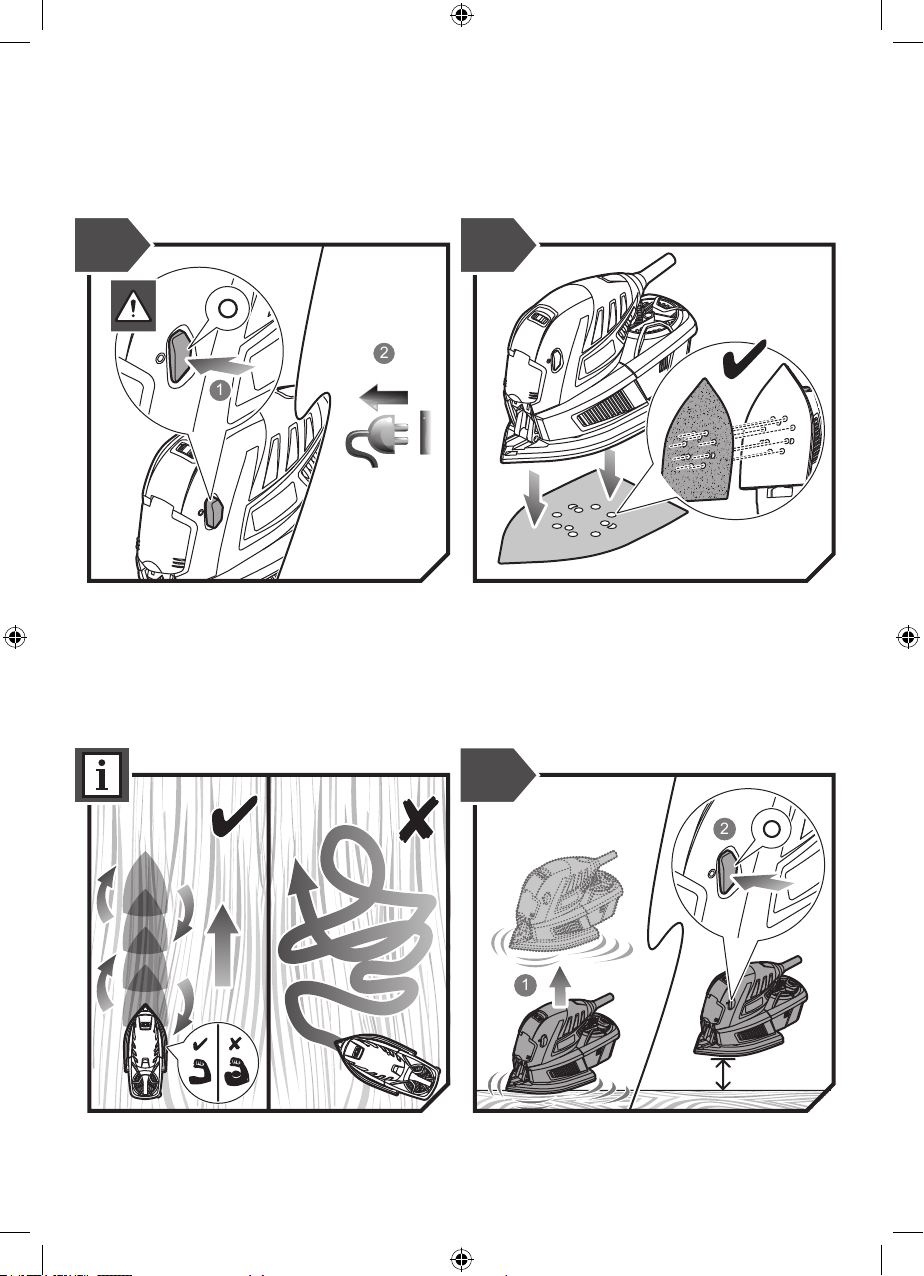

KNOW YOUR PRODUCT
See page 6.
1. Turn off
2. Variable speed control selector
3. Turn on
4. Cover
5. Finger pad
6. Lock
7. Dust collection box
8. Delta pad
9. Paper Clamp
10. 1/3 Sheet pad
11. Hex key
12. Adhesive sandpaper
13. Non-adhesive sandpaper
14. Insulated grasping surface
SANDPAPER SELECTION
Selecting the correct size, grit and type of sand paper is an
extremely important step in achieving a high quality sanded
nish. Aluminum oxide, silicon carbide, and other synthetic
abrasives are best for power sanding. Natural abrasives,
such as int and garnet are too soft for economical use in
power sanding.
In general, coarse grit will remove the most material
and ner grit will produce the best nish in all sanding
operations. The condition of the surface to be sanded will
determine which grit will do the job. If the surface is rough,
start with a coarse grit and sand until the surface is uniform.
Medium grit may then be used to remove scratches left
by the coarser grit and ner grit used for nishing of the
surface. Always continue sanding with each grit until
surface is uniform.
WARNING
Do not use sander without sandpaper; doing so will
damage the cushion.
Sheet/pad recommended use
80-grit sanding sheet Coarse sanding
120-grit sanding sheet Light sanding
150-grit sanding sheet Light sanding
MAINTENANCE
WARNING
The product should never be connected to a power
supply when assembling parts, making adjustments,
cleaning, performing maintenance, or when the product
is not in use. Disconnecting the product from the power
supply will prevent accidental starting that could cause
serious injury.
WARNING
When servicing, use only original manufacturer’s
replacement parts, accessories and attachments. Use of
any other parts may create a hazard or cause product
damage.
WARNING
Do not at any time let brake uids, gasoline, petroleum-
based products, penetrating oils, etc., come in contact
with plastic parts. Chemicals can damage, weaken or
destroy plastic which may result in serious personal
injury.
■Avoid using solvents when cleaning plastic parts. Most
plastics are susceptible to various types of commercial
solvents and may be damaged by their use. Use clean
cloths to remove dirt, carbon dust, etc.
■Always wear safety goggles or safety glasses with side
shields during power tool operation or when blowing
dust. If operation is dusty, also wear a dust mask.
■If the supply cord is damaged, it must be replaced
by a special cord or assembly available from the
manufacturer or its service agent.
■For greater safety and reliability, all repairs should be
performed by an authorised service centre.
WARNING
Electrical tools used on berglass material, wallboard,
spackling compounds, or plaster are subject to
accelerated wear and possible premature failure
because the berglass chips and grindings are highly
abrasive to bearings, brushes, commutators, etc. We do
not recommend using the product for extended work on
these types of materials.
WARNING
Do not use compressed air to blow dust from the product.
This practice is dangerous and can cause dirt and grit to
be blasted into someone’s eyes, causing injury.
LUBRICATION
All of the bearings in the product are lubricated with a
sufcient amount of high grade lubricant for the life span of
the product under normal operating conditions. Therefore,
no further lubrication is required.
3

CLEANING THE SANDING SHEETS
The sanding sheets that come with the product are made to
be re-used. Therefore, it is important that they be cleaned
periodically to remove sanding residue and foreign material
that can accumulate over time.
To clean sanding sheets, rub the sheets with a hard rubber
block. You can also use the clean rubber sole of a shoe.
ENVIRONMENTAL PROTECTION
Recycle raw materials instead of disposing
of as waste. The machine, accessories
and packaging should be sorted for
environment-friendly recycling.
SYMBOL
Safety Alert
VVolts
Hz Hertz
Alternating Current
WWatts
noNo-load speed
min־¹ Revolutions or reciprocations per minute
Orbital Diameter
CE Conformity
EurAsian Conformity Mark.
Ukrainian mark of conformity
Class II tool, double insulation
Wear ear protection
Wear eye protection
Please read the instructions carefully before
starting the machine.
Waste electrical products should not be
disposed of with household waste. Please
recycle where facilities exist. Check with your
Local Authority or retailer for recycling advice.
SYMBOLS IN THIS MANUAL
Connect to the power supply.
Disconnect from the power supply.
Parts or accessories sold separately
Lock
Unlock
Note
Off
On
Without force
With force
The following signal words and meanings are intended to
explain the levels of risk associated with this product:
DANGER
Indicates an imminently hazardous situation, which, if not
avoided, will result in death or serious injury.
WARNING
Indicates a potentially hazardous situation, which, if not
avoided, could result in death or serious injury.
CAUTION
Indicates a potentially hazardous situation, which, if not
avoided, may result in minor or moderate injury.
CAUTION
(Without Safety Alert Symbol) Indicates a situation that
may result in property damage.

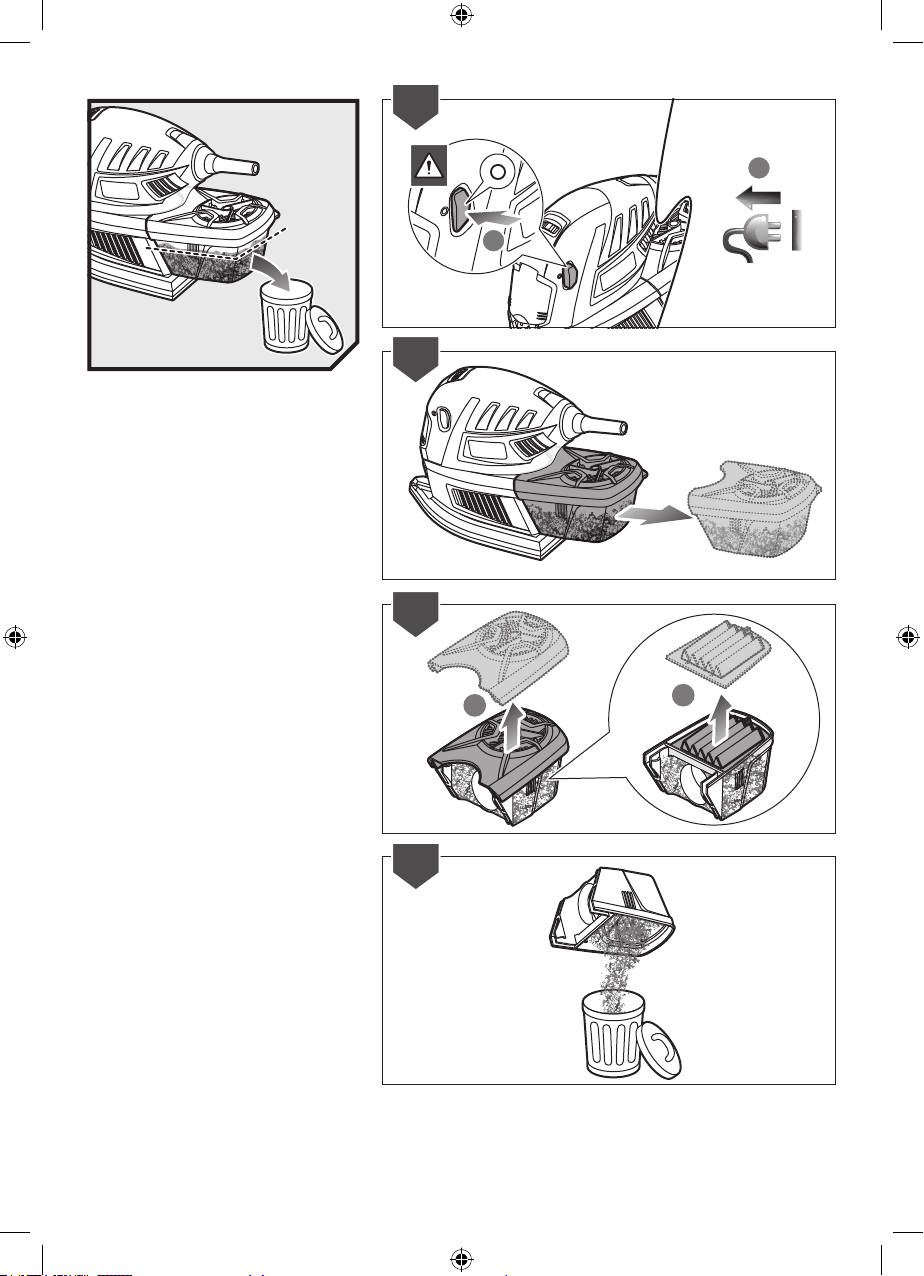

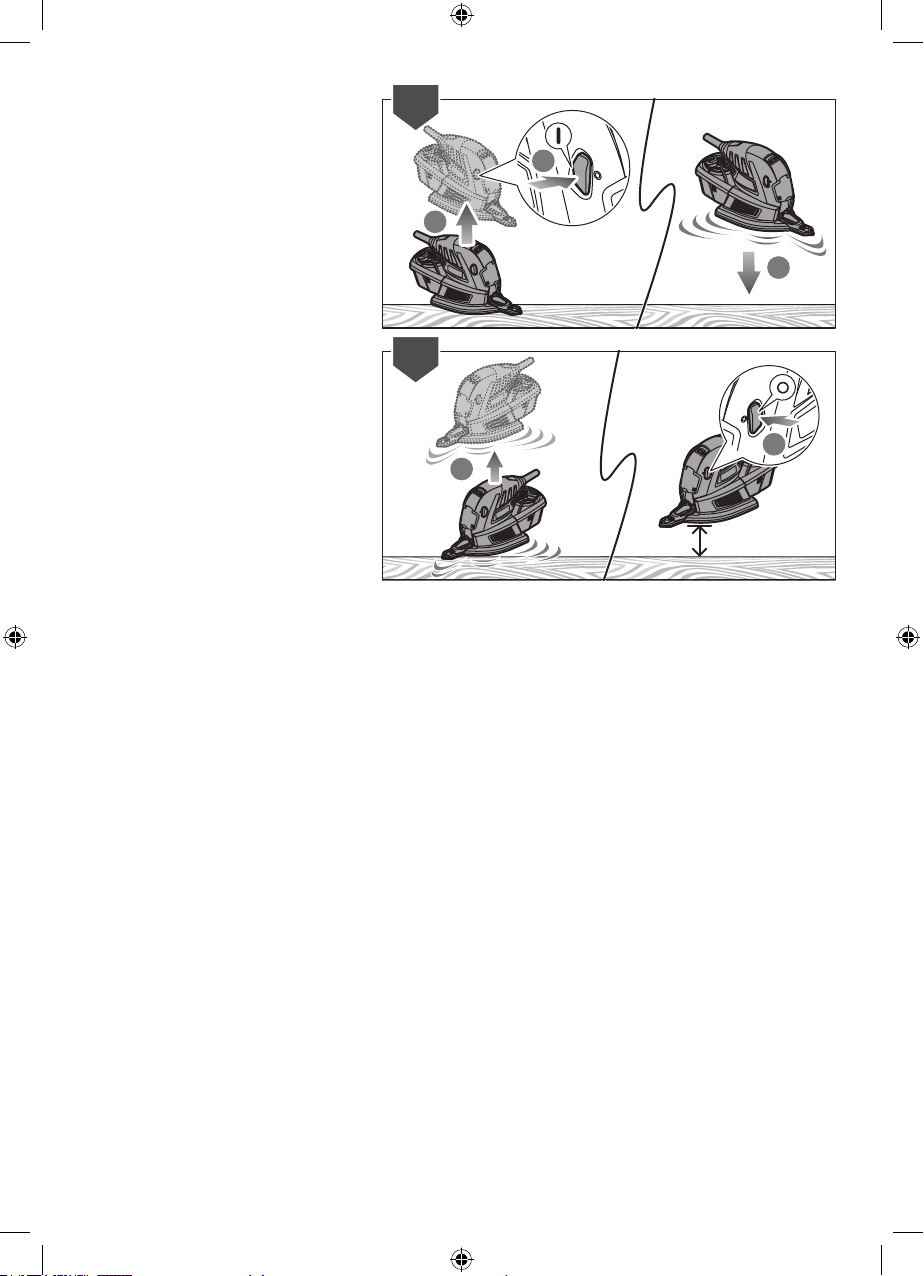

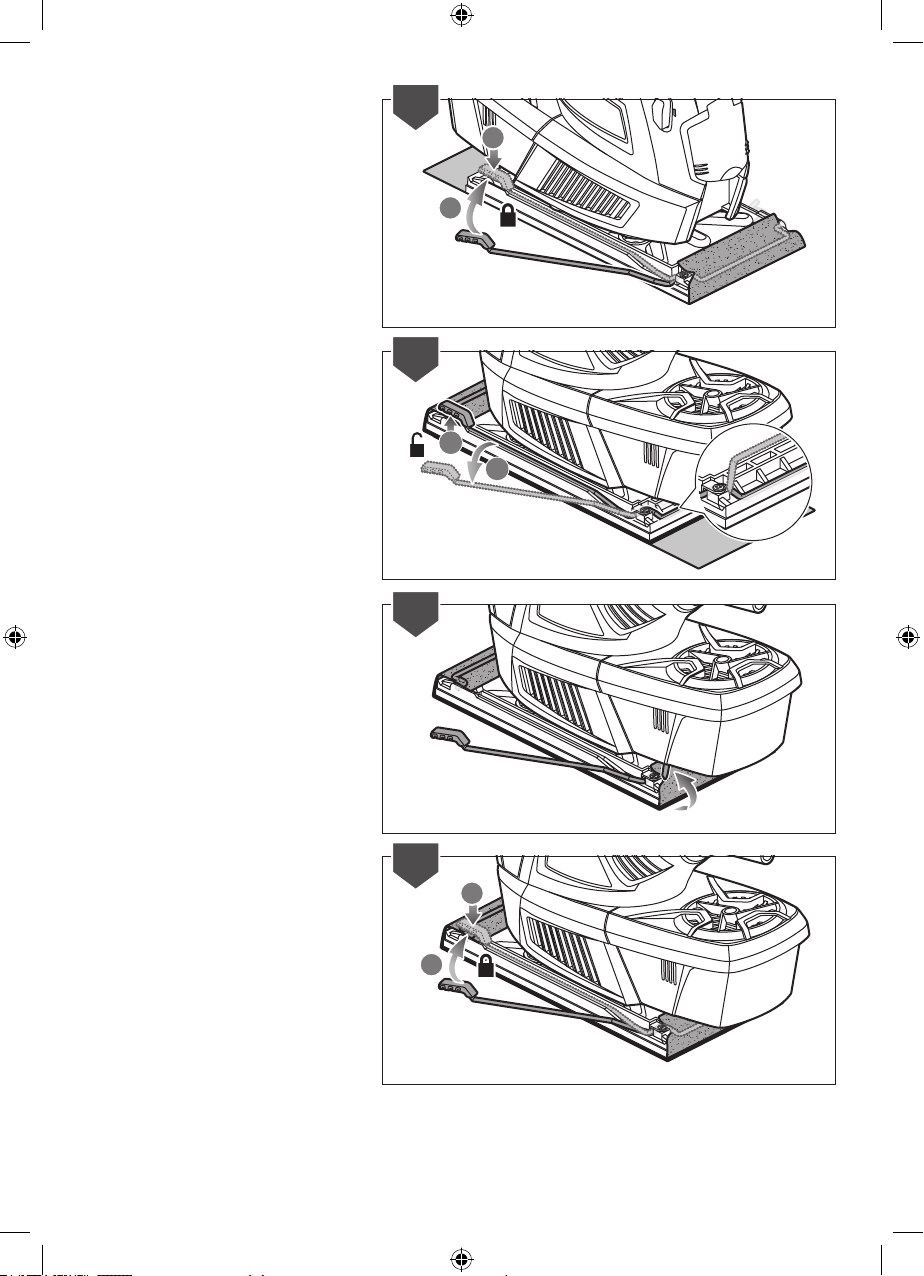

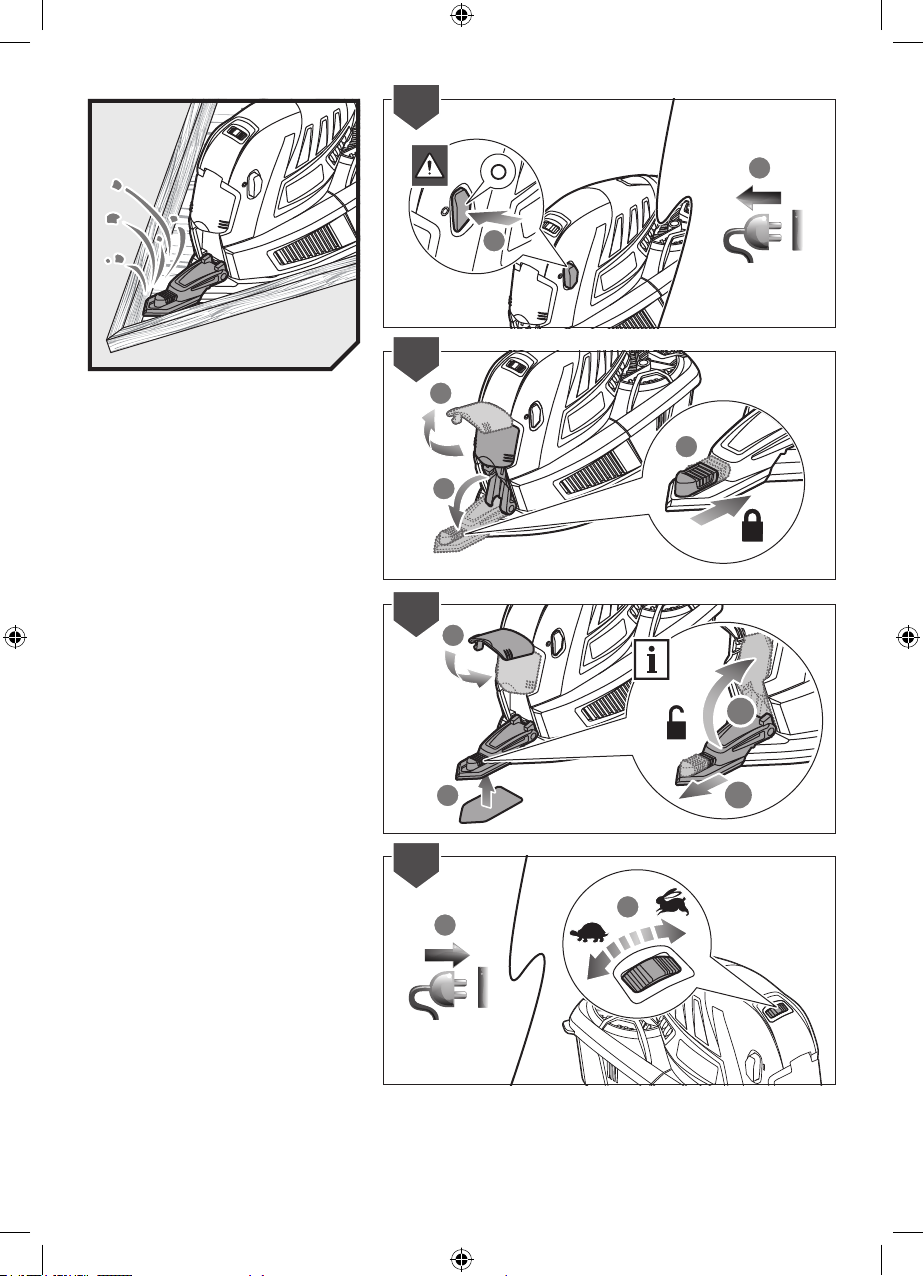

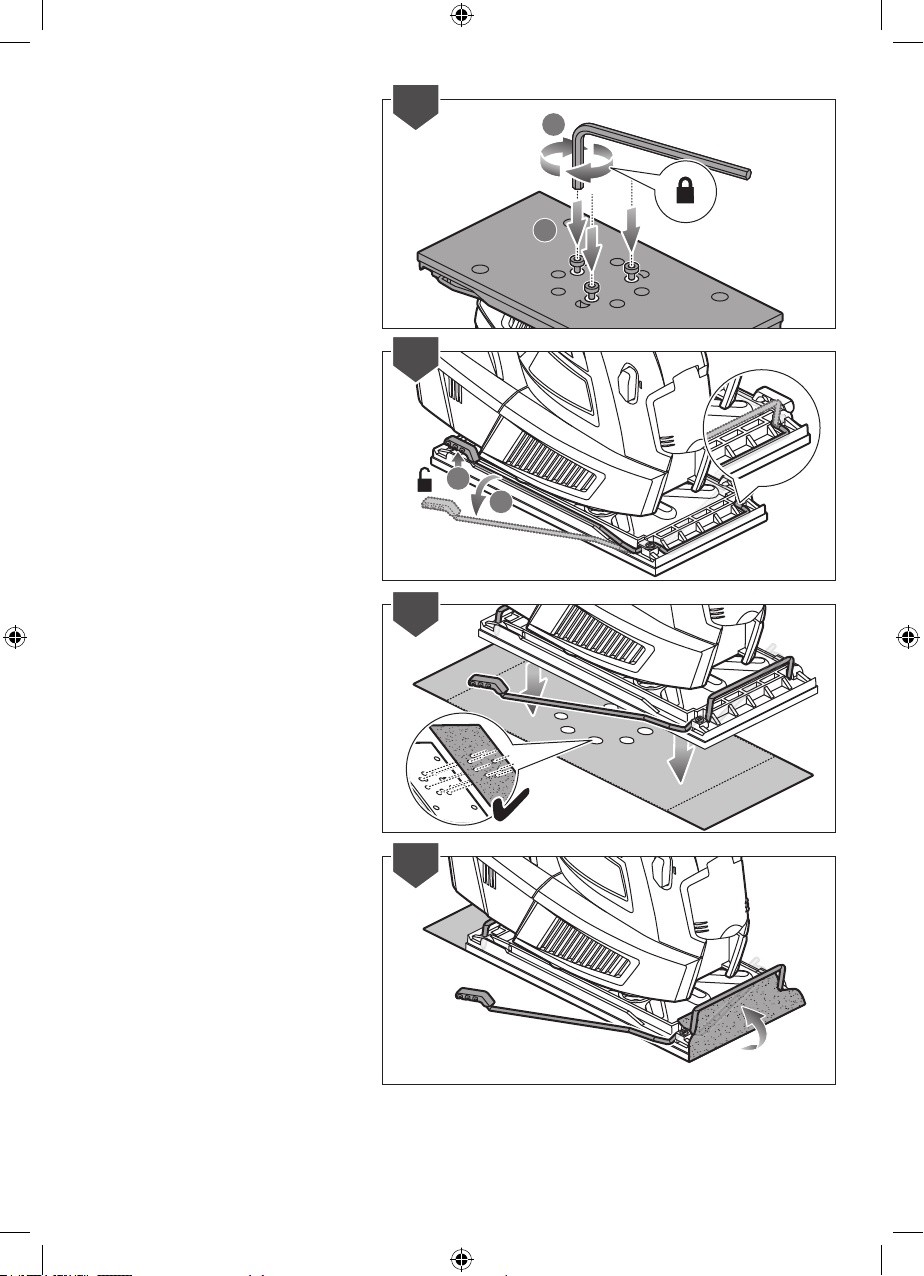

4

5

6
4
5
11
12
6
7
3
8
10
13
14
9
21

1
2
1 2
1
2
5

7
3
2
2
1
6
1
3 4

8

9
1
2
1
2
3
1
2
1
2
1
6
1
2a
b
3
4

10
3
1
2
2
1
5
6

11
1
2
2
1
2
1
2
3
4
1
2
1

12
2
1
2
1
5
6
7
8

13
2
1
10
2
1
11
1
2
9
12

1
2
1
2
12
3
4
20190124v3
14

VIBRATION LEVEL
WARNING
The vibration emission level given in this information sheet has been measured in accordance with a standardised test
given in EN 62841 and may be used to compare one tool with another. It may be used for a preliminary assessment of
exposure. The declared vibration emission level represents the main applications of the tool. However if the tool is used
for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may
signicantly increase the exposure level over the total working period.
An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or
when it is running but not actually doing the job. This may signicantly reduce the exposure level over the total working
period. Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool
and the accessories, keep the hands warm, organisation of work patterns.
PRODUCT SPECIFICATIONS
Multi-pad sander
Model RMS180
Voltage 220 - 240 V 50 / 60Hz
Power 180 W
Orbital minute 6,000 - 12,000 min-1
Pad size
Delta pad 168 x 100 mm
Finger pad 26 x 47 mm
1/3 Sheet pad 185 x 92 mm
Weight
(According to EPTA procedure 01/2014) 1.4 kg
Measured sound values determined according to EN 62841:
A-weighted sound pressure level LpA = 75.5 dB(A)
Uncertainty K 3.0 dB(A)
A-weighted sound power level LWA = 86.5 dB(A)
Uncertainty K 3.0 dB(A)
Wear ear protectors
The vibration total values (triaxial vector sum) determined according to EN 62841:
Vibration emission value
a
h
= 5.4 m/s
2
Uncertainty K
1.5 m/s
2

RYOBI®WARRANTY APPLICATION CONDITIONS
In addition to any statutory rights resulting from the purchase, this product is covered by a warranty as stated below.
1. The warranty period is 24 months for consumers and commences on the date the product was purchased. This date
has to be documented by an invoice or other proof of purchase. The product is designed and dedicated to consumer
and private use only. So there is no warranty provided in case of professional or commercial use. This warranty applies
only on new products.
2. There is a possibility to extend for a part of the range of power tools (AC/DC) the warranty period over the period
described above using the registration on the www.ryobitools.eu website. The eligibility of products for extended
warranty is clearly displayed in stores and / or on packaging and is contained within the product documentation. The
end user is required to register his/her newly-acquired products online within 30 days from the date of purchase. The
end user may register for the extended warranty in his/her country of residence if listed on the online registration form
where this option is valid. Furthermore, end users must give their consent to the storage of their personal data that is
required to be entered online. They must also accept the terms and conditions. The registration confirmation receipt,
which is sent out by e-mail, and the original invoice showing the date of purchase will serve as proof of the extended
warranty.
3. The warranty covers all defects of the product during the warranty period due to faults in workmanship or material at
the purchase date. The warranty is limited to repair and/or replacement and does not include any other obligations
including but not limited to incidental or consequential damages. The warranty is not valid if the product has been
misused, used contrary to the instruction manual, or has been incorrectly connected to a power supply. This warranty
does not apply to:
–any damage to the product that is the result of improper or lack of maintenance
–any product that has been altered or modified
–any product where original identification (trade mark, serial number) markings have been defaced, altered or
removed
–any damage caused by non-observance of the instruction manual
–any product not displaying the CE approval mark on the rating plate
–any product that has been attempted to be repaired by a non-authorised warranty service centre or without prior
authorisation by Techtronic Industries
–any product connected to an improper power supply (amps, voltage, frequency)
–any damage caused by external influences (water, chemical, physical, shocks) or foreign substances
–normal wear and tear spare parts
–inappropriate use, overloading of the tool
–use of non-approved accessories or parts
–Power tool accessories provided with the tool or purchased separately. including but not limited to screw driver bits,
drill bits, abrasive discs, sand paper and blades, lateral guide etc.
–Components (parts and accessories) subject to natural wear and tear, including but not limited to Service &
Maintenance Kits, carbon brushes, bearings, chuck, SDS drill bit attachment or reception, power cord, auxiliary
handle, transport carry case, sanding plate, dust bag, dust exhaust tube, felt washers, impact wrench pins &
springs, etc.
4. For servicing, the product must be sent or presented to a RYOBI authorised service station listed for each country in the
following list of service station addresses. In some countries your local RYOBI dealer undertakes to send the product
to the RYOBI service organisation. When sending a product to a RYOBI service station, the product should be safely
packed without any dangerous contents such as petrol, marked with sender’s address and accompanied by a short
description of the fault.
5. A repair / replacement under this warranty is free of charge. It does not constitute an extension or a new start of the
warranty period. Exchanged parts or products become our property. In some countries delivery charges or postage
will have to be paid by the sender. Your statutory rights arising from the purchase of the product remain unaffected.
6. This warranty is valid in the European Community, Switzerland, Iceland, Norway, Liechtenstein, Turkey and Russia.
Outside these areas, please contact your authorised RYOBI dealer to determine if another warranty applies.
