Ryobi ERS-80V User manual

ERS-80V
RECIPROCATING SAW USER’S MANUAL 1
SCIE SABRE MANUEL D’UTILISATION 3
SÄBELSÄGE BEDIENUNGSANLEITUNG 6
SIERRA SABLE MANUAL DE UTILIZACIÓN 9
SEGA ALTERNATIVA MANUALE D’USO 12
RECIPROZAAG GEBRUIKERSHANDLEIDING 15
SERRA DE SABRE MANUAL DE UTILIZAÇÃO 18
VEKSELSAV BRUGERVEJLEDNING 21
RAMSÅG INSTRUKTIONSBOK 24
KEHYSSAHA KÄYTTÄJÄN KÄSIKIRJA 27
BAJONETTSAG BRUKSANVISNING 29
   êìäéÇéÑëíÇé èé ùäëèãìÄíÄñàà 32
PIŁA INSTRUKCJA OBSUGI 35
OCASOVÁ PILA NÁVOD K OBSLUZE 38
SZABLYAFŰRÉSZ HASZNÁLATI ÚTMUTATÓ 41
FIERASTRAU SABIE MANUAL DE UTILIZARE 44
ZOBENZIS LIETOTJA ROKASGRMATA 47
SLANKIOJANTIS PJKLAS NAUDOJIMO VADOVAS 49
TIIGERSAAG KASUTAJAJUHEND 51
PILA LISIJI REP KORISNI»KI PRIRU»NIK 53
VBODNA ŽAGA UPORABNIŠKI PRIRONIK 55
PRIAMOIARA PÍLA NÁVOD NA POUŽITIE 57
    59
TLK KUYRUU (PANDÜL HAREKETL) TESTERE KULLANiM KILAVUZU 62
GB
FR
DE
ES
IT
NL
PT
DK
SE
FI
NO
RU
PL
CZ
HU
RO
LV
LT
EE
HR
SI
SK
GR
TR

1

Important! It is essential that you read the instructions in this manual before mounting and operating
this machine.
Attention ! Il est indispensable que vous lisiez les instructions contenues dans ce manuel avant
le montage et la mise en service de l’appareil.
Achtung! Bitte lesen Sie unbedingt vor Montage und Inbetriebnahme die Hinweise dieser Bedienungsanleitung.
¡Atención! Es imprescindible que lea las instrucciones de este manual antes del montaje y de la
puesta en servicio.
Attenzione! Prima di procedere al montaggio e alla messa in funzione, è indispensabile leggere
attentamente le istruzioni del presente manuale.
Let op ! Het is absoluut noodzakelijk vóór montage en inbedrijfstelling de aanwijzingen in deze
handleiding te lezen.
Atenção! É indispensável ler as instruções deste manual antes de montar e pôr em serviço.
OBS! Denne brugsanvisning skal læses igennem inden montering og ibrugtagning.
Observera! Det är nödvändigt att läsa instruktionerna i denna bruksanvisning före montering och
driftsättning.
Huomio! On ehdottoman välttämätöntä lukea tässä käyttöohjeessa annetut ohjeet ennen
asennusta ja käyttöönottoa.
Advarsel! Vennligst les instruksjonene i denne bruksanvisningen før du monterer og tar i bruk
maskinen.
ÇÌËχÌËe! èee‰ Ò·ÓÍÓÈ Ë Á‡ÔÛÒÍÓÏ ËÌÒÚÛÏeÌÚ‡ ÌeÓ·ıÓ‰ËÏÓ ÔÓ˜eÒÚ¸ ËÌÒÚÛ͈ËË ËÁ ̇ÒÚÓfl˘e„Ó
ÛÍÓ‚Ó‰ÒÚ‚‡.
Uwaga! Przed montowaniem i uruchomieniem, koniecznie musicie si Pastwo zapozna
z zaleceniami zawartymi w niniejszym sposobie uycia.
Dležité upozornní! Ped montáží náadí a uvedením do provozu je nutné si peíst následující pokyny.
Figyelem! Feltétlenül fontos, hogy a jelen használati útmutatóban foglalt elírásokat az
összeszerelés és az üzembe helyezés ellt elolvassa!
Atenie! Este indispensabil sã citii instruciunile coninute în acest mod de utilizare înainte de montaj
i de punerea în funciune.
Uzmanību! Ir oti btiski, lai js izlastu nordjumus, kas sniegti šaj rokasgrmat, pirms eraties
pie ierces montšanas un iedarbinšanas!
Dėmesio! Prieš surinkdami ir paleisdami aparatą į darbą, reikia, kad jūs perskaitytumėte šiame
vadove esančias instrukcijas.
Tähtis! Lugege enne seadme kokkupanekut ja kasutamist kindlasti läbi selles juhendis
sisalduvad eeskirjad ja juhised!
Upozorenje! Vaæno je da upute u ovom KorisniËkom priruËniku proËitate prije postavljanja i uporabe ovog alata.
Pomembno! Zelo pomembno je, da pred namestitvijo in prvo uporabo te naprave preberete
navodila v tem prironiku.
Upzornenie! Je dôležité, aby ste si pred montážou a spustením zariadenia prečítali pokyny, ktoré sa
nachádzajú v tomto návode.
!           
     
Dikkat! Cihazn montajndan ve çaltrlmasndan önce bu klavuzda bulunan talimatlar okumanz zorunludur.
Subject to technical modifications / Sous réserve de modifications techniques /Technische Änderungen vorbehalten /
Bajo reserva de modificaciones técnicas / Con riserva di eventuali modifiche tecniche /Technische wijzigingen voorbehouden /
Com reserva de modificações técnicas / Med forbehold for tekniske ændringer / Med förbehåll för tekniska ändringar /
Tekniset muutokset varataan / Med forbehold om tekniske endringer / åÓ„ÛÚ ·˚Ú¸ ‚ÌeÒeÌ˚ ÚeıÌ˘eÒÍËe ËÁÏeÌeÌËfl /
Z zastrzeeniem modyfikacji technicznych / Zmny technických údaj vyhrazeny / A mszaki módosítás jogát fenntartjuk /
Sub rezerva modificaiilor tehnice / Paturam tiesības mainīt tehniskos raksturlielumus / Pasiliekant teisę daryti techninius pakeitimus /
Tehnilised muudatused võimalikud /Podloæno tehniËkim promjenama /Tehnine spremembe dopušene/
Technické zmeny vyhradené /      / Teknik deiiklik hakk sakldr

1
English
GB
FR DE ES IT NL PT DK SE FI NO RU PL CZ HU RO LV LT EE HR SI SK GR TR
SPECIAL RULES
QPROTECT YOUR LUNGS. Wear a dust mask if
operation is dusty.
QHold power tool by insulated gripping surfaces,
when performing an operation where the cutting
accessory may contact hidden wiring or its own
cord. Cutting accessory contacting a "live" wire may
make exposed metal parts of the power tool "live" and
could give the operator an electric shock.
SPECIFICATION
Voltage 230V 50Hz
Input 800 W
Stroke per minute 0-2800 min-1
Length of stroke 3 cm
Cutting Capacity (Wood) 75 mm
Net weight 2.9 kg

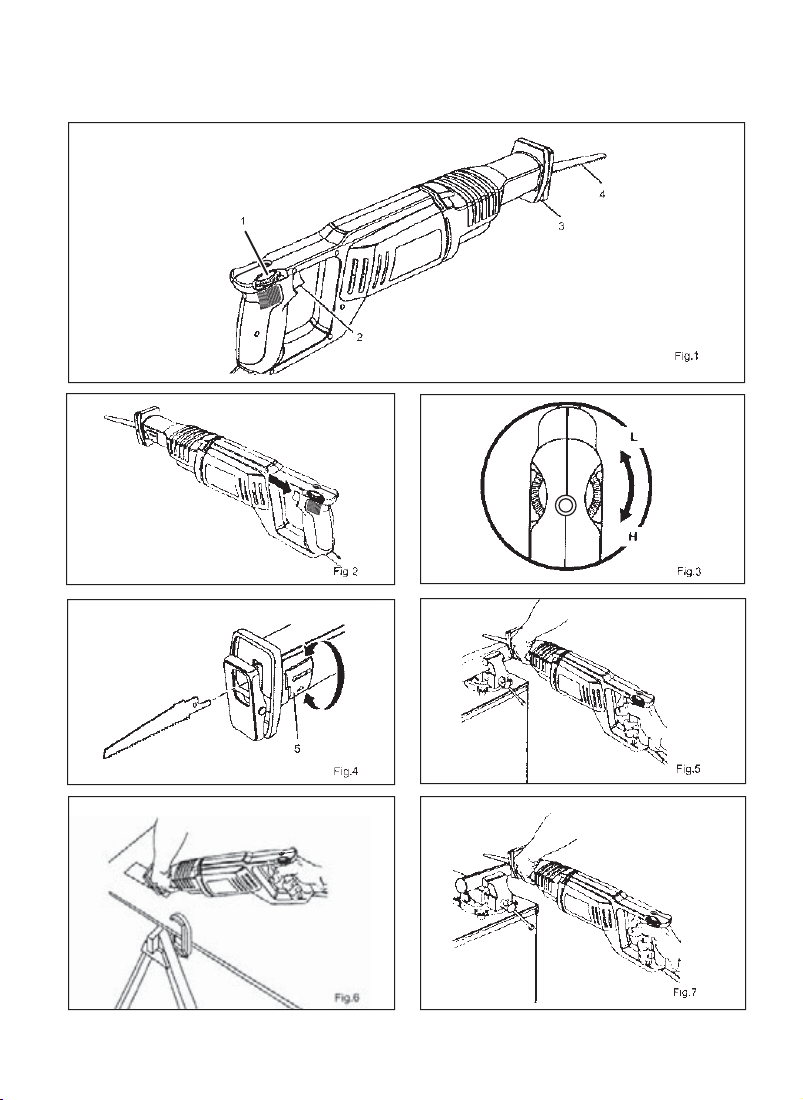

DESCRIPTION
1. Variable speed dial
2. Trigger switch
3. Shoe assembly
4. Blade
5. Blade clamp Lock / Release level
OPERATION
WARNING
Always wear safety goggles or safety glasses
with side shields when operating this tool.
Failure to do so could result in dust, shavings,
or loose particles being thrown into your eyes,
resulting in possible serious injury.
TURNING THE SAW ON/OFF (Fig. 2)
Follow these directions to turn the saw on and off:
QTo turn the saw on: Depress the switch trigger.
QTo turn the saw off: Release the switch trigger.
ADJUSTING THE SPEED (Fig. 3)
The variable speed feature allows the saw to operate at
speeds that can be increased by rotating the dial from
1 to 6. The dial is conveniently located on the handle,
allowing operator control of blade speed.
Follow these directions to adjust the speed:
QTo increase the speed (H): Turn the dial to a higher
setting.
QTo decrease the speed (L): Turn the dial to a lower
setting.
SELECTING BLADES
Selecting the correct type of blade is important in order
to obtain the best performance from your saw. Select
the blade based on the application and on the material
you wish to cut. Selecting the right blade will give you
a smoother, faster cut and prolong the life of the blade.
Blades with fewer teeth, 10 teeth per inch (TPI) are typically
used for cutting wood, while blades with more teeth are
better for cutting metal or plastic. We recommend 14 TPI
for plastics and soft metals and 18 TPI for hard metals.
INSTALLING BLADES
The toolless blade change system eliminates the need
for tools when changing the blade.
WARNING
Failure to unplug the tool could result in accidental
starting causing possible serious injury.
Follow these directions to install blades (Fig. 4):
QUnplug the saw.
QLift the blade release lever.
QInsert the blade fully, tooth side down.
QLower the blade release lever.
OPERATING THE SAW (Fig. 5)
Follow these directions to operate the saw:
QSecure the workpiece to a work bench or table with a
vise or with clamps.
QMake sure the saw blade is clear of any foreign
material and that the power cord and extension cord
are out of the blade path.
QHold the saw firmly in front of and clearly away from
you.
QMark the line of cut clearly.
QDepress the trigger switch to start the cutting action.
QSet the base assembly against the workpiece.
Move the blade into the workpiece.
NOTE: Do not force. Use only enough pressure to keep
the saw cutting. Let the blade and saw do the work.
Keep pressure on the base, against the workpiece.

2
English
GB
FR DE ES IT NL PT DK SE FI NO RU PL CZ HU RO LV LT EE HR SI SK GR TR
OPERATION
PLUNGE CUTTING (Fig. 6)
Follow these directions to plunge cut:
QSecure the workpiece to a work bench or table with a
vise or with clamps.
QMake sure the saw blade is clear of any foreign
material and that the power cord and extension cord
are out of the blade path.
QHold the saw firmly in front of and clearly away from
you.
QMark the line of cut clearly.
QChoose a convenient starting point inside the cutting
area and place the tip of the blade over that point.
QRest the front edge of the shoe assembly on the
workpiece and hold it firmly in position during the cut.
QDepress the trigger switch and allow the saw blade to
reach full cutting speed.
WARNING
Make sure the blade does not touch the workpiece
until the motor reaches full speed. Faillure to heed
this warning can cause you to lose of control of
the saw and result in serious injury.
QTilt the saw downward until the tip of the blade starts
cutting the workpiece.
QAllow the saw to penetrate the workpiece.
QTilt the saw until the blade is perpendicular to
the workpiece.
WARNING
Blades longer than 15.2 cm can whip and should
not be used for plunge cutting. Failure to heed
this warning can resut in serious personal injury.
WARNING
Cutting into electrical wiring can cause the blade,
the blade clamp, and the saw bar assembly to
become electrically live. Do not touch metal parts
when cutting into a wall; grasp only the insulated
surfaces on the tool. Make sure hidden electrical
wiring, water pipes, and mechanical hazards are
not in the blade path when cutting into a wall.
METAL CUTTING (Fig. 7)
You may cut metals such as sheet steel, pipe steel rods,
aluminum, brass, and copper with your saw. Observe the
following tips when metal cutting:
Be careful not to twist or bend the saw blade.
QDo not force the tool.
QUse cutting oil when cutting soft metals and steel.
Cutting oil also keeps the blades cool, increases
cutting action, and prolongs blade life.
QNever use gasoline since normal sparking of motor
could ignite fumes.
QClamp the worpiece firmly and cut close to the
clamping point to eliminate any vibration of the work.
When cutting conduit pipe or angle iron, clamp the
workpiece in a vise if possible and cut close to the vise.
To cut thin sheet material, “sandwich” the material
between hardboard or plywood and clamp the layers
to eliminate vibration and material tearing.
QAlways keep firm pressure on the base to hold it
securely against the workpiece.
ENVIRONMENTAL PROTECTION
Recycle raw materials instead of disposing
as waste. The machine, accessories and
packaging should be sorted for en-
vironmental-friendly recycling.
SYMBOL
The following show the symbols used for the tool. Be
sure that you understand their meaning before use.
V.................................................................................Volts
Hz..............................................................................Hertz
.........................................................Alternating Current
W...............................................................................Watts
no................................................................No load Speed
min-1.....................Revolutions or reciprocation per minute
.........................................................Double Insulati
..........................................Read instruction manual
.......................Wear Personal protective equipment
.................................Recycle raw materials
instead of disposing as waste. The machine,
accessories and packaging should be sorted for
environmental-friendly recycling.
