Ryobi RTS21 Quick setup guide

RYOBI

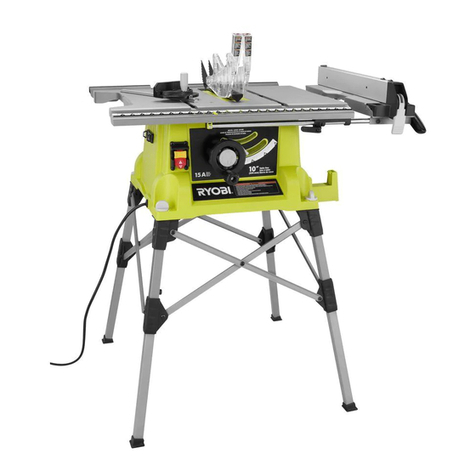

10 in. TABLE SAW
MODEL NUMBER RTS21
REPAIR SHEET

2
RYOBI 10 in. TABLE SAW – MODEL NUMBER RTS21
FIGURE A
22
90
90
2
34
5
1
6
7
59
58
91
68
8
9
10
11
12
34
13
14
18
19
17
16
15
21
23
24
25
26
27
28
29
30
31
32
33
29
35
36
37
38
39
40
41
42
43
44
39
45
46
47
48
49
50
51 52
53
54
55
56
57
40
18
60
94
89
78
78
34
20
77
65
65
77
81
65
64
63
62
61
66
67
37
69
70
71
73
72
74
75
76
SEE NOTE
79
83
84
85 86
88
23 13
14
92
80
93
82
59
SEE FIGURE C
87
98
95
96
99
100
97

3
RYOBI 10 in. TABLE SAW – MODEL NUMBER RTS21
The model number will be found on a label attached to the cabinet. Always mention the model number in all correspondence regarding your
10 in. PORTABLE TABLE SAW or when ordering parts.
PARTS LIST FOR FIGURE A
KEY PART
NO. NUMBER DESCRIPTION QTY
KEY PART
NO. NUMBER DESCRIPTION QTY
1 089037011710 Throat Plate ..................................................... 1
2 089037011004 Magnet............................................................. 2
3 089015001001 Screw (M8 x 30 mm)........................................ 1
4 089015001013 Screw (M8 x 35 mm)........................................ 1
5 414011033 Spring Pin ........................................................ 2
6 0121010211 Table Locking Lever......................................... 2
7 0121010903 Lever Screw ..................................................... 2
8 0121010214 Outfeed Rod Primary Bracket.......................... 2
9 411071003 Lock Nut (M5) .................................................. 2
10 410171706 Screw (#10-24 x 1/2 in.)................................... 4
11 089037007007 Screw (M4, Pan Hd.)........................................ 2
12 089037007006 Push Stick........................................................ 1
13 089037011022 Handle Bracket ................................................ 2
14 410171722 Screw (#10-24 x 3/8 in., Pan Hd.).................... 8
15 0121010237 End Cap, Extension Table Rod........................ 1
16 089037011006 Scale Indicator................................................. 1
17 410602002 Screw (M4 x 25 mm, Pan Hd.)......................... 1
18 412042002 External Tooth Lock Washer ............................ 5
19 410132057 Screw (M4 x 8 mm, Pan Hd.)........................... 2
20 089037011712 Miter Gauge Assembly .................................... 1
21 089037007009 Rod .................................................................. 1
22 410341006 Screw w/Washer
(M6 x 12 mm, Hex Soc. Hd.) ........................... 2
23 0121010313 Pivot Bracket Plate .......................................... 2
24 0121010901 Eccentric Roller................................................ 1
25 0121010314 Adjusting Plate................................................. 1
26 410371002 Screw w/Washer (M6 x 15 mm, Hex Hd.)........ 2
27 414011001 Spring Pin (M4 x 13 mm) ................................. 2
28 0101010501 Spacer ............................................................. 1
29 410162701 Screw (1/4-20 x 3/4 in., Cheese Hd.)............... 4
30 0101010304 Upper Bracket ................................................. 1
31 089037007011 Screw w/External Washer (M5 x 20 mm)......... 1
32 411071001 Lock Nut (M6) .................................................. 1
33 089037007012 Pull Rod ........................................................... 1
34 089037011903 Scale Label ...................................................... 1
35 089037007013 Support Board ................................................. 1
36 089037007014 Mount Bracket ................................................. 1
37 089037007015 Bolt (M6 x 15.5 mm) ........................................ 2
38 089037007016 Motor Bracket.................................................. 1
39 080015001449 Spacer (D9.5 x 68 mm) .................................... 2
40 080015001437 Bolt (1/4-20 x 3/4 in., Hex Hd.) ........................ 4
41 080015001436 Screw (M6 x 18 mm)........................................ 3
42 080015001603 Hex Nut (1/4-20) .............................................. 2
43 080015001458 Spring Pin (D8 x 90 mm).................................. 1
44 089037007029 C-Ring.............................................................. 1
45 411062701 Hex Nut (1/4-20) .............................................. 4
46 080015001439 Middle Bracket................................................. 1
47 089037011047 Washer (D6.5 x D13 x 0.5t) .............................. 1
48 089037007033 Block................................................................ 1
49 089037007034 Hex Nut (3/8-16) .............................................. 2
50 089037007035 Carriage Bolt (1/4-20 x 42 mm) ....................... 1
51 089037007036 Work Plate........................................................ 1
52 089110101033 Washer (D6.5 x D16 x 1t) ................................. 1
53 080015001455 Hex Nut (1/4-20) .............................................. 1
54 089037011048 Washer (D6.5 x D20 x 2.5t) .............................. 2
55 089110101066 Screw w/Washer (M4 x 12 mm, Pan Hd.)........ 1

4
RYOBI 10 in. TABLE SAW – MODEL NUMBER RTS21
The model number will be found on a label attached to the cabinet. Always mention the model number in all correspondence regarding your
10 in. PORTABLE TABLE SAW or when ordering parts.
PARTS LIST FOR FIGURE A
KEY PART
NO. NUMBER DESCRIPTION QTY
KEY PART
NO. NUMBER DESCRIPTION QTY
56 089037007032 Indicator........................................................... 1
57 089037011013 Indicator Bracket ............................................. 1
58 411061001 Toothed Hex Nut (M6)...................................... 4
59 410192001 Screw (M4 x 10 mm, Pan Hd.)......................... 3
60 089037007031 Screw (M4 x 10 mm, Hex Hd.)......................... 1
61 0101010920 Arbor Nut ......................................................... 1
62 0101010302 Outer Blade Washer......................................... 1
63 422010025 Saw Blade........................................................ 1
64 089037007017 Screw (M4 x 0.7 mm)....................................... 3
65 411071001 Lock Nut (M6) .................................................. 3
66 089037007018 Screw (M6 x 15 mm)........................................ 1
67 089037007019 Lever ................................................................ 1
68 089037011027 Screw (M5 x 25 mm)........................................ 4
69 089037007020 Clamp Lock...................................................... 1
70 089037007021 Clamp .............................................................. 1
71 089037007097 Plate................................................................. 1
72 089037007098 Bracket ............................................................ 1
73 412011007 Washer (D5 x D12 x 1.5t) ................................. 2
74 412021005 Lock Washer (M5) ............................................ 2
75 089037007101 Screw (M5 x 10 mm, Button Soc. Hd.)............ 2
76 089037011709 Motor Assembly............................................... 1
77 412011701 Washer (D1/4 in. x D16 x 1t) ............................ 2
78 410551701 Screw w/Washer (1/4-20 x 1/2 in., Pan Hd.).... 2
79 089037011053 Extension Rod (Front) ...................................... 1
80 089037011054 Extension Rod (Rear) ....................................... 1
81 089037007022 Screw (M6 x 20 mm, Hex Hd.)......................... 2
82 089037007023 Mounting Bracket ............................................ 1
83 089037007702 Riving Knife...................................................... 1
84 089037011030 Clamping Bracket ............................................ 1
85 089037011031 Spring .............................................................. 1
86 089037007709 Lever Assembly ............................................... 1
87 089037007700 Blade Guard Assembly
(Inc. Key Nos. 95-100) ..................................... 1
88 089037007701 Anti-Kickback Pawls Assembly ....................... 1
89 089037011018 Rear Support ................................................... 1
90 089037011019 Rear Rod.......................................................... 2
91 089037011014 Extension Table................................................ 1
92 089037011005 Saw Table ........................................................ 1
93 089037011020 Outfeed Support Bracket................................. 2
94 089037011704 Rip Fence Assembly (See Figure C) ................ 1
95 089037007910 Front Blade Guard Warning Label (Left) .......... 1
96 089037007909 Front Blade Guard Warning Label (Right)........ 1
97 089110113913 No Hands Warning Label................................. 2
98 089037007912 Guard Warning Label (Left) .............................. 1
99 089037007911 Guard Warning Label (Right)............................ 1
100 089037007908 Warning Label (Upper Barrier) ......................... 1
Not Shown:
089037011021 Dado Throat Plate (Optional) ........................... 1
988000930 Operator’s Manual (089037011908)
3-15-13
(Rev:03)

5
RYOBI 10 in. TABLE SAW – MODEL NUMBER RTS21
FIGURE B
1
2
3
4
5
6
7
8
9
10
11
12 13
14
15
16
40
17
39
18
19
20
21
22
23
24
25
26
38
27
28
29
30
31
32
33
34
35
36
37
41
42
43

6
RYOBI 10 in. TABLE SAW – MODEL NUMBER RTS21
The model number will be found on a label attached to the cabinet. Always mention the model number in all correspondence regarding your
10 in. PORTABLE TABLE SAW or when ordering parts.
PARTS LIST FOR FIGURE B
1 410031710 Carriage Bolt (5/16-18 x 1-1/2 in.) ................... 1
2 0134010238 Knob Ring ........................................................ 1
3 0101010312 Blade Wrench .................................................. 1
4 0101010313 Blade Wrench .................................................. 1
5 0131020211 Wing Nut .......................................................... 1
6 089037011706 Cabinet Assembly
(Inc Key Nos. 8-9, 20, and 35) ......................... 1
7 080015001473 Screw (M4 x 7 mm, Flat Hd.) ........................... 6
8 089037011011 Bevel Lock Lever Label ................................... 1
9 089037011901 Front Panel Label............................................. 1
10 080015001475 Plastic Washer (D7 x D19 x 2t) ........................ 1
11 089037007102 Washer (D6.5 x D20 x 1.6t) .............................. 1
12 080015001455 Hex Nut (1/4-20) .............................................. 1
13 089037011049 Lock Lever ....................................................... 1
14 089110101033 Washer (D1/4 in. x D16 x 1t) ............................ 1
15 0101140904 Spring .............................................................. 1
16 089037011051 Knob ................................................................ 1
17 0134010221 Handwheel....................................................... 1
18 089037011024 Elevating Shaft................................................. 1
19 089037011023 E-Ring .............................................................. 1
20 089037011902 Front Panel Warning Label .............................. 1
21 410601004 Screw (M14 x 18 mm, Pan Hd.)....................... 4
22 984406003 Switch Key....................................................... 1
23 08911019712 Switch Assembly (Inc. Key No. 22).................. 1
24 089037007044 Plate................................................................. 1
25 410192002 Screw (M4 x 16 mm, Pan Hd.)......................... 2
26 0101040203 Cord Clamp ..................................................... 1
27 089037007902 Warning Label (French) .................................... 1
28 089037007046 Switch Box....................................................... 1
29 0131010210 Cord Clamp ..................................................... 1
30 0000120817 Screw (#8 x 19.05 mm, Pan Hd.)..................... 3
31 410161010 Screw (M6 x 25 mm, Cheese Hd.)................... 4
32 089037011711 Stand Knob and Gasket Assembly.................. 4
33 089037011008 Miter Gauge Storage ....................................... 1
34 089037011904 Data Label........................................................ 1
35 0121015002 Stand Strap...................................................... 2
36 412011109 Washer (D5.2 x D24 x 2t) ................................. 2
37 416090001 Rivet................................................................. 2
38 089037011707 Power Cord Assembly (Inc. Key No. 27).......... 1
39 089037011025 Handwheel Cap ............................................... 1
40 411072702 Lock Nut (1/4-20)............................................. 1
41 412012041 Washer (D6.5 x D13 x 1.5t) .............................. 1
42 0131020212 Handwheel Lever ............................................. 1
43 0101140203 Handwheel Knob Screw .................................. 1
KEY PART
NO. NUMBER DESCRIPTION QTY
KEY PART
NO. NUMBER DESCRIPTION QTY

7
RYOBI 10 in. TABLE SAW – MODEL NUMBER RTS21
FIGURE C
1
2
3
4
19
6
7
29
10
11
12
13
14
8
15
18
5
17
16
1 411071001 Lock Nut (M6) .................................................. 1
2 412011030 Washer (D6.5 x D16 x 1.5t) .............................. 3
3 089037011032 Rear Clamping Plate........................................ 1
4 0121010915 Compression Spring ........................................ 1
5 089037011039 Front Block Slider, right ................................... 1
6 089037011033 Rip Fence......................................................... 1
7 410051001 Screw (M6 x 15 mm, Hex Truss Hd.) ............... 2
8 412011115 Washer (D16 x D25 x 1.5t) ............................... 2
9 410541003 Screw (M4 x 10 mm, Pan Hd.)......................... 1
10 089037011034 Indicator........................................................... 1
11 089037011035 Front Block ...................................................... 1
12 089037011036 Rod .................................................................. 1
13 089037011037 Clamping Handle ............................................. 1
14 0134010241 Axle .................................................................. 1
15 0121010210 Ring Pad .......................................................... 2
16 0121010209 Rip Fence Slider .............................................. 1
17 089037011038 Front Block Slider, left...................................... 1
18 089037011040 Screw (8-32 x 8.5 mm, Flat Hd.)...................... 2
19 412011712 Washer (D1/4 x D13 x 1.5t).............................. 1
089037011704 Rip Fence Assembly (Inc. Key Nos. 1-18) ....... 1
KEY PART
NO. NUMBER DESCRIPTION QTY
KEY PART
NO. NUMBER DESCRIPTION QTY

8
RYOBI 10 in. TABLE SAW – MODEL NUMBER RTS21
9
8
10
6
7
5
4
11
12
3
2
1
FIGURE D
1 089037011041 Connector Bracket........................................... 4
2 089037011042 Leg................................................................... 3
3 411071003 Lock Nut (M5) ................................................ 20
4 0121010205 Leg Adaptor ..................................................... 4
5 0121010213 End Plug .......................................................... 4
6 410191003 Screw (M4 x 12 mm, Pan Hd.)......................... 1
7 0121010228 Ring.................................................................. 1
8 089037011043 Screw (M8 x 35 mm)...................................... 20
9 089037011045 Linkage ............................................................ 8
10 089037011044 Linkage Ring .................................................... 4
11 089037011046 Stationary Leg.................................................. 1
12 410451016 Screw (M6 x 12 mm, Pan Hd.)......................... 4
089037011705 Leg Stand Assembly (Inc. Key Nos. 1-12) ....... 1
KEY PART
NO. NUMBER DESCRIPTION QTY
KEY PART
NO. NUMBER DESCRIPTION QTY

9
RYOBI 10 in. TABLE SAW – MODEL NUMBER RTS21
SECTION “A”
1
2
3
4
5
17
18 19
20
21
6
78
9
10
12
11
13
14
15
16
23
22

10
RYOBI 10 in. TABLE SAW – MODEL NUMBER RTS21
The model number will be found on a label attached to the cabinet. Always mention the model number in all correspondence regarding your
10 in. PORTABLE TABLE SAW or when ordering parts.
PARTS LIST FOR SECTION “A”
1 089037007047 Motor Cord ...................................................... 1
2 089037007048 Terminal............................................................ 1
3 410252001 Screw w/Washer (M4 x 12 mm, Pan Hd.)........ 3
4 089037007049 Motor Rear Cap ............................................... 1
5 0101010209 Brush Holder Clamp ........................................ 2
6 080015001427 Hex Nut (M5).................................................... 2
7 089037011050 Screw w/Washer (M5 x 35 mm, Pan Hd.)........ 3
8 089037007051 Motor Housing ................................................. 1
9 089037011028 Field Assembly................................................. 1
10 089037007052 Screw w/Washer (M5 x 70 mm, Hex Hd.)........ 2
 11 089037007053 BallBearing(6001ZZ)龍 ...................................... 1
12 089037011708 Armature Assembly
(Inc. Key Nos 11 and 13)................................. 1
13 089037007054 Ball Bearing (6201ZLU C3) .............................. 1
14 089037007055 Gear Box.......................................................... 1
15 420110004 Needle Bearing (HK0910) ................................ 1
16 089037011029 Arbor Assembly ............................................... 1
17 451010003 Strain Relief...................................................... 1
18 089037007050 Brush Holder.................................................... 2
19 0301025006 Brush ............................................................... 2
20 0121010242 Wire Clamp ...................................................... 1
21 412061001 Wave Washer ................................................... 1
22 410174721 Screw (8#-32 x 3/8 in., Pan Hd.)...................... 1
23 412042002 External Tooth Lock Washer (D4)..................... 2
KEY PART
NO. NUMBER DESCRIPTION QTY
KEY PART
NO. NUMBER DESCRIPTION QTY

11
RYOBI 10 in. TABLE SAW – MODEL NUMBER RTS21
WIRING DIAGRAM
BLACK
LEAD
BRUSH
RED
LEAD
RED LEAD
MOTOR
BRUSH
WIRE
CONNECTOR
BLACK
LEAD
POWER
CORD
BLACK
LEAD
SWITCH
WHITE
LEAD
WHITE LEAD
WHITE
LEAD GREEN
LEAD
GREEN
LEAD
GREEN
LEAD
MOTOR
CORD
