Ryobi RLT26CDSE User manual

ORIGINAL INSTRUCTIONS
Grass Trimmer
RLT26CDSE

Important!
It is essential that you read the instructions in this manual before assembling,
operating, and maintaining the product.
Subject to technical modification.

1
Safety, performance, and dependability have been given
top priority in the design of your grass trimmer.
INTENDED USE
The grass trimmer is intended to be used only by adults who
have read and understood the instructions and warnings
in this manual and can be considered responsible for their
actions. The product is only intended for use outdoors in a
well-ventilated area. For safety reasons, the product must
be adequately controlled by a two-handed operation.
The product is designed for cutting grass, light weeds,
and other similar vegetation at or about ground level.
The cutting plane should be approximately parallel to the
ground surface.
The product should not be used to cut or trim hedges,
bushes, or other vegetation where the cutting plane is not
at or about ground surface level.
Do not use the product for any other purpose.
WARNING
To reduce the risk of injury, the user must read and
understand the operator’s manual.
WARNING
Do not attempt to operate the product until you
have read thoroughly and understood completely all
instructions and safety rules contained in this manual.
Failure to comply may result in accidents involving fire,
electric shock, or serious personal injury. Save the
operator’s manual and review frequently for continuing
safe operation, and instructing others who may use the
product.
WARNING
The product is not intended to be used by children or
persons with reduced physical, mental, or sensory
capabilities. Children should be adequately supervised
to ensure they do not play with the product.
GENERAL SAFETY WARNINGS
■For safe operation, read and understand all instructions
before using the product. Follow all safety instructions.
Failure to follow all safety instructions listed below can
result in serious personal injury.
■Some regions have regulations that restrict the use of
the product. Check with your local authority for advice.
■Do not allow children or untrained individuals to use the
product.
■Never start or run the engine in a closed or poorly
ventilated area; breathing exhaust fumes can kill.
■Clear the work area before each use. Remove all
objects such as rocks, broken glass, nails, wire, or
string that can be thrown or become entangled in the
string head.
■Wear full eye and hearing protection while operating the
product. If working in an area where there is a risk of
falling objects, head protection must be worn.
■Hearing protection may restrict the operator’s ability
to hear warning sounds. Pay particular attention to
potential hazards around and inside the working area.
■Wear heavy, long trousers, non-slip protective footwear,
and gloves. Do not wear loose fitting clothing, short
trousers, jewellery of any kind, or use with bare feet.
■Secure long hair so it is above shoulder level to prevent
entanglement in any moving parts.
■Keep all bystanders, children, and pets at least 15 m
away. Stop the product if anyone enters the area.
■Do not use the product when tired, ill, under medication,
or under the influence of alcohol and drugs.
■Do not use in poor lighting. The operator needs clear
unrestricted vision to identify potential hazards.
■Keep firm footing and balance at all times. Do not
overreach. Overreaching can result in loss of balance
or exposure to hot surfaces.
■Keep all parts of your body away from any moving part.
■Do not touch the area around the silencer or cylinder of
the product, these parts get hot from operation.
■Always stop the engine and allow it to cool down before
making any adjustments.
■Do not smoke when mixing the fuel or when filling the
fuel tank.
■Mix and store the fuel in a container that is approved
for fuel.
■Mix the fuel outdoors where there are no sparks or
flames. Wipe up any fuel spillage. Move 9 m away from
refueling site before starting engine.
■Stop the engine and allow it to cool down before
refueling or storing the product.
■Allow the engine to cool down; empty the fuel tank and
secure the product from moving before transporting in
a vehicle.
■Turn off the engine. Make sure all moving parts have
come to stop:
●before servicing
●before clearing a blockage
●before checking, cleaning, and working on the
product
●before changing accessories
●after striking a foreign object
●whenever leaving the product unattended
●whenever performing maintenance
●whenever the product starts to vibrate abnormally
WARNING
Never use cutting means or attachments which are not
specified by RYOBI in this manual. This includes the
use of metal multi-piece pivoting chains and flail-blades.
These items are known to break up during use and
present a high risk of serious injury to the operator or
bystanders.

2
WARNING
Inspection after dropping or other impacts: Thoroughly
inspect the product and identify any problems or damage
to it. Any part that is damaged should be properly
repaired or replaced by an authorised service centre.
GRASS TRIMMER SAFETY WARNINGS
■Replace the string head if cracked, chipped, or
damaged in any way. Be sure the string head is
properly installed and securely fastened. Failure to do
so can cause serious injury.
■Avoid using on wet grass.
■Do not walk backwards when using the product.
■Walk, never run.

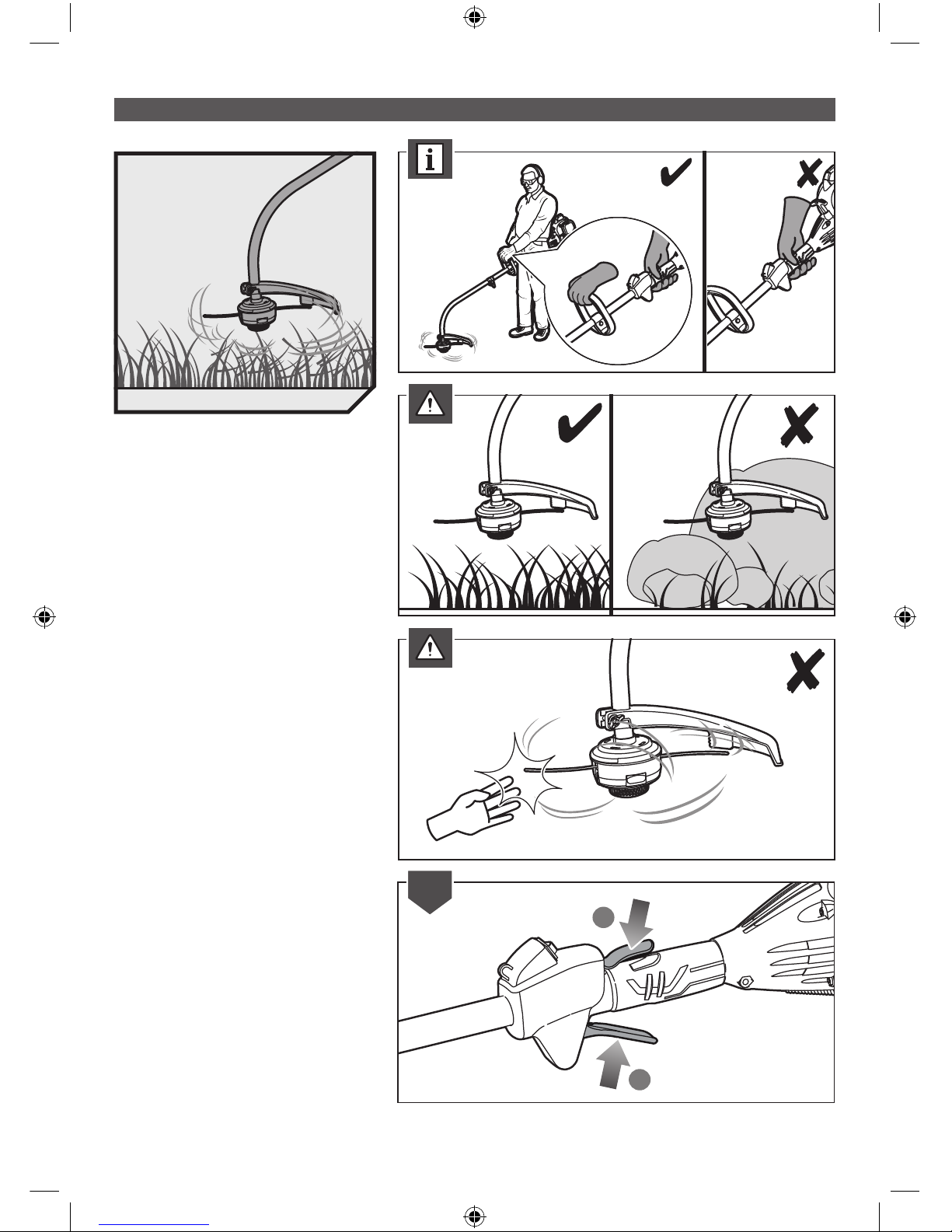

■The small blade fitted to the cutting attachment guard
is designed to trim the new extended line to the correct
length for safe and optimum performance. It is very
sharp; do not touch it, particularly when cleaning the
product.
■Always ensure that ventilation openings are kept clear
of debris.
■Before use and after any impact, check that there are
no damaged parts. Examine the cutting means for signs
of cracking or other damage. A defective switch or any
part that is damaged should be properly repaired or
replaced by an authorised service facility.
■Make sure the head attachment is properly installed
and securely fastened.
■Make sure all guards, deflectors, handles, bolts, and
fasteners are properly and securely attached.
■Do not modify the product in any way. This may
increase the risk of injury to yourself or others.
■Use only the manufacturer’s replacement line in the
cutting head. Do not use any other cutting attachment.
■Never use the product without the cutting attachment.
■Maintain a firm grip on both handles while trimming.
Keep string head below waist level. Never cut with the
string head located more than 76 cm above the ground.
TRANSPORTATION AND STORAGE
■Stop the engine and allow it to cool down before storing
or transporting.
■Clean all foreign materials from the product.
■Drain all fuel from tank into a container approved for
petrol. Remember to properly replace and tighten the
fuel cap.
■Run the engine until it stops, this will remove all fuel
that could become stale and leave varnish and gum in
the fuel system.
■Drain all lubricant from tank into a container approved
for lubricant. Remember to properly replace the
lubricant cap.
■Store the product in a cool, dry, and well-ventilated
place that is inaccessible to children. Keep away from
corrosive agents, such as garden chemicals and de-
icing salts. Do not store outdoors.
■When transporting the product in a vehicle, secure it
against movement or falling to prevent injury to persons
or damage to the product.
■Never carry or transport the product while the engine
is running.
■Abide by all government and local regulations for the
safety storage and handling of petrol.
Storage (1 month or longer)
■Drain all fuel from tank into a container approved for
fuel. Run engine until it stops.
■Clean all foreign material from the product. Store it in
a well-ventilated place that is inaccessible to children.
■Keep away from corrosive agents such as garden
chemicals and de-icing salts.
■Abide by all ISO and local regulations for the safe
storage and handling of fuel. Excess fuel should be
used in other 2-cycle engine powered equipment
Short term
■Stop the engine, and allow it to cool down before
storing.
■Clean all foreign material from the product.
■Store the product in a cool, dry, and well-ventilated
place that is inaccessible to children.
■Keep away from corrosive agents such as garden
chemicals and de-icing salts.
■Do not store outdoors.

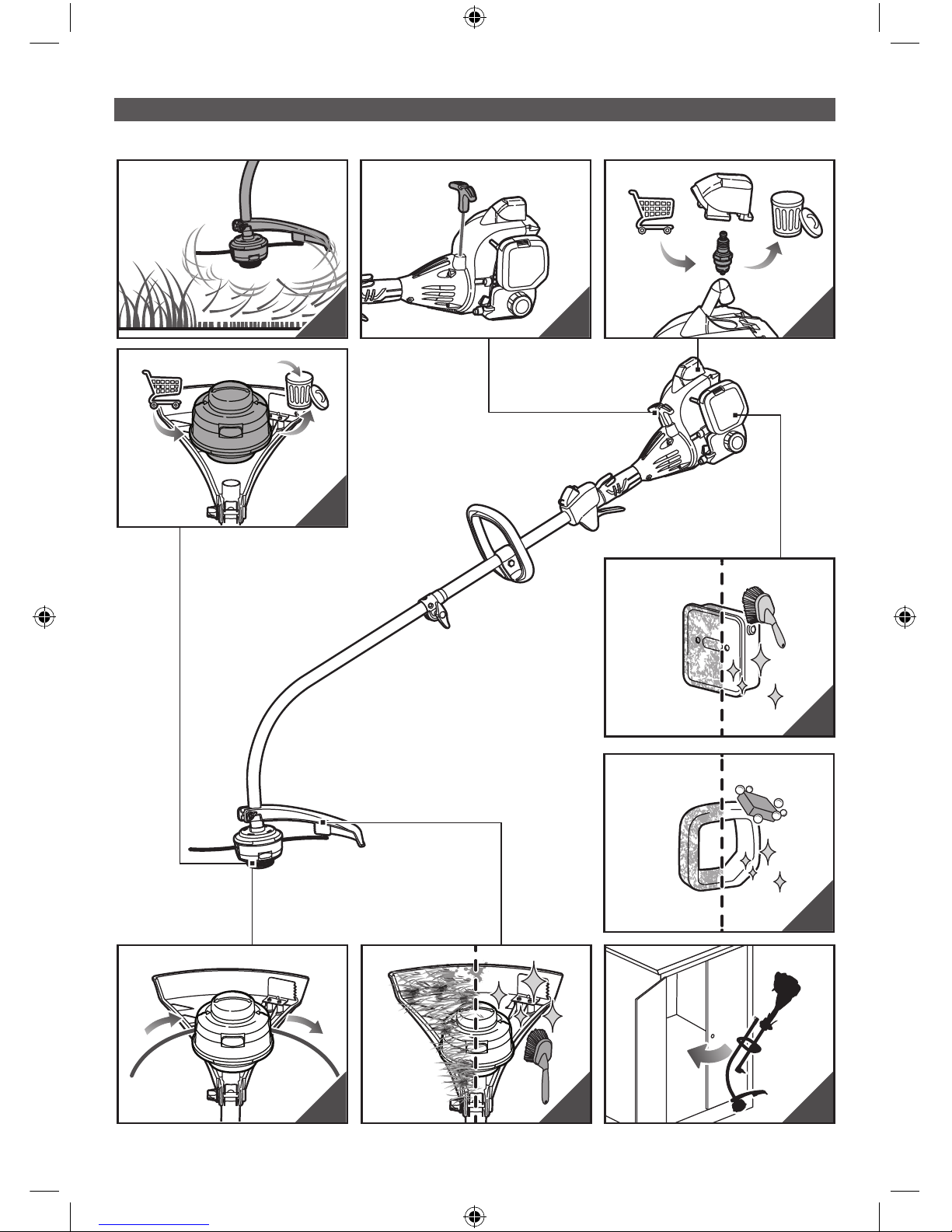

MAINTENANCE
WARNING
Use only original manufacturer’s replacement parts,
accessories, and attachments. Failure to do so can
cause possible injury, contribute to poor performance,
and may void your warranty.
■Always stop the engine and allow it cool down before
making any maintenance.
■You may make adjustments and repairs described in
this manual. For other repairs, contact an authorised
service centre.
■Consequences of improper maintenance may include
excess carbon deposits resulting in loss of performance
and discharge of black lubricant residue dripping from
the silencer.
■For the replacement line, use only nylon filament line
of the diameter described in the specification table of
this manual.
■After extending the new cutter line, always return the
product to its normal operating position before starting.
■After each use, clean the product with a soft, dry cloth.
■Any part that is damaged should be properly repaired or
replaced by an authorised service centre.
■Check all nuts, bolts, and screws at frequent intervals
for proper tightness to ensure the product is in a safe
working condition.

3
RESIDUAL RISKS
Even when the product is used as prescribed, it is still
impossible to completely eliminate certain residual risk
factors. The following hazards may arise during use, and
the operator should pay special attention to avoid the
following:
■injury caused by vibration
–Hold the product by designated handles and restrict
working time and exposure.
■injury caused by exposure to noise
–Wear hearing protection and limit exposure.
■injury caused by flying debris
–Wear eye protection at all times.
RISK REDUCTION
It has been reported that vibrations from handheld tools
may contribute to a condition called Raynaud’s Syndrome.
Symptoms may include tingling, numbness and blanching
of the ngers, usually apparent upon exposure to cold.
Hereditary factors, exposure to cold and dampness, diet,
smoking and work practices are all thought to contribute to
the development of these symptoms. There are measures
that can be taken by the operator to possibly reduce the
effects of vibration:
■Keep your body warm in cold weather. When operating
the product, wear gloves to keep the hands and wrists
warm. It is reported that cold weather is a major factor
contributing to Raynaud’s Syndrome.
■After each period of operation, exercise to increase
blood circulation.
■Take frequent work breaks. Limit the amount of
exposure per day.
If you experience any of the symptoms of this condition,
immediately discontinue use and see your physician.
WARNING
Injuries may be caused, or aggravated, by prolonged
use of a tool. When using any tool for prolonged periods,
ensure you take regular breaks.

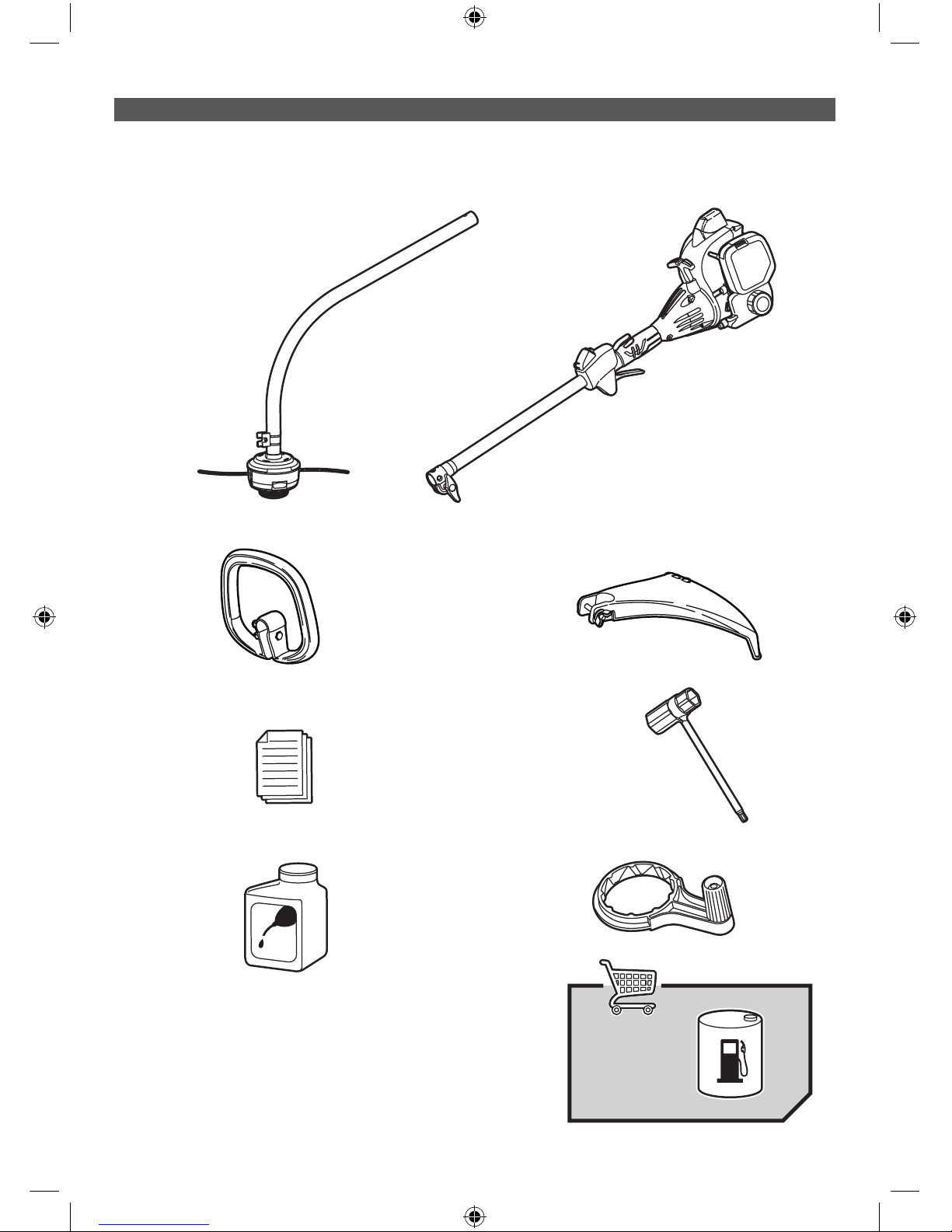

WHAT’S IN THE BOX
■Lower boom and string head assembly
■Powerhead and upper boom assembly
■D-handle
■Trimmer guard
■Combination wrench
■Speedwinder handle
■Ethanol shield lubricant
■Operator’s manual

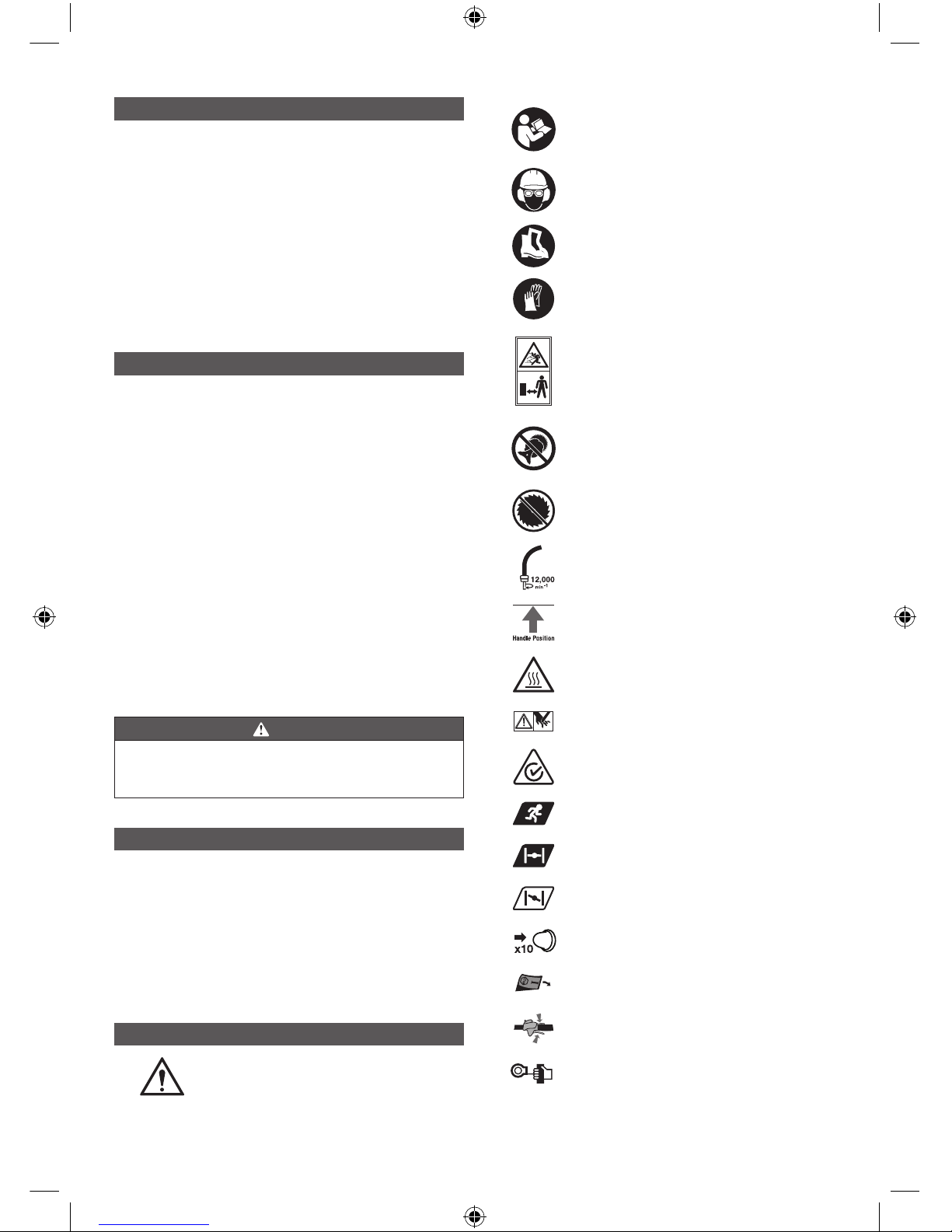

SYMBOLS ON THE PRODUCT
Safety alert
Read and understand all instructions
before operating the product, follow all
warnings and safety instructions.
Wear eye, ear, and head protection.
Wear non-slip safety footwear when
using the product.
Wear non-slip, heavy-duty gloves.
Beware of thrown or flying objects.
Keep all bystanders, especially children
and pets, at least 15 m away from the
operating area.
Do not install any type of blade on this
product.
This product is not intended for use
with a toothed saw type blade.
Rotational direction and maximum speed
of the shaft for the cutting attachment.
Handle position
To reduce the risk of injury or damage,
avoid contact with any hot surface.
Keep hands away from blades
Regulatory Compliance Mark (RCM).
This product meets applicable regulatory
requirements.
“Run” position
“Full” position
“Half” position
PRIME - press the primer bulb 10 times
slowly.
Switch to “I/STOP” position
Squeeze throttle trigger to start / run.
Pull the starter rope to start.

4
PLACEHOLDER
SYMBOLS IN THIS MANUAL
Note
Warning
Unlock
ASSEMBLY
UNPACKING
The product requires assembly.
■Carefully remove the product and any accessories from
the box. Make sure that all items listed in the packing
list are included.
■Inspect the product carefully to make sure no breakage
or damage occurred during shipping.
■Do not discard the packing material until you have
carefully inspected and satisfactorily operated the
product.
WARNING
If any parts are damaged or missing, do not operate the
product until the parts are replaced. Failure to heed this
warning could result in serious personal injury.
WARNING
Do not attempt to modify the product or create
accessories not recommended for use with the product.
Any such alteration or modication is misuse and could
result in a hazardous condition leading to possible
serious personal injury.
WARNING
Never attach or adjust any attachment while power head
is running. Failure to stop the engine may cause serious
personal injury.
WARNING
To avoid serious injury, ensure that all grass deector
and covers are correctly tted and all xings and
fasteners are tight before use. Re-check tightness after
a period of use.

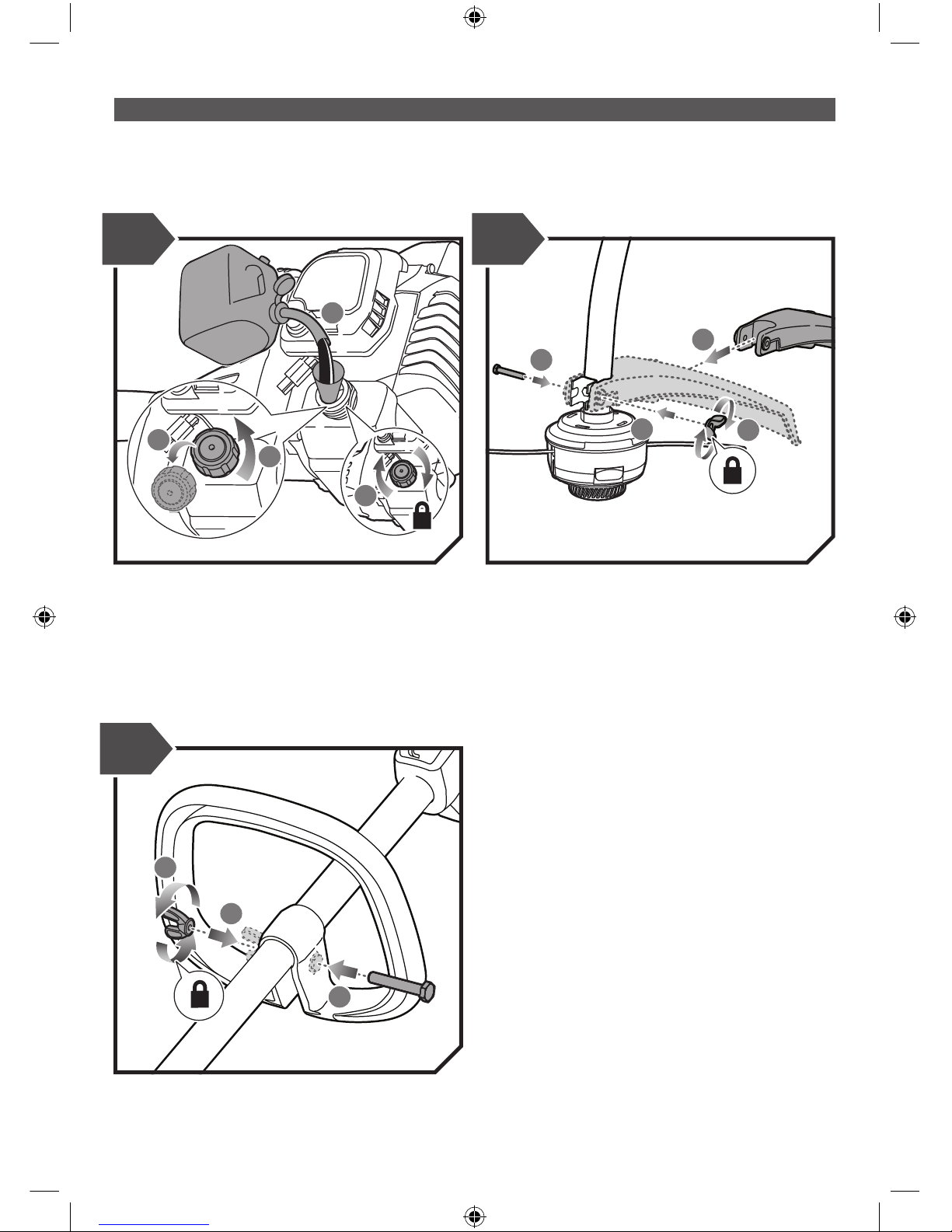

ATTACHING THE FRONT HANDLE
■Remove the bolt and wing nut from the front handle.
■Install the front handle onto the top side of the drive
shaft in the area indicated by the label.
■Place the bolt through the front handle.
NOTE: The hex bolt head fits inside the hex recess
molded into one side of the handle.
■Reinstall the wing nut.
■Tighten wing nut securely.
ATTACHING THE CURVED SHAFT GRASS DEFLECTOR
■Remove the bolt and wing nut from grass deflector.
■Press the grass deflector onto the bottom of the curved
shaft.
Wait for 10 seconds
Use unleaded petrol intended for motor
vehicle use with an octane rating of
91([R+M]/2) or higher.
Use 2-stroke lubricant for air cooled
engines.
Mix the fuel mix thoroughly and also each
time before refuelling.
Starting a cold engine
Starting a warm engine
Per ANSI B175.3
76.8 dB(A)
Sound pressure level
The following signal words and meanings are intended to
explain the levels of risk associated with this product.
DANGER
Indicates an imminently hazardous situation, which, if
not avoided, will result in death or serious injury.
WARNING
Indicates a potentially hazardous situation, which, if not
avoided, could result in death or serious injury.
CAUTION
Indicates a potentially hazardous situation, which, if not
avoided, may result in minor or moderate injury.
CAUTION
Without safety alert symbol
Indicates a situation that may result in property damage.
SYMBOLS IN THIS MANUAL
Parts or accessories sold separately
Note
Warning
Risk of re
Do not smoke
Lock

5
■Insert the bolt through the grass deflector and the
bracket on the curved shaft.
■Place the wing nut on the bolt and tighten securely

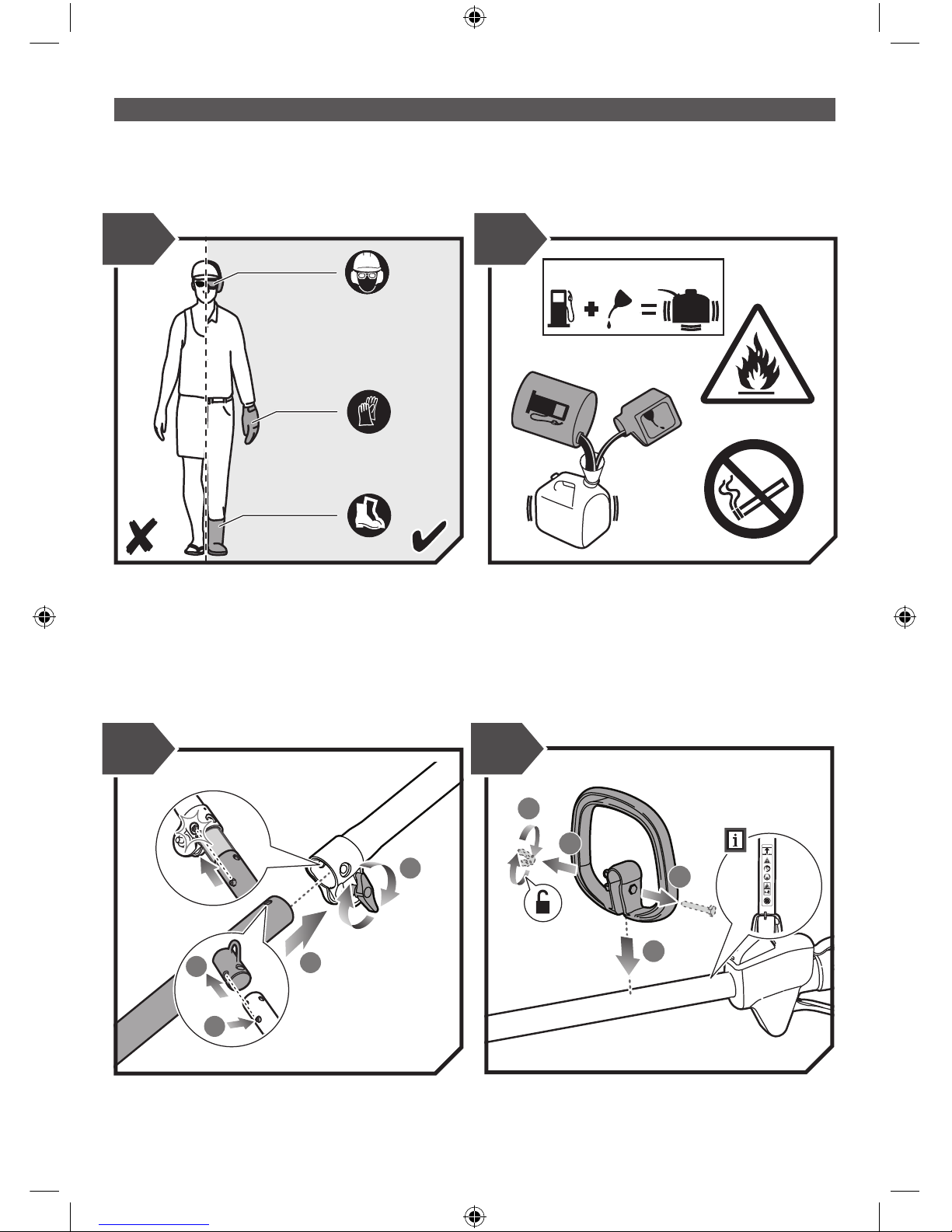

ATTACHING THE LOWER BOOM TO THE POWER
HEAD
WARNING
Never attach or adjust any attachment while power head
is running. Failure to stop the engine may cause serious
personal injury.
■The lower boom connects to the power head by means
of a coupler device.
■Loosen the knob on the coupler of the power head upper
boom and remove the end cap from the attachment.
■Push in the button located on the lower boom. Align the
button with the guide recess on the power head coupler
and slide the two booms together.
■Rotate the lower boom until the button locks into the
positioning hole.
NOTE: If the button does not release completely in the
positioning hole, the booms are not locked into place.
Slightly rotate from side to side until the button is locked
into place.
■Tighten the knob securely.
WARNING
To avoid serious injury, ensure that all grass deector
and covers are correctly tted and all xings and
fasteners are tight before use. Re-check tightness after
a period of use.
REMOVING THE LOWER BOOM FROM THE POWER
HEAD
■Loosen the knob.
■Push in the button and twist the lower boom to remove
and separate ends.
WARNING
Always stop the engine and remove the spark plug
wire before making any adjustments such as changing
cutting heads; this is to reduce the risk of serious
personal injury.
OPERATION
FUEL AND REFUELING
Handling the fuel safely
■Always handle fuel with care, it is highly flammable.
■Always refuel outdoors where there are no sparks and
flames. Do not inhale fuel vapors.
■Do not let petrol or oil come in contact with your skin.
■Keep petrol and oil away from the eyes. If petrol or oil
comes in contact with the eyes, wash them immediately
with clean water. If irritation is still present, see a
physician immediately.
■Clean up spilled petrol immediately.
Mixing the fuel
■The product is powered by a 2-stroke engine and
requires pre-mixing petrol and 2-stroke oil. Store pre-
mix unleaded petrol and 2-stroke engine oil in a clean
container approved for petrol.
■This engine is certified to operate on unleaded petrol
intended for automotive use with an octane rating of 91
([R + M] / 2) or higher.
■Do not use any type of pre-mixed petrol / oil from fuel
service stations, this includes the pre-mixed petrol / oil
intended for use in mopeds, motorcycles, etc.
■Use synthetic 2-stroke oil only. Do not use automotive
oil or 2-stroke outboard oil.
■Mix 2% synthetic 2-stroke oil into the petrol. This is a
50:1 ratio.
■Mix the fuel thoroughly and also each time before
fuelling.
■Mix in small quantities. Do not mix quantities larger
than usable in a 30 day period. Synthetic 2-stroke oil
containing a fuel stabilizer is recommended.
1 Litre + 20 ml =
2 Litres + 40 ml =
3 Litres + 60 ml = 50:1 (2%)
4 Litres + 80 ml =
5 Litres + 100 ml =
Filling the tank
■Clean the surface around the fuel cap to prevent
contamination.
■Loosen the fuel cap slowly to release pressure and to
keep fuel from escaping around the cap.
■Carefully pour the fuel mixture into the tank. Avoid
spillage.
■Prior to replacing the fuel cap, clean and inspect the
gasket.
■Immediately replace fuel cap and hand tighten. Wipe
up any fuel spillage. Move 9 m away from refueling site
before starting engine.
NOTE: It is normal for smoke to be emitted from a new
engine during and after first use.

6
WARNING
Always shut off the engine before fueling. Never add fuel
to a machine with a running or hot engine. Move at least
9 m from refueling site before starting engine. Do not
smoke!

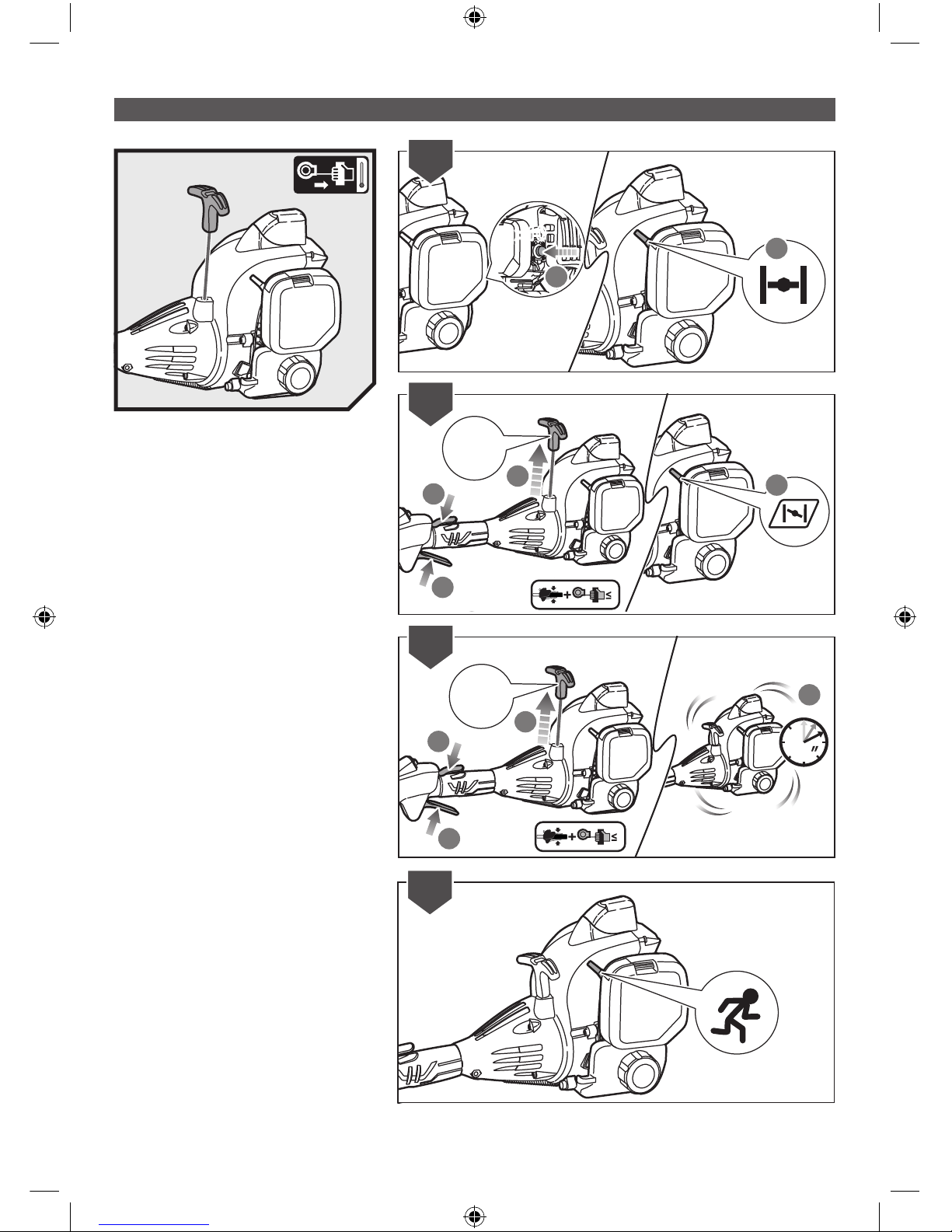

STARTING THE PRODUCT
Starting the product differs depending on whether the
engine is cold (not yet started today) or warm (has been
running in the last hour). Always refer to the Starting
Instructions label on the air lter when starting the engine.
Refer below for full instructions.
WARNING
Never start or run the engine inside a closed or poorly
ventilated area; breathing exhaust fumes can kill.
NOTE: Before starting the product, make sure the trimmer
is lying on a flat and bare surface.
Starting a cold engine:
1. Ensure the switch is in the “I” (ON) position.
2. Press the primer bulb for 10 times.
NOTE: After the 7th press, the fuel should be visible in
the primer bulb. If not, continue pressing until the fuel
is visible.
3. Set the choke lever to choke position.
4. Squeeze the throttle lock and throttle trigger completely
and pull the starter grip until the engine attempts to
start. Do not pull the starter grip more than 4 times.
NOTE: Keep the throttle lock and throttle trigger
squeezed completely through steps 4 to 7.
5. Set the choke lever to choke position.
6. Pull the starter grip until the engine starts. Do not pull
the starter grip for more than 6 times.
NOTE: If the engine does not start, return to choke
position and repeat the process beginning at step 2.
7. Allow the engine to run for 10 seconds, then set the
choke lever to position.
Starting a warm engine:
1. Ensure the switch is in the “I” (ON) position.
2. Press the primer bulb for 10 times.
3. Set the choke lever to position.
4. Pull the starter grip until the engine starts. Do not pull
the starter grip for more than 6 times.
NOTE: If the engine does not start, return step 2 under
“To start a cold engine”.
Stopping the engine:
Set the ignition switch to the “STOP” (OFF) position.
OPERATING THE TRIMMER
■Hold the product with the right hand on the rear handle
and the left hand on the front handle.
■Keep a firm grip with both hands while in operation.
Trimmer should be held at a comfortable position with
the trigger handle about hip height.
■Always operate trimmer at full throttle. Cut tall grass
from the top down. This will prevent grass from
wrapping around the shaft housing and bump head
which may cause damage from overheating. If grass
becomes wrapped around the bump head, stop the
engine, wait for all moving parts to stop, and remove
the grass. Prolonged cutting at partial throttle will result
in lubricant dripping from the silencer.
■Maintain your grip and balance on both feet. Position
yourself so that you will not be drawn off balance by the
kick-back reaction.

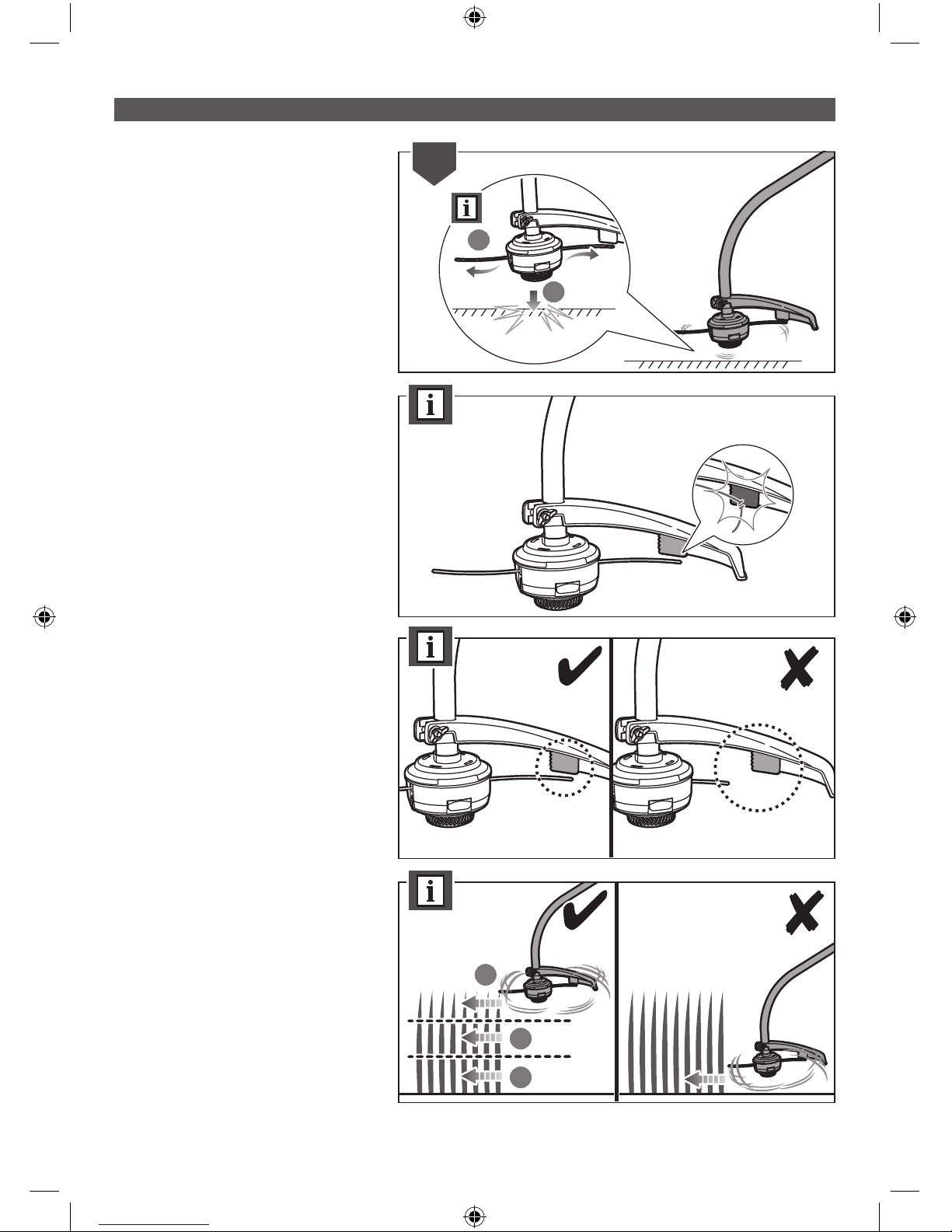

CUTTING TIPS
■When cutting, make sure the cutter head is at a slight
angle while still approximately parallel to the ground
surface. In tall grass, cut from the top down to ensure
the moving parts do not get tangled with the long grass.
IDLE SPEED ADJUSTMENT
■If the string still move at idle speed, contact an authorised
service centre for adjustment and discontinue use until
the repair is made.
CHECKING THE FUEL CAP
WARNING
A leaking fuel cap is a re hazard and must be replaced
immediately.
■The fuel cap contains a non-serviceable filter and a
check valve. A clogged fuel filter causes poor engine
performance.
■If performance improves when the fuel cap is loosened,
the valve may be faulty or the filter may be clogged.
Replace the fuel cap if necessary.
CLEANING THE AIR FILTER
A dirty air lter will cause starting difculty, loss of
performance, and shorten the life span of the engine.
Check the air lter monthly. For best performance, replace
the air lter at least once a year.
■Stop the engine.
■Remove the air lter cover by pushing down the latch
with your thumb while gently pulling on the cover.
■Remove the air lter.
■Clean the foam lter element with warm soapy water.
■Rinse and let dry.
NOTE: If the foam filter element is damaged, it should
be replaced.
■Apply a light coat of engine oil to the foam lter element,
then squeeze it out.
■Reinstall the air lter.
NOTE: Make sure the filter is seated properly inside
the cover. Installing the filter incorrectly will allow dirt to
enter the engine, causing rapid engine wear.
■Replace the air lter cover by inserting the slot at the

7
bottom of the air box cover into the latch at the bottom
of the air box base; push the air box cover up until it
latches securely in place.
NOTE: The air filter should be replaced annually for the
best performance.
REPLACING THE SPARK PLUG
This engine uses a CHAMPION RCJ6Y spark plug. Use
an exact replacement and replace annually. Follow these
steps to replace the spark plug.
■Stop the engine.
■Remove the spark plug boot.
■Loosen the spark plug by turning it counterclockwise
with a combination wrench.
■Remove the spark plug.
■Hand thread the new spark plug, turning it clockwise.
■Tighten with a combination wrench to 22~25 Nm
torque or one half of a turn from finger tight. Do not
overtighten.
WARNING
Be careful not to cross-thread the spark plug. Cross-
threading will seriously damage the engine.
CLEANING THE EXHAUST HOLE OF THE CYLINDER
AND INTAKE HOLE OF THE MUFFLER
Always stop the engine and allow it to cool down before
cleaning the exhaust hole.
■Make sure the product is in the “off” position.
■Remove the screws on the top and rear portions of the
housing counterclockwise.
■Remove the rear housing from the engine.
■Remove the muffler screws counterclockwise, and then
remove the muffler cover and , muffler and gasket from
the cylinder.
■Use the brush to clean the exhaust hole of the cylinder
and intake hole of the muffler.
■Replace the gasket, muffler and muffler cover. Replace
the screws and then tighten it clockwise.
■Replace the rear housing. Replace the screws, and
then tighten it clockwise.
WARNING
Always stop the engine and allow it to cool down before
cleaning the exhaust hole.
REPLACING THE STRING HEAD
■Turn off the product.
■Align the spanner along the flat side of arbor flange
washer.
■Turn counterclockwise to remove the old string head.
■Install the new string head, align the nut in the string
head to the connector shaft of lower boom.
■Turn the string head clockwise by hand to tighten,
recommended torque is 6 N.M.
WARNING
Always stop the engine and remove the spark plug
wire before making any adjustments such as changing
cutting heads; this is to reduce the risk of serious
personal injury.
REPLACING THE LINE
■Ensure the product is in “STOP” position.
■Use a 2.4 mm diameter monofilament string.
■Cut one piece of string approximately 5.4 m in length.
■Rotate the bump knob clockwise as necessary to align
the arrows on the bump knob with the arrows on the
lower housing of string head.
■Insert one end of the string into the eyelet located on
the side of the string head and push until string comes
out through eyelet on the other side.
■Continue to push string through the string head until
the middle section of the string is inside the string head
and string outside the string head is evenly divided on
each side.
■Rotate the knob on the string head clockwise to wind
the line.
■Wind the string until approximately 20 cm remains
protruding from the string head.

7
UNPACKING
x 1
x 1
x 1
x 1
x 1
x 1
x 1
x 1

8
Know your product
KNOW YOUR PRODUCT
10
11
12
9
1
2
3
4
5
6
7
8
13
14
15
17
16
18
1. Choke lever
2. Fuel cap
3. Throttle lock-out
4. Throttle trigger
5. Upper shaft
6. Knob
7. Bulb
8. Safety guard
9. Lower housing
10. Bump knob
11. Spool
12. Upper housing
13. Trimmer line
14. Lower shaft
15. Front handle
16. Switch
17. Rear handle
18. Starter grip

9
GETTING STARTED
1
(50 : 1)
50 : 1 / 2%
2
Use synthetic 2-stroke lubricant only. Do not use automotive
lubricant or 2-stroke outboard lubricant. Mix 2% synthetic 2-stroke
lubricant into the petrol. This is a 50:1 ratio.
3
1
2
2
6
Remove the screw and wing nut, and then attach the D-handle.
1
23
4
5
Attach the lower shaft.

10
GETTING STARTED
2
1
1
7
Secure the screw and wing nut of the D-handle to the upper shaft.
1
23
2
4
1
2
3
4
3
Attach the grass deector.
Remove the fuel cap and pour the fuel mixture into the tank. Avoid
spillage. Immediately replace fuel cap and hand tighten.

11
OVERVIEW
p.14
p.17
p.12-13 p.20
p.27p.18 p.26
p.22
p.24

12
OPERATION
4
1
2
3
IV
4x
10
4
1
2
3
IV
6x
2
3
2
x10x10
1
1
STARTING A COLD ENGINE
1. Press the primer bulb 10 times. Set the
choke lever to “Full” position.
2. Keep the throttle trigger squeezed completely
through steps 2 to 4 and pull the starter grip
until the engine attempts to start. Do not pull
the starter grip more than 4 times. Set the
choke lever to “half” position.
3. Pull the starter grip until the engine starts. Do
not pull the starter grip more than 6 times.
Allow the engine to run for 10 seconds
4. Set the choke lever to “Run” position.
44
66
4

13
OPERATION
IV
6x
10
2
3
2
x10x10
1
1
STARTING A WARM ENGINE
1. Press the primer bulb 10 times. Set the
choke lever to position.
2. Pull the starter grip until the engine starts. Do
not pull the starter grip for more than 6 times.
3. Allow the engine to run for 10 seconds.

14
OPERATION
1
2
1
OPERATING THE TRIMMER
NOTE: Hold the product with the right hand
on the trigger handle and the left hand on
the left handle.
WARNING:
Do not cut in a dangerous cut-
ting area. Avoid trees and shrubs. Tree bark,
wood mouldings, cladding, and fence posts
can easily be damaged by the line.
WARNING
: Exercise extreme caution when
using the product.
1. To start operating the product, hold down
the throttle lock (1) and then squeeze the
throttle trigger (2)
.

15
OPERATION
1
2
2
1
2
3
2. Tap the knob on the ground to advance
the line. The line advances each time the
head is tapped. Do not hold the knob on
the ground.
NOTE: The line trimming cut-off blade on
the grass deflector will cut the line to the cor-
rect length.
NOTE: The small blade fitted to the cutting
attachment guard is designed to trim the
new extended line to the correct length for
safe and optimum performance. It is very
sharp; do not touch it, particularly when
cleaning the product.
NOTE: Cut tall grass from the top down. This
will prevent grass from wrapping around the
shaft housing and bump head, which may
cause damage from overheating.

16
OPERATION
NOTE: For cutting ease and safety, cut the
grass from the right side to the left side.

17
OPERATION
1
2
13
2
2
3
4
1
REPLACING THE STRING HEAD
1. Turn off the product
2. Align the spanner along the at side of arbor
ange washer.
3. Turn counterclockwise to remove the old
string head.
4. install the new string head, align the nut in the
string head to the connector shaft or lower
boom and turn the string head clockwise by
hand to tighten.
