Ryobi RLT36X33S User manual

ORIGINAL INSTRUCTIONS
Cordless Line
Trimmer
RLT36X33S
RLT36B33S

Important!
It is essential that you read the instructions in this manual before assembling,
operating, and maintaining the product.
Subject to technical modification.

1
Safety, performance, and dependability have been given
top priority in the design of your cordless line trimmer.
INTENDED USE
The cordless line trimmer is intended to be used only by
adults who have read and understood the instructions and
warnings in this manual and can be considered responsible
for their actions. This product is only intended for use
outdoors by a standing operator in a well-ventilated area.
For safety reasons, the product must be adequately
controlled by using two-handed operation.
When tted with the line trimmer head (and appropriate
guard), the product is intended for cutting long grass, pulpy
weed, and similar vegetation at or about ground level.
The cutting plane should be approximately parallel to the
ground surface when trimming. The product should not be
used to cut or trim hedges, bushes, or other vegetation
where the cutting plane is not parallel to the ground surface.
Do not use the product for any other purpose.
GENERAL SAFETY WARNINGS
WARNING
Read all safety warnings and all instructions. Failure
to follow the warnings and instructions may result in
electric shock, re and/or serious injury.
WARNING
When using the product, the safety rules must be
followed. For your own safety and that of bystanders,
please read these instructions before using the product.
Please keep the instruction safe for later use.
WARNING
The product is not intended to be used by children or
persons with reduced physical, mental, or sensory
capabilities. Children should be adequately supervised
to ensure they do not play with the product.
WARNING
Some regions have regulations that restrict the use of
the product. Check with your local authority for advice.
TRAINING
■Never allow children or people unfamiliar with these
instructions to use the product. Local regulations may
restrict the age of the operator.
■Read the instructions carefully. Be familiar with all
controls and the proper use of the product.
■Keep bystanders, children, and pets 15 m away from
the area of operation. Stop the product if anyone enters
the area.
■Never use the product when you are tired, ill, or under
the influence of alcohol, drugs or medicine.
■Keep in mind that the operator or user is responsible
for accidents or hazards occurring to other people or
their property.
PREPARATION
■Wear full eye and hearing protection while operating the
product. If working in an area where there is a risk of
falling objects, head protection must be worn.
■Hearing protection may restrict the operator’s ability
to hear warning sounds. Pay particular attention to
potential hazards around and inside the working area.
■Wear heavy-duty gloves, long trousers, and boots. Do
not wear loose fitting clothing, short trousers, jewellery
of any kind, or use with bare feet.
■Secure long hair so it is above shoulder level to prevent
entanglement in moving parts.
■Before use and after any impact, check that there are
no damaged parts. A defective switch or any part that
is damaged or worn should be properly repaired or
replaced by an authorised service centre.
■Make sure the cutting attachment is properly installed
and securely fastened.
■Never operate the product unless all guards, deflectors,
and handles are properly and securely attached.
■Consider the environment in which you are working.
Keep the working area free from wires, sticks, stones,
and debris which if struck by the cutter can become
thrown objects.
BATTERY TOOL USE AND CARE
■Recharge only with the charger specified by the
manufacturer. A charger that is suitable for one type of
battery pack may create a risk of fire when used with
another battery pack.
■Use power tools only with specifically designated
battery packs. Use of any other battery packs may
create a risk of injury and fire.
■When battery pack is not in use, keep it away from
other metal objects, like paper clips, coins, keys, nails,
screws or other small metal objects, that can make a
connection from one terminal to another. Shorting the
battery terminals together may cause burns or a fire.
■Under abusive conditions, liquid may be ejected from
the battery; avoid contact. If contact accidentally occurs,
flush with water. If liquid contacts eyes, additionally
seek medical help. Liquid ejected from the battery may
cause irritation or burns.
LINE TRIMMER SAFETY WARNINGS
■Never allow children, persons with reduced physical,
sensory, or mental capabilities, or lack of experience
and knowledge or people unfamiliar with these
instructions to use the product.
■Use the product in daylight or good artificial light.
■Avoid using on wet grass.
■Keep proper footing and balance at all times and be
sure of proper footing on slopes.
■Do not walk backwards when using the product.
■Walk, never run.
■Keep the head attachment below waist level.

2
■Never operate the product with damaged guards or
without guards in place.
■Never fit a metal replacement line.
■Keep hands and feet away from the cutting means at
all times and especially when switching the motor on.
■Beware, the cutting elements continue to rotate after
the motor is switched off.
■Beware of objects thrown by the cutting means. Clear
debris like small stones, gravel, and other foreign
objects from the work area before starting operation.
Wires or string may become entangled with the cutting
means.
■Switch off and remove battery pack before:
●servicing
●leaving the product unattended
●cleaning your product
●changing accessories
●checking for any damage after hitting an object
●checking for any damage if the product starts to
vibrate abnormally
●performing maintenance
■Wear full eye and hearing protection while operating the
product. If working in an area where there is a risk of
falling objects, head protection must be worn.
■Hearing protection may restrict the operators ability
to hear warning sounds, pay particular attention to
potential hazards around and inside the working area.
■Wear heavy-duty gloves, long trousers, and boots. Do
not wear loose fitting clothing, short trousers, jewellery
of any kind, or use with bare feet.
■Secure long hair so it is above shoulder level to prevent
entanglement in moving parts.
■The small blade fitted to the lawn guard is designed to
trim the new extended line to the correct length for safe
and optimum performance. It is very sharp, do not touch
it particularly when cleaning the tool.
■Always ensure that ventilation openings are kept clear
of debris.
■Before use and after any impact, check that there are
no damaged parts. A defective switch or any part that is
damaged should be properly repaired or replaced by an
authorised service centre.
■Make sure the cutting head attachment is properly
installed and securely fastened.
■Make sure all guards, deflectors, and handles are
properly and securely attached.
■Do not modify the product in any way, this may increase
the risk of injury to yourself or others.
■Use only the manufacturer’s replacement cutting line.
Do not use any other cutting attachment.
■Immediately switch off and remove the battery pack
in the event of accident or breakdown. Don’t operate
the product again until it has been fully checked by an
authorised service centre.
WARNING
Ensure that the line cut-off blade in guard is properly
positioned and secured before each use.
TRANSPORTATION & STORAGE
■Stop the product and allow it to cool down before storing
or transporting. Do not store or transport the product
with batteries fitted, remove and secure separately.
■Clean all foreign material from the product. Store it in a
cool, dry, and well-ventilated place that is inaccessible
to children. Keep away from corrosive agents such
as garden chemicals and de-icing salts. Do not store
outdoors.
■For transportation in vehicles, secure the product
against movement or falling to prevent injury to persons
or damage to the product.
TRANSPORTING LITHIUM BATTERIES
Transport the battery in accordance with local and national
provisions and regulations. Follow all special requirements
on packaging and labelling when transporting batteries by
a third party.
Ensure that no batteries can come in contact with other
batteries or conductive materials while in transport by
protecting exposed connectors with insulating, non-
conductive caps or tape. Do not transport batteries that are
cracked or leaking. Check with the forwarding company for
further advice.
MAINTENANCE
WARNING
Use only original manufacturer’s replacement parts,
accessories and attachments. Failure to do so can
cause possible injury, poor performance, and may void
your warranty.
WARNING
Servicing requires extreme care and knowledge
and should be performed only by a qualied service
technician. For service, bring the product to the nearest
authorised service centre for repair. When servicing, use
only identical replacement parts.
■Switch off and remove the battery pack before
conducting any maintenance or cleaning work.
■You may make adjustments and repairs described in
this manual. For other repairs, contact the authorised
service centre.
■Before any maintenance or adjustment, disable the
product by removing the power source.
■For replacement line, use only nylon filament line of
the diameter described in the specification table of this
manual.
■After extending new cutter line, always return the
product to its normal operating position before starting.
■After each use, clean the product with a soft, dry cloth.
Any part that is damaged should be properly repaired or
replaced by an authorised service centre.
■Check all nuts, bolts, and screws at frequent intervals
for proper tightness to ensure the product is in safe
working condition.

3
■Bring the product to an authorised service centre to
replace damaged or unreadable labels.
BATTERY PROTECTION FEATURES
Ryobi 36V Lithium-Ion batteries are designed with features
that protect the Lithium-Ion cells and maximise battery
life. If the tool stops during use, the following may be the
causes:
■The maximum current draw of the battery has been
exceeded, causing it to automatically stop powering the
product. Release the trigger to reset the product and
pull the trigger to resume operation.
■Excessive temperatures will cause the battery to stop
powering the prouduct. Feel the battery pack; if it is too
warm, allow it to cool down.
If the tool still does not work, recharge the battery.
NOTE: The battery pack indicator LED will not work if the
battery protection feature has caused the battery pack
to stop powering the product. Release the tool trigger or
remove the battery pack from the product and the battery
pack LED indicator will resume to it’s normal function.
RESIDUAL RISK
Even when the product is used as prescribed, it is still
impossible to completely eliminate certain residual risk
factors. The following hazards may arise in use and the
operator should pay special attention to avoid the following:
■Injury caused by vibration
–Hold the tool by designated handles and restrict
working time and exposure.
■Exposure to noise can cause hearing injury
–Wear ear protection and limit exposure.
■Eye injury due to flying debris
–Wear eye protection at all times.
RISK REDUCTION
It has been reported that vibrations from hand-held tools
may contribute to a condition called Raynaud’s Syndrome
in certain individuals. Symptoms may include tingling,
numbness and blanching of the ngers, usually apparent
upon exposure to cold. Hereditary factors, exposure to
cold and dampness, diet, smoking and work practices
are all thought to contribute to the development of these
symptoms. There are measures that can be taken by the
operator to possibly reduce the effects of vibration:
■Keep your body warm in cold weather. When operating
the product, wear gloves to keep the hands and wrists
warm. It is reported that cold weather is a major factor
contributing to Raynaud’s Syndrome.
■After each period of operation, exercise to increase
blood circulation.
■Take frequent work breaks. Limit the amount of
exposure per day.
■If you experience any of the symptoms of this condition,
immediately discontinue use and see your doctor about
these symptoms.
WARNING
Injuries may be caused, or aggravated, by prolonged
use of a tool. When using any tool for prolonged periods,
ensure you take regular breaks.
KNOW YOUR PRODUCT
See page 7.
1. Lock-out trigger
2. Variable speed trigger
3. Knob
4. Battery pack
5. Charger
6. Charger cable
7. Battery latch button
8. Spool cover
9. Spool
10. Eyelet
11. Grass deflector
12. Line cut-off blade
13. Cutting line
14. Lower shaft
15. Front handle
16. Rear handle

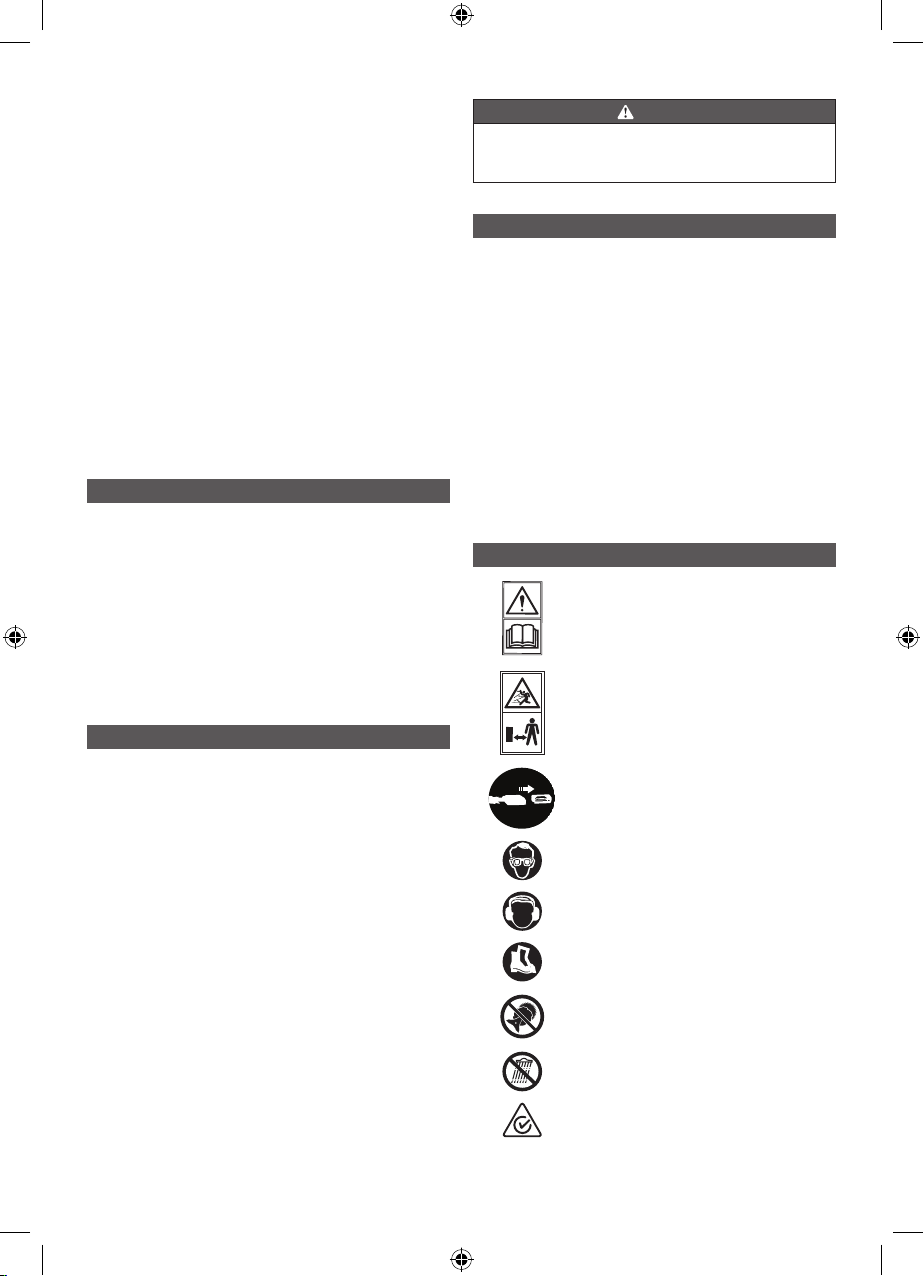

SYMBOLS ON THE PRODUCT
Read and understand all instructions
before operating the product, follow all
warnings and safety instructions.
Beware of thrown or ying objects.
Keep all bystanders, especially children
and pets, at least 15m away from the
operating area.
Remove the battery before starting any
work on the product.
Wear eye protection.
Wear ear protection.
Wear non-slip safety footwear when
using the product.
Do not use metal blade(s) on the
product.
Do not expose to rain or damp condition.
Regulatory Compliance Mark (RCM).
Product meets applicable regulatory
requirements.

4
Keep hands away from blades
Waste electrical products should not
be disposed of with household waste.
Please recycle where facilities exist.
Check with your local authority or retailer
for recycling advice.
The following signal words and meanings are intended to
explain the levels of risk associated with this product:
DANGER
Indicates an imminently hazardous situation, which, if
not avoided, will result in death or serious injury.
WARNING
Indicates a potentially hazardous situation, which, if not
avoided, could result in death or serious injury.
CAUTION
Indicates a potentially hazardous situation, which, if not
avoided, may result in minor or moderate injury.
CAUTION
Without safety alert symbol
Indicates a situation that may result in property damage.
SYMBOLS IN THIS MANUAL
Parts or accessories sold separately
Note
Warning

5
UNPACKING
x 1
x 1
x 1
x 1
x 1
x 1
x 1 x 1
RLT36X33S

6
UNPACKING
x 1x 1
x 1
x 1
x 1
x 1
RLT36B33S

7
Know your product

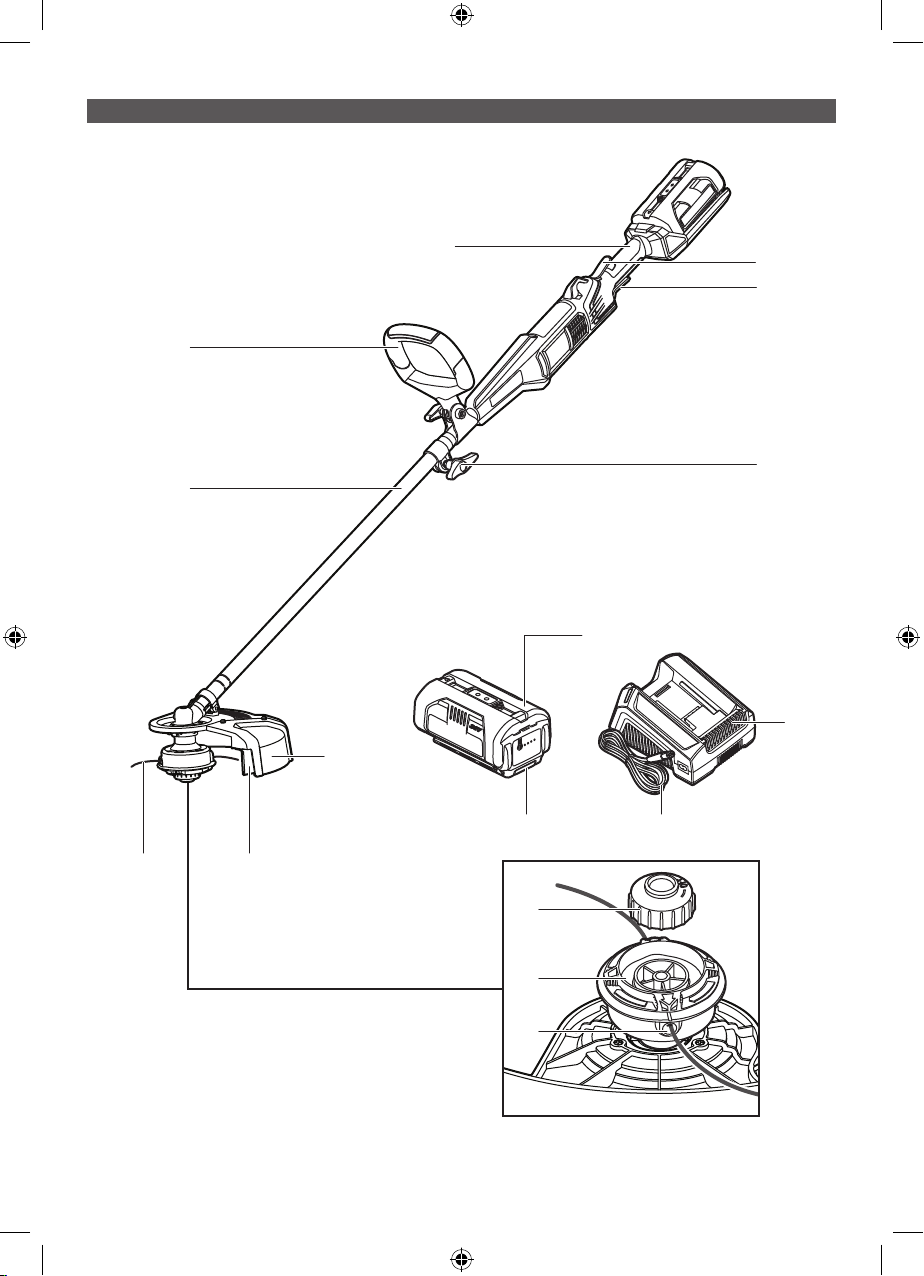

KNOW YOUR PRODUCT
11
13 12
7 6
14
8
9
10
15
2
1
3
5
4
16

8

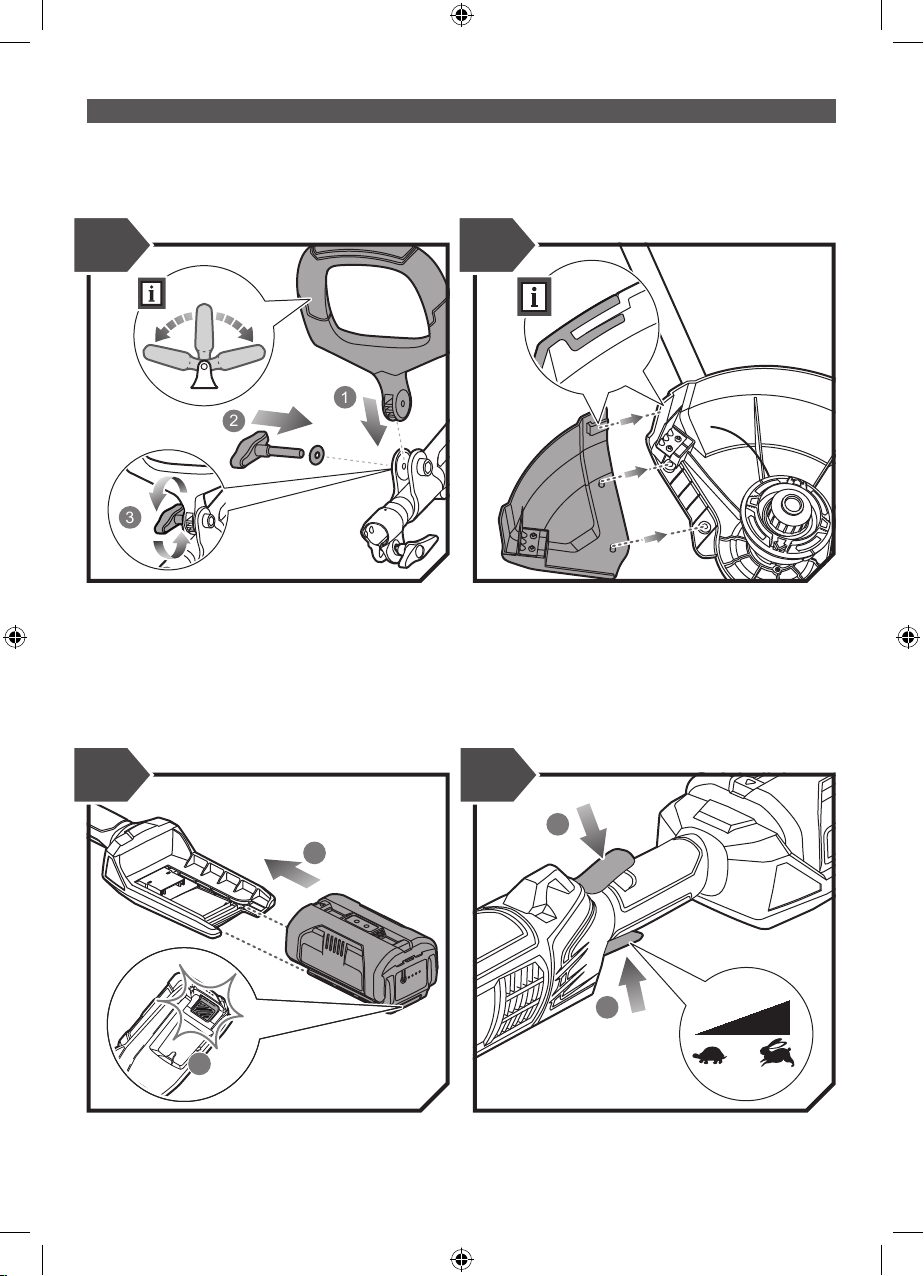

GETTING STARTED
1
2
3
1
24
1 2
65

9

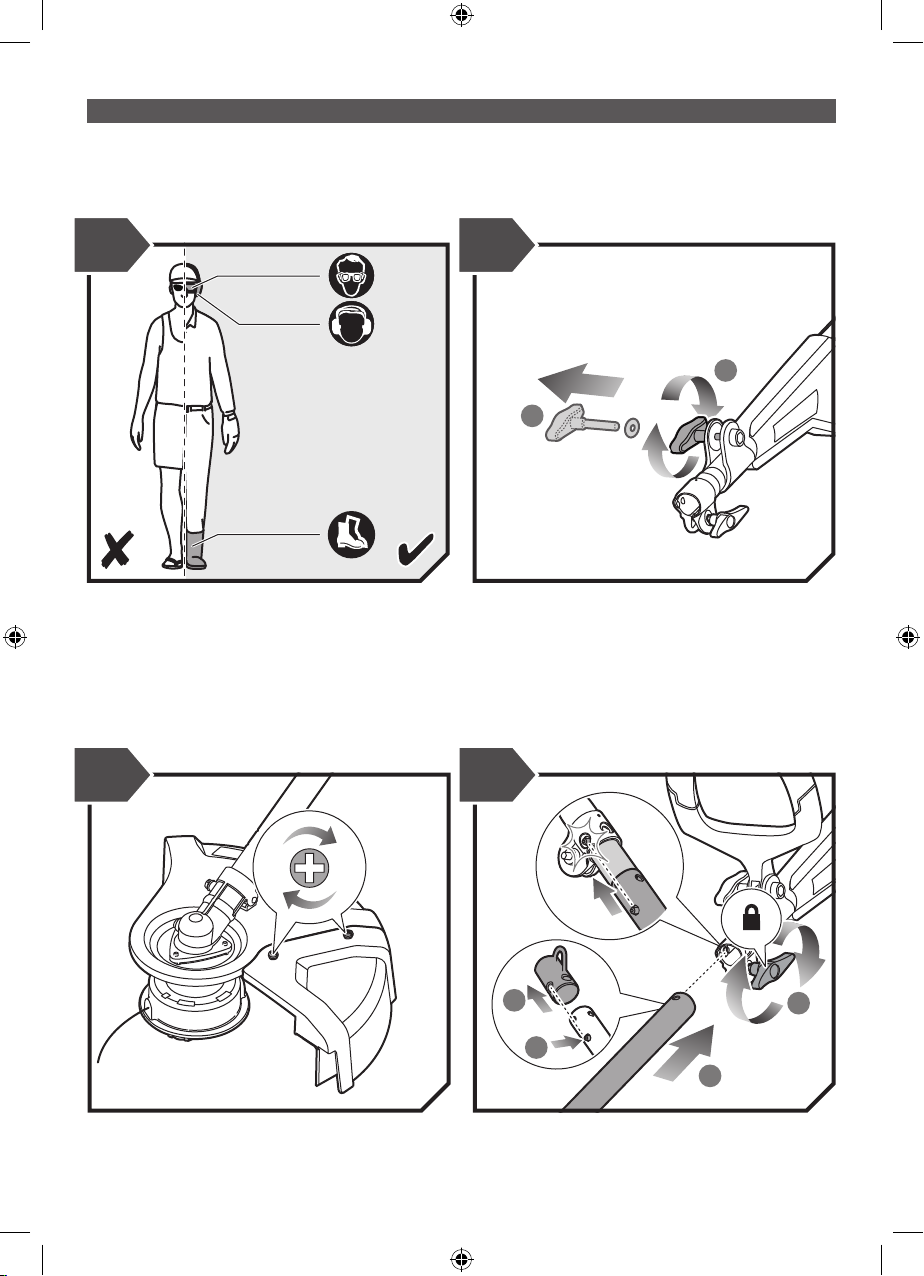

GETTING STARTED
1
2
7
1
2
1
2
3
8
3 4

10

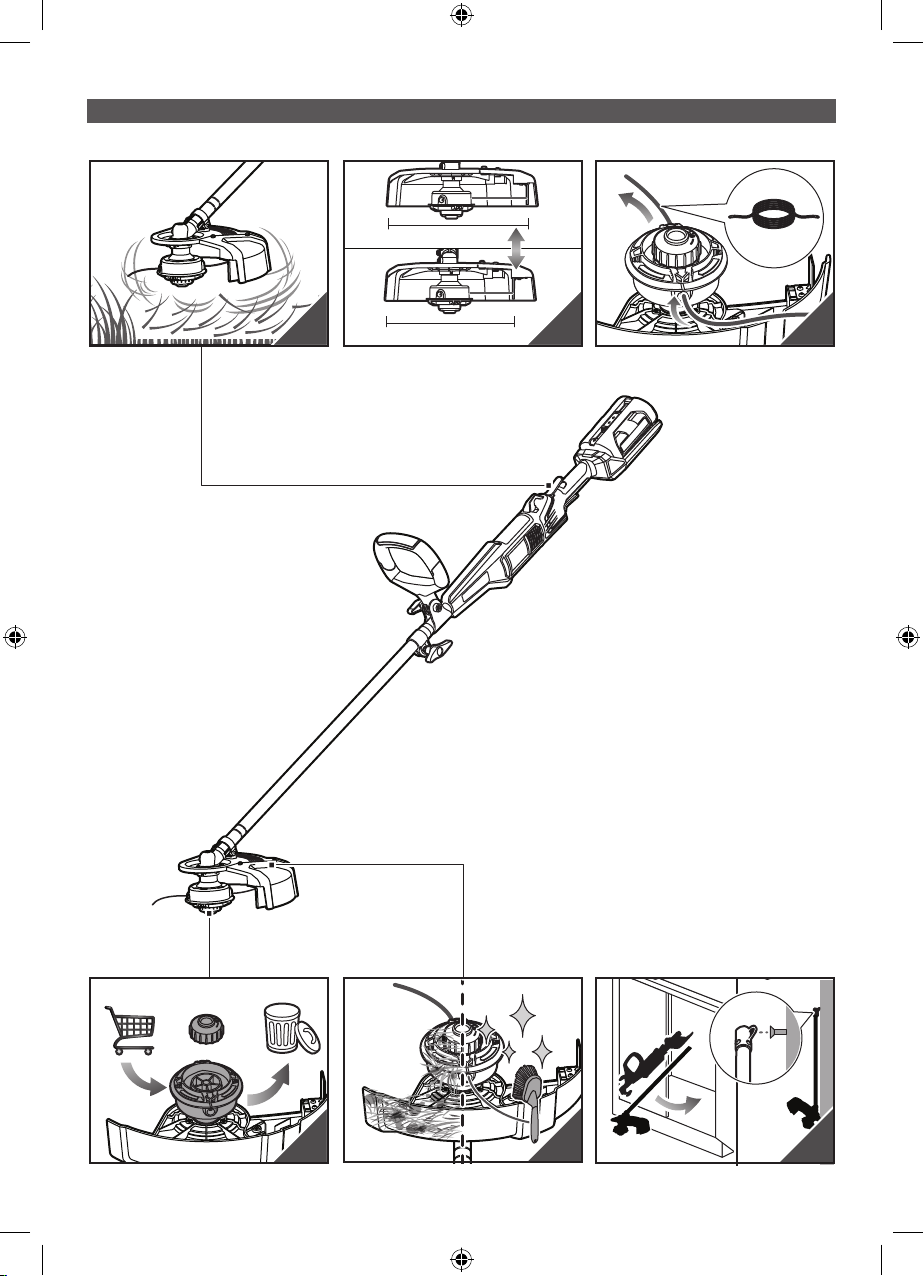

OVERVIEW
13 in
11 in
p.11 p.14 p.15
p.20p.18 p.19

11

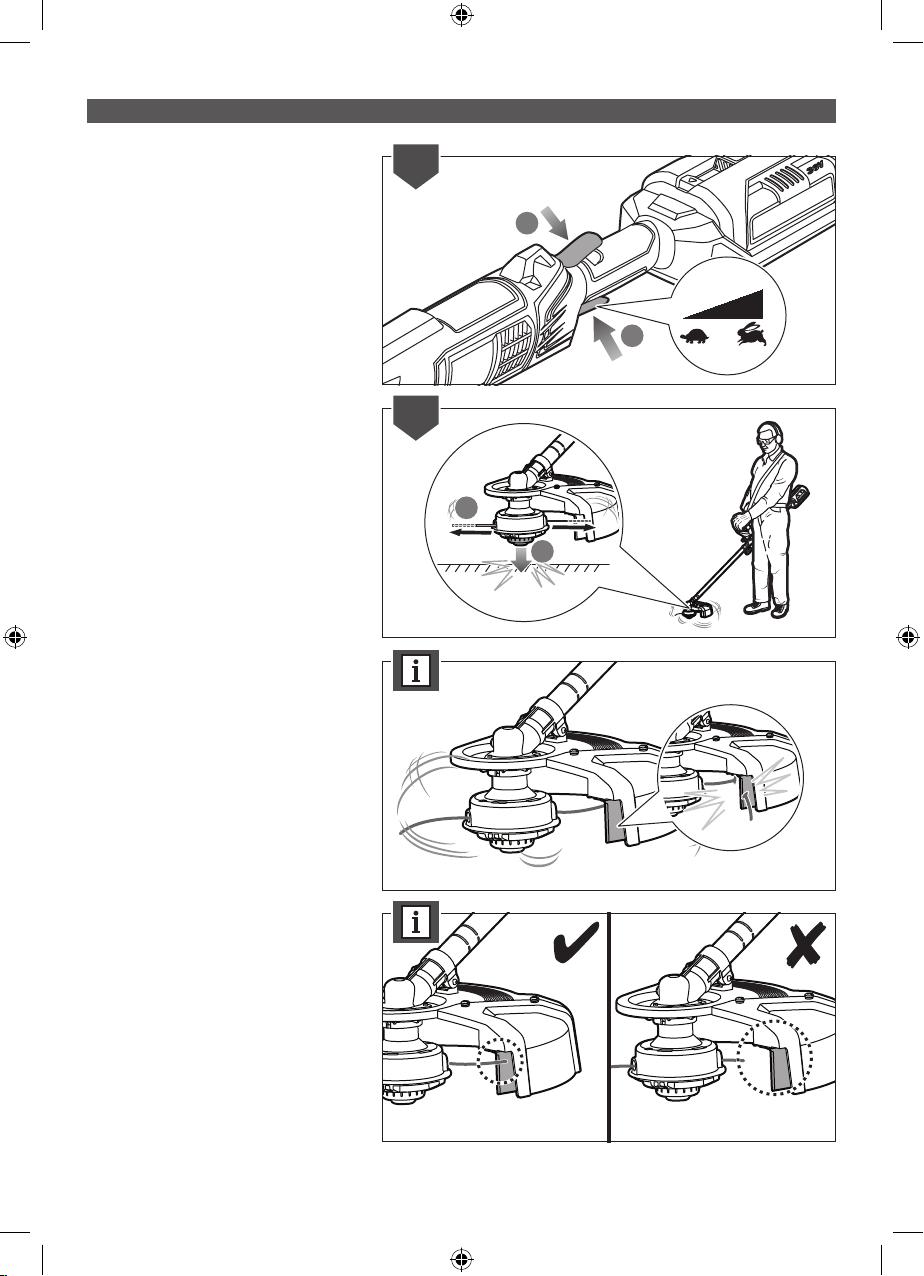

OPERATION
1
2
1

12

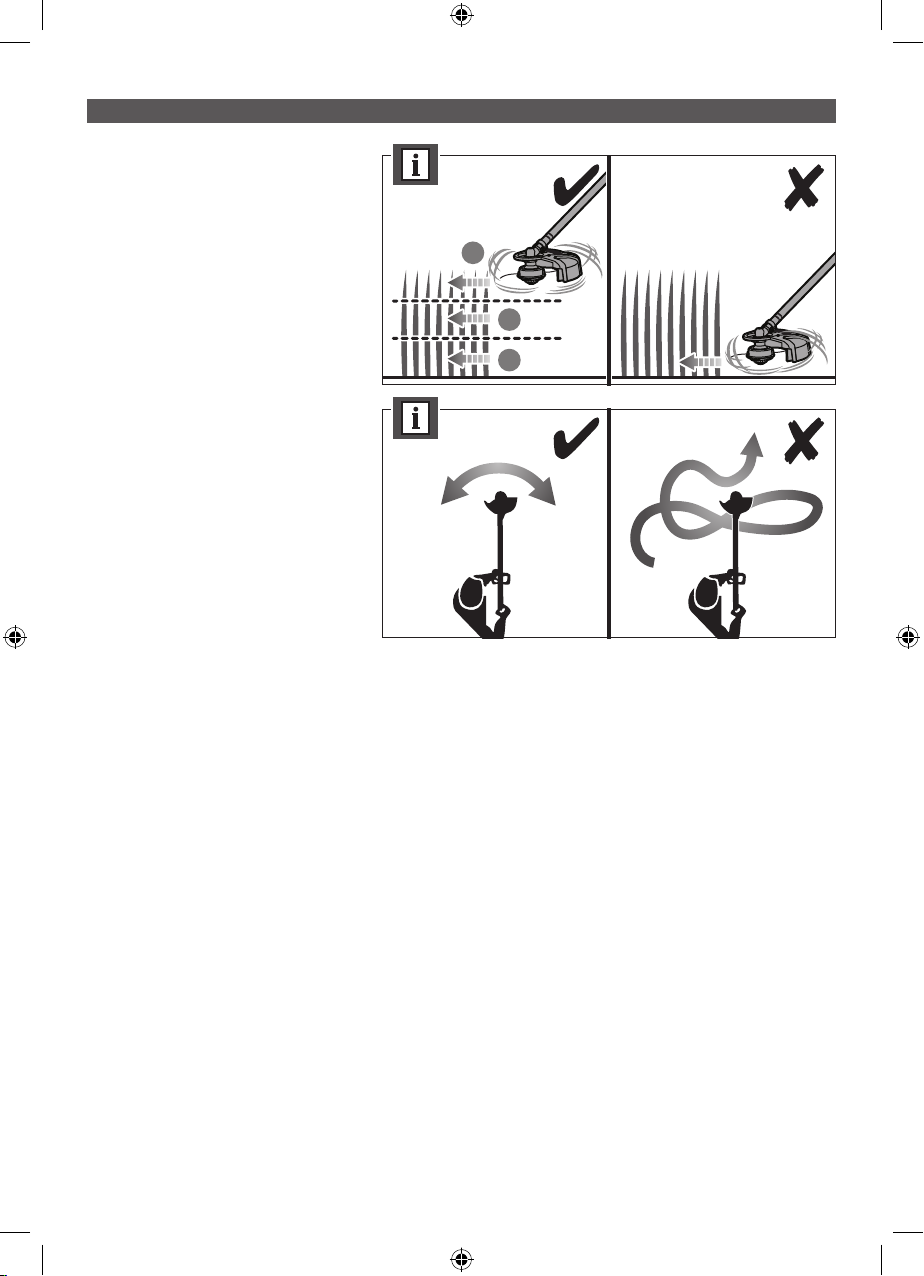

OPERATION
1
2
1
2
2
3

13
OPERATION
1
2
3

14
OPERATION
13 in
11 in
1
2
1
1
3
2
x2
1
x2
2
13 in
11 in
11”
13”
2
3

15
OPERATION
1
2
1
2
1
2
1
2
3
4

16
OPERATION
3
1
2
2
3
1
5
1
2
6

17
OPERATION

18
OPERATION
1
2
1
2
3
2
1
3
1
2
3
4
