Ryobi RVC-1430PPT-G Operation manual

RVC-1430PPT-G
OWNER’S OPERATING MANUAL
WET AND DRY VACUUM CLEANER
RVC-1430PPT-G - Version01.indd 1RVC-1430PPT-G - Version01.indd 1 26.05.2016 15:46:4426.05.2016 15:46:44

2
DESCRIPTION
1. Extension Wand (x2)
2. Floor tool
3. Crevice tool
4. Round brush
5. Hose set
6. Castor (x4)
7. Handle
8. Foam filter
9. Screws
10. Dust bag
11. Outlet-socket for Power Take Off
12. Blower connection
13. Filter basket
14. Safety float valve
15. Cartridge filter cap
16. Cartridge filter (non washable)
17. ON/OFF switch
18. Connection for the vacuum hose
19. Clamp (x2)
20. Tank
21. Drain outlet
Fig. 1
Components list
11
12
13
14
15
17
18
19
20
21
16
4
1
23
5
6
78910
22
22. Power Tool Adaptor
RVC-1430PPT-G - Version01.indd 2RVC-1430PPT-G - Version01.indd 2 26.05.2016 15:46:4526.05.2016 15:46:45

3
DESCRIPTION
2
1
RVC-1430PPT-G - Version01.indd 3RVC-1430PPT-G - Version01.indd 3 26.05.2016 15:46:4526.05.2016 15:46:45

4
DESCRIPTION
RVC-1430PPT-G - Version01.indd 4RVC-1430PPT-G - Version01.indd 4 26.05.2016 15:46:4526.05.2016 15:46:45

5
DESCRIPTION
RVC-1430PPT-G - Version01.indd 5RVC-1430PPT-G - Version01.indd 5 26.05.2016 15:46:4526.05.2016 15:46:45

6
DESCRIPTION

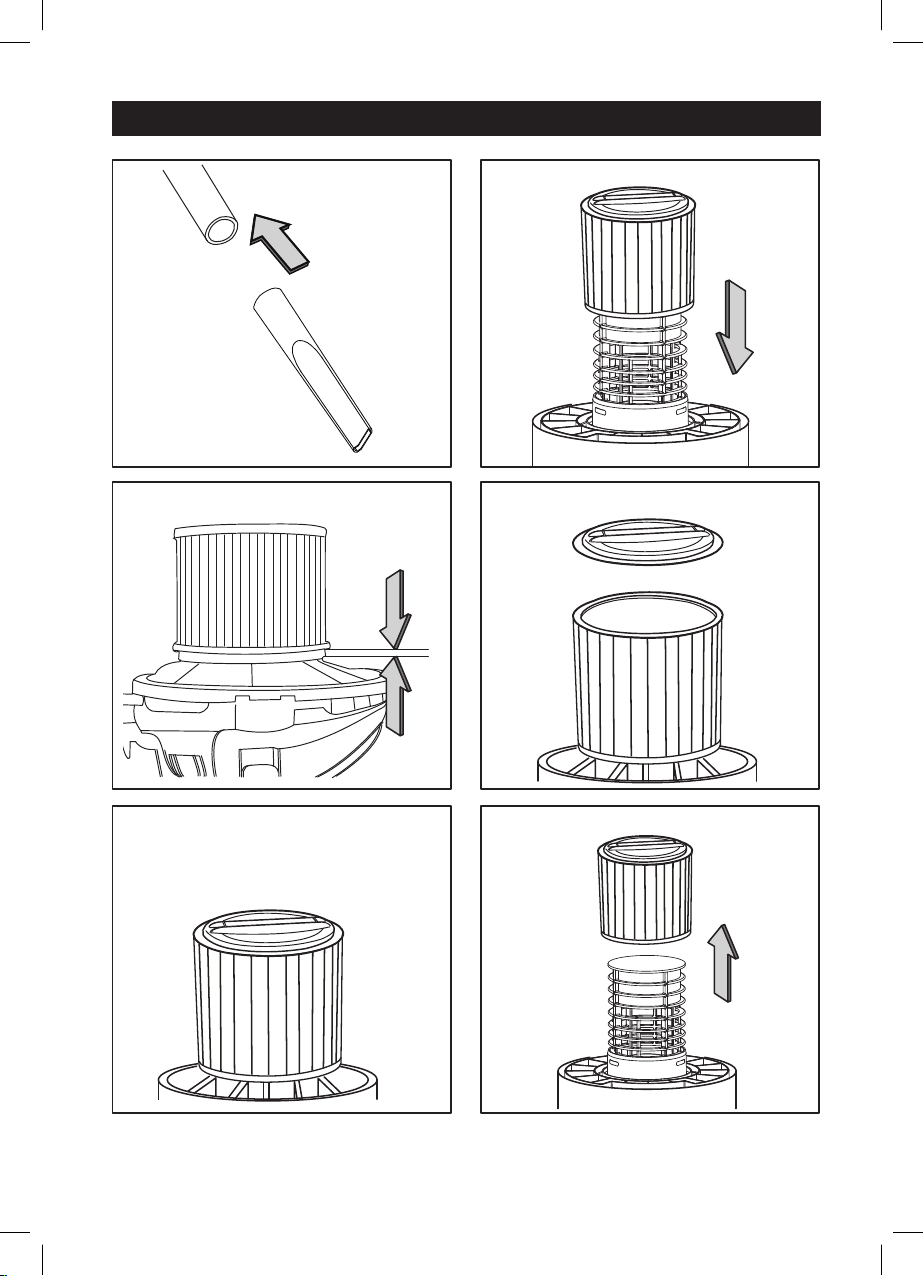

Fig. 20 Fig. 21
Fig. 22 Fig. 23
Fig. 24 Fig. 25
RVC-1430PPT-G - Version01.indd 6RVC-1430PPT-G - Version01.indd 6 26.05.2016 15:46:4526.05.2016 15:46:45

7
DESCRIPTION

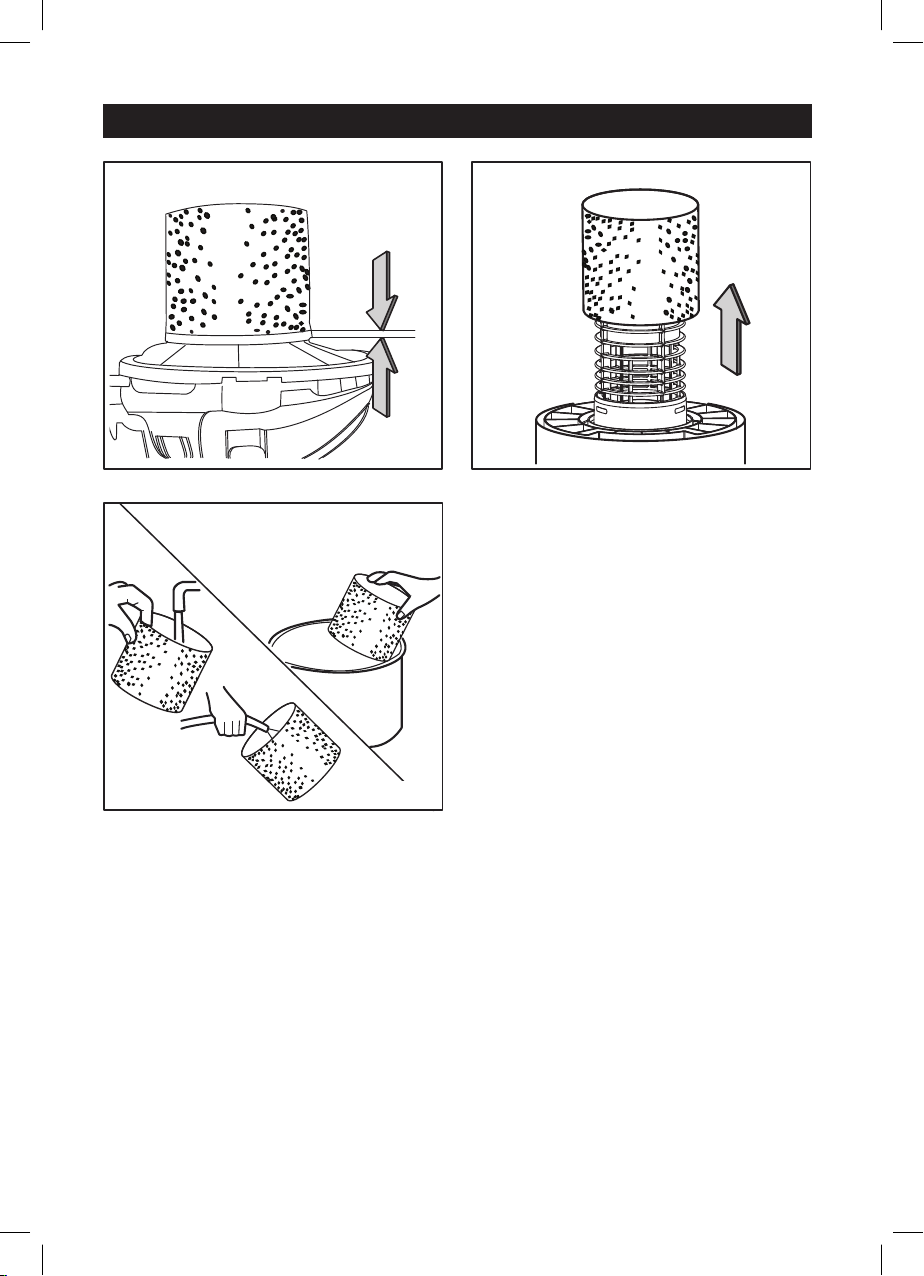

Fig. 26 Fig. 27
Fig. 28
IMPORTANT
It is essential that you read the instructions in this manual before
operating this machine.
Subject to technical modifi cations
RVC-1430PPT-G - Version01.indd 7RVC-1430PPT-G - Version01.indd 7 26.05.2016 15:46:4526.05.2016 15:46:45

8
SPECIFICATIONS
Supply voltage 240V ~ 50 Hz
Motor power 1400 W
Max power take off: 1400 W
Tank volume 30 L
Hose system ø 35 mm
Filter - dry Cartridge fi lter
Filter - wet Foam fi lter
IP rating IPX4
Suction 17 kpa / 2.47 PSI
Cord length 4 m
Weight according
EPTA-Procedure 01/2003
6.7 kg
WARNING! Read all safety warnings and all
instructions. Failure to follow the warnings and
instructions may result in electric shock, fi re and/or
serious injury.
Save all warnings and instructions for future
reference.
GENERAL POWER TOOL SAFETY WARNINGS
WARNING!
This appliance complies with the compulsory safety
regulations for electric equipment. However, improper
use can be harmful to people and property. Please read
these operating instructions carefully and completely
before switching the appliance on. Keep the operating
instructions, the guarantee certifi cate, the receipt, as
well as the packaging and packaging material if at all
possible.
This appliance is designed solely for use in the private
sector and for the designated purpose. The appliance is
not suitable for commercial use. Don’t use the appliance
outdoors (unless it has been specifi cally designed for
use outdoors). Don’t subject the appliance to heat,
direct sunshine or very high moisture (e.g., rain).
Never immerse the appliance in liquids and be aware of
sharp edges that may damage it. Never use the
appliance with wet or damp hands. Unplug it
immediately if the appliance becomes wet or damp
when it is running. Don’t immerse the appliance in
water.
This wet/dry vacuum cleaner may only be used and
kept in a private home.
The appliance is designed to vacuum up materials that
are not hazardous to your health and that are not
fl ammable.
Never hold the connectors in front of your face
(especially your eyes, ears, etc.). Never direct the
nozzle towards persons or animals.
Only use the appliance for its designated purpose. Any
other types of use are at your own risk and are possibly
dangerous.
Other uses and unattended operation are not allowed.
The manufacturer cannot be made responsible for
damages that are caused by improper use or incorrect
operation.
Wear protective clothing and gloves.
Connect the appliance only to a 240V alternating
current receptacle.
Make sure that the correct dust bag has been inserted
securely in its holder before using the appliance. The
wrong dust bag or incorrectly installed dust bags can
cause damage to the appliance and cause the
guarantee to become void.
If the power cord is damaged, it must be comepletely
replaced along with the cable protector by an authorised
service centre or other qualifi ed service organisation.
Do not vacuum up ashes, hot coals and the like, large
fragments of glass and sharp objects.
Don’t vacuum up any toner dust, which is used in
printers and copiers for example, because it is
electrically conductive. In addition, it is possible that it
will not be completely fi ltered out by the fi lter system of
the wet/dry vacuum cleaner and can be released into
the air via the exhaust fan.
Never vacuum fl ammable or poisonous liquids like
petrol, oil, acids, or other volatile substances.
Don’t vacuum up liquids that are hotter than 60°C or any
poisonous or fl ammable dusts.
Never lay the appliance on its side. Pay particular
attention to a horizontal position and adequate stability
on stairs.
Always unplug the appliance after use and before
cleaning or changing the fi lters or accessories.
Only trained specialists may make repairs on electric
equipment. Improper repairs could result in considerable
danger to the user.
Do not store the appliance directly beside a hot oven or
radiator.
Children, disabled persons, and the aged are often not
aware of the dangers that can result from handling
electric appliances. The above mentioned persons and
untrained persons must never work with this electrical
appliance.
When cleaning or removing the appliance, always
switch it off. Pull the plug out of the receptacle, if you
are not going to use the appliance for an extended
period of time. Never pull on the cable to unplug the
appliance, rather
pull on the plug itself. Also, remove any special
accessories from the appliance
Always keep the appliance clean. Don’t use any
solvents or cleaners that may damage or be harmful to
the appliance or user.
Never leave the appliance switched on unattended.
If
you leave the work area, switch the appliance off or
unplug it from the receptacle (don’t pull the cord, but
use the plug).
RVC-1430PPT-G - Version01.indd 8RVC-1430PPT-G - Version01.indd 8 26.05.2016 15:46:4526.05.2016 15:46:45

9
In order to protect children from electric household
appliances, make sure that the cable can’t cause
children to stumble and don’t give children access to the
appliance.
Never use the appliance when you are under the
infl uence of medication, alcohol or drugs, if you are
currently under medical care, or if you are tired.
Check the appliance and the power cord regularly for
any possible damage. Don’t use damaged appliances.
Don’t try to repair the appliance yourself. Always use an
authorized technician for repairs. Always have faulty
power cords replaced immediately by the manufacturer
or a qualifi ed service organization. Use the same type of
cable in order to prevent any danger of electric shock
and injury.
Only use original spare parts and accessories. Non
approved parts or third-party accessories may be a
possible source of danger and cause the guarantee to
become void.
Check the fl oat often.
If you notice liquid leaking from your appliance, switch it
off immediately and unplug it.
Do not submerge the appliance in water. Make sure that
water is not spilled on the appliance.
When disposing of the wastewater, make sure that you
observe any legal regulations.
Only store the appliance in a safe and dry location
outside the reach of children.
Please also pay particular attention to the following
“Special Safety Rules”.
This appliance is not intended to
be used or cleaned by persons
with reduced physical, sensory
or mental capabilities, or lack of
experience or knowledge,
unless they have been given
instructions concerning the safe
use of the appliance by a person
legally responsible for their
safety. They should be
supervised whilst using the
appliance. Children shall not
use, clean or play with this
appliance, which when not in
use should be secured out of
their reach.
Children should be supervised to ensure that they do
not play with the appliance.
If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualifi ed
persons in order to avoid a hazard.
Electrical power should be supplied via a residual
current device (RCD) with a tripping current of not more
than 30mA.
Only use a weather proof extension cord. Check the
extension cord before every use for damage. Always
uncoil the extension cord during use because coiled
cords can overheat. Damaged extension cords should
not be repaired, they should be replaced with an
equivalent type.
WHEN USING BLOWER FUNCTION:
Direct air discharge at work area only – never at people
or animals.
Do not use blower as a sprayer in wet mode. Wear a
dust mask and protective eye wear.
WARNING
Always switch off and unplug the machine from the
electrical outlet before assembling, opening,
emptying the dirt container, before connecting/
disconnecting the attachments, or carrying out
maintenance or troubleshooting checks.
IMPORTANT!
If the hose or tools are blocked, switch off the cleaner
and remove the blockage(s) before re-starting your
machine.
IMPORTANT!
Cleaning fi lters and replacing them regularly maintains
vacuum performance. Vax recommends that your fi lters
should be checked, cleaned and replaced periodically.
DAMAGE TO THE VACUUM CLEANER CAUSED AS
A DIRECT RESULT OF NOT ADHERING TO THE
GENERAL SAFETY INFORMATION AND THE
INSTRUCTIONS IN THIS USER GUIDE INVALIDATES
THE WARRANTY.
PLEASE KEEP THESE INSTRUCTIONS FOR
FURTHER USE.
SPECIAL SAFETY RULES
Never vacuum up hot ashes, pointed or sharp objects.
Never use the appliance in damp rooms.
Don’t use the appliance without a dust bag (an
exception is wet vacuuming or with the cartridge fi lter).
Make sure that the dust bag is inserted into the
appliance correctly.
When using the appliance, make sure that no hair,
clothing, or members are drawn in.
Keep the vacuum cleaner away from heat sources such
as radiant heaters, ovens, and so on.
RVC-1430PPT-G - Version01.indd 9RVC-1430PPT-G - Version01.indd 9 26.05.2016 15:46:4526.05.2016 15:46:45

10
DISPOSAL INFORMATION
The appliance contains electric and electronic
components and may not be disposed of as household
garbage.
The local and currently applicable legislation must be
observed unconditionally.
SPECIFIED CONDITIONS OF USE
The appliance is suitable for picking up dry, non-
fl ammable dust and liquids.
This appliance is designed solely for use in the private
sector and for the designated purpose. The appliance is
not suitable for commercial use. Don’t use the appliance
outdoors (unless it has been specifi cally designed for
use outdoors). Don’t subject the appliance to heat,
direct sunshine or very high moisture (e.g., rain).
Any other use is considered as improper use. The
manufacturer accepts no liability for any damage
resulting from such use. The risk for such use is borne
solely by the user.
Proper use also includes proper operation, servicing
and repairs as specifi ed by the manufacturer.
EC-DECLARATION OF CONFORMITY
We declare under our sole responsibility that the
product described under “Technical Data” fulfi lls all the
relevant provisions of the directives 2011/65/EU (RoHs),
2014/35/EU, 2006/42/EC and the following harmonized
standards have been used:
EN 60335-1:2012 + A11:2014
EN 60335-2-2:2010+A11:2012+A1:2013
EN 62233:2008
EN 55014-1:2006 + A1:2009 + A2:2011
EN 55014-2:1997 + A1:2001 + A2:2008
EN 61000-3-2:2014
EN 61000-3-3:2013
EN 50581:2012
Winnenden, 2016-04-21
Branko Lenger
Senior Vice President, Engineering and Quality - Asia,
Engineering Commercial Product Development
Authorized to compile the technical fi le.
Techtronic Industries GmbH
Max-Eyth-Straße 10
71364 Winnenden
Germany
PACKAGING CONTENT
See Fig. 2 - Fig. 4
Carefully unpack the contents of the box.
Hold the two clamps, which hold the upper section in its
position and fold them upwards.
Loosen the clamps, remove the upper section, and
remove the contents from the tank.
Please check the parts using the components list to
make sure they are complete and that there has been
no damage in transport.
If any parts are missing or damaged, then please
contact your dealer immediately.

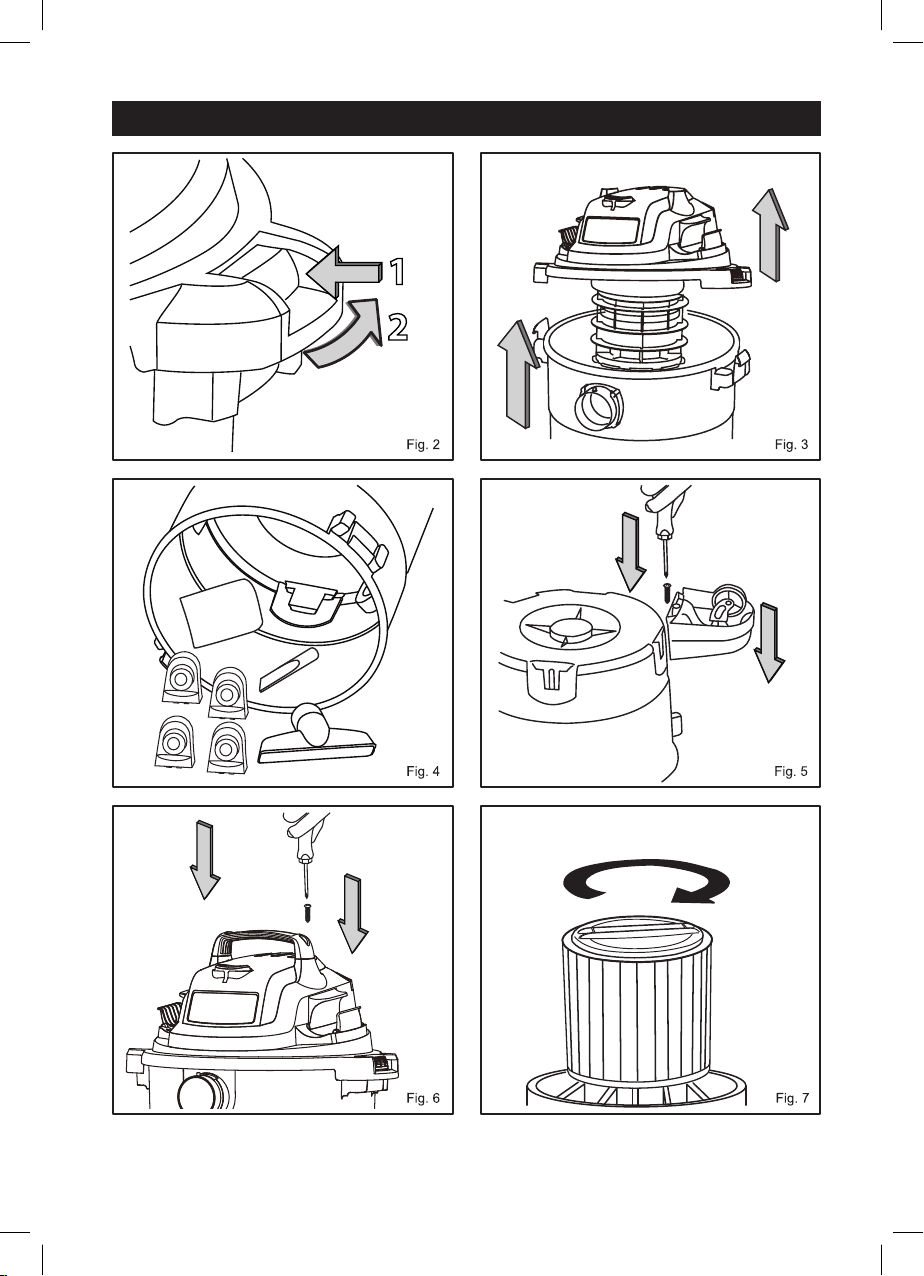

ASSEMBLY
1. Ensure that the power cord is disconnected from the
power outlet.
2. Undo the clamps (Fig. 2).
3. Lift the top section off the tank (Fig. 3).
4. Remove the contents from inside the tank (Fig. 4).
5. Turn the tank upside down, and insert the casters on
to the four feet of the tank.
6. Ensure that they are mounted correctly. Do not over
tighten (Fig. 5).
7. Insert the handle into the slots on the power head
and pressure into place (Fig. 6).
8. For dry vacuum cleaning, install the supplied
cartridge fi lter and dust bag (Fig. 7, Fig. 8).
9. For wet vacuum cleaning, install the supplied foam
fi lter (Fig. 9)
10. Replace the top section on the tank (Fig. 10).
11. Align the top section with the clamps and snap into
place by applying pressure until clamps click
(Fig. 10).
12. Insert the large end of the hose into the front inlet of
the tank and turn to lock (Fig. 11).
13. Fit the required accessory on to the suction tube
(Fig. 12).
OPERATION
DRY VACUUMING
WARNING
Ensure that you read, understand, and apply the
safety instructions.
Reminder: DO NOT vacuum hazardous substances.
The use of an incorrect dust bag will invalidate the
warranty.
1. Ensure that the power cord is disconnected from the
power outlet.
2. Ensure that the cartridge fi lter is completely
mounted.
RVC-1430PPT-G - Version01.indd 10RVC-1430PPT-G - Version01.indd 10 26.05.2016 15:46:4526.05.2016 15:46:45

11
3. Ensure that the fi lter is inserted all the way. (Fig. 13)
Verify that the dust bag is installed to the inside of
the tank (Fig. 8).
4. Replace the top section on the tank, and secure it in
place using the clamps (Fig. 10).
5. Insert the larger end of the hose into the front inlet
on the tank and lock it in place. Push the required
attachment on to the free end of the hose or
extension (Fig.12).
6. Plug the power cord in to the power outlet.

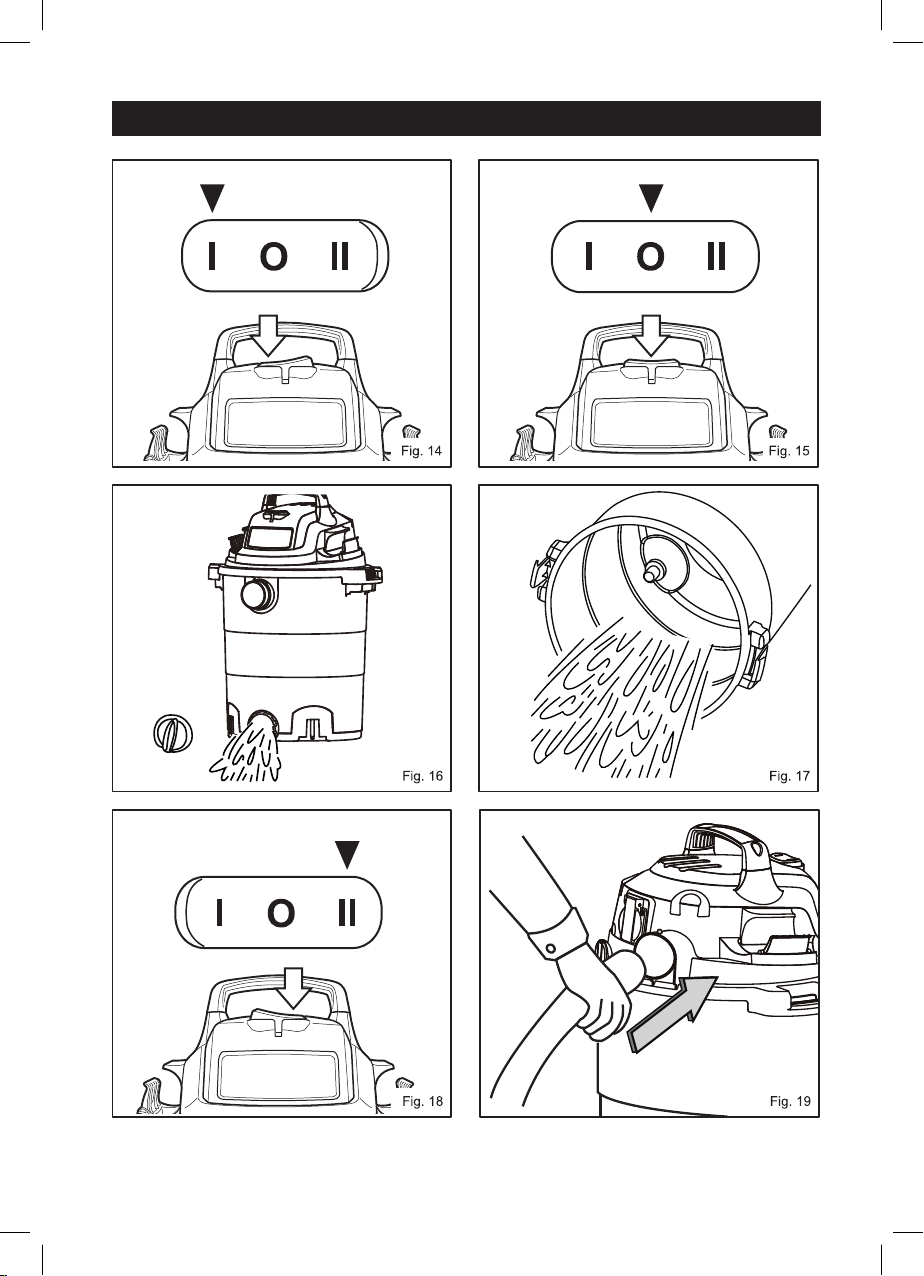

7. Turn the motor on by fl ipping the switch to the ‘I’
(ON) position (Fig. 14).
8. Once you have fi nished vacuuming, fl ip the switch to
the ‘O’ (OFF) position and unplug the power cord
from the power outlet. (Fig. 15)
WARNING
DO NOT USE THE CARTRIDGE FILTER FOR WET OR
SHARP MATERIALS.
DO NOT USE DUST BAG FOR LIQUID VACUUMING.
WET VACUUMING
WARNING
Ensure that you read, understand, and apply the safety
instructions.
Reminder: DO NOT vacuum hazardous substances.
1. Ensure that the power cord is disconnected from the
power outlet.
Ensure that the tank is clean and free of dust and
dirt.
2. Remove the cartridge fi lter and dust bag, and install
a foam fi lter over the fi lter basket and place the top
section back on the tank (Fig. 9).
DO NOT use the cartridge fi lter for wet or sharp
materials.
3. Fit the desired nozzle to the vacuum hose (Fig. 12).
4. Ensure that the switch is in the ‘O’ (OFF) position
before plugging the power cord into the power
outlet.
5. Turn the motor on by fl ipping the switch to the “I”
(ON) position (Fig. 14).
6. After use, fl ip the switch to the “O” position (Fig. 15)
and unplug the power cord, then empty and dry the
tank (Fig. 16, Fig. 17).
WARNING
The foam fi lter must be removed after wet
vacuuming, and a cartridge fi lter must be installed
before dry vacuuming again.
IMPORTANT!
When vacuuming large quantities of liquids, do not
immerse the nozzle completely in the liquid; leave a gap
at the tip of the nozzle opening to allow air infl ow.
The machine is fi tted with a fl oat valve that stops the
suction action when the container reaches its maximum
capacity. You will notice an increase in motor speed.
When this happens, turn off the machine, disconnect
from power supply, and drain the liquid into a suitable
receptacle or drain. To continue vacuuming, refi t the
container with the drain cap. After wet vacuuming, turn
the machine off and remove plug from power supply.
Empty the container, clean and dry the inside and
outside before storage.
BLOWER OPERATION
This Wet/Dry Vac has blowing capabilities.
To use the blower feature follow the instructions listed.
WARNING
Always wear safety goggles before using blower.
Keep bystanders clear from blowing debris.
Wear a dust mask if blowing creates dust that might
be inhaled
1. Insert the large end of the hose into the blower
connection in the top of the motor housing (Fig. 18).
2. Fit the crevice tool to the vacuum hose (Fig. 19).
3. Ensure the power switch is turned off and plug in the
power supply.
4. Turn the motor on by fl ipping the switch to the “I”
(ON)position (Fig. 14).
5. The unit will now blow through the vacuum hose and
can be used to clear obstructions within the hose.
6. Once you have fi nished operation, fl ip the switch to
the ‘O’ (OFF) position and unplug the power cord
from the power outlet. (Fig. 15)
WARNING
If after a few seconds the hose continues to be
blocked, turn off the unit and clear the hose
manually.
MAINTENANCE
INSTALLING AND CLEANING THE DRY FILTER
Note: Unplug machine from the power outlet before
performing maintenance.
Installing Dry Filter
1. Install the dry fi lter over the fi lter cage with the fl at
end of the fi lter towards the vacuum power head.
Carefully push fi lter in until it stops against the
power head. (Fig.20 & 21)
2. Place fi lter retainer on top of cartridge fi lter over the
raise lip and tighten down by turning retainer
clockwise, do not over tighten. (Fig. 22 & 23)
RVC-1430PPT-G - Version01.indd 11RVC-1430PPT-G - Version01.indd 11 26.05.2016 15:46:4626.05.2016 15:46:46

12
Removing And Cleaning Dry Filter (THIS FILTER IS
NOT WASHABLE)
1. Unlock and remove the fi lter retainer by turning
retainer handle anticlockwise.
2. Carefully hold and pull the dry fi lter up for removal.
(Fig. 24)
3. Clean the cartridge fi lter by gently tapping or
brushing dirt off. For optimal performance it is
recommended to regularly change this fi lter
depending on level of use (eg. 3-6 months).
4. Install cleaned or new fi lter into place as instructed
above.
INSTALLING AND CLEANING THE FOAM FILTER
Note: Unplug machine from the power outlet before
performing maintenance.
Installing Foam Filter
Follow instructions to remove dry dust fi lter fi rst before
changing to foam fi lter.
Carefully slide foam fi lter down over the fi lter cage
making sure the whole cage is covered. (Fig. 9 & 25)
Cleaning Foam Filter
Carefully remove foam fi lter. (Fig. 26)
Use a mild soap and water solution to wash foam fi lter
and rinse with clean water. (Fig. 27)
Allow fi lter to air dry before installing and using again.
SYMBOLS
CAUTION! WARNING! DANGER!
VVolts
Hz Hertz
Alternating Current
WWatts
Please read the instructions carefully before
starting the machine.
Recycle
Do not dispose of electric tools together with
household waste material.
Electric tools and electronic equipment that
have reached the end of their life must be
collected separately and returned to an
environmentally compatible recycling facility.
Check with your local authority or retailer for
recycling advice and collection point.
European Conformity Mark
FAQ'S
WARNING
To reduce the risk of personal injury, unplug the cleaner before performing maintenance/troubleshooting
checks.
Problem Cause Solution
The appliance doesn’t work No power Check the power supply.
Functional fault in the power cord, switch,
or motor
Have the damaged part checked by
qualifi ed personnel or replace it.
Tank is full of liquid Empty the tank
Dust is escaping from the
motor cover
The dust bag is missing or damaged Put in a dust bag or replace it.
Low suction power and high
motor speed / vibrations
Dust bag is full Replace the dust bag
Suction nozzle, hose, or tank inlet is
blocked.
Check the suction nozzle, hose,
and tank inlet for obstructions.
RVC-1430PPT-G - Version01.indd 12RVC-1430PPT-G - Version01.indd 12 26.05.2016 15:46:4626.05.2016 15:46:46

13
RVC-1430PPT-G - Version01.indd 13RVC-1430PPT-G - Version01.indd 13 26.05.2016 15:46:4626.05.2016 15:46:46

14
RVC-1430PPT-G - Version01.indd 14RVC-1430PPT-G - Version01.indd 14 26.05.2016 15:46:4626.05.2016 15:46:46

15
RVC-1430PPT-G - Version01.indd 15RVC-1430PPT-G - Version01.indd 15 26.05.2016 15:46:4626.05.2016 15:46:46

(05.16)
V01
Copyright 2016
Techtronic Industries GmbH
Max-Eyth-Straße 10
71364 Winnenden
Germany
[phone]
RVC-1430PPT-G - Version01.indd 16RVC-1430PPT-G - Version01.indd 16 26.05.2016 15:46:4626.05.2016 15:46:46
