SAB Heli Division GOBLIN BLACK NITRO User manual

SAB HELI DIVISION
GOBLIN BLACK NITRO

380mm
1320mm
196mm
Main rotor diameter :1468mm (with 650mm blades)
Main blade length :650mm
Tail rotor diameter :285mm
Tail blade length :105mm
Weight including standard electronics: 4220g (Without Fuel).
Usable Engines : YS91, YS96, YS120 - OS91, OS105
Gear Ratio : 7.64
Fuel capacity : 650cc
SPECIFICATIONS
It is extremely important that you take a moment to register your helicopter with us. This is the only way to ensure that you are
properly informed about changes to your kit, such as upgrades, retrofits and other important developments. SAB Heli Division
cannot be held responsible for issues arising with your model and will not provide support unless you register your serial number.
The Serial number is also engraved in the Aluminum Main Plate.
Thank you for your purchase, we hope you enjoy your new Goblin helicopter!
SAB Heli Division
VERY IMPORTANT
In the Manual bag you will find a product card your with serial number. Please take a moment to register
your kit online via our web site at:
Please read this user manual carefully, it contains instructions for the correct assembly of the model.
Please refer to the web site www.goblin-helicopter.com for updates and other important information.
http: //www.goblin-helicopter.com
13 – Belt Tension and Canopy
14 – In flight
15 – Maintenance
16 – Exploded Views
17 – Spare Parts
INDEX
1 – Serial Number
2 – Important Notes
3 – Components and Box
4 – Carbon frame Assembly
5 – Tranmission Assembly
6 – Main Rotor Assembly
7 – Assembling The Modules
8 – Engine Unit Assembly
9 – Installation of Servos
10 – Installation of FBL Unit and RX
11 – Tank System Assembly
12 – Tail and Boom Assembly
Page 0
Chapter 1, Serial Number

IMPORTANT NOTES
*This radio controlled helicopter is not a toy.
*This radio controlled helicopter can be very dangerous.
*This radio controlled helicopter is a technically complex device which has to be built and handled very carefully.
*This radio controlled helicopter must be built following these instructions. This manual provides the necessary information
to correctly assemble the model. It is necessary to carefully follow all the instructions.
*Inexperienced pilots must be monitored by expert pilots.
*All operators must wear safety glasses and take appropriate safety precautions.
*A radio controlled helicopter must only be used in open spaces without obstacles, and far enough from people to minimize
the possibility of accidents or of injury to property or persons.
*A radio controlled helicopter can behave in an unexpected manner, causing loss of control of the model, making it very
dangerous.
*Lack of care with assembly or maintenance can result in an unreliable and dangerous model.
* Neither SAB Heli Division nor its agents have any control over the assembly, maintenance and use of this product.
Therefore, no responsibility can be traced back to the manufacturer. You hereby agree to release SAB Heli Division from
any responsibility or liability arising from the use of this product.
SAFETY GUIDELINES
*Fly only in areas dedicated to the use of model helicopters.
*Follow all control procedures for the radio frequency system.
*It is necessary that you know your radio system well. Check all functions of the transmitter before every flight.
*The blades of the model rotate at a very high speed; be aware of the danger they pose and the damage they may cause.
*Never fly in the vicinity of other people.
*Follow all of the safety regulations relating to fuel management.
*Pay attention to the danger surrounding the cooling fan with running engine.
*Use caution when handling the muffler after a flight as they get very hot after a flight.
NOTES FOR ASSEMBLY
Please refer to this manual for assembly instructions for this model.
Follow the order of assembly indicated. The instructions are divided into chapters, which are structured in a way that
each step is based on the work done in the previous step. Changing the order of assembly may result in additional or
unnecessary steps.
Use thread lockers and retaining compounds as indicated. In general, each bolt or screw that engages with a metal part
requires thread lock.
It is necessary to pay attention to the symbols listed below:
Important
Use retaining
compound
(eg Loctite 648)
Use retaining
compound
(eg Loctite 243)
Use CA Glue
Use Proper
Lubricant
Indicates that for this
assembly phase you need
materials that are in bag xx.
Bag xx
Page 1
Chapter 2, Important Notes

ADDITIONAL COMPONENTS REQUIRED
*Engine.
*Muffer suited for the engine being used.
*Batteries: 2S/1600-3000mAh.
*Governor unit.
*1 flybarless 3 axis control unit.
*Receiver system.
*1 throttle servo.
*3 cyclic servos.
*1 tail rotor servo.
*6 channel radio control system on 2.4 GHz.
*Fuel.
The assembly process is described in the following chapters.
Each chapter provides you with the box, bag and/or foam
tray numbers you will need for that chapter. The information
is printed in a green box in the upper right hand corner of the
page at the beginning of every chapter.
TOOLS, LUBRICANTS, ADHESIVES
*Generic pliers.
*Hexagonal driver, size 1.5,2,2.5,3,4,5,6mm.
*4mm T-Wrench.
*5.5mm Socket wrench (for M3 nuts).
*8mm Hex fork wrench.
*Medium threadlocker (eg. Loctite 243).
*Strong retaining compound (eg. Loctite 648).
*Spray lubricant (eg. Try-Flow Oil).
*Synthetic grease (eg. Tri-Flow Synthetic Grease).
*Grease ( eg. Vaseline grease ).
*Cyanoacrylate adhesive.
*Pitch Gauge (for set-up).
*Soldering equipment.
Inside the main box:
Box 2: Canopy, Blade Holder, Tank, Fan Case.
Box 3: Boom, Blades, Tail blades, Carbon rod.
Box 4: Mechanical parts in 4 trays:
Tray 1: Main rotor.
Tray 2: Carbon frame and tail rotor.
Tray 3: Transmission.
Tray 4: Main structure.
Box 5: Bags.
Box 6: Carbon parts.
Box 7: Landing Gear, Main Plate, Tank Support.
Inside the main box there are:
Tray 1
Tray 2
Tray 3
Manual
BOX 6
BOX 7
BOX 2
BOX 4
BOX 5
BOX 3
Tray 4
Page 2
Chapter 3, Components and Box

Socket Head Cap
Screw M2.5x6mm
(HC018-S)
Engine Support
Spacer
(H0678BM-S)
Button Head Cap
Screw M3x6mm
(HC094-S)
[HC094]
Flat Head Cap
Screw M2.5x5mm
(HC128-S)
Carbon Plan
(H0689-S)
Frame Spacer
(H0003-S)
BAG 1-1, BAG 1-2
Carbon Plan Assembly
Right Main Frame Assembly
Frame Spacer
(H0003-S)
Flat Head Cap
Screw M2.5x5mm
(HC128-S)
Carbon Insert Assembly ... x3
Metrix Hex
Nylon Nut M3
(HC206-S)
Carbon Insert M3
(H0716-S)
Carbon Plan
Assembly
Socket Head Cap
Screws M3x8mm
(HC050-S)
Finishing Washer M3
(H0007-S)
Finishing Washer M3
(H0007-S)
Socket Head Cap
Screws M3x8mm
(HC050-S)
Main Frame
(H0688-S)
Socket Head Cap
Screw M2.5x6mm
(HC018-S)
Carbon Insert M3
Assembly
Carbon Insert M3
Assembly
Canopy Mount Base
(H0713-S)
Button Head Cap
Screw M3x6mm
(HC094-S)
Column
(H0224-S)
Column
(H0224-S)
Note:
Use Loctice in all Screw
[HA114]
[HA010]
Example with Epoxy
Page 3

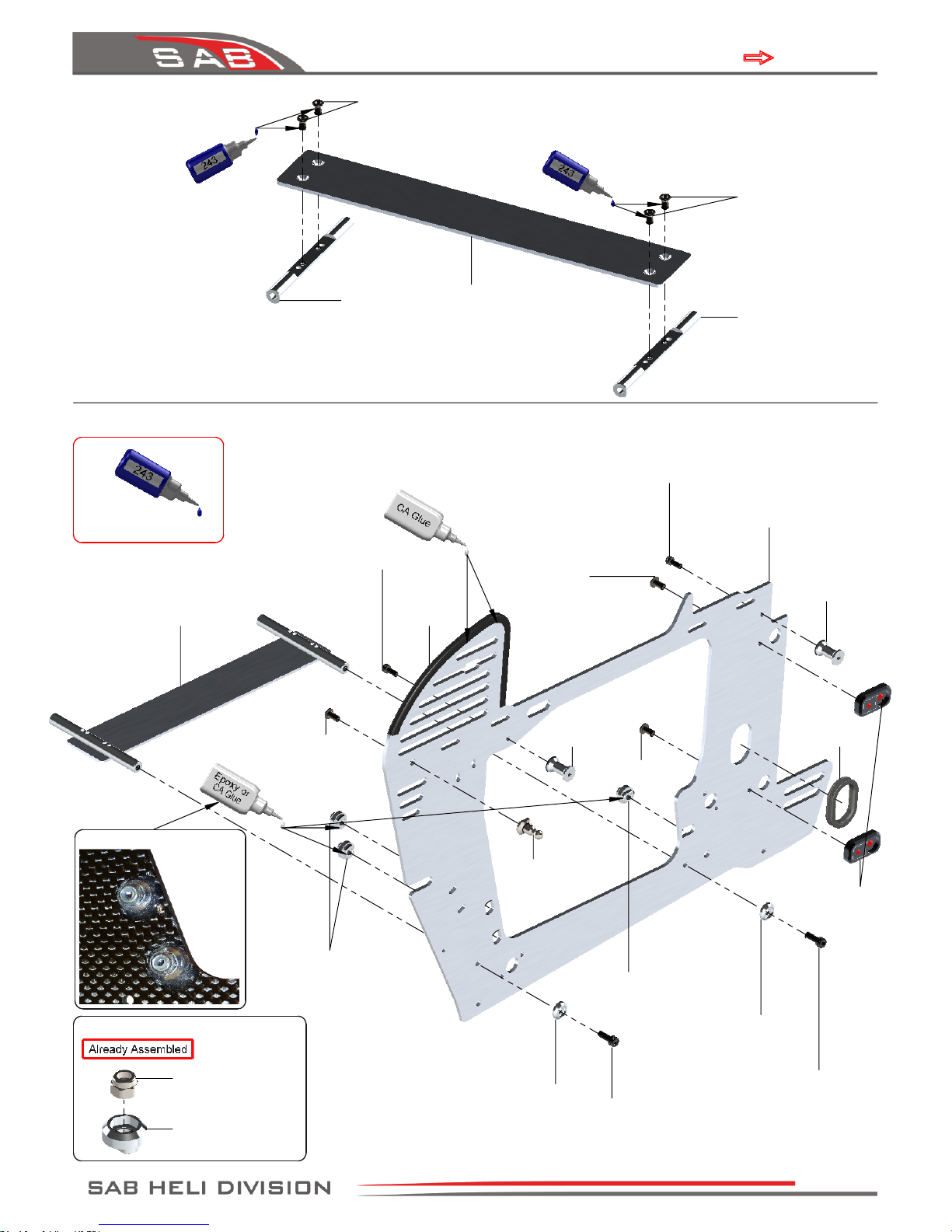

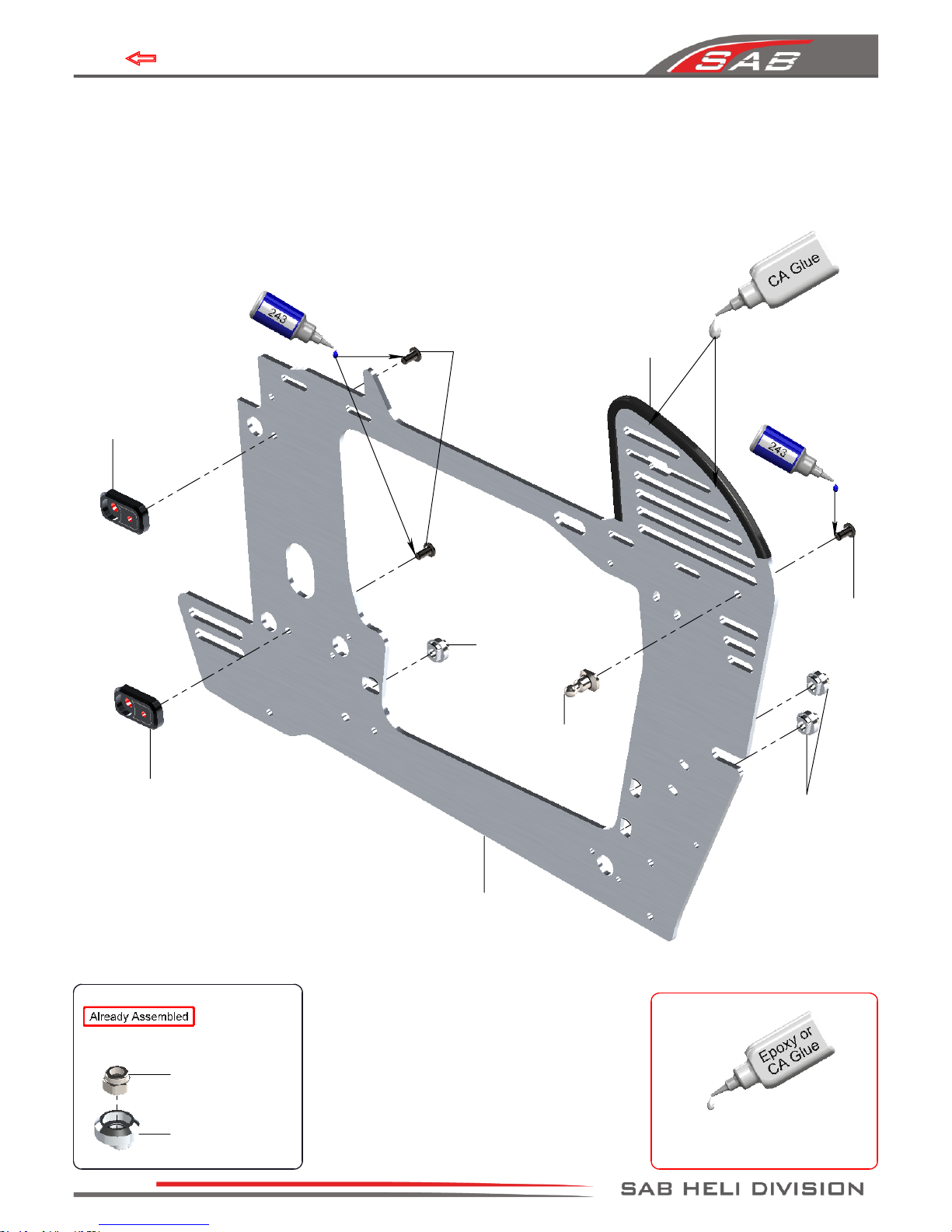

Chapter 4, Carbon Frame

BAG 1-3
Main Frame
(H0688-S)
Main Frame Assembly
Engine Support Spacer
(H0678BM-S)
Button Head Cap
Screw M3x6mm
(HC094-S)
Carbon Insert M3
Assembly
Canopy
Mount Base
[H0713-S]
Button Head Cap
Screw M3x6mm
(HC094-S)
Carbon Insert M3
Assembly
Use Epoxy or Ca Glue in all
Carbon Insert M3 Assembly
Note:
[HA114]
Engine Support Spacer
(H0678BM-S)
Carbon Insert M3
(H0716-S)
Metrix Hex
Nylon Nut M3
(HC206-S)
Carbon Insert Assembly ... x3
Page 4

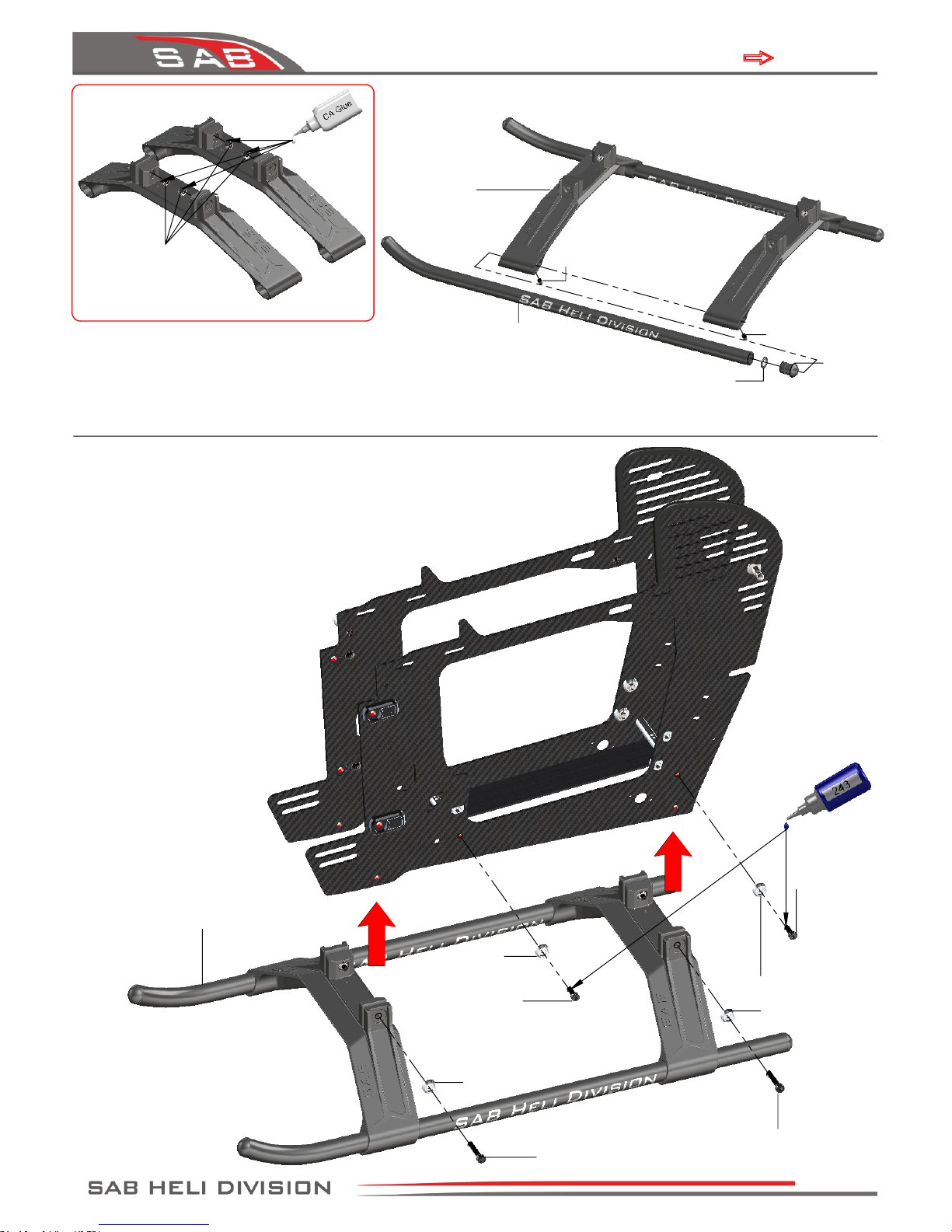

Chapter 4, Carbon Frame

BAG 1-4, BAG 1-5
Choose the position for the batteries
For the best 3D performance (with 12S-5000 batteries)
we recommend position 1
Note:
Bottom holes: 75mm max height batteries.
Middle holes: 70mm max height batteries.
Finishing
Washer M3
(H0007-S)
Socket Head Cap
Screws M3x16mm
(HC068-S)
Finishing
Washer M3
(H0007-S)
Socket Head Cap
Screws M3x16mm
(HC068-S)
Landing Gear
Assembly
Landing Gear
Plug
(H0432-S)
Landing Gear ROD
(H0431-S)
Set Screws M4x4mm
(HC152-S)
[HC152-S]
Oring
(HC453-S)
Plastic Landing
Gear F3C
(H0449-S)
Landing Gear Assembly
Note:
You can use Super Glue
to lock the nuts in correct position
Socket Head Cap
Screws M3x8mm
(HC050-S)
Socket Head Cap
Screws M3x8mm
(HC050-S)
[H0007]
[HC206]
Page 5

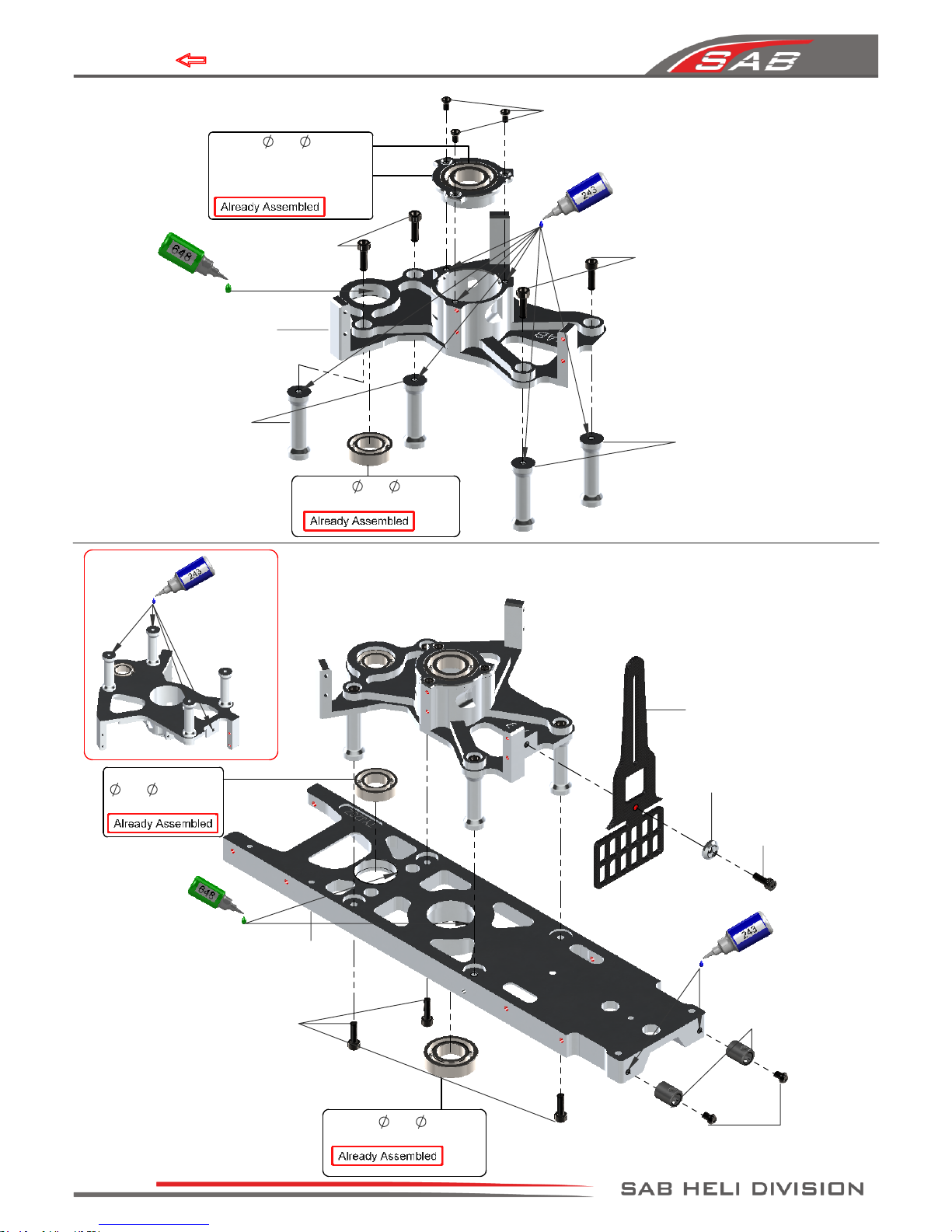

Chapter 4, Carbon Frame

Bearing Support Assembly
(H0024-S)
Bearing
12x 24x6mm
(HC426-S)
Flat Head Cap Screw
M2.5x5mm
(HC128-S)
Socket Head Cap
Screw M3x8mm
(HC050-S)
Socket Head Cap
Screw M3x10mm
(HC056-S)
Column
(H0018-S)
Bearing
10x 19x5mm
(HC422-S)
Note:
Socket Head Cap
Screw M3x10mm
(HC056-S)
Main Structure
(H0683-S)
Antenna Guide
(H0050-S)
Button Head Cap
Screw M3x4mm
(HC038-S)
Swash plate
Anti-Rotation Guide
(H0017-S)
Bearing
12x 24x6mm
(HC426-S)
Finishing Washer M3
(H0007-S)
Column
(H0018-S)
Socket Head Cap
Screw M3x10mm
(HC056-S)
Servo Support
(H0010-S)
Bearing
10x 19x5mm
(HC422-S)
BAG 2-1, BAG 2-2
Page 6

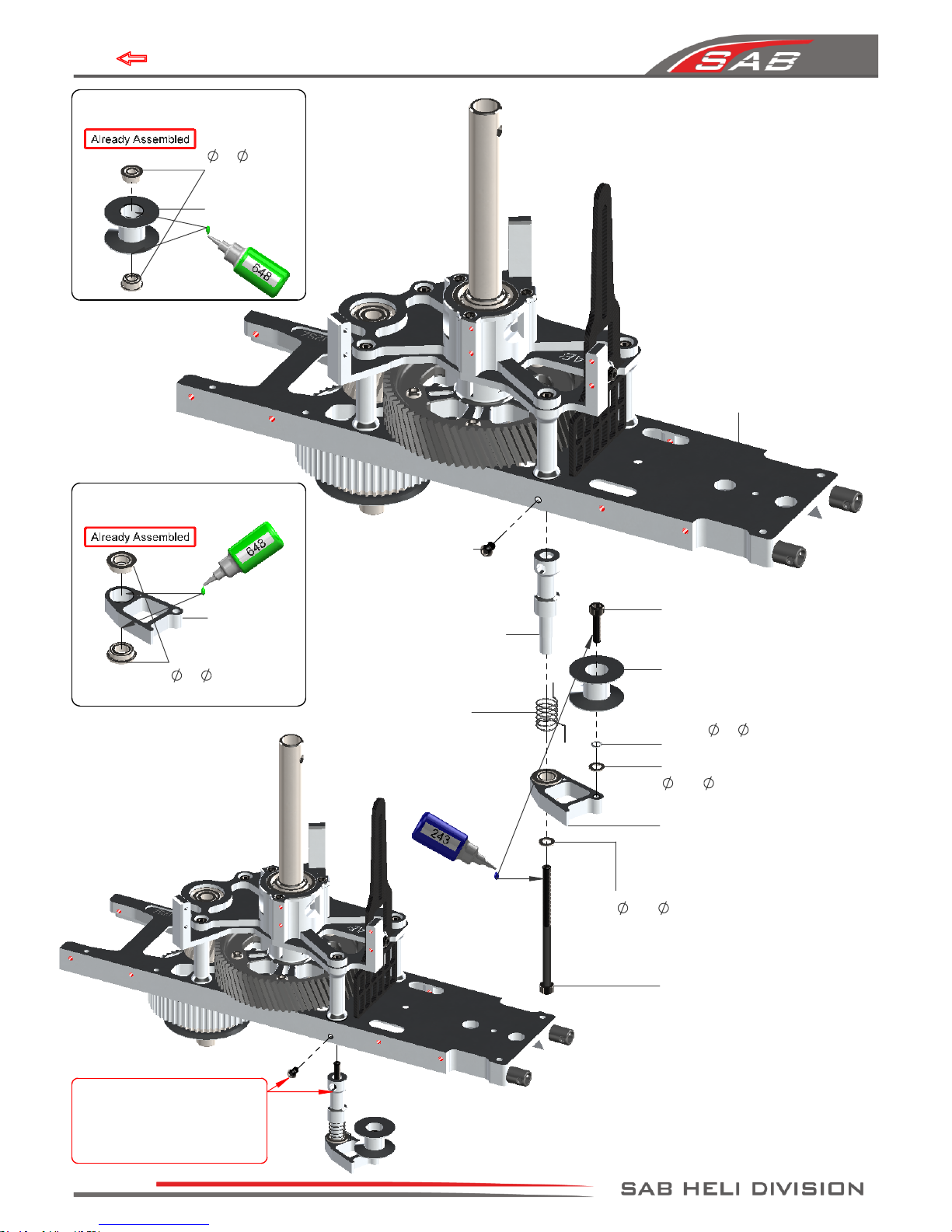

Chapter 5, Transmission Assembly

One Way Bearing
10x 14x12mm
(HC442-S)
60T Pulley Assembly
(H0104-S)
Bearing
10x 15x4mm
(HC420-S)
Socket Head Cap Screw
Shouldered M2.5x19mm
(HC033-S)
Note:
When you tighten the collar ( H0121-S ) on the main
shaft, ensure there is no axial play.
Push down the main shaft while pulling up the
locking collar. Tighten the screw M4x22 at this time.
Bearing
10x 15x4mm
(HC420-S)
Main Shaft
(H0122-S)
Main Structure
Assembly 1
Socket Head Cap Screw
Shouldered M4x24mm
(HC111-S)
Metric Hex
Nylon Nut M4
(HC212-S)
Metric Hex
Nylon Nut M4
(HC212-S)
Socket Head Cap
Screw M4x22mm
(HC104-S)
Head Cap Screw
Shouldered M3x18mm
(HC079-S)
60T Pulley
(H0104-S)
60T Pulley Assembly
(H0104-S)
Socket Head Cap
Screw M2x10mm
(HC010-S)
Front Tail Pulley Assembly
(H0101-S)
Note:
Put a small amount of grease
every 30/40 flights on the main
gear (for example Tri- flow
Synthetic grease)
The perfect play is 0.5mm
add or remove shim for this
Note: Use This Hole
37T Pulley
(H0101-S)
Metric Hex
Nylon Nut M3
(HC206-S)
19T Drive Pinion
(H0156-S)
Secondary Shaft
(H0157-S)
M4 Locking Collar
(H0121-S)
Washer
10x 16x0.2mm
(HC232-S)
Metric Hex Nylon
Nut M2.5
(HC200-S)
BAG 3-1, BAG 3-2
Main Gear
(H0405-S)
Bush One Way
(H0110-S)
Front Tail Pulley
Assembly
eg: Microlube GL261
Bush One Way
(H0110-S)
Page 7
Chapter 5, Transmission Assembly

Tensioner Arm
[H0071]
Washer
3x 4x0.5mm
(HC176-S)
Belt Tensioner Support
(H0070-S)
Tail Belt Idler Assembly
[H0070-S]
Socket Head Cap
Screw M3x12mm
(HC062-S)
Washer
3.2x 6x0.5mm
(HC180-S)
Socket Head Cap Screw
Shoulder M3x50mm
(HC092-S)
Main Structure
Assembly
Tail Belt Idler
Assembly
Button Head Cap
Screw M3x4mm
(HC038-S)
Belt Tensioner Arm Assembly
[H0070-S]
Note:
Position without preload.
Insert the screw in the
hole through the aluminum
support as in the picture.
Flanged Bearing
3x 7x3mm
(HC402-S)
Tail Belt Idler
[H0069]
Flanged Bearing
5x 9x3mm
(HC410-S)
Spring
de 8 / df0.5 / LL8
(HC315-S)
BAG 4
Belt Tensioner Arm
Assembly
Washer
3.2x 6x0.5mm
(HC180-S)
Page 8

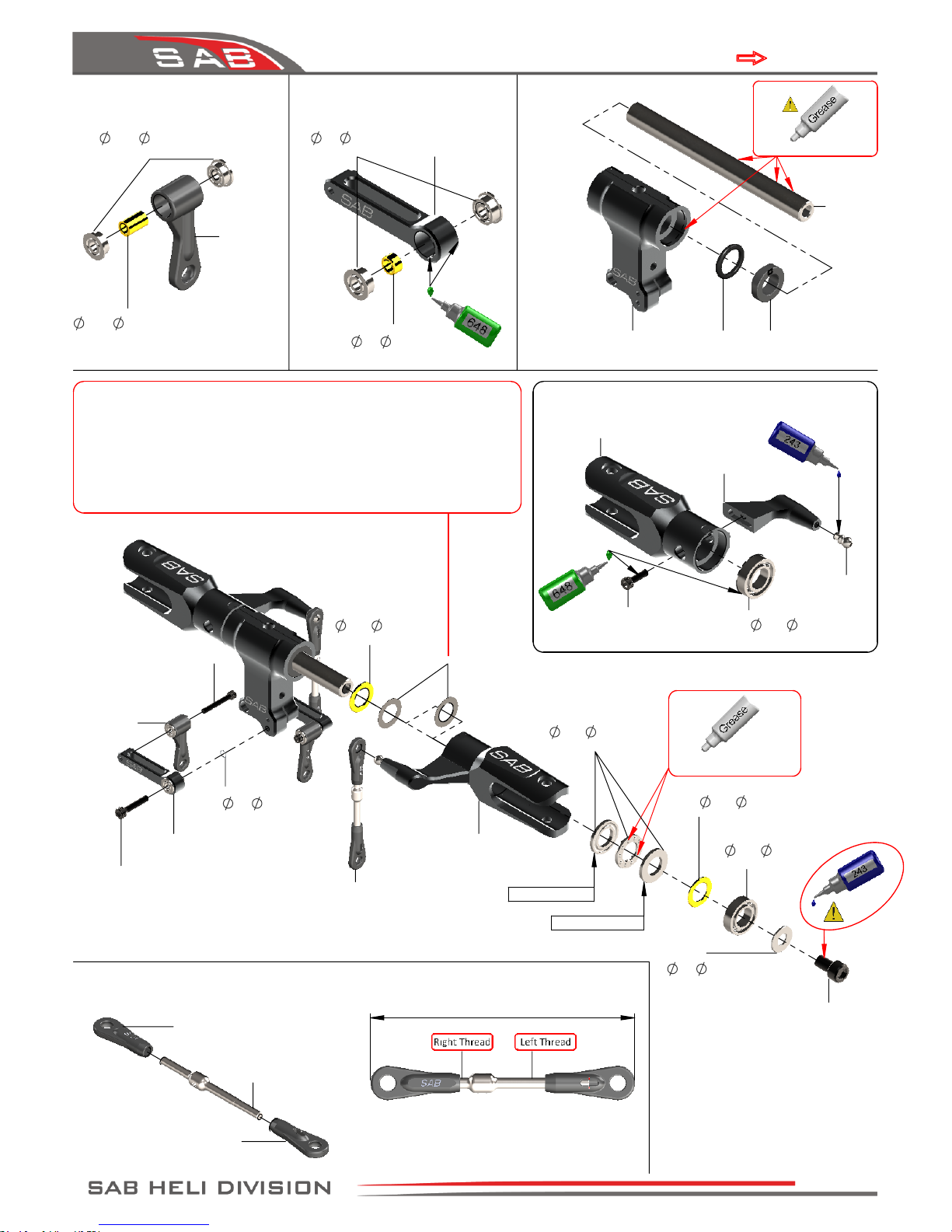

Chapter 5, Transmission Assembly

Approx 76.6mm
BAG 5-1, BAG 5-2
Center Hub Assembly
Center Hub
(H0130BM-S)
Oring
(HA024)
Damper Derlin
(H0426-C)
Spindle
(H0097-S)
Radius Arm Assembly ... x2 Uniball Arm Assembly ... x2
Flanged Bearing
2.5x 6x2.5mm
(HC400-S)
Spacer Arm
2.5x 4x6.3mm
[H0253]
Uniball
Radius Arm
[H0205]
Flanged Bearing
3x 7x3mm
(HC402-S)
Radius Arm
(H0132BM-S)
Spacer Arm
3x 5x2.7mm
[H0134]
Main Blade Grip Assembly ...x2
Blade Grip
(H0679BM-S)
Blade Grip Arm
(H0131BM-S)
Bearing
10x 19x5mm
(HC422-S)
Socket Head Cap
Screw M3x10mm
(HC056-S)
Uniball M3
(H0065-S)
Note:
The HPS head should be assembled with one, 1mm shim (HC230) and one,
0.2mm shim (HC232) on each side. The blade grips must move freely, but
they should not move just under their own weight. If the blade grips are too
tight, you can remove the 0.2mm shim (HC232) from each side. After
approximately 10/20 flights, please check preload, you can add one or two
0.2mm shim (HC232) if preload has changed.
Socket Head Cap
Screw M2.5x18mm
(HC032-S)
Uniball Arm
Assembly
Radius Arm
Assembly
Socket Head Cap
Screw M3x16mm
(HC068-S)
Washer
3x 4x0.5mm
(HC176-S)
Linkage Rod
Assembly
Main Blade Grip
Assembly
Thrust Bearing
10x 18x5.5mm
(HC438-S)
Washer
10x 16x1mm
(HC230-S)
Bearing
10x 19x5mm
(HC422-S)
Washer
6x 14 x1.5mm
(HC194-S)
Socket Head Cap
Screw M6x10mm
(HC124-S)
Washer
10x 16x1mm
(HC230-S)
[HC232-S]
Linkage Rod A Assembly ...x2
Plastic Ball Link
(H0402-S)
Plastic Ball Link
(H0402-S)
Linkage Rod
M3x50mm
(H0417-S)
(Initial length for the rods from the swashplate
to the Blade Grip.)
eg: Microlube GL261
Note: Larger ID
Note: Smaller ID
eg: Microlube GL261

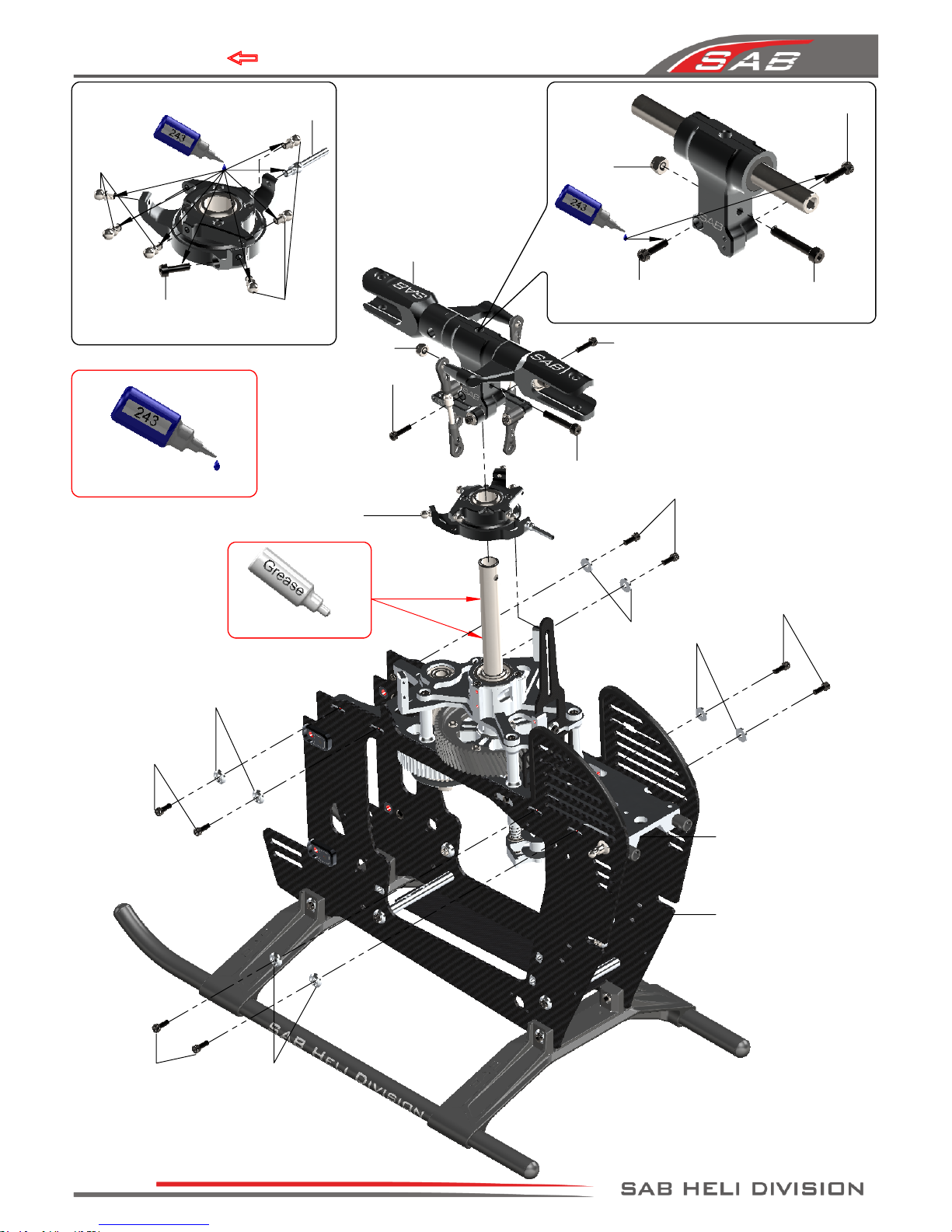

Chapter 6,Rotor Head
Page 9

Socket Head Cap
Screw M3x8mm
(HC050-S)
BAG 6-1, BAG 6-2, BAG 6-3
Socket Head Cap
Screw M3x12mm
(HC062-S)
Socket Head Cap
Shoudered M4x24mm
(HC111-S)
Socket Head Cap
Screw M3x12mm
(HC062-S)
Metric Hex
Nylon Nut M4
(HC212-S)
Uniball
(H0063-S)
Uniball M3
(H0065-S)
Socket Head Cap
Screw M3x10mm
(HC056-S)
Uniball M3
(H0065-S)
Swashplate Assemly
(H0422BM-S)
Finishing
Washer M3
(H0007-S)
Socket Head Cap
Screw M3x8mm
(HC050-S)
Carbon Frame
Assembly
Central Group
Assembly
Finishing
Washer M3
(H0007-S)
Socket Head Cap
Screw M3x8mm
(HC050-S)
Swashplate
Assemly
(H0422BM-S)
[HC062-S]
[HC111-S]
[HC062-S]
[HC212-S]
Head HPS
Assembly
Socket Head Cap
Screw M3x8mm
(HC050-S)
Finishing
Washer M3
(H0007-S)
Use Loctice in all Screw M3x8.
Note:
eg: Microlube GL261
Page 10
Chapter 7, Assembly of The Modules

D D
C C
BAG 7-1, BAG 7-2

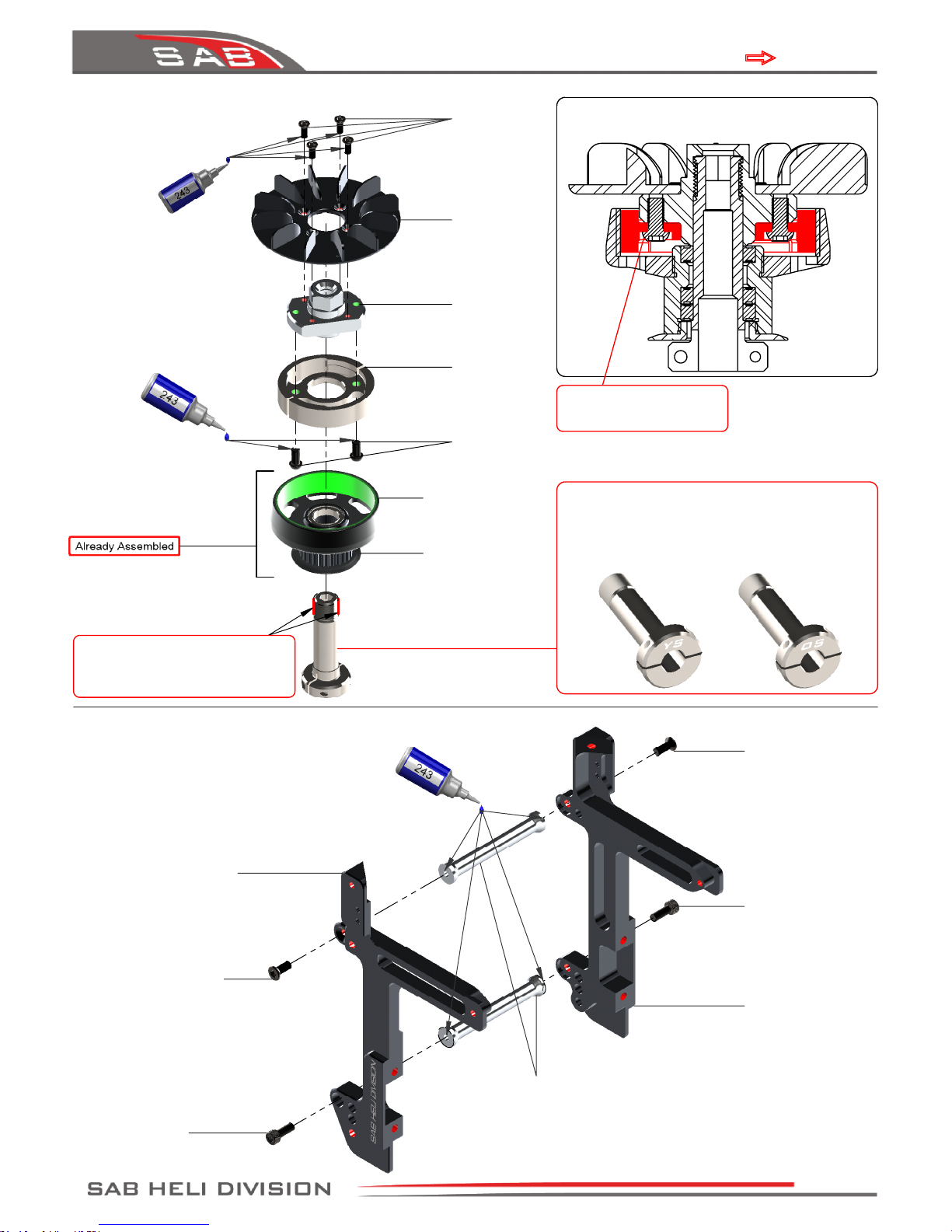

Clutch Unit Assembly
Pulley Assembly (Black)
(H0675BL-28-S)
[ Pulley + Bearing ]
Shaft OS Motor
(H0668-B-S)
Button Head Cap
Screw M4x8mm
(HC098-S)
Clutch
(H0670-S)
Clutch Support
(H0672-S)
Fan Case
(H0671BM-S)
Flat Head Cap
Screw M3x8mm
(HC134-S)
Engine Mount Assembly
Socket Head Cap
Screw M3x8mm
(HC050-S)
Flat Head Cap
Screw M3x8mm
(HC134-S)
Motor Support DX
(H0665-S)
Motor Support SX
(H0667-S)
Engine Support Spacer
(H0682-S)
Socket Head Cap
Screw M3x8mm
(HC050-S)
Flat Head Cap
Screw M3x8mm
(HC134-S)
Section
Section Line 135
Note:
Counterbore external side.
Note:
Clutch Bell Assembly
( The Silver color H0676-S
is not compatible with
spare parts Black version )
Clutch Bell ( Black )
(H0674BL-S)
[ Bell + Clutch Line ]
Don't use any retaining compound in
red area between H0668 and H0672.
IMPORTANT NOTE
Note:
Use the shaft depending on your motor.
Shaft YS Motor
(H0668-A-S)
Page 11

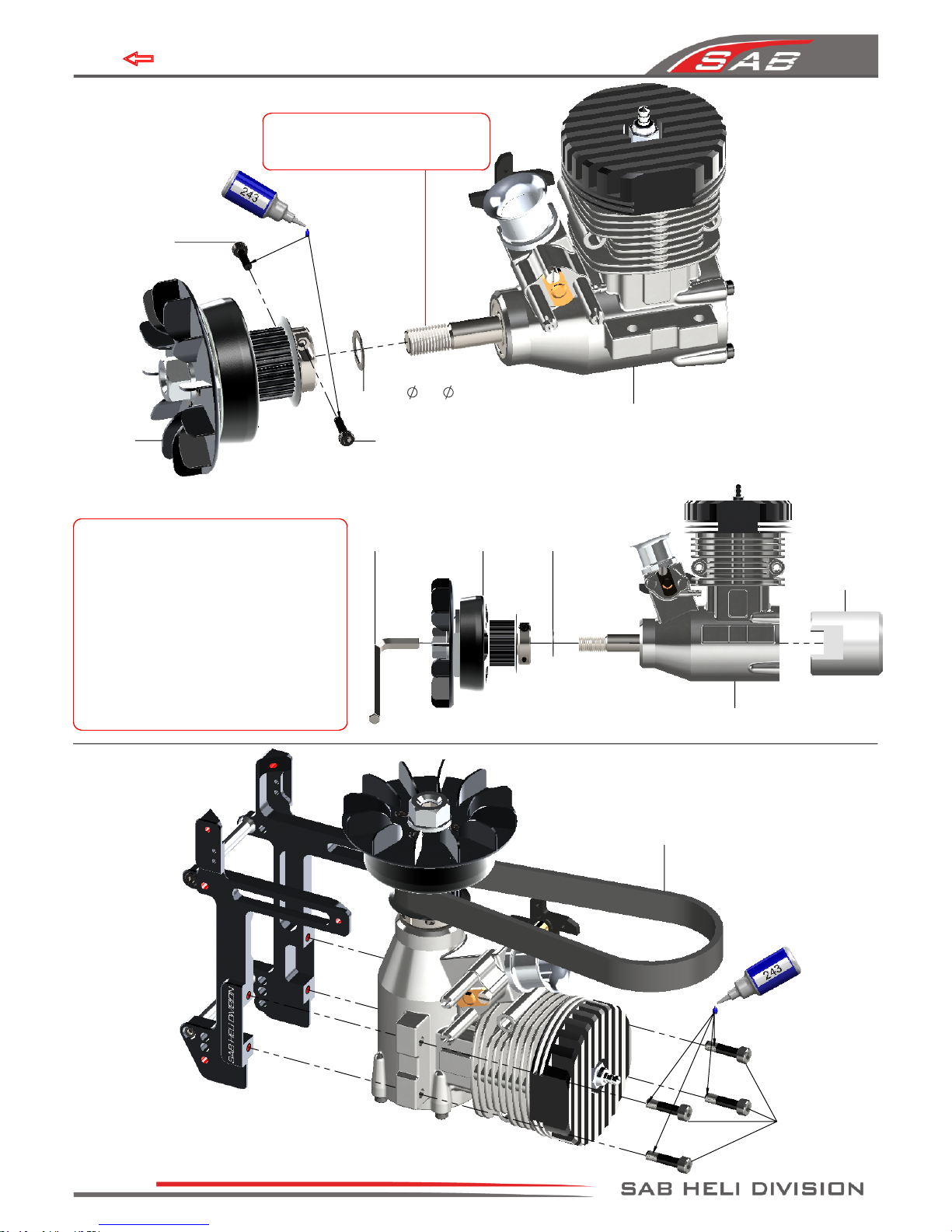

Chapter 8, Engine Unit Assembly

Motor Support
(H0143-S)
BAG 7-3
Socket Head Cap
Shoulder M4x15mm
(HC103-S)
Socket Head Cap
Screws M3x10mm
(HC056-S)
Note:
Using H0726 ( accessory not included in
the kit ) you can easily tighten the assembly
onto the engine shaft.
With a 6mm hex driver, you can tighten
the clutch unit.
IMPORTANT:
Tighten first the clutch unit with a hex
tool against the engine bearing. Only after
this step, tighten the 2 M3x10 screws.
Motor Assembly
Motor Belt
(HC472-S)
Socket Head Cap
Screws M3x10mm
(HC056-S)
Engine
Crank Clamp
(H0726-S)
Washer
10x 15x0.75mm
( Supplied with The Engine )
Engine
Washer Clutch Unit HEX 6mm
Note:
Do not add loctite on the engine shaft
Clutch Unit
Page 12
Chapter 8, Engine Unit Assembly

Cut
Magnet
BAG 7-4
INSTALLATION OF THE RPM SENSOR
On the Goblin, you can use two different solutions to install
an RPM sensor. The first is a backplate sensor, please look
at the following pictures for how to install it.
P.S: Not all YS engines can support this style of sensor,
please check with your specific engine.
The second is to use two magnets on the fan.
Please install it in this way:
Install 2 magnets on the fan with epoxy glue ( before, clean part with some degreaser [ Fig. 4 ] ).
You have to cut open a small slot on the fan case. [ Fig. 5 ].
To install the sensor, you can use the two M2.5 holes [ Fig. 6 ] .
Not all sensors are the same, so you can adapt the position with the carbon support (H0729).
With the Align sensor and the Spartan sensor, you can use the part of the support that already has holes in it.
With any other sensor, you can use the part without holes and adapt as needed.
Socket Head Cap
Screw M2.5x6mm
(HC018-S)
Magnet
H0729-S RPM Sensor Support
Fan case p/n: H0663
Sensor
Chapter 8, Engine Unit Assembly
Page 13

Fan Case B
(H0663-S)
61
10
BAG 7-5
Fan Case A
(H0662-S)
Socket Head Cap
Screws M3x10mm
(HC056-S)
Fan Case Assembly
Finishing Washer M3
(H0007-S)
Socket Head Cap
Screws M3x10mm
(HC056-S)
Finishing
Washer M3
(H0007-S)
Socket Head Cap
Screws M2.5x10mm
(HC022-S)
Socket Head Cap
Screws M2.5x8mm
(HC020-S)
Finishing
Washer M2.5
(H0255-S)
Servo Support
(H0692-S)
Finishing Washer M3
(H0007-S)
NOTE:
If you want to use a muffler with a big gasket (Ex: Hatori),
you need to cut along the red line.
[H0662-S]

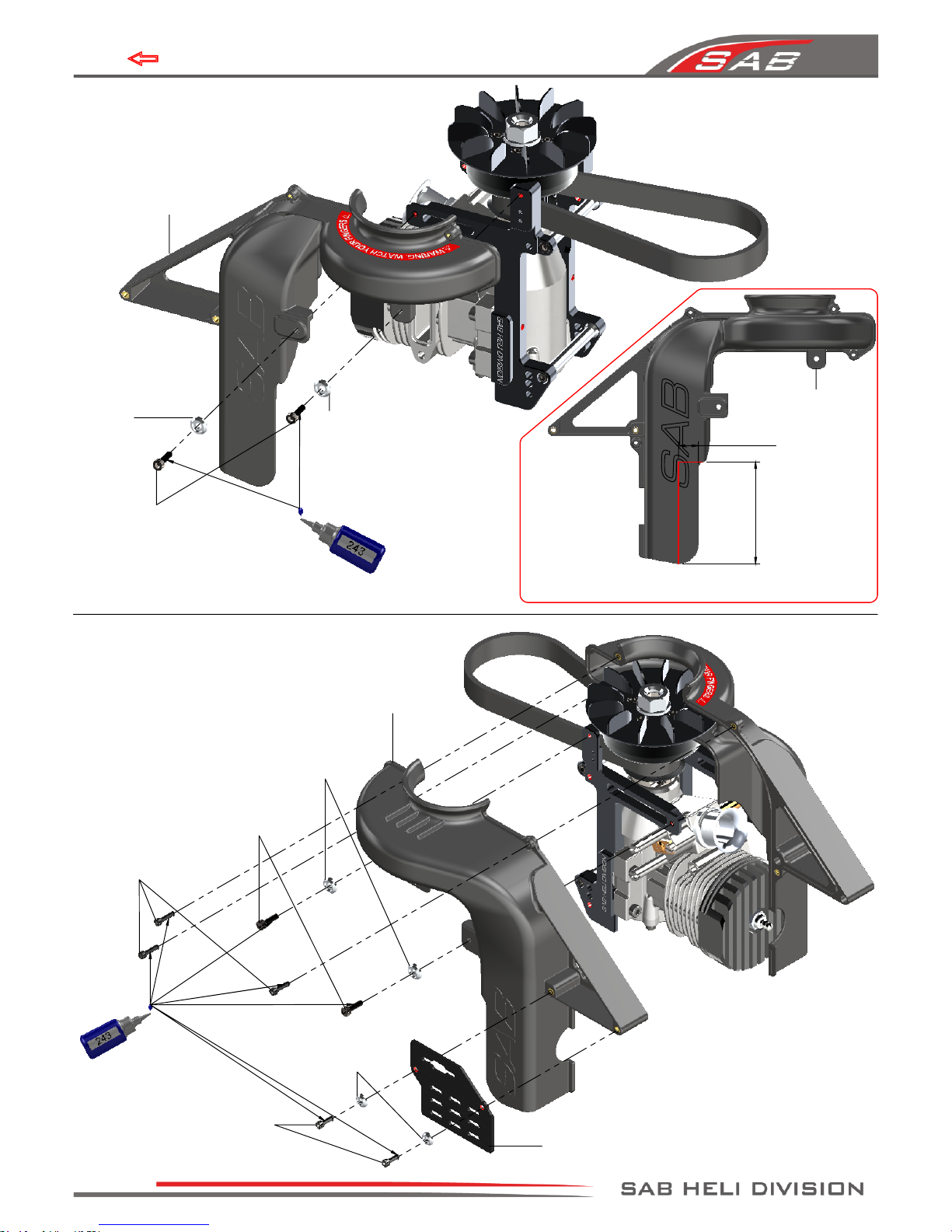

Chapter 8, Engine Unit Assembly
Page 14

BAG 7-6
Button Head Cap
Screw M4x10mm
(HC100-S)
Button Head Cap
Screw M4x10mm
(HC100-S)
Fit in this hole
Note:
Loosen all of the M3x8mm screws. Using a 5/6mm shaft, you can tension the motor belt.
Simply align the shaft with the ridges on the frame, push the shaft down and then re-tighten the bolts.
Note:
If you have already installed
the boom, please remember
to loosen these bolts.
Page 15
Chapter 8, Engine Unit Assembly

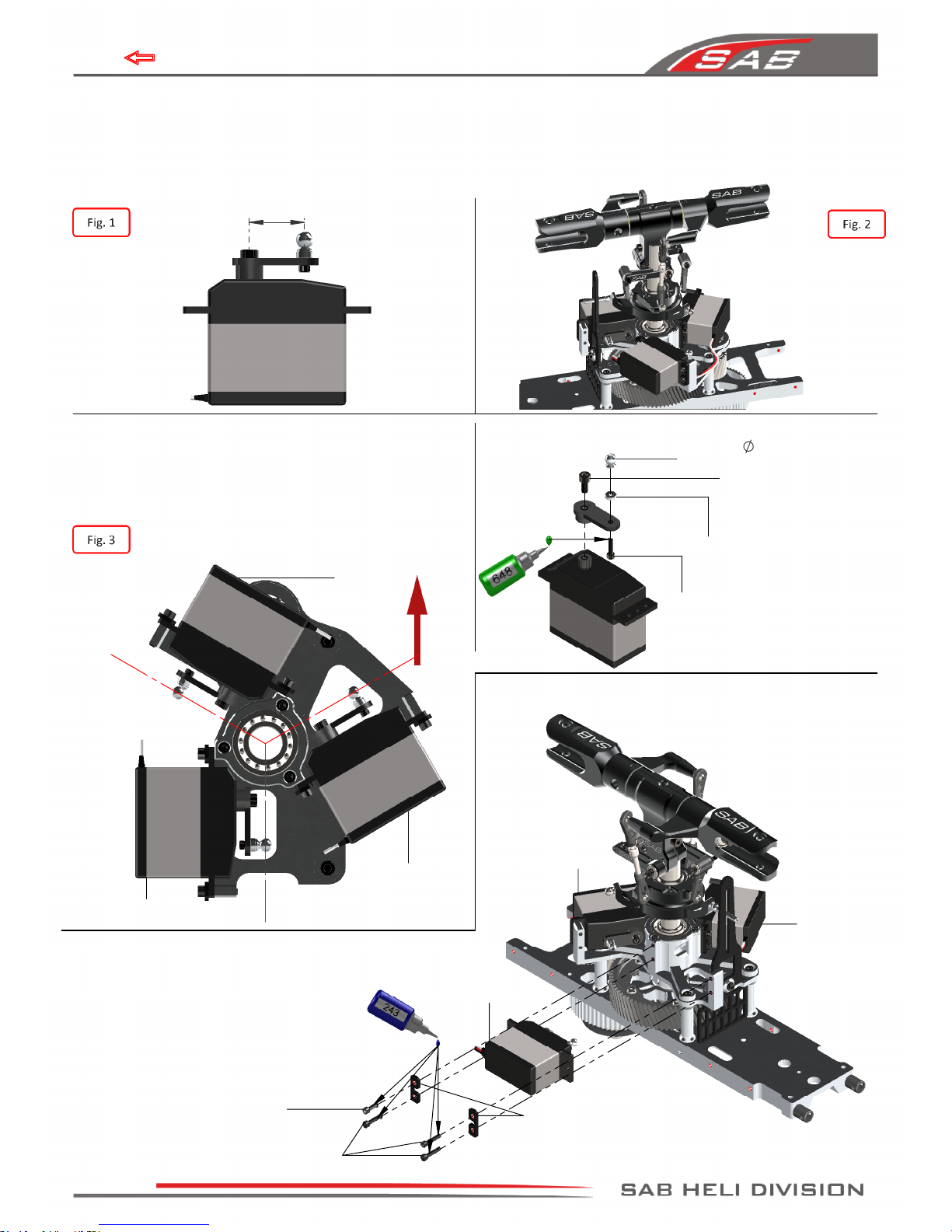

ASSEMBLY OF THE BALL ON THE HORN.
The rods going from the servos to the swash plate must be as
vertical as possible. Not all servos are equal, so to better align
them you can choose to use the supplied spacer H0031.
Figure 3 illustrates this.
INSTALLATION OF SWASHPLATE SERVOS
The linkage ball must be positioned between 17-19 mm out on the servo arm ( figure 1 ), recommended servo arm SAB
p/n [HA050/HA051]. The 120° placement of the servos inside Goblin means the arms are difficult to access. For this reason it is
advisable to ensure alignment of the servo arms (and sub trim set) before installation of the servos in the model.
Proceed with installation following the instructions below. Figure 2 shows a completed installation.
Uniball M2
5H6
(H0064-S)
Socket Head Cap Screw M2x8mm
(HC008-S)
or
Socket Head Cap Screw M2x6mm
(HC004-S) without Uniball Spacer
Servo 2
SERVO ASSEMBLY 1, 2, 3
Servo 1
Uniball Spacer
[H0031]
(H0064-S)
Socket Head Cap
Screw M2.5x12mm
(HC026-S)
Socket Head Cap
Screw M3x6mm
(HC044-S)
Socket Head Cap
Screw M2.5x8mm
(HC020-S)
Servo 1
Servo 3
Servo Spacer
(H0075-S)
Servo 2
Servo 3
17-19mm
Servo 1
BAG 8-1
Page 16
Chapter 9, Installation Of Servos

Plastic ball link
(H0066-S)
40mm 65mm
10mm
Initial length for the rods from the servos to the swash plate.
Approx. 49 mm
Plastic ball link
(H0066-S)
Linkade Rod B
Aseembly
Head HPS Version Preliminary Setup
Adjust the linkage as shown. The linkage Rod A has thead right/left.
Turning, you can change the tracking without disconnecting the plastic ball link.
The wire for the front servo must be positioned here
Linkade Rod A
Aseembly
Linkage Rod B Assembly ... x3
BAG 8-2, BAG 8-3
Set Screw M2.5x18mm
(HC140-S)

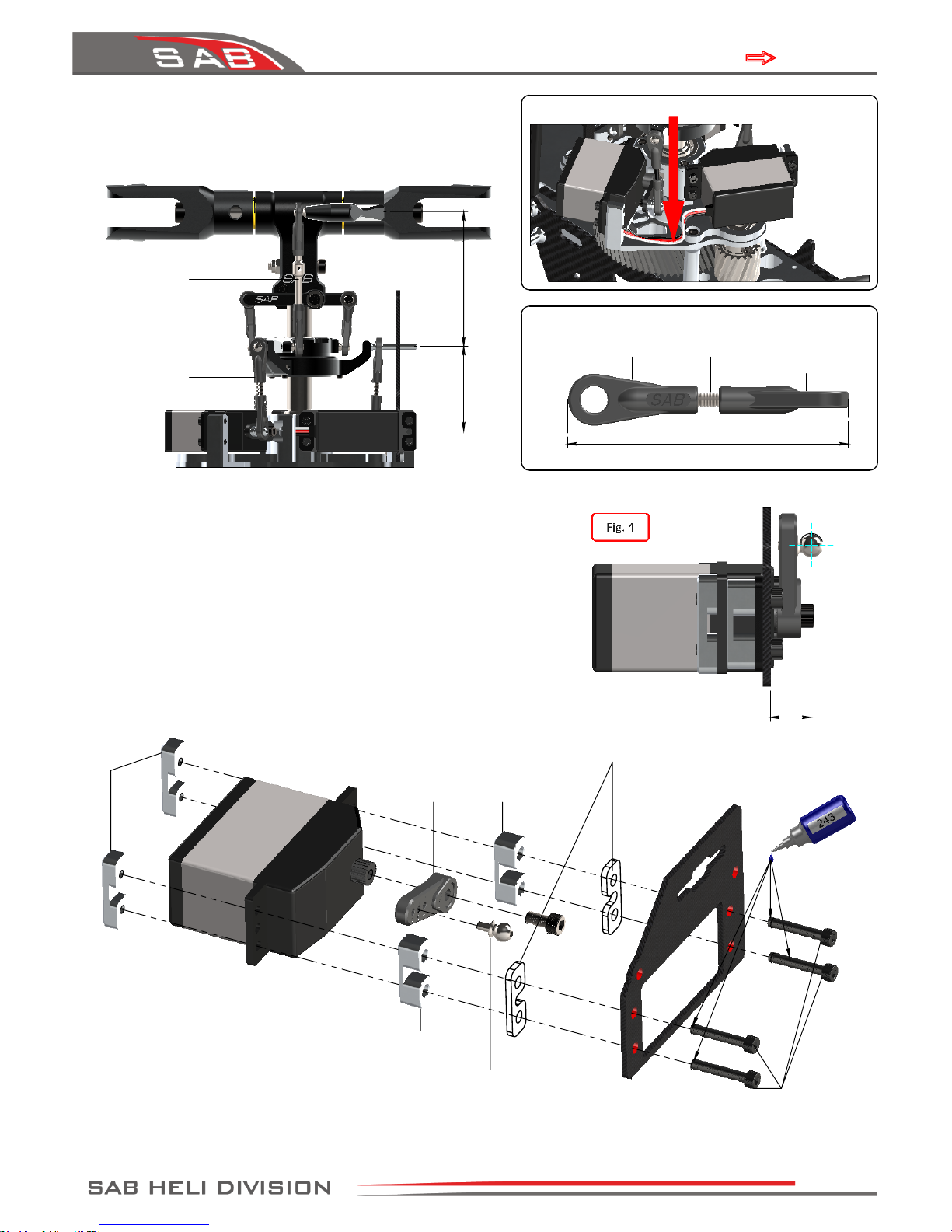

INSTALLATION OF THE THROTTLE SERVO
Uniball M2
(H0538-S)
Servo Block
(H0392-S)
Servo Gas Support
(H0691-S)
[H0538]
Servo Spacer
(H0728-S)
Socket Head Cap
Screw M2.5x15mm
(HC028-S)
Servo Spacer
(H0728-S)
Servo Spacer
(H0075-S)
[ Install if need for to get 10mm distance ]
When installing the throttle servo, It is important to have the correct distance
for the ball. Fig 4.
Using H0728 to get the correct servo spacing, you can also use H0075 if needed.
[HA053]
Page 17
Chapter 9, Installation Of Servos

82mm Approx
78mm Approx
Socket Head Cap
Screw M2.5x8mm
(HC020-S)
Finishing Washer M2.5
(H0255-S)
Socket Head Cap
Screw M2.5x8mm
(HC020-S)
Finishing
Washer M2.5
(H0255-S)
Socket Head Cap
Screw M2.5x8mm
(HC020-S)
Finishing
Washer M2.5
(H0255-S)
Bag 8-4
Wires Support
(H0690-S)
Wires Support Assembly
Plastic Ball Link M2
(H0403-S)
Linkage Rod M2x64mm
(HC243-S)
Plastic Ball Link M2
(H0403-S)
Linkage Assembly
Install the throttle servo support as shown in Figure 1 .
In Figure 2 you can see a typical installation with YS engine.
In Figure 3 you can see a typical installation with OS engine.
Note: Correct Orientation
Page 18
Chapter 9, Installation Of Servos
