Saey 200+ series User manual

SAEY Home & Garden plc. Documentation addressed to
Industrielaan 4 the user and installer
8501 Kortrijk-Heule (Belgium)
tel. [phone] - fax [phone]
OPERATING INSTRUCTIONS
477.0220.000 SAEY 200 & 200 + Anthracite
477.0220.280 SAEY 200 + Glossy dark blue e-mail
477.2520.000 SAEY 200 + CUCINA Anthracite
477.2520.280 SAEY 200 + CUCINA Glossy dark blue e-mail

2
Dimensions
Height ..................................................................................… 67,5 cm
Width ................................................................................…. 64 cm
Depth ....................................................................................… 52 cm
Diameter of the outlet duct …………………………………….. 150 mm
Distance from ground to bottom part of the outlet duct………… 45,6 cm
1. IMPORTANT WARNINGS
WARNING!
- The user of a stove must read the manual attentively before using the
appliance for the first time.
- If your stove has been installed in the living room, you must ensure a
sufficient supply of fresh air in any case.
- The appliance should only be used with closed doors.
- When the doors remain open once the stove is functioning, the inflow of
air into the stove is no longer being controlled.
The danger then arises that the stove will become too hot and
overheated, so that slag formation takes place and the parts exposed to
the flames are damaged.
The glass panel will become warped and glowing embers will burn into
the glass surface.
This kind of damage is not covered by the guarantee.
- Shut the stove doors, even when the stove is not in operation.
2. THE CONNECTION OF A STOVE
It is only when the appliance was connected by an authorised installer that
you can be certain that the installation and fire protection instructions were
observed.
The most important connection component is the chimney.
Make an appointment with a recognised chimneysweeper so that the
specific regulations applicable in the country of use in this regard, are also
complied with.

3

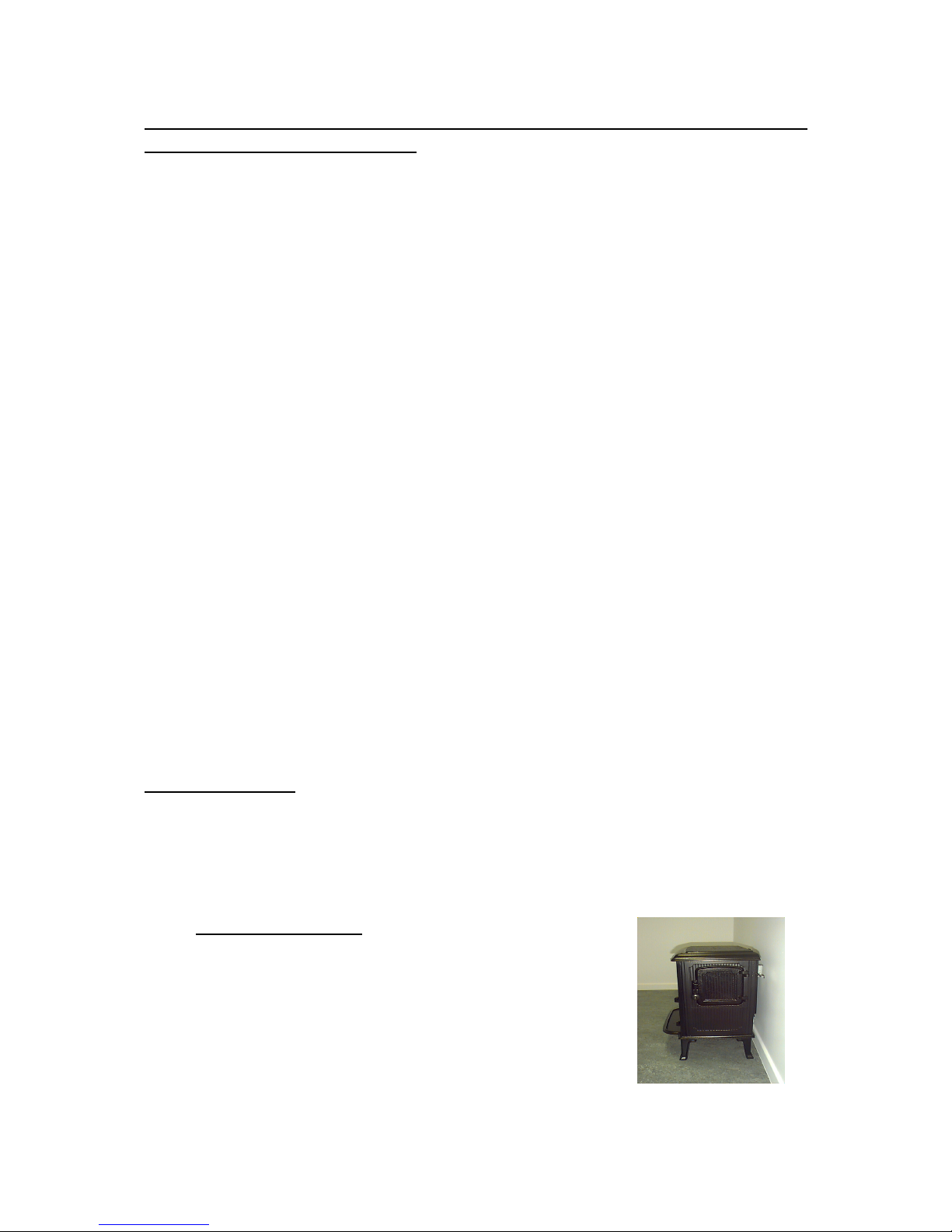

Also pay attention to the following
The stove is suitable for a chimney with several shafts. For this purpose,
the stove must be used with closed doors.
There must be an adequate air supply. Tightly closed doors and windows
may cause problems in this regard.
Preferably place your stove near the chimney (hearth). A heat-resistant,
fireproof base (bottom plate) must be placed underneath the stove.
These bases (made of cast iron, steel sheeting…) are available
commercially.
In any case, ensure that the base is fireproof.
Flammable objects such as doors, furniture, woodwork etc. must be at a
distance of at least 60 cm. Place your appliance at least 30 cm away from
the wall. The wall must consist of non-flammable material.
3. CONNECTING THE STOVE TO THE CHIMNEY
The chimney draught must be above 0,08 mbar (0,8 mm WK). The
diameter of the smoke duct must correspond with that of the connector
(150 mm).
The smoke duct must be sealed at all connection points! Attention is
specifically drawn to the danger of escaping fumes.
False air results in a weaker chimney draught.
If the chimney draught is too strong, the installation of a draught
regulator is recommended.
3.1 Saey 200 + :
Top vent
Normally the discharge of fumes takes place at the
back. Another option is to install the smoke duct at
the top.

4
Assembly of the smoke duct (optional component) for vertical fume
discharge (ref. 479.0094.XXX)
First you must remove the round cover plate situated in the upper plate.
In order to do this, the hexagonal bolt (SW 10) that attaches the cover
plate by means of the cast-iron bracket must be removed with a spanner
via the smoke duct on the rear wall. The smoke duct can now be attached
by means of the two hexagonal bolts (M6X20), the 4 pinions and the two
hexagonal nuts (M6) provided. Finally, you must insert your hand through
the opening at the top in order to reattach the round cover plate to the rear
wall and screw it down by means of the cast-iron bracket and the
hexagonal bolts (M6X60) that have also been provided, as well as the
pinions used earlier.
Take note of the following precautionary measures before the smoke duct
is installed:
- The diameter of the smoke duct may not be reduced and it may not be
positioned horizontally, but should still rise towards the chimney at a slight
angle.
-The stovepipe must fit into the chimney opening to make the discharge
of fumes possible. Make provision for a double lining in this regard.
-Chimney connections of different stoves may not be so positioned
opposite one other, i.e. at the same height. This may obstruct the
discharge of exhaust fumes. The distance between two outlets for fumes
should be at least 30 cm.
-Do not connect too many stoves to one chimney
-Too many connections hamper the upward draught. Ask your
chimneysweeper for advice.
-The chimney may not conduct any false air. Ensure that the chimney
control valves as well as the cleaning openings in the cellar are closed.
-The smoke duct must be securely attached to the connector.
3.2 Saey 200 + cucina
The discharge of fumes takes place at the back.

5
4. SUITABLE FUELS
The SAEY 200 + stove makes use of the following fuels:
* WOOD : Logs with sticky bark, e.g. cleaved logs with a length of 45 cm.
The wood should be stored for about two years, and should
have a maximum residual humidity level of 20 %.
Wet wood does not burn well and produces smoke, resulting
in condensation and a tar discharge, which makes the stove
dirty.
Take care: DO NOT burn waste matter.
TAKE CARE: NO coals
NO synthetic fuels (e.g. FUTUREX)
DO NOT burn waste matter

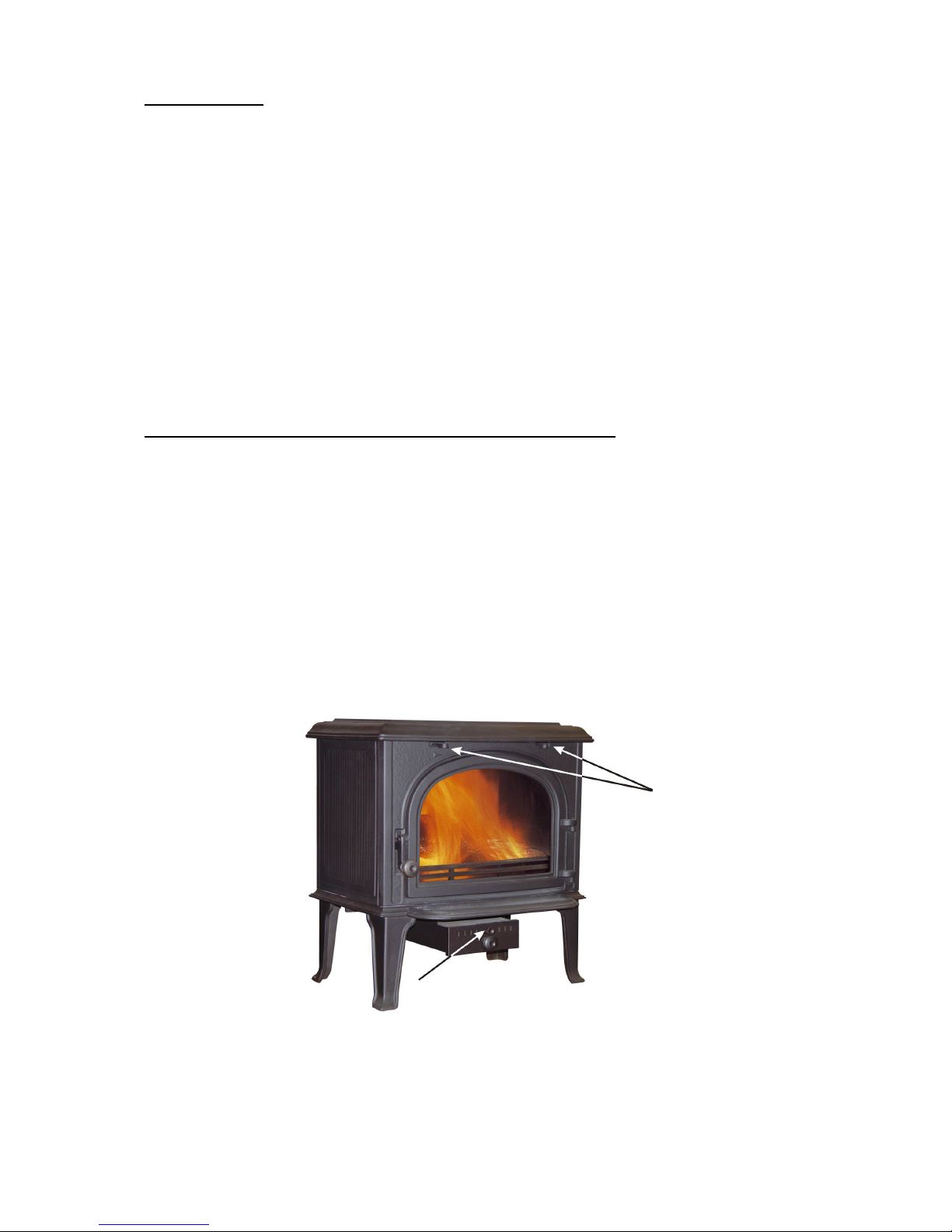

5. FOR THE FIRST KINDLING
When used for the first time, the stove must be dried out first. For this
purpose, use a little fuel to keep the fire burning for one hour.
When the top air sliders are open, the glass is ‘washed’ by an air current
that glides over the window. Thus, your window remains clean for a long
time (= air-wash system). Fresh air is also added to the hot fumes via
these openings. This causes the fumes to ignite so that a second
combustion takes place, resulting in a higher output and cleaner fume
emissions (= post-combustion).
This causes the protective lacquer to dry up, and a smell may be given off.
Monitor the combustion process carefully. In this regard, carefully wipe off
any condensation drops before the residue gets a chance to burn into the
enamel (e.g. the lacquer).

6
6. PRECAUTIONS
A stove gets hot, especially the covering plate, the casing and the glass
panel!
Install your stove in a safe place in order to prevent playing children from
touching it.
Even if all the safety regulations are observed, there is still a risk of
accidents occurring.
KEEP SMALL CHILDREN AT A SAFE DISTANCE.
7. LIGHTING THE STOVE –THE STANDARD PROCEDURE
When the stove is lit, open the air sliders by sliding them outwards.
Open the door with the glass panel and put crumpled newspapers over
the floor, with a handful of splintered wood (thin wood) on top of it. After
the stove has been lit, the door with the glass panel must be firmly closed.
IMPORTANT : the door with the glass panel should not be opened again,
except for the purpose of topping up.
8. WOOD COMBUSTION
8.1 Topping up
To stoke the fire, open the air slider to its maximum.
The logs should be inserted through the door with the glass panel or the
right-hand filler door and placed on the still sufficiently glowing base, in no
more than two layers. Do not overfill.

7
8.2 Method
The burning of wood is accompanied by high flames and heavy smoke
production. Wood must be burnt up rapidly and with a constant oxygen
supply. The combustion process may not be slowed down under any
circumstances.
Negative consequences could be:
- smouldering fire, condensation and tar discharge
- excessive production of soot
- inconvenience caused by smoke (emission of harmful substances)
- danger of asphyxiation
- danger of explosion
Wood provides intense combustion of short duration:
Sustained combustion is only achieved through regular top-ups. This
means : only when the wood has almost been burnt up and the degassing
process completed - high flames are reduced to small, low flames and
wood is converted into glowing embers - can the emission of heat be
slowed down by closing the air slider above the door with the glass panel
and the one of the ash pan. (see figure).
Avoid an excessive amount of fuel in any case, otherwise the energy
surge becomes too great and too much heat will be lost.

8
9. ASH REMOVAL
Take note: do not poke the fire when the appliance is in operation.
Wood combustion produces little ash. Because of this, the remains of the
embers continue to smoulder in the glowing ash.
The ash pan may be maximally filled with ash to the upper edge. No ash
cone may be formed: otherwise cooling of the combustion chamber
becomes impossible and the cast iron parts would begin to melt.
The ash door should always be closed when the stove is in operation. If
this is not done, the stove overheats and is damaged.
Always remove the ash when it has cooled down. You could use an ash
scoop for this purpose (not supplied).
Note: Cooled ashes should nevertheless always be deposited in a
fireproof container.
10. MAINTENANCE - IMPORTANT
The smoke discharge duct (between the checking-plate and the rear wall)
must be cleaned after every heating season – at least 1 x a year.
By removing the control damper, you will be able to reach the smoke
discharge duct.
This makes it easy to remove the fly ash from the discharge duct as well
as the connector. The control damper must be put back correctly
afterwards.
It is recommended that, after the heating season (i.e. during the summer
months) the flue pipe between the stove and chimney should be removed
or sealed in order to prevent condensation and / or corrosion in the stove.
This improves the durability of your stove.
11. INSTRUCTIONS
With regard to the Saey 200 + cucina, you may only place kettles, pans,
etc. on the polished cooking plate after the stove has been used for a
month. No water may be spilled on the hot plates, to prevent cracks from
forming.
When in use, the polished plate will glow and become blue. This is a
normal phenomenon.
The polished plate can be cleaned with steel wool or a special
maintenance product intended for this purpose.

9
12. GUARANTEE
THE MANUFACTURER GUARANTEES
a. impeccable quality and processing of the raw materials
according to the stated requirements
b. assembled by an expert
The guarantees a. and b. provide for free replacement to the appliance to
parts declared unfit for use.
Such parts are only replaced free of charge when it can be proven that
there are flaws in the raw materials or in the workmanship.
No further claims may be made.
THE MANUFACTURER DOES NOT GUARANTEE
Parts that are subject to wear and tear, and damage to and defects in the
appliances or their parts, caused by:
transport, storage, incorrect installation and use of appliance (e.g.
overheating).
Use of inferior fuels – incorrect operation.
The manufacturer is not responsible for direct or indirect damage caused
by the appliance. No claim can be laid to a full or partial exchange, unless
the manufacturer is unable to fix the flaw or damage within a certain time
span.

10

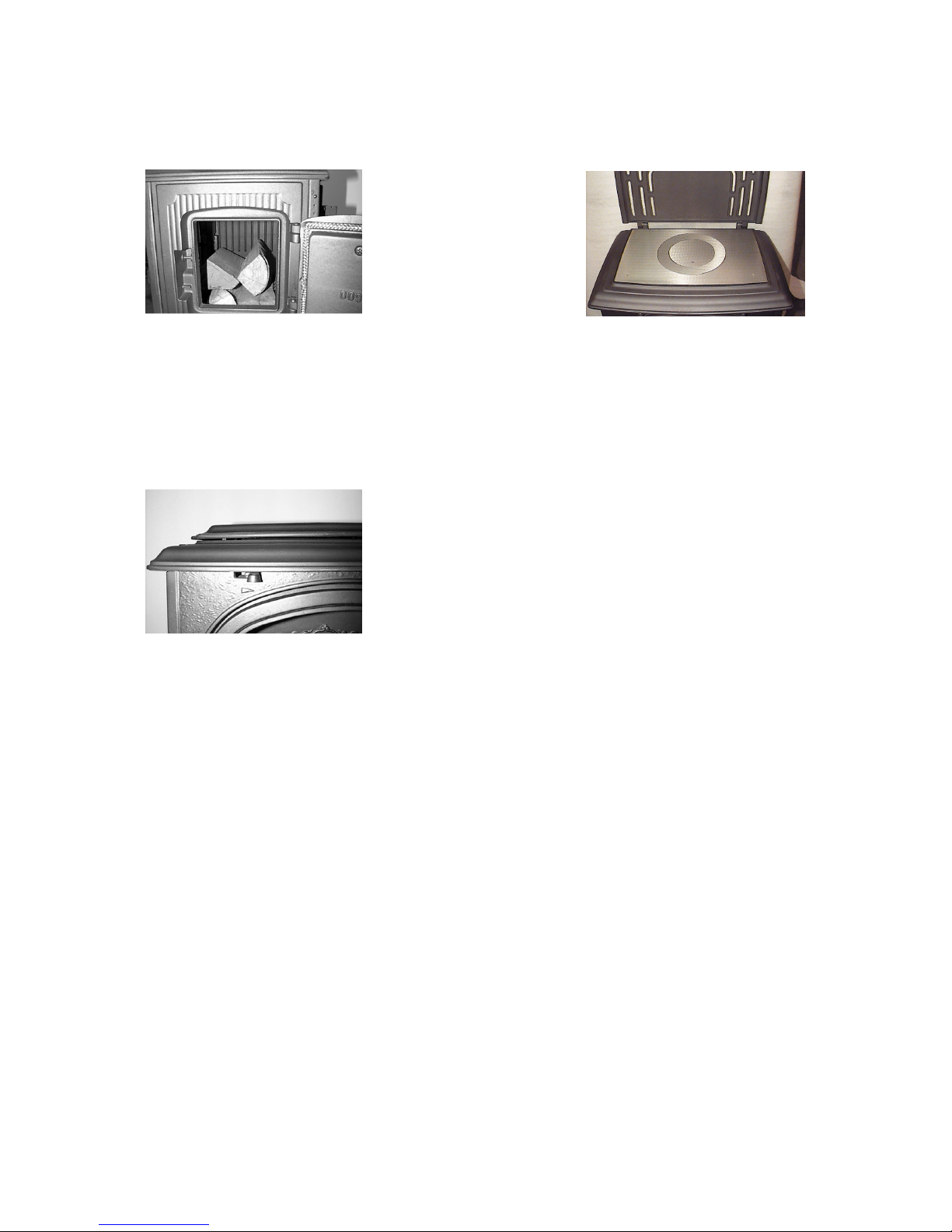

Secondary air conditioning
inside : closed
outside : open
Maximum stacking height of logs
Detail cucina upper plate
(Saey 200 + cucina )
040123
