Saf-Fro DIGISTEEL III 320C Operation and maintenance manual

DIGISTEEL III 320C
DIGIPULS III 320C
EN SAFETY INSTRUCTIONS FOR OPERATION AND MAINTENANCE
Cat n° : 8695-1259
Rev : C
Date : 02/2018
Contact : www.saf-fro.com

EN
Arc welding and plasma cutting may be dangerous for the operator
and persons close to the work area. Read the operating manual.

DIGISTEEL III /DIGIPULS III 320C 3
EN CONTENTS
1 - GENERAL INFORMATION.............................................................................................................................................................................................. 4
1.1. PRESENTATION OF INSTALLATION .................................................................................................................................................................... 4
1.2. WELDING SET COMPONENTS ............................................................................................................................................................................. 4
1.3. POWER SOURCES TECHNICAL SPECIFICATIONS............................................................................................................................................ 5
2 - STARTING UP ................................................................................................................................................................................................................. 7
2.1. POWER SOURCE GENERAL DESCRIPTION....................................................................................................................................................... 7
2.2. ELECTRICAL CONNECTIONS TO THE MAINS .................................................................................................................................................... 7
2.3. CHOICE OF CONSUMABLES ................................................................................................................................................................................ 7
2.4. POSITIONING THE WIRE....................................................................................................................................................................................... 8
2.5. WIRE DRIVER WEAR PART................................................................................................................................................................................... 8
2.6. CONNECTION OF THE TORCH............................................................................................................................................................................. 8
2.7. GAS INLET CONNECTION..................................................................................................................................................................................... 8
2.8. SWITCH ON ............................................................................................................................................................................................................ 8
3 - INSTRUCTIONS FOR USE.............................................................................................................................................................................................. 9
3.1. FRONT PANEL FUNCTIONS.................................................................................................................................................................................. 9
3.2. CALIBRATE THE POWER SOURCE...................................................................................................................................................................... 10
3.3. DYSPLAY AND USE ............................................................................................................................................................................................... 10
4 - OPTIONS, ACCESSORIES ............................................................................................................................................................................................. 13
5 - MAINTENANCE ............................................................................................................................................................................................................... 15
5.1. GENERAL................................................................................................................................................................................................................ 15
5.2. ROLLERS AND WIRE GUIDE................................................................................................................................................................................. 15
5.3. TORCH .................................................................................................................................................................................................................... 15
5.4. SPARE PARTS, COMPONENTS............................................................................................................................................................................ 16
5.5. WEAR PARTS ......................................................................................................................................................................................................... 20
5.6. TROUBLESHOOTING PROCEDURE..................................................................................................................................................................... 21
5.7. ELECTRICAL DIAGRAM......................................................................................................................................................................................... 23
6 - ANNEXES ........................................................................................................................................................................................................................ 24
6.1. PRESENTATION OF WELDING PROCESSES...................................................................................................................................................... 24
6.2. ADVANCED WELDING CYCLE .............................................................................................................................................................................. 26
6.3. LIST OF SYNERGIES ............................................................................................................................................................................................. 28

EN
4 DIGISTEEL III 320C /DIGIPULS III 320C
1 - GENERAL INFORMATION
1.1. PRESENTATION OF INSTALLATION
DIGISTEEL III 320C / DIGIPULS III 320C is a manual welding set that enables the following:
MIG-MAG welding with short arc, speed short arc, spray-arc, normal pulsed mode (only on DIGIPULS), using currents from 15A
to 320A.
Feeding different types of wire
Steel, stainless steel, aluminum and special wires
solid and cored wires
diameters from 0.6-0.8-1.0-1.2 mm
Coated electrode welding
1.2. WELDING SET COMPONENTS
The welding set consists of 4 main components :
1 - Power source including its primary cable (5m) and its ground strip (5m)
2 - Workshop trolley (optional),
3 - Universal trolley (optional),
4 - Cooler unit (optional)
Each item is ordered and supplied separately.
Options ordered with the welding set are delivered separately. To install these options, refer to the instructions supplied with the
option.
WARNING :
The plastic handles are not intended for slinging the set. Stability of the equipment is guaranteed only for an incline of maximum 10°.
1
2
3
4
1

EN
DIGISTEEL III 320C /DIGIPULS III 320C 5
1.3. POWER SOURCES TECHNICAL SPECIFICATIONS
DIGISTEEL III 320C - W000385049 DIGIPULS III 320C - W000385050
Primary side
Primary power supply 400V +/- 20% 400V +/- 20%
Primary power supply frequency 50/60Hz 50/60Hz
Effective primary consumption 12 A 12 A
Maximum primary consumption 18,7 A 18,7 A
Fuse primary 20 A Gg 20 A Gg
Maximum apparent power 13,1 KVA 13,1 KVA
Maximum active power 12,1 KW 12,1 KW
Active power in standby (IDLE) 50 W 50 W
Efficiency at maximum current 0,87 0,87
Power factor at maximum current 0,92 0,92
Cos Phi 0,99 0,99
Secondary side
No load voltage (according standard) 74 V 74 V
Welding range Max MIG 10V / 50V 10V / 50V
Welding range Max MMA 15A / 320A 15A / 320A
Duty cycle at 100% (10 min cycle at 40°C) 220A 220A
Duty cycle at 60% (6 min cycle at 40°C) 280A 280A
Duty cycle at maximum current at 40°C 320A 320A
Wire feeder
Rollers plate 4 rollers
Wire feeding speed 0,5 – 25,0 m / mn
Wire diameter usable 0.6 to 1,2 mm
Weight, type, size of wire spool 300 mm
Maximum pressure of gas 6 bar
Miscelleanous
Dimensions (Lxwxh) 755 x 300 x 523 mm
Weight 28 Kg
Operating temperature - 10°C/+40°C
Storage temperature - 20°C/+55°C
Torch connection “European type”
Protection index IP 23
Insulation class H
Standard 60974-1 & 60974-5 & 60974-10

EN
6 DIGISTEEL III 320C / DIGIPULS III 320C
WARNING: This power source cannot be used in falling rain or snow. It may be stored outside, but it is not designed for use
without protection during raining.

EN
DIGISTEEL III 320C /DIGIPULS III 320C 7
2 - STARTING UP
2.1. POWER SOURCE GENERAL DESCRIPTION
The power source is composed with :
1- Front panel display
2- European plug for torch
3- Additional plug for 2 potentiometers torch
4- Plug for ground cable and polarity inversion
5- Protection door for wire feeder section
6- Spool axle, shaft, axle nut
7- Gas purge button
8- Wire feeding button
9- Wire driver
2.2. ELECTRICAL CONNECTIONS TO THE MAINS
DIGISTEEL III 320C / DIGIPULS III 320C is a 400 V 3-phase welding set. If your mains supply corresponds to requirements, connect the "three-phase +
ground" plug to the end of the power cable.
WARNING: Sous réserve que l'impédance de réseau public d’alimentation basse tension au point de couplage commun soit inférieure
à 33 mΩ, ce matériel est conforme à la CEI 61000-3-11 et à la CEI 61000-3-12, et peut être connecté aux réseaux publics
d’alimentation basse tension. Il est de la responsabilité de l’installateur ou de l’utilisateur du matériel de s’assurer, en consultant
l’opérateur du réseau de distribution si nécessaire, que l'impédance de réseau est conforme aux restrictions d'impédance.
WARNING: This Class A equipment is not intended for use in residential locations where the electrical power is provided by the public
low-voltage supply system. There may be potential difficulties in ensuring electromagnetic compatibility in those locations, due to
conducted as well as radiated disturbances.
2.3. CHOICE OF CONSUMABLES
Arc welding requires the use of wire of a suitable type and diameter as well as use of appropriate gas. Refer to the table of gases and synergies in
Paraf 6.3.
WARNING :
The following wires are used in reverse polarity: SD ZN = SAFDUAL ZN.
1
2
3
4
5
6
7
8
9

EN
8 DIGISTEEL III 320C / DIGIPULS III 320C
2.4. POSITIONING THE WIRE
To set up the wire :
Turn the power source off.
Open the door of the wire-feeder unit [5] and ensure that it can not fall.
Unscrew the spool axle nut. [6].
Insert the spool of wire on the axis. Make sure that the locating pin of the shaft [6] is properly located into the reel locator.
Screw the spool nut [6] back on the shaft, turning it in the direction shown by the arrow.
Lower the lever of wire driver [9] in order to release the rollers.
Take the end of the wire of the spool and cut the distorted end piece.
Straighten the first 15 centimeters of wire.
Insert the wire via the inlet wire-guide of the plate.
Lower the rollers [9] and raise the lever in order to immobilise it.
A
djust the pressure of the rollers on the wire to the correct tension.
Wire feed
The wire feeding button (8) feeds the wire into the torch. The wire feeds over 1s at minimum speed and the speed increases gradually until the set
wire speed is reached, but is limited to 12 m / min. The settings may be change at any time; the power source displays the speed.
To feed the wire through the torch
Maintain the wire feeding button (8).
Wire speed can be adjusted with the button on front panel.
To full the gas line or adjust the gas flow
Push the gas bleed button (9).
2.5. WIRE DRIVER WEAR PART
The wearing parts of the wire driver, whose role is to guide and advance the welding wire, must be adapted to the type and diameter of the welding
wire used. On the other hand, their wear may affect the welding results. Is necessary to replace them.
Please refer to paragraph 5.5 to choose wearing parts for wire driver.
2.6. CONNECTION OF THE TORCH
The MIG welding torch is connected to the front of the wire feeder, after ensuring it has been properly outfitted with the wear parts corresponding to
the wire used for welding.
For this purpose, please refer to the torch instructions.
2.7. GAS INLET CONNECTION
The gas outlet is positioned at the rear of the power source. Simply connect it to the pressure-regulator outlet of the gas cylinder.
Place the gas cylinder on the trolley at the rear of the power source and fasten the bottle using the strap.
Open the cylinder valve slightly to allow existing impurities to escape and then reclose it.
Mount the pressure regulator/flowmeter.
Open the gas cylinder.
During welding, the gas flow rate should be between 10 and 20l/min.
WARNING :
Be sure that the gas cylinder is properly secured on the trolley by attaching the safety strap.
2.8. SWITCH ON
The main switch is located at the rear of the power source.
Flip this switch to turn the machine on.
Note: This switch must never be flipped during welding.
At each start-up, the power source displays the software version and recognized power.

EN
DIGISTEEL III 320C /DIGIPULS III 320C 9
3 - INSTRUCTIONS FOR USE
3.1. FRONT PANEL FUNCTIONS
Left display: Voltage, Right display: Current/ wire speed /wire thickness
1
Display for selection of welding mode 2
Selector button for welding mode / Button cancel in program mode 3
Selector switches for welding process 4
Measurement indicator of displayed values (pre-welding, welding and 5
post-welding data)
Led indicator for program mode
6
Encoder voltage setup and navigation 7
Encoder for current, wirespeed, metal sheet thickness setup and 8
navigation
Display mode indicator current, wirespeed, metal sheet thickness
9
Selector button for pre-display and program management 10
Selector switch for type of gas, wire diameter and type of welding wire 11
2
3
4
5
6
7 8
9
10
11
1

EN
10 DIGISTEEL III 320C /DIGIPULS III 320C
3.2. CALIBRATE THE POWER SOURCE
WARNING :
When starting up for the first time, the calibration is an unavoidable step to achieve quality welding. If polarity is reversed, this
step must be repeated.
Step 1: Turn the wire diameter switch to SETUP position and press the OK button to access the COnFIG Setup screen.
Step 2: Select the CaL parameter with the left-hand encoder and select On with the right-hand encoder.
Step 3: Press the OK button on the front panel. The display unit indicates triGEr.
Step 4: Remove the torch nozzle.
Step 5: Cut the wire.
Step 6: Place the piece in contact with the contact tube.
Step 7: Press the trigger.
Step 8: The display will indicate the value of L (cable inductance).
Step 9: Display the value of R using the right-hand encoder (cable resistance).
Step 10: Exit Setup.
3.3. DISPLAY AND USE
3.3.1. Synergic mode
The Current, Voltage and Thickness values listed for each wire feed speed setting are provided for information purposes only. They correspond to
measurements under given operating conditions, such as position, length of the end section (flat position welding, butt welding).
The units current/voltage displayed correspond to the average measured values, and they may differ from the theoretical values.
Led indicator for program mode:
OFF: pre-welding display of instructions.
ON: Display of measurements (average values).
Flashing: Measurements during welding.
Selection of wire, diameter, gas, welding process
Select the type of wire, the wire diameter, the used welding gas and welding process by turning the appropriate switch.
Selection of the material will determine the available values for diameter, gas and processes.
If synergy does’nt exist, power source displays nOt SYn,GAS
SYn,DIA SYn Or PrO SYn.
Selection of welding mode, arc length and pre-welding display
Select welding mode 2T, 4T, spot, synergic and manual by using press button return (3). Arc length can be adjusted with left encoder (7) and pre-
welding display adjustement is performed with right encoder (8). The selection of pre-welding preset is performed with press button OK. (10)
3.3.2. Manual mode
This is the disengaged mode of the welding machine. Adjustable parameters for it are wire speed, arc voltage and fine setting.
In this mode, only the wire speed value is displayed.

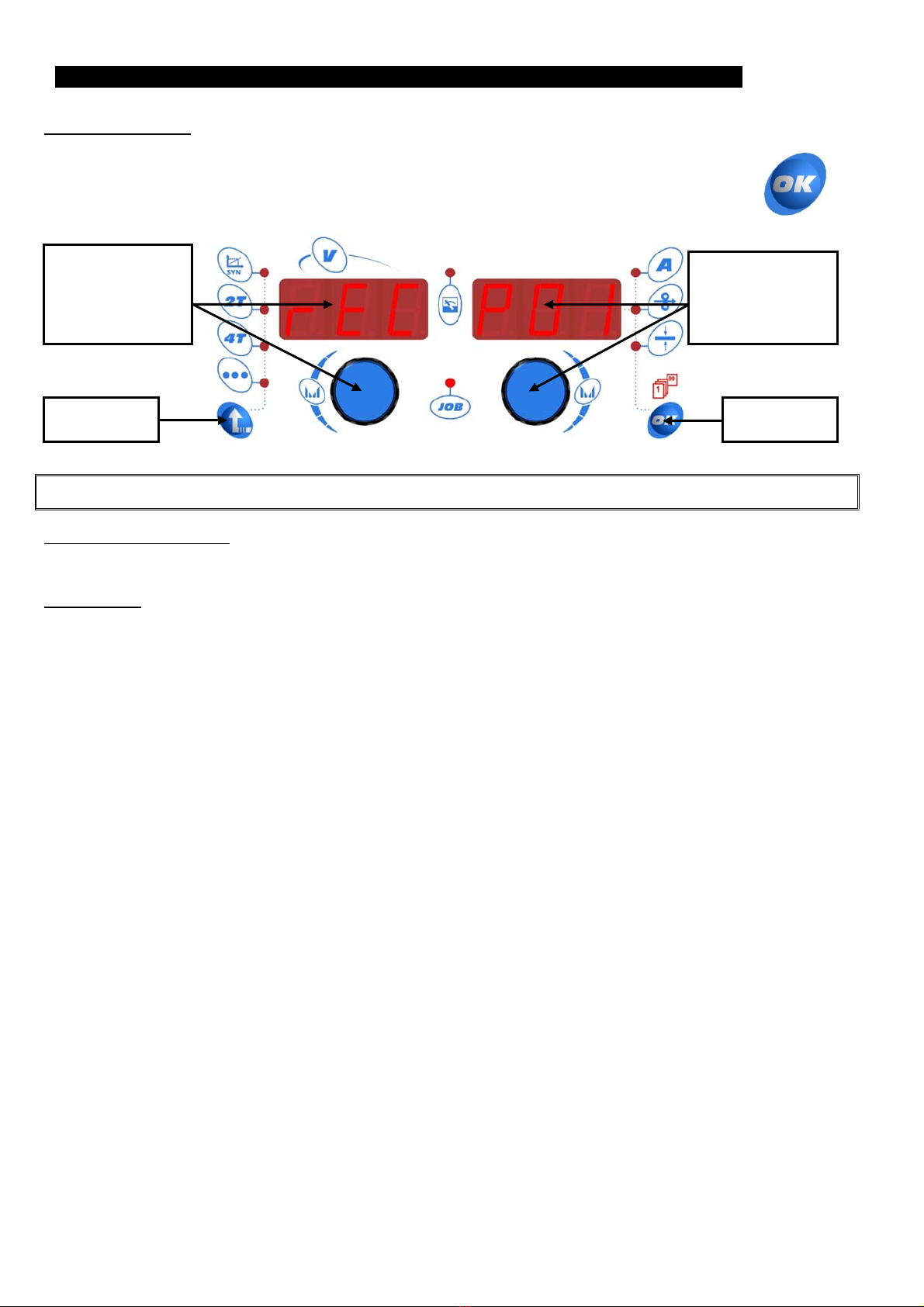

3.3.3. SETUP mode
Accessing the SETUP:
The SETUP screen can only be accessed when no welding is in progress, by setting the Wire Diameter selector on the front panel to position 1.
It consist in two pull-down menu :
'CYCLE’ Setting for the cycle phases. Refer to paragraph 6.2 for details
‘COnFIG’ Power source configuration
Configuring the SETUP:
In SETUP position, select CYCLE or COnFIG by pressing the
OK button.
Turn the left-hand encoder to scroll through the available parameters.
Turn the right-hand encoder to set their value.
No welding start. All the changes are saved on exiting the SETUP menu.

EN
DIGISTEEL III 320C /DIGIPULS III 320C 11
List of accessible parameters in COnFIG menu
Left
display Right display Step Default Description
GrE On -;OFF – Aut Aut
Configuration of the Water Cooling Unit. 3 possibles states :
-On : Forced on, watercooler is always activated
-OFF : Forced off, watercooler is always desactivated
-Aut : Automatic mode, Watercooler works when according need
ScU nc – no - OFF OFF
Security of water cooling. 3 possible states :
-nc : Normally closed,
-no : Normally open,
-OFF : Desactivate
Unit US– CE CE Unit displayed for wire speed and thickness:
- US : inch unit
- CE : meter unit
CPt OFF– 0,01 – 1,00 0,01 s 0,30 Trigger holding time in order to call program (Only in 4T welding mode).
Can be use only for welding program from 50 to 99.
PGM no
–
yES no
A
ctivate / desactivate program management mode
PGA OFF – ;000 – 020 %1% OFF Use to setup available adjustement range of the following parameters: wire speed, arc
voltage, arc dynamics, pulse fine-setting. Use only when program management is
activated and programs are locked.
Adj Loc – rC Loc Select adjustement Wire speed and arc voltage :
- Loc : Local on the power source
- rC : remote Control or torch potentiometer
CAL OFF
–
on OFF Calibration of torch & ground harness
L 0
–
50 1 uH 14 Cable choke setting / display
r 0– 50 18 Cable resistor setting / display
SoF no
–
yES no Software update mode.
FAC no – yES no Factory settings reset. Pressing YeS
will cause a reset of the parameters to factory
defaults when exit SETUP menu.
List of accessible parameters in CYCLE menu
Left
display Right display Step Default Description
tPt 00.5 – 10.0 0,1s 0,5Spot time.
In Spot mode and in Manual mode, the Hot Start, Downslope and sequencer
settings cannot be changed
PrG 00.0
–
10.0 0,1s 0,5
Pre-gas time
tHS OFF
–
00.1
–
10.0 0,1s 0,1
Hot start time
IHS -- 70 – 70 1 % 30 Hot start current (wire speed). X%

the welding current
UHS -- 70 – 70 1 % 0 Hot start voltage X%

the arc voltage
dYn --10 + 10
--20 + 20 1% 0 Fine setting in short arc
rFP --10 + 10
--20 + 20 1% 0 Fine setting in pulse
dyA 00
–
100 1 50
A
rc striking dynamics at electrode
tSE OFF
–
0.01
–
2.50 0,01 s OFF Sequencer time (Sequencer, only in synergic mode)
ISE ---90 + 90 1 % 30 Sequencer current level. X%

the welding current
dSt OFF
–
00.1
–
05.0 0,1s OFF Down-slope time
DdSI -- 70 – 00.0 1% -- 30 Down-slope current (wire speed). X%

the welding current
dSU -- 70 – 70 1 % 0 Down-slope voltage. X%

the arc voltage
Pr_ 0.00
–
0.20 0,01 s 0,05
A
nti-stick time
PrS Nno
–
yES no Pr-Spray activation
PoG 00.0
–
10.0 0,05 s 0,05
Post-gas time
3.3.4. Program management
DIGISTEEL III 320C / DIGIPULS III 320C allows creating, store and modifying up to 99 welding programs directly on front panel from
program 00 to program 99. This function is activated by moving parameter PGM from no to YES in COnFIG menu.
P00 is the working program in any state. (Program management mode activated or desactivated). When power source is working on
this program, the Led indicator “JOB” is switched off. All commutators are accessible in this mode, so it will be used to set programs.
P01 to P99 are program saved, only if program management mode is activated. When power source is working on these programs,
the led indicator “JOB” is switched on. In this mode, commutators welding process, wire diameter, gas and metal are not available.
When a program selected has been modified, the indicator “JOB” blinks.

EN
12 DIGISTEEL III 320C / DIGIPULS III 320C
Create and save a program:
These paragraphe explains how to create, modify and save a welding program. Hereunder is explained the common menu used.
1) Activate program management mode SETUP PGM put YES exit SETUP
2) Set your program with commutators then long push on button OK
3) Screen displays message as following:
NOTE : The DIGISTEEL III 320C / DIGIPULS III 320C allows to lock program menu. This function is available on program screen with the parameter cod.
The locking key entered has to be written in order to desactivate the function lock.
3.3.5. Program call with trigger
This function allows to chain from 2 to 10 programs. This function is available in 4T welding mode only and program management mode has to be activated
Program chaining :
The function program call works with programs from P50 to P99 by ten.
P50P59 ; P60P69 ; P70P79 ; P80P89 ; P90P99
Selec first program with which you want to begin your chain. Then during welding, each time you will push trigger, program will change.
To chain less than ten programs, in the program following end of loop desired put a different parameter (As synergy or welding cycle).
It is possible to setup time of trigger push to detect change of program chain : SETUP CPT put value from 1 to 100 exit SETUP
Example: Create a program list from P50 to P55 (6 programs).
1) In program P56, put different welding cycle or synergy than P55 in order to finish chain
2) Select program P50 (First program for start of welding
3) Start welding
4) Each time trigger will be pushed, power source will change program until P55. When chain is finished, power source will restart to P50.
Function selection:
rEC: Save program
Ld: Load program
cod: Activate locking
code
Cancel action in
p
ro
g
ress.
Program number
selection.from P01 to
P99.
P00: Cancel program
mode
Validate action in
p
ro
g
ress

EN
DIGISTEEL III 320C / DIGIPULS III 320C 13
4 - OPTIONS, ACCESSORIES
1 - COOLER UNIT SYSTEM (On demand)
2 - REMOTE CONTROL RC SIMPLE
Réf. W000275904
Remote control functions:
Adjust wire speed during welding and out off welding
Adjust arc voltage during welding and out off welding
3 - TROLLEY II NEW VERSION
Réf. W000383000
It enables to easily move the power source in a worshop environment.

EN
14 DIGISTEEL III 320C /DIGIPULS III 320C
4 - UNIVERSAL TROLLE
Y
Réf. W000375730
It enables to easily carrying the power source in a worshop environment.
STANDARD TORCH
W000345066 PROMIG NG 341 3 M
W000345067 PROMIG NG 341 4 M
W000345068 PROMIG NG 341 5 M
W000345069 PROMIG NG 341 W 3 M
W000345070 PROMIG NG 341 W 4 M
W000345071 PROMIG NG 341 W 5 M
W000345072 PROMIG NG 441 3 M
W000345073 PROMIG NG 441 4 M
W000345074 PROMIG NG 441 5 M
WATERCOOLED TORCHES (to use only with watercooler option)
W000345075 PROMIG NG 441W 3 M
W000345076 PROMIG NG 441W 4 M
W000345077 PROMIG NG 441W 5 M
W000274865 PROMIG NG 450W 3 M
W000274866 PROMIG NG 450W 4 M
W000274867 PROMIG NG 450W 5 M
POTENTIOMETER TORCH (it enables adjusting the wire speed and arc length both during welding and out of welding)
W000345014 DIGITORCH P 341 4M
W000345016 DIGITORCH P 341W 4M
W000345018 DIGITORCH P 441W 4M

EN
DIGISTEEL III 320C /DIGIPULS III 320C 15
5 - MAINTENANCE
5.1. GENERAL
Twice a year, depending on the use of the device, inspect the following:
cleanliness of the pwer source
electrical and gas connections
WARNING :
Never carry out cleaning or repair work inside the device before making sure that the unit has been completely disconnected from
the mains.
Dismantle the generator panels and use suction to remove dust and metal particles accumulated between the magnetic circuits
and the windings of the transformer.
Work must be performed using a plastic tip to avoid damage to the insultation of the windings.
At each start-up of the welding unit and prior to calling customer cupport for technical servicing, please check that:
Power terminals are not improperly tightened.
The selected mains voltage is correct.
There is proper gas flow.
Type and diameter of the wire.Torch condition.
TWICE PER YEAR
Perform calibration of the current and voltage settings.
Check electrical connections of the power, control and power supply circuits.
Check the condition of insulation, cables, connections and pipes.
Perform a compressed air cleaning
5.2. ROLLERS AND WIRE GUIDE
Under normal conditions of use, these accessories have a long serviceable life before their replacement becomes necessary.
Sometimes, however, after being used over a period of time, excessive wear or clogging due to adhering deposits may be noted.
To minimise such harmful effects, make sure the wire feeder plate remains clean.
The motor reduction unit requires no maintenance.
5.3. TORCH
Regularly check the proper tightness of the connections of the welding current supply. Mechanical stresses related to thermal shocks tend to loosen
some parts of the torch, particularly:
The contact tube
The coaxial cable
The welding nozzle
The quick connector
Check that the gasket of the gas inlet spigot is in good condition.
Remove the spatter between the contact tube and the nozzle and between the nozzle and the skirt.
Spatter is easier to remove if the procedure is repeated at short intervals.
Do not use hard tools that may scratch the surface of these parts and cause spatter to become attached to it.
SPRAYMIG SIB, W000011093
SPRAYMIG H20, W000010001
Blow out the liner after each change of a spool of wire. Carry out this procedure from the side of the quick fitting connector plug of the torch.
If necessary, replace the wire inlet guide of the torch.
Severe wear of the wire guide may cause gas leaks towards the rear of the torch.
The contact tubes are designed for long use. Nevertheless, the passage of wire causes them to wear off, widening the bore more than the
permissible tolerances for good contact between the tube and the wire.
The need to replace them becomes clear when the metal transfer process becomes unstable, all the settings of the work parameters remaining
otherwise normal.

EN
16 DIGISTEEL III 320C /DIGIPULS III 320C
5.4. SPARE PARTS, COMPONENTS
The list below contains components that can be directly purchased from your local provider. For other codes, please refer to aftersales service.
(Please refer to exploded view for preview of components)
REFERENCE DESIGNATION
W000386033 FANS 24VDC 80X25 QTY 2
W000386036 FRONT PANEL DIGISTEEL III 320C
W000386038 FRONT PANEL DIGIPULS III 320C
W000386040 TRANSPARENT PLASTIC COVER
W000386041
A
UXILIARY TRANSFORMER 200VA
W000384735 RIBBON CABLES
W000278017 SOLENOID VALVE 24V DC
W000277987 EURO TORCH SOCKET
W000277882
A
UXILARY POWER SUPPLY BOARD
W000385787 SWITCH ON OFF 40A
W000241668 MALE WELDING SOCKET
W000148911 FEMALE WELDING SOCKET
W000265988 BLUE BUTTONS KIT
W000277988 FEEDING UNIT 4 ROLLS COD150P
W000277989 COVER UNIT AND LEVER
W000278021 LOCKING UNIT HINGE
Casing :

EN
DIGISTEEL III 320C /DIGIPULS III 320C 17

EN
18 DIGISTEEL III 320C /DIGIPULS III 320C
Internal and inverter :

EN
DIGISTEEL III 320C /DIGIPULS III 320C 19
Front and rear :

EN
20 DIGISTEEL III 320C /DIGIPULS III 320C
5.5. WEAR PARTS
The list below contains wear parts of the DIGISTEEL III 320C / DIGIPULS III 320C that can be directly purchased from your local provider.
REFERENCE DESIGNATION
W000373703 DUST FILTER
W000278018 LOT OF 2 SCREWS FOR ROLLER
W000277338 ROLLER ADAPTOR
Wear parts for wire guide
INPUT
WIRE GUIDE ADAPTATOR ROLLER INTERMEDIATE WIRE GUIDE
OUTPUT
WIRE GUIDE
STEEL
Stainless
STEEL
0,6 / 0,8
Plastic
W000277333 W000277338
W000305125
W000277334
W000277335
0,9 / 1,2 W000277008
1,0 / 1,2 W000267599 W000277335 W000277336
1,2 / 1,6 W000305126
W000277336
1,4 / 1,6 W000277009
FLUX-
CORED WIRE
0,9 / 1,2
W000277333 W000277338
W000277010
W000277334
W000277335
1,2 / 1,6 W000266330 W000277335 W000277336
1,4 / 1,6 W000277011 W000277336
LIGHT
ALLOYS
1,0 / 1,2
A
LUKIT W000277622
1,2 / 1,6
A
LUKIT W000277623
Possible use of steel rollers ALU with steel wire and coated wire.
Mounting roller
The mounting of the rollers on the deck requires an adapter réf. W000277338.
