Safehold Sentinel sh-9327-2 User manual

Instruction Manual

Made in Taiwan

Read and understand instructions before using this equipment

Do not throw instructions away

SENTINEL

SRL/RTFA

SH-9327-2

SH-9310-3.5

SH-9420-3

SH-9450

SH-9450LECE

Models of device covered

Iss.0

Contents

About & Warning General use

Maintenance & Inspection

Inspection records &

schedule

Fall arrest block

service log

User instruction &

warning

General use

Limitations of use

Compatability

Fall distance calculation

Maintenance & Inspection

The Safehold retractable

lifelines are a retractable

type fall arrester designed

for situations that require

fall protection in order to

give personnel unhindered

movement.

Warning : Working at height

is a very dangerous activity which

may lead to severe injury or fatality.

We advise that you personally

assume the responsibility to learn

the use and the safety measures

that apply to this equipment.

Remember that there is no better

‘’instruction’’ than that of a trained

instructor. Train in the use of this

device, verify that you have fully

understood how it works and if in

any doubt, please ask competent

person!

Don’t make any alterations or

additions to the equipment without

the manufacturer’s prior written

consent. Any repair shall only be

made by the manufacturer.

The products shall not be used

outside its limitations, or for any

purpose other than that for which

it is intended.

It is essential for the safety of

the user that if the product is

re-sold outside UK, the reseller

shall provide instructions for use,

for maintenance, for periodic

examination and for repair in the

language of the country in which

the product is to be used.

If there is reason to doubt your

tness to safely absorb the shock

from a fall arrest, please consult

your doctor. Age and tness

seriously affect a worker’s ability to

withstand falls. Pregnant women

or minors must not use it.

User must read,

understand and observe

these instructions for use.

ABOUT & WARNING

All warnings and instructions must

be provided to the authorised user.

All authorised users must reference

the relevant local standards to

which the device complies (eg

EN360:2002). Refer to device

labelling for device compliance.

Ensure working area is free from

hazards and obstructions that

could interfere with the working of

the device or cause harm to the

user.

Inspect all equipment before each

use as per the manufacturer’s

instructions.

All equipment should be inspected

on a regular basis by a competent

qualied person.

A competent person must ensure

the systems compatibility will not

allow accidental disengagement.

Any equipment must be as the

manufacturer intended. Do not use

altered or modied equipment.

Repairs must only be carried out

by the manufacturer or authorised

service agent with written consent to

do so.

Any product that has visual

deformities, deterioration or

unusual wear should have its

webbing cut and hook removed

before being discarded.

Any equipment subjected to a fall

must be removed from service.

A rescue plan with the means to

implement it should be in place

before using this equipment.

Fall protection equipment is

designed for a specic use. Never

use it for something it wasn’t

designed to do.

Environmental hazards should

be considered when using this

equipment.

Equipment should not be exposed

to hazardous chemicals. Inspection

intervals may need to be more

frequent in such environments. If

in doubt contact SAFEHOLD LTD.

for advice.

Equipment should not be exposed

to any object likely to cause

damage to it, including abrasive

surfaces, sharp edges, extreme

temperatures or moving machinery

etc.

GENERAL USE

Always ensure a potential fall path

is free from obstructions and has a

large enough ground clearance.

Never remove a products label as

it contains information important to

the use of the device. If the label

is missing remove the device from

service immediately.

Complies with:

SAFEHOLD products are made

in accordance with European

Standard No.EN360:2002 & VG11

For SH 9450LCCE

Single person use only. Maximum

user rating of 140kg. Never exceed

this weight!

Device must always be tested for

locking before every use.

Device should retract at all times,

if the device does not retract, do

not use. Never allow the device to

retract with the line slack. Only ever

retract the line under tension.

Never allow the line to become

slack during use.

Never use the device as a restraint

or work positioning device.

Do not lubricate this device.

Remove from service if the device

shows signs of a fall or any part of

the system fails an inspection.

SH-9327-2 is a non-serviceable

device, if the device does not

operate correctly it must be

disposed of immediately or

returned to the manufacturer

for inspection. Other models

covered by this instruction booklet

are serviceable via an approved

service agent. DO NOT attempt to

service unless you are trained and

approved by Safehold.

The device must be kept clean

and free from dust, dirt, grime and

contaminants.

The device must be used in such a

way as to minimize the likelihood of

a swing fall.

Never work above the device.

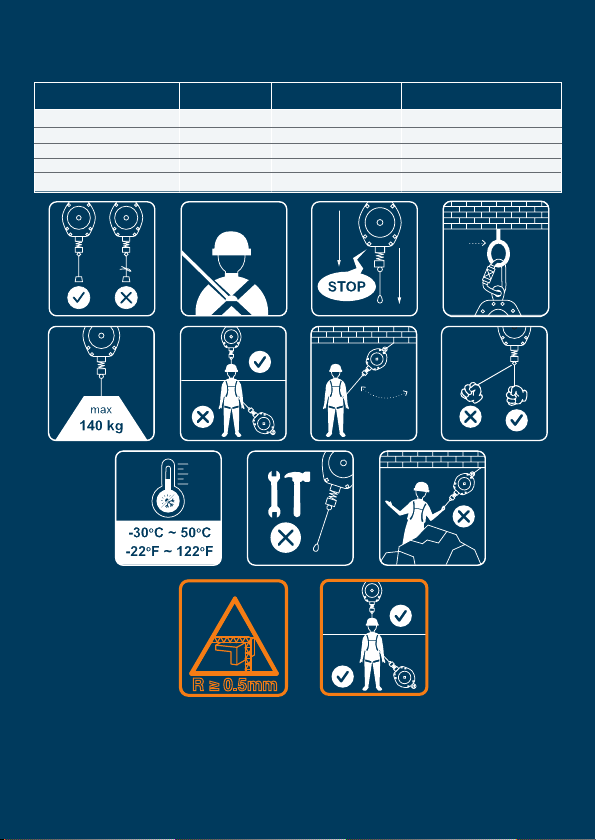

LIMITATIONS OF USE

COMPATIBILITY

FALL DISTANCE CALCULATION

MAINTENANCE & INSPECTION

SAFEHOLD SRL/RTFA'S

are designed in conjunction

with SAFEHOLD approved

components.

Replacing or substituting any

components in a system could

reduce the effectiveness of a

system, and must not be done.

The device will arrest a fall within

2m. Do not use when this is less

than 3m ground clearance below

the users feet. This does not take

into consideration any swing fall or

additional fall distance if the user

is not working directly below the

anchorage. For further information,

please contact SAFEHOLD.

Never work outside of a 30 degree

cone created from the device

through vertical, if a fall were to

occur the device would lock

and the user would swing like a

pendulum and may sustain injury

from this hazard.

Inspect the fall arrest block, lifeline,

hook and anchorage for signs of

wear, deformation, damage or

corrosion.

Pull line sharply to engage brakes

and ensure the brakes lock before

each and every use.

Pull out line to ensure that it pays

out and recoils smoothly. Ensure

that the webbing is free from cuts,

abrasion and wear marks.Check

steel cable for damage, kinks and

rust. Check shock pack on LE

device for signs of deployment.

Ensure hook swivels and twist gate

operates and closes correctly.

Ensure hook load indicator is not

deployed. If the red section is

visible, the SRL/RTFA must be

removed from service immediately.

Check the user instructions are

clear and legible. If the webbing

becomes wet in use, ensure

webbing is extended and left to dry

naturally.

To clean the housing or webbing,

a mild detergent can be used

with warm or cold water. The

webbing must be extended from

the device and left to dry naturally.

Ensure that SRL/RTFA certication

is current before use, the block

must have been inspected within

the last 12 months (6 months if

used in corrosive or off-shore

environments).

If for any reason the inspection of

this block shows signs for concern

or doubt then the block must be

quarantined and removed from

service immediately. Advice should

be sought from the supervisor and

if still concerned the block must be

sent to the supplier, an approved

service agent or the manufacturer

for evaluation or disposal. If the

device is to be discarded, the

webbing or cable must be cut

through to prevent further use. If

this is necessary, cut the webbing

at the hook end above the shock

absorber allowing the webbing to

be retracted into the device.

IMPORTANT : These instructions

should be supplied to each person

using this product. This device

must be inspected according to

SAFEHOLDS recommendations

for safe use. Prior to each use ir

should be checked by the user

and at least once a year by the

manufacturer or by an authorised

person. The inspection should

be recorded on the enclosed

schedule. Connect only to fall

arrest attachment of a full body

harness.

INSPECTION RECORDS & SCHEDULE

Involved notied Body:

Design and controlling stage:

SATRA Technology Centre (0321)

Rockingham Road,

Kettering Northants,

NN16 9JH, UK

IT IS ESSENTIAL TO ENSURE

BEFORE USE THAT THE

RECOMMENDATIONS SPECIFIC TO

EACH PART ASSOCIATED WITH THIS

PRODUCT ARE COMPLIED WITH, AS

SPECIFIED IN THE MANUAL.

SRL/RTFA SERVICE LOG

Date Results/Condition: Inspected by: Next Inspection Date:

Serial No: Date of first issue:

Model #: User:

Description Sample Length Housing Material

Retractable Lifeline

SH-9327-2

SH-9310-3.5

SH-9320-3

SH-9450

SH-9450LECE

2m web

3.5m web

3m cable

6m to 20m cable

6m to 10m cable LE

Composite

Alloy

Composite

This instruction applies to the following models:

Additional model numbers may appear on the next printing of these instructions.

IMPORTANT: Ensure that the

anchorage point is above the user.

Inspect the device, life line, hook

and anchorage for signs of wear,

deformation, damage or corrosion.

Ensure hook swivels and gates operate

and close correctly.

Ensure load indicator has not deployed.

Connect only to fall arrest attachment of

a full body harness.

EN 361

EN795

12kN

min

max

30o

****

SH-9450 LECE

ONLY

EU DECLARATION OF CONFORMITY

This declaration of conformity is issued under the sole responsibility of

the manufacturer: SAFEHOLD LTD: Unit 15, Regis Ind Estate, Dorset

Road, Sheerness, Kent, ME12 1LY.

[email protected] +44 (0) 1795 668862

Model No.

SH-9327-2/SH-9310-3.5/SH-9320-3/SH-9450 & SH-9450LECE

Product:

We hereby declare that the above referenced product, to which this

declaration relates, is in conformity with the provisions of: -

PPE Regulation 2016/425 - Standard EN 360:2002

SAFEHOLD LTD

Name: Lee Maunsell Position: Technical Manager Date: 26/09/2022

Part code Description

30050

SH-9327-2m Webbing Safehold fall arrest block c/w swivel hook &
