Saint PPS Pro Manual

PPS Pro Portable Power Sprayer
Model: SG150M001
SG150M002
Owner Manual & Instructions
SG150M001 –1 battery version
SG150M002 - 2 batteries version
Read all safety warnings and all instructions

1
Contents of the PPS Pro
Fig.1
1. PPS Pro Gun
2. Soft Button
3. Flow Rate Control Knob
4. Rechargeable Lithium-Ion Battery Pack (1or 2 included)
5. Stainless Steel Telescopic Lance
6. Stainless Steel Short Wand
7. Quick Connect Socket
8. Brass Nozzle
9. Quick Connect Fan Nozzle
10. Quick Connect Concentrated Nozzle
11. Straight Adjustable Nozzle
12. Elbow Fan Nozzle
13. Elbow Mist Nozzle
14. Brass Adapter
15. Shoulder Strap
16. Battery Charger
17. Bottle Hose + Filter
18. Long Extension Hose + Suction Strainer
19. Hose Spool
20. Hose Compression Fitting
21. Multi-directional Swivel
* The content might be different per the order.
1
2
3
21
5
20
19
18
6
8
9
10
7
12
11
13
14
16
15
4
17

2
Fig.2
A- Multi-Directional
Swivel
B- Long Extension
Hose
C- Hose Compression
Fitting
Fig.3
A- Multi-Directional
Swivel
B- Bottle Hose
C- Bottle Cap
Fig.4
\
A- Brass Adapter
B- Brass Nozzle
C- Straight Adjustable
Nozzle
D- Straigth Nozzle
Tip
E- Outlet of the Gun
Fig.5
A- Brass Adapter
B- QC Socket
C- QC Fan Nozzle
D- QC Concentrated
Nozzle
(QC = Quick Connect)

3
Fig.6
A- Short Wand
B- Brass Nozzle
C- QC Socket
D- QC Fan Nozzle
E- QC Concentrated
Nozzle
F- Elbow Fan Nozzle
G- Elbow Mist Nozzle
H- Straight Adjustable
Nozzle
Fig.7
A- Telescopic Lance
B- Brass Nozzle
C- QC Socket
D- QC Fan Nozzle
E- QC Concentrated
Nozzle
F- Elbow Fan Nozzle
G- Elbow Mist Nozzle
H- Straight Adjustable
Nozzle
Fig.8
A- Telescopic Lance
B- Lance locknut
Fig.9
A- Brass Nozzle
B- Straight Adjustable
Nozzle

4
Fig.10
A- Flow Rate Control
Knob
Fig.11
A- Lock Hole
B- Steel Hook
C- Shoulder Strap
D- Plastic Buckles
Fig.12
A- Lithium-Ion
battery Pack
B- Lock & Release
Button
Fig.13
Fig.14

5
General Safety Warnings
Read all safety warnings and all instruction. Failure to follow
the warnings and instructions listed below may result in electric shock, fire
and/or serious personal injury.
Work area safety
Do not operate the product in explosive atmospheres, such as in
the presence of flammable liquids, gases or dust. Power tools create
sparks which may ignite the dust or fumes
Do not allow bystanders or children in the area while operating
this product. Exposure to some chemicals can be hazardous.
Spray area must be well ventilated.
This product is suitable for indoor and outdoor use.
Personal safety
Stay alert, watch what you are doing and use common sense when
operating this product. Do not use while you are tired or under
the influence of drugs, alcohol or medication. A moment of
inattention while operating this product may result in serious personal
injury.
Dress properly. Do not wear loose clothing or jewelry. Contain
long hair. Keep your hair, clothing, and gloves away from moving
parts. Loose clothes, jewelry, or long hair can be caught in moving
parts.
Use personal protective equipment. Wear eye protection with side
shields or goggles, protective masks and safety gloves. Protect eyes,
skin and lungs against drifting spray and during mixing, filling, and
cleaning.
Do not use the product if the switch does not turn it on and off.
Any product that cannot be controlled with the switch is dangerous
and must be repaired.
Store the product out of the reach of children and do not allow
persons unfamiliar with the product or these instructions to
operate the product.
Avoid accidental starting. Ensure the switch is in the off position
before inserting battery pack. Inserting the battery pack into
products that have the switch on invites accidents.

6
Battery safety and care
Only charge the batteries with the charger which accompanied
your product or direct replacement as listed in this manual.
A charger that is suitable for one type of battery pack may create a
risk of fire when used with another battery pack.
Use the sprayer only with specifically designated battery packs.
Use of any other battery packs may create a risk of injury and fire.
When battery packs are not in use, keep them away from metal
objects. For example, to protect terminals from shorting ,Do NOT
place batteries in a box or pocket with nails, paper clips, coins,
keys, screws or other small metal objects, that can make a
connection from one terminal to another. Shorting the battery
terminals together may cause burns or a fire.
Under extreme usage or temperature conditions, battery leakage
may occur. If liquid comes in contact with your skin, wash
immediately with soap and water. If liquid gets into your eyes,
flush them with clean water for at least 10 minutes, then seek
immediate medical attention. Following this rule will reduce the risk
of serious personal injury.
Do not open the battery packs. Danger of short-circuiting.
Protect the battery against heat, e. g., continuous
intense sunlight, fire, and water. Danger of explosion.
The battery can be damaged by pointed objects such as nails or
screwdrivers or by force applied externally. An internal short
circuit can occur and the battery can burn, smoke, explode or overheat.
Specific Safety Rules
Risk of fire or explosion. Do not spray flammable
liquids such as gasoline.
Electric shock hazard. Never spray toward electrical.
Avoid spraying on windy days. Spray can be accidentally blown
onto plants or objects that should not be sprayed.
Know the contents of the chemical being sprayed. Read all
Material Safety Data Sheets (MSDS) and container labels
provided with the chemical. Follow the chemical manufacturer’s
safety instructions.
Risk of injection. Do not discharge directly against skin.
To reduce the risk of electric shock, do not put the sprayer into
water or other liquid. Do not place or store the sprayer where it can
fall or be pulled into a tub or sink.

7
Remove the battery from the gun before cleaning, storing,
changing nozzles or disconnecting the spray pipe. Such preventive
safety measures reduce the risk of accidental starting.
Maintain this product. Thoroughly inspect the sprayer and
examine the components before each use. Check for cracked and
deteriorated hoses, leaks, clogged nozzles, and missing or
damaged parts. If damaged, have the product repaired before use.
Many accidents are caused by poorly maintained products.
Battery tools do not have to be plugged into an electrical outlet;
therefore, they are always in operating condition. Be aware of
possible hazards when not using your battery tool or when
changing accessories. Remove battery pack when tool is not in use.
Following this rule will reduce the risk of electric shock, fire, or
serious personal injury.
Do not place battery tools or their batteries near fire or heat. This
will reduce the risk of explosion and possibly injury.
Do not crush, drop or damage the battery pack. Do not use a
battery pack or charger that has been dropped or received a
sharp blow. A damaged battery is subject to explosion. Properly
dispose of a dropped or damaged battery immediately.
Do not charge battery pack in a damp or wet location. Following
this rule will reduce the risk of electric shock.
For best results, your batteries should be charged in a location
where the temperature is more than 32℉but less than 113℉. To
reduce the risk of serious personal injury, do not store outside or in
vehicles.
Do not use battery-operated appliance in rain.
Exercise care in handling batteries in order not to short the
battery with conducting materials such as rings, bracelets, and
keys. The battery or conductor may overheat and cause burns.
Do not dispose of the batteries in a fire. The cell may explode.
Check with local codes for possible special disposal instructions.
Do not open or mutilate the batteries. Released electrolyte is
corrosive and may cause damage to the eyes or skin. It may be toxic if
swallowed.
Store idle appliances indoors. When not in use, appliances should be
stored indoors in dry, and high or locked-up place - out of reach of
children.
Save All Warnings and Instructions for Future Reference

8
Features
Unique Viton seals make it compatible with any type of chemicals,
No electricity or heavy car batteries,
Use the supply hose or a soda bottle for chemical feed,
Adjustable flow rate & pressure up to 120 PSI,
Super quick suction to get your work started without waiting
Shoots a stream up to 40 feet high, can prime up to 15 feet high,
2.6Ah Lithium-Ion battery can run over 1.5~2 + hours,
Super quick charger can recharge a battery in 90 minutes,
Telescopic lance provides extra length to spray hard-to-reach places
Universal ball joint keeps the bottle always on the vertical position –No
leakage,
Cordless, lightweight & portable for your job quick and easy,
Industry grade Viton seals for long life
Product Description
For the perfect union of convenience and versatility, nothing beats the new PPS Pro
chemical spraying system.
Our sprayer allows pulverization of any liquid products or low pressure cleaning
simply by immersing the hose along with its suction strainer into any containers. You
can also adapt a soda bottle in order to use small quantities of product or homemade
preparations.
Our sprayer is compatible with every chemical liquid. The sprayer features a special
diaphragm pump. The joints of the sprayer are made of the industrial grade VITON
and every part in contact with the sprayer is made of brass, stainless steel and plastics
used in the chemical industry.
The best feature, flow-rate can be adjusted and steady controlled, providing a
continuous spraying and facilitating the application of chemicals.
The sprayer is ideal for anyone who’s tired of having to constantly pump while
spraying large areas. Its interchangeable and different nozzles supplied make it the
perfect tool for a variety of spraying applications. With the adjustable nozzle
(concentrated pattern), you can spray up to 12 meter height, reaching to the top of
trees and roofs easily without climbing.
Portability and Lightweight design make your all spraying works safe, effortless, fast
and enjoyable!

9
PPS Pro Technical Data
Model
SG150M001
SG150M002
Nominal Voltage
V=
15
Open flow
L/M
2.3
Open current
A
≤0.8
Spray pressure
PSI
120
Spray height
(concentrated pattern)
M
≥12
Self-priming height
M
≥4
Charger input voltage
V~
100~240
Charger output voltage
V=
17.5
Charger output current
-Standard charger
-Rapid charger
A
A
0.90
1.50
Battery model
SGB-1526L
Battery Model
SGB-1526L
Nominal voltage
V=
14.4
Nominal capacity
Ah
2.6
Battery charging voltage
(automatic voltage
detection)
V=
17.5
Battery charging current
-Standard charge
-Rapid charge
A
A
0.90
1.50
Charging time for battery
capacity, approx.
-Standard charge
-Rapid charge
min
min
100%
180
90
Allowable
charging temperature
℃
0...+45
Allowable operation and
storage temperature
℃
-20...+60
Number of battery cells
4

10
Chemical Supply Options
Option 1 –Using the Long Extension Hose
See Figures 2.
Insert the end of the long extension hose through the hose
compression fitting on to the inlet of multi-directional swivel. Next,
screw the hose compression fitting with the bottle cap. Make sure the
connection is secure. And then, place the other end of the hose with a
suction strainer into your container.
Option 2 –Using with a Plastic Soda Bottle
See Figures 3.
To use the sprayer with a soda bottle, just insert the short hose to the
inlet of multi-directional swivel, then put the short hose into the bottle
and screw the bottle into the bottle cap.
Do not use bottles over 2 liters and careful not to over
tighten the bottle.
Sprayer Configurations
Option 1 - Using the adjustable nozzles directly to the outlet of the
gun.
See Figures 4.
1. Install the brass adapter directly on the outlet of the gun and
tighten securely.
2. Attach the adjustable nozzles to the brass adapter and ready to use.
3. Use only the straigth nozzle tip (dispart the straight adjustable
nozzle) to get more concentrated spray pattern.
Option 2 - Using the QC kits directly to the outlet of the gun.
See Figures 5.
1. Install the brass adapter directly on the outlet of the gun and
tighten securely.
2. Attach the QC socket to the brass adapter.
3. Slide back the metal sheath around the QC socket and insert one
of the QC nozzles. Then slide back the metal sheath forward again
until it clicks back in proper place.
Option 3 - Using the short wand.
See Figures 6.

11
1. Select the appropriate nozzle and attach it to the end of the short
stainless steel wand.
2. Attach the other end of the short stainless steel wand to the gun
outlet and pre-tighten.
3. Adjust the wand to make sure the nozzle is aligned with the gun
(pointing down) and tighten securely. (It is applicable for the
elbow nozzles)
Option 4 - Using the stainless steel telescopic lance.
See Figures 7 and 8.
1. Select the appropriate nozzle and attach it to the end of the
telescopic lance.
2. Attach the other end of the telescopic lance to the gun outlet and
tighten securely.
3. Loose the lance locknut and pull out or push in to adjust the
extension length of telescopic lance per your working distance and
height, then, tighten the lance locknut securely.
4. Rotate the nozzle until it is aligned with the gun (pointing down)
and ready for use. (It is applicable for the elbow nozzles).
5. Pull on the spray lance to be certain it is properly secured.
Operating PPS Pro
Use safety equipment. Protect your eyes, skin, and lungs while
mixing, filling, spraying, and cleaning. Failure to do so may result in serious
personal injury and damage to property.
Always remove battery pack from your gun when you are
assembling parts, making adjustments, cleaning, or when not in use.
Removing battery pack will prevent accidental starting that could cause
serious personal injury.
Make sure the Flow Rate Control Knob is directed to the “OFF-
ON”position before inserting the battery pack.
If used for applying sealers, deck stains and other coating
products, always rinse the gun using a Sodium Hydroxide based deck
stain stripping product.

12
After every use, immediately rinse out the sprayer by
spraying clean water for 2 minutes through the pump to flush any
residual chemicals to prevent corrosion or clogs, and make sure no any
liquid left in the pump and the tubing, then remove the battery.
Attaching the shoulder strap
See Figure 11.
Reference the Figure 3 to attach the shoulder strap if needed.
Installing/removing battery pack
See Figure 12.
To insert battery, align battery and gently slide battery pack into the
device until it locks into position. Do not force.
To remove battery pack from the device, press and hold the release
button and gently pull backward.
Adjusting the flow rate
See Figures 10.
The flow rate can be adjustable from the minimum to maximum by rotating
the Flow Rate Control Knob from the initial “OFF-ON”position to the
limiting “Max”position.
Rotate clockwise the flow rate control knob to get the device ready to
run when you hear a “click”, and steadily increase the flow rate when
continuously rotating clockwise the flow rate control knob.
Rotate counterclockwise the flow rate control knob to steadily
decrease the flow rate and turn off the sprayer when rotating back to
the “OFF-ON”position.
Adjusting the spraying patterns
See Figure 9.
The adjustable nozzles can be switched among different spraying patterns.
Loosen the nozzle tip for a stream pattern.
Tighten the nozzle tip for a mist pattern.
Spraying chemicals
See Figures 13-14.
According to the section of “Sprayer Configurations”, choose the
appropriate nozzle and lance per your spraying work and attach it to
the spray gun.

13
According to the section of “Chemical Supply Options”, attach the
long extension hose and put it into a container with liquid. Or attach a
soda bottle in order to use small quantities of product.
Insert the battery pack into the tool.
Aim the sprayer nozzle directly at the plants or objects you wish to
spray.
Rotate the flow rate knob to get the device ready to run when you hear
a “click”.
Pull the soft button to start the device and adjust the flow rate per your
spray work.
Release the soft button to stop the device and rotate the flow rate back
to the “OFF-ON”position to turn off the device.
Make sure to stand far enough from the object being sprayed
to prevent the spray from splashing back onto you.
Operating tips
Avoid spraying on windy days. Spray can be accidentally blown onto
plants or objects that should not be sprayed.
Never spray in the direction of people or animals; always spray
downwind.
Especially in warmer weather, spray in the early morning or late
afternoon. Excessive heat can evaporate the spray before it settles.
Never smoke, eat, or drink while operating the sprayer.
Clean the strainers regularly.
When working at heights, make sure you start the sprayer on ground
level first to prime the pump.
Chargingthe Battery Pack

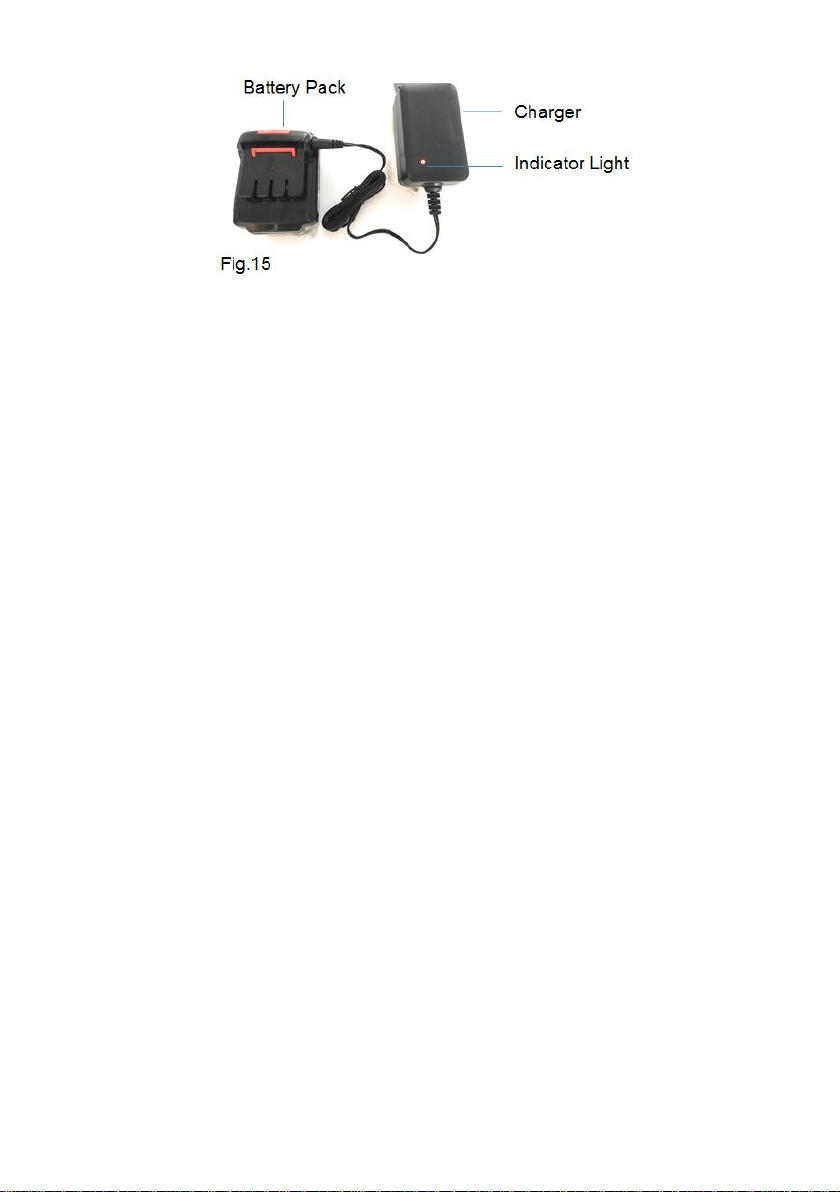

Plug charger cord into your standard power outlet, then insert the
other end of charger DC connector into the battery connection port
(Fig.15)
The charger’s indicator light will become a steady red light. This
indicates that the battery is receiving a fast charge. When the charge’s
indicator light becomes a steady green light, it indicates that the
battery is full charged.
When the batter pack is full charged, unplug the charger and pull out
the charger DC connector from the battery connection port.

14
Important note:
The Lithium-ion battery is supplied partially charged. To ensure full
battery capacity, completely charge the battery before using for the
first time.
The Lithium-ion battery is protected against deep discharging
Protection. When the battery is empty the device is switched off by
means of a protective circuit.
Warranty
The manufacturer guarantees problem free quality and will cover the cost of
replacing parts which are found to be faulty in material or show manufacturing
defects within the prescribed guarantee period after the date of purchase.
Please note that specific guarantee conditions may differ from country to
country. When in doubt, please ask the vendor of the goods. The vendor of the
product is responsible for guarantee applications. We hope you will
understand that we cannot be liable for damage resulting from these causes:
Non-compliance with operating instructions.
Wear from normal use.
Use of force, improper treatment, misuse and accidents resulting in
cracked, broken or damaged components.
Attempted adjustments and repairs by non-qualified persons.
Use of unsuitable spare parts or non-original parts if such parts are the
cause of the damage.
The Manufacturer Warranty will be voided if the following procedures
are not followed.
Always use the STRAINERS/FILTER provided to prevent debris
from clogging the pump.

15
If used for applying sealers, deck stains and other coating
products, always rinse the gun using a Sodium Hydroxide based deck
stain stripping product.
After every use, immediately rinse out the sprayer by
spraying clean water for 2 minutes through the pump to flush any
residual chemicals to prevent corrosion or clogs, and then remove the
battery.
Cleaning the STRAINERS/FILTER regularly.
Applications
Animal Care
Car Wash
Carpet Cleaning
Commercial Kitchens
Deck Cleaning
Degreasing
Defrosting
Deodorizing & Disinfecting
Equestrian Care
Farm Equipment
Fertilization
Herbicide
Horticulture
House Maintenance
Industrial and Construction
Irrigation
Janitorial
Landscape Maintenance
Lawn and Garden Care
Mold Removal
Pest Control
Pressure Washing
Roof Cleaning
Stall Cleaning
Weed Control
Window Cleaning
Water Repellents
Wood Restoration…

16
Different Spray Nozzles Uses
Fan Spray Pattern
Mist Spray Pattern
Mist Spray Pattern
-House Maintenances
-Anti-Moss and
Water Repellent
-Equestrian Care
-Farming or shed
treatments
-Plants and trees
treatments to make
the chemicals stick
to the leaves and
won’t fall down.
-Landscaping
-Woods treatment.
-Plants and trees
treatment overhead.
Adjustable Spray Nozzle (Straight)
Stream Pattern
Concentrated Pattern
-Car washing and glass, land, A/C
cleaning…
-Car defrosting
-Low pressure cleaning
-Roof Anti-mossing and cleaning
-Top trees treatments
Note: the water column more
concentrated and spraying longer
distance compared to steam pattern.

17
Working Advice
A substantial drop in operating time per charge may mean that the
battery pack is nearing the end of its life and should be replaced.
Disposal
The device, chargers, rechargeable batteries, accessories and packaging
should be sorted for environmental-friendly recycling.
Do not dispose of power s and batteries/rechargeable batteries into household
waste!
Only for EC countries:
According to the European Guideline 2012/19/EU, powers that are no long
usable, and according to the European Guideline 2006/66/EC, defective or
used battery packs/batteries, must be collected separately and disposed of in
an environmentally correct manner.
Maintenance and Service
Our after-sales service responds to your questions concerning maintenance
and repair of your products as well as the spare parts.
Shanghai Saint GE Technologies
No.1728 Huangxing Road
Yangpu District 200433
Shanghai, P.R.China
Office: (086)21 6526 1001
Cell: [phone] 169
E-mail: [e-mail]
www.saint-ge.com
Subject to change without notice.
