Assembly Instructions
WARNING
When filling hopper, make certain there are no large objects within the
material. Objects larger than the openings in the Screen may cause
the spreader to clog or even damage the drive system. Never leave
material in the hopper when not in use.

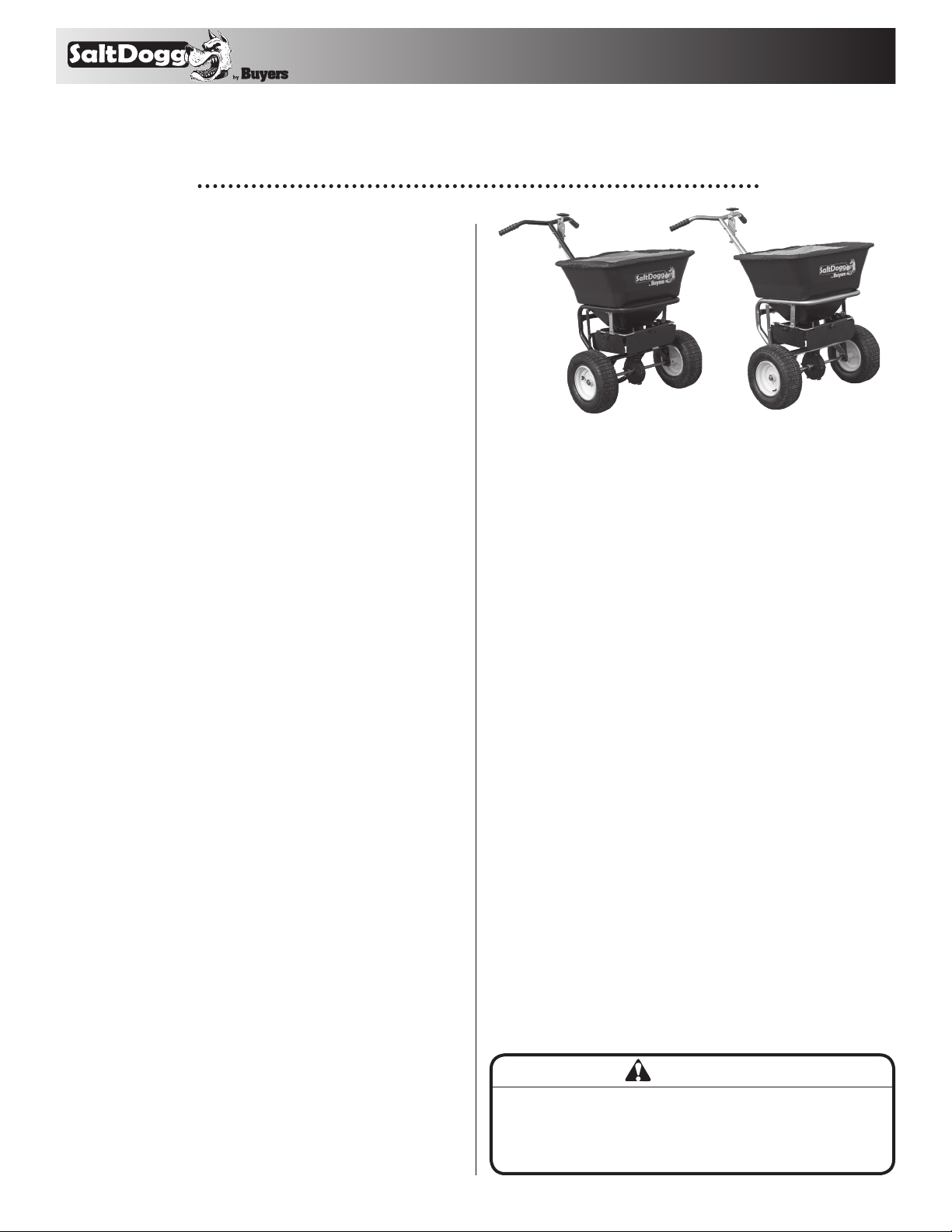

WB150BG Heavy-Duty Carbon Steel Walk
Behind Salt Spreader, Bulk Flow Gate
WB250BG Heavy-Duty Stainless Steel
Walk Behind Salt Spreader, Bulk Flow
Gate
Check contents of box against the parts list to make sure all
components are included. When ordering replacement or spare
parts refer to the parts list for part numbers.
TOOLS NEEDED FOR ASSEMBLY
• (2) 10mm Wrenches
• (2) 1/2 in Wrenches
Attaching the Handle, Linkage Plate Assembly, and Lower
Linkage – Figures 2 – 6
A. Remove contents from box and place the preassembled por-
tion of the spreader upright on its wheels
B. Slide the Handle onto the spreader frame & line up the holes
C. Carefully insert the Lower Linkage into the Restrictor Plate
underneath the Hopper as shown. (The Lower Linkage has two
bent ends & the Upper Linkage has one threaded end)
D. Insert the other end of the Lower Linkage into the front hole
on the Linkage Plate Assembly
E. Attach the Linkage Plate Assembly and Handle to the Frame
using two M6x40 bolts as shown. Figure 6 shows the lower link-
age assembled (for reference).
NOTE: The Lower Linkage must be attached to the restric-
tor and the Linkage Plate Assembly before the Assembly is
attached to the frame. If the Linkage Plate Assembly is attached
to the Frame without the Lower Linkage, the Lower Linkage will
be very difficult to assemble and may cause the restrictor plate
to be broken during assembly
Attach Control Handle Assembly, Upper Linkage, & Rear
Deflector – Figure 7 & 8
F. Mount the Control Handle Assembly to the Handle using two
M6x40 bolts as shown.
G. Insert the Upper Linkage into the Control Handle as shown.
H. Thread one Jam Nut so that the Restrictor Plate underneath
the Hopper is fully closed when the Control Handle is at "30".
Assemble the second jam nut in this position to lock the linkage
in place.
I. Verify that the Restrictor Plate may be fully opened by pushing
the Control Handle forward.
J. Using two M6x20 bolts, attach the rear deflector.
Final Assembly
A. Check And Tighten All Fasteners – Make sure the Gearbox
turns freely when pushing and pulling the unit.
B. Place the Screen in the hopper.
C. Install the Rain Cover on the hopper.
Operation
1. Before filling Hopper, ensure that the Restrictor Plate is fully
closed and the screen is in place.
2. Move and tighten the stop bolt to the desired setting.
3. Begin moving forward with the spreader.
4. Pull the Control Handle back to the stop bolt to open
Restrictor Plate and allow material to flow.
5. Before stopping, push the Control Handle fully forward to
stop flow.
Maintenance
1. The Hopper and Spinner should be completely emptied and
cleaned before storage.
2. The Spreader should be washed and dried before storage.
3. Check that the Restrictor Plate and Linkage move freely. Clear
out any debris between the Restrictor Plate & the Hopper.
4. Check that there is no debris in the Gears & that they move
freely.
5. Check torque of all fasteners on a monthly basis.
Operation Notes:
1. The spreader is designed to be operated at a brisk walking
pace (approx. 3mph). Walking slower or faster will alter the distri-
bution pattern & amount of the material, as will the moisture con-
tent of the material & other environmental factors.
2. Grease may be applied to the Gearbox as desired.

2
TM
Rain Cover And Hardware Kit Are Not Shown
Figure 1 - Contents of Box Figure 2
Figure 3 Figure 4
Screen
Control Handle Assembly Linkage Plate Assembly
Handle
Assembly
Upper
Linkage
Lower Linkage
Preassembled
Spreader
Rear Deflector Assembly
Step B: Slide
Handle Onto Frame
And Line Up Holes
Step C:
Insert Lower Linkage Into Restrictor
Plate and Rotate To This Position
opposite view, assembled
Step D:
Place Linkage Plate Assembly
Over End of Lower Linkage as Shown
in Inset

3
TM
Figure 5 Figure 6
Figure 7 Figure 8
F. Attach Control Handle
Assembly to Frame
Using M6x40 Bolts
G. Remove Control
Handle from Assembly,
Insert Upper Linkage
into Control Handle,
Reattach Control Handle
H. Thread First Jam Nut
onto Upper Linkage and
Insert Linkage into Control
Plate Assembly
Secure Linkage with Second Jam Nut and Tighten
First Jam Nut
J. Attach Rear Deflector
Using M6x20 Bolts
E. Attach Control Plate Assembly
To Frame Using M6x40 Bolts
This End of Rod To
Be Facing Upward

4
TM
1 2
8
10
7
11 11
3 4
5
9
6 7
12
13 14 15
17
18
16
19
21
20
9049 Tyler Blvd. • Mentor, Ohio 44060
Phone [phone] • Fax [phone]
Toll-Free Fax [phone] • saltdogg.com
3033389_A
FULL ONE YEAR WARRANTY
Manufacturer will repair, or at manufacturer’s discretion will replace any
part of this salt spreader which proves to be defective in workmanship or
material under normal use for a period of one year from the date of deliv-
ery to the original purchaser. Any cost incurred in returning the product
to the supplier is the responsibility of the consumer.
EXCLUSIONS
Manufacturer shall not be liable for special, incidental, or consequential
damages, or for damages resulting from lack of necessary maintenance,
from misuse, abuse, acts of God, or alteration of the product. Some
states do not allow the exclusion or limitation of incidental or consequen-
tial damages, so the above limitation or exclusion may not apply to you.
ITEM
WB150BG
(STEEL)
WB250BG
(STAINLESS) QTY DESCRIPTION
13021435 3024672 1 Frame
23010874 3011730 1Handle
33033383 3033383 1Hopper
43033384 3033384 1Restrictor
53033385 3033385 1Guide,Restrictor
63033235 3033235 1Chute
73010871 3011741 2 Hopper Support Bracket
83012696 3012696 1Spinner Disc
93035272 3035273 1 Axle
10 3008813 3008813 1Screen
11 3014857 3014857 2Wheel
12 3008142 3011733 1Deflector Assembly
13 3011734 3011735 1Rear Deflector Assembly
14 3009160 3011736 1 Control Handle Assembly
15 3010878 3011737 1 Linkage Plate Assembly
16 3033387 3033395 1Lower Linkage
17 3010880 3011738 1 Upper Linkage
18 3015357 3015357 1Hardware Bag
19 3007873 3007873 1Agitator Pin
20 3012704 3012704 2Axle Bushing
21 3027118 3032800 1Gearbox Assembly
Parts List (for all figures)
