Samlexpower SA-600R Series User manual

1
SA-600R Series
Pure Sine Wave Inverter
User’s Manual

2
Table of contents
1. Important Safety Information.……………………………………………… 1
1-1 General Safety Precautions…………………………………………… 1
1-2 Batteries Precautions………………………………………………….. 1
2. Features………………………………………………………………………... 2
2-1 Applications.……………………………………………………………. 2
2-2 Electrical Performance………………………………………………… 3
2-3 Mechanical Drawings………………………………………………….. 4
3. Instructions………………………………………………….………………… 5
3-1 Front Panel Operation..………………………………………………... 5~6
3-2 Rear Panel Operation..………………………………………………… 7~8
3-3 Installation………………………………………………………………. 9
3-4 Quick hook – up and Testing.………………………………………... 10~11
3-5 AC Safety Grounding………………………………………………….. 12~13
3-6 DC Wiring Connections…………………….…………………………. 13~14
3-7 Inverter Operation……………………………………………………… 15
4. Troubleshooting……….……………………………………………………… 16
5. Maintenance…………………………………………………………………… 17
6. Warranty……………………………………………………………………….. 17
1

1
1. Important Safety Information
1-1. General Safety Precautions
1-1-1. Do not expose the Inverter to water, mist, snow, or dust. To reduce
the risk of hazard, do not cover or obstruct the ventilation shaft.
Do not install the Inverter in a zero-clearance compartment.
Overheating may occur.
1-1-2. To avoid the risk of fire and electronic shock, make sure that existing
wiring is in good electrical condition and not undersize.
Do not operate the Inverter with damaged or substandard Wiring.
1-1-3. There are some components in the inverter can cause arcs and sparks.
To prevent from fire or explosion, do not put batteries, flammable
materials, or anything should be ignition–protected around the inverter.
1-2. Precautions When Working with Batteries
1-2-1. If battery acid contacts your skin or clothing, you need to wash it out
immediately with soap and water. If acid enters into your eyes,
immediately flush your eyes with running cold water for at least 20
minutes and get medical attention immediately.
1-2-2. Never smoke or make a spark or flame in the vicinity of batteries or
Engines.
1-2-3. Do not drop a metal tools on the battery.The resulting spark or short-
circuit on the battery or other electrical parts may cause an explosion.
1-2-4. Remove personal metal items such as rings, bracelets, necklaces, and
watches when working with a lead-acid battery,
A lead-acid battery may produce a short-circuit current who’s
temperature is high enough to weld these metal items and cause a
severe burn.
WARNING!
Before installing and using the Inverter, you need to read
following safety information carefully.

2
2. Features
Pure sine wave output (THD < 3%)
Output frequency：50 / 60Hz switch selections
Input & output fully isolated design
High efficiency 88~94%
Driving highly reactive & capacitive load at start moment
Tri-Color indicators show input voltage & output load level
Loading controlled cooling fan
Advanced microprocessor
Protection：Input low voltage Overload Short circuit
Low battery alarm Input over voltage Over temperature
2-1. Applications
2-1-1. Power tools – circular saws, drills, grinders, sanders, buffers, weed and
hedge trimmers, air compressors, etc.
2-1-2. Office equipment – computers, printers, monitors, facsimile machines,
and scanners, etc.
2-1-3. Household appliances – vacuum cleaners, fans, fluorescent and
incandescent lights, shavers, sewing machines, etc.
2-1-4. Kitchen appliances – microwave ovens, refrigerators and freezers,
coffee makers, blenders, ice makers, toasters, etc.
2-1-5. Industrial equipment – metal halide lamp, high – pressure sodium lamp,
etc.
2-1-6. Home entertainment electronics – television, VCRs, video games,
stereos, musical instruments, satellite equipment, etc.

3
2-2. Electrical Performance
Specification Model No.
Item SA-600R-112 SA-600R-124
Continuous Output Power 600W
Maximum Output Power (3Min.) 680W
Surge Rating 800W
Input voltage 12V 24V
Output Voltage 100 / 110 / 120V +/- 3%
Frequency
(Switch Selections) 50 / 60Hz +/- 0.05%
Efficiency (full load) 87.0% 90.0%
No Load Current Draw 0.87A 0.43A
Output Waveform Pure Sine Wave ( THD < 3% )
Output voltage Regulation 100 / 110 / 120V RMS -10%/+4%
Input Voltage Regulation 10.5-15 VDC 21.0-30 VDC
Input Level Indicator Red / Orange / Green LED
Load Level Indicator
Failure Indicator Red LED
Protection Overload, Short Circuit, Reverse Polarity (Fuse),
Over / Under Input Voltage, Over Temperature.
Safety Certification UL458
EMC FCC Class B
Operating Temperature Range 0 - 33
℃
Storage Temperature Range -30
℃
to 70
℃
Cooling Loading controlled cooling fan
Dimensions 295(L) x 180(w) x 72(H) mm / 11.61(L) x 7.09(W) x 2.83(H) Inch
Weight 2.7 kg / 5.4 Lbs.
Note: The specifications are subject to change without notice.

4

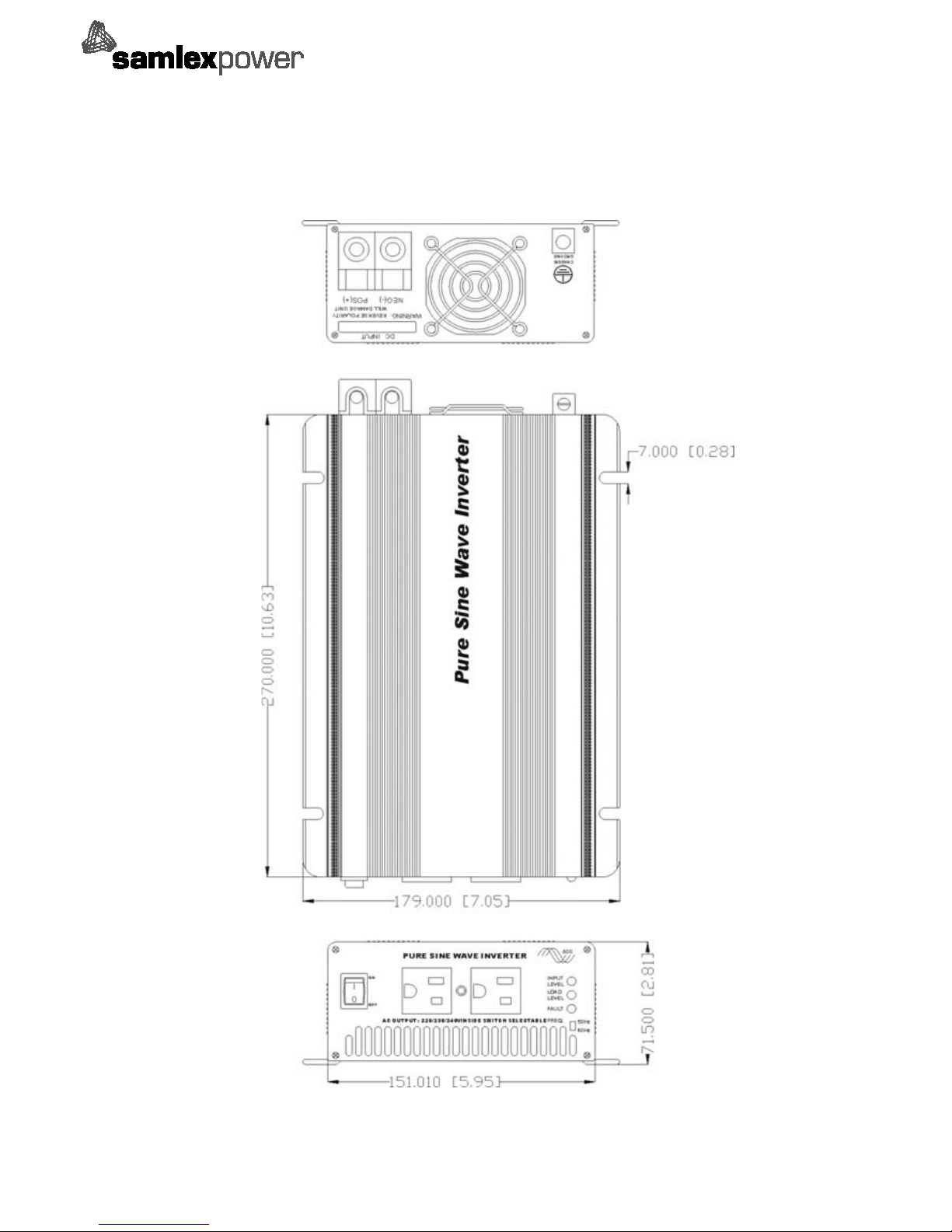

2-3. Mechanical Drawing

5
3. Instructions
This power inverter series is one of the most advanced line of mobile AC power
systems.
To get the most effective power inverter, it must be installed and used properly.
Please read the instructions of this manual before you install and operate this
model.
3-1. Front Panel Operation：

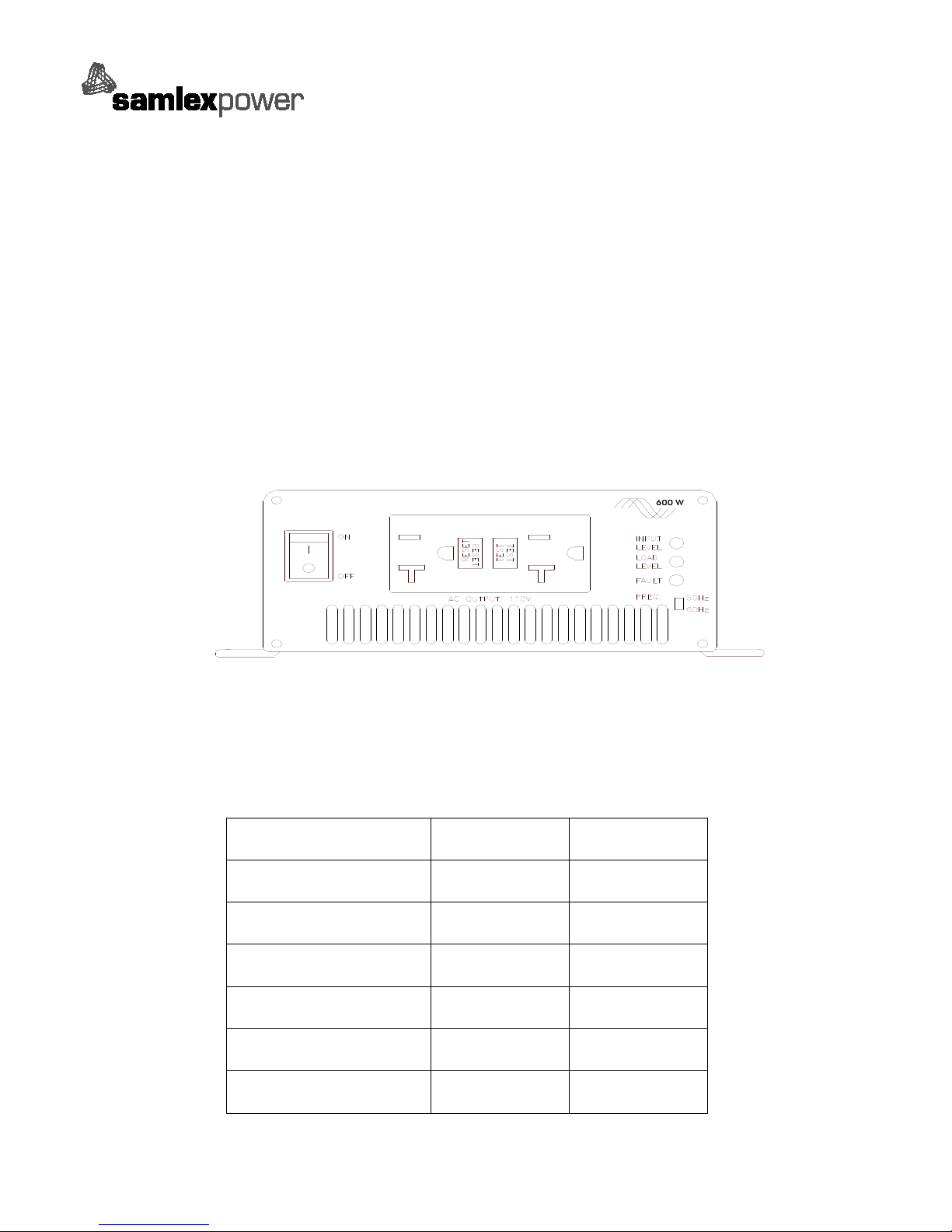

3-1-1. Front view：
PURE SINE WAVE INVERTER
3-1-2. ON / OFF switch
Leave the switch in the down position (OFF) during installation.
3-1-3. Input Level: Display Input Voltage
LED Status DC 12V DC 24V
Slow Red Blink 10.5~10.9 21.0~21.8
Red 10.9~11.3 21.8~22.6
Orange 11.3~12.0 22.6~24.0
Green 12.0~14.0 24.0~28.0
Orange Blink 14.0~14.7 28.0~29.4
Over Red Blink 14.729.4

6
3-1-4. Load Level：Display AC Load Watts
LED Status Load Condition
Dark 0 ~ 30W
Green 30W ~ 200W
Orange 200W ~ 450W
Red 450W ~ 580W
Red Blink Over 580W
3-1-5. Failure：Display failure status
OVP：over voltage protection
UVP：under voltage protection
OTP：over temperature protection
OLP：over load protection
3-1-6. AC outlet (Outlet Sockets available)
North America (GFCI)
North America
Continental Europe (SCHUKO)
Australia / New Zealand
United Kingdom

7
3-2. Rear Panel Operation
POS(+)
DC INPUT
WARNING:REVERSE POLARITY
WILL DAMAGE UNIT
CHASSIS
GROUND
NEG(-)
WARNING:REVERSE POLARITY
WILL DAMAGE UNIT
CHASSIS
GROUND
REMOTE
PORT
DC INPUT
NEG(-) POS(+)
3-2-1. Remote ON / OFF switch for SA-600R model only
3-2-1-1. To operate the inverter with Remote ON / OFF switch, ON /
OFF switch on the Front Panel should be off
3-2-1-2. Ensure the remote control contact is off.
3-2-1-3. Use 14 ~ 20 AWG wire to connect the Rear Panel Terminal
marked “REMOTE PORT” to the remote control contact. If
the remote control contact is in a state of low impedance
(short), the inverter will be turned ON. If the remote control
contact is in a state of high impedance (open), the inverter will
be turned OFF.

8
3-2-2. Ventilation Shaft
Be sure to keep it a distance (at least 1 inch) form surrounding things.
3-2-3. Input terminals
Connect the input terminal to 12V / 24V battery or other 12V / 24V
power source.
【＋】represents positive, and【－】represents negative. Reverse
polarity connection will blow the internal fuse and may damage the
inverter permanently.
3-2-4. Use wire #8 AWG to connects Chassis ground with Vehicle Chassis.
WARNING!
Operating the inverter without a proper ground
connection may cause an electrical safety hazard.
8

9
3-3. Installation
The power inverter should be installed in an environment that meets the
following requirements
3-3-1. Dry – Do not allow water to drip on or enter into the inverter.
3-3-2. Cool – Ambient air temperature should be between 0℃and 33℃, the
cooler the better.
3-3-3. Safe – Do not install the inverter in a battery compartment or other
areas where flammable fumes may exist, such as fuel storage areas or
engine compartments.
3-3-4. Ventilated – Keep the inverter a distance (at least one inch) away from
surrounding things. Ensure the ventilation shafts on the rear and the
bottom of the unit are not obstructed.
3-3-5. Dust free – Do not install the Inverter in dusty environment.
The dust can be inhaled into the unit when the cooling fan is working.
3-3-6. Close to batteries – Avoid excessive cable lengths. Do not install the
Inverter in the same compartment as batteries.
Use the recommended wire lengths and sizes (see section 3-6).
Do not mount the inverter where it will be exposed to the gases
produced by the battery. These gases are very corrosive, and
prolonged exposure will damage the Inverter.
WARNING!
Shock Hazard. Before proceeding further, carefully
check that the Inverter is NOT connected to any
batteries, and that all wiring is disconnected from any
electrical sources. Do not connect the output terminals
of the Inverter to an incoming AC source.
9

10
3-4. Quick hook – up and testing
For a quick hook – up of the power inverter to check its performance
before going ahead with installation, please follow these guidelines
3-4-1. To check its performance, unpack and inspect the power inverter the
switch is OFF.
3-4-2. Connect the cables to the power input terminals on the rear panel of
power inverter. The red terminal represents positive (+) and black
terminal represents negative (-). Insert the cables into the terminals
and clamp the nuts and the wires securely.
WARNING!
You may observe a spark when you make this
connection since current may flow into charge
capacitors in the power inverter.
Do not make this connection with the flammable
fumes close by. Explosion or fire may occur.
WARNING!
Ensure all the DC connections are tight (torque to 9 -
10) ft-lbs, 11.7 – 13 Nm. Loose connections and
overheat may result in a potential hazard.
10

11
3-4-3. Before proceeding further, carefully check that cable you have
connected does tie negative terminal of inverter to the negative output
power source.
3-4-4. Connect the cable from the negative terminal of the inverter to the
negative terminal of the power source. Make a secure connection.
3-4-5. Set the power switch to the “ON” position and the buzzer will send out
beep sound at the moment the inverter will make self-diagnosis and the
LED’s indicators will also appear various colors. Finally the buzzer
will send out another beep sound and the input Level LED indicators
will turn to “Green” color and the inverter starts working successfully.
3-4-6. Set the power switch to OFF position, the inverter stops and all the
lights go Off.
3-4-7. Set power inverter switch to the ON position and turn the test load on.
The inverter should supply power to the load. If you plan to
accurately measure the true output r.m.s. voltage of inverter, a meter
such as FLUKE 45 BECKMAN 4410 or TRIPLETT 4200 must be used.
CAUTION !
Reverse polarity connection will blow the fuse in
inverter and may permanently damage the inverter.
Damage caused by reverse polarity connection is not
covered by warranty.
11

12
3-5. AC Safety Grounding
During the AC wiring installation, AC input and output ground wires are
connected to the inverter. The AC input ground wire must be connected to
the incoming ground from AC utility source.
The AC output ground wire should go to the grounding point for your loads
(for example, a distribution panel ground bus ).
3-5-1. Neutral Grounding (GFCI’S)
3-5-1-1. 120V models. The neutral conductor of the AC output circuit
of the Inverter is automatically connected to the safety ground
during inverter operation. This conforms to National
Electrical Code requirements that separately derived from AC
sources (such as inverters and generators) which have their
neutral conductors tied to ground in the same way as the
neutral conductors from the utility tied to ground at the AC
breaker panel. For models configured with a transfer relay,
while AC utility power is present and the Inverter is in bypass
mode, this connection (the neutral of the Inverter’s AC output
to input safety ground) is not present so that the utility neutral
is only connected to ground at your breaker panel, as required.
3-5-1-2. 230V models：There is no connection made inside the
Inverter from either the line or neutral conductor to safety
ground.
WARNING!
The risk of electronic shock. Use only pass and Seymour
type 2091-W, ground fault circuit-interrupter receptacles.
Other types may fail to operate properly when connected to
this inverter equipment.
12

13
Ground Fault Circuit Interrupters (GFCI)
Installations in Recreational Vehicles (for North American approvals) will
require GFCI protection of all branch circuit connected to the AC output of
the hardwire terminal equipped with Inverter. In addition, electrical codes
require GFCI protection of certain receptacles in residential installations.
While the pure sine wave output of the Inverter is equivalent to the waveform
provided by utilities, compliance with UL standards requires us to test and
recommend specific GFCI.
Samlex has tested the following GFCI – protected 20A receptacles and found
that they functioned properly when connected to the output of the Inverter.
3-6. DC Wiring Connections：
Follow this procedure to connect the battery cables to the DC input terminals
on the Inverter. The cables should be as short as possible (less than 10
feet / 3 meters ideally) and large enough to handle the required current in
accordance with the electrical codes or regulations applicable to the
installation.
Cables that are not an adequate gauge (too narrow) or too long will
deteriorate inverter performance such as poor surge capability and frequent
low-input voltage warnings and shutdowns.
These low input voltage warnings are due to DC voltage drop across the
cables from the inverter to the batteries.
The linger and narrower the cables, the greater the voltage drops.
WARNING!
Do not operate the power inverter without connecting
it to ground. Electrical shock hazard may occur.
WARNING!
The fuse must be installed on positive cable.
Failure to place a fuse on “+” cables running between
the inverter and battery may cause damage to the
inverter and will void warranty.

14

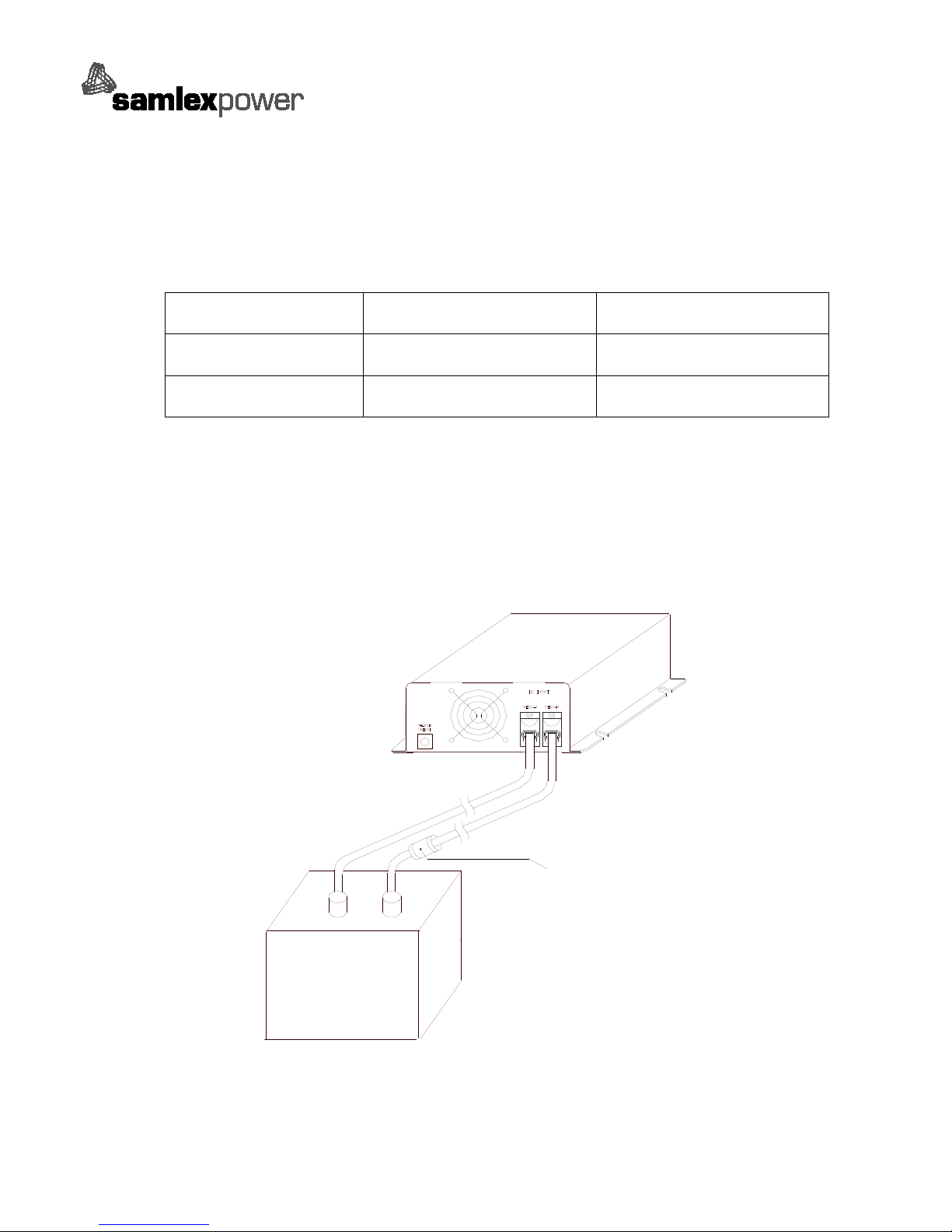

Increasing DC cable size helps improve the situation.
Samlex recommends the following cables for optimum inverter performance.
Model No Wire AWG Inline Fuse
SA-600R-112 # 4 100A
SA-600R-124 # 6 50A
Also, use only high quality copper wiring and keep cable length short, (a
maximum of 3-6 feet).
BATTERY
-+
INLINE FUSE
S600

15
3-7. Inverter Operation
To operate the power inverter, use the ON / OFF switch on the Front panel to
turn the power on. Then the power inverter is ready to deliver AC power to
the loads.
If you are operating several loads from the power inverter, turn them on
separately after the inverter is on.
This will ensure that the power inverter does not have to deliver the starting
currents for all the loads at one time.
3-7-1. Controls and indicators
The ON / OFF switch turns the control circuit in the power inverter on
and off. It does not disconnect power from the power inverter.
The Inverter operates from an input voltage ranging of：
10.5 to 15.0 VDC for 12V models
21.0 to 30.0 VDC for 24V models
The Inverter will indicate high and low DC voltage conditions as
follows：
Model Dc Input over
Voltage shut-
down
Dc Input under
Voltage alarm Dc Input under Voltage shut-down
SA-600R-112 15.3 11.0 10.5
SA-600R-124 30.6 22.0 21.0
15

16
4. Troubleshooting
Problems and Symptoms
Possible Cause
Solutions
Low output voltage
Using average reading
Use true RMS reading
meter and cable.
110V：195-105VAC
Voltmeter
(
See page 11
3-4-7. of the manual.
Load LED bar flash Overload Reduce load
No output voltage Low input voltage. Recharge battery,
Voltage indicator
check connections
In the lower red zone
and cables.
No output voltage
Thermal shutdown
Improve ventilation,
Over Temp indicator on
make sure ventilation
shafts of the inverter
Load less than 600W
are not obstructed.
Lower ambient
temperature.
No output voltage
Short circuit or Wiring
Check AC wiring
Overload indicator on
error
for short circuit or
improper polarity (hot
and neutral reversed).
Very high power load
Remove load.
WARNING!
Do not open or disassemble the SA-600 Inverter.
Attempting to service the unit yourself may cause an
electrical shock or fire.

17
5. Maintenance
Very little maintenance is required to keep your inverter operating properly.
You should clean the exterior of the unit periodically with a damp cloth to pre vent
accumulation of dust and dirt. At the same time, tighten the screws on the DC
input terminals.
6. Warranty
We guarantee this product against defects in materials and workmanship for a
period of 24 months from the date of purchase and will repair or replace any
defective power inverters if you directly returned them to us with postage paid.
Please note that Samlex is only responsible for ensuring our products are
operational before delivering. This warranty will be considered void if the unit has
been misused, altered, or accidentally damaged. Samlex is not liable for anything
that occurs as a result of the user’s fault.
17

18
Samlex America Inc.
110-17 Fawcett Road, Coquitlam, BC, V3K 6V2 Canada
Toll free phone: [phone]
Toll free fax: [phone]
General Inquiries: [email protected]
WWW: http://www.samlexamerica.com
SA-600R_Manual_Mar2010
