Samlexpower PST-200S-12A User manual

Please read this manual before operating your inverter.
PURE SINE WAVE
DC-AC INVERTER
MODELS: PST-200S-12A
PST-200S-24A
AC POWER SOURCE
OWNER'S MANUAL

INDEX
Safety Instructions ............................................................................................. 2,3
Inverters - General Information ...................................................................... 4,5,6
Characteristics of SinusoidalAC Power ............................................................... 7
Advantages of Sine Wave Inverters ...................................................................... 8
AC Power Distribution and Grounding ..................................................... 9,10,11
Limiting Electromagnetic Interference (EMI) .................................................... 11
Powering direct/embedded SMPS ...................................................................... 12
Principle of Operation ........................................................................................ 13
Layout ................................................................................................................. 13
Specifying Batteries, Chargers andAlternators ..............................14,15,16,17,18
Installation ......................................................................................19,20,21,22,23
Operation ....................................................................................................... 24,25
ProtectionAgainstAbnormal Conditions ...................................................... 25,26
Troubleshooting Guide .................................................................................. 27,28
Specifications...................................................................................................... 29
Warranty ............................................................................................................. 30
INDEX
Page 1

Page 2
SAFETY INSTRUCTIONS
Please read these instructions before installing or operating the inverter to prevent personal
injury or damage to the inverter.
GENERAL
Installation and wiring compliance
- Installation and wiring must comply with the local and national electrical codes and must
be done by a certified electrician
Preventing electrical shock
- Always connect the grounding connection on the inverter to the appropriate grounding
system
- Disassembly / repair should be carried out by qualified personnel only.
- Disconnect all AC and DC side connections before working on any circuits associated with
the inverter. Turning the on/off switch on the inverter to off position may not entirely
remove dangerous voltages
- Be careful when touching bare terminals of capacitors. The capacitors may retain high
lethal voltages even after the power has been removed. Discharge the capacitors before
working on the circuits
Installationenvironment
- The inverter should be installed indoor only in a well ventilated, cool, dry environment
- Do not expose to moisture, rain, snow or liquids of any type.
- To reduce the risk of overheating and fire, do not obstruct the suction and discharge
openings of the cooling fans
- To ensure proper ventilation, do not install in a low clearance compartment
Preventing fire and explosion hazards
Working with the inverter may produce arcs or sparks. Thus, the inverter should not be used
in areas where there are inflammable materials or gases requiring ignition protected equip-
ment. These areas may include spaces containing gasoline powered machinery, fuel tanks,
battery compartments
Precautions when working with batteries.
- Batteries contain very corrosive diluted sulphuric acid as electrolyte. Precautions should be
taken to prevent contact with skin, eyes or clothing
- Batteries generate hydrogen and oxygen during charging resulting in evolution of explosive
gas mixture. Care should be taken to ventilate the battery area and follow the battery
manufacturer’s recommendations.
- Never smoke or allow a spark or flame near the batteries.
- Use caution to reduce the risk of dropping a metal tool on the battery. It could spark or short
circuit the battery or other electrical parts and could cause an explosion.
- Remove metal items like rings, bracelets and watches when working with batteries. The
batteries can produce a short circuit current high enough to weld a ring or the like to metal
and thus cause a severe burn.
- If you need to remove a battery, always remove the ground terminal from the battery first.
Make sure that all the accessories are off so that you do not cause a spark

Page 3
INVERTER RELATED
Preventing paralleling of theAC output
The AC output of this inverter cannot be synchronised with another AC source and hence, it
is not suitable for paralleling. TheAC output of the inverter should never be connected
directly to an electrical breaker panel / load center which is also fed from the utility power /
generator. Such a connection may result in parallel operation of the different power sources
and AC power from the utility / generator will be fed back into the inverter which will
instantly damage the output section of the inverter and may also pose a fire and safety
hazard. If an electrical breaker panel / load center is fed from an inverter and this panel is
also required to be powered from additional alternate AC sources, the AC power from all
the AC sources like the utility / generator / inverter should first be fed to a manual selector
switch and the output of the selector switch should be connected to the electrical breaker
panel / load center.
To prevent possibility of paralleling and severe damage to the inverter, never use a simple
jumper cable with a male plug on both ends to connect the AC output of the inverter to a
handy wall receptacle in the home / RV.
Connecting to multi-wire branch circuits
Do not directly connect the hot side of the inverter to the two hot legs of the 120 / 240 VAC
electrical breaker panel / load centre where multi-wire ( common neutral ) branch circuit
wiring method is used for distribution of AC power. This may lead to overloading /
overheating of the neutral conductor and is a risk of fire.
A split phase transformer ( isolated or auto-transformer ) of suitable wattage rating ( 25 %
more than the wattage rating of the inverter ) with primary of 120 VAC and secondary of
120 / 240 VAC ( Two 120 VAC split phases 180 degrees apart) should be used. The hot and
neutral of the 120 VAC output of the inverter should be fed to the primary of this trans-
former and the 2 hot outputs ( 120 VAC split phases ) and the neutral from the secondary of
this transformer should be connected to the electrical breaker panel / load centre.
Preventing input over voltage
It is to be ensured that the input voltage of the inverter does not exceed 16.5 VDC for PST-
200S-12A or 33 VDC for PST-200S-24A to prevent permanent damage to the inverter.
Please observe the following precautions:
- Ensure that the maximum charging voltage of the battery charger / alternator / solar
charge controller is below 16.5 VDC for PST-200S-12A or 33 VDC for PST-200S-24A
- Do not use unregulated solar panels to charge a battery. Under cold ambient temperatures,
the output of the solar panel may exceed 18 VDC for 12 V system or 36 VDC for 24 V
system. Always use a charge controller between the solar panel and the battery.
- Do not connect the inverter to a battery system with a voltage higher than the rated
battery input voltage.
Preventing reverse polarity on the input side
When making battery connection on the input side, make sure that the polarity of battery
connection is correct (Connect the positive of the battery to the positive terminal of the
inverter and the negative of the battery to the negative terminal of the inverter). If the input
is connected in reverse polarity, DC fuse(s) inside the inverter will blow and may also cause
permanent damage to the inverter. DAMAGE CAUSED BY REVERSE POLARITY IS
NOT COVERED BY YOUR WARRANTY!

INVERTERS - GENERAL INFORMATION
Why an inverter is needed
The utility grid supplies you with alternating current (AC) electricity.AC is the standard
form of electricity for anything that “plugs in” to the utility power. Direct current (DC)
electricity flows in a single direction. Batteries provide DC electricity.AC alternates its
direction many times per second.AC is used for grid service because it is more practical
for long distance transmission. For more details read “Characteristics of SinusoidalAC
Power” on page 7.
An inverter converts DC to AC, and also changes the voltage. In other words, it is a
power adapter. It allows a battery-based system to run conventionalAC appliances
directly or through conventional home wiring. There are ways to use DC directly, but for
a modern lifestyle, you will need an inverter for the vast majority, if not all of your loads
(in electrical terms, “loads” are devices that use electrical energy).
Incidentally, there is another type of inverter called grid-interactive. It is used to feed
solar (or other renewable) energy into a grid-connected home and to feed excess energy
back into the utility grid. This inverter is NOT grid interactive
Inverter should meet the application
To choose an inverter; you should first define your needs. Where is the inverter to be
used? Inverters are available for use in buildings (including homes), for recreational
vehicles, boats, and portable applications. Will it be connected to the utility grid in some
way? Electrical conventions and safety standards differ for various applications, so don’t
improvise.
ElectricalStandards
The DC input voltage must conform to that of the electrical system and battery bank. 12
volts is recommended for small, simple systems. 24 and 48 volts are the common
standards for higher capacities. Ahigher voltage system carries less current, which makes
the system wiring cheaper and easier.
The inverter’s AC output must conform to the conventional power in the region in order
to run locally available appliances. The standard forAC utility service in North America
is 120 and 240 Volts at a frequency of 60 Hertz (cycles per second). In Europe, South
America, and most other places, it is 230 volts at 50 Hertz.
Power capacity – “Continuous” and “Surge”
How much load can an inverter handle? Its power output is rated in Watts. Read details
under “Characteristics of SinusoidalAC Power” on page 7. There are two levels of
power rating -a continuous rating and a surge rating. Continuous means the amount of
power the inverter can handle for an indefinite period of hours. When an inverter is rated
at a certain number of Watts, that number generally refers to its continuous rating. The
“surge power” indicates the power to handle instantaneous overload of a few seconds to
provide the higher power required to start certain type of devices and appliances.
Page 4

Page 5
Loads that require “surge power” to start
Resistive types of loads (like incandescent lamps, toaster, coffee maker, electric range,
iron etc) do not require extra power to start. Their starting power is the same as their
running power.
Some loads like induction motors and high inertia motor driven devices will initially
require a very large starting or “surge” power to start from rest. Once they have started
moving and have attained their rated speed, their power requirement reduces to their
normal running power. The surge may last up to 5 seconds.
TVs and microwave ovens also require surge power for starting. The manufacturers’
specification of the appliances and devices indicates only the running power required.
The surge power required has to be guessed at best. See below under “Sizing of inverter
for loads that require starting surge”
If an inverter cannot efficiently feed the surge power, it may simply shut down instead of
starting the device. If the inverter’s surge capacity is marginal, its output voltage will dip
during the surge. This can cause a dimming of the lights in the house, and will sometimes
crash a computer.
Any weakness in the battery and cabling to the inverter will further limit its ability to start
a motor. A battery bank that is undersized, in poor condition, or has corroded connections,
can be a weak link in the power chain. The inverter cables and the battery interconnect
cables must be sized properly. The spike of DC current through these cables is many
hundreds of amps at the instant of motor starting. Please follow the instructions under
"Installation - DC side connections" on pages 20 & 21.
Sizing of inverter for loads that require starting surge
Observe the following guideline to determine the continuous wattage of the inverter for
powering loads that require starting surge. (Multiply the running watts of the device/
appliance by the Surge Factor)
*NOTE: The surge power rating specified for this inverter is valid for duration
of less than 1 second. This very short duration may not be sufficient to
start motor based loads which may require up to 5 seconds to complete
starting process. Hence, for purposes of sizing the inverter, use only the
continuous power rating of this inverter.
Type of Device orAppliance Surge Factor for Determining the Continuous *Wattage of the Inverter
(No. of times the running power rating of the device/appliance)
Refrigerator / Freezer 5
Air Compressors 4
Dishwasher 3
Automatic Washer 3
Sump pump 3
Furnace fans 3
Industrial motors 3
Portable kerosene / diesel fuel heater 2
Circular saw 3
Bench Grinder 3

Page 6
Power rating of Microwaves
The power rating of the microwave generally refers to the cooking power. The electrical
power consumed by the microwave will be approximately 2 times the cooking power. The
“surge power” of the inverter should be 2 times the electrical power (i.e., 4 times the
cooking power). Please note that the surge power of the microwave is not as long as the
motor load and hence, the surge power of the inverter can be considered to determine
adequacy of meeting the starting surge power
Powering a water supply pump
A water well or pressure pump often places the greatest demand on the inverter. It
warrants special consideration. Most pumps draw a very high surge of current during start
up. The inverter must have sufficient surge capacity to handle it while running any other
loads that may be on. It is important to size an inverter sufficiently, especially to handle
the starting surge (If the exact starting rating is not available, the starting surge can be
taken as 3 times the normal running rating of the pump). Oversize it still further if you
want it to start the pump without causing lights to dim or blink.
In North America, most pumps (especially submersibles) run on 240 VAC, while smaller
appliances and lights use 120 VAC. To obtain 240 VAC from a 120 VAC inverter, use a
120 VAC to 240 VAC transformer. If you do not already have a pump installed, you can
get a 120 volt pump if you don’t need more than 1/2 HP.
Idle power
Idle power is the consumption of the inverter when it is on, but no loads are running. It is
“wasted” power, so if you expect the inverter to be on for many hours during which there
is very little load (as in most residential situations), you want this to be as low as
possible.
Phantom and idling loads
Most of the modern gadgets draw some power whenever they are plugged in. Some of
them use power to do nothing at all. An example is a TV with a remote control. Its
electric eye system is on day and night, watching for your signal to turn the screen on.
Every appliance with an external wall-plug transformer uses power even when the
appliance is turned off. These little loads are called “phantom loads” because their power
draw is unexpected, unseen, and easily forgotten.
A similar concern is “idling loads.” These are devices that must be on all the time in order
to function when needed. These include smoke detectors, alarm systems, motion detector
lights, fax machines, and answering machines. Central heating systems have a trans-
former in their thermostat circuit that stays on all the time. Cordless (rechargeable)
appliances draw power even after their batteries reach a full charge. If in doubt, feel the
device. If it’s warm, that indicates wasted energy.

Page 7
CHARACTERISTICS OF SINUSOIDAL AC POWER
Voltage, current, power factor, types of loads
The voltage waveform of 120 VAC, 60 Hz mains / utility power is like a sine wave. In a
voltage with a sine wave-form, the instantaneous value and polarity of the voltage varies
with respect to time and the wave-form is like a sine wave. In one cycle, it slowly rises in
the positive direction from 0 V to a peak positive value + Vpeak = 170 V, slowly drops to 0
V, changes the polarity to negative direction and slowly increases in the negative direction
to a peak negative value - Vpeak =170 V and then slowly drops back to 0 V. There are 60
such cycles in 1 sec. Cycles per second is called the “frequency” and is also termed “Hertz
(Hz.). If a linear load is connected to this type of voltage, the load will draw current which
will also have the same sine wave-form. However, the peak value of the current will depend
upon the impedance of the load. Also, the phase of the sine wave-form of the current drawn
by the linear load may be the same or lead / lag the phase of sine wave-form of the voltage.
This phase difference determines the “Power Factor (mathematically = the cosine of the
phase difference)” of the load. In a resistive type of load (like incandescent lamps, heaters
etc) the sine wave-form of the current drawn by the load has 0 phase difference with the sine
wave-form of the voltage of the AC power source. The Power Factor of a resistive load is
unity (1). The rated output power (in Watts) of the inverters is normally specified for
resistive type of loads that have unity (1) Power Factor. In a reactive type of load (like
electric motor driven loads, fluorescent lights, computers, audio / video equipment etc), the
phase of the sine wave-form of the current drawn by the load may lead or lag the sine wave-
form of the AC voltage source. In this case, the power factor of reactive loads is lower than
unity (1) – generally between 0.8 and 0.6. Areactive load reduces the effective wattage
that can be delivered by anAC power source
RMS and peak values
As explained above, in a sine wave, the instantaneous values of AC voltage (Volt, V) and
current (Ampere, A) vary with time. Two values are commonly used – Root Mean Square
(RMS) value and peak value. For simplicity, RMS value can be considered as an average
value. Mathematically, Peak Value = 1.414 x RMS value. For example, the 120 VAC, 60
Hz. mains / utility power is the RMS value. The peak value corresponding to this is = 1.414
x 120 = 170V.
The values of the rated output voltage and current of anAC power source are their
RMS values
AC power – Watts / VA
The power rating of an AC power source is designated in Volt Amperes (VA) or in Watts
(W)
Power in Volt Amperes (VA) = RMS Volts (V) x RMS Amps (A)
Power in Watts = RMS Volts (V) x RMS Amps (A) x Power Factor
NOTE: The rated power of the inverter in Watts (W) is normally designated for a
linear, resistive type of load that draws linear current at unity (1) power
factor. If the load is linear and reactive type, the rated power of the inverter
in watts will be limited to its normal rated power in Watts (W) x Power
Factor of the load. For example, this inverter rated for 2000 Watts (at unity
power factor) will be able to deliver only 1200 Watts to a reactive type of
load with a power factor of 0.6

Page 8
ADVANTAGES OF A PURE SINE-WAVE INVERTER
OVER A MODIFIED SINE-WAVE INVERTER
The output voltage of a sine-wave inverter has a sine wave-form like the sine wave-form
of the mains / utility voltage. In a sine wave, the voltage rises and falls smoothly with a
smoothly changing phase angle and also changes its polarity instantly when it crosses 0
Volts. In a modified sine wave, the voltage rises and falls abruptly, the phase angle also
changes abruptly and it sits at 0 Volts for some time before changing its polarity. Thus,
any device that uses a control circuitry that senses the phase (for voltage / speed control)
or instantaneous zero voltage crossing (for timing control) will not work properly from a
voltage that has a modified sine wave-form.
Also, as the modified sine wave is a form of square wave, it is comprised of multiple sine
waves of odd harmonics (multiples) of the fundamental frequency of the modified sine
wave. For example, a 60 Hz. modified sine wave will consist of sine waves with odd
harmonic frequencies of 3rd(180 Hz), 5th (300 Hz.), 7th (420 Hz.) and so on. The high
frequency harmonic content in a modified sine wave produces enhanced radio interfer-
ence, higher heating effect in motors / microwaves and produces overloading due to
lowering of the impedance of low frequency filter capacitors / power factor improvement
capacitors.
Advantages of sine-wave inverters:
•The output wave-form is a sine-wave with very low harmonic distortion and
clean power like utility supplied electricity.
•Inductive loads like microwaves and motors run faster, quieter and cooler
•Reduces audible and electrical noise in fans, fluorescent lights, audio amplifi-
ers, TV, fax and answering machines
•Prevents crashes in computers, weird print outs and glitches in monitors
Some examples of devices that may not work properly with modified sine wave and may
also get damaged are given below:
•Laser printers, photocopiers, magneto-optical hard drives
•The built-in clocks in devices such as clock radios, alarm clocks, coffee
makers, bread-makers, VCR, microwave ovens etc may not keep time correctly.
•Output voltage control devices like dimmers, ceiling fan / motor speed control
may not work properly (dimming / speed control may not function)
•Sewing machines with speed / microprocessor control
•Transformer-less capacitive input powered devices like (i) Razors, flashlights,
night-lights, smoke detectors etc (ii) Re-chargers for battery packs used in hand
power tools. These may get damaged. Please check with the manufacturer
of these types of devices for suitability
•Devices that use radio frequency signals carried by the AC distribution wiring.
•Some new furnaces with microprocessor control / Oil burner primary controls
•High intensity discharge (HID) lamps like Metal Halide lamps. These may get
damaged. Please check with the manufacturerof these types of devices for
suitability
•Some fluorescent lamps / light fixtures that have power factor correction
capacitors. The inverter may shut down indicating overload

Page 9
AC POWER DISTRIBUTION AND GROUNDING
CAUTION! PLEASE NOTE THAT THEAC OUTPUT CONNECTIONSAND THE DC
INPUT CONNECTIONS ONTHIS INVERTERARE NOT
CONNECTED (BONDED) TO THE METAL CHASSIS OFTHE
INVERTER. BOTH THE INPUTAND OUTPUT CONNECTIONSARE
ISOLATED FROM THE METAL CHASSISAND FROM EACH OTHER.
SYSTEM GROUNDING,AS REQUIRED BYNATIONAL / LOCAL
ELECTRICAL CODES / STANDARDS, IS THE RESPONSIBILITYOF THE
USER / SYSTEM INSTALLER.
Conductors for electrical power distribution
For single phase transmission of AC power or DC power, two conductors are required
that will be carrying the current. These are called the “current-carrying” conductors.A
third conductor is used for grounding to prevent the build up of voltages that may result
in undue hazards to the connected equipment or persons. This is called the “non current-
carrying” conductor (will carry current only under ground fault conditions)
Groundingterminology
The term “grounded” indicates that one or more parts of the electrical system are
connected to earth, which is considered to have zero voltage or potential. In some areas,
the term “earthing” is used instead of grounding.
A “grounded conductor” is a “current-carrying” conductor that normally carries current
and is also connected to earth. Examples are the “neutral” conductor in AC wiring and
the negative conductor in many DC systems. A“grounded system” is a system in which
one of the current-carrying conductors is grounded
An “equipment grounding conductor” is a conductor that does not normally carry current
(except under fault conditions) and is also connected to earth. It is used to connect the
exposed metal surfaces of electrical equipment together and then to ground. Examples are
the bare copper conductor in non-metallic sheathed cable (Romex ®) and the green,
insulated conductor in power cords in portable equipment. These equipment-grounding
conductors help to prevent electric shock and allow over-current devices to operate
properly when ground faults occur. The size of this conductor should be coordinated with
the size of the over-current devices involved
A “grounding electrode” is the metallic device that is used to make actual contact with the
earth. Other types of grounding electrodes include metal water pipes and metal building
frames.
A “grounding electrode conductor” is the conductor between a common single grounding
point in the system and the grounding electrode
“Bond” refers to the connection between the “grounded conductor”, the “equipment
grounding” conductors and the “grounding electrode” conductor. Bonding is also used to
describe connecting all of the exposed metal surfaces together to complete the equip-
ment-grounding conductors.

Page 10
Grounded Electrical Power Distribution System
The National Electrical Code (NEC) requires the use of a “grounded electrical distribu-
tion system”.As per this system, one of the two current-carrying conductors is required to
be grounded. This grounded conductor is called the “Neutral / Cold / Return”. As this
conductor is bonded to earth ground, it will be at near zero voltage or potential. There is
no risk of electrical shock if this conductor is touched. The other current carrying
conductor is called the “Line / Live / Hot”. The connection between the “Neutral” and the
grounding electrode conductor is made only at one point in the system. This is known as
the system ground. This single point connection (bond) is usually made in the service
entrance or the load center. If this connection is inadvertently made in more than one
place, then unwanted currents will flow in the equipment grounding conductors. These
unwanted currents may cause inverters and charge controllers to be unreliable and may
interfere with the operation of ground-fault detectors and over-current devices.
NOTE:Acurrent-carrying conductor that is not bonded to the earth ground cannot
be called a “neutral”. This conductor will be at an elevated voltage with respect to
the earth ground and may produce electrical shock when touched.
Polarity and color codes for power cords and plugs forAC devices and appliances
Single phase 120 VAC, 60 Hz AC devices and appliances use 2 pole, 3 wire grounding
configuration for connection to the AC power source. The plug of the power cord has
three pins – two flat pins ( also called poles ) that are connected to the two current-
carrying conductors and a round pin which is connected to a non-current carrying
conductor ( this will carry current only during ground fault conditions ) . One flat pin is
connected to a black current-carrying conductor which is also called “Line/Live/Hot”
pole. The other flat pin is connected to the white current-carrying conductor also called
the “Neutral / Return / Cold” pole. The third round pin is connected to the non-current
carrying green “equipment grounding conductor”. This green “equipment grounding
conductor” is bonded to the metal chassis of the device or appliance.
AC output connections
The 120 VAC, 60 Hz version of the inverter uses NEMA 5-20R receptacles for connect-
ing the AC output of the inverter to devices and appliances fitted with a NEMA 5-20P /
NEMA 5-15P plug. The two rectangular slots are connected to the current-carrying
conductors of the AC power source inside the inverter. The round slot is the “equipment
grounding” connection and is internally connected to the metal chassis of the inverter.
CAUTION! For the 120 VAC, 60 Hz NEMA 5-20R receptacles used in this inverter, the
current carrying conductor connected to the T-type of slot is isolated from the metal
chassis of the inverter. Hence, when the metal chassis of the inverter is connected to the
earth ground, the T-type of slot is not grounded to the earth ground. The T-type of slot
is, therefore, not a “neutral”. Do not touch this slot as it will be at an elevated voltage
with respect to the metal chassis / earth ground and may produce an electrical shock when
touched.

Page 11
Grounding to earth orto other designated ground
For safety, the metal chassis of the inverter is required to be grounded to the earth ground or
to the other designated ground (For example, in a mobile RV, the metal frame of the RV is
normally designated as the negative DC ground). An equipment grounding bolt with a wing
nut has been provided for grounding the metal chassis of the inverter to the appropriate
ground. (Located under the DC input terminals)
When using the inverter in a building, connect a # 8 AWG insulated stranded copper wire
from the above equipment grounding bolt to the earth ground connection ( a connection that
connects to the ground rod or to the water pipe or to another connection that is solidly
bonded to the earth ground ). The connections must be tight against bare metal. Use star
washers to penetrate paint and corrosion.
When using the inverter in a mobile RV, connect a # 8 AWG insulated stranded copper wire
from the above equipment grounding bolt to the appropriate ground bus of the RV (usually
the vehicle chassis or a dedicated DC ground bus ). The connections must be tight against
bare metal. Use star washers to penetrate paint and corrosion.
The inverter contains internal switching devices which generate conducted and radiated
electromagnetic interference (EMI).
The magnitude of EMI is limited to acceptable levels by circuit design but can not be
entirely eliminated. The effects of EMI will also depend upon a number of factors
external to the power supply like proximity of the inverter to the EMI receptors, types
and quality of connecting wires and cables etc. EMI due to factors external to the inverter
can be reduced as follows:
- Ensure that the inverter is firmly grounded to the ground system of the building or the
vehicle
- Locate the inverter as far away from the EMI receptors like radio, audio and video
devices as possible
- Keep the DC side cables between the battery and the inverter as short as possible.
- Twist the DC side cables. This will partially cancel out the radiated noise from the
cables
- Shield the DC side cables with metal sheathing / copper foil / braiding
- Use co-axial shielded cable for all antenna inputs (instead of 300 ohm twin leads)
- Use high quality shielded cables to attach audio and video devices to one another
- Do not operate other high power loads when operating audio / video equipment
LIMITING ELECTRO-MAGNETIC INTERFERENCE
(EMI)

Page 12
POWERING DIRECT / EMBEDDED SWITCHED
MODE POWER SUPPLY (SMPS)
Non-linear nature of current drawn by Switched Mode Power Supplies
Power supplies are used to convert AC voltages like 120 VAC to various DC voltages
like 3.3 V, 5 V, 12 V, 24 V, 48 V etc. Majority of modern day electronic devices use
embedded general purpose Switch Mode type of Power Supplies (SMPS) to drive the
electronic circuitry. General purpose Switch Mode Power Supplies (SMPS) ( excepting
those that have power factor correction ) have one major disadvantage – the current
drawn by them from the AC power source has a non linear waveform ( the waveform is
not sinusoidal as the input voltage waveform but is in the form of short, larger value pulses
around the area of + Vpeak and -Vpeak ). This is due to the charging of the input filter
capacitor(s) mostly around the positive and negative peak portions of the sinusoidal input
voltage. The degree of non-linearity is measured by the "Crest Factor":
Crest Factor = Peak Current / RMS Current
In a linear load, the Crest Factor is 1.414. However, in a general purpose SMPS, due to
its non linear nature, this factor will be much higher - in the region of up to 4. This will
mean that for a particular rated RMS current (applicable for a linear load), the general
purpose SMPS will draw much larger peak currents – approx. up to 4 times more than its
rated RMS current.
Inverters are protected against over current ( also called overloading ) by either clipping
the peaks of the output voltage ( this will result in a sine wave becoming a square wave,
reduction in the RMS value of the output voltage and generation of harmonics and
electrical noise ) or by shutting down the output voltage of the inverter completely. Thus,
if an inverter / generator is used to power a general purpose SMPS, it will be forced to
deliver higher peak currents resulting in premature triggering of the inverter’s /
generator's over current protection circuits. Thus, for safe operation, the continuous RMS
current rating of the inverter / generator should be at least 2.8 times the continuous RMS
current rating of the general purpose SMPS it is required to power:
Peak current of inverter = Peak current of SMPS
or
RMS current of inverter X 1.414 = RMS current of SMPS X 4
or
RMS current of inverter = 4/1.414 X RMS current of SMPS
or
RMS current of inverter = 2.8 X RMS current of SMPS)
Alternatively, the continuous powerrating of the inverter / generator in Watts / VA
should be at least 2.8 times the continuous power rating of the SMPS in Watts / VA

Page 13
LAYOUT
PRINCIPLE OF OPERATION
The inverter converts the rated DC voltage of the battery to 120 V, 60 Hz. AC voltage.
The voltage conversion takes place in two stages. In the first stage, the rated DC voltage
of the battery is converted to a high voltage DC using high frequency switching and Pulse
Width Modulation (PWM) technique. In the second stage, the high voltage DC is
converted to 120 V, 60 Hz. sine-wave AC again using PWM technique. This is done by
using a special wave shaping technique where the high voltage DC is switched at a high
frequency and the pulse width of this switching is modulated with respect to a reference
sine-wave.

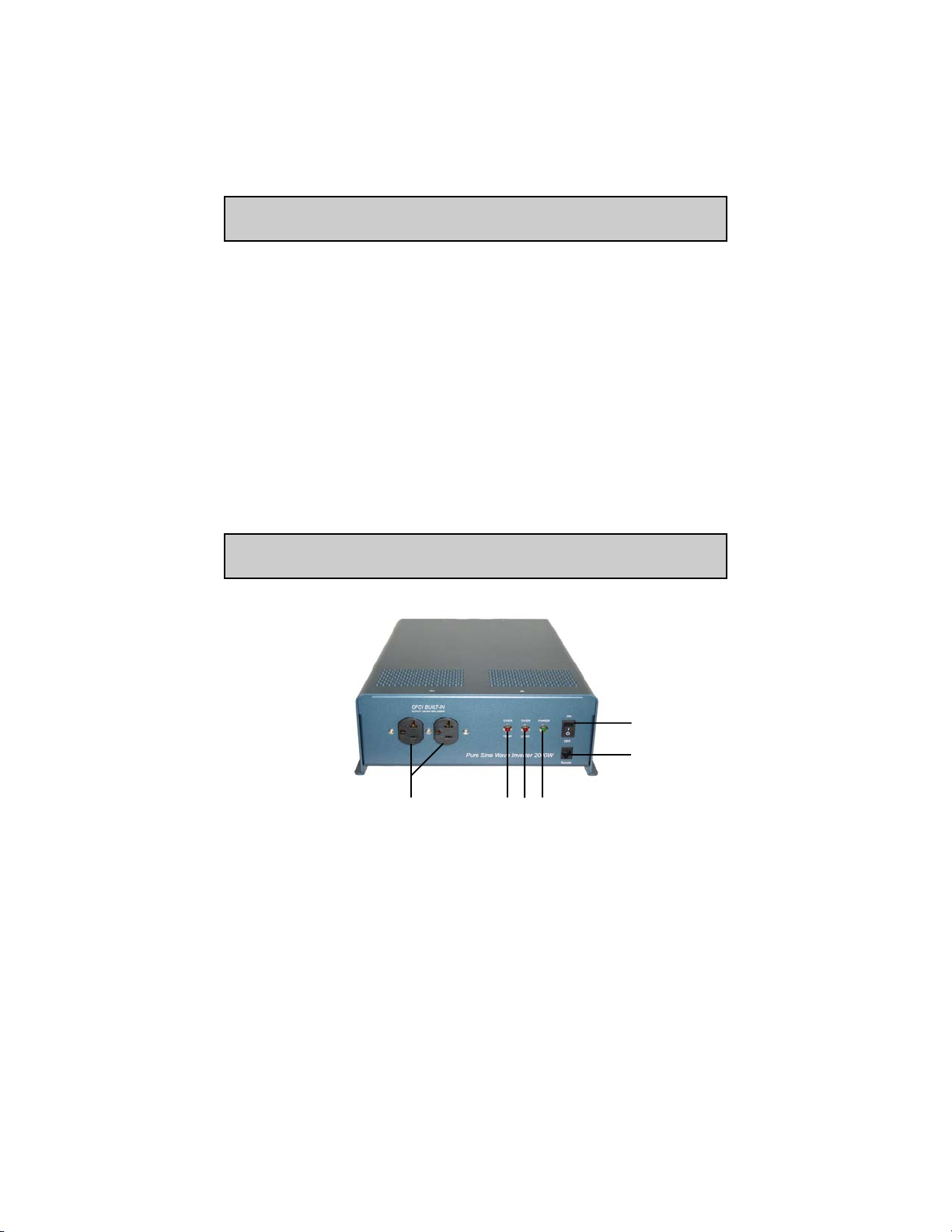

1 125 V, 20 A, NEMA5-20R AC output receptacles
2 Power on/off Switch
3 Green L.E.D. - Power output status
4 Red L.E.D. - Overload
5 Red L.E.D. - Over temperature
6 Input terminals (back of unit -not shown)
RED - Positive (+)
BLACK or WHITE - Negative (-)
7 Two Cooling fans (back of the unit - not shown)
8 Grounding lug (back of the unit - not shown)
9. Modular jack for optional Remote Control
2
1345
9

SPECIFYING BATTERIES, CHARGERS
& ALTERNATORS
The inverter will require Deep Cycle LeadAcid Batteries of appropriate capacity.
Lead-acid batteries can be categorized by the type of application: automotive service -
Starting/Lighting/Ignition (SLI, a.k.a. cranking) and deep cycle service
SLI Batteries
Everybody is familiar with the SLI batteries that are used for automotive starting and
powering vehicular accessories. SLI batteries are designed to produce high power in short
bursts but must be constantly recharged (normally with an alternator while driving).
Vehicle starting typically discharges 1%-3% of a healthy SLI battery’s capacity.
The automotive SLI battery is not designed for repeated deep discharge where up to 80 %
of the battery capacity is discharged and then recharged. If an SLI battery is used for this
type of application, its useful service life will be drastically reduced
Deep Cycle Batteries
Deep cycle batteries are designed with thick-plate electrodes to serve as primary power
sources, to have a constant discharge rate, to have the capability to be deeply discharged
up to 80 % capacity and to repeatedly accept recharging. They are marketed for use in
recreation vehicles (RV), boats and electric golf carts – so they may be referred to as RV
batteries, marine batteries or golf cart batteries. There are two categories of deep cycle
lead acid batteries – wet and sealed. A wet cell battery has a high tolerance to overcharg-
ing. However, it will release hydrogen gas when charging that must be properly vented
and the water level must be checked frequently. Sealed batteries can either be Gel Cell or
AGM (Absorbed Glass Mat). Both the Gel Cell andAGM are maintenance free, have no
liquid to spill and gassing is minimal. The Gel Cell is the least affected by temperature
extremes, storage at low state of charge and has a low rate of self discharge. AnAGM
battery will handle overcharging slightly better than the Gel Cell
Units of Battery capacity
The battery capacity is the measure of the energy the battery can store and deliver to a
load. It is determined by how much current any given battery can deliver over a stipulated
period of time. The energy rating is expressed in Ampere Hours (AH). As a bench mark,
the battery industry rates batteries at 20 hour rate i.e. how many Amperes of current the
battery can deliver for 20 hours at 80 º F till the voltage drops to 10.5 Volts for 12 V
battery and 21 V for 24 V battery. For example, a 100 AH battery will deliver 5 Amperes
for 20 hours. Battery capacity is also expressed as Reserve Capacity (RC) in minutes.
Reserve capacity is the time in minutes for which the battery can deliver 25Amperes at
80 º F till the voltage drops to 10.5 Volts for 12 V battery and 21 V for 24 V battery.
Approximate relationship between the two units is as follows:
Capacity inAH = Reserve Capacity in RC minutes x 0.6
Page 14

Typical battery sizes
Below is a chart of some battery sizes applicable for powering inverters:
BCI * Group Battery Voltage, V Battery AH
27 / 31 12 105
4 D 12 160
8D 12 225
GC2** 6 220
* Battery Council International
** Golf Cart
Reduction in usable capacity at higher discharge rates.
As stated above, the rated capacity of the battery in AH is applicable at a discharge rate of
20 Hours. As the discharge rate is increased, the usable capacity reduces due to “Peukert
Effect”. This relationship is not linear but is more or less according to the table below:
Table 1 Battery Capacity versus Rate of Discharge
Hours of Discharge Usable Capacity
20 100%
10 87%
8 83%
6 75%
5 70%
3 60%
2 50%
1 40%
Using the above table will show that a 100 AH capacity battery will deliver 100% (i.e.
full 100 AH) capacity if it is slowly discharged over 20 hours at the rate of 5Amperes.
However, if it is discharged at a rate of 50 Amperes then theoretically, it should provide
100 AH ÷ 50 = 2 hours. However, the Table above shows that for 2 hours discharge rate,
the capacity is reduced to 50% i.e. 50 AH. Therefore, at 50Ampere discharge rate the
battery will actually last for 50 AH÷50 Amperes = 1 Hour
Page 15

Depth of discharge and battery life
The more deeply a battery is discharged on each cycle, the shorter the battery life. Using
more batteries than the minimum required will result in longer life for the battery bank. A
typical cycle life chart is given at Table 2 below:
TABLE 2. – TYPICAL CYCLE LIFE CHART
Depth of Discharge Cycle Life Cycle Life Cycle Life
% ofAH Capacity Group 27 / 31 Group 8D Group GC2
10 1000 1500 3800
50 320 480 1100
80 200 300 675
100 150 225 550
It is recommended that the depth of discharge should be limited to 50 %
Loss of battery capacity at low temperatures.
Batteries lose capacity in low temperatures. At 32 º F, a battery will deliver about 70 to
80 % of its rated capacity at 80 º F. If the air temperature near the battery bank is lower
than 80 º F, additional batteries will be needed to provide the same usable capacity. For
very cold climates, an insulated / heated battery compartment is recommended.
Series and parallel connection of batteries
When two or more batteries are connected in series, their voltages add up but theirAH
capacity remains the same. For example, when two 12 V, 105AH batteries are connected
in series, it becomes a 24 V, 105 AH battery. (Positive of the first battery is the positive
terminal of the series connection. The negative of the first battery is connected to the
positive of the second battery. The negative of the second battery is the negative of the
series connection)
When two or more batteries are connected in parallel, their voltages remain the same but
their capacities add up. For example, if two 12 V, 105 AH batteries are connected in
parallel, their voltage remains 12 V but their capacity becomes 105 × 2 = 210 AH
(Connect the positive terminal of the first battery to the positive terminal of the second
battery. These paralleled common positive terminals become the positive terminal of the
parallel combination. Connect the negative terminal of the first battery to the negative
terminal of the second battery. These paralleled common negative terminals becomes the
negative terminal of the parallel combination)
Page 16

Page 17
Sizing the Inverter Battery Bank
One of the most frequently asked question is, “how long will the batteries last?’. This
question cannot be answered without knowing the size of the battery system and the load
on the inverter. Usually this question is turned around to ask “How long do you want your
load to run?”, and then specific calculation can be done to determine the proper battery
bank size.
There are a few basic formulae and estimation rules that are used:
Formula 1 Power in Watts (W) = Voltage in Volts (V) x Current in Amperes (A)
Formula 2 For an inverter running from a 12 V battery system (PST-150S-12A),
the DC current required from the 12 V batteries is theAC power
delivered by the inverter to the load in Watts (W) divided by 10 & for
an inverter running from a 24 V battery system (PST-150S-24A), the
DC current required from the 24 V batteries is theAC power delivered
by the inverter to the load in Watts (W) divided by 20.
Formula 3 Energy required from the battery = DC current to be delivered (A) x
time in Hours (H)
The first step is to estimate the total AC watts (W) of load(s) and for how long the load(s)
will operate in hours (H). TheAC watts are normally indicated in the electrical nameplate
for each appliance or equipment. In case AC watts (W) are not indicated, formula 1 given
above may be used to calculate the AC watts by multiplying 120 VAC by theAC current in
Amperes . The next step is to derive the DC current inAmperes (A) from the AC watts as
per formulae 2 above. An example of this calculation for a 12V inverter is given below:
Let us say that the totalAC Watts delivered by the12 V inverter = 1000 W
Then, using formula 2 above, the DC current to be delivered by the 12 V batteries = 1000
W ÷10 = 100Amperes
Next, the energy required by the load inAmpere Hours (AH) is determined. For example,
if the load is to operate for 3 hours then as per Formula 3 above:
Energy to be delivered by the 12 V batteries = 100 Amperes × 3 Hours = 300 Ampere
Hours (AH)
Now, the capacity of the batteries is determined based on the run time and the usable
capacity. From Table 1, (on page 15), the usable capacity at 3 Hour discharge rate is 60%.
Hence, the actual capacity of the 12 V batteries to deliver 300 AH will be equal to 300AH
÷ 0.6 = 500 AH
And finally, the actual desired rated capacity of the batteries is determined based on the
fact that normally only 80% of the capacity will be available with respect to the rated
capacity due to non availability of ideal and optimum operating and charging conditions.
So the final requirements will be equal to:
500 AH ÷0.8 = 625 AH (note that the actual energy required by the load was 300AH)
It will be seen from the above that the final rated capacity of the batteries is almost 2 times
the energy required by the load inAH
Thus, as a thumb rule, theAH capacity of the batteries should be twice the energy
required by the load inAH

For the above example, the 12 V batteries may be selected as follows:
- Use 6 Group 27/31, 12 V, 105 AH batteries in parallel to make up 630 AH, or
- Use 3 Group 8D, 12 V, 225 AH batteries in parallel to make up 675 AH
Charging Batteries
The batteries can be charged by using good qualityAC powered battery charger or from
alternative energy sources like solar panels, wind or hydro systems. Make sure an
appropriate battery charge controller is used. It is recommended that the batteries may be
charged at 10% to 13 % of the Ampere Hour capacity (20 hour discharge rate). Also, for
complete charging (return of 100 % capacity ), it is recommended that a 3 stage charger
may be used (Constant current bulk charging followed by constant voltage boost /
absorption charging followed by constant voltage float charging )
Batteries, alternators and isolators on vehicles / RVs
It is recommended that for powering the inverter, one or more auxiliary deep cycle
batteries should be used that are separate from the SLI batteries. The inverter should be
powered from the deep cycle batteries. For charging the SLI and the auxiliary deep cycle
batteries, the output from the alternator should be fed to these two sets of batteries
through a battery isolator of appropriate capacity. The battery isolator is a solid state
electronic circuit that will allow the alternator to charge the two sets of batteries when the
engine is running. The isolator will allow the inverter to be operated from the auxiliary
batteries and also prevent the SLI batteries from charging the auxiliary deep cycle
batteries when the engine is not running. Battery isolators are available from auto / RV /
marine parts suppliers
A majority of smaller vehicles have 40 to 105 Ampere alternator and RVs have 100 to
130 Ampere alternator. When in use, the alternators heat up and their output current
capacity can drop by up to 25%. When heated up, their charging voltage may also not
reach the desired absorption voltage and will result in return of only about 80% of the
battery capacity. In case the current output of the standard alternator is not adequate to
charge the two sets of batteries rapidly and fully to 100% of their capacity, use heavy duty
alternator that can produce higher current and voltage required to charge multiple battery
systems. These alternators are available with auto / RV parts suppliers.
Page18

INSTALLATION
Page 19
GENERAL
Installation and wiring compliance
- Installation and wiring must comply with the local and the national electrical codes and
must be done by a certified electrician
- In building / residential applications, electrical codes do not allow permanent connection
of AC distribution wiring to the inverter’s AC output receptacles. The receptacles are
intended for temporary (as needed) connection of cord connected loads only. Read
details under “AC Power Distribution and Grounding” on page 9.
- The inverter does not have integral over current protection for the AC output side.
Protection should be provided by the installer
- Over current protection of the cables from the battery to the inverter has to be provided
by the installer
- The DC input positive and negative terminals are isolated from the chassis. Similarly, the
neutral pole of the AC receptacles / the neutral wire is not bonded to the chassis. System
grounding to suit the national / local electrical codes is to be undertaken by the installer.
Read details under“AC Power Distribution and Grounding” on page 9.
Preventing electrical shock
- Always connect the grounding connection on the inverter to the appropriate grounding
system. Read details under“AC Power Distribution and Grounding” on page 9.
Installationenvironment
- The inverter should be installed indoor only in a well ventilated, cool, dry environment
- Do not expose to moisture, rain, snow or liquids of any type.
- To reduce the risk of overheating and fire, do not obstruct the suction and discharge
openings of the cooling fans.
- To ensure proper ventilation, do not install in a low clearance compartment
- Working with the inverter may produce arcs or sparks. Thus, the inverter should not be
used in areas where there are inflammable materials or gases requiring ignition protected
equipment. These areas may include spaces containing gasoline powered machinery, fuel
tanks, battery compartments
Mounting position of the inverter
-The inverter may be mounted horizontally on the top of a horizontal surface or under a
horizontal surface. The inverter may be mounted on a vertical surface only horizontally
(the fan axis should always be horizontal i.e. the fans should not be pointing up or down)
Cooling by forced airfan ventilation
The inverters produce heat when operating. The amount of heat produced is proportional to
the amount of power supplied by the inverter. Two DC fans are used to provide forced air
cooling of this inverter. The fans are thermostatically controlled and will be switched on
only if the temperature of certain hot spot inside the inverter rises above a certain tempera-
ture. At lower loads and / or at lower ambient temperatures, the fans may not switch on at all.
This is normal. The unit is protected against over-temperature due to failure of the fan(s) /
inadequate heat transfer. TheAC output will be shut-down if the hot spot inside the
inverter reaches a certain higher temperature.
