Samlexpower SAM-100-12 User manual

DC-AC
Power
Inverter
SAM-100-12
Please read this
manual BEFORE
installing your
SAM-100-12
Inverter.
Owner's
Manual

2 | SAMLEX AMERICA INC.
SECTION 1 | Safety
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
This manual contains important Safety and Operating Instructions. Please read before
using this unit .
The following safety symbols will be used in this manual to highlight safety
and information:
WARNING!
Indicates possibility of physical harm to the user in case of non-compliance.
!CAUTION!
Indicates possibility of damage to the equipment in case of non-compliance.
iINFO
Indicates useful supplemental information.
WARNING!
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, EXPLOSION OR INJURY
1. Do not connect to AC distribution wiring.
2. Remove appliance plug from outlet strip before working on the appliance.
3. Do not make any electrical connections or disconnections in areas designated as
IGNITION PROTECTED.
4. This is not a toy - keep away from children.
5. DO NOT insert object into ventilation openings.
!CAUTION!
1. Do not use with Positive Ground electrical systems (the majority of modern automo-
biles, RVs, trucks and boats are Negative Ground). Reverse polarity connection will
result in a blown fuse and may cause permanent damage to the unit.
2. This unit will not operate high wattage appliances rated more than the continuous/
surge, the output power limit, or surge power ratings.
3. Grounding the Neutral will cause the unit to shut down. Do not operate this unit
if it is wet.
4. This unit is not tested for use with medical devices.

SECTION 1 | Safety
5. Loose connectors may cause overheated mating surfaces and melted insulation.
6. Remove the unit from the 12V Power Outlet when not in use.
The unit should only be used in locations that meet the following criteria:
DRY – Do not allow water and/or other liquids to come into contact with the unit.
COOL – Ambient air temperature should be between 0ºC to 40ºC. Do not place the
unit on or near a heating vent or any piece of equipment which is generating heat
above room temperature. Keep the unit away from direct sunlight.
VENTILATED – Keep the area surrounding the unit clear to ensure free air circulation
around the unit. Do not place items on or over the unit during operation. If the unit
over-heats, unplug it and let it cool down for 30 minutes.
SAFE – Do not use the unit near ammable materials or in any locations that may ac-
cumulate ammable fumes of gases.

4 | SAMLEX AMERICA INC.
SECTION 2 | Introduction
DESCRIPTION
The inverter converts 12 VDC voltage from battery or from other suitable 12 VDC source
to 115 V, 60 Hz AC voltage. The waveform of the of the AC output voltage is Modied
Sine Wave.
FEATURES
• Highpeakefciencyof90%
• Veryhighpowertoweightratio-compactandlightweight
• SoftStartTechnologyforbettersurgeperformance 
• LatesthighpowerUSBChargingPort,USB3.0,TypeA:5VDC,2.1A
• Loadcontrolledcoolingfanforbetterefciency
• CoolSurfaceTechnologyforcoolerandsafertouchtemperature
• UniversalProtectioncircuitforlow/highDCinputvoltage,overload/shortcircuit,
over temperature and Ground Fault
• LowInterferenceTechnologyforcontrolledRFnoise
• Integrated12VPowerPlug(CigarPlug)
Soft Start Technology
This feature offers the following advantages:
• WhentheinverterisswitchedON,thevoltagerampsupto115VACinaround2sec.
If the load was already ON at the time of switching ON of the inverter, starting surge
current demanded by certain reactive devices like motors etc. will be reduced and
there will be less likelihood of the inverter shutting down due to overload.
• IftheinverterisswitchedONrstandthenaloadwithhigherstarting/inrush
current like SMPS / motor is switched ON, the voltage will dip momentarily and will
ramp up and reduce inrush / starting surge current in the load as above
• Similaroverloadreductionwillbeinitiatedduringanyothermomentaryoverload
condition
Low Interference Technology
Innovative circuit design and noise ltration circuitry reduces RF interference in TV pic-
ture, audio and radio equipment
Cool Surface Technology
Normally, heat dissipating components are mounted directly on internal metal chassis
surface of the inverter and hence, the chassis surface may rise to unsafe touch-tempera-
ture. In this inverter, heat-dissipating components are not mounted directly on the chas-
sis of the unit but on PCB (Printed Circuit Board) mounted heat sink and, there is air gap
between the heat sink and the chassis surface. The heat sink is cooled by fan. As there
is no direct contact between the heat sink and the chassis, the chassis surface remains
much cooler and is safer to touch.

Cooling Fan
A fan has been provided for cooling. It runs all the time.
PRINCIPLE OF OPERATION
Conversion of 12 VDC from the battery / other DC source to 115 VAC takes place in 2
stages. In the rst stage, the 12 VDC is converted to high voltage DC (around 160 VDC)
using high frequency switching and Pulse Width Modulation (PWM) technique. In the
2nd stage, the 160V high voltage DC is converted to 115V, 60 Hz Modied Sine Wave
AC. (Note: 115 V is the RMS value of the Modied Sine Wave AC voltage. The peak
value of the Modied Sine Wave AC voltage will be equal to the value of the above
high voltage of around 160V. See the Fig 2.1 below).
Modied Sine Waveform -
Charateristics & Comparison with Pure Sine Waveform
Please refer to Fig 2.1 below which shows one cycle of Modied Sine Wave and Pure
Sine Wave for comparison.

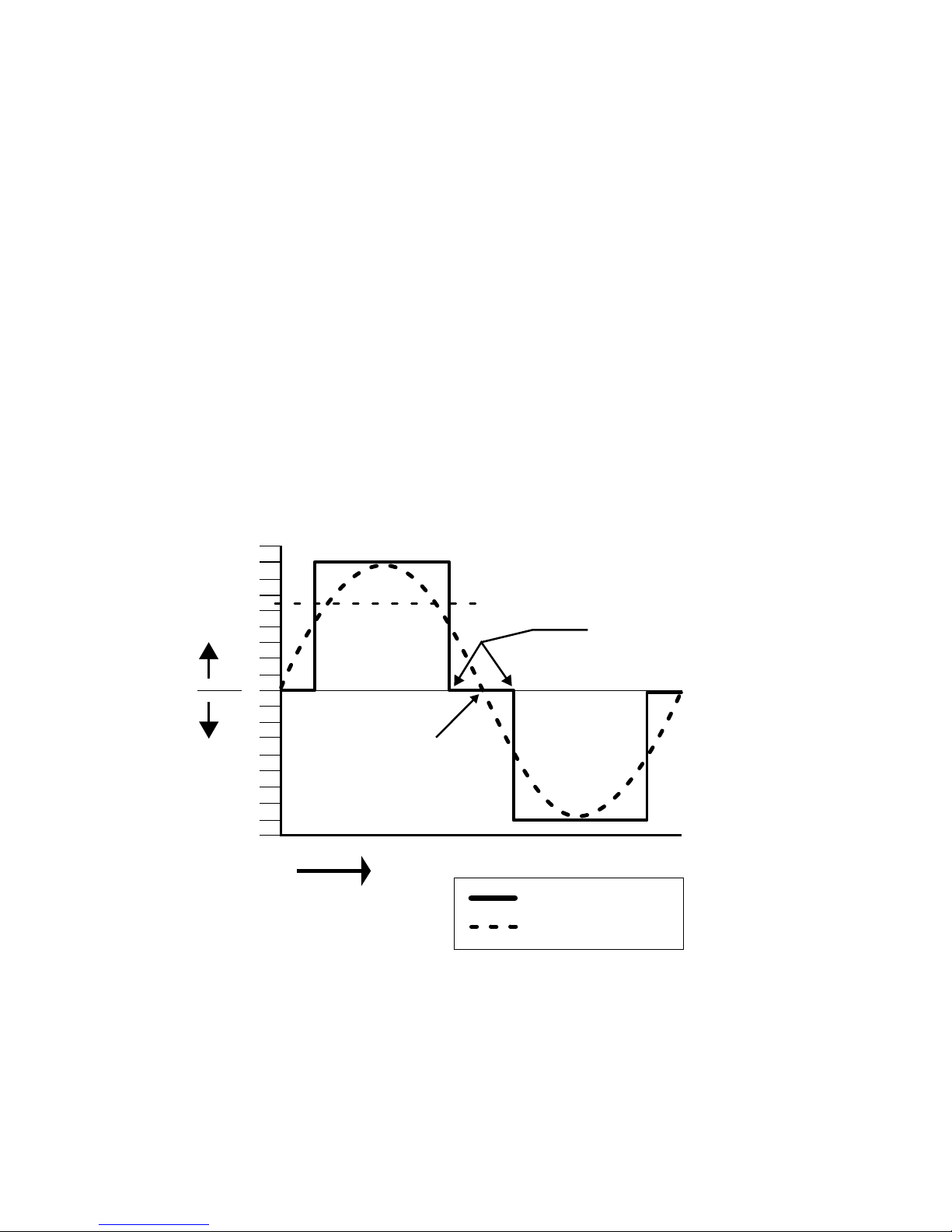

Fig 2.1 Modied Sine Wave and Pure Sine Wave - Comparison
The output waveform of the inverter is a Modied Sine Wave. In a Modied Sine Wave,
the voltage waveform consists of rectangular pulses that approximate sine wave pulses
of a Pure Sine Wave. The voltage rises and falls abruptly at a particular phase angle
and sits at 0 Volts for some time before changing its polarity. In a Pure Sine Wave, the
voltage rises and falls smoothly with respect to phase angle and the voltage changes its
polarity instantly when it crosses 0 Volts.
SECTION 2 | Introduction
TIME
180
160
140
120
100
80
60
40
20
0
20
40
60
80
100
120
140
160
180
Modified Sine
Wave sits at
0V for some
time and then
rises or falls
Sine Wave
Modified Sine Wave
Pure Sine Wave
crosses 0V
instantaneously
Legend
V +
V -
115 RMS

6 | SAMLEX AMERICA INC.
!CAUTION!
Certain devices (few examples given below) may malfunction when powered from
Modied Sine Wave. Check with the manufacturer of the device for suitability of
powering with Modied Sine Wave:
• Devicesutilizingzerovoltagecrossingfortimingcontrol:Someclocksusedincon-
sumer electronic items (will not keep accurate time)
• DevicesusingmodulationofRFsignalsonAClinesduringzerocrossinge.g.X-10
System for Home Automation
• DevicesutilizingTriacbasedphasecontrolfortransformerlessvoltagestepdown
e.g.:
• Smallbatterychargersforhandtools,ashlights,night-lights,shaversetc.
• Variablemotorspeedcontrolinhandtools
• Lightdimmers
• Temperaturecontrollerse.g.TemperatureControlledElectricBlankets
• Devicesusinghighcapacitancebasedvoltagemultipliersforgeneratinghigh
voltage (will create very high surge currents) e.g.:
• PhotographicStrobeLights
• LaserPrinters
Measuring Modied Sine-Wave Voltage with a “True RMS” Voltmeter
As mentioned above, Modied Sine Wave voltage is a type of square wave that has an
RMS (Root Mean Square) value of 115 VAC in this inverter. A general-purpose AC voltme-
ter is calibrated to accurately measure the RMS value of a Pure Sine Wave and NOT of a
Modied Sine Wave. If this general-purpose voltmeter is used to measure Modied Sine
Wavevoltage,itwillindicatealowervalue(96VACto104VAC).Foraccuratelymeasuring
the voltage of a Modied Sine Wave, use a voltmeter which is designed to measure “True
RMSValues”likeFluke87,Fluke8060A,Fluke77/99,Beckman4410etc.
SECTION 2 | Introduction

1. 12V Power Plug (Cigar Plug)
1A. Positive Contact Tip (with replaceable 10A fuse behind the tip)
2. NEMA5-15R AC Outlet
3. USBChargingPort-USB3.0,TypeA:5V,2.1A
4. GREEN status LED:
•ON-Normal
•OFF-Shutdownduetoactivationofprotection(s)
LEGEND
1A
1
2
4
3
Fig 2.1: Layout
SECTION 3 | Layout

8 | SAMLEX AMERICA INC.
SECTION 4 | Operation
1. Make sure environment is cool and dry.
2. Plug the unit into the vehicle’s 12V Power Outlet.
3. Fully push and rotate the plug slightly to ensure good and rm connection.
4. Green Status LED light (#4, Fig 2.1) will switch ON, indicating normal operation of
inverterandUSBChargingPort.
5. Plug in the AC appliance.
6. DeviceswithUSBchargingcanbechargedusinghighpowerUSBChargingPort-
USB3.0,TypeA:5V,2.1A.
The vehicle’s 12V Power Outlet must provide between 10.8 and 15.4 VDC. To obtain a
rough estimate of the current (in Amperes) drawn from the battery, divide the power
consumption of the load (in Watts AC) by 10.
Example: lf a load is rated at 80 watts AC, the current drawn from 12V battery will be
80W divided by 10 = 8 Amperes.
Testing is the only denitive way to determine whether a specic load can be started
and how long it can run. The unit will shut down if it is overloaded.
!CAUTIONS!
1. Check the maximum supply current of your vehicle’s 12V Power Outlet by referring
to your vehicle’s owner manual.
2. The unit must be connected only to batteries with a nominal output voltage of
12 volts. The unit will not operate from a 6 volt battery, and will sustain permanent
damage if connected to a 24 volt battery.
3. DO NOT use with Positive Ground electrical systems. (The majority of modern auto-
mobiles, RVs, and trucks are Negative Ground).

NOTE: When the inverter shuts down due to activation of protection, the GREEN Status
LED (#4, Fig 2.1) will switch OFF.
1. OVER TEMPERATURE PROTECTION – If the temperature inside the unit is too high,
the unit will automatically shut down. Allow the unit to cool for at least 30 minutes
beforerestartingafteraheat-relatedshutdown.Unplugunitwhilecooling.
2. LOW BATTERY VOLTAGE PROTECTION - The unit automatically shuts down when
input voltage drops to around 10.5V ± 0.3V. Automatic reset at 11.5V ± 0.3V.
3. OVER VOLTAGE PROTECTION – The unit will automatically shut down when the
input voltage exceeds 15.4V ± 0.2V.
4. OVERLOAD PROTECTION – The unit will automatically shut down when the continu-
ous surge/draw exceeds rated watts. Will remain latched in shut-down condition. To
reset, unplug the unit from the 12V Power Outlet, wait for 3 minutes and then plug
it back in rmly.
5. SHORTCIRCUIT PROTECTION – The unit will shut down. Will remain latched in
shut-down condition. To reset, unplug the unit from the 12V Power Outlet, wait
for 3 minutes and then plug it back in rmly.
6. GROUND FAULT PROTECTION – This unit complies with the standard current leakage
allowance. When large current leakage to Ground Terminal occurs, the protection
circuit is activated and shuts down the unit. Will remain latched in shut-down
condition. To reset, unplug the unit from the 12V Power Outlet, wait for 3 minutes
and then plug it back in rmly.
If the unit is overloaded, and the GREEN Status LED (#4, Fig 2.1) is not lit, the internal
fuse in the top of the 12V Power Plug portion may be blown.
1.Unscrewthefuseholdercap(counterclockwise)
2. Remove the end contact, cap and fuse.
3. Inspect the fuse to see if it is good or blown.
4. Replace with a new fuse of same type, same dimension and same Ampere rating:
10A, 250V, Fast-acting; Dimensions: 0.25” x 1.25”; Type: AGC-10
5. Carefully reassemble the fuse, end contact and cap.
!CAUTION!
NO USER-SERVICEABLE COMPONENTS INSIDE. DO NOT ATTEMPT TO
OPEN THE PRODUCT.
SECTION 5 | Protective Features
SECTION 6 | Fuse Replacement

10 | SAMLEX AMERICA INC.
INVERTER PARAMETER SAM-100-12
INPUT
BATTERY SYSTEM VOLTAGE 12 VDC
NOMINALINPUTVOLTAGE 13.8 VDC
INPUTVOLTAGERANGE 10.8 VDC to 15.4 VDC
NOLOADCURRENT 0.3A ± 0.1A
OUTPUT
OUTPUTVOLTAGEWAVEFORM Modied Sine Wave
OUTPUTVOLTAGE 115VAC+10%/-2%
OUTPUTFREQUENCY 60Hz±5%
OUTPUTPOWER,CONTINUOUS(RESISTIVELOAD) 100W
OUTPUTPOWER,SURGE(<1SEC.,RESISTIVELOAD) 200W
PEAKEFFICIENCY(AT50%OFCONTINUOUSPOWER) 90%
USBCHARGINGPORT USB3.0,ConnectorType"A":5VDC,2.1A
PROTECTIONS
LOWINPUTVOLTAGESHUTDOWN 10.5 VDC.± 0.3VDC. Auto reset at
11.5 VDC. ± 0.3VDC
HIGHINPUTVOLTAGESHUTDOWN 15.4 VDC.± 0.2VDC. Auto reset at
15.0 VDC.± 0.2VDC
OVERLOADANDGROUND
FAULTSHUTDOWN
Yes. Latches in shutdown condition. Manual
reset: Remove the inverter from the 12V
Power Outlet. Wait for 3 min and re-insert
rmly.
OVERTEMPERATURESHUTDOWN Yes. Auto reset on cooling down.
COOLING FAN 1 - Always ON.
INPUTFUSE:INSIDETOPOFTHE12VPOWER
PLUGPORTION
10A, 250V (Fast Acting, Type AGC-10;
Dimensions:0.25"x1.25")
CONNECTIONS
DCINPUTCONNECTION 12 V Power Plug (Cigar Plug)
ACOUTPUTCONNECTION One NEMA5-15R Outlet
MONITORING
STATUSINDICATION GREENLED:ON-NORMAL;OFF-SHUT
DOWN
GENERAL
OPERATINGTEMPERATURERANGE 0°Cto25°C/32°Fto77°Fat100%loading;
26°Cto35°C/78.8°Fto95°Fat80%loading
OPERATINGHUMIDITY <80%;Non-condensing
SECTION 7 | Specications

INVERTER PARAMETER SAM-100-12
GENERAL (CONTINUED)...
DIMENSIONS(WXDXH)MM
DIMENSIONS(WXDXH)INCHES
60x129x36.5
2.36 x 5.08 x 1.44
WEIGHT 0.136 kg / 0.3 lb.
COMPLIANCE
SAFETY
CONFORMSTOULSTD458
3189401
SECTION 7 | Specications
NOTE: Specications are subject to change without notice
SAMLEX AMERICA BATTERY CAR BATTERIES
