This section contains important information to ensure the user’s
safety and prevent potential damage to property. Please, read
this section carefully and use the product accordingly.
Warning
The product components used may vary depending on the installation
environment.
SHS-P718
64&3."/6"-
www.sds.samsung.com GC68-02025A ED:04
Convenient Opening
Easy push/pull handle access
Welcome Function
When a user gets close to the door lock,
the authorization standby mode will
automatically activate.
Silent-Mode Function
When going in or out, the sound of the key
entering and door opening will be suspended.
Automatic Card Reading Function
When a card touches the reader,
the reader will conveniently recognize the card.
Double Authorization
Requires fingerprint & password combination
to open
Security Assurance Function
When someone is inside the house,
authorization for entry from the outside
will be prohibited.
Built-in Fire Detection
Generates alarm in case of a fire
Security Function
Prevents intrusion from the outside
BIOMETRICS
2
Number Pad
Unlighted Number Pad Lighted
Number Pad
Double Lock Light
Reset Switch
Safety Cautions Outer Body Parts
Product Components
• The user shall not install or repair the
product without authorization.
• Do not install the product in the place
where the gap between the door and the
frame is 5mm or more.
• Make sure that no unauthorized person
has the access to the password.
• Do not operate the product with wet
hands, and keep liquids such as water
or drinks away from the product, or
the product may malfunction or be
damaged.
•
Do not use the excessive force or sharp
objects to push the lockbuttons, as this
can damage the product.
•
Make sure that the door is completely
closed when going outside. The
manufacturer does not assume the
responsibility for any harm caused
by engagement of the lock on an
improperly closed door.
•
Please do not hang on the product or
pull it.
• Be sure to correctly match the poles
(+/-) when installing the batteries. Install
the batteries with the correct poles (+/-).
•
Replace all batteries immediately after
they run out of power, and never mix
new batteries with used ones.
• Do not use water, benzene or alcohol
when cleaning the product, as these
fluids can cause product malfunction.
•
Replace the batteries within 1 week
after the battery replacement alarm
sounds.
Inner Body
KeyTag (For B2C Only)
User Manual, Product Warranty
‘AA’ Batteries (LR6)
Emergency Key (5EA)
Handle Shaft Spring
Handle Shaft , Installation Screws
Installation Manual(For B2C Only)
Strike box
Strike
(For B2C Only)
Mortise
Touch Number Pad
Card Reader
Proximity Sensor
Away Security
Setup
Emergency Alert
Light
External Power
Contact Part
Battery
Replacement
Time Alert
Entry Complete/
Silent Mode Switch
Button
Setting the Security Function
This is a function to prevent any intrusion while you are out. Should the door
be opened from the inside while the intrusion prevention function is on, the
emergency alert light will flash and the alarm will make “beep beep beep~”
sound.
1. When the door is closed [ ] of the
outside body’s number pad will light up.
2. Press and hold the [ ] button on the
outer body for 3 seconds while the door
is locked.
After touching the Number Pad,
have a registered fingerprint read, or
contact a registered card, or enter the
password and then press the
[] button.
DING DONG
DENG Or
Setting the Security Function Releasing the Security Function
Using the Emergency Battery
If the batteries are not replaced after their replacement time comes, they will
be completely discharged and the lock will not operate.
While connecting a 9V
battery to the contact
point, it is available to
use fingerprint, card and
password.
Purchase an emergency battery (9V) at the nearest store.
- As the alkaline batteries offer longer life, they are recommended over
the manganese batteries or rechargeable ones.
Opening the Door Using an Emergency Battery
~
Automatic/Manual Locking Setting
The Automatic Locking mode allows for automatic locking of the door when
it is closed.
- Automatic: The door is automatically locked 1 seconds after being closed.
- Manual: The door does not lock automatically, and [CLOSE] button must be
pressed from the inside, touch [Number Pad] to close the door.
Set the [Automatic/Manual
Locking] toggle switch of
the Inner Body to the ‘A’/‘M’
position.
Open the
battery cover
on the inner
body.
Replacing the Batteries
If the melody of “Blues for Elise” sounds when opening the door with the
password or fingerprint or a card (key tag), it is time to replace the batteries.
(The low battery indicator is lighted when the melody sounds.)
Battery Replacement Alarm Generation
Replace all 8 batteries within a 1 week of the first alarm sound.
- The unit will stop operating suddenly if the batteries are not replaced.
Replacing the Battery
● Depending on battery manufacturer, date ofmanufactureand the user environment,
the duration of use may vary.
(In the caseof average use,given as 10 timesa day,8 AA alkaline1.5Vbatteries can
lastfor 12months.)
● Ifthe poles ofthe batteriesare not placed properly, the lock will notoperatenormally.
● Liquid leaks from batteriescan damage the product.Check thebatteries regularly
(every 6 months).
● After the battery replacement alarm has sounded, password/fingerprint/card
information cannot be registered, changed,deleted, initialized orconfigured until the
batteries are replaced.
Warning
~
Open Fingerprint
Cover Button
Fingerprint
Reading Panel
BIOMETRICS
BIOMETRICS
BatteryCover
Auto/Manual
Locking Switch
1.5V AA Batteries
Registration Button
Inner Body Parts
Sound Control Switch
Built-in Wireless Module
(Optional)
CLOSE Button
The Battery Cover Release
Button
(After pressing the battery cover
release button, pull towards the
front, and then the battery cover
will open.)
※In order to safely use the product, please read “Safety Precautions”.
※The features of this product and the contents of the user guide may be changed
without notice for quality improvement.
Opening the Door from Outside with a Password
● Password must be entered after the light is on, and if does not, touch [Number
Pad] and re-enter.
● To cancel, press [ ] button and re-enter.
● Ifthe password is wrong 5 times, “peep” warning alarm will sound 20 times
andthe system will shut-down for about 3 minutes. When malfunction
happens, “beep” will sound every 10 seconds, and stop mode will be turned off
automatically after 3 minutes with multiple ‘beeps’.
Note
When purchased, the product is set to Multi-leveled Security Code Entry
Mode initially. Please refer to “Multi-leveled Security Code Entry Mode
setting” for Common Mode setting.
※ Silent Mode
Before entering the password, press the [] button and enter the
password, then both the sound of the key entering and the door opening
will be suspended. It is a useful function if you do not want to disturb
neighbors when you go in and out at night.
Touching [Number
Pad] will light up
the number pad.
When two arbitrary buttons
are lighted, press the buttons
in order.
When the numbers on the
number pad are lighted, enter
the password and press the []
button.
Success:
DING DONG DENG
Fail:
DING DONG DING
DONG
Open the door from the outside using the fingerprint authentication system.
Touch the sensor properly with the fingerprint part of your finger which has
been registered.
1. Pressing [Open Fingerprint
Cover] Button
Press the [Open Fingerprint
Cover] button and the lid of the
Fingerprint Reading Panel opens.
2. Reading Fingerprint
Touch the Fingerprint Reading Panel
with the registered fingerprint after
LED light turns on, the lid of the panel
closes in approximately a second
later. Then push the door handle to
open the door.
BIOMETRICS
Opening the Door from the Outside with
a Fingerprint
Success:
DING DONG DENG
Fail:
DING DONG DING DONG
3. Entering a New Password
(from the outside)
DING DONG
DENG
Enter the new password (4 to 12
digits) and press the [] button.
To make sure the
password has been
properly registered,
check the new
password and close
the door.
Password Change
The password can be 4~12 digits number. Only one password can be
registered.
DINGDONG
1. Pressing the [Register] Button
(from the inside)
Press the [Register] button
briefly. Enter the current password when the
number pad is lighted, and press the
[] button.
2. Entering the Current Password
(from the outside)
DING DONG
DENG, DING DING
DING
DONG
DENG
Deleting Registered Fingerprints & Cards
You can delete individual or all registered fingerprints and cards.
1. Pressing the [Register]
Button (from the inside)
Press the [Registration]
button for 3 seconds.
Enter the current password when the
number pad is lighted, and press []
button.
2. Entering the Current Password
(from the outside)
DING DONG
DENG, DING DING
3. Reading the Fingerprint to Be Deleted
When LED light on the Fingerprint Reading Panel is on,
touch the panel with the fingerprint to be deleted.
4. Exiting Fingerprint
Deletion Mode
To end the deletion mode,
press [Registration] button.
[Deleting Fingerprints]
[Deleting Cards]
3. Reading the card to be deleted
If you want to delete all fingerprints press
[77]+[] after step2. If you want to delete all
cards data, press [88] + [] after step 2.
DING DONG
DENG
DING DONG
DING DING
Success:
DING DONG DENG
Fail:
DING DONG DING
DONG
DING
●To register multiple cards or key tags, lightly place another card or key
tag to the card reader within 20 seconds after registering the previous
card or key tag.
●ID number is given automatically in order of the registration.
Warning
Place the card or key tag to be registered
on the card reader of the outer body. You
will know the card or key tag has been
registered when “DING DONG DENG”
sounds.
Place the registered card or key
tag to the card reader on the outer
body.
3. Placing the Card or Key Tag
on the Card Reader (from the
outside)
DING DONG
DENG
4. Confirming Card or Key Tag
Registration (from the outside)
[Card and Key Tag Registration Without ID number]
Press the [Open Fingerprint
Cover] button on the outer
body to open the lid of the
Fingerprint Reading Panel
and touch the panel with the
registered fingerprint.
5. Registration Confirmation
BIOMETRICS
Success:
DING DONG DENG
Fail:
DING DONG DING
DONG
Opening by Pulling the Inner Handle
Opening the Door from the Inside
Closing the Door from the Inside
Automatic
Locking Setting
Manual
Locking Setting
The door is automatically locked 1 seconds after the door is
closed.
The door is locked when the
[Close] button is pressed.
● To check if the door is locked from the inside, press the security button
briefly; the red LED will flash if the door is locked and the blue LED will blink
if the door is unlocked.
Note
Warning
● Please be careful not to trap
your hand during use.
~
The door can be opened from outside using a card or key tag.
Place the registered card or key tag on the card reader.
Opening theDoorfromOutsidewithaCardorKeyTag
Success:
DING DONG DENG
Fail:
DING DONG DING
DONG
Placing the Card or Key Tag
on the Card Reader
Place the card or key tag on
the card reader.
The door will be opened after
1 second.
BIOMETRICS
Initialization (Password, Card, Key Tag)
All registered data (password, card, key tag) are deleted. After initialization,
the password is set to ‘1234’, and the registered card, key tag data are
erased. Please register a new password after initialization.
1. Pressing the [Register]
Button (from the inside)
2. Entering the Numbers for
Initialization (from the outside)
When the number pad is lighted, enter
‘4560852580’ and then press the []
button.
Press and hold the [Register]
button for 5 seconds.
DING DONG
DING DING
DING DING
DING DING
Emergency
Keyhole
DING DONG
DENG
Welcome Function On/Off
The welcome function is a convenient function that automatically activates the
authorization standby mode when a user approaches the door, even before
touching the number pad.
Open the battery cover
and press [Registration]
button briefly.
[5]+[] : Set up fingerprint Authentication standby mode
[8]+[] : Clear Fingerprint Authentication standby mode
DING
DONG
On and Off / Function Description
- Welcome function : The mode will automatically activate the authorization standby
mode when a user approaches the door lock.
- One-minute alarm : When someone remains in frontof the door lock for more than a
minute, this mode will sound the tamper prevention alarm.
● The factory defaults are set with the welcome function on and the alarm function off.
●The working distance of the infrared sensor can differ depending on light conditions
and other environments. When the front door isexposedto sun light orconstant bright
lights it is advisedto limit the usage of the sensor as it might sound the alarm.
Caution
Intrusion Detection Function
This function generates the alarm sound when an attempt is made to forcefully open
the door from the inside or the outside.
(This is a basic function of the lock, and cannot be separately set or released.)
If the door is forcefully opened while locked, the door opening sensor detects it and
generates the alarm sound.
This function sets the time interval between the moment the door open/
closed sensor recognizes the door as closed and the moment deadbolt locks
the door. It can be prevented the deadbolt jam problem by adjusting the time.
Door Lock Time Setup Function
Default: 1 second
[51] : 1 second
[59] : 9 second
Press [51] ~ [59] button, and then
press [] button.
Press [Registration] button
briefly.
DING
DONG
Multi-leveled Security Code Entry Mode Setting
You can set the security mode suitable for your use when you open the door
using a password.
Briefly press the [Register]
button on the inner body.
Press the [] button after pressing the
[7] or [9] button, and the security mode
will be set.
[ 7] Button : Multi-leveled
Security Code Entry
Mode
[9]Button : Common Mode
Double Authorization Mode Setting
The Double Authorization mode is an enhanced security function with two
factor authentication in which both password and fingerprint are required
when opening the door. To set up the Double Authorization mode, at least
one fingerprint has to have already been registered.
Briefly press the [Register]
button on the inner body.
Press the [] button after pressing the
[4] or [6] button, and the authorization
mode will be set.
[4]Button : Double
authorization mode on
[6]Button : Double
authorization mode off
Two-factor Authentication
Mode Operation
Touching
[Number
Pad].
Enter the password when
the number pad is lighted,
and press the [] button.
Touch a registered fingerprint
on the Fingerprint Reading
Panel. After a successful
authentication, the door opens.
Success:
DING DONG DENG
Fail: DING DONG
DING DONG
Sound Setting and Releasing
The sound that is generated when the number buttons are pressed, when the
door is locked or when the locked door is unlocked, can be set according to
the user’s preference. The product is set to generate all sounds at the factory.
[0] : Mute [1] : Normal [2] : Loud
Open the
battery cover
on the inner
body.
Put the [Sound Control]
switch on one of [0],
[1], or [2], and close the
battery cover.
DING
DONG
DING DONG
DENG
DING
DONG
DING DONG
DENG
Success:
DING DONG DENG
Fail: DING DONG
DING DONG
This function generates the alarm sound when fire is detected so that the
residence can quickly respond. The built-in fire detection function is a basic
function of the lock, and cannot be released by the user.
Fire detection function is operational at about 75 ℃ ± 10 ℃; this can vary
depending on the installation environment.
When fire occurs, the temperature sensor detects it and flashes the [Close] button
while generating the alarm sound. The door is automatically opened after the alarm
sound has stopped. (The lock resumes normal operation if the inside temperature
returns to a normal level.) The built-in fire detection function is activated when the
temperature rises around 60°C, which may differ depending on the installation
environment.
Built-in Fire Detection Function
Alarm Sound (Prank Prevention Function)
This function generates an alarm sound and deactivates lock operation when
it is improperly handled from the outside.
This alarm will sound if an attempt is made to open the door with an invalid card, or if a
wrong password is entered five times in a row.
The alarm sound is generated, and the lock is deactivated for 3 minutes. While the door
is in this inactive mode, a single “DING” sound is generated every 10 seconds and seven
consecutive “DINGS” will sound after 3 minutes. Following this, the lock is released from
inactive mode.)
Outside Get a registered fingerprint or a registered card authorized or enter
the password and then press the [] button.
Press the [Register] button.
Inside
Releasing the Alarm
● The contents of this user guide are subject to change without prior notice to
the user in order to enhance performance of the product.
Item Specifications
Voltage AA Alkaline 1.5 Batteries (LR6) 4EA or 8EA (6V)
Emergency Power
Source 9V Battery (6LF22) (Separately sold)
Operation Method Electronic Control Method (Password entry or fingerprint or card
or key tag reading)
Weight 3.9 kg (including both inner and outer bodies)
Product
Dimensions
Outer Body
(including the handle) 85mm(W) × 387mm(H) × 61mm(D)
Inner Body
(including the handle) 86mm(W) × 354.8mm(H) × 63 mm(D)
Product Specifications
Or
Code Welcome One-minute alarm
[1]+[] ON ON
[2]+[] ON OFF
[3]+[] OFF OFF
~
~
While the door is locked, press
[Security Assurance] button on
the inner body part for 3 seconds.
Pull the inner body
handle to open the door,
and it will deactivate.
DING DONG
DENG
DING DONG
DENG DONG
Security Assurance Mode
Activation Security Assurance Mode Deactivation
Security Assurance Mode Operation
Rapid beeping
● When the security assurance function is activated, the door cannot be
unlocked from the outside, so please be careful. Be especially careful not
to allow children to set this mode accidently from the inside.
Warning
Or
Security Assurance Mode Activation/Deactivation
At-home security mode is to prevent opening of the door from outside while
someone is inside.
Inside: Press the [Security Assurance] button,
then the sound for action-unavailable
willbe heard.
Outside: Press the [Number Pad] or touch with
a card, then the sound for action-
unavailable will be heard.
●User password is only for the user, so other functions such as registering
cards are not available with this password.
●One ID has only one password or card.
Warning
Place the card or key tag to be registered
on the card reader of the outer body. You
will know the card or key tag has been
registered when “DING DONG DENG”
sounds.
Place the registered card or key
tag to the card reader on the outer
body.
4. Placing the Card or Key Tag
on the Card Reader (from the
outside)
DING DONG
DENG
5. Confirming Card or Key Tag
Registration (from the outside)
[Card and user password registration with ID number]
3. Enter 2 digits ID number 4. Enter new user password
DING DING DING DONG DENG
Input ID between 01 and 30, and
press []. Enter new user password(4 to 12 digits) and press [].
[Deleting ID information]
3. Enter ID number to delete
Enter 2 digits ID number, then the
card or user password of it will be
deleted.
DING DONG
DENG
● Manage your password with care so that unauthorized people will not have
access to it. Regularly changing your password can reduce the risk of it
being leaked.
Warning
Fingerprint, Card and Key Tag Registration
Open the battery cover of the
inner body and briefly press
the [Register] button.
DINGDONG
1. Pressing the [Register]
Button (from the inside)
Enter the current password (‘1234’ after
initialization) when the number pad is
lighted, and press the [] button.
2. Entering the Current Password
(from the outside)
DING DONG
DENG, DING DING
You can register and use up to 100 fingerprints.
Up to 30 cards, including the key tag and user password, can be registered.
3. Reading the Fingerprint to Be Registered
When LED light on the Fingerprint Reading Panel is on,
touch the panel with the fingerprint to be registered.
When a “ding” sound is heard and LED light goes off,
then remove the finger. (Must do it 3 times)
4. Exiting Fingerprint
Registration Mode
To end the registration, please
press the [Registration] button
on the inner body.
DING
DONG
DENG
[Fingerprint Registration]
Success:
DING DONG DENG
Fail:
DING DONG DING
DONG
DING
- If the security mode is changed as ‘common mode’, second step will be skipped.
- Success: DING DONG DENG
- Fail: DING DONG DING DONG
Or
Mortise
(SHS-AML320)
Strike
Strike
box
Mortise
(SHS-AML220)
Strike
Menu Table
4. Checking New Password
Operation (from the outside)
Deadbolt
Latch bolt
Open-door sensor
SHS-AML320 SHS-AML220

12
11
987
10
6
54
3
2
BIOMETRICS
室外侧锁体
锁芯总成
(SHS-AML320)
BIOMETRICS
BIOMETRICS

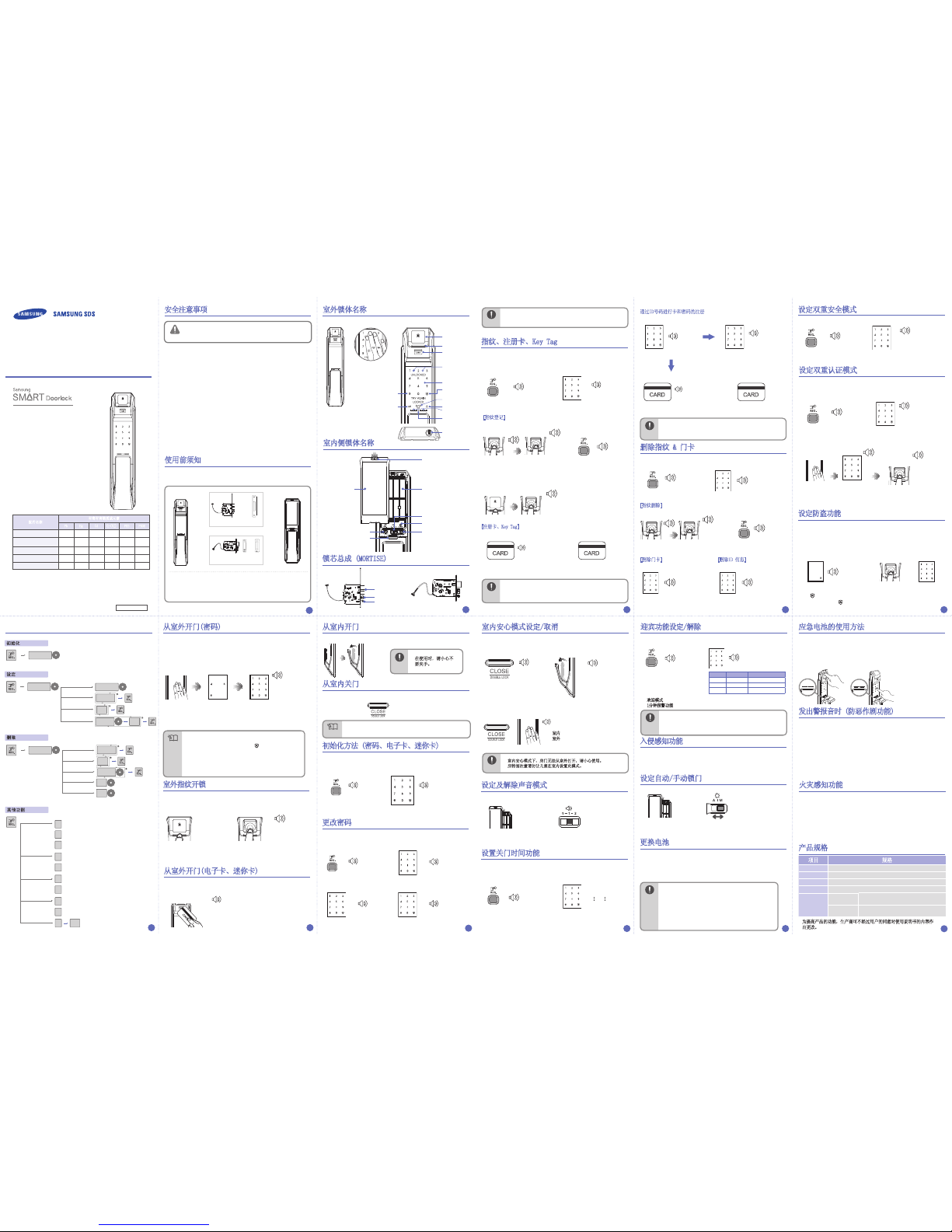

为保证用户安全，避免给用户带来财产损失及使用不便，请务必
仔细阅读以下内容后正确使用本产品。
Warning
因安装的环境不同，产品零部件会有差异。
SHS-P718
64&3."/6"-
www.sds.samsung.com
GC68-02025A ED:04
BIOMETRICS
άԅࢗֺ಴
֓᥋ⱘ3XVK3XOOᓔ䮼ᮍᓣ
࿲οٟટ
⫼᠋᥹䖥䮼䫕ᯊ㞾ࡼ䕀ЎᎹ԰⢊ᗕ
ྮٟટ
䕧ܹᯊৃ䕀Ў䴭䷇⢊ᗕ
ּ࢕ᆑՎಭιٟટ
᠓᥹㾺ᅲ⦄㞾ࡼ䆚߿ˈㅔᮍ֓
ഀᄷఊᄃٟટ
ᣛ㒍ǃᆚⷕঠ䞡䅸䆕
೉ઝ໯ٟટ
⫼᠋ሙᆊᯊˈᇚߛᮁ໪䚼䆚߿ࡳ㛑
ݥၹث࿫ٟટ
ݙ㺙☿♒ᛳᑨ఼
ֽԂٟટ
໪ߎᯊࡼ䰆ⲫࡳ㛑
背景灯熄灭 背景灯亮起
号码键盘
双锁灯
复位键
安全注意事项 室外锁体名称
使用前须知
• 禁止用户任意安装或修理本产品。
• 安装时，门与门框之间的间距不能超
过5mm。
• 请小心管理密码，并定期更换密码，
以免他人知道。
• 禁止用湿手操作本产品，防止水、饮料
等液体进入锁体内部。
• 禁止过度用力或用尖锐的器具按电子
锁的按键。
• 外出时请务必确认门是否完全上锁。
• 禁止用力下坠或用力拉本产品。
• 请按照电池正负极 (+/-)，正确安装
电池。
• 电池寿命已尽时，请同时更换所有的电
池，禁止新旧电池混合使用。
• 请使用柔软的布清洁锁体，禁止使用
水、苯、酒精擦拭本产品。
• 产生电池更换警报音后，请务必在一周
之内及时更换新电池。
室内侧锁体
迷你卡(B2C专用)
使用说明书, Product Warranty
‘AA’电池(LR6)
应急钥匙(5EA)
连接杆扣环
连接杆扣环 , 安装螺丝
安装菜单(B2C专用)
锁舌盒 盖板
锁芯总成 (MORTISE)
密码触屏
电子卡感应区
接近识别感应
外出防盗设置
报警灯
外部电源接触
提示更换电池
输入结束/转换礼仪
模式键
BIOMETRICS
BIOMETRICS
电池盖
自动/手动锁门转换开关
1.5V AA Batteries
设定键
室内侧锁体名称
开启电池盖按键
（按下电池盖开启按键后，
向后拉动盒盖打开电池盒）
音量调节开关
无线模块装置（选项）
[CLOSE]键
● 想注册多张开门卡时，注册好第一张卡后在20 秒内一次将剩余的卡
放到感应区，如操作过程中间隔20 秒以上会自动终止。
● 登入用ID 号码为随机号码。
Warning
设定防盗功能
在用户外出时防止外部入侵的功能，室内设置后，意外情况发生时
鸣笛报警。
在设置防盗功能的情况下，如房门从内部被打开，警报灯将闪烁，
同时持续5分钟鸣笛报警。
1. 若门上锁，室外侧号码键盘的
[ ]键会亮起背光灯。
2. 在3 秒以内按下[ ]键，
仅可设定防盗功能。
触及密码输入屏幕后进行指纹识别或
刷卡，或输入密码后按[]键。
或
设定防盗功能 解除防盗功能
设置关门时间功能
门敞开时，设置门栓上锁时间的功能。
当门徐徐关上时，门栓易被卡住，设置门栓弹出时间将可能改善上
述不便现象。 自动上锁时间可以调整。
更换电池
使用密码或电子卡(迷你卡)开门响起“致爱丽丝”旋律时，开门后需更换电池。(若更
换电池的提示音响起，号码键盘右下侧的电池交换提示背光灯会亮起。)
更换电池的提示音响起时...
从第一次响起更换电池的提示音后，一周内必须将旧电池全部更换成新电池。
更换电池
● 电池因生产厂家、生产日期、使用环境不同，使用时间存在差
异。（AA型号1.5福电池8只，按每日开关门10次标准计算，可使
用 12个月）
● 更换电池的警示音响后，不更换电池继续使用时，可能会产生
电子锁突然停止工作的情况。
● 电池液体泄漏时会损坏锁体，请务必定期（约6 个月间隔）进
行确认。
● 更换电池的提示音响后，在更换新电池之前，无法执行密码/
感应钥匙信息的设定、更改、初始化和功能设定等。
Warning
发出警报音时 (防恶作剧功能)
在室外操作电子锁不正确时，电子锁有发出警报音并自动进入断电
模式。
使用未设定的卡或密码输入错误超过5次时
(电子锁会发出警报音并会自动停止工作3 分钟。电子锁在停止工作状态下，
每隔10 秒钟发出“DING”的声音。3 分钟之后电子锁会发出“DINGS”的声音并自
动恢复工作。)
发生火灾时电子锁会发出警报，告知住户赶快躲避的功能。
(火灾探测功能为基本设定的功能，用户不可随意解除。)
温度升至75℃±10℃时自动开启火灾报警功能，根据环境设置不同
可能略有差异。
火灾发生时, 温度探测器会感知, 然后[CLOSE]键不停闪烁, 同时电子锁发出警报音。
警报音结束后门会自动打开。
(室内温度下降到一定程度后，电子锁会恢复正常工作。)
火灾感知功能在室内温度达到60℃ 左右时启动，安装环境不同会多少有差异。
项目 规格
正常电源 AA型1.5 V 碱性电池(LR6) 8 节(6 V)
应急电源 9 V电池(6LF22) 1节(单独购买)
工作方式 电子控制方式 (输入密码或电子卡、迷你卡、指纹)
重量 3.9 kg (包括室内侧和室外侧)
产品大小
室外侧
(包含把手) 85mm(W) × 387mm(H) × 61mm(D)
室内侧
(包含把手) 86mm(W) × 354.8mm(H) × 63 mm(D)
火灾感知功能
● 为提高产品的功能，生产商可不经过用户的同意对使用说明书的内容作
出更改。
按[51 ~ [59]键后，按[]键。
初始值：1秒
[51] : 1秒
[59] : 9秒
将要注册的卡、Key Tag放到感应区，
随“DING DONG DENG”的声音完成注册。
注册过的卡、Key Tag放在感应区
1~5秒内锁会开启。
3. 接触卡、Key Tag （从室外）
DING DONG DENG
4. 接触卡、Key Tag（从室外）
DING DONG
短暂按下[设定] 按键 。
DING DONG
DENG
在识别已经登记的指纹、刷卡、输入密码后按[]键。
从室外
按下室内侧锁体的[CLOSE]键或[设定]键，
或者把手向下拉即可解除。
从室内
警报音的解除方法
在室内或室外，强制打开门时发出警报音的功能。
(此功能为产品基本功能，不可设定/删除。)
在门上锁的情况下强制开门时，电子锁的感应器会感知，
电子锁会发出警报音。
入侵感知功能
更改密码
密码可注册4~12位的一组，可注册一个密码，初始化操作后请重新
注册密码。
按键板亮灯后输入密码按下[]键。
DING DONG
1. 按[设定]键（从室内）
短暂的按下设定按钮。
2. 输入密码（从室外）
DING DONG DENG,
DING DING
3. 输入新密码（从室外） 4. 再次输入新密码（从室外）
DING DING DING DONG DENG
输新密码（4~12 位）后按[]键。 再次输入新密码按下[]键密码被保存。
指纹识别盒盖
从室外使用电子卡或迷你卡即可开门。请将已设定的电子卡、迷你
卡正确地置于电子卡感应区。
从室外开门(电子卡、迷你卡)
成功:
DING DONG DENG
失败:
DING DONG DING
DONG
接触卡、Key Tag 将电子卡或迷你卡置于电子卡感应区。
稍候1 秒钟门即会打开。
BIOMETRICS
[注册卡、Key Tag]
从室外按锁体上的[打开指纹
盒]按键，在指纹识别盒盖打开
后将指纹放在识别部分。
5.登记确认
BIOMETRICS
※ 为保证使用安全，请务必在使用前仔细阅读“安全注意事项”。
※ 本公司保留改进产品权利，产品性能及说明如有变更，恕不另行通知。
打开指纹盒按键
在室外利用指纹打开房门。 用已经登记过指纹的手指准确地接触
指纹识别部分。
1.[打开指纹盒]按键
按[打开指纹盒]键后，指纹识别
部分盒盖自动打开。
2.识别指纹
指纹识别触屏亮灯时用指纹接触识别部
分1秒钟，之后关闭指纹识别盒。转动
门把手开门。
BIOMETRICS
室外指纹开锁
成功:
DING DONG DENG
失败:
DING DONG DING DONG
成功:
DING DONG DENG
失败:
DING DONG DING
DONG
应急钥匙插孔
产品规格
BIOMETRICS
锁芯总成
(SHS-AML220)
盖板
䮼⽕ⱏܹ
Փ⫼,'োⷕ󰵼䆄ⱘ
ᆚⷕⱏܹ
߱ྟ࣪
䆒ᅮ
ߴ䰸
݊Ҫࡳ㛑
ᣛ㒍
Փ⫼,'োⷕ䖯㸠ߴ䰸
ߴ䰸᠔᳝ᆚⷕ
5S
4560852580
Password
New Password
ID Number
ᆚⷕব᳈
Fingerprint
77
CARD
䮼⽕
ᣛ㒍
3S
Password
ID Number
88
ߴ䰸᠔᳝ᣛ㒍
CARD
ঠ䞡䅸䆕῵ᓣ
䆒ᅮ㞾ࡼ݇䮼ᯊ䯈
㞾ࡼᓔᣛ㒍䆚߿ࡳ㛑
󱂗䖢῵ᓣ
ON
ON
ON
ON
No Alarm ON
OFF
OFF
OFF
OFF
5
7
9
4
6
5
8
1
2
3
1~9
ঠ䞡ᅝܼ῵ᓣ
Fingerprint
CARD
Menu Table 从室外开门(密码)
● 应在号码键盘背光灯亮起时输入密码；背光灯熄灭时，请触摸号
码键盘处，背景灯亮起时重新输入。
● 若输入密码错误须取消时，应按一下[ ]键再重新输入。
● 连续5 次输错密码时，锁体会发出20 次“Beep”的提示音，同时
电子锁会自动停止工作3分钟。电子锁在停止工作状态下，每隔10
秒钟发出“beep”的声音。
3 分钟之后电子锁会发出“哔哔哔哔哔哔哔”的声音并自动恢
复工作。
Note
初始设置为双重安全模式，如果想设置为一般模式的话，请参考普
通模式设定方法
※ 礼仪模式
输密码前，先按[]键在输入密码，门锁将不发出“插入钥匙”，
“已开门”等提示音。
夜间出入静音功能。
触摸号码键盘处，
号码键盘的背光灯
会亮起。
任意2 个键的背光灯亮起
时，按顺序按下亮起背光灯
的2 个数字。
号码键盘的背光灯全部亮起
时，输入密码后按下[]键
即可。
成功:
DING DONG DENG
失败:
DING DONG DING
DONG
- 设置为“普通模式”时, 只需直接输入密码即可。
从室内关门
设定自动锁门
拉动内侧把手开门
从室内开门
● 在使用时，请小心不
要夹手。
Warning
设定手动锁门
关门1 秒后自动上锁。
按[CLOSE]键进行锁门。
● 如果想在室内检查锁门状态，轻按放心按钮，如果门已上锁，
亮红灯提示，如门未上锁，亮蓝灯提示。
Note
~
初始化会删除已设定的所有信息。设定的信息初始化之后，密码自
动设定为“1234”，电子卡、迷你卡的信息自动删除。
号码键盘的背光灯亮起后输
入“4560852580”，再按下[]键即可。
DING DONG
DING DING
DING DING
DING DING
1.按[设定]键(从室内)
持续按[设定]键5秒钟。
初始化方法 (密码、电子卡、迷你卡)
2. 输入初始化号码(从室外)
- 成功: DING DONG DENG
- 失败: DING DONG DING DONG
● 注意管理密码，别泄漏给他人，一组密码不宜使用过长时间。
Warning
指纹、注册卡、Key Tag
最多可登记、使用100个指纹。
可注册的密码和卡数量达到30个
打开电池盖按一下[设定]键。 输入密码（当前密码）后按 []键。
DING DONG
1. 按[设定]键（从室内） 2. 输入密码（从室外）
DING DONG DENG,
DING DING
3.识别将要登记的指纹
指示灯亮时用将要登记的指纹接触指纹识别器。
听到“叮”的声音，待指示灯灭后收回手指。
（反复识别三次）
4.结束指纹登记
如果需要结束登记，
请从房门内侧按锁体上的
[登记]按键。
[指纹登记]
成功:
DING DONG DENG
失败:
DING DONG DING
DONG
DING DING DONG
DENG
3.输入 2位数的ID号码 4. 输入新用户密码
通过ID号码进行卡和密码的注册
DING DING
输入01~30以内的ID号码按下[*]键。 输入(4~12位数)的密码按下[*]键。
将要注册的卡、Key Tag放到感应区，
随“DING DONG DENG”的声音完成注册。
注册过的卡、Key Tag放在感应区
1~5秒内锁会开启。
4. 接触卡、Key Tag （从室外）
DING DONG DENG
5. 接触卡、Key Tag（从室外）
● 使用者密码是仅针对使用者而设定的密码
使用者密码不能用于卡注册或者其他类似的功能。
● 一个 ID 只能标记一个密码或者卡。
Warning
删除指纹 & 门卡
可以个别删除已经登记的指纹或全部登记门卡。
1.按[设定]键（从室内）
按[设定]键3秒。
DING DONG →
DING DING
按键板亮灯后输入当前管理密码
按下[*]按键。
2.输入密码（从室外）
DING DONG DENG,
DING DING
3.识别需要删除的指纹
打开指纹识别器的盒盖，触屏灯亮后用需要删除
的指纹接触[指纹识别部分]。
4. 结束指纹删除
按下[设定]按键终止删除
模式。
[指纹删除]
[删除门卡]
3. 将要删除的卡进行接触
需要删除所有指纹时, 完成第2阶段
操作后按下[77]+[*]。需要删除所有卡时,
完成第2阶段操作后按下[88]+[*]。
DING DONG DENG
DING DONG
DENG
成功:
DING DONG DENG
失败:
DING DONG DING DONG
DING
[删除ID 信息]
3. 输入需要删除的 ID号码
输入要删除的卡或者使用密码的2位数
ID号码。
DING DONG DENG
设定双重安全模式
使用密码开门时，可根据适用性设定认证模式。
短按室内侧锁体的[设定]键。 按下[7] 或[9] 键后，按下[]键即可
设定认证模式。
[7] 键: 双重安全模式
[9] 键: 普通模式
DING DONG
DING DONG
DENG
设定双重认证模式
双重认证模式指开门时须经过输入密码、认定指纹后方可开启房门的
强化保安功能。设置双重认证模式时，至少需要一个以上已经登记过
的指纹。
短按室内侧锁体的[设定]键。 按下[4]或[6]号键, 再按下[]键，
即可设定解除认证模式。
[4]号: 设定双重认证模式
[6]号: 解除双重认证模式
双重认证模式
触摸号码键
盘处。
号码键盘的背光灯全部亮
起时，输入密码后按下
[]键即可。
在[指纹识别部分]上识别指
纹。认证成功后打开房门。
成功:DING DONG DENG
失败:DING DONG DING
DONG
DING DONG
DING DONG
DENG
成功:
DING DONG DENG DONG
失败:
DING DONG DING DONG
~
~
在房门上锁的情况下，在室内一侧按
住[安心]按键持续3秒。
在室内一侧拉动 把手打
开房门，安心模式自动
解除。
设置室内安心模式 取消室内安心模式
使用室内安心模式
蜂鸣音
室内: 按[安心]键，门锁发出警提示音。
室外: 触摸[数字键盘]或刷卡时门锁发出
警告提示音。
● 室内安心模式下，房门无法从室外打开，请小心使用。
应特别注意请勿让儿童在室内设置此模式。
Warning
或
室内安心模式设定/取消
室内安心模式，户主在家时防止他人从外部开启房门时使用。
DING DONG DENG DING DONG DENG DONG
设定及解除声音模式
本产品可以设定按号码键盘、开门或关门时的声音。
[0]: 无音 [1]: 普通 [2]: 大声
打开室内侧锁
体电池盖。
将[音量调节]开关置于
[0] ~ [2] 位置，盖好
电池盖。
迎宾功能设定/解除
迎宾功能指在用户接近门锁时，即使未接触到密码触屏，门锁也会
自动转入工作认证形态的一种便利功能。
功能设定解除/ 功能说明
- 欢迎模式:当用户接近电锁时，自动进入认证状态。
- 1分钟报警功能: 感应到有人在电锁前超过1分钟后触发警报。
● 出厂设置为迎宾模式，警报功能解除。
● 红外线传感器在阳光紫外线作用下可能导致距离功能发生改变。
曝光走廊内部及使用长明灯照明情况容易误导警报发生，切勿使用。
Warning
DING DONG DING DONG
DENG
打开电池盒后盖，轻按[设置]按键。
Code Welcome One-minute alarm
[1]+[] ON ON
[2]+[] ON OFF
[3]+[] OFF OFF
[5]+[*] 指纹认证开启
[8]+[*] 指纹认证关闭只打开PIN
~
设定自动/手动锁门
本产品可设定关门时自动锁门的功能。
- 自动模式: 关门1 秒后自动上锁。但电池没电时不可正常工作。
- 手动模式: 关门后不会自动锁门，需按下室内侧锁体的[CLOSE]键室外侧锁体
的[号码输入]键方可锁门。
将室内侧锁体的[自动/手动
锁门]转换开关
推至[手动]置。
打开室内侧锁
体电池盖。
应急电池的使用方法
到了电池更换日期不更换继续使用时，电池会没电导致门锁不能
正常工作。
当电源耗尽时，可在室外侧
电源连接部分连接9V方型电
池，可以刷卡、指纹认证或
输入密码开启门锁.
请到附近的便利店或超市购买应急电池(9V)。
- 建议使用比普通电池和充电电池工作寿命长、可长期使用的碱性电池。
使用备用电池开门
或
DING DONG
DENG
方舌
斜舌
感应器
SHS-AML320 SHS-AML220
配件名称 有毒有害物质或元素
Pb Hg Cd Cr(Ⅵ) PBB PBDE
金属配件 Ο Ο Ο Χ Ο Ο
印刷电路组件
(Printed Board Assembly)
Χ Ο Ο Ο Ο Ο
电缆 (Cable) Ο Ο Ο Ο Ο Ο
塑料配件(Plastic) Ο Ο Ο Ο Ο Ο
电池 Ο Ο Ο Ο Ο Ο
Ο: 配件中有毒有害物质含量不超过<含量限制标准GB/T 26572>所规定的标准值
Χ: 配件中有毒有害物质含量超过<含量限制标准GB/T 26572>所规定的标准值
上述表说明本产品所含的有害物质含量信息，配件别有害物质信息是根据合作公司所提供
的信息和内部鉴定结果来制成的。部分配件所含的有害物质，按照现在的技术水准是很难
代替，为了代替这个问题三星SDS(三星數据系統)会竭尽全力去努力的。
