Samsung ADC4400TB User manual

ENGLISH
ESP ÑOL
FR NÇ IS
Duct-type Air Conditioner (Cool)
Aire acondicionador Tipo Canal (Refrigeración)
Climatiseur de type Conduit (Refroidissement)
OWNER’S INSTRUCTIONS
MANUAL DE INSTRUCCIONES
MANUEL D’UTILISATION
ESF DB68-02202 (1)
Type
ADC4400TB
Indoor Unit
IDC4400TB
Outdoor Unit
UDC4400TB

E-2
Before Starting
The wired remote controller, wireless remote controller and Centralized controller of the
air conditioner are optional accessories. And your Owner’s Instructions is for all of them.
So that before using this instruction, ensure your option(s).
Safety Precautions
◆If the power supply cord of this air conditioner is damaged,
it must be replaced by the manufacturer or its authorized
service personnel only in order to avoid a safety hazard.
WARNING
◆Do not attempt to install this air conditioner by yourself.
◆This unit contains no user-serviceable parts. lways consult authorized
service personnel for repairs.
◆When moving, consult authorized service personnel for disconnection
and installation of the unit.
◆Do not become over-exposed to cold air by staying in the direct path of
the airflow of the air conditioner for extended periods of time.
◆Do not insert fingers or objects into the outlet port or intake grilles.
◆Do not start and stop air conditioner operation by disconnecting the
power supply cord and so on.
◆Take care not to damage the power supply cord.
◆In the event of a malfunction (burning smell, etc.), immediately stop
operation, turn off the electrical breaker, and consult authorized
service personnel.
DANGER
◆Provide occasional ventilation during use.
◆Do not direct air flow at fireplaces or heating apparatus.
◆Do not climb on, or place objects on, the air conditioner.
◆Do not hang objects from the indoor unit.
◆Do not set flower vases or water containers on top of air conditioners.
◆Do not expose the air conditioner directly to water.
◆Do not operate the air conditioner with wet hands.
◆Do not pull power supply cord.
◆Turn off power source when not using the unit for extended periods.
◆Check the condition of the installation stand for damage.
◆Do not place animals or plants in the direct path of the air flow.
◆Do not drink the water drained from the air conditioner.
◆Do not use in applications involving the storage of foods, plants or
animals, precision equipment, or art works.
◆Do not apply any heavy pressure to radiator fins.
◆Operate only with air filters installed.
◆Do not block or cover the intake grille and outlet port.
◆Ensure that any electronic equipment is at least one metre away from
either the indoor or outdoor units.
◆void installing the air conditioner near a fireplace or other heating
apparatus.
◆When installing the indoor and outdoor unit, take precautions to prevent
access to infants.
◆Do not use inflammable gases near the air conditioner.
CAUTION

E-3
Contents
◆ P REPARING YOUR AIR CONDITIONER
■ Before Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
■ Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
■ View of the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
■ Wired Remote Controller-Buttons and Display . . . . . . . . . . . . . .6
■ Wireless Remote Controller-Buttons and Display . . . . . . . . . . . .7
■ Centralized Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
■ The Indicators on the Receiver & Display Unit . . . . . . . . . . . . . .9
■ Getting Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
■ Inserting the Wireless Remote Controller Batteries . . . . . . . . . .11
UU
UU
SS
SSII IINN NNGG GGWW WWII IIRR RREE EEDD DDRR RREE EEMM MMOO OOTT TTEE EECC CCOO OONN NNTT TTRR RROO OOLL LLLL LLEE EERR RR
◆ O PERATING YOUR AIR CONDITIONER
■ Selecting the utomatic Operating Mode . . . . . . . . . . . . . . . . .13
■ Cooling Your Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
■ Removing Excess Humidity . . . . . . . . . . . . . . . . . . . . . . . . . . .15
■ iring Your Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
◆ P
ROGRAMMING YOUR AIR CONDITIONER
■ Setting the On Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
■ Setting the Off Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
UU
UU
SS
SSII IINN NNGG GGWW WWII IIRR RREE EELL LLEE EESS SSSS SSRR RREE EEMM MMOO OOTT TTEE EECC CCOO OONN NNTT TTRR RROO OOLL LLLL LLEE EERR RR
◆ O PERATING YOUR AIR CONDITIONER
■ Selecting the utomatic Operating Mode . . . . . . . . . . . . . . . . .19
■ Cooling Your Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
■ Removing Excess Humidity . . . . . . . . . . . . . . . . . . . . . . . . . . .21
■ iring Your Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
◆ P ROGRAMMING YOUR AIR CONDITIONER
■ Setting the On Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
■ Setting the Off Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
UU
UU
SS
SSII IINN NNGG GG
CC
CC
EE
EENN NNTT TTRR RRAA AALL LLII IIZZ ZZEE EEDD DDCC CCOO OONN NNTT TTRR RROO OOLL LLLL LLEE EERR RR
■ Using the Centralized Controller . . . . . . . . . . . . . . . . . . . . . . . .24
◆ R
ECOMMENDATIONS FOR USE
■ Operating Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . .25
■ Temperature and Humidity Ranges . . . . . . . . . . . . . . . . . . . . . .25
■ Cleaning Your ir Conditioner . . . . . . . . . . . . . . . . . . . . . . . . . .26
■ Solving Common Problems . . . . . . . . . . . . . . . . . . . . . . . . . . .27
◆ T
ECHNICAL SPECIFICATIONS
ENGLISH

E-4
View of the Unit
The figures are shown in this instruction may differ from yours depending on the model.
Indoor Unit
ir
outlet
ir
inlet

E-5
ir inlet(Rear) ir outlet Connection valve
Outdoor Unit
ENGLISH

E-6
Wired Remote Controller-Buttons and Display
The wired remote controller is an optional accessory.
- Test button is for your installation specialist. You must NOT press it.
- fter cleaning the air filter, press the filter reset button, if the filter has been
installed. Then the wired remote controller will display the FILTER SIGN indicator
when the time to clean the air filter; refer to page 26.
NN
NNoo oott ttee ee
Communication error indicator
On Timer setting
Off Timer setting
Test indicator
On Timer button
Off Timer button
Test button Filter Reset button
Mode selection button
Temperature adjustment
buttons
Centralized controller indicator
(In case of installing the Centralized controller)
Temperature setting
Fan speed
Filter Sign indicator
On/Off & Timer
Set/Cancel button
Fan speed
adjustment button
On/Off indicator
Operating mode
The wired remote controller is installed on the wall.

E-7
Wireless Remote Controller-Buttons and Display
The wireless remote controller is an optional accessory.
fter cleaning the air filter, press the filter reset button, if the filter has been installed.
NN
NNoo oott ttee ee
Operating mode Mode selection button
Filter Reset button
Timer Cancel button
On Timer button
Off Timer button
On/Off & Timer
Set/Cancel button
Fan speed adjustment
button
Temperature adjustment
buttons
Temperature setting
Fan speed
On Timer setting
Off Timer setting
Battery discharge indicator
ENGLISH
n

E-8
The centralized controller is installed on the wall.

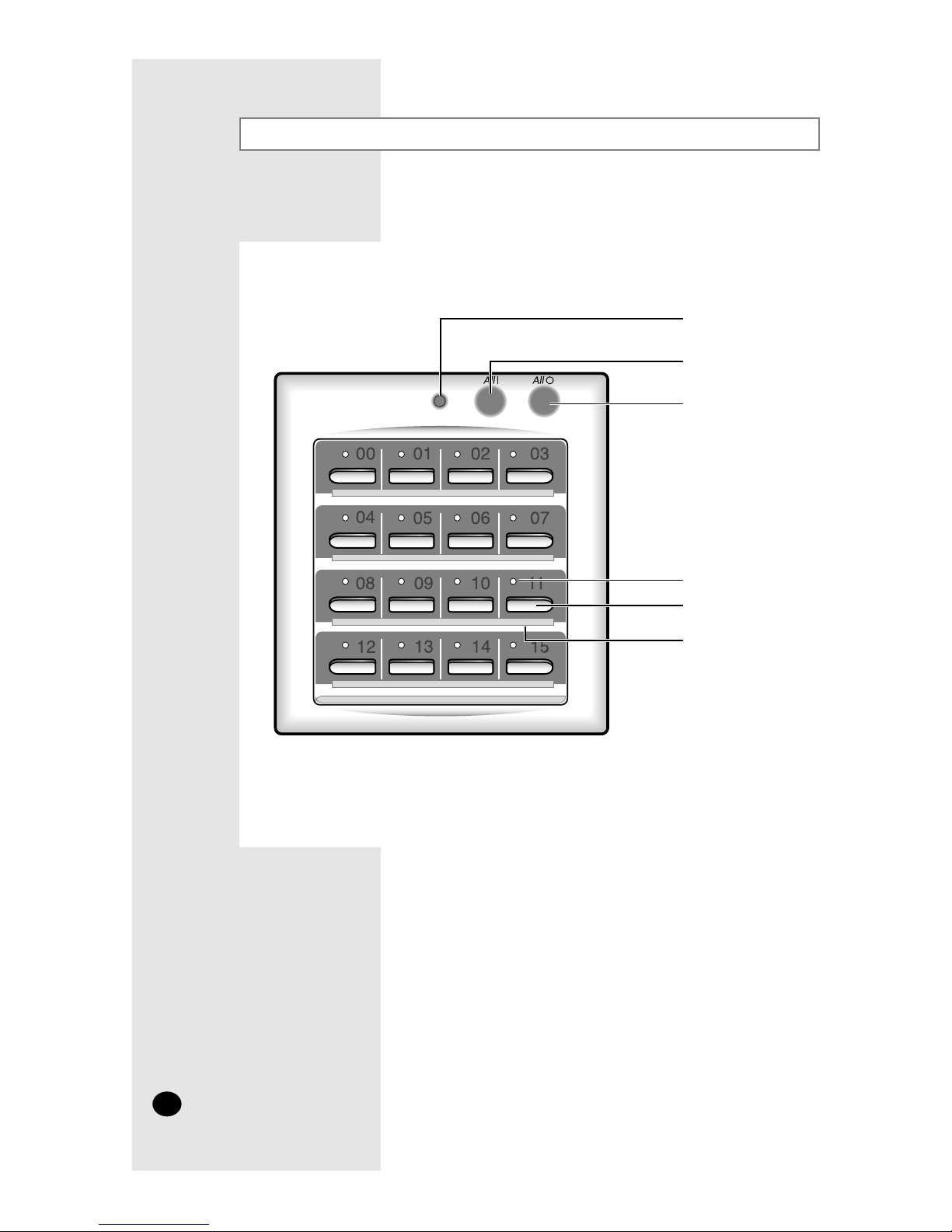

Centralized Controller
The centralized controller is an optional accessory.
Operating lamp
ll On button
ll Off button
On/Off indicators
On/Off buttons
Index
Operating lamp comes on when at least one air conditioner connected to the
centralized controller is operating.
NN
NNoo oott ttee ee

E-9
The receiver & display unit is installed on the wall.

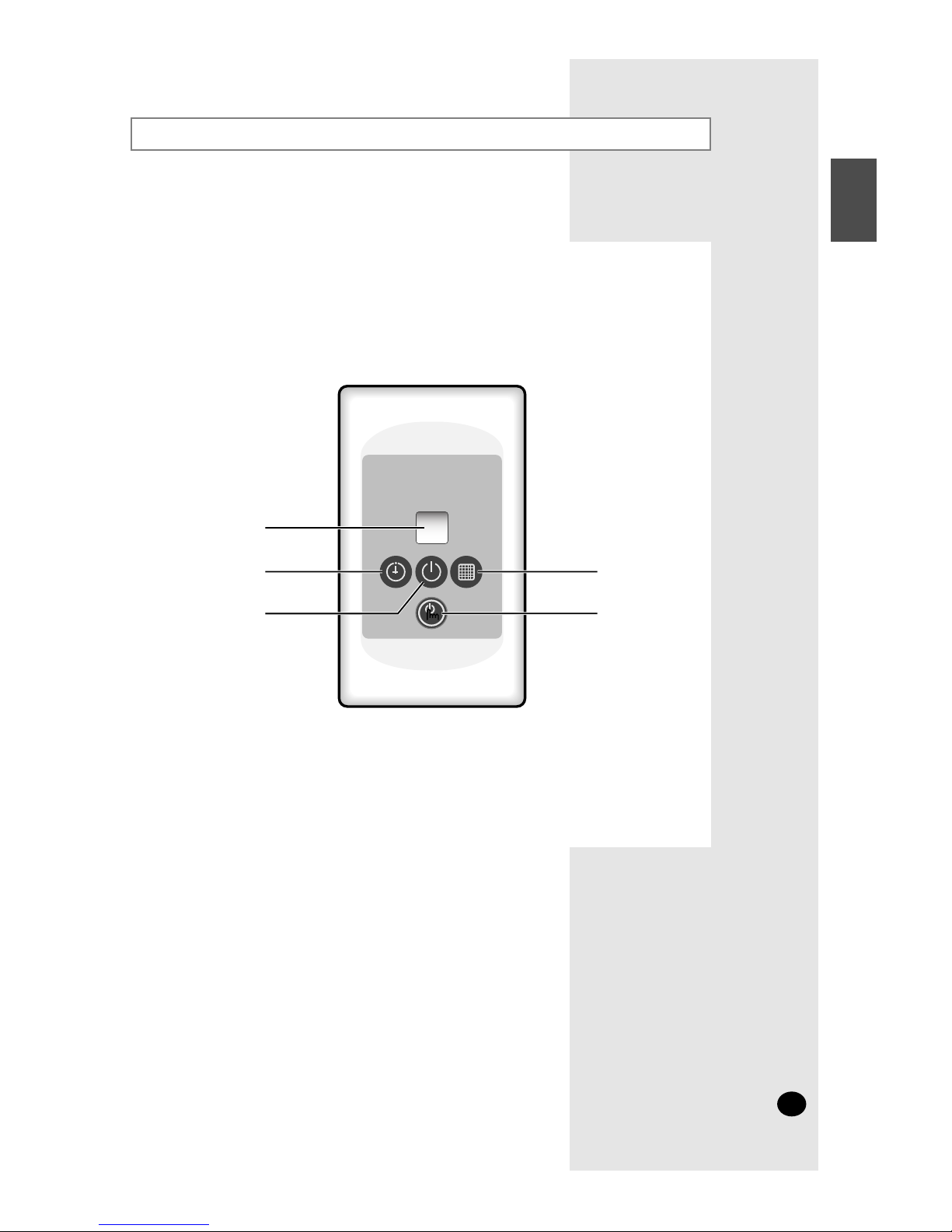

he Indicators on the Receiver & Display Unit
The receiver & display unit is an optional accessory for the wireless remote controller.
ENGLISH
On/Off button
Filter Sign indicator
Timer indicator
On/Off indicator
Remote control sensor

E-10
Getting Start
You have just purchased a duct type air conditioner and it has been
installed by your installation specialist.
Your Owner’s Instructions contain much valuable information on using your
air conditioner. Please take the time to read them as they will help you take full
advantage of the unit’s features.
The booklet is organized as follows.
◆The following figures are shown on pages from 4 to 9 :
- Indoor and outdoor units
- Wired remote controller (buttons and display)
- Wireless remote controller (buttons and display)
- Centralized controller
- The indicators on the receiver & display unit
◆In the main part of the document, you will find a series of step-by-step
procedures for each function available.
The illustrations in the step-by-step procedures use three different symbols:
PRESS PUSH HOLD DOWN

E-11
Inserting the Wireless Remote Controller Batteries
Push the battery cover on the rear of the remote controller with your
thumb in the direction of the arrow and remove it.
Insert the two batteries, taking care to respect the polarities :
◆+ on the battery with + on the remote controller.
◆- on the battery with - on the remote controller.
1
2
Close the cover by sliding it back until it clicks into place.
3
◆Use two , LR03 1.5V batteries.
◆Do not use old batteries or different kinds of batteries together.
◆Batteries may be completely discharged after 12 months, even
if they have not actually been used.
You must insert or replace the remote controller batteries when :
◆You purchase the air conditioner
◆The remote controller does not work correctly
NN
NNoo oott ttee ee
ENGLISH

E-12
This chapter indicates how to operate and program
your air conditioner with the wired remote controller.
The wired remote controller is an optional accessory.
UU
UUss ssii iinn nngg gg WW WWii iirr rree eedd dd
RR
RRee eemm mmoo oott ttee ee
CC
CCoo oonn nntt ttrr rroo ooll llll llee eerr rr

E-13
In the Automatic mode, the room temperature and the fan speed are
controlled automatically.
1
To select the UTO mode, press the Mode button until is displayed
at the top of the wired remote controller.
Result: :◆The air conditioner runs in UTO mode.
2
You can change modes at any time.
If necessary, press (ON/OFF) button.
Result: :◆
The On/Off indicator on the wired remote controller comes on.
◆The air conditioner runs in the mode selected when
the unit was last used.
The air conditioner is fitted with a protection mechanism to
prevent the unit from being damaged when it is started
immediately after being:
◆Plugged in
◆Stopped
lt will start up normally after three minutes.
IMPORTANT
NN
NNoo oott ttee ee
Selecting the Automatic Operating Mode
To adjust the temperature, press the Temperature buttons one or more times
until the required temperature is displayed. Possible temperatures are between
18
O
C and 30
O
C inclusive.
Result: :◆ Each time you press Temperature buttons:
- The temperature is adjusted by 1
O
C.
◆The air conditioner starts cooling, provided that the room
temperature is higher than the selected temperature:
The quantity of air is adjusted automatically.
3
ENGLISH

E-14

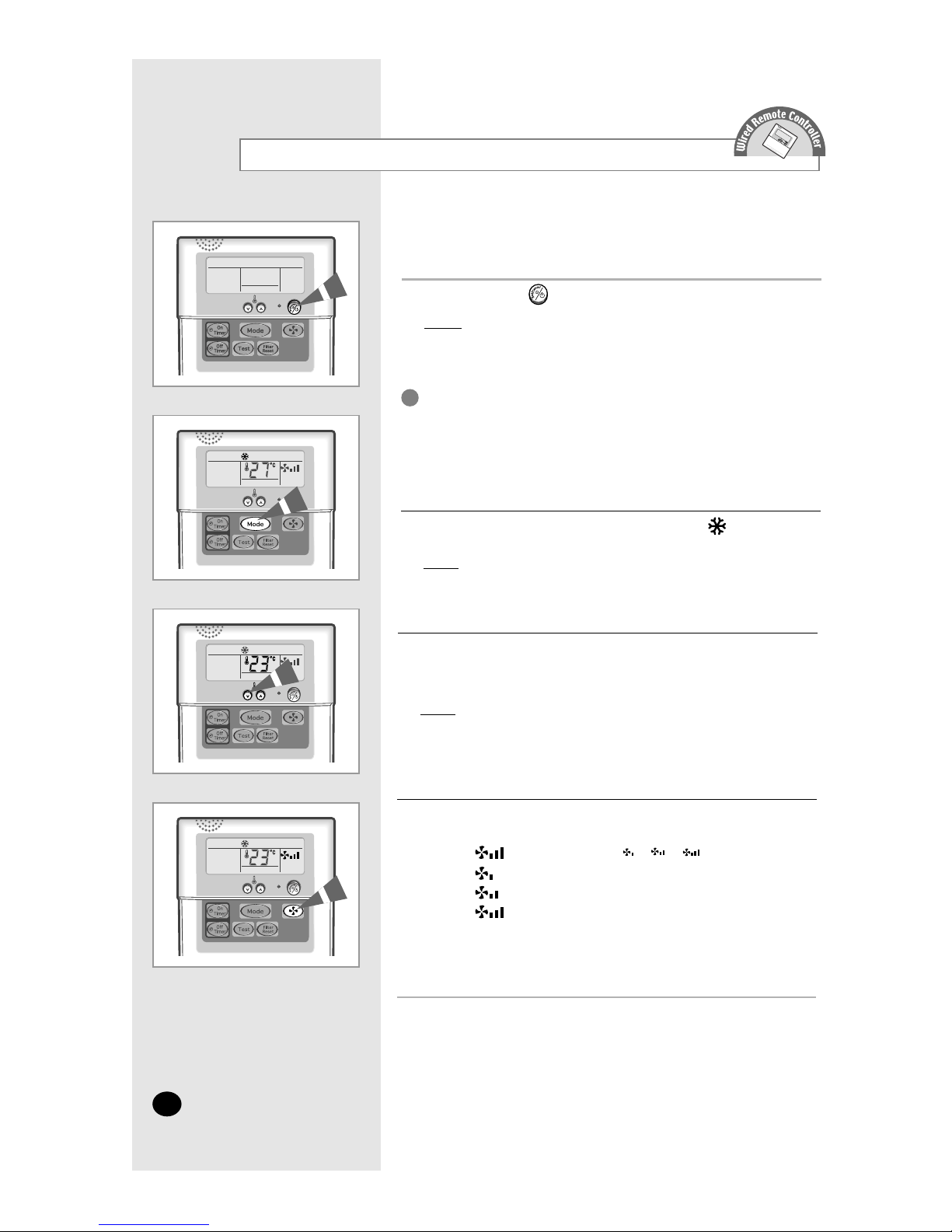

Cooling Your Room
You must select the COOL mode if you wish to adjust the :
◆Cooling temperature
◆Fan speed when cooling
1If necessary, press (ON/OFF) button.
Result: ◆The On/Off indicator on the wired remote controller
◆comes on.
◆The air conditioner runs in the mode selected when
◆the unit was last used.
The air conditioner is fitted with a protection mechanism to
prevent the unit from being damaged when it is started
immediately after being:
◆Plugged in
◆Stopped
lt will start up normally after three minutes.
IMPORTANT
To select the COOL mode, press the Mode button until is displayed at
the top of the wired remote controller.
Result: ◆The air conditioner runs in COOL mode.
2
You can change modes at any time.
NN
NNoo oott ttee ee
To adjust the temperature, press the Temperature buttons one or more times
until the required temperature is displayed. Possible temperatures are between
18
O
C and 30
O
C inclusive.
Result: ◆Each time you press Temperature buttons:
- The temperature is adjusted by 1
O
C.
◆The air conditioner starts cooling, provided that the room
◆temperature is higher than the selected temperature ; the fan
◆will, however, operate.
3
Select the fan speed by pressing the Fan button one or more times until
the intended value is displayed :
utomatic(rotated : ➔➔)
Low
Medium
High
4

E-15
Removing Excess Humidity
ENGLISH
If the atmosphere in your room is very humid or damp, you can remove
excess humidity without lowering the room temperature too much.
1
To select the DRY mode, press the Mode button until is displayed at
the top of the wired remote controller.
Result: ◆The air conditioner runs in DRY mode.
2
The air conditioner is fitted with a protection mechanism to prevent the
unit from being damaged when it is started immediately after being:
◆Plugged in
◆Stopped
It will start up normally after three minutes.
You can change modes at any time.
If necessary, press (ON/OFF) button.
Result: ◆The On/Off indicator on the wired remote controller comes on.
◆The air conditioner runs in the mode selected when
◆the unit was last used.
IMPORTANT
NN
NNoo oott ttee ee
To adjust the temperature, press the Temperature buttons one or more times until the required
temperature is displayed. Possible temperatures are between 18OC and 30OC inclusive.
Result: ◆Each time you press Temperature buttons:
- The temperature is adjusted by 1OC.
◆The air conditioner starts removing the excess humidity.
The quantity of air is adjusted automatically.
3
In the dry mode, the fan speed is controlled automatically.
NN
NNoo oott ttee ee
Airing Your Room
If the atmosphere in your room is stale, you can air it using the FAN feature.
If necessary, press (ON/OFF) button.
Result: ◆The On/Off indicator on the wired remote controller comes on.
◆The air conditioner runs in the mode selected when the unit
was last used.
1
Select the fan speed by pressing the Fan button one or more times until
the intended value is displayed:
3
Low
Medium
High
You can change modes at any time.
NN
NNoo oott ttee ee
To select the F N mode, press the Mode button until is displayed at
the top of the wired remote controller.
Result: ◆The air conditioner runs in F N mode.
2

E-16
Setting the On imer
The On Timer enables you to switch on the air conditioner automatically after
a given period of time. You can set the period of time from 30 minutes to
24 hours.
If you want to turn on the air conditioner before the timer reaches
the setting time, press the (ON/OFF) button.
NN
NNoo oott ttee ee
To set the operating time, press the On Timer button one or more times
until the required time is displayed. Possible time is between 0.5 hour and
24 hours inclusive.
Result: ◆Each time you press On Timer button:
- The time is adjusted by 0.5 hour to 5 hours, by 1 hour from
6 hours to 24 hours.
1
To cancel the On Timer, press the On Timer button one or more times
until the On timer setting disappears.
1
Press the (Set/Cancel) button to complete the setting.
Result: ◆The remaining time is displayed.
◆Blinking of the timer indicator stops.
◆The selected mode and the temperature disappear on the
display after 5 seconds.
◆The air conditioner will switch on automatically when the
counter displayed on the remote controller reaches the
setting time as disappearing the On timer setting.
2
Press the (Set/Cancel) button.
2
You can see or change the setting mode and/or the temperature
by pressing the Mode button or the Temperature buttons after
setting the On timer.
NN
NNoo oott ttee ee
o Cancel the On imer

E-17
Setting the Off imer
The Off Timer enables you to switch off the air conditioner automatically after
a given period of time. You can set the period of time from 30 minutes to
24 hours.
To cancel the Off Timer, press the Off Timer button one or more times
until the timer setting disappears.
1
Press the (Set/Cancel) button.
2
To set the operating time, press the Off Timer button one or more times
until the required time is displayed. Possible time is between 0.5 hour and
24 hour inclusive.
Result: ◆Each time you press Off Timer button:
- The time is adjusted by 0.5 hour to 5 hours, by 1 hour from
6 hours to 24 hours.
1
If you want to turn off the air conditioner before the timer reaches
the setting time, press the (ON/OFF) button.
NN
NNoo oott ttee ee
You can see or change the setting mode and/or the temperature
by pressing the Mode button or the Temperature buttons after
setting the Off timer.
NN
NNoo oott ttee ee
Press the (Set/Cancel) button to complete the setting.
Result: ◆The remaining time is displayed.
◆Blinking of the timer indicator stops.
◆The selected mode and the temperature disappear on the
display after 5 seconds.
◆The air conditioner will switch off automatically when the
counter displayed on the remote controller reaches the
setting time as disappearing the Off timer setting.
2
If you would like to turn the air conditioner on after 2 hours
and to operate it for 2 hours:
1. Press the On Timer button until ‘2.0 Hr’ is displayed.
2. Press the (Set/Cancel) button.
3. Press the Off Timer button until ‘4.0 Hr’ is displayed.
4. Press the (Set/Cancel) button.
EE
EExx xxaa aamm mmpp ppll llee ee
o Cancel the Off imer
ENGLISH

E-18
This chapter indicates how to operate and program
your air conditioner with the wireless remote controller.
The wireless remote controller is an optional accessory.
UU
UUss ssii iinn nngg gg
WW
WWii iirr rree eell llee eess ssss ss
RR
RRee eemm mmoo oott ttee ee
CC
CCoo oonn nntt ttrr rroo ooll llll llee eerr rr

E-19

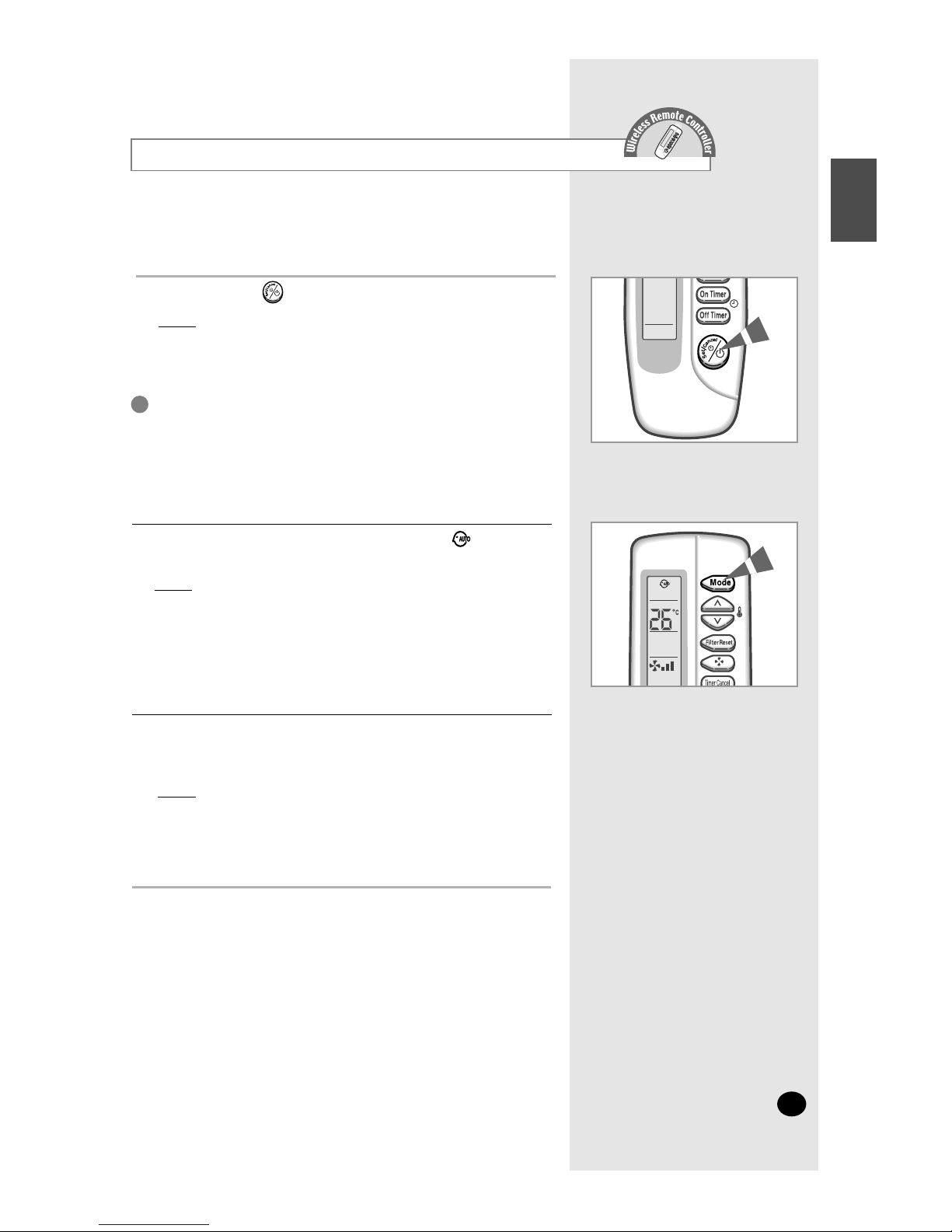

Selecting the Automatic Operation Mode
In the Automatic mode, the room temperature and the fan speed are
controlled automatically.
1
To select the UTO mode, press the Mode button until is displayed
at the top of the wireless remote controller.
Result: :◆
The receiver & display unit beeps.
◆The air conditioner runs in UTO mode.
2
You can change modes at any time.
If necessary, press (ON/OFF) button.
Result: :◆
The On/Off indicator on the receiver & display unit comes on.
◆The air conditioner runs in the mode selected when
the unit was last used.
◆
The receiver & display unit beeps.
The air conditioner is fitted with a protection mechanism to
prevent the unit from being damaged when it is started
immediately after being:
◆Plugged in
◆Stopped
lt will start up normally after three minutes.
IMPORTANT
NN
NNoo oott ttee ee
To adjust the temperature, press the Temperature buttons one or more times
until the required temperature is displayed. Possible temperatures are between
18
O
C and 30
O
C inclusive.
Result: :◆ Each time you press Temperature buttons:
- The temperature is adjusted by 1
O
C.
◆The air conditioner starts cooling, provided that the room
temperature is higher than the selected temperature:
The quantity of air is adjusted automatically.
3
ENGLISH

E-20
Cooling Your Room
To select the COOL mode, press the Mode button until is displayed
at the top of the wireless remote controller.
Result: ◆
The receiver & display unit beeps.
◆The air conditioner runs in COOL mode.
2
You can change modes at any time.
To adjust the temperature, press the
Temperature buttons one or more
times until the required temperature is displayed. Possible temperatures
are between 18OC and 30OC inclusive.
Result: ◆Each time you press
Temperature buttons:
- The temperature is adjusted by 1OC.
-
The receiver & display unit beeps.
◆The air conditioner starts cooling, provided that the room
◆temperature is higher than the selected temperature ; the fan
◆will, however, operate.
3
You must select the COOL mode if you wish to adjust the :
◆Cooling temperature
◆Fan speed when cooling
1If necessary, press (ON/OFF) button.
Result: ◆
The On/Off indicator on the receiver & display unit comes on.
◆The air conditioner runs in the mode selected when the
unit was last used.
◆
The receiver & display unit beeps.
The air conditioner is fitted with a protection mechanism to
prevent the unit from being damaged when it is started
immediately after being:
◆Plugged in
◆Stopped
lt will start up normally after three minutes.
IMPORTANT
Select the fan speed by pressing the Fan button one or more times until
the intended value is displayed :
4
NN
NNoo oott ttee ee
utomatic(rotated : ➔➔)
Low
Medium
High
