Safety Precautions
The following safety precautions must be taken when using your air conditioner.
◆Users of this product are cautioned not to attempt repair of this product
at their own discretion. Instead, they are requested to directly contact a
designated service center or the outlet at which the product was
purchased.
◆Never spill any kind of liquid into the unit. hould this happen, unplug
or main switch off the unit and contact an authorized service center.
◆Do not insert anything between the air outlet blades because the inner
fan may be damaged and could cause injury. Keep children away from
the unit.
◆Do not place any obstacles in front of the unit.
◆Do not spray liquid of any kind into the indoor unit. hould this happen,
switch off the breaker used for your air conditioner and contact your
installation specialist.
◆Make sure that the unit is correctly ventilated at all times:
Do not place clothing or other materials over it.
◆If the wireless remote control will not be used for a long time, remove
the batteries. (If applicable)
◆When using a wireless remote control, the distance should not be more
than 7 meters from the air conditioner. (If applicable)
WARNING
DURING OPERATION
◆Never store or ship the air conditioner upside down or sideways to
avoid damage to the compressor.
◆The appliance is not intended for use by young children or infirm
persons without supervision: Young children should be supervised to
ensure that they do not play with the appliance.
◆Max current is measured according to IEC standard for safety and
current is measured according to I O standard for energy efficiency.
OTHERS
◆Before throwing out the device, it is necessary to pull back the battery
cells and get rid of them safely for recycling reasons.
◆When you need to dispose of the unit, consult your dealer. If pipes are
removed incorrectly, refrigerant may blow out and come into contact
with your skin, causing injury. Releasing refrigerant into the atmosphere
also damages the environments.
◆Please recycle or dispose of the packaging material for this product in
an environmentally responsible manner.
D ISPOSING OF THE UNIT
Risk of electric shock. • Can cause injury or death. • Disconnect all
remote electric power supplies before servicing, installing or cleaning.
• This must be done by the manufacturer or its service agent or a similar
qualified person in order to avoid a hazard.
Register your product at www.samsung.com/global/register
AVMDH052CA0 IB_E_05146 2006.5.12 3:43 PM Page 2

Contents
◆ P REPARING YOUR AIR CONDITIONER
■ afety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
■ View of the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
■ Wireless Remote Controller-Buttons and Display . . . . . . . . . . . 6
■ The Receiver & Display Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
■ Wired Remote Controller-Buttons and Display . . . . . . . . . . . . . 8
■ Centralized Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
■ Function controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
◆ R ECOMMENDATIONS FOR USE
■ Operating Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . 11
■ Temperature and Humidity Ranges . . . . . . . . . . . . . . . . . . . . . 11
■ Cleaning Your Air Conditioner . . . . . . . . . . . . . . . . . . . . . . . . 12
■ olving Common Problems . . . . . . . . . . . . . . . . . . . . . . . . . . 14
E-3
ENGLI H
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)
(Applicable in the European Union an other European countries with separate collection systems)
This marking shown on the product or its literature, indicates that it should not be disposed with other household
wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled
waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable
reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local government
office, for details of where and how they can take this item for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract.
This product should not be mixed with other commercial wastes for disposal.
AVMDH052CA0 IB_E_05146 2006.5.12 3:43 PM Page 3

View of the Unit
The figures are shown in this instruction may differ from yours depending on the model.
E-4
Air filter
Air
inlet
Air
outlet
Indoor Unit
AVMDH(C)✴✴
Air
inlet
Air
outlet
Indoor Unit
AVMHH(C)✴✴
AVMDH052CA0 IB_E_05146 2006.5.12 3:43 PM Page 4

E-5
ENGLI H
If the heat exchanger in the outdoor unit gets dusty, cooling efficiency may fall.
o clean the heat exchanger with water when it becomes dirty. However, be careful
when you wash the surface of the heat exchanger because it is very sharp.
NN
NNoo oott ttee ee
Air outlet
Connection
valve
TYPE A
Outdoor Unit
Air outlet
Connection valve
TYPE B
Air outlet
Connection valve
TYPE C
Outdoor Unit
Air outlet
Connection valve
TYPE D
Air outlet
Connection valve
TYPE E
Air outlet
Connection valve
TYPE F
Outdoor Unit
AVMDH052CA0 IB_E_05146 2006.5.12 3:43 PM Page 5

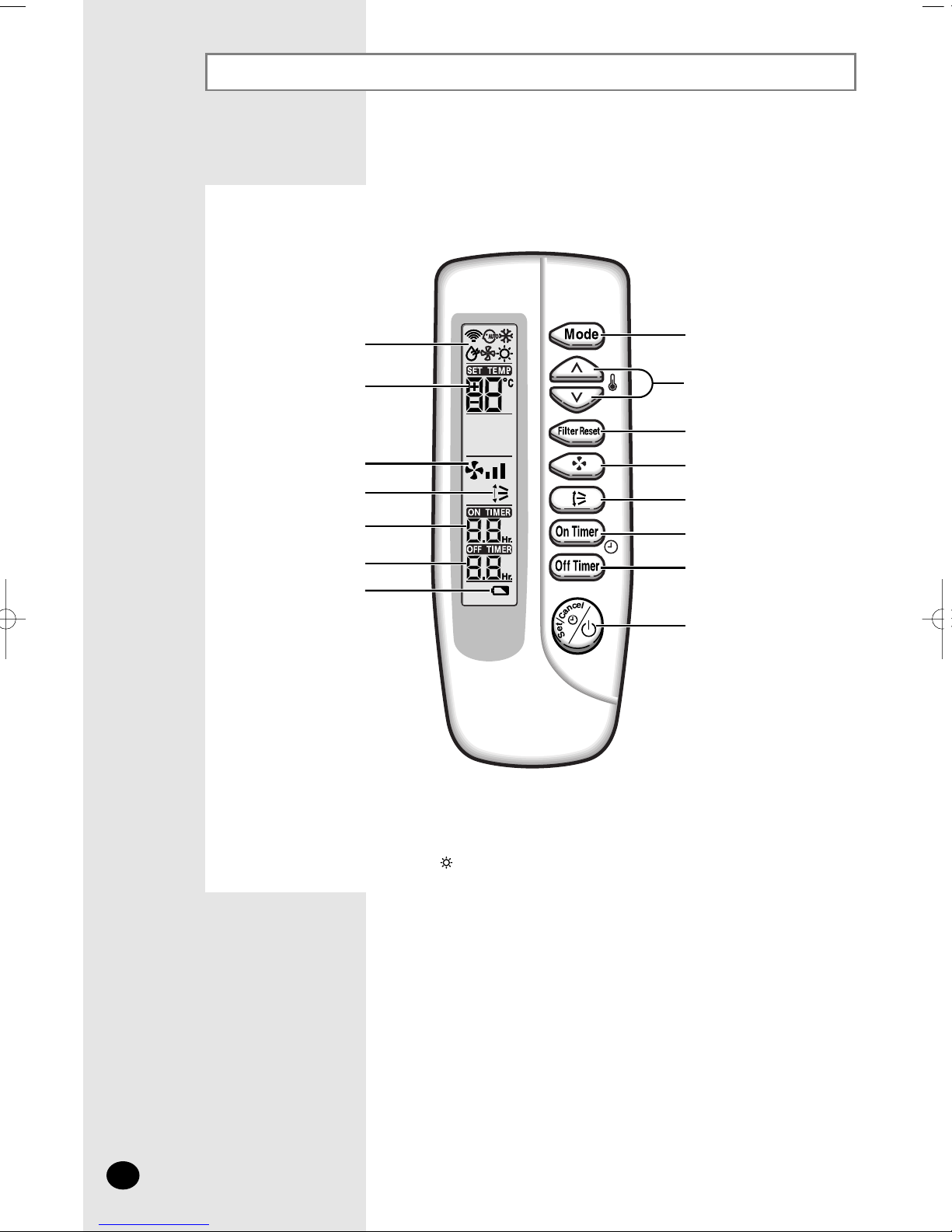

ireless Remote Controller-Buttons and Display
E-6
◆After cleaning the air filter, press the filter reset button.
◆Duct type air conditioner does not have function of adjusting air flow direction.
Therefore, the function is not operated even if you press the swing button.
◆The heating mode( ) is not selected in cooling only models.
NN
NNoo oott ttee ee
Operating mode Mode selection button
Filter Reset button
wing button (Not operated)
On Timer button
Off Timer button
On/Off & Timer
et/Cancel button
Fan speed adjustment
button
Temperature adjustment
buttons
Temperature setting
Fan speed
Air flow direction
On Timer setting
Off Timer setting
Battery discharge indicator
The wireless remote controller is an optional accessory.
To use the wireless remote controller, refer to an appropriate manual.
AVMDH052CA0 IB_E_05146 2006.5.12 3:43 PM Page 6

The Receiver & Display Unit
The Receiver & Display unit is an optional accessory and it is installed on the wall.
To use the receiver & display unit, refer to an appropriate manual.
Filter sign indicator
Fan indicator
Timer indicator
Remote control sensor
- Heat Pump Models :
On/Off indicator(Blue) &
Removing frost
indicator(Red)
- Cooling Only Models :
On/Off indicator
Concealed Type
Fan indicator
Filter sign indicator
On/Off indicator
Removing frost indicator
(Except Cooling Only Models)
Timer indicator
Remote control sensor
On/Off button
Standard Type
E-7
ENGLI H
AVMDH052CA0 IB_E_05146 2006.5.12 3:43 PM Page 7

ired Remote Controller-Buttons and Display
The wired remote controller is an optional accessory and it is installed on the wall.
To use the wired remote controller, refer to an appropriate manual.
◆Test button is for your installation specialist. You must NOT press it.
◆After cleaning the air filter, press the filter reset button. Then the wired remote
controller will display the FILTER IGN indicator when the time to clean the air
filter; refer to page 12 or 13.
◆Duct type air conditioner does not have function of adjusting air flow direction.
Therefore, the function is not operated even if you press the swing button.
◆The heating mode( ) is not selected in cooling only models.
NN
NNoo oott ttee ee
Communication error indicator
On Timer setting
Off Timer setting
Test indicator
On Timer button
Off Timer button
Test button Filter Reset button
Mode selection button
Temperature adjustment
buttons
Centralized controller indicator
(In case of installing the Centralized controller)
Removing frost indicator
(Except Cooling Only Models)
Temperature setting
Fan speed
Air flow direction
Filter ign indicator
On/Off & Timer
et/Cancel button
Fan speed adjustment
button
wing button
(Not operated)
On/Off indicator
Operating mode
E-8
AVMDH052CA0 IB_E_05146 2006.5.12 3:43 PM Page 8

Centralized Controller
The centralized controller is an optional accessory and it is installed on the wall.The centralized controller is an optional accessory and it is installed on the wall.
To use the centralized controller, refer to an appropriate manual.
E-9
ENGLI H
Operating lamp
All On button
All Off button
On/Off indicators
On/Off buttons
Index
The operating lamp comes on even when only one air conditioner
connected to the centralized controller is operating.
NN
NNoo oott ttee ee
Operating Mode witch
COOL
AUTO
HEAT
◆Choose the appropriate operating mode with the Operating Mode witch
that enables the user to choose between the Cool/Auto/Heat mode.
◆The heating mode( ) is not selected in cooling only models.
NN
NNoo oott ttee ee
Front View
Side View
AVMDH052CA0 IB_E_05146 2006.5.12 3:43 PM Page 9

E-10

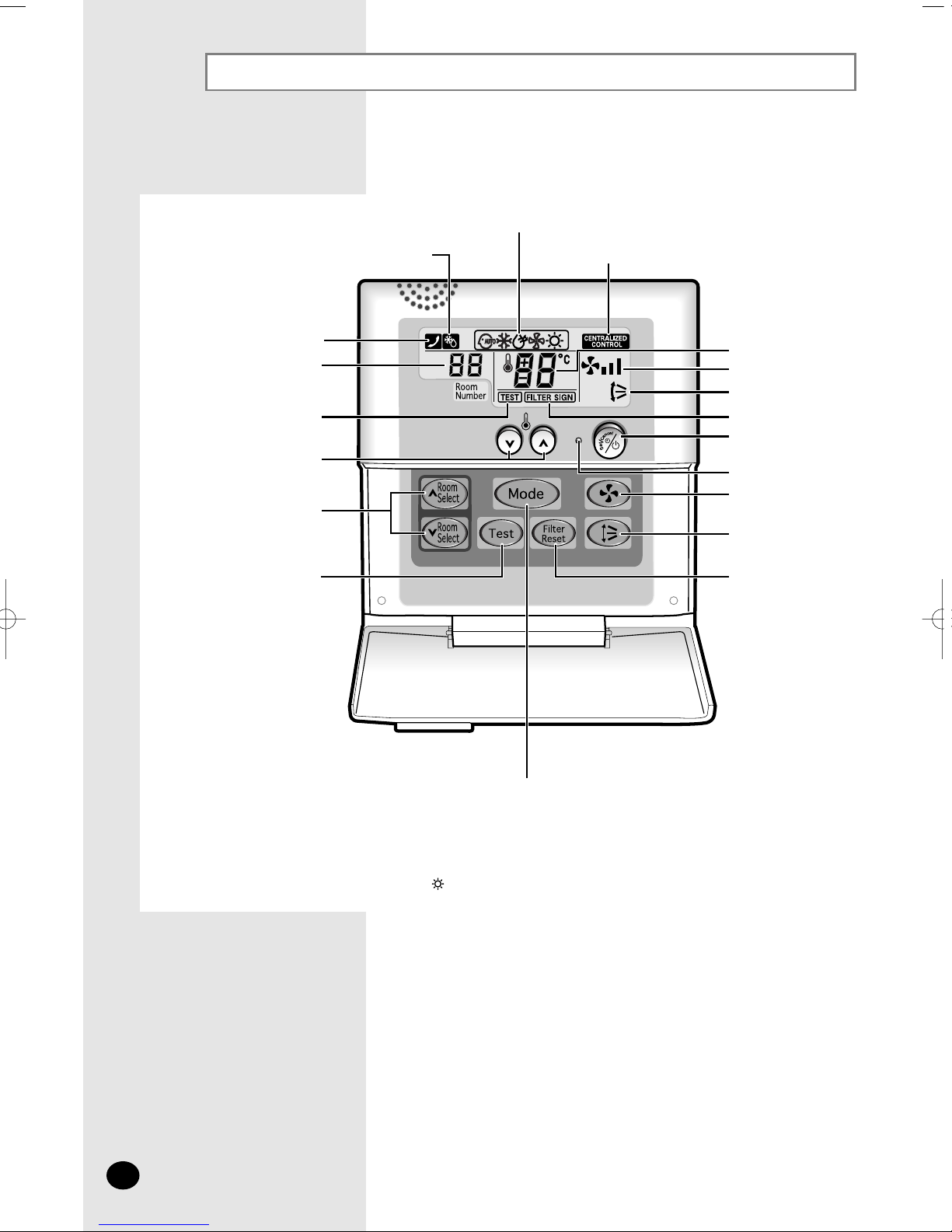

Function Controller
The function controller is an optional accessory and it is installed on the wall.
The function controller is an additional controller which is used with the centralized controller.
To use the function controller, refer to an appropriate manual.
◆ Test button is for your installation specialist. You must NOT press it.
◆After cleaning the air filter, press the filter reset button. Then the wired remote controller
will display the FILTER IGN indicator when the time to clean the air filter.
◆The heating mode( ) is not selected in cooling only models.
NN
NNoo oott ttee ee
Mode selection button
Room number display
Test indicator
Indoor unit selection button
Test button Filter Reset button
wing button
Temperature adjustment
buttons
Temperature setting
Fan speed
Air flow direction
Filter ign indicator
On/Off & Timer
et/Cancel button
Fan speed adjustment
button
On/Off indicator
Centralized controller indicator
Communication error indicator
Removing frost indicator
(Except Cooling Only Models)
Operating mode
AVMDH052CA0 IB_E_05146 2006.5.12 3:43 PM Page 10

E-11
ENGLI H
Operating Recommendations
Here are a few recommendations that you should follow when operating your air conditioner.
Topic Recommendation
The heat pump function of the air conditioner absorbs heat from outside air and brings
it indoors. As the temperature of the outside air drops, the heating performance of air
conditioner will decrease. If you find that the room is not warm enough, using an
additional heating appliance is recommended.
Heating
performances
When outside temperature is low but humidity is high,
frost may form on the outdoor unit at HEAT mode.
If this happens:
◆ The heating operation stops.
◆ The defrost mode will be triggered automatically for about 10 minutes.
◆ The steam produced on the outdoor unit in the defrost mode is safe.
No intervention is required ; after about 10 minutes, the air conditioner operates
again normally.
Frost
If both indoor and outdoor temperatures are high and the air conditioner is running
at HEAT mode, the outdoor unit’s fan and compressor may stop at times.
This is normal ; simply wait until the air conditioner switches on again.
High indoor
and outdoor
temperatures
If a power failure occurs while the air conditioner is operating, the unit will be
switched off. When the power returns, the air conditioner starts up again
automatically.
Power failure
Temperature and Humidity Ranges
The following table indicates the temperature and humidity ranges, within which the
air conditioner can be used.
If the air conditioner is used at... Then...
The automatic protection feature may be triggered and the air
conditioner stopped.
High temperature
A water leakage or some other malfunction may happen if
the heat exchanger freezes.
Low temperature
Water may condense on and drip from the surface of the
indoor unit if it is used for a long periods.
High humidity levels
❇ The standardized temperature for heating is 7°C. If the outdoor
temperature drops to 0°C or below, the heating capacity can be
reduced depending on the temperature condition.
If the cooling operation is used at over 32°C(indoor temperature),
it does not cool at its full capacity.
Mode Outdoor Temperature Indoor Temperature Indoor Humidity
Heating
Cooling
Drying
-15°C to 24°C approx.
- 5°C to 43°C approx.
- 5°C to 43°C approx.
27°C or less
21°C to 32°C approx.
21°C to 32°C approx.
-
80% or less
-
AVMDH052CA0 IB_E_05146 2006.5.12 3:43 PM Page 11

E-12
To get the best possible use out of your air conditioner, you must
clean it regularly to remove the dust that accumulates on the air filter.
Before cleaning your air conditioner, ensure that you have
switched off the electric circuit breaker used for the unit.
Turn the levers to the right or left not to prevent pulling out the air filter.
1
Pull out the air filter.
2
Remove all dust on air filter with a vacuum cleaner or a brush. In case of
serious dust accumulation, put the air filter in warm detergent water and
shake it vertically.
3
Dry the air filter.
4
When you have finished, insert the filter into the unit.
5
Return the levers.
6
CC
CCAA AAUU UUTT TTII IIOO OONN NN
After cleaning the air conditioner, press the Filter Reset button.
NN
NNoo oott ttee ee
Wired Remote Controller Wireless Remote Controller
Cleaning Your Air Conditioner
AVMDH(C)✴✴
AVMDH052CA0 IB_E_05146 2006.5.12 3:43 PM Page 12

E-13
ENGLI H
Wired Remote Controller Wireless Remote Controller
To get the best possible use out of your air conditioner, you must clean
it regularly to remove the dust that accumulates on the air filter.
Before cleaning your air conditioner, ensure that you have
switched off the electric circuit breaker used for the unit.

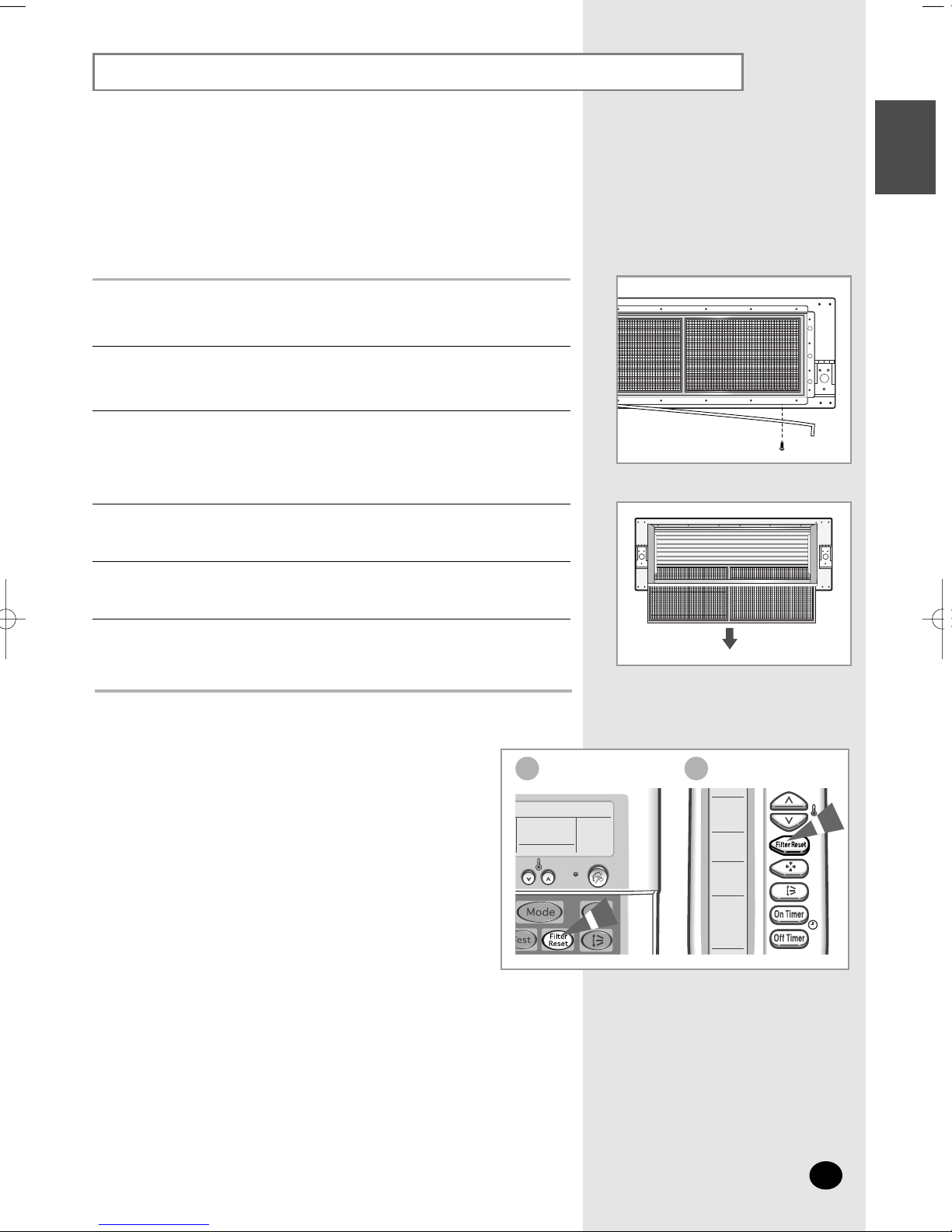

Remove the fixing bracket on the base of air filter kit.
1
Pull out the air filter in the direction of the arrow.
2
Remove all dust on air filter with a vacuum cleaner or a brush. In case of
serious dust accumulation, put the air filter in warm detergent water and
shake it vertically.
3
Dry the air filter.
4
When you have finished, insert the filter into the unit.
5
Reinstall the fixing bracket.
6
CC
CCAA AAUU UUTT TTII IIOO OONN NN
After cleaning the air conditioner, press the Filter Reset button.
NN
NNoo oott ttee ee
Cleaning Your Air Conditioner
AVMHH(C)✴✴
AVMDH052CA0 IB_E_05146 2006.5.12 3:43 PM Page 13

Solving Common Problems
E-14
Before contacting the after-sales service, perform the following simple checks.
They may save your time and expense of an unnecessary call.
Explanation/ olution
◆Check that the breaker used for the air conditioner is switched on.
Problem
The air conditioner does not
operate at all
◆Check that there are no obstacles between you and the remote
control sensor.
◆Check the wireless remote controller batteries .
◆Check that you are close enough to the remote control sensor.
(7 metres/yards or less).
◆Check that you are pointing the remote controller at the remote
control sensor on the receiver & display unit.
◆Replace the remote controller batteries if necessary.
◆If there is a strong light around the air conditioner, a
three-wavelength light, a neon sign, etc., for example,
the air conditioner may not be operated with a remote controller.
If this happens, use the remote controller close by the remote
control sensor.
◆Check that the correct operating mode has been selected.
◆The room temperature may be too low or too high.
◆Dust may be blocking the air filter guard; refer to page 12 or 13
for cleaning instructions.
◆Check that there is no obstacle in front of the outdoor unit.
The air conditioner does not
operate with the remote
controller
Wireless Remote Controller
Wireless Remote Controller
No beep is heard when you
press (ON/OFF) on the
remote controller
The air conditioner does
not cool or heat
◆ is displayed on the wired remote controller. In this case,
turn the air conditioner off and contact your dealer.
Wire Remote Controller
The air conditioner does not
operate with the remote
controller
◆In case of using the wired remote controller for a group, the air
conditioners connected to the remote controller are turned on/off in
order. Thus, it takes some time(up to 32 seconds).
Wire Remote Controller
When turning on/off the
air conditioner, it is not
turned on/off immediately.
◆Check that the required temperature has been set correctly.
◆Increase the fan speed.
When heating, the required
room temperature is never
reached and the air
conditioner frequently stops
AVMDH052CA0 IB_E_05146 2006.5.12 3:43 PM Page 14

ENGLI H
Memo
E-15
AVMDH052CA0 IB_E_05146 2006.5.12 3:43 PM Page 15

ELECTRONICS
Country
BELGIUM
CZECH REPUBLIC
DENMARK
FINLAND
FRANCE
GERMANY
HUNGARY
ITALIA
LUXEMBURG
NETHERLAND
NORWAY
POLAND
PORTUGAL
LOVAKIA
PAIN
WEDEN
U.K
RU IA
UKRAINE
Customer Care Center
02 201 2418
844 000 844
38 322 887
09 693 79 554
08 25 08 65 65 ( 0,15/min)
01805 - 121213 ( 0,12/min)
06 40 985 985
199 153 153
02 261 03 710
0900 20 200 88 ( 0.10/min)
231 627 22
0 801 801 881
80 8 200 128
0850 123 989
902 10 11 30
08 585 367 87
0870 242 0303
8-800-200-0400
8-800-502-0000
Web Site
www.samsung.com/be
www.samsung.com/cz
www.samsung.com/dk
www.samsung.com/fi
www.samsung.com/fr
www.samsung.de
www.samsung.com/hu
www.samsung.com/it
www.samsung.lu
www.samsung.com/nl
www.samsung.com/no
www.samsung.com/pl
www.samsung.com/pt
www.samsung.com/sk
www.samsung.com/es
www.samsung.com/se
www.samsung.com/uk
www.samsung.com.ru
www.samsung.com/ur
Contact SAMSUNG WORLD WIDE
If you have any comments or questions regarding Samsung products, contact the SAMSUNG
customer care center.
AVMDH052CA0 IB_E_05146 2006.5.12 3:43 PM Page 16
