Samsung AQV09NS* Series User manual

E-2
Contents
 PREPARATION
Safety Precautions ......................................................................................................... 3
Name of Each Part ......................................................................................................... 8
Remote Control – Buttons and Display ............................................................... 10
Inserting the Remote Control Batteries ............................................................... 11
Getting Started ............................................................................................................... 12
 OPERATION
Selecting Auto Mode ................................................................................................... 13
Selecting Cool Mode .................................................................................................... 14
Selecting Heat Mode ................................................................................................... 15
Selecting Dry Mode ...................................................................................................... 16

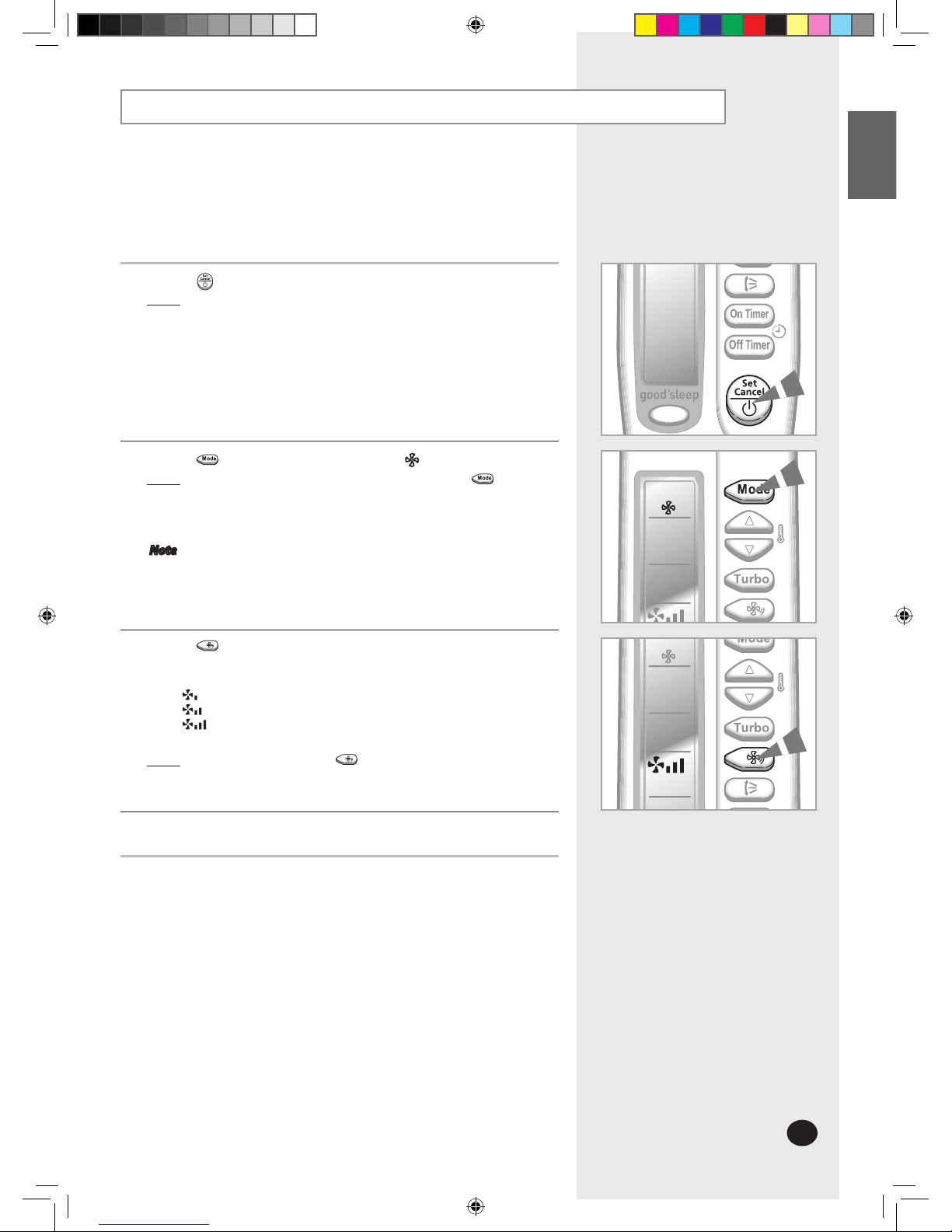

Selecting Fan Mode ...................................................................................................... 17

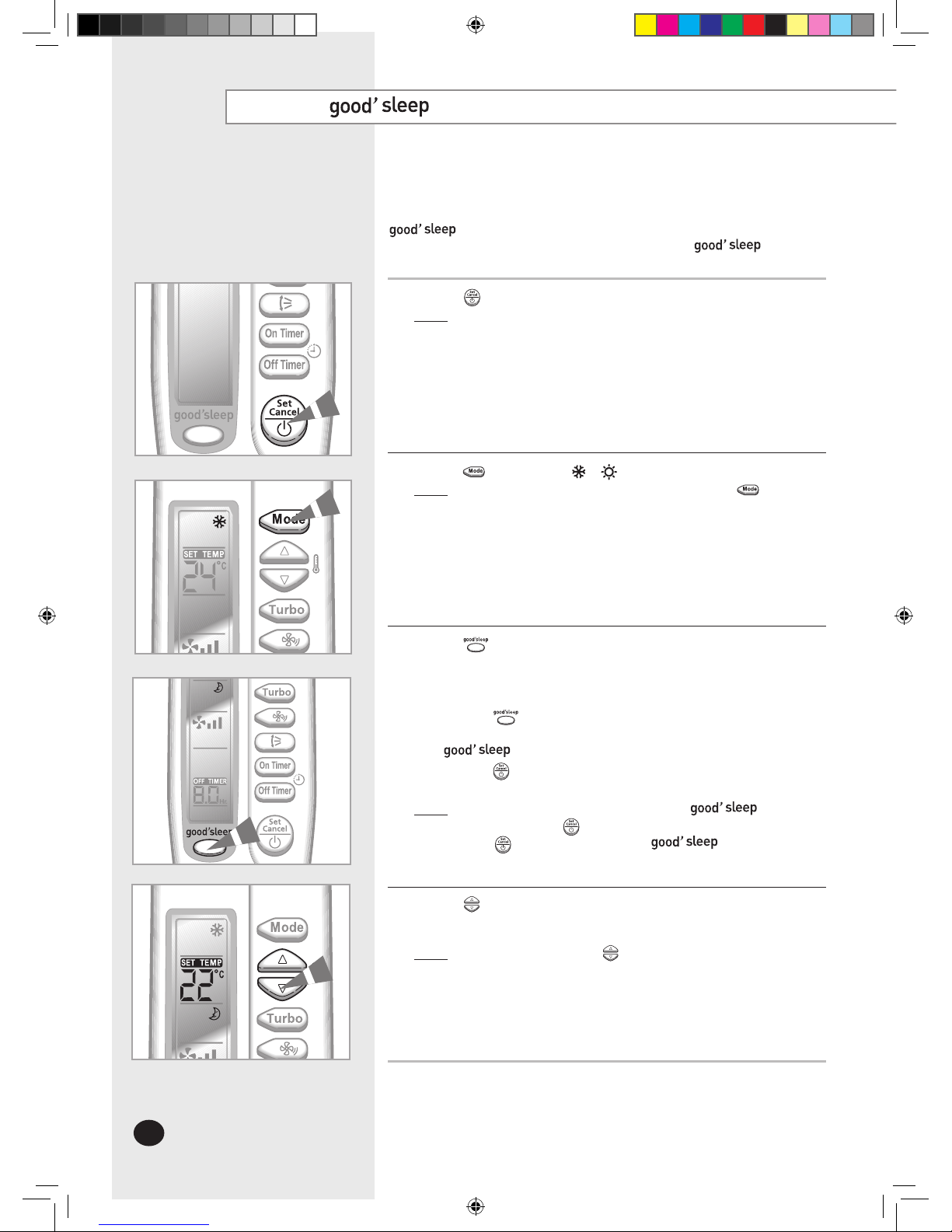

Selecting Good Sleep Mode ..................................................................................... 18

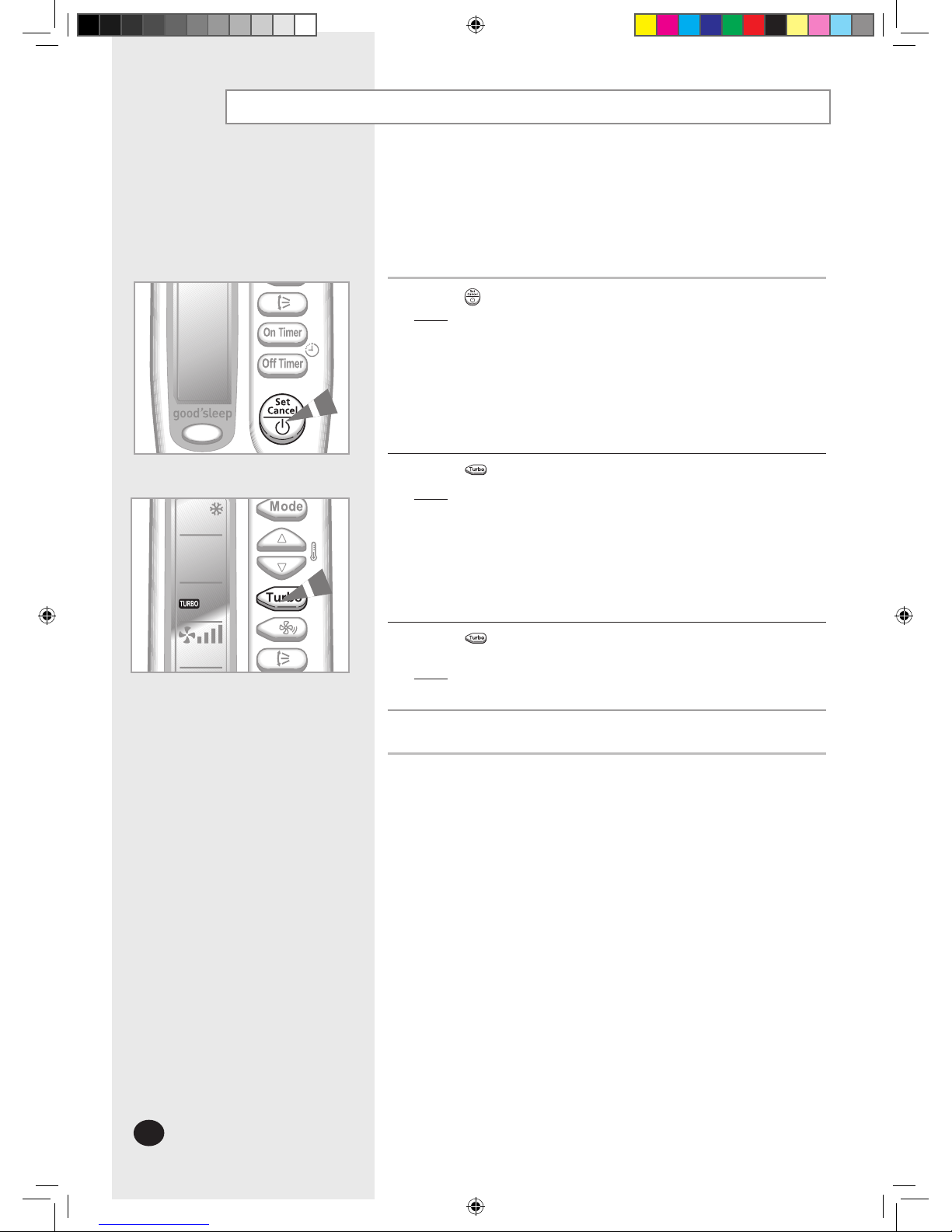

Selecting the Turbo Function ................................................................................... 20
Adjusting the Airflow Direction Vertically ........................................................... 21
Adjusting the Airflow Direction Horizontally ..................................................... 21
Setting the On Timer .................................................................................................... 22
Setting the Off Timer ................................................................................................... 23
Operating Your Air Conditioner Without the Remote Control .................. 24
 RECOMMENDATIONS FOR USE
Cleaning Your Air Conditioner ................................................................................ 25
Cleaning Deodorizing and Bio filter(Option) .................................................... 25
Temperature and Humidity Ranges ...................................................................... 26
Operating Recommendations ................................................................................. 26
Solving Common Problems ...................................................................................... 27
FORTE_Inv_31717A_IB_E.indd 2 2010-1-28 11:37:06

E-3
Register your product at www.samsung.com/global/register

Do not pull the electric wire
or touch the power plug with
the wet hands.

Install the switch and circuit
breaker only for
air conditioner.

Use the rated current fuse.
REGARDING POWER SOURCE

Do not bend the electric wire
by force or weigh down the
air conditioner not to be out
of order.

Use the power source with
separate wiring only for air
conditioner.

If the power plug is
damaged, replace it by the
manufacturer or qualified
personnel to avoid the risk.

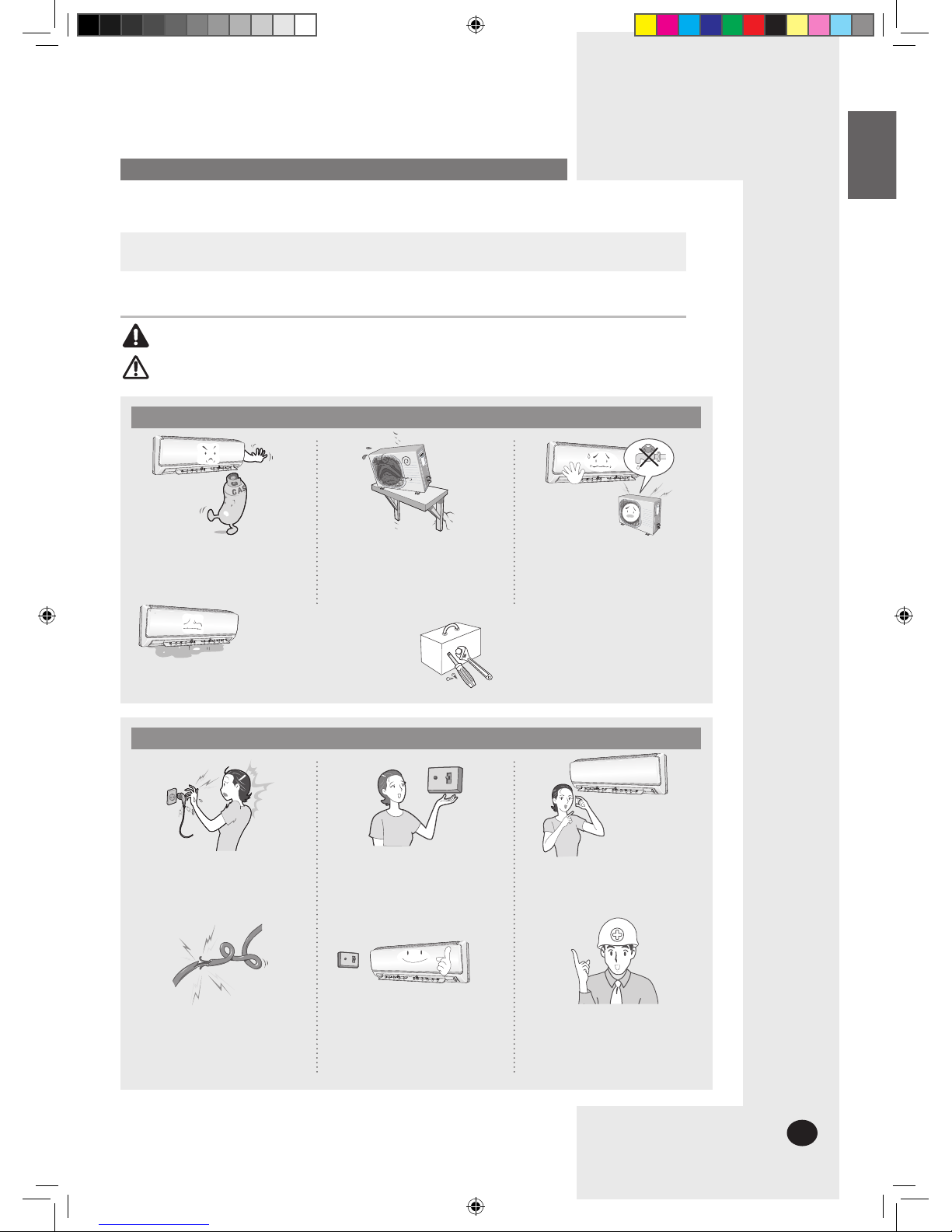

Safety Precautions
The following safety precautions are provided to protect the users’ safety and prevent property damage.
Make sure to read the followings and use the air conditioner properly.
 Keep this user’s manual together with the installation manual in a handy place so that you can find it whenever
you need to see it after reading this manual thoroughly.
WARNING
 This indicates the possibility of serious injury or death.
CAUTION
 This indicates the possibility of serious injury or damage to environments when
operated incorrectly.

Do not install the unit in a
place where it is exposed to
inflammable gas leakage.

Do not install the outdoor
unit where there’s the risk of
dropping such as on high
outer wall or outside of the
terrace.

Do not connect the ground
to a gas pipe, water pipe,
lightning rod or telephone
earth.
WHEN INSTALLING

Contact the service center
if the air conditioner is
under water.

The installation must be carried out
by a licensed installer or qualified
personnel when installing the unit
for the first time or reinstalling it.
ENGLISH
FORTE_Inv_31717A_IB_E.indd 3 2010-1-28 11:37:09

E-4
WARNING

Do not attempt to repair,
move, modify or reinstall
the unit on your own. Make
sure that these installations
are carried out by qualified
personnel to avoid electric
shock or fire.

Never spill any kind of liquid
into the unit. Should this
happen, unplug or main
switch off the unit and
contact an authorized
service center.
DURING OPERATION

Do not place any obstacles in
front of the unit.
Make sure that the unit is
correctly ventilated at all
times: Do not place clothing
or other materials over it.

If the wireless remote
control is not used for
a long time, remove the
batteries. (If applicable)

When using a wireless
remote control, the distance
should not be more than
7 meters from the air
conditioner. (If applicable)

Do not place any materials
so that children cannot step
on it.

Do not connect the electric
heater to the air conditioner
or repair it with your
discretion.

The manufacturer declines
any liability for damage
resulting from modifications
or errors in the electrical or
hydraulic connections.

Do not insert anything
between the air outlet
blades because the inner fan
may be damaged and could
cause injury. Keep children
away from the unit.

Failure to observe the
installation instruction, or use
of the unit under conditions
other than those indicated in
the table 'Operating limit' of
the unit installation manual,
will immediately invalidate
the unit warranty.
FORTE_Inv_31717A_IB_E.indd 4 2010-1-28 11:37:17

E-5


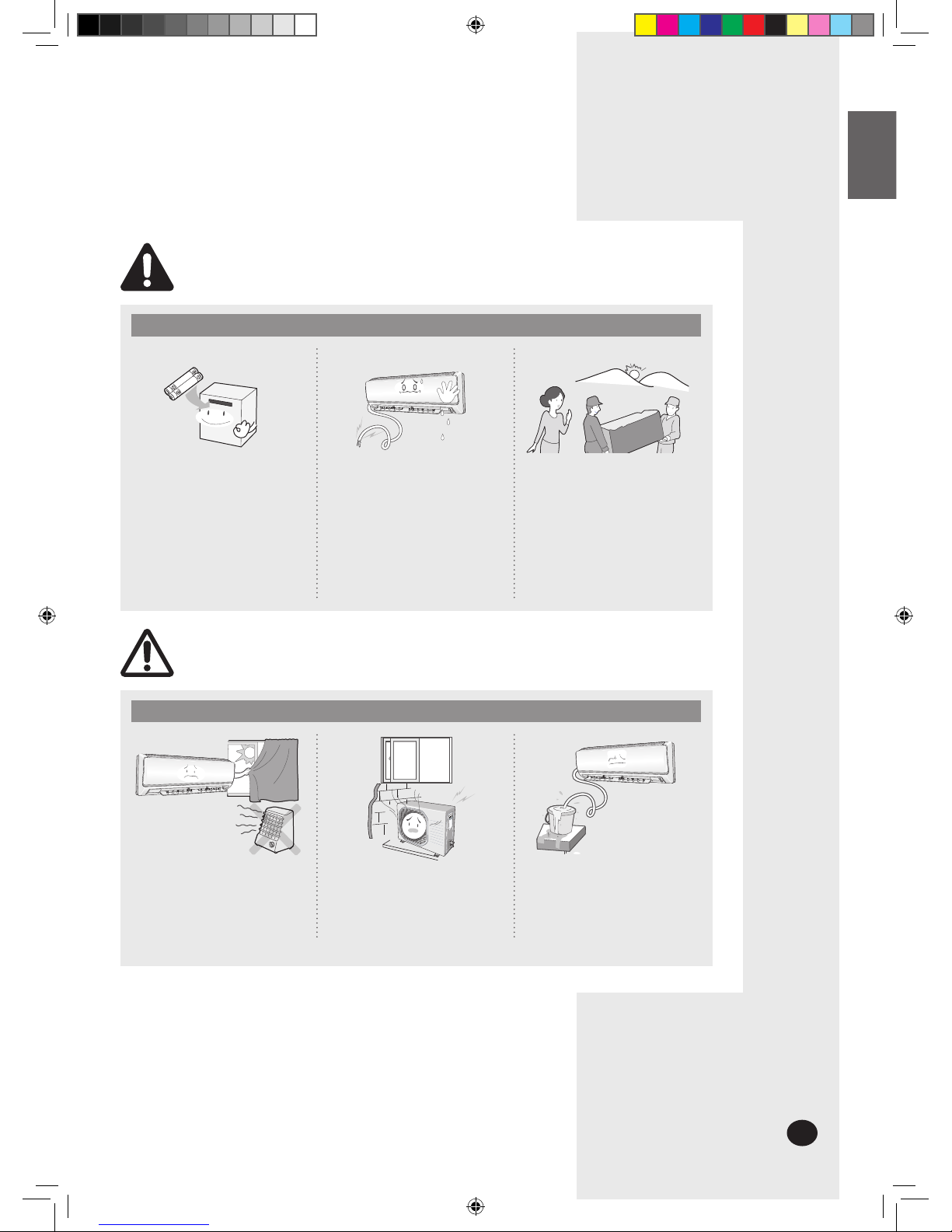

Before throwing out the
device, it is necessary to pull
back the battery cells and get
rid of them safely for recycling
reasons.

When you need to dispose of
the unit, consult your dealer.
If pipes are removed
incorrectly, refrigerant may
blow out and come into
contact with your skin, causing
injury. Releasing refrigerant
into the atmosphere also
damages the environments.

Please recycle or dispose
of the packaging material for
this product in an
environmentally responsible
manner.
DISPOSING THE UNIT
WARNING

Install the air conditioner
avoiding direct sunlight or
heater, especially water.

Install the outdoor unit so as
to let the discharged air out
properly. Avoid a place that
may disturb your neighbor by
noise.

Install the drain hose to let
the water run safely and
correctly.
WHEN INSTALLING
CAUTION
ENGLISH
FORTE_Inv_31717A_IB_E.indd 5 2010-1-28 11:37:24

E-6

Disconnect the circuit breaker
when you don’t use the
air conditioner for a long time
to save energy.

Contact the service center or
manufacturer if you want to
repair the air conditioner.

Contact the service center
after turning off the air
conditioner if strange noise
is heard, burning smell or
smoke blow.
REGARDING POWER SOURCE

Do not open the front grille
during operation.

Avoid cold and hot air
reaching to person, pet or a
plant directly for a long time.

Avoid the water from
getting into the
air conditioner.
DURING OPERATION

Do not use the air conditioner
for a long time in a closed room
or in a place where there’s a
baby or an old person.

Do not step on the air
conditioner or put heavy
object on it.

Do not drink the water from
the air conditioner.
CAUTION
FORTE_Inv_31717A_IB_E.indd 6 2010-1-28 11:37:28

E-7
CAUTION

Do not touch the pipes
connected to the air
conditioner.

Do not use the air conditioner
to maintain the machine, food,
pet, plant or cosmetics.

Do not give excessive shock
to the air conditioner.
DURING OPERATION

This appliance is not intended
for use by persons (including
children)with reduced physical, sen-
sory or mental capabilities, or lack of
experience and knowledge, unless
they have been given supervision
or instruction concerning use of the
appliance by a person responsible
for their safety: Children should be
supervised to ensure that they do
not play with the appliance.

The maximum input power &
current is measured
according to the IEC standard
and the input power & current
is measured according to the
ISO standard.
OTHERS

Be sure that the air filter not to
be exposed to direct sunlight.

Do not clean the air
conditioner by spraying water
directly or with benzene,
thinner or alcohol.

The surface of the heat
exchanger is sharp, so be
careful of it when cleaning.

Turn off the air conditioner
and if the fan stops to operate,
clean the air conditioner.

Clean the air filter every 2 weeks.

Be sure to insert the air filter.
When opening or closing the
front panel, use a stable stool
and watch your steps care-
fully.

All of the manufacturing and
packaging materials used for your
new appliance are compatible
with the environment and can be
recycled.

Dispose of the packaging
material in accordance with
the local requirements.
ENGLISH
FORTE_Inv_31717A_IB_E.indd 7 2010-1-28 11:37:36

E-8
Name of Each Part
The design and shape can be changed according to the model.
Indoor Unit
Air filter
(under the grille)
Air flow blades
(outlet)
Air Inlet
Temperature sensor
Power(On/Off) button
Operation indicator
(GREEN)
Timer indicator
(GREEN)
Turbo indicator
(RED)
Power(On/Off) button
AQV NS Series AQV F  Series
FORTE_Inv_31717A_IB_E.indd 8 2010-1-28 11:37:44

E-9

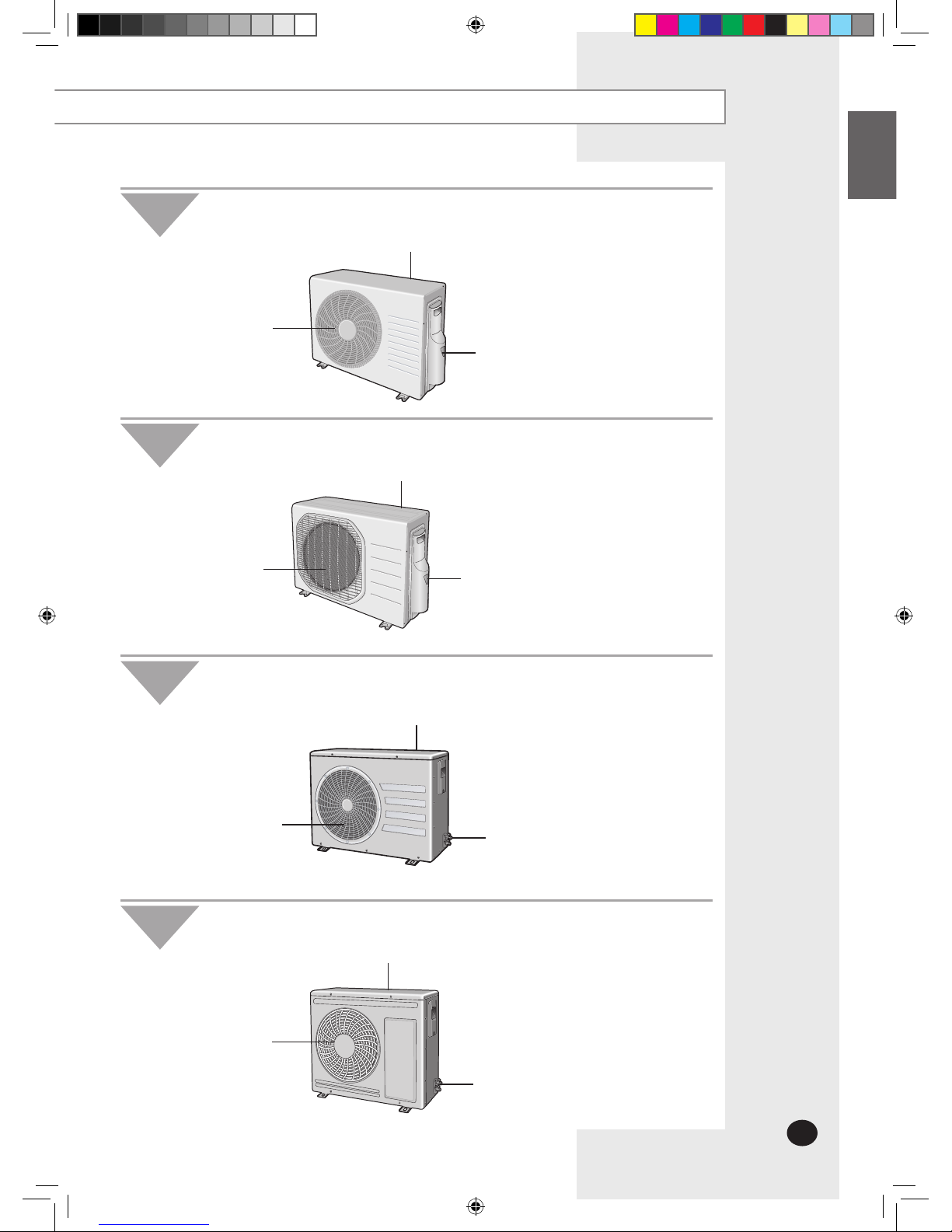

Name of Each Part
Air Inlet (Rear)
Air Outlet Connection Valve
Air Outlet Connection Valve
Air Inlet (Rear)
Air Outlet
Connection Valve
Air Inlet (Rear)
Outdoor Unit AQV09/12FSeries
Outdoor Unit AQV09/12NSSeries
Outdoor Unit AQV18NSSeries
AQV18/24FSeries
Outdoor Unit AQV24NSSeries
Air Outlet
Connection Valve
Air Inlet (Rear)
ENGLISH
FORTE_Inv_31717A_IB_E.indd 9 2010-2-24 17:12:30

E-10
Remote Control-Buttons and Display
Remote control
transmission indicator Mode selection button
(AUTO, COOL, DRY,
FAN, HEAT)
Turbo button
Swing button
On Timer button
Off Timer button
On/Off &
Timer Set/Cancel button
Fan speed adjustment
button & Silence mode button
Temperature adjustment
buttons
Temperature setting
mode indicator
Turbo function indicator
Fan speed & Silence indicator
Air flow direction
On Timer indicator
Off Timer indicator
Battery discharge indicator
button
Operating mode indicator
( AUTO, COOL, DRY,
FAN, HEAT)
FORTE_Inv_31717A_IB_E.indd 10 2010-1-28 11:37:55

E-11
Inserting the Remote Control Batteries
You must insert or replace the remote control batteries when:
 You purchase the air conditioner
 The remote control does not work correctly
Note  Use two AAA, LR03 1.5V batteries.
 Do not use old and new batteries or different kinds of batteries
together.
 Insert two batteries correctly as indicated by the + and – symbols.
1Remove the battery cover in the rear of the remote control by pushing
it with your thumb.
2Insert two batteries, respecting the polarities as indicated by
the + and - symbols.
3Close the cover by sliding it back in place.
ENGLISH
FORTE_Inv_31717A_IB_E.indd 11 2010-1-28 11:37:56

E-12
Getting Started
The User’s Manual provides you with valuable information about your air conditioner.
In order to take full advantage of the air conditioner’s features, please read this manual
carefully before using.
You have already seen the basic description of the unit on pages from 8 to 10.
Starting with the next page, you will find a series of step-by-step procedures
for each function available.
The illustrations in the step-by-step procedures use three different symbols:
PRESS PUSH HOLD DOWN
FORTE_Inv_31717A_IB_E.indd 12 2010-1-28 11:37:58

E-13
Selecting Auto Mode
You can select Auto mode if you want to cool or heat your room automatically.
You can adjust the temperature in this mode.
1
Press the (On/Off) button.
Result:
 The operation indicator on the indoor unit lights up.
 The air conditioner starts up in the mode you selected last.
 The indoor unit beeps.
2Press the button on the remote control until is displayed.
Result:
 The indoor unit beeps each time you press the button.
 The air conditioner runs in Auto mode.
 Auto mode cools or heats the room depending on the set
temperature.
 The air conditioner changes from Cool or Heat mode
automatically, depending on the current temperature.
Note You can change modes at any time.
3
Press the button to adjust the temperature until the required
temperature is displayed.
You can set the temperature between 16°C and 30°C.
Result:  Each time you press the button:
- The temperature adjusts by 1°C
- The indoor unit beeps
4
Press the button to select the fan speed until the required setting is
displayed.
Automatic (rotated :
 
)
Low
Medium
High
Result: Each time you press the button, the indoor unit beeps.
5
To control the airflow direction, refer to page 21.
ENGLISH
FORTE_Inv_31717A_IB_E.indd 13 2010-1-28 11:37:59

E-14
Selecting Cool Mode
You can select Cool mode if you want to cool your room.
You can adjust the temperature and the fan speed when cooling.
1Press the (On/Off) button.
Result:
 The operation indicator on the indoor unit lights up.
 The air conditioner starts up in the mode you selected last.
 The indoor unit beeps.
2Press the button on the remote control until is displayed.
Result:
 The indoor unit beeps each time you press the button.
 The air conditioner runs in Cool mode.
Note You can change modes at any time.
3Press the button to adjust the temperature until the required
temperature is displayed.
You can set the temperature between 16°C and 30°C.
Result:  Each time you press the button:
- The temperature adjusts by 1°C
- The indoor unit beeps
 If the room temperature is higher than the selected
temperature, the air conditioner starts cooling.
 If the room temperature reaches the set temperature, the air
conditioner stops cooling, but the fan continues to operate.
4Press the button to select the fan speed until the required setting is
displayed.
Automatic (rotated :
 
)
Low
Medium
High
Silence mode
Result: Each time you press the button, the indoor unit beeps.
Note Silence mode( ) makes the noise quieter during
operating the indoor unit in the Cool mode.
5To control the airflow direction, refer to page 21.
FORTE_Inv_31717A_IB_E.indd 14 2010-1-28 11:38:05

E-15
Selecting Heat Mode
You can select Heat mode if you want to heat your room.
You can adjust the temperature and the fan speed when heating.
1Press the (On/Off) button.
Result:
 The operation indicator on the indoor unit lights up.
 The air conditioner starts up in the mode you selected last.
 The indoor unit beeps.
2Press the button on the remote control until is displayed.
Result:
 The indoor unit beeps each time you press the button.
 The air conditioner runs in Heat mode.
Note You can change modes at any time.
3Press the button to adjust the temperature until the required
temperature is displayed.
You can set the temperature between 16°C and 30°C.
Result:  Each time you press the button:
- The temperature adjusts by 1°C
- The indoor unit beeps
 If the room temperature reaches 5°C higher than the set
temperature, the air conditioner stops heating, but the fan
continues to operate.
 If the room temperature reaches 3°C lower than the set
temperature, the air conditioner starts heating again.
4Press the button to select the fan speed until the required setting is
displayed.
Automatic (rotated :
 
)
Low
Medium
High
Silence mode
Result:
 Each time you press the button, the indoor unit beeps.
 For the first 3~5 minutes, the fan may not operate to prevent
cool air from flowing out of the indoor unit.
This helps to warm the air in your room sufficiently.
Note Silence mode( ) makes the noise quieter during
operating the indoor unit in the Heat mode.
5To control the airflow direction, refer to page 21.
ENGLISH
FORTE_Inv_31717A_IB_E.indd 15 2010-1-28 11:38:10

E-16

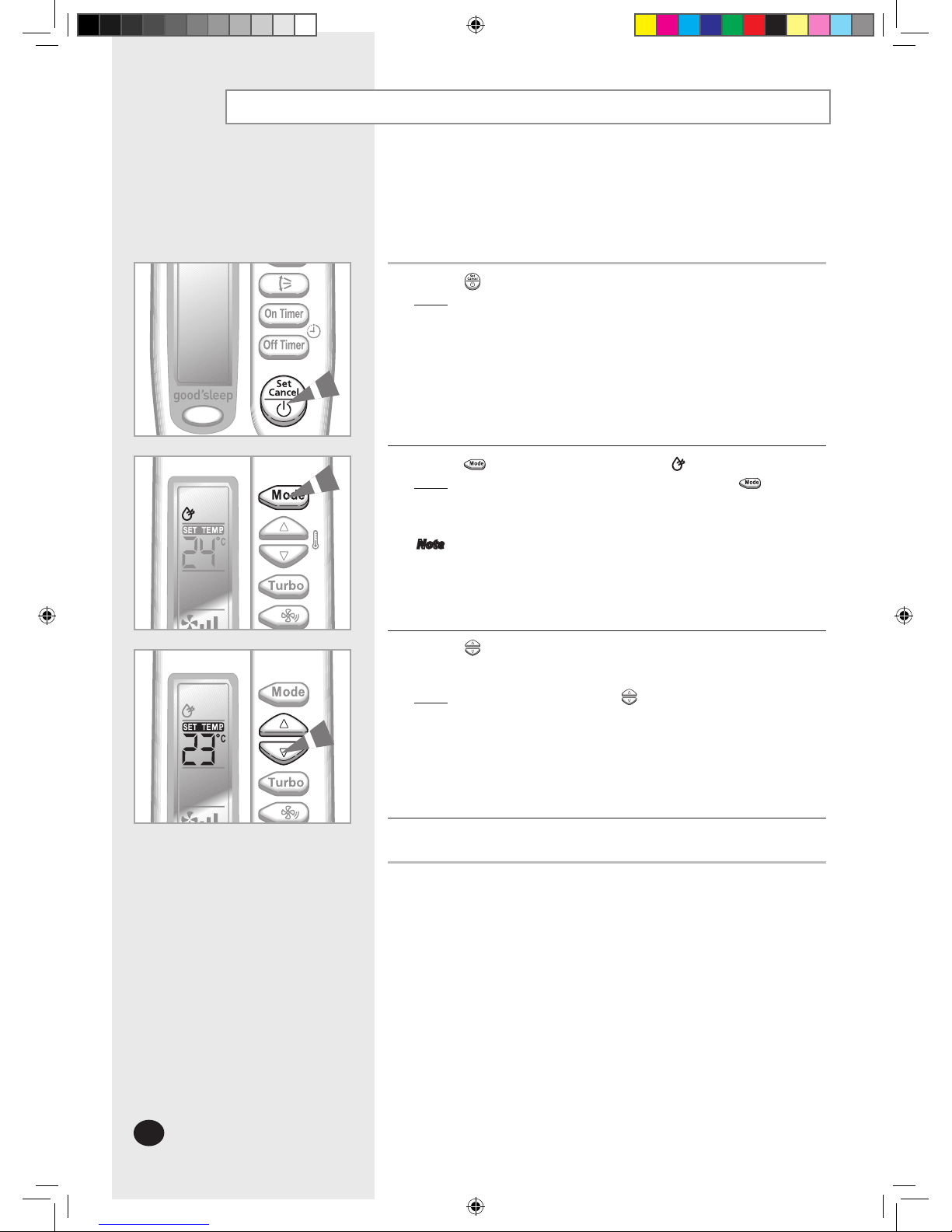

Selecting Dry Mode
Select Dry mode if you want to dehumidify your room.
You can adjust the temperature in this mode.
1Press the (On/Off) button.
Result:
 The operation indicator on the indoor unit lights up.
 The air conditioner starts up in the mode you selected last.
 The indoor unit beeps.
2Press the button on the remote control until is displayed.
Result:
 The indoor unit beeps each time you press the button.
 The air conditioner runs in the Dry mode.
Note You can change modes at any time.
3Press the button to adjust the temperature until the required
temperature is displayed.
You can set the temperature between 16°C and 30°C.
Result:
 Each time you press the button:
- The temperature adjusts by 1°C
- The indoor unit beeps
 The air conditioner starts dehumidifying and the fan speed
adjusts automatically.
4To control the airflow direction, refer to page 21.
FORTE_Inv_31717A_IB_E.indd 16 2010-1-28 11:38:15

E-17

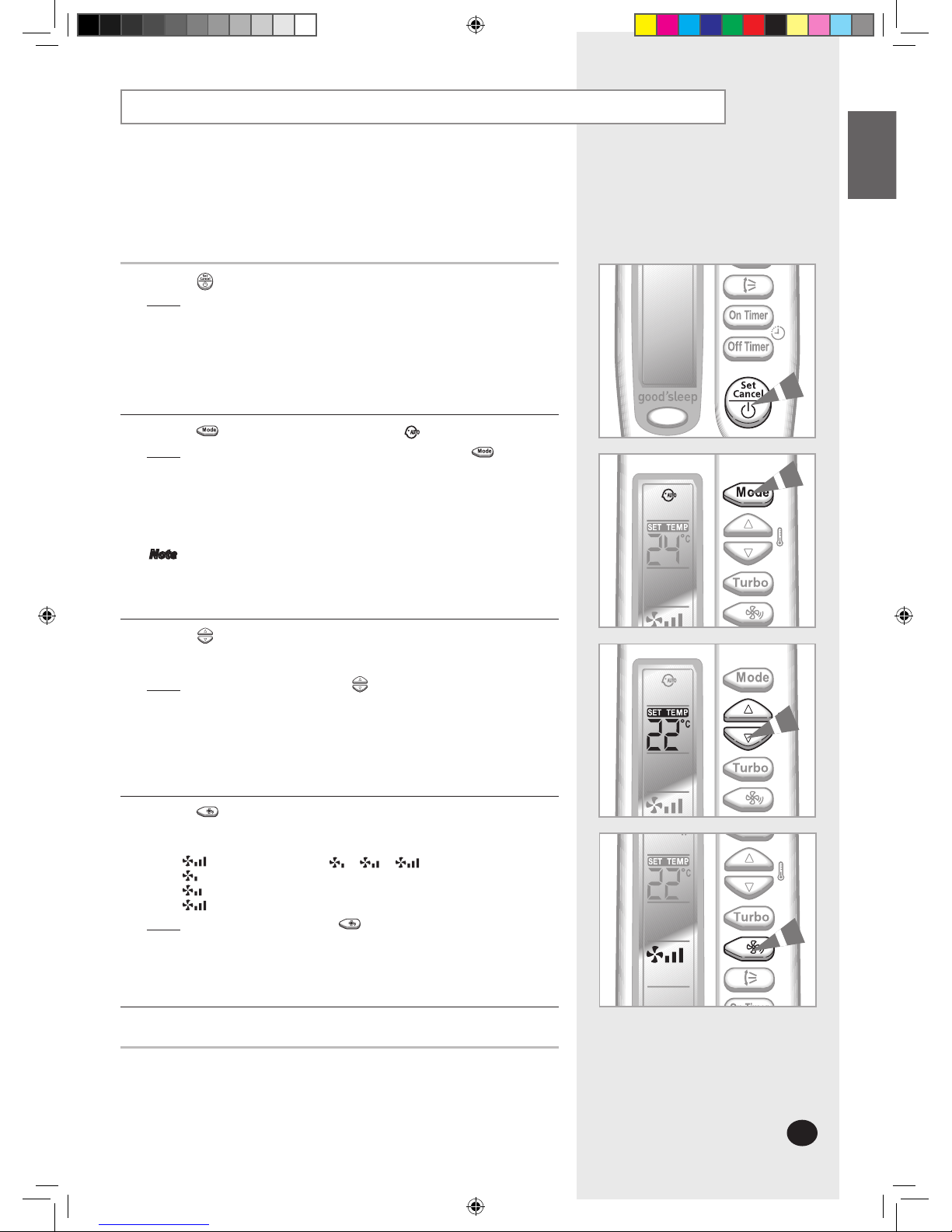

Selecting Fan Mode
Select Fan mode if you want to ventilate your room. It helps to refresh
the air in your room. You can adjust the fan speed in this mode.
1Press the (On/Off) button.
Result:
 The operation indicator on the indoor unit lights up.
 The air conditioner starts up in the mode you selected last.
 The indoor unit beeps.
2Press the button on the remote control until is displayed.
Result:
 The indoor unit beeps each time you press the button.
 The air conditioner runs in Fan mode.
 The temperature can't be set.
Note You can change modes at any time.
3Press the button to select the fan speed until the required setting is
displayed.
Low
Medium
High
Result: Each time you press the button, the indoor unit beeps.
4To control the airflow direction, refer to page 21.
ENGLISH
FORTE_Inv_31717A_IB_E.indd 17 2010-1-28 11:38:18

E-18
Selecting Mode
mode helps users to fall asleep well after going to bed whether
being too hot to sleep or being awakened by coldness. The mode can
be selected only when the air conditioner is switched on in cool/heat mode.
1Press the (On/Off) button.
Result:
 The operation indicator on the indoor unit lights up.
 The air conditioner starts up in the mode you selected last.
 The indoor unit beeps.
2Press the button to select or mode.
Result:
 The indoor unit beeps each time you press the button.
 The air conditioner runs in cool or heat mode.
3Press the button.
- The remote control display shows you that this mode automatically stops
after 8-hour operation.
- In the case of adjusting time

Press the button to adjust desired operation time from 30 minutes
to 12 hours.
mode will automatically stop after the set time.

Press the button.
Result:
In the case of adjusting the extra time for mode,you
should press the button within 10 seconds.If you do not press
the button within 10 seconds. mode will
automatically stop in 8-hour operation.
4Press the button to adjust the temperature until the desired
temperature is displayed.
You can set the temperature between 16°C and 30°C.
Result:
Each time you press the button;
- The temperature adjusts by 1°C
- The indoor unit beeps
Temperature changes in mode
To prevent excessive cooling/heating during sleep, the mode automatically modifies
the temperature setting in accordance with the time setting. Temperature and air current change
according to the three stages; Falling asleep, Sound sleep, and Waking up from mode,
and then the air conditioner will automatically turn off when the set time has elapsed.
Three stage prevents you from having difficulty sleeping on extremely hot/cold nights.
Falling asleep : Eases you into sleep by dropping the temperature.
Sound sleep : Relaxes your body and raises your temperature slightly.
Waking up from mode :
Allows you to wake up to comfortable crisp air making you feel refreshed and energized.
• Set the Off timer in mode for more than 5 hours. Sleep may be disturbed if the
mode is set for too short or too long a time because the temperature changes are
set to an 8-hour cycle.
• If the mode is set for less than 4 hours, the operation will stop at the set time.
If the mode is set for over 5 hours, the last hour will run in Waking Up stage before
shutting off.
• Recommended set temperature is between 25˚C~27˚C for cooling and 21˚C~23˚C for
heating.
FORTE_Inv_31717A_IB_E.indd 18 2010-1-28 11:38:23

E-19
Selecting the Energy Saving Function
Selecting Mode
Temperature changes in mode
To prevent excessive cooling/heating during sleep, the mode automatically modifies
the temperature setting in accordance with the time setting. Temperature and air current change
according to the three stages; Falling asleep, Sound sleep, and Waking up from mode,
and then the air conditioner will automatically turn off when the set time has elapsed.
Three stage prevents you from having difficulty sleeping on extremely hot/cold nights.
Falling asleep : Eases you into sleep by dropping the temperature.
Sound sleep : Relaxes your body and raises your temperature slightly.
Waking up from mode :
Allows you to wake up to comfortable crisp air making you feel refreshed and energized.
• Set the Off timer in mode for more than 5 hours. Sleep may be disturbed if the
mode is set for too short or too long a time because the temperature changes are
set to an 8-hour cycle.
• If the mode is set for less than 4 hours, the operation will stop at the set time.
If the mode is set for over 5 hours, the last hour will run in Waking Up stage before
shutting off.
• Recommended set temperature is between 25˚C~27˚C for cooling and 21˚C~23˚C for
heating.
ENGLISH
FORTE_Inv_31717A_IB_E.indd 19 2010-1-28 11:38:28

E-20
Selecting the Turbo Function
You can select the Turbo Function if you want to cool or heat your room as quickly
as possible. The Turbo function operates for 30 minutes with the maximum settings
before returning automatically to the mode and temperature previously selected.
1Press the (On/Off) button.
Result:
 The operation indicator on the indoor unit lights up.
 The air conditioner starts up in the mode you selected last.
 The indoor unit beeps.
2Press the button.
Result:  The temperature and fan settings are adjusted automatically.
 The air conditioner cools or heats the room as quickly as
possible.
 After 30 minutes, the air conditioner is reset automatically to
the previous setting.
 You can select the Turbo function in Auto, Cool and Heat mode.
If you select this function in Dry or Fan mode, the mode
changes to Auto mode.
3 Press the button again to stop the Turbo Function before the end of the
30-minute period.
Result: The air conditioner is reset automatically to the previous setting.
4To control the airflow direction, refer to page 21.
FORTE_Inv_31717A_IB_E.indd 20 2010-1-28 11:38:29

E-21
Adjusting the Airflow Direction Vertically
You can adjust the airflow direction vertically. The outer airflow blade moves up
and down to increase the efficiency of the cooling or heating operation.
1Press the button until the required direction is set.
Result: The outer blade is adjusted vertically.
2Press the button again to move the blade up and down automatically
during operation.
3Press the button again to stop the blade moving up and down.
Note If you turn the air conditioner... Then the blade...
Off is closed completely.
On set to the default position.
Adjusting the Airflow Direction Horizontally
You can adjust airflow direction horizontally manually.
The inner blades with small fins move the air in the desired direction.
1Adjust the inner blades by moving them left or right.
 Make sure do not touch the inner blades during operation.
It may cause injury on your fingers.
ENGLISH
FORTE_Inv_31717A_IB_E.indd 21 2010-1-28 11:38:31
