Samsung AR09TXFYAWKNEU User manual

AIR CONDITIONER CONTENTS
SPLIT-TYPE AIR CONDITIONER
OUTDOOR UNIT
MODEL CODE
INDOOR UNIT
1. Precautions
2. Pr cations
3. Alignment and Adjustments
4. Disassembly and Reassembly
5. ASSY CONTROL
6. Electrical Parts List
7. Wiring Diagram
8. PCB Diagram
9. Operating Instructions
10. Troubleshooting
11.Block Diagram
12. Reference Sheet
AR09TXFYAWKNEU
AR12TXFYAWKNEU
AR09TXHZAWKNEU
AR12TXHZAWKNEU
AR09TXFYAWKXEU
AR12TXFYAWKXEU
AR09TXHZAWKXEU
AR12TXHZAWKXEU
AR09TXHZAWKNEU
AR12TXHZAWKNEU
AR09TXFYAWKNEU
AR12TXFYAWKNEU
AR09TXFYAWKXEU
AR12TXFYAWKXEU
AR09TXHZAWKXEU
AR12TXHZAWKXEU

2
Contents
1. Precautions 4
1-1 Installing the air conditioner 4
1-2 Power supply and circuit breaker 4
1-3 During operation 4
1-4 Disposing of the unit 5
1-4 Others 5
2. Product Specications 6
2-1 The Feature of Product 6
2-2 Product Specifications 7
2-3 The comparative specifications of product 8
2-4 Accessory and option specifications 9
3. Alignment and Adjustments 10
3-1 Test mode 10
3-2 Display Error and Check Method 12
3-3 Setting Option Setup Method 13
4. Disassembly and Reassembly 17
4-1 Indoor Unit 18
4-2 Outdoor Unit 28
5. ASSY CONTROL 34
5-1 ASSY KIT CODE DB92-048545B,F 34
5-2 ASSY KIT CODE DB92-04842A 35
6. Electrical Parts List 36
6-1 INDOOR MAIN PCB CODE DB92-04839A 36
6-2 ASSY PCB DISPLAY CODE DB92-04833B 38
7. Wiring Diagram 39
7-1 Indoor unit 39
7-2 Outdoor unit 40
8. PCB Diagram 41
8-1 Indoor main PCB code 41
8-2 Outdoor main PCB code 42

2 3
Contents
9. Operating Instructions 45
9-1 Name of Each Part 45
9-2 Wireless Remote Control-Buttons and Display 47
10. Troubleshootin 48
10-1 Items to be checked First 48
10-2 Communication Error 48
10-2-1 Communication Error 48
10-2-2 Indoor temperature sensor Error 50
10-2-3 Indoor fan motor speed detecting error (BLDC fan) 51
10-2-4 Outdoor temperature sensor error 52
10-2-5 Outdoor Cond temperature sensor error 53
10-2-6 Outdoor Discharge temperature sensor error 54
10-2-7 Operation condition secession error 55
10-2-8 EEPROM error/OTP error 56
10-2-9 Outdoor Fan motor error 57
10-2-10 Compressor starting error 58
10-2-11 Compressor wire missing error/rotation error 59
10-2-12 Current sensor error/Input current sensor error 60
10-2-13 O.C(Over Current) error 61
10-2-14 No power outdoor (Initial Diagnosis) (Not displayed) 63
10-2-15 When the Up/Down, Left/Right, Grill louver motor does not operate 64
10-2-16 When the remote control is not receiving 65
10-2-17 Smart Install error 66
10-2-18 Outdoor OLP over temperature error (One way Inverter Only) 67
11. Block Diagram 68
11-1 Indoor unit 68
11-2 Outdoor unit 69
12. Reference Sheet 72
12-1 Low Refrigerant Pressure Distribution 72
12-2 Pressure & Capacity mark 72
12-3 Q & A for Non-trouble 73
12-4 Cleaning /Filter Change 76
12-5 Installation 79
12-6 Installation Diagram of Indoor Unit and Outdoor Unit 80
12-7 Reference sheet 83

4
1-1 Installing the air conditioner
• Uses should not install the air conditioner by themselves. Ask the dealer or authorized company to install
the air conditioner except window-type air conditioner in U.S.A and Canada.
• If you don't install the air conditioner properly, it may cause a fire, a water leakage or an electric shock.
• You must install the air conditioner according to the national wiring regulations and safety regulations.
• Install the indoor unit higher than 2.5m from the floor to avoid the injury caused by the operation of the fan.
(except the window-type air conditioner)
• The manufacturer is not responsible for any accidents or injury caused by an incorrect installation.
• When installing the built-in type air conditioner, keep all electric cables such as the power cable and the
connection cord in pipes, ducts, or cable channels to protect them from the danger of impact or any other
incidents.
1-2 Powersupply and circuit breaker
• If the power cord of the air conditioner is damaged, it must be replaced by the manufacturer or a qualified
person in order to avoid a hazard.
• The air conditioner must be plugged into an independent circuit if applicable or connect the power cable to
the auxiliary circuit breaker. An all pole disconnection form the power supply must be incorporated in the
fixed wiring with a contact opening of>3mm.
• Do not extend an electric cord to the air conditioner.
• The air conditioner must be plugged in after you complete the installation.
1-3 During operation
• Do not repair the air conditioner at your discretion. It is recommended to contact a service center directly.
• Never spill any kind of liquid on the air conditioner. If this happens, turn off the air conditioner and contact
an authorized service center.
• Do not insert anything between the airflow blades to prevent damage of the inner fan and consequent
injury. Keep children away from the air conditioner.
• Do not place any obstacles in front of the air conditioner.
• Do not spray any kind of liquid into the indoor unit. If this happens, turn off the air conditioner and contact
a service center.
• Make sure that the air conditioner is well ventilated at all times. Do not place a cloth or other materials over
it.
• Remove the batteries if you don't use the remote control for a long time. (If applicable)
• Use the remote control within 7 meters from the indoor unit. (If applicable)
1. Precautions

5
1-4 Disposing of the unit
• Before the throwing out the air conditioner, remove the batteries from the remote control.
• When you dispose of the air conditioner, consult your dealer. If pipes are removed incorrectly, refrigerant
may blow out and cause air pollution. When it contacts with your skin, it can cause skin injury.
• The package of the air conditioner should be recycled or disposed of properly for environmental reasons.
1-5 Others
• Never store or load the air conditioner upside down or sideways to prevent the damage to the compressor.
• Young children or infirm persons should be always supervised when they use the air conditioner.
• Max current is measured according to IEC standard for safety.
• Current is measured according to ISO standard for energy efficiency.

6
2-1 The Feature of Product
uFast cooling
If you want the strong and cool air, just select Fast function! It will get you the strongest air!
uWind-Free Cooling
UsetheWind-FreeCoolingfunctiontoenjoyamildbreezecomingthroughneholes
intheWind-Freepanelinsteadofaircomingdirectlythroughtheairowblades.
uMotion detection
Use the motion detection function to make the air conditioner detect people and blow
air directly or indirectly. With no detection, energysaving mode is operated.
uEco
Use the Single User function when you’re along at home. Aside from energy savings from the
inverter technology, the Single User Mode will further minimize your energy consumption and
reduce your electricity bill by adjusting the maximum operating capacity of the compressor.
uEasy Filter
Thereisnogrilletoremovebeforeseparatingthelterfromtheairconditioner!Therefore,lter
canbecleanedeasilyandmorefrequently.Constantltercleaningwillpreventdustfromenter-
ingtheproductoraccumulatingonthelter.
ugood’sleep function
good’sleep function will allow you to have deep, good night’sleep by adjusting the temperature,
fanspeedandairowdirection.
uSmart Install
When the installation is done, your product will examine itself through trial operation to check if
it was installed properly.
uEasy Installation
It’s so easy to install! You can easily hang the product on the wall and connect the pipes
and wires by opening the cover on the bottom of the product. Now you won’t have to tilt
the product to connect the pipe and the wires!
2. Product Specications

7
2-2 Product specication
Model AR09TXFYAWK/EU AR12TXFYAWK/EU AR09TXHZAWK/EU AR12TXHZAWK/EU
Rating Mode Unit Wall-mounted Wall-mounted Wall-mounted Wall-mounted
Capacity
T1 Cool W 2500 3500 2500 3500
T3 Cool W - - - -
Heat W 3200 3500 3200 3500
Power Input
T1 Cool W 700 1220 700 1220
T3 Cool W - - - -
Heat W 840 940 840 940
Current
T1 Cool A 3.6 5.6 3.6 5.6
T3 Cool A - - - -
Heat - 4 4.5 44.5
Efciency
EER W/W 3.57 2.87 3.57 2.87
-----
COP W/W 3.81 3.72 3.81 3.72
Dehumidifying l/hr. 0.8 0.8 0.8 0.8
Platform IDU - Q1 Q1 Q1 Q1
ODU - N-V2MD N-V2MD N-V2MD N-V2MD
Evap
Main - Φ7,2R*9(10)S*591mm,
H1.3, N.G.S, 1by2
Φ7,2R*9(10)S*591mm,
H1.3, N.G.S, 1by2
Φ7,2R*9(10)S*591mm,
H1.3, N.G.S, 1by2
Φ7,2R*9(10)S*591mm,
H1.3, N.G.S, 1by2
Sub -Φ7,2R*5(6)S*591mm,H1.3,
N.G.S : (Q-1-5)
Φ7,2R*5(6)S*591mm,H1.3,
N.G.S : (Q-1-5)
Φ7,2R*5(6)S*591mm,H1.3,
N.G.S : (Q-1-5)
Φ7,2R*5(6)S*591mm,H1.3,
N.G.S : (Q-1-5)
Cond Main -
Φ7W,2R*20(21)
S*639/611mm,Corru-
gate1.5, N.G.S, 4by4by2
Φ7W,2R*20(21)
S*639/611mm,Corru-
gate1.5, N.G.S, 4by4by2
Φ7W,2R*20(21)
S*639/611mm,Corru-
gate1.5, N.G.S, 4by4by2
Φ7W,2R*20(21)
S*639/611mm,Corru-
gate1.5, N.G.S, 4by4by2
Sub -----
Comp Model - UB1AR5090FJ6 UB1AR5090FJ6 UB1AR5090FJ6 UB1AR5090FJ6
OLP - - - - -
Motor In Code - DB31-00694A DB31-00694A DB31-00694A DB31-00694A
Name - - - - -
Motor Out Code - DB31-00693A DB31-00693A DB31-00693A DB31-00693A
Name - - - - -
Expansion Φ*L -EEVΦ1.3 EEVΦ1.3 EEVΦ1.3 EEVΦ1.3
Refrigerant type - R-32 R-32 R-32 R-32
charge g 700 g 700 g 700 g 700 g
SVC Valve Liquid /
Gas - 6.35/ 9.52 6.35/ 9.52 6.35/ 9.52 6.35/ 9.52
Tube Dis. / Suc. - 7.94/9.52 7.94/9.52 7.94/9.52 7.94/9.52
Drain hose D*L mm 20*550 20*550 20*550 20*550
4-WAY V/V - 1HP 1 HP 1HP 1 HP
Power Supply V/Hz/Φ 220-240/50/1 220-240/50/1 220-240/50/1 220-240/50/1
Climate Class - T1 T1 T1 T1
Noise IDU UT,T dB 41 43 41 43
ODU dB 53 53 53 53
Net Size
(W*D*H)
IDU mm 820*299*215 820*299*215 820*299*215 820*299*215
ODU 660*475*242 660*475*242 660*475*242 660*475*242
Weight IDU kg 8.6 8.6 8.6 8.6
ODU 19.4 19.4 19.4 19.4
Operation
range
Cooling IDU 16˚C~32˚C 16˚C~32˚C 16˚C~32˚C 16˚C~32˚C
ODU -10 °C to 46 °C -10 °C to 46 °C -10 °C to 46 °C -10 °C to 46 °C
Heating IDU 27 °C or less 27 °C or less 27 °C or less 27 °C or less
ODU -15 °C to 24 °C -15 °C to 24 °C -15 °C to 24 °C -15 °C to 24 °C

8

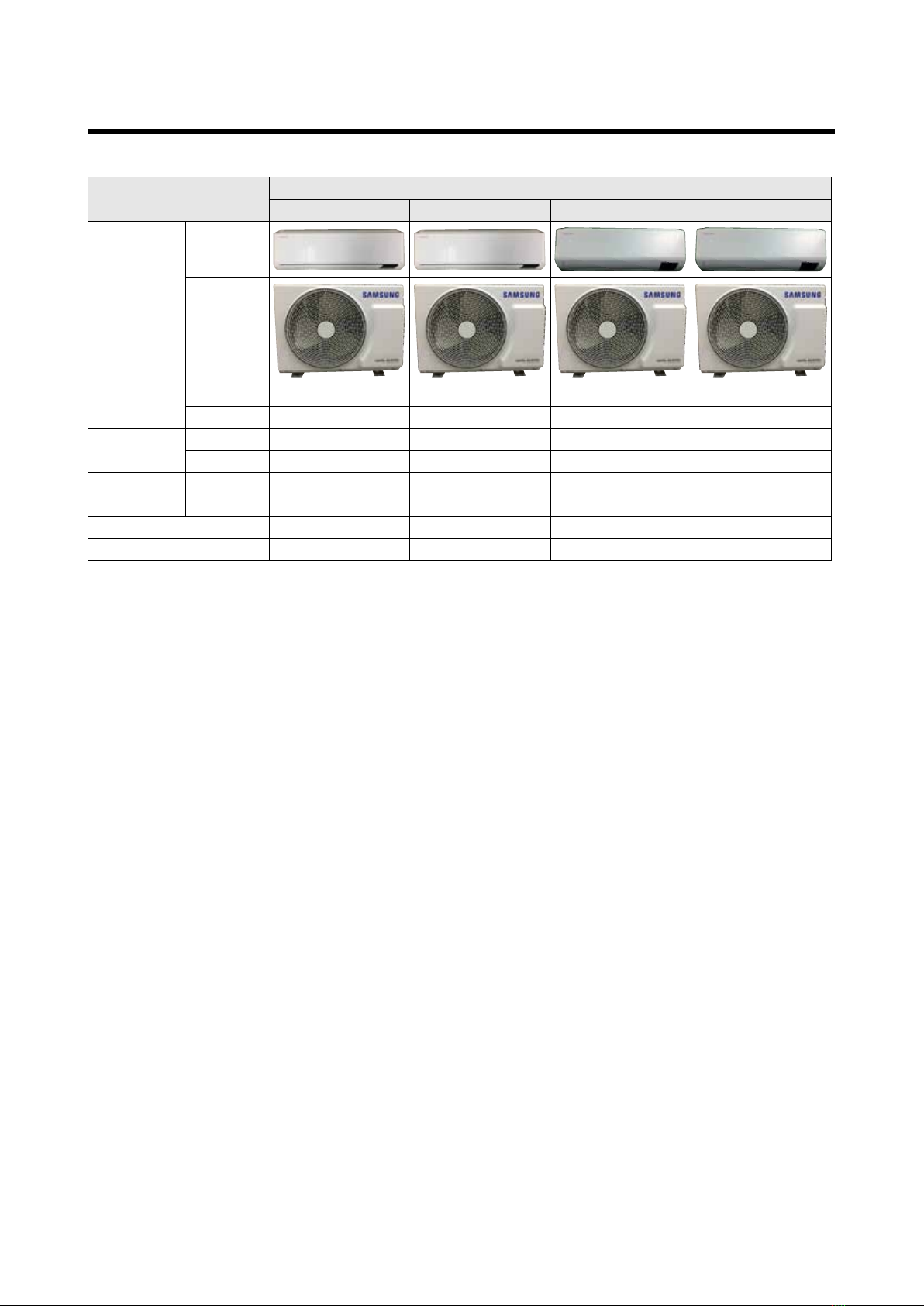

2-3 The comparative specication of product
Model DEVELOPMENT MODEL
AR09TXFYAWK/EU AR12TXFYAWK/EU AR09TXHZAWK/EU AR12TXHZAWK/EU
Design
Indoor Unit
Outdoor Unit
Net Weight Indoor Unit 8.6 8.6 8.6 8.6
Outdoor Unit 19.4 19.4 19.4 19.4
Net Dimension Indoor Unit 820*299*215 820*299*215 820*299*215 820*299*215
Outdoor Unit 660*475*242 660*475*242 660*475*242 660*475*242
Noise Indoor Unit 41 43 41 43
Outdoor Unit 53 53 53 53
Air Purifying System EASY CLEAN FILTER EASY CLEAN FILTER EASY CLEAN FILTER EASY CLEAN FILTER
Indoor Display 88 SEG 88 SEG 88 SEG 88 SEG

9

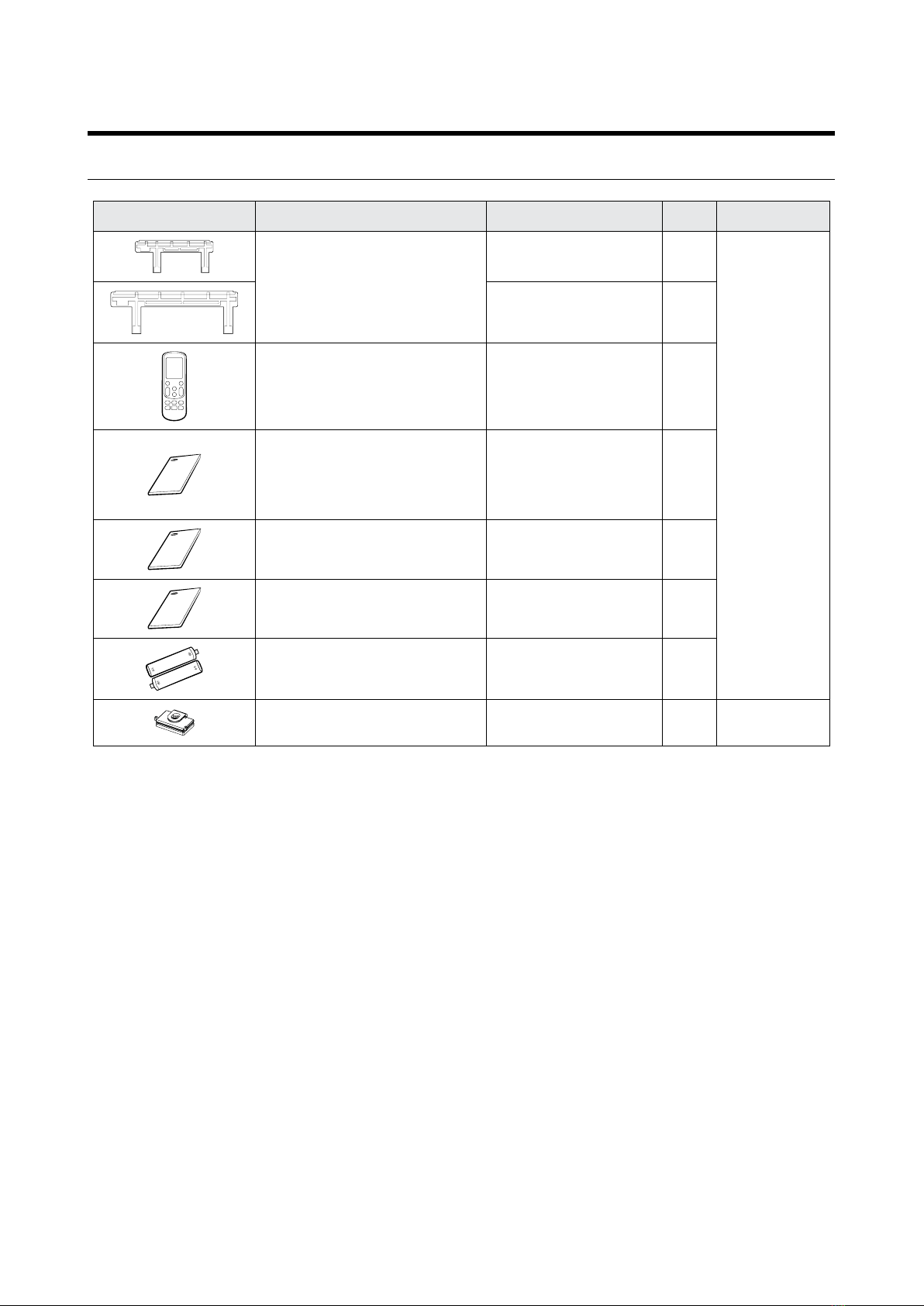

2-4 Accessory and Option Specifications
Item Descriptions Code No. Q’ty Remark
ASSY HANGER
DB90-11453A
(Q1, QF1)
1
Indoor unit case
DB90-11454A
(Q3)
1
ASSY WIRELESS REMOCON DB96-24901C 1
MANUAL USER
DB68-08616A
(AR**TYFY***)
DB68-08617A
(AR**TYH****)
1
MANUAL USER DB68-08595A 1
MANUAL INSTALL DB68-08692CA 1
Batteries for Remote controller 4301-000121 2
Rubber Leg DB67-01533A 4 Outdoor unit
case

10
3-1 Test Mode
u
How to Approach Test Mode
You can approach the test mode by pressing the on/off
switch of indoor unit for 5 seconds.
u
Test mode operation option
After installing the air conditioner, check whether each subordinate is normally operated or not by
operating the test mode.
• When an Error occurs, display the Error Mode.
• Operation Mode : Cool mode. operate the cool mode by operating the compressor by force
without the compressor ON/OFF according to the set temperature/indoor temperature. (Do not
follow the antifreeze control)
• Up-down louver : Up-down swing mode
• Indoor Fan : Turbo
Note
• Because the heat mode operate the cool mode by force not related to the set temperature
/ indoor temperature, check whether each subordinate is operated normally or not after
completing installation and must turn off the power of the air conditioner.
3. Alignment and Adjustments

11
3-2 Display Error and Check Method
3-2-1 Indoor Display Error and Check Mathod
ERROR MODE TYPE
DESCRIPTION
7-SEG INDOOR/
OUTDOOR
C101, C102
INDOOR
Communication error
C108 Set address error
C121 Room TH sensor error
C122, C123 INDOOR MID, INDOOR IN EVA-TH sensor
error
C140 Dust sensor error
C142 Humidity error
C143 Motion sensor error
C154 Fan error(indoor)
C161 Mixed operation error
C163 Option error
C187 K1lterfeedbackerror
C665 Drain pump error
*Note*
If the set doesn’t work (No power), check the thermal fuse of terminal block OPEN or
SHORT with Multimeter.
*MeasurethethermalfusehousingPIN#1~2:OPEN(disconnection)->defectiveproduct

12

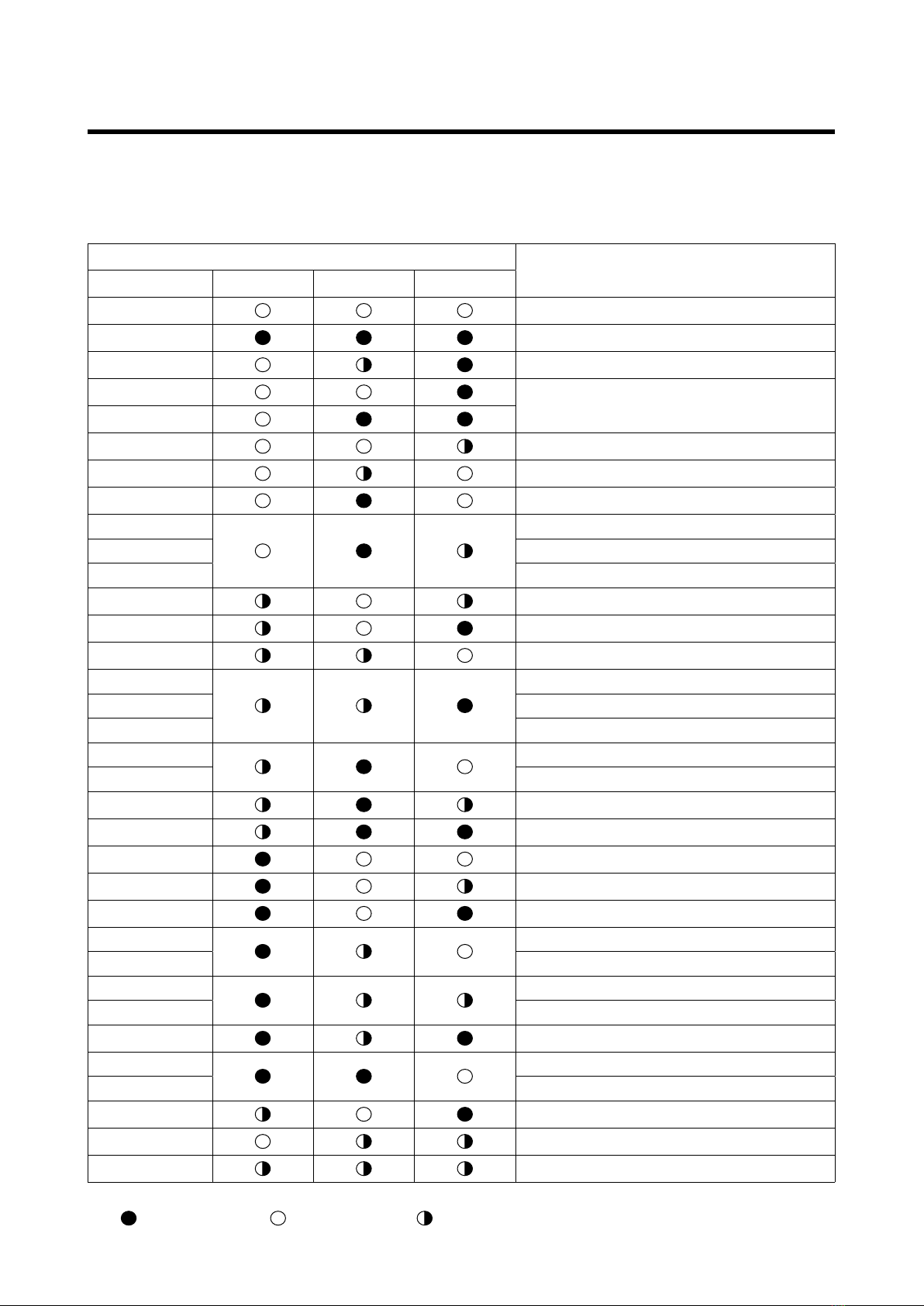

3-2 Display Error and Check Method
3-2-2 Outdoor Display Error and Check Mathod
ERROR MODE DESCRIPTION
7-SEG YEL GRN RED
-Power off /VDD NG
-Power on reset (1sec)
-Normal operation
-Abnormal communication
(Indoor <-> Outdoor)
-
C464 IPM over current (O.C) error
C461 Comp. strating error
C470 EEPROM data error (no data)
C466 DC-Link voltage under / Over error
C484 PFC over load error
C483 Over voltage protection error
C221 OUT-TH (Outdoor temperature) sensor error
C416 DIS-TH (Discharge temperature) Over error
C251 DIS-TH (Discharge temperature) sensor error
C468 Current sensor error
C474 Heatsink sensor error
C485 Input current sensor error
C465 Comp. V_limit/ I_limit error
C500 Heatsinkover temperature error
C231 CON-TH (Cond temperature) sensor error
C203 Time out Comp. (Inv Micom <->Main Micom)
C458 Fan error
C471
EEPROM data error (Main Micom <-> INV Micom)
C467 Comp. wire missing error
C440 Prohibit operation condition error (Heating)
C441 Prohibit operation condition error (Cooling)
C469 DC-Link voltage sensor
C488 AC Input voltage sensor
C462 AC Input I_limit trip error
C554 Gas leak error
C574 Gas shortage error
C422 Outdoor OLP over temperature error
-Test operation at Cooling mode
-Test operation at Heating mode
:LAMP ON : LAMP OFF : LAMP BLINK

13

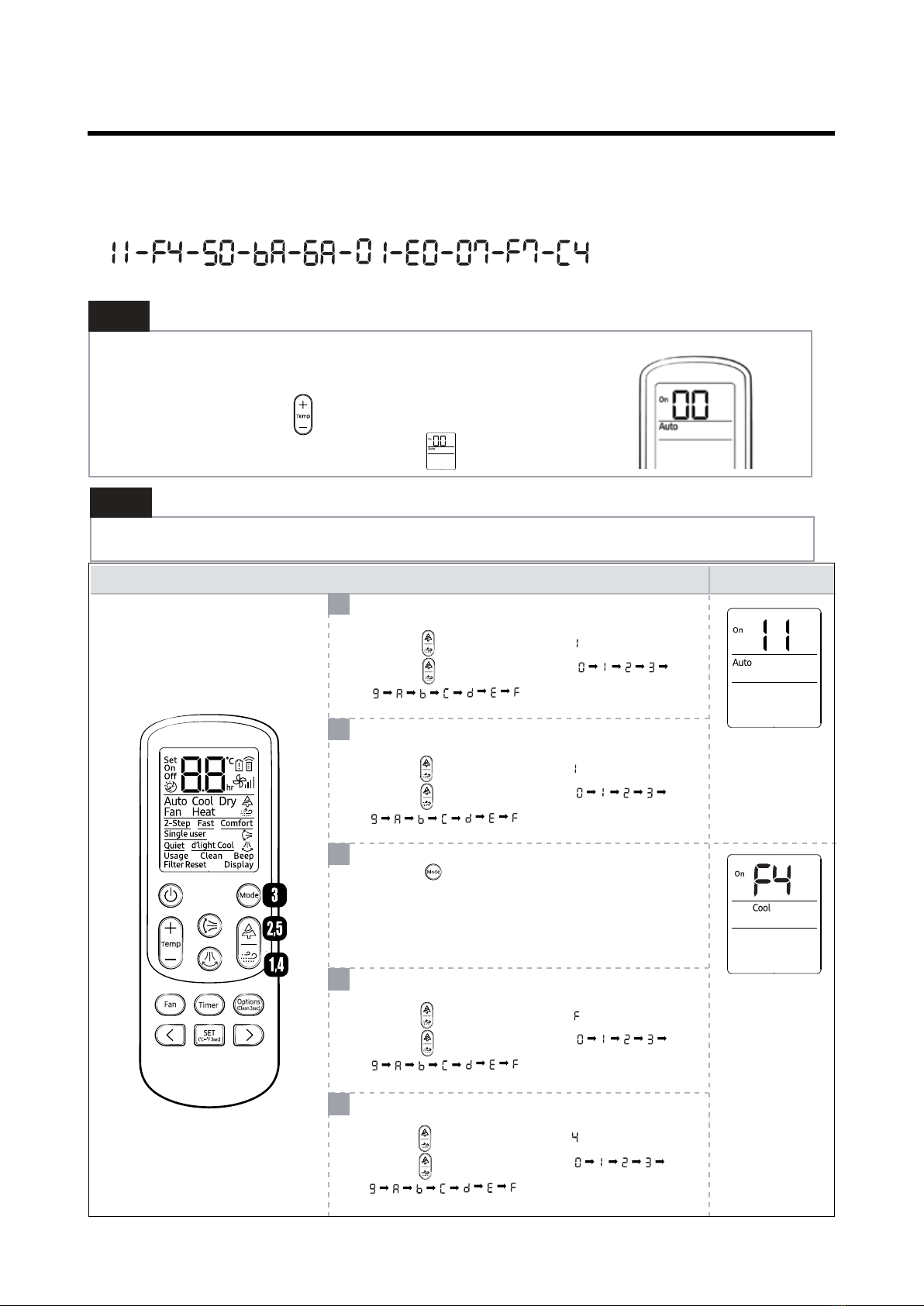

3-3 Setting Option Setup Method
Step 2
Enter the Options Setup mode and select your options asscording to the following procedure.
Ex) Option No. :
Step 1
Enter the Option Setup mode.
1. Tack out the batteries of remote control.
2. Press the temperaturebutton simultaneously and insert the battery again.
3. Make sure the remote control display shown as
Setting option SEG1
Press the button the display panel to .
Press the button repeatedly to select .
⋯
Press the button to set Cool mode.
5
4
3
2
1
MethodDisplay
Setting option SEG2
Press the button the display panel to .
Press the button repeatedly to select .
⋯
Setting option SEG3
Press the button the display panel to .
Press the button repeatedly to select .
⋯
Setting option SEG4
Press the button the display panel to .
Press the button repeatedly to select .
⋯

14
6
7
8
9
10
11
12
13
14

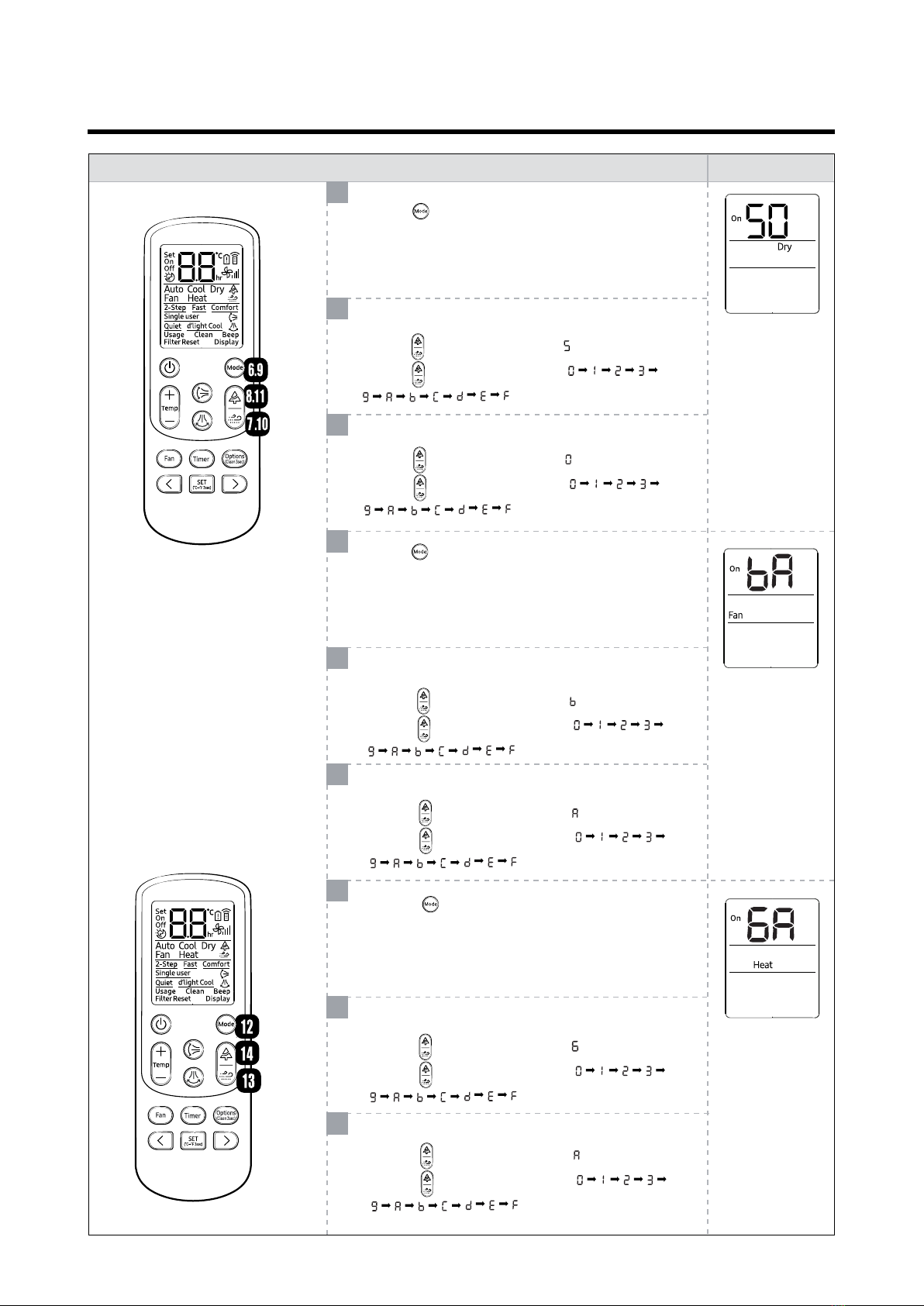

Method Display
Press the button to set Dry mode.
Setting option SEG5
Press the button the display panel to .
Press the button repeatedly to select .
⋯
Setting option SEG6
Press the button the display panel to .
Press the button repeatedly to select .
⋯
Setting option SEG7
Press the button the display panel to .
Press the button repeatedly to select .
⋯
Setting option SEG8
Press the button the display panel to .
Press the button repeatedly to select .
⋯
Setting option SEG9
Press the button the display panel to .
Press the button repeatedly to select .
⋯
Setting option SEG10
Press the button the display panel to .
Press the button repeatedly to select .
⋯
Press the button to set Fan mode.
Press the button to set Heat mode.

15
15
16
17
18
19
20
21
22
23
MethodDisplay
Setting option SEG16
Press the button the display panel to .
Press the button repeatedly to select .
⋯
Setting option SEG15
Press the button the display panel to .
Press the button repeatedly to select .
⋯
Setting option SEG14
Press the button the display panel to .
Press the button repeatedly to select .
⋯
Setting option SEG13
Press the button the display panel to .
Press the button repeatedly to select .
⋯
Setting option SEG11
Press the button the display panel to .
Press the button repeatedly to select .
⋯
Setting option SEG12
Press the button the display panel to .
Press the button repeatedly to select .
⋯
Press the button to set Auto mode.
Press the button to set Cool mode.
Press the button to set Dry mode.

16
Option code :
Model Option code
General Install
AR09TXFYAWK/EU 010205-1740EA-271920-371804 020000-100000-200101-300335
AR12TXFYAWK/EU 010205-1740FA-272323-371804 020000-100000-200101-300335
AR09TXHZAWK/EU 010005-1740EA-271920-371814 020000-100000-200101-300335
AR12TXHZAWK/EU 010005-1740FA-272323-371814 020000-100000-200101-300335
24
25
26
27
28
29

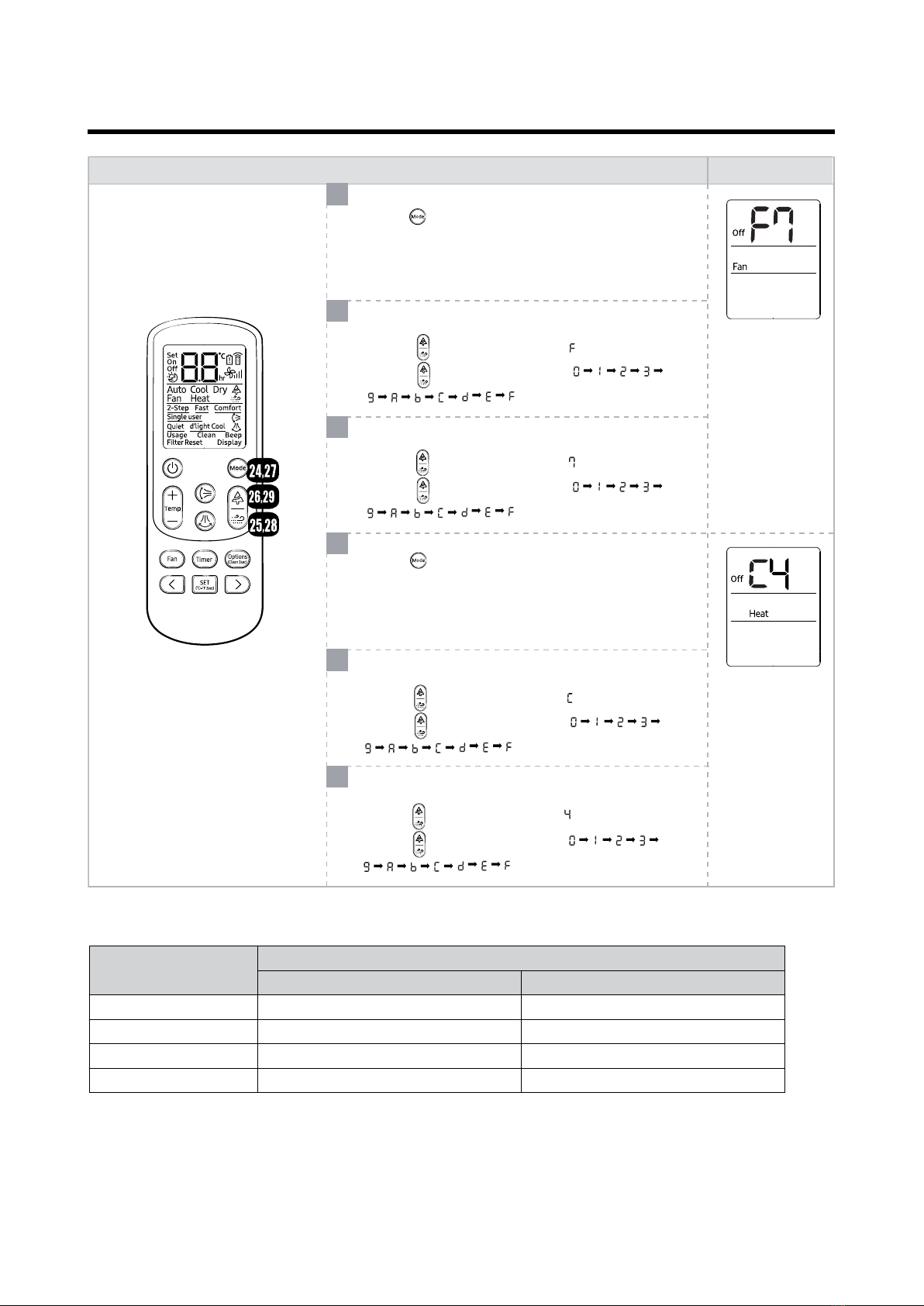

Method Display
Press the button to set Fan mode.
Press the button to set Heat mode.
Setting option SEG17
Press the button the display panel to .
Press the button repeatedly to select .
⋯
Setting option SEG18
Press the button the display panel to .
Press the button repeatedly to select .
⋯
Setting option SEG19
Press the button the display panel to .
Press the button repeatedly to select .
⋯
Setting option SEG20
Press the button the display panel to .
Press the button repeatedly to select .
⋯

17
u Necessary Tools
Item Remark
+SCREW DRIVER
Q’ty 1 ea.
To assembly and disassembly the screw
MONKEY SPANNER
Q’ty 1 ea.
To assembly and disassembly the Fan motor and
Compressor
- SCREW DRIVER
Q’ty 1 ea.
To assembly and disassembly the screw
4. Disassembly and Reassembly

18
4-1. Indoor Unit
NO. Parts Procedure Remark
1 PANEL-FRONT 1) Stop the driving of air conditioner
and shut off main power supply.
2) Detach FILTER PRE from the
PANEL FRONT.
3)TheCOVERPANELisxedtobody
by hooks in center and side area.
4) Separate the hook pulling end
of the COVER PANEL as shown in
gures.(Watchoutforthedamageof
hooks)

19

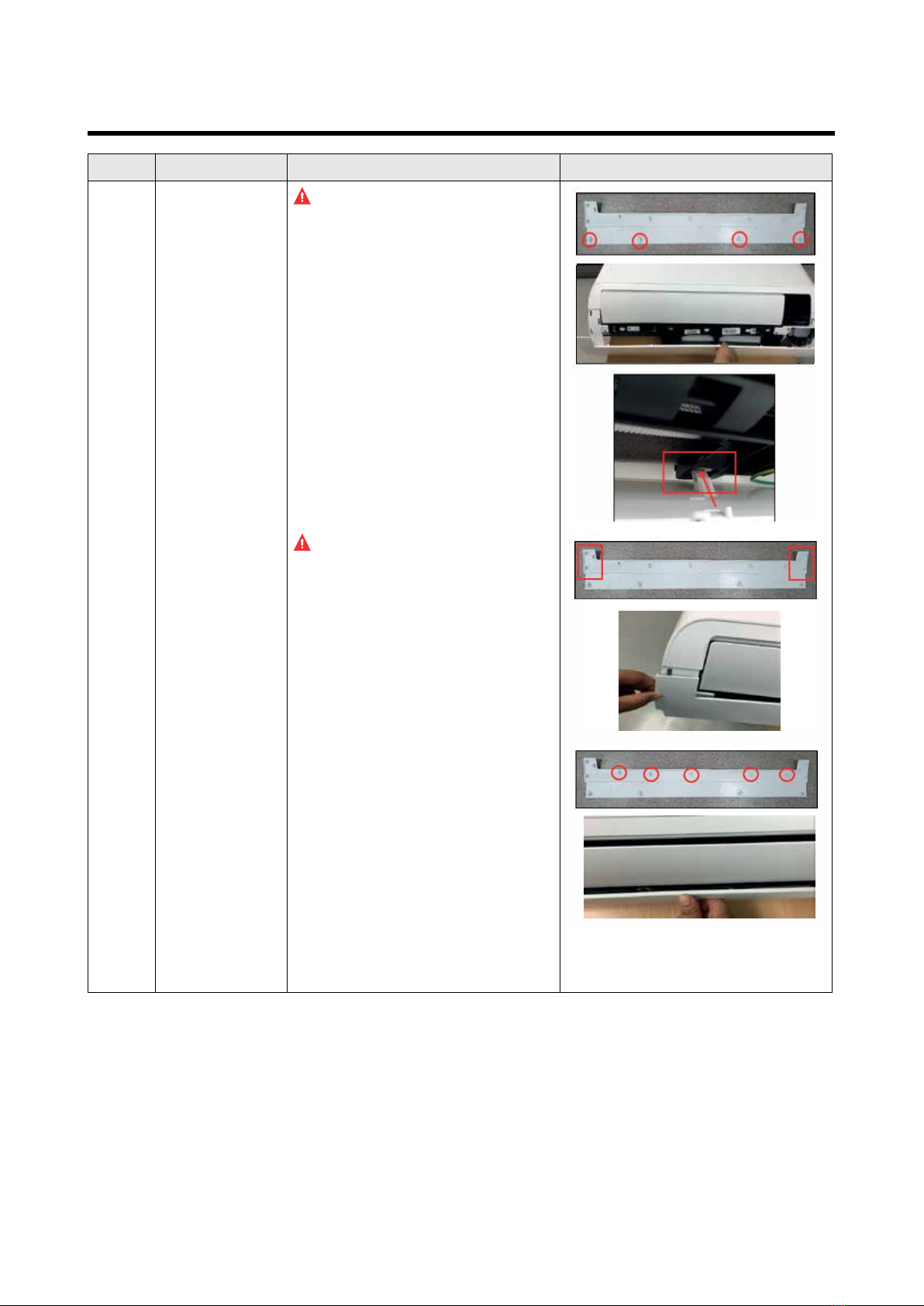

NO. Parts Procedure Remark
1 PANEL-FRONT
Caution:
Assembly of Cover Panel after
service end.
- Piping and Drain Hose must be
caseful not to damage and progress
must be done with both hands.
- Need to check all bottom hooks in
holes of the main frame before you
push to assemble.
Caution:
- Assemble(push) side hooks
- Assemble(push) center 5 hooks
each.

20
NO. Parts Procedure Remark
1 PANEL-FRONT 5)TheGRILLEINLETisxedto
body by hooks in the center and
side area.
6) Separate the hook pulling end
of the GRILLE INLET as shown in
gures.(Watchoutforthedamage
of hooks)
7) To detach the PANEL FRONT
from the main frame, unfasten
2 screws at the bottom. (use (+)
Screw Driver)
8) To detach the PANEL FRONT
from the main frame, loosen 4
hook structures.
When separate the hooks: pull
out each ribs near the hooks as
showningures.(Watchoutfor
the damage of hooks)
