USER’S MANUAL
Duct Type Series
Silhouette duct : AVXDD 
High static pressure duct : AVXDH 
Low static pressure duct : AVXDL 
Air Conditioner
AVXDD_E_24115A-1.indd 15 2006-01-10 ¿ÀÈÄ 3:11:41

E-2
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with separate collection systems)
This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes
at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste
disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of
material resources.
Household users should contact either the retailer where they purchased this product, or their local government office,
for details of where and how they can take this item for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract.
This product should not be mixed with other commercial wastes for disposal.
Contents
 PREPARING YOUR AIR CONDITIONER
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
View of the Indoor Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
 RECOMMENDATIONS FOR USE
Operating Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Temperature and Humidity Ranges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Cleaning Your Air Conditioner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Solving Common Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
AVXDD_E_24115A-1.indd 2 2006-01-06 ¿ÀÀü 11:52:31

E-3
ENGLISH
 Risk of electric shock can cause injury or death. • Disconnect all remote
electric power supplies before servicing, installing or cleaning.
• Installation must be done by the manufacturer or service agent or a similar
qualified person in order to avoid a hazard.
Register your product at www.samsung.com/global/register
WARNING
Safety Precautions
You should take the following safety precautions when using your air conditioner.

Do not install the air
conditioner where there’s
combustible gas.

Do not install the outdoor
unit where there’s the risk of
dropping such as on high
outer wall or outside of the
terrace.

Earth the ground conductor
and do not connect it to the
gas pipe, water pipe or
telephone wire.
WHEN INSTALLING

Contact the service center if the air conditioner
is under water.

Do not pull the electric wire or
touch the power plug with the
wet hands.

Install the switch and circuit
breaker only for
air conditioner.

Use the rated current fuse.
REGARDING POWER SOURCE

Do not bend the electric wire
by force or weigh down the air
conditioner not to be out of
order.

Use the power source with
separate wiring only for air
conditioner.

If the power plug is
damaged, replace it by the
manufacturer or qualified per-
sonal to avoid the risk.
AVXDD_E_24115A-1.indd 3 2006-01-06 ¿ÀÀü 11:52:33

E-4

Do not place any materials so
that children cannot step on it.

Do not connect the electric
heater to the air conditioner
or repair it with your
discretion.
WARNING
DURING OPERATION

Do not place any obstacles in
front of the unit.
Make sure that the unit is
correctly ventilated at all times:
Do not place clothing or other
materials over it.

Do not insert anything
between the air outlet blades
because the inner fan may
be damaged and could cause
injury. Keep children away
from the unit.

If the wireless remote
control is not used for
a long time, remove the
batteries. (If applicable)

Never spill any kind of liquid
into the unit. Should this
happen, unplug or main
switch off the unit and
contact an authorized
service center.

When using a wireless remote
control, the distance should
not be more than
7 meters from the air
conditioner. (If applicable)

Users of this product are
cautioned not to attempt
repair of this product at their
own discretion. Instead, they
are requested to directly
contact a designated service
center or the outlet at which
the product was purchased.
AVXDD_E_24115A-1.indd 4 2006-01-06 ¿ÀÀü 11:52:41

E-5
ENGLISH

Install the air conditioner
avoiding direct sunlight or
heater, especially water.

Install the outdoor unit so as
to let the discharged air out
properly. Avoid a place that
may disturb your neighbor by
noise.

Install the drain hose to let
the water run safely and
correctly.
WHEN INSTALLING

Install the outdoor unit not to reach heat to the
passage or higher than 2m from the ground when
installing it on the road.
WARNING

Before throwing out the
device, it is necessary to pull
back the battery cells and get
rid of them safely for recycling
reasons.

Please recycle or dispose
of the packaging material
for this product in an
environmentally responsible
manner.
DISPOSING THE UNIT

When you need to dispose of
the unit, consult your dealer.
If pipes are removed
incorrectly, refrigerant may
blow out and come into
contact with your skin, causing
injury. Releasing refrigerant
into the atmosphere also
damages the environments.
CAUTION
AVXDD_E_24115A-1.indd 5 2006-01-06 ¿ÀÀü 11:52:42

E-6


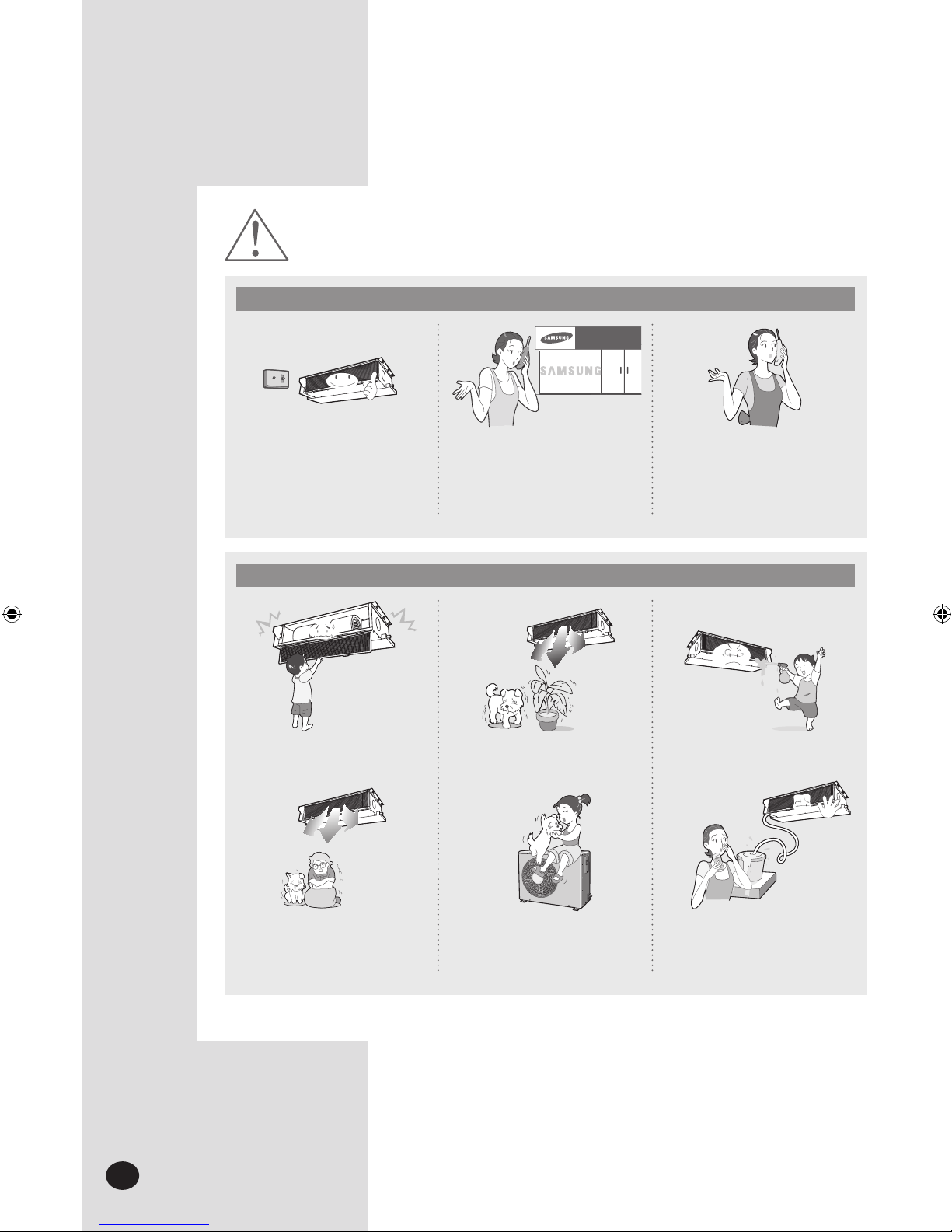

Disconnect the circuit breaker
when you don’t use the air
conditioner for a long time to
save energy.

Contact the service center or
manufacturer if you want to
repair the air conditioner.

Contact the service center
after turning off the air
conditioner if strange noise
is heard, burning smell or
smoke blow.
REGARDING POWER SOURCE

Do not open the front grille
during operation.

Avoid cold and hot air
reaching to person, pet or a
plant directly for a long time.

Avoid the water from
getting into the
air conditioner.
DURING OPERATION

Do not use the air conditioner
for a long time in a closed
room or in a place where
there’s a baby or an old person.

Do not step on the air
conditioner or put heavy
object on it.

Do not drink the water from
the air conditioner.
CAUTION
AVXDD_E_24115A-1.indd 6 2006-01-06 ¿ÀÀü 11:52:46

E-7
ENGLISH

Do not touch the pipes
connected to the air
conditioner.

Do not use the air conditioner
to maintain the machine, food,
pet, plant or cosmetics.

Do not give excessive shock
to the air conditioner.
DURING OPERATION

The appliance is not intended
for use by young children or
infirm persons without
supervision: Young children
should be supervised to
ensure that they do not play
with the appliance.

Max current is measured
according to IEC standard for
safety and current is
measured according to ISO
standard for energy efficiency.
OTHERS

Be sure that the air filter not to
be exposed to direct sunlight.

Do not clean the air conditioner
by spraying water directly or
with benzene, thinner or alcohol.

The surface of the heat
exchanger is sharp, so be
careful of it when cleaning.

Turn off the air conditioner
and if the fan stops to operate,
clean the air conditioner.

Clean the air filter every
2 weeks.

Be sure to insert the air filter.
CAUTION
AVXDD_E_24115A-1.indd 7 2006-01-06 ¿ÀÀü 11:52:49

E-8

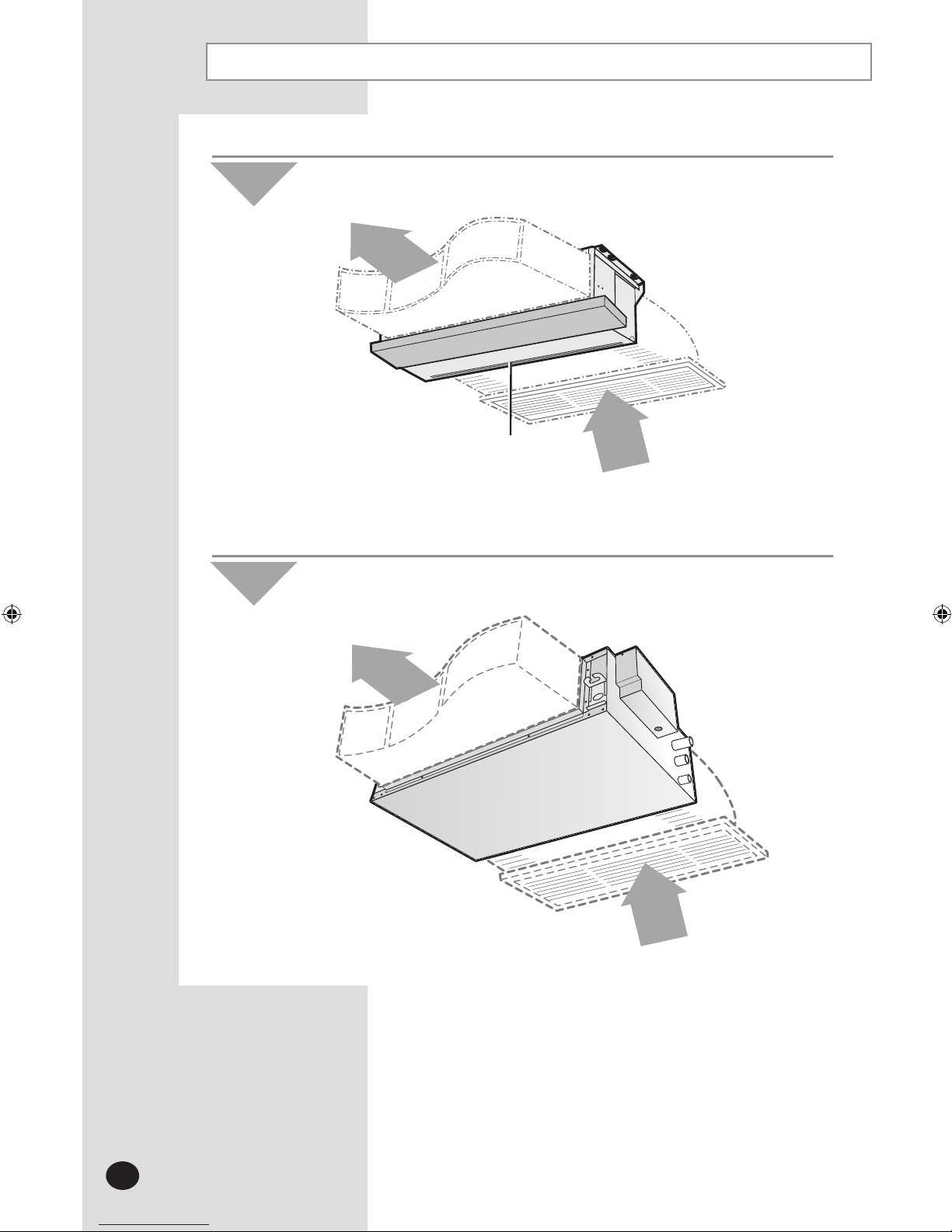

View of the Indoor Unit
The figures are shown in this instruction may differ from yours depending on the model.
Indoor Unit
AVXDH/AVXDL
Air
outlet
Air
inlet
Indoor Unit
AVXDD
Air
outlet
Air
inlet
Air filter
AVXDD_E_24115A-1.indd 8 2006-01-06 ¿ÀÀü 11:52:50

E-9
ENGLISH
Temperature and Humidity Ranges
Here are a few recommendations that you should follow when operating your air conditioner.
The following table indicates the temperature and humidity ranges, within which the air conditioner can
be used.
If the air conditioner is used at... Then...
High temperature
The automatic protection feature may be triggered and the air
conditioner stopped.
Low temperature A water leakage or some other malfunction may happen if the heat
exchanger freezes.
High humidity levels Water may condense on and drip from the surface of the indoor unit if
it is used for a long periods.
 The standardized temperature for heating is 7°C. If the outdoor temperature drops to 0°C or below,
the heating capacity can be reduced depending on the temperature condition.
If the cooling operation is used at over 32°C(indoor temperature), it does not cool at its full capacity.
Mode Outdoor Temperature Indoor Temperature Indoor Humidity
Heating -20°C to 24°C approx. 27°C or less -
Cooling - 5°C to 43°C approx. 21°C to 32°C approx. 80% or less
Drying - 5°C to 43°C approx. 18°C to 32°C approx. -
Topic Recommendation
Heating
performances
The heat pump function of the air conditioner absorbs heat from outside air and brings it
indoors. As the temperature of the outside
air drops, the heating performance of air conditioner
will decrease. If you find that the room is not warm enough, using an additional heating
appliance is recommended.
Frost & Defrost When outside temperature is low but humidity is high,
frost may form on the outdoor unit at HEAT mode.
If this happens:
The heating operation stops.
The defrost mode will be triggered automatically for about 10 minutes.
The steam produced on the outdoor unit in the defrost mode is safe.
No intervention is required ; after about 10 minutes, the air conditioner operates
again normally.
High indoor
and outdoor
temperatures
If both indoor and outdoor temperatures are high and the air conditioner is running at
HEAT mode, the outdoor unit’s fan and compressor may stop at times.
This is normal ; simply wait until the air conditioner switches on again.
Power failure
If a power failure occurs while the air conditioner is operating, the unit will be switched off.
When the power returns, the air conditioner starts up again
automatically.
Operating Recommendations
AVXDD_E_24115A-1.indd 9 2006-01-10 ¿ÀÈÄ 3:12:11

E-10

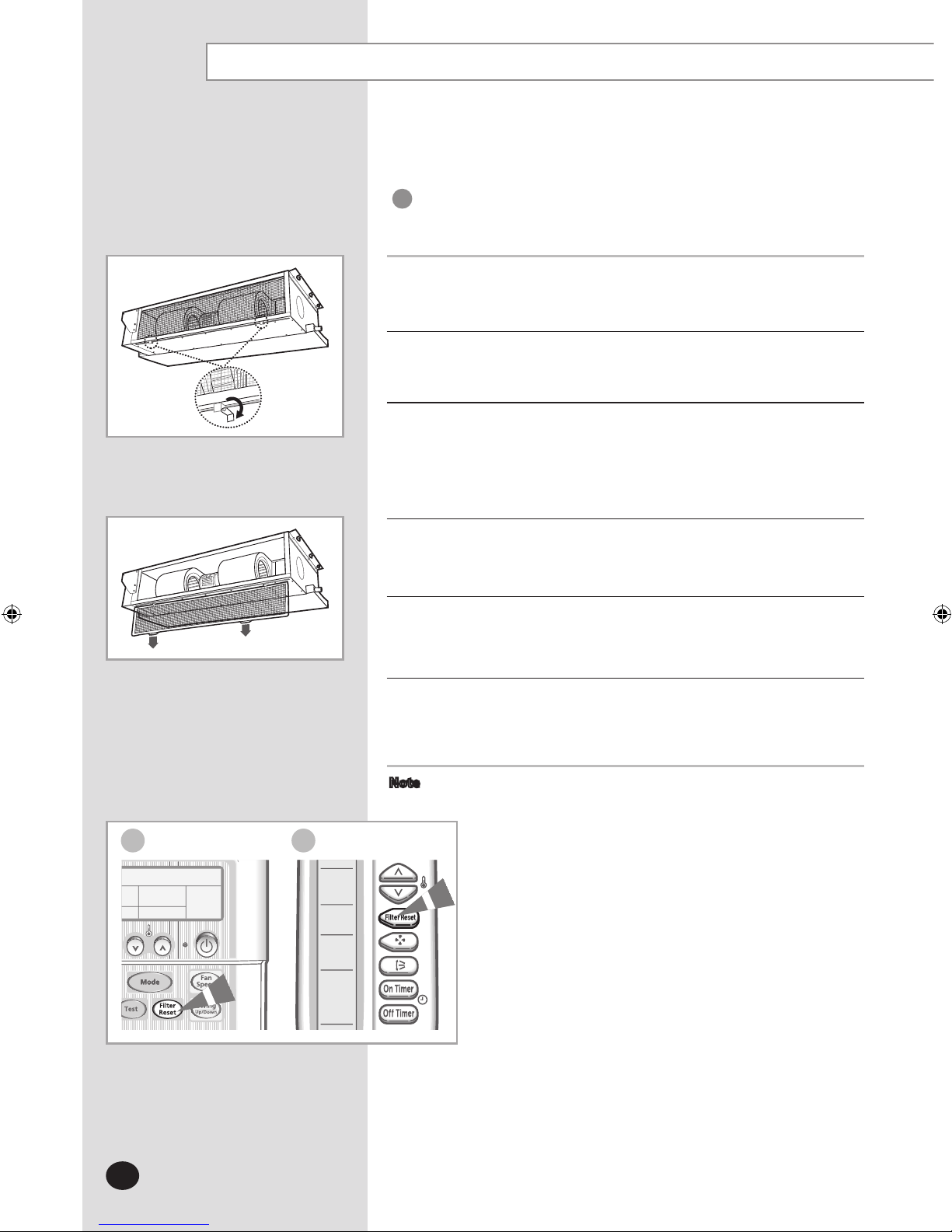

Cleaning Your Air Conditioner
To get the best possible use out of your air conditioner, you must clean it
regularly to remove the dust that accumulates on the air filter.
IMPORTANT Before cleaning your air conditioner, ensure that you have
switched off the electric circuit breaker used for the unit.
AVXDD
1Turn the levers to the right or left not to prevent pulling out the air filter.
2Pull out the air filter.
3Remove all dust on air filter with a vacuum cleaner or a brush. In case of
serious dust accumulation, put the air filter in warm detergent water and
shake it vertically.
4After washing, allow them to dry throughly in an area protected from
sunlight.
5When you have finished, insert the filter into the unit.
6Return the levers.
Note After cleaning the air conditioner, press the Filter Reset button.
Wireless Remote ControllerWired Remote Controller
AVXDD_E_24115A-1.indd 10 2006-01-06 ¿ÀÀü 11:52:51

E-11
ENGLISH
Cleaning Your Air Conditioner
Wireless Remote ControllerWired Remote Controller
AVXDH/AVXDL
1Remove the fixing bracket on the base of air filter kit.
2Pull out the air filter in the direction of the arrow.
3Remove all dust on air filter with a vacuum cleaner or a brush.
In case of serious dust accumulation, put the air filter in warm
detergent water and shake it vertically.
4After washing, allow them to dry throughly in an area protected from
sunlight.
5When you have finished, insert the filter into the unit.
6Reinstall the fixing bracket.
Note After cleaning the air conditioner, press the Filter Reset button.
AVXDD_E_24115A-1.indd 11 2006-01-06 ¿ÀÀü 11:52:52

E-12
Solving Common Problems
Before contacting the after-sales service, perform the following simple checks.
They may save you the time and expense of an unnecessary call.
Problem Explanation/Solution
The air conditioner does not
operate at all.
 Check if power is on and operate the air conditioner again.
 Check if the circuit breaker is switched off.
 Check if Off Timer is set.
The temperature is not adjusted.  Check if you selected the Fan mode.
The air conditioner does not operate
in the heat mode.
 Check if the air conditioner is cooling only model.
 Check if the remote control is for cooling only model.
The cool(warm) air does not come
out from the air conditioner.
 Check if set temperature higher(lower) than current temperature.
 Check if you selected the Fan mode. Select the Cool, Heat, Auto or Dry
mode.
 Check if the air filter is blocked by dirt. Clean the air filter regularly.
 Ch eck if the there is cover on the outdoor unit or any obstacle.
Remove the cover or obstacle.
 Check if you installed the air conditioner under direct sunlight.
 The window or door may be opened.
 Check if you turn on the air conditioner just now.
It takes about 3 minutes
to cool or heat the room.
 Check if the refrigerant pipe is too long.
The fan speed is not adjusted.  In Auto or Dry mode, the fan speed is selected automatically.
The remote control does
not operate.
 Check if the battery is discharged. Replace the battery.
 Check if the remote control sensor is blocked.
 Check if the air conditioner is placed near strong light.
The wired remote control
does not operate.
 Check if is displayed on the wired remote control. Turn off the air
conditioner and switch off the circuit breaker. Contact the service center.
The Timer is not set.  Check if you pressed the button after selecting time.
The air conditioner does not turn on
or off with the wired remote control.
 Check if you set the wired remote control for group control.
Odor is permeated in the
room during operation
 Check if you use the air conditioner in smoky area or there is a smell.
Ventilate the room or select the Fan mode for 1~2 hours.
The indoor unit indicator
flashes.
 Press the button to turn on the air conditioner again.
Switch the circuit breaker off and switch on it again.
Strange sound is heard from
the air conditioner.
 The sound is heard when the refrigerant gas flow is changed depending
on the use of the air conditioner.
 When you press the button, noise may be heard from the drain
pump inside of the air conditioner.
 When you press the button, noise may be heard that the
air conditioner sense the airflow blade.
Water drops from the outdoor
unit connection part.
 Water may form due to the difference of the temperature.
AVXDD_E_24115A-1.indd 12 2006-01-06 ¿ÀÀü 11:52:53

E-13
ENGLISH

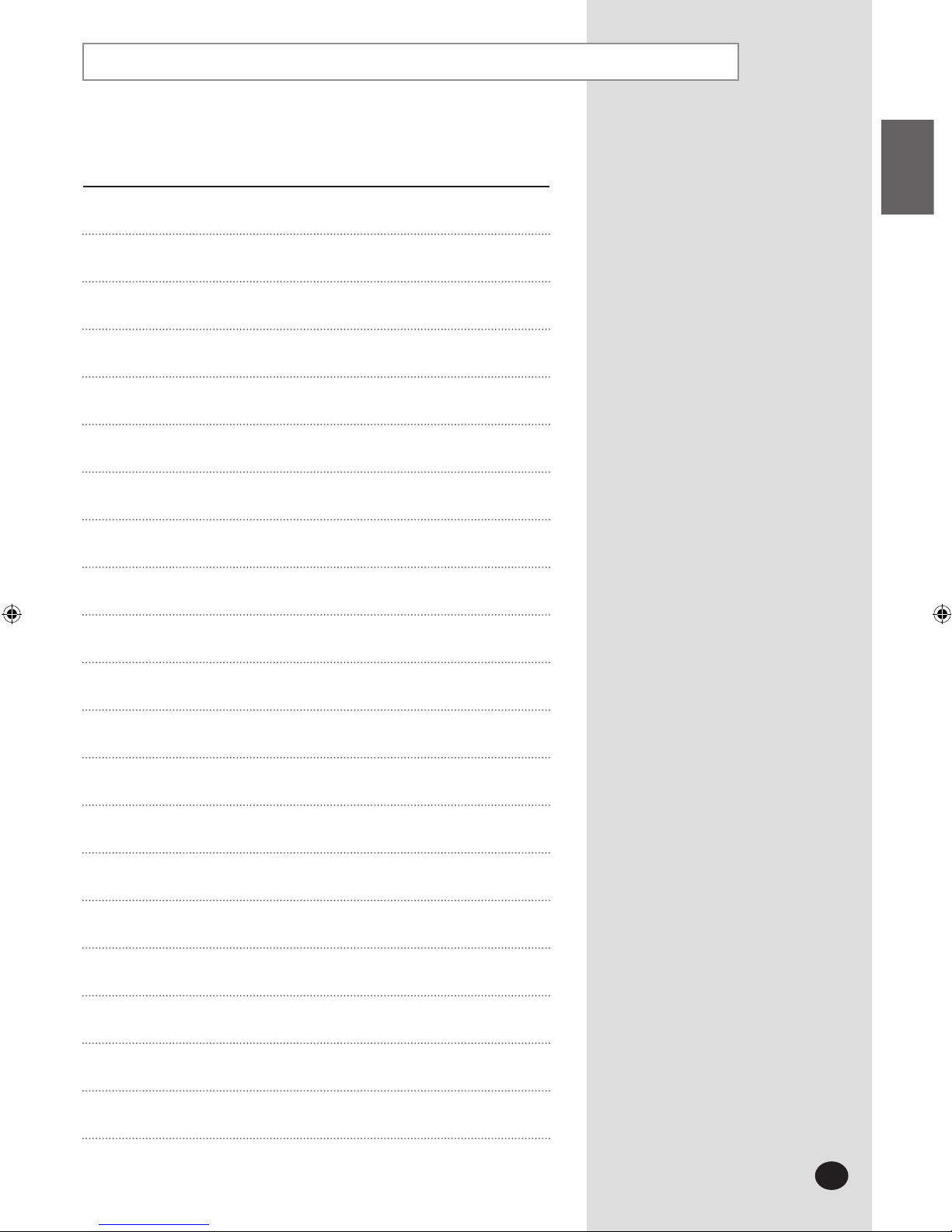

Memo
AVXDD_E_24115A-1.indd 13 2006-01-06 ¿ÀÀü 11:52:53

Printed in Korea
Country Customer Care Center Web Site
BELGIUM 02 201 2418 www.samsung.com/be
CZECH REPUBLIC 844 000 844 www.samsung.com/cz
DENMARK 38 322 887 www.samsung.com/dk
FINLAND 09 693 79 554 www.samsung.com/fi
FRANCE 08 25 08 65 65 (0,15 /min) www.samsung.com/fr
GERMANY 01805 - 121213 ( 0,12/min) www.samsung.de
HUNGARY 06 40 985 985 www.samsung.com/hu
ITALIA 199 153 153 www.samsung.com/it
LUXEMBURG 02 261 03 710 www.samsung.lu
NETHERLANDS 0900 20 200 88 ( 0.10/min) www.samsung.com/nl
NORWAY 231 627 22 www.samsung.com/no
POLAND 0 801 801 881 www.samsung.com/pl
PORTUGAL 80 8 200 128 www.samsung.com/pt
SLOVAKIA 0850 123 989 www.samsung.com/sk
SPAIN 902 10 11 30 www.samsung.com/es
SWEDEN 08 585 367 87 www.samsung.com/se
U.K 0870 242 0303 www.samsung.com/uk
Contact SAMSUNG WORLD WIDE
If you have any comments or questions regarding a Samsung products, contact the SAMSUNG customer care center.
AVXDB_E_24489A-1.indd 14 2006-01-13 ｿﾀﾈﾄ 3:53:23
