Samsung AW07PHHBA/BB User manual

DB98-20384A(6)
E S F P
I
OWNER'S INSTRUCTIONS
MANUAL DE INSTRUCCIONES
MANUEL D'UTILISATION
MANUAL DE INSTRUÇÕES
ISTRUZIONI PER L'USO
ENGLISH
ESPAÑOL
FRANÇAIS
PORTUGUÊS
ITALIANO
Window-type Room Air Conditioner (Cool)
Acondicionador de airea doméstico sistema de tipo ventana (Reirigeración)
Climatiseur de type Fenêtre (Refroidissement)
O ar Condicionado de Window-Type (Refrigeracçã)
Condizionatore d'aria per ambienti da finestra (Raffreddamento)
AW12PHHAA/AB
AW12PHHBA/BB
AW12PHHDA/DB
AW12PH(K)HEA/EB
AWT12PHHBA/BB
AWT12PHHEA/EB
AW09PHHBA/BB
AW09PHHDA/DB
AW09PH(K)HEA/EB AW24PHHBA/BB/BC/BD
AW24PH(K)HEA/EB
AW14PHHBA/BB
AW18PH(K)HEA/EB
AW18PHHBA/BB AWT18PH(K)HEA/EB/EC
AW07PHHBA/BB
AW07PH(K)HEA/EB
AW09PHHAA/AB
AWT24PH(K)HEA/EB/EC/ED

E-2
Safety Precautions
The following safety precautions must be taken when using your air conditioner.
Users of this product are cautioned not to attempt repair of this product at their
own discretion. Instead, they are requested to directly contact a designated
service center or the outlet at which the product was purchased.
Never spill any kind of liquid into the unit. Should this happen, unplug or main
switch off the unit and contact an authorized service center.
Do not insert anything between the air outlet blades because the inner fan may
be damaged and could cause injury. Keep children away from the unit.
Do not place any obstacles in front of the unit.
Do not spray liquid of any kind into the indoor unit. Should this happen, switch off
the breaker used for your air conditioner and contact your installation specialist.
Make sure that the unit is correctly ventilated at all times:
Do not place clothing or other materials over it.
If the wireless remote control will not be used for a long time, remove the
batteries. (If applicable)
When using a wireless remote control, the distance should not be more than 7
meters from the air conditioner. (If applicable)
WARNING
DURING OPERATION
Risk of electric shock. • Can cause injury or death. • Disconnect all
remote electric power supplies before servicing, installing or cleaning.
• This must be done by the manufacturer or its service agent or a similar
qualified person in order to avoid a hazard.
The air conditioner must be plugged into its own specific power source, which
must be installed in compliance with national wiring,earthing and safety
regulations.
If the power cord is damaged in any way, it must be replaced by the manufacturer
or its service agent or a similarly qualified person in order to avoid a hazard.
This device must be installed according to the national electrical rules.
The appliance must be installation that the plug should be easily accessible
after installation.
If the fuse on PC board is broken please change it with the type of T 3.15A 250V.
The breaker of the air conditioner should be all-pole switch; and the distance
between its two contacts should be no less than 3.5mm. Such means for
disconnection must be incorporation in the fixed wiring.
Never store or ship the air conditioner upside down or sideways to avoid damage
to the compressor.
The appliance is not intended for use by young children or infirm persons without
supervision: Young children should be supervised to ensure that they do not play
with the appliance.
Max current is measured according to IEC standard for safety and current is
measured according to ISO standard for energy efficiency.
OTHERS
Before throwing out the device, it is necessary to pull back the battery cells and
get rid of them safely for recycling reasons.
When you need to dispose of the unit, consult your dealer. If pipes are removed
incorrectly, refrigerant may blow out and come into contact with your skin,causing
injury. Releasing refrigerant into the atmosphere also damages the environments.
Please recycle or dispose of the packaging material for this product in an
environmentally responsible manner.
D ISPOSING OF THE UNIT
Register your product at www.samsung.com/global/register

E-3
Contents
PREPARING YOUR AIR CONDITIONER
Safety Precautions
Air Conditioning Unit-Main Parts, Buttons and Display
Remote Control-Buttons
Getting Started
Inserting the Remote Control Batteries
Cooling Your Room
Airing Your Room

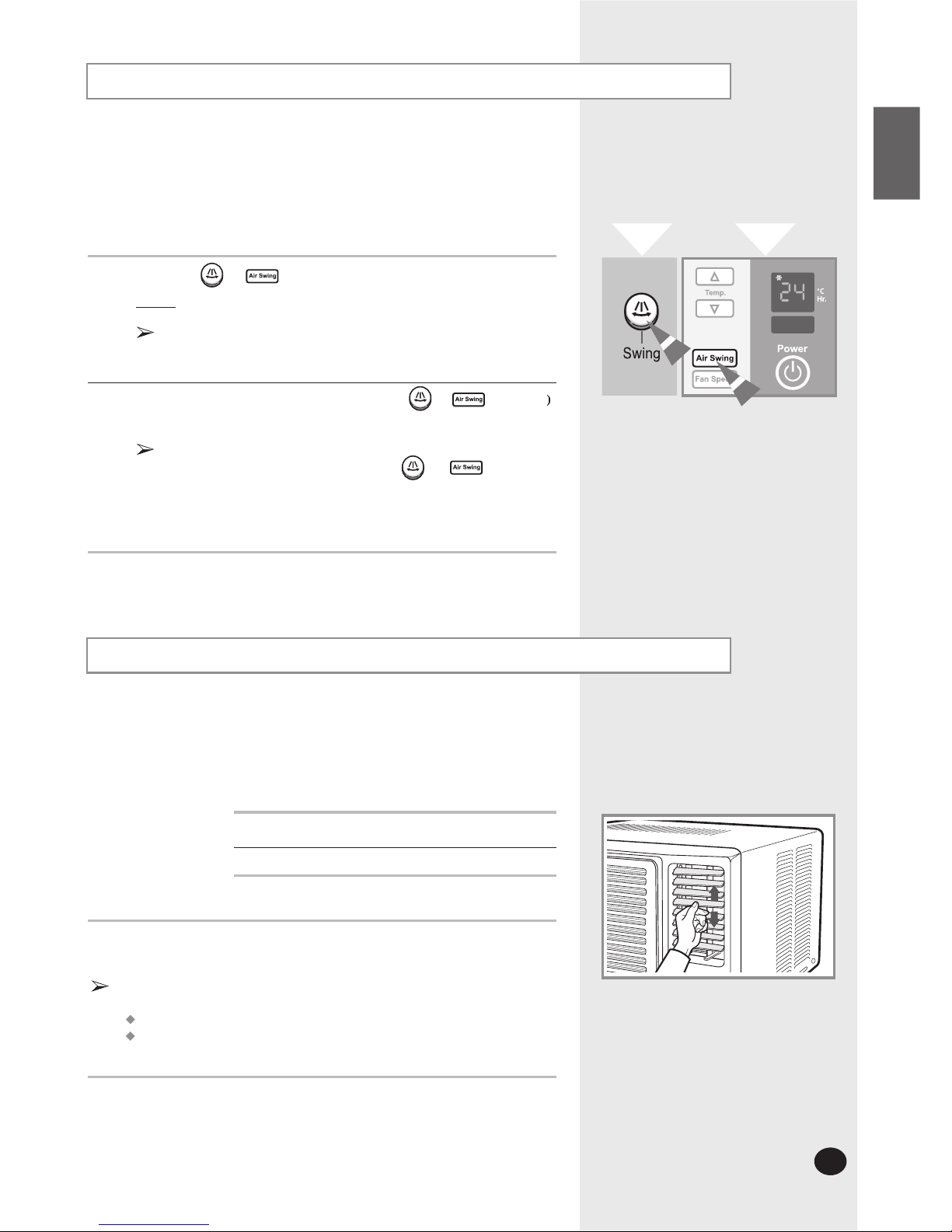

Adjusting the Air Flow Direction Horizontally
Adjusting thr Air Flow Direction Vertically
OPERATING YOUR AIR CONDITIONER
Setting the On Timer

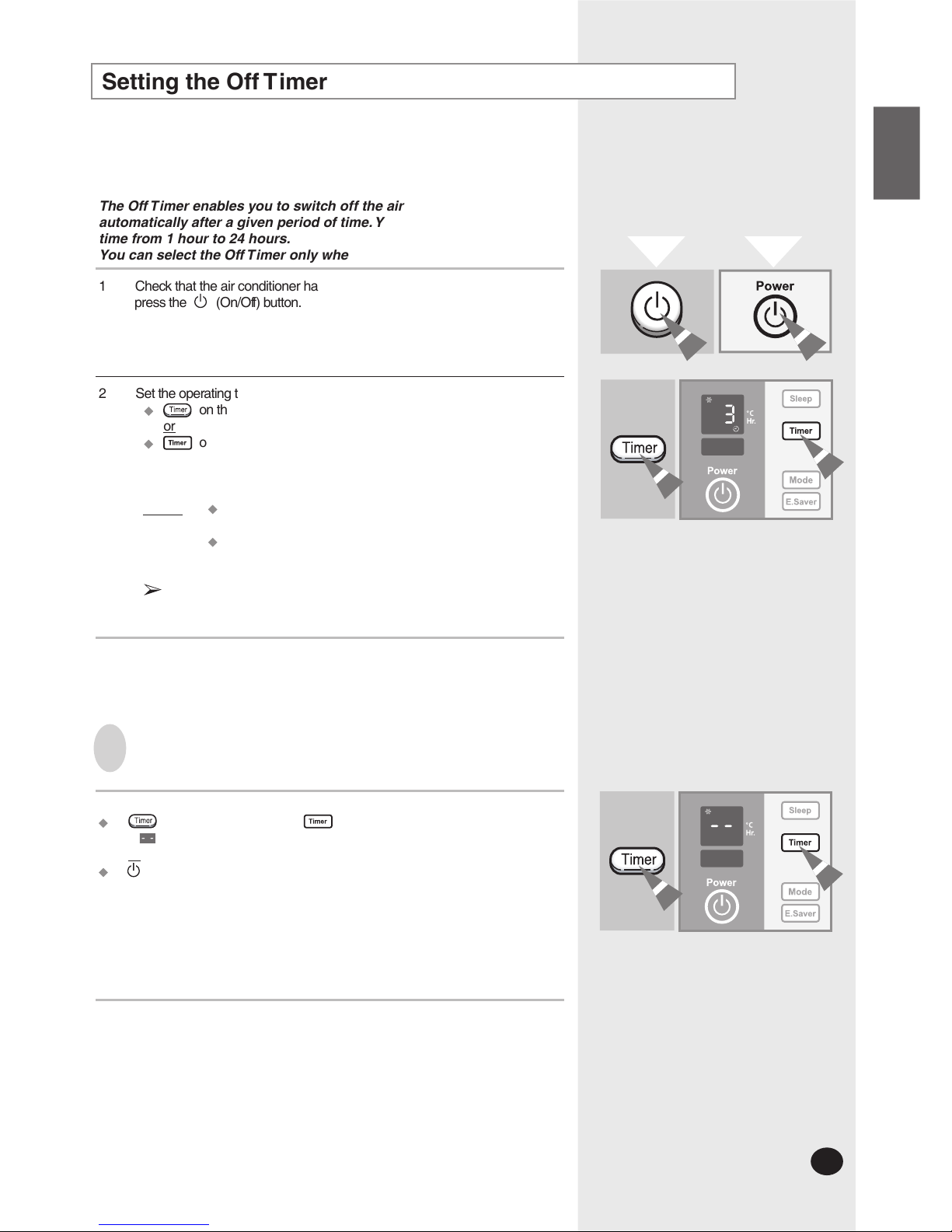

Setting the Off Timer
Setting the Sleep Timer

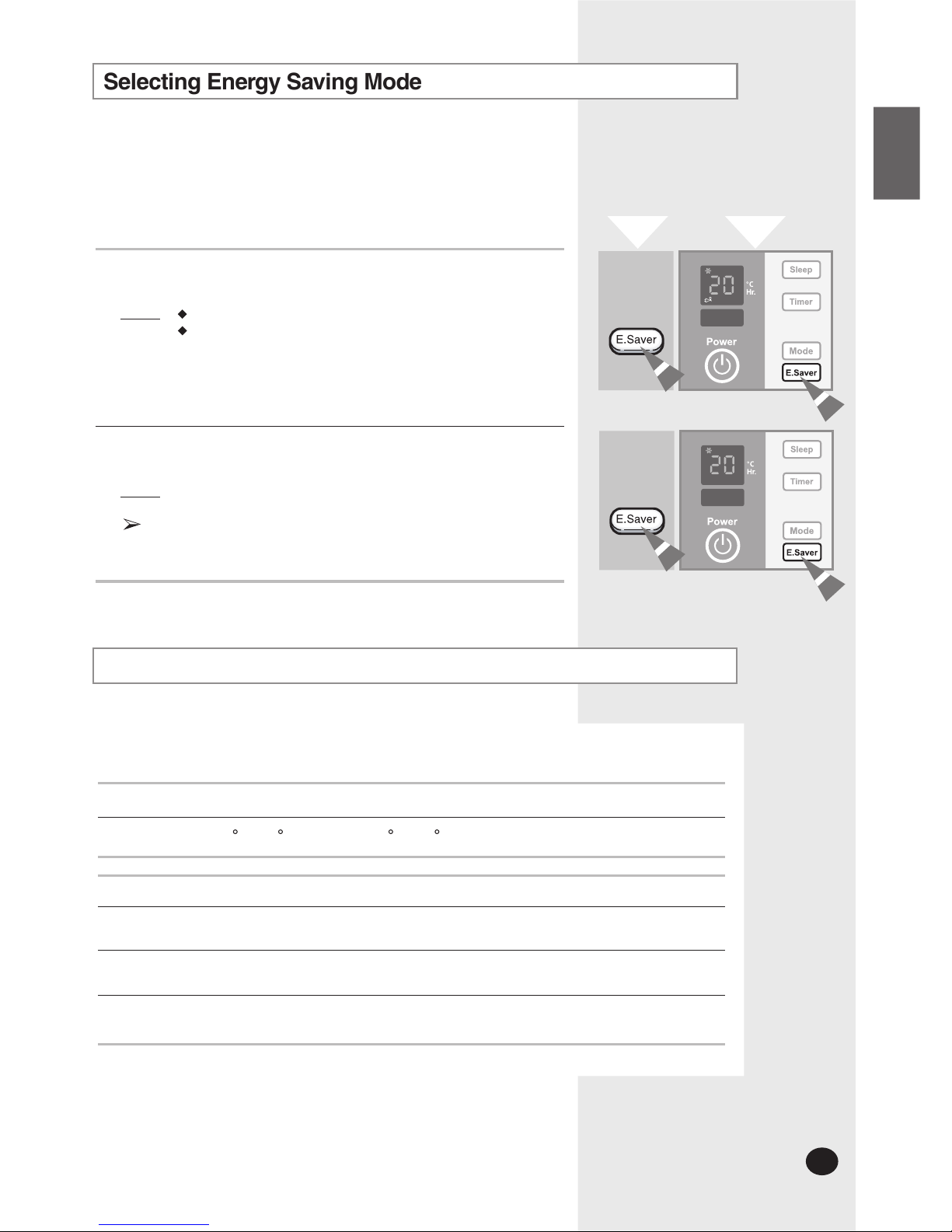

Selecting Energy saving mode
PROGRAMMING YOUR AIR CONDITIONER
Temperature and Humidity Ranges
Cleaning Your Air Conditioner
Solving Common Problems
Technical Specifications
RECOMMENDATIONS FOR USE
INSTALLSTION
2
4
5
6
7
8
9
11
11
12
13
14
15
15
16
17
18
19
HSILGNE
CC
CCAA AAUU UUTT TTII IIOO OONN NN
"The high inrush current of the starting compressor motor can have adverse effects to
the operation of other equipment under unfavorable mains conditions. This equipment
does not comply with the relevant technical standards for the limitation of voltage
fluctuations and flicker."
Before connection this equipment to the power supply system, please report to your
suply authority and obtain the consent.
Do not connect other electric appliances to the same supply lines.
The maximum permissible system impedance at the power junction box is 0.24 ohms.
Usually, the maximum permissible mains impedance will not be exceeded when the
branch to the power outlet is fed from a junction box with a rated current of 32A.
AW18 **
Removing Excess Humidity ............................................................................ 10

E-4

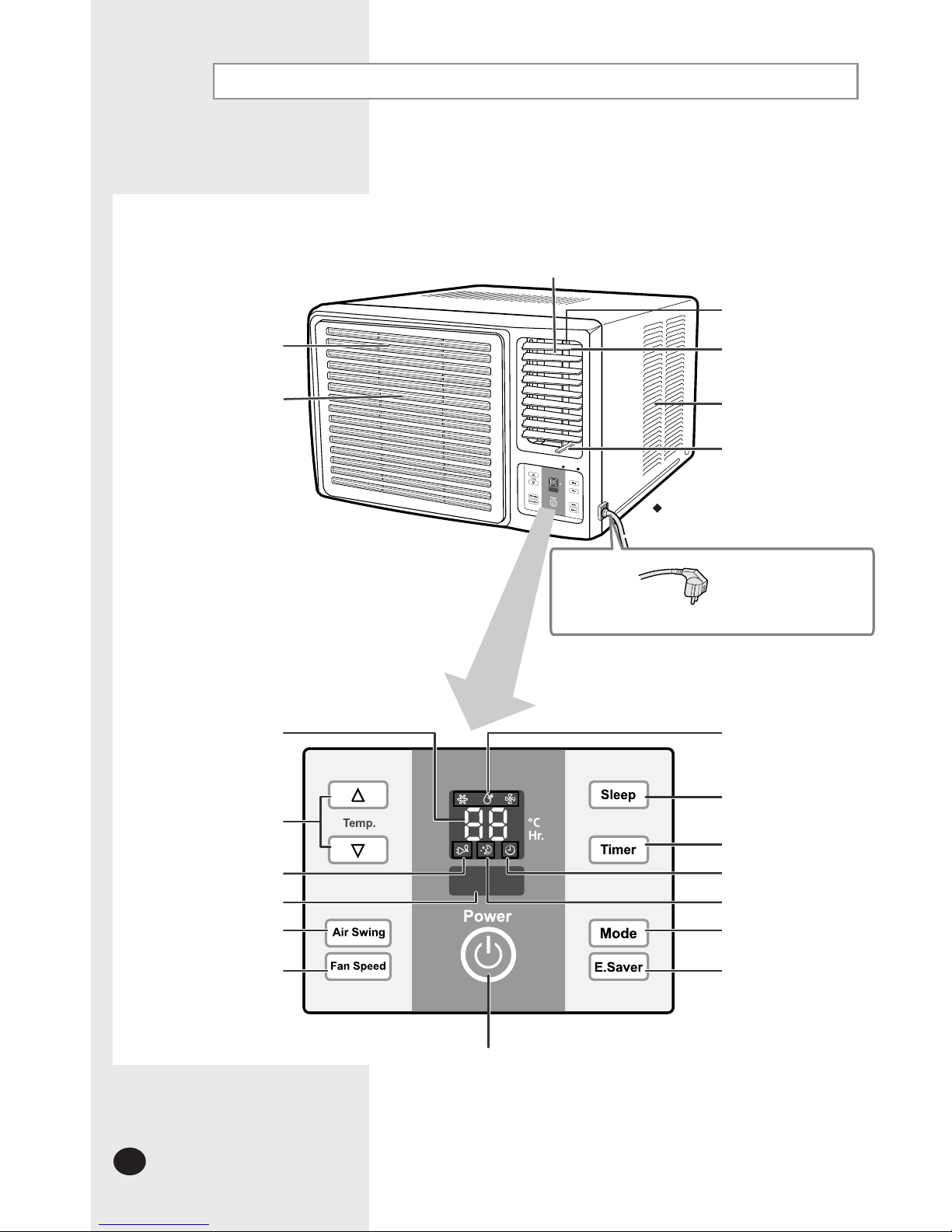

Air Conditioning Unit - Main Parts, Buttons and Display
The design and shape are subject to
change according to the model.
Air inlet (Inside)
Ventilation lever
Air inlet (Outside)
Outer air flow blades
(up/down orientation)
Inner air flow blades
(right/left orientation)
Temperature/
Timer settings
Temperature adjustment
buttons
Energy Saver indicator
Remote Control sensor
Air flow blade
swing button
Fan speed adjustment
button
On/Off button
Operating mode indicators
(COOL, DRY,FAN)
Sleep timer setting button
Timer setting button
Timer indicator
Sleep indicator
Energy Saver button
Operating mode selection
button (COOL,DRY, FAN)
Power plug
The type of the power plug
may differ according to the
type of local power supply.
The power plug may be not supplied
depending on the model.
The air filter is
located in side
Air Outlet

E-5

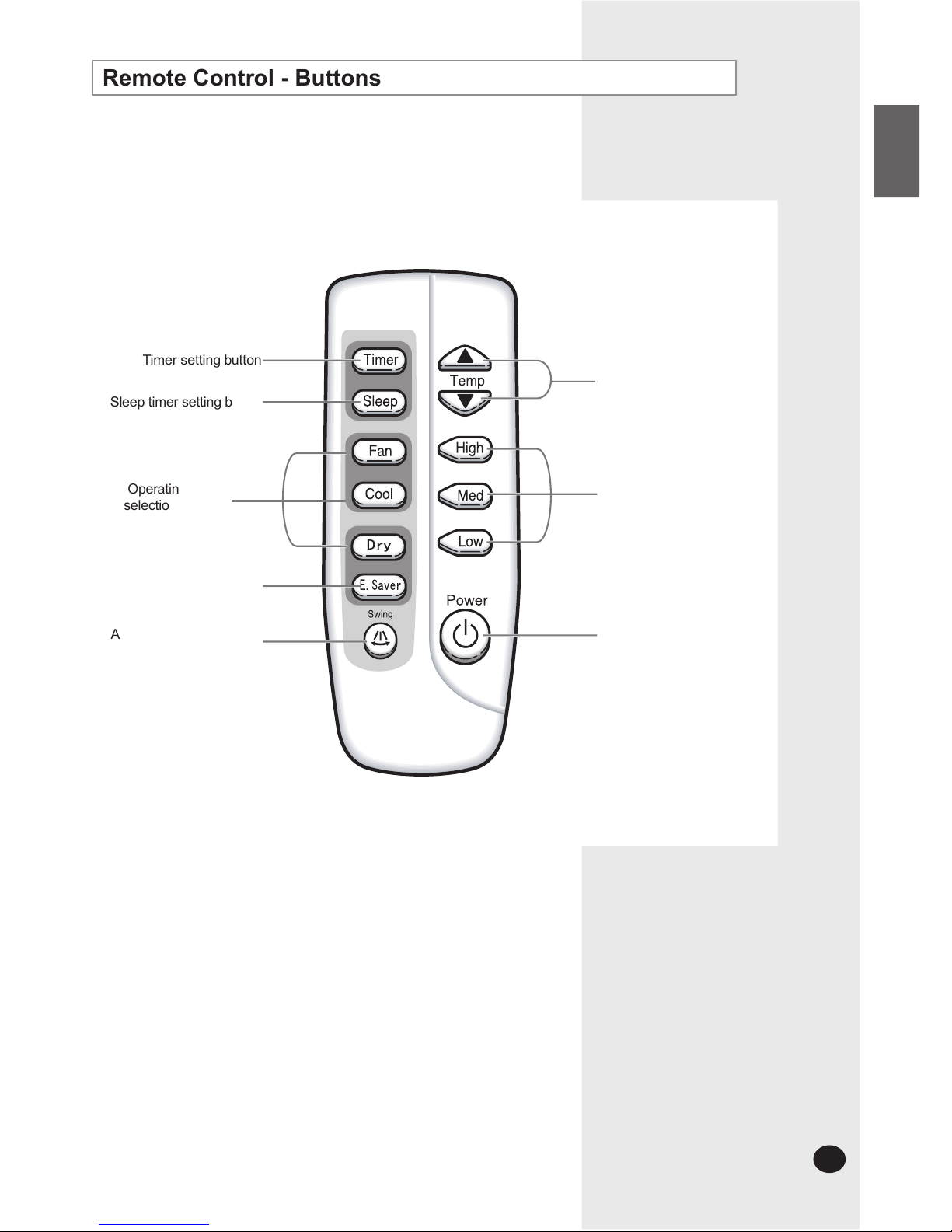

Remote Control - Buttons
Timer setting button
Sleep timer setting button
Operating mode
selection buttons
Air flow blade swing button
Energy Saver button
Temperature adjustment
buttons
Fan speed adjustment
buttons
On/Off button
HSILGNE

E-6
Gray background.
Example:
White background.
Example:
Getting Started
You have just purchased a window-type room air conditioner and it has been installed by your
installation specialist.
Your Owenr's Instructions contain valuable information on using your air conditioner.
Please take the time to read them as they will help you take full advantage of the unit's functions.
This Owner's Instructions is just for using your air conditioner correctly.
Thus, the illustrations shown in this manual may not exactly match your air conditioners.
The booklet is organized as follows.
The following figures are shown on pages 4 and 5:
Air conditioning unit (main parts, buttons and display)
Remote control (buttons)
They will help you find the buttons and understand the symbols displayed.
In the manual, you will find a series of step-by-step procedures for each function available.
The illustrations in the step-by-step procedures use four different symbols:
Moreover,applicable, wherever the illustrations show the positions of the buttons on both the
remote control and the unit itself.
For the... The illustrations have a...
Remote control
Unit itself

E-7
Inserting the Remote Control Batteries
You must insert or replace the remote control batteries when:
You purchase the air conditioner
The remote control does not work correctly
Use two AAA, LR03 1.5V batteries. Do not use old
batteries or different kinds of batteries together.
Batteries may be completely discharged after 12 months,
even if they have not actually been used.
1 Push the battery cover on the rear of the remote control with your thumb in
the direction of the arrow and remove it.
2 Insert the two batteries,taking care to respect the polarities:
+ on the battery with + on the remote control
- on the battery with - on the remote control
3 Close the cover by sliding it back unitl it clicks into place.
You can control all the functions your air conditioning unit
directly from your seat, using the remote control.
Result:
ENGLISH

3 To adjust the temperature, press the or button on the remote
control one or more times until the required temperature is displayed.
To adjust the temperature, press the or button on the unit one
or more times until the required temperature is displayed.
Possible temperatures are between 18 C and 30 C inclusive.
Each time you press the temperaure bottons:
The temperature is adjusted by 1 C and
displayed on the control panel
The unit beeps
The air conditioner starts cooling if the room temperature is
higher than the selected temperature.
E-8
Cooling Your Room
Remote Control Control Panel
Dry
You must select the Cool mode if you wish to lower the temperature in your
room.Y ou can also set the fan speed.
1 If necessary, press the (On/Off )button.
The air conditioner starts up in the Cool mode.
The unit beeps twice.
Result:
Result:
The air conditioner is fitted with a protection mechanism to prevent
the unit from being damaged when it is started immediately after
being:
Plugged in
Stopped
It will start to cool after about three minutes.
2 If the COOL indicator is not lit up on the unit:
Press the button on the remote control
or
Press the button on the unit one or more times until the COOL
indicator lights up
The unit beeps each time you press the / button.
The air conditioner starts up in Cool mode.
You can change modes at any time.
Result:
4 To set the fan speed to... Then...
Press the , or button on the remote control as desired.
or
Press the button on the unit one or more times until the the
desired fan speed(F1, F2, or F3) is displayed.
:
:
:
Low Speed
Med Speed
High Speed
5 To control the direction of the air flow, refer to page 11.

E-9
AiringYour Room
Remote Control Control Panel
If the atmosphere in your room is stale, you can air it using the Fan
feature and if necessary, evacuate the stale air outside.
1 If you wish to evacuate stale air outside, push the ventilation lever on the
front of the unit to the right and the open position ( ).
The air inside the room circulates and stale air is evacuated
outside.
Result:
Result:
Otherwise, push the ventilation lever to the left and the closed
position ( ).
The air simply circulates inside the room.
2 If necessary, press the (On/Off) button.
The air conditioner starts up in the Cool mode.
The unit beeps twice.
Result:
3 If the FAN indicator is not lit up on the unit:
Press the button on the remote control
or
Press the button on the unit one or more times until the
FAN indicator lights up.
The unit beeps each time you press the / button.
The air conditioner starts up in Fan mode.
4 To set the fan speed to... Then...
Press the , or button on the remote control as desired.
or
Press the button on the unit one or more times until the the
desired fan speed(F1, F2, or F3) is displayed.
:
:
:
Low Speed
Med Speed
High Speed
5 To control the direction of the air flow, refer to page 11.
You can change modes at any time.
When the air conditioner is in the Fan mode, the temperature
is not displayed; in this case, you do not need to set the
temperature.
Result:
ENGLISH

E- 10
Removing Excess Humidity
If the atmosphere in your room is very humid or damp, you can remove
excess humidity without lowering the room temperature too much.
1If necessary, press the (On/Off) button.
Result: The air conditioner starts up in the Cool mode.
The unit beeps.
The air conditioner is fitted with a protection mechanism to pre-
vent the unit from being damaged when it is started immediately
after being:
Plugged in
Stopped
It will start up normally after three minutes.
2If the humiduty indicator
is not displayed at the top of the control panel, press
the button on the control panel one or more times until it
appears.
Result:
The unit beeps each time you press the button.
The air conditioner runs in Dry mode.
You can change modes at any time.
3To adjust the temperature, press the or buttons one or
more times until the required temperature is displayed.
Possible temperatures are between
18 °C and 30 ° C inclusive.
Result: Each time you press the
or buttons:
- The temperature is adjusted by 1 ° C
- The unit beeps
The air conditioner starts removing the excess humidity;
the quality of air is adjusted automatically.
4To control the direction of the air flow, refer to page 11.
Remote Control Control Panel
Dry

E- 11
Adjusting the Air Flow Direction Horizontally
Adjusting the Air Flow Direction Vertically
Remote Control Control Panel
Depending on the position of the unit in your room, you can adjust the
orientation of the inner air flow blades on the right-hand side of the
unit, thus increasing the efficiency of the air conditioner.
1 Press the (or on the unit) button on the remote control.
The inner blades swing automatically left and right.
Result:
In the Energy Saving mode, the blades may stop when the
compressor is off. For details on the Energy Saving mode,
refer to page 15.
2 To stop the blades moving left and right, press the (or on the unit
button in the remote control.
To stop the blades in a specific position and orient the air flow in the
corresponding direction, simply press the (or on the unit)
button on the remote control when the blades are in the desired position.
Again depending on the position of the unit in your room, you can
adjust the orientation of the outer air flow blades on the right-hand
side of the unit.
RECOMMENDATION When... Adjust the blades to face...
Cooling Upwards.
Adjust the air flow blades to the desired position, by pushing them upwards or
downwards.
If you orient the air flow blades downwards and the unit operates in Cool mode
for a long period of time, dew may:
From on the surface of the blades
Drip from the blades
HSILGNE

E- 12
Setting the On Timer
Remote Control Control Panel
The On Timer enables you to switch on the air conditioner automatically after
a given period time.You can set the period of time from 1 hour to 24 hours.
You can select the On Timer only when the air conditioner is off.
1 Check that the air conditioner has been switched off; if necessary,
press the (On/Off) button.
2 Set the operating time by pressing:
on the remote control.
or
on the unit one or more times.
Possible time is between 1 hour and 24 hours inclusive.
Result:The remaining time is displayed and decreased by 1 hour
automatically to indicate the remaining time.
The air conditioner switches on automatically when the
operating time reaches zero.
You can change the fan speed and others after setting the On Timer.
To Cancel the On Timer
To cancel the On Timer, press:
on the remote control or on the unit one or more times until
" " is displayed.
or
(On/Off) button on the remote control or unit.

E- 13
Setting the Off Timer
Remote Control Control Panel
The Off Timer enables you to switch off the air conditioner
automatically after a given period of time. Y ou can set the period of
time from 1 hour to 24 hours.
You can select the Off Timer only when the air conditioner is on.
1 Check that the air conditioner has been switched on; if necessary,
press the (On/Off) button.
2 Set the operating time by pressing:
on the remote control.
or
on the unit one or more times.
Possible times is between 1 hour and 24 hours inclusive.
Result:The remaining time is displayed and decreased by 1 hour
automatically to indicate the remaining time.
The air conditioner switches off automatically when the
operating time reaches zero.
You can change the fan speed and air flow direction and others
after setting the Off Timer.
To Cancel the Off Timer
To cancel the Off Timer, press:
on the remote control or on the unit one or more times until
" " is displayed.
or
on the remote control or unit.
HSILGNE

E- 14
Setting the Sleep Timer
Remote Control Control Panel
The Sleep Timer can be used when you are cooling your room to
switch the air conditioner off automatically after a period of 8 hours.
If you wish to switch the unit off at a specific time, refer to page 12.
1 Make sure that you have selected only COOL mode.
2 Press the button on the remote control
or
Press the button on the unit .
Result:
Result:
To Cancel the Sleep Timer
Each time you press a butoon, the unit beeps.
The indicator and " " will be displayed.
The remaining time is displayed and decreased by 1 hour
automatically to indicate the remaining time.
The air conditioner will be controlled as illustration below.
Cooling When the temperature has
been increased by 1 C(after
1 hour), it is maintained
for 7 hours.
To cancel the timer, press:
on the remote control.
or
on the unit.
The unit beeps.
The indicator is no longer displyed.
The air conditioner operates in the mode selected last.
If you select the Energy Saving mode in the Sleep Timer mode,
the Sleep Timer will be cancelled.

E- 15
Selecting Energy Saving Mode
If you wish to save Energy when using your air conditioner,
select the Energy Saving mode with the Energy Saver button.
1 To select the Energy Saving mode, press the Energy Saver button on the remote
control or unit one or more times until the Energy Saver indicator lights up.
Result:
Result: The fan and compressor cycle on and off together.
The fan will continue to run for a short time after the
compressor cycles off.
2 To stop the Energy Saving mode, press the Energy Saver button on the
remote control or unit again.
The fan runs at all times, while the compressor cycles on and off.
If you select the Sleep Timer in the Energy Saving mode, the Energy
Saving will be cancelled and the air conditioner will start up in the
Sleep Timer mode.
Remote Control Control Panel
Temperature and Humidity Ranges
HSILGNE
21 C to 32 C approx.
The following table indicates the temperature and humidity ranges within which the
air conditioner can be used in the best condition .
Cooling 21 C to 43 C approx. 80% or less
Mode Indoor HumidityIndoorTemperature OutdoorTemperature
If the air conditioner is used at... Then...
Higher temperatures The automatic protection feature may be triggered and the air
conditioner stopped.
Lower temperatures
Higher humidity levels
A water leakage or some other malfunction may happen if the
heat exchanger freezes.
Water way condense on and drip from the surface of the unit if
it is used for long periods.

Be sure to clean the air filter periodically to maintain the air conditioner in
the best condition for a long period of time.
When cleaning the air conditioner, turn it off and pull out
the power plug.
E- 16
CleaningYour Air Conditioner
1 Hold the front grille handle, slightly pull it to the left side and open the front grille.
2 Pull the air filter to the right side.
3 Remove all dust on the air filter with a vacuum cleaner or brush.
4 When you have finished, insert the air filter back into its original position.
5 Wipe the surface of the unit with a neutral detergent and then wipe it again
with dry cloth.
(Be sure not to use benzene, solvent or other chemical products.)
CC
CCAA AAUU UUTT TTII IIOO OONN NN
The removal of the front grille makes it easier to clean the air
conditioner. Open the grille as much as possible.
If you... Then...
Will not be using the
air conditioner for a
long period of time
Have not used the air
conditioner for a long
period of time
Set the fan going for a few hours to
dry the inside of the air conditioner
thoroughly.
Switch the air conditioner off and
unplug it from the wall socket.
Clean the filter and outer surfaces.
Set the fan going for a few hours to
dry the inside of the air conditioner
thoroughly.
Removal and Reassembly of the Front Grille
IMPORTANT
For user's safety, a safety clip has been installed in the front grille.
1 Grasp the lower part of the front
grille and the front grille handle,
then open the grille. (The open
angle of front grille has not to be
exceeded 25 degree)
2 Lift the front grille slightly and
remove it from the front panel.
3 Reassembling of front grille
should be done in reverse
order of disassembly.
The air conditioner has two or three grille
grooves depending on the model.

E- 17
Solving Common Problems
Before contacting the after-sales service,perform the following simple checks.
They may save you the time and expense of an unnecessary service call.
Problem
The air conditioner does not
operate at all
Explanation/Solution
The air conditioner does not
operate with the remote control
No beep is heard when you press
(On/Off) on the remote control
The air conditioner does not cool
The air flow direction does not
change when you press the
or on the unit button
The timer is not correctly triggered
Odour is permeated in the
room during air conditioning
Check that the circuit breaker used for the air conditioner has not
been triggered.
Check that the power cable is plugged into a wall socket and the
socket is switched on, if necessary.
Check that the operating mode indicator (COOL or FAN) on the unit is
lit up; if necessary press (On/Off) button on the remote control or
unit.
Check that there are no obstacles between you and the unit.
Replace the remote control batteries if necessary.
Check that you are close enough to the unit (seven metres/yards
or less).
Check that you are pointing the remote control at the remote
control sensor on the unit.
Replace the remote control batteries if necessary.
Check that the correct operating mode has been selected COOL..
The room temperature may be too low.
Dust may be blocking the air filter; refer to page 16 for
cleaning instructions.
Check that there is no obstacle blocking the air flow into or out of
the unit.
Check that the air conditioner has been switched on; if necessary,
press (On/Off) button on the remote control or unit.
Check that the timer has been programmed correctly;
see page 12~13.
Air the room.
HSILGNE

E- 18
Technical Specifications
Design and specifications are subject to change without notice.
Model Power Supply
*******AA/AB
220V(230V)~, 60HZ
115V~, 60HZ
230/208V~, 60HZ
200-220V~, 50HZ
220-240V~, 50HZ
*******BA/BB/BC/BD
*******CA/CB
*******DA/DB
*******EA/EB/EC/ED

E- 19
Installation (for 60Hz)
1 Electrical Requirements
For personal safety:
This appliance must be properly grounded.
Do not, under any circumstances, cut or remove the third grounding prong
from the power cord.
We recommend that you do not use an extension cord or an adapter plug with
this appliance.
Do not change the plug on the power cord of this appliance.
Follow national electrical codes or local codes and ordinances.
If the electric supply provided does not meet the above specifications, call a
licensed electrician.
Aluminum house wiring may pose special problemsconsult a qualified
electrician.
This unit requires a separate circult, serving only this appliance.
115V
15 AMP Circuit
"parallel" type
230V/208V
20 AMP circuit
"perpendicular" type
230V/208V
15AMP circuit
"tandem" type
230V/208V
30 AMP circuit
"tandem" type
HSILGNE

E- 20
500mm 500mm
75mm
min.
300mm
500mm
150mm min.
"A"
Approx.3
Awning
750mm
100mm or more
Outdoor side
Indoor side
45
45
If the wall is greater than 150mm thick,
cut the wall back on a 45 angle if possible.

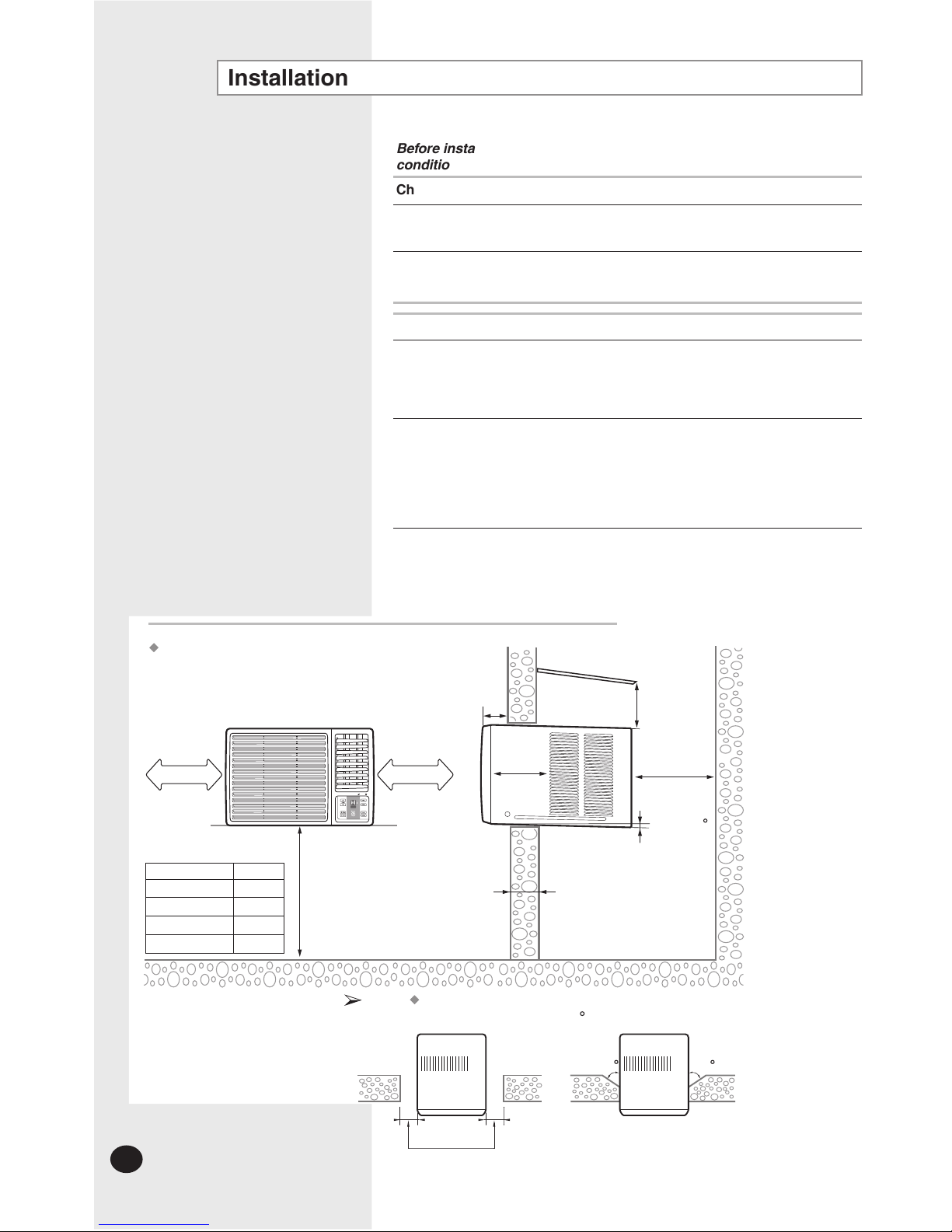

Installation
Before installation, be sure to check the installation area or the air
conditioner, and drain hose.
Checkpoints prior to installation
Installation Conditions
1 Check the cabinet and front grille of the unit for any harmful defects
such as scratches.
1 As the unit is heavy, the wall or window of the installation area should
have sufficient strength and durability for operation of the air conditioner,
and for prevention of any vibration or noise.
If it is weak, reinforcement work should be performed separately.
3 When installing the air conditioner, be sure to obtain sufficient space on
the rear side of the unit for smooth flow of air.
When operating the air conditioner in closed areas such as inner building
with cooling operation, and result in trouble with the unit.
See the illustration below.
2 It is advisable to install the air conditioner in the north or west side to
prevent the effect of direct sunlight.
When installing it in the south or east side due to unavoidable
circumstances, it is advisable to install the sunshade to prevent the
direct sunlight.
In this case, take care not to cause any hindrance to the flow of outside air.
2 Be sure to check the power supply.
- Refer to the specifications on the label attached to the unit.
Fence, wall
or other
obstacle
The appliance must be fixed well by screw or similar
method.
"A"
145
170
260
MODEL
AW07/AW09
AW12/AWT12
AW14/AW18/AW24
AWT18/AWT24 260
