E-2
Safety Precautions
The following safety precautions must be taken when using your air conditioner.
WARNING Risk of electric shock. • Can cause injury or death. • Disconnect all
remote electric power supplies before servicing, installing or cleaning.
• This must be done by the manufacturer or its service agent or a similar
qualified person in order to avoid a hazard.
 The unit should not be installed by the user. Ask the dealer or
authorized company to install the units except room air conditioners
for the U.S.A and Canada area.
 If the unit is installed improperly, water leakage, electric shock or fire
may result.
 Mount with the lowest moving parts at least 2.5m above the floor or
grade level. (If applicable)
 The manufacturer does not assume responsibility for accidents or injury
caused by an incorrectly installed air conditioner. If you are unsure
about installation, contact an installation specialist.
 When installing the built-in type air conditioner, keep all electrical
cables such as the power cable and the connection cord in pipe, ducts,
cable channels e.t.c to protect them against liquids, outside impacts
and so on.
INSTALLING THE UNIT
 If the power cord of this air conditioner is damaged, it must be replaced
by the manufacturer, its service agent or similarly qualified persons in
order to avoid a hazard.
 The unit must be plugged into an independent circuit if applicable or
connect the power cable to the auxiliary circuit breaker. An all pole
disconnection from the power supply must be incorporated in the fixed
wiring with a contact opening of >3mm.
 Do not use an extension cord with this product.
 If the unit is equipped with a power supply cord and a plug, the plug
must be accessible after installation.
 The air conditioner must be installed in accordance with national wiring
regulations and safety regulations wherever applicable.
POWER SUPPLY LINE,
FUSE OR CIRCUIT
BREAKER

E-3
ENGLISH
Contents
Preparation for Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Deciding on Where to Install the Indoor Unit . . . . . . . . . . . . . . . . . . . . . . . 5
Indoor Unit Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Purging the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Connecting the Refrigerant Pipe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Cutting/Flaring the Pipes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Performing Leak Test & Insulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Drainpipe and Drain Hose Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Connecting the Connection Cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Assigning Address to Indoor Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Installing the Safety Net . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Part List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

E-4
Preparation for Installation
When deciding on the location of the air conditioner with the owner,
the following restrictions must be taken into account.
General
Do NOT install the air conditioner in a location where it will come into contact
with the following elements:
 Combustible gases
 Saline air
 Machine oil
 Sulphide gas
 Special environmental conditions
If you must install the unit in such conditions, first consult your dealer.
Accessories

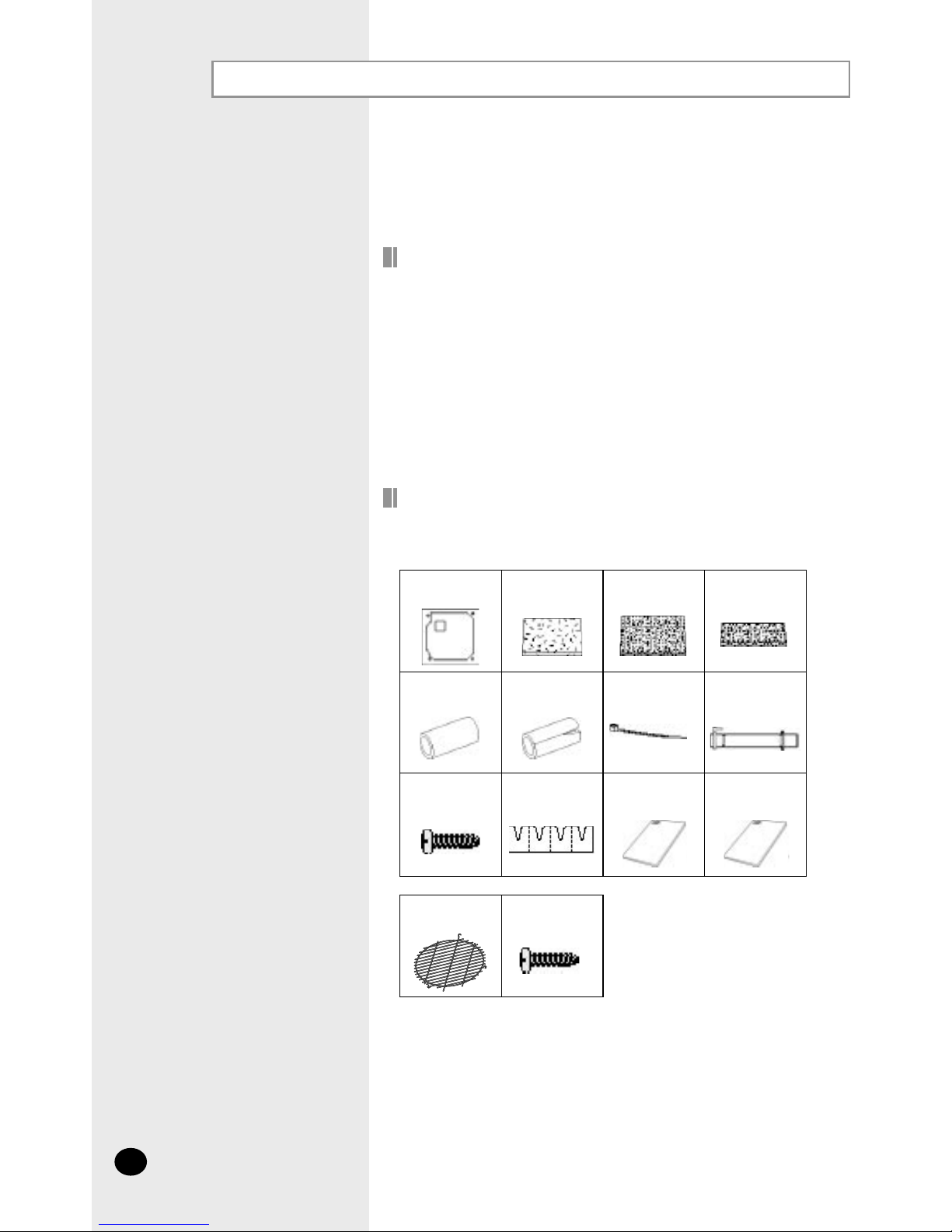

 The following accessories are supplied with the indoor unit.
The type and quantity may differ depending on the specifications.
Pattern sheet Insulation cover drain Insulation Insulation cover band
Insulation pipe Insulation drain hose Cable-tie Flexible hose
M4x12 tapped Screw Pad stopper Instruction manual Installation manual
Safety net M4x12 tapped Screw

E-5
Deciding on Where to Install the Indoor Unit
Indoor Unit
 There must be no obstacles near the air inlet and outlet.
 Install the indoor unit on a ceiling that can support its weight.
 Maintain sufficient clearance around the indoor unit.
 Make sure that the water dripping from the drain hose runs away correctly and
safely.
 The indoor unit must be installed in this way, that they are out of public access.
(Not touchable by the users)
ENGLISH

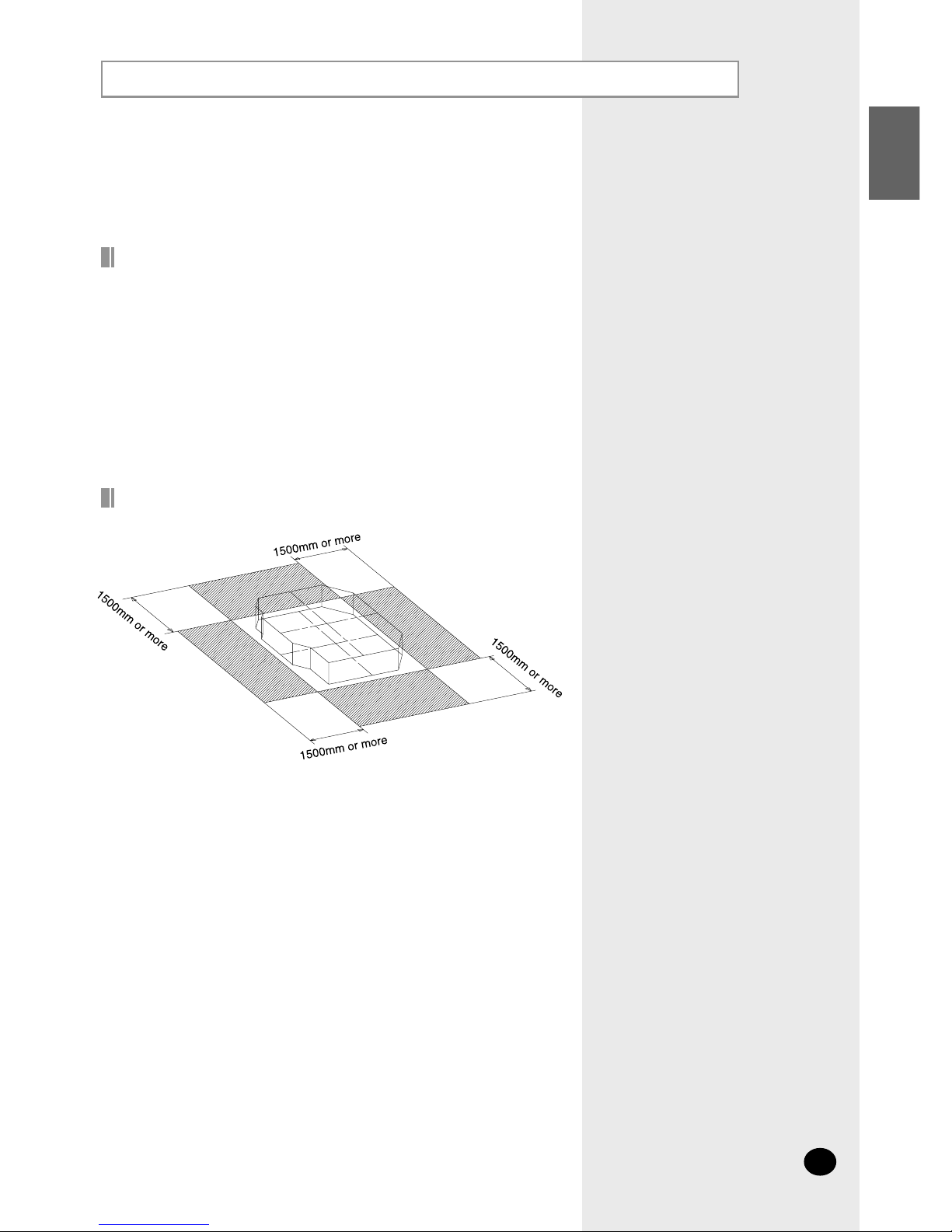

Space Requirements for Indoor Unit

E-6
Drawing of the indoor unit
Unit : mm
No. Name Remark
1 Liquid pipe connection ø 6.35 (1/4")
2 Gas pipe connection ø 15.88 (5/8")
3 Drain pipe connection
4 Power supply connection
5 Air discharge grille
6 Air suction grille
Deciding on Where to Install the Indoor Unit (continued)

E-7
20mm
Indoor Unit
Ceiling
Gauge of
Dimensions
17mm
ENGLISH

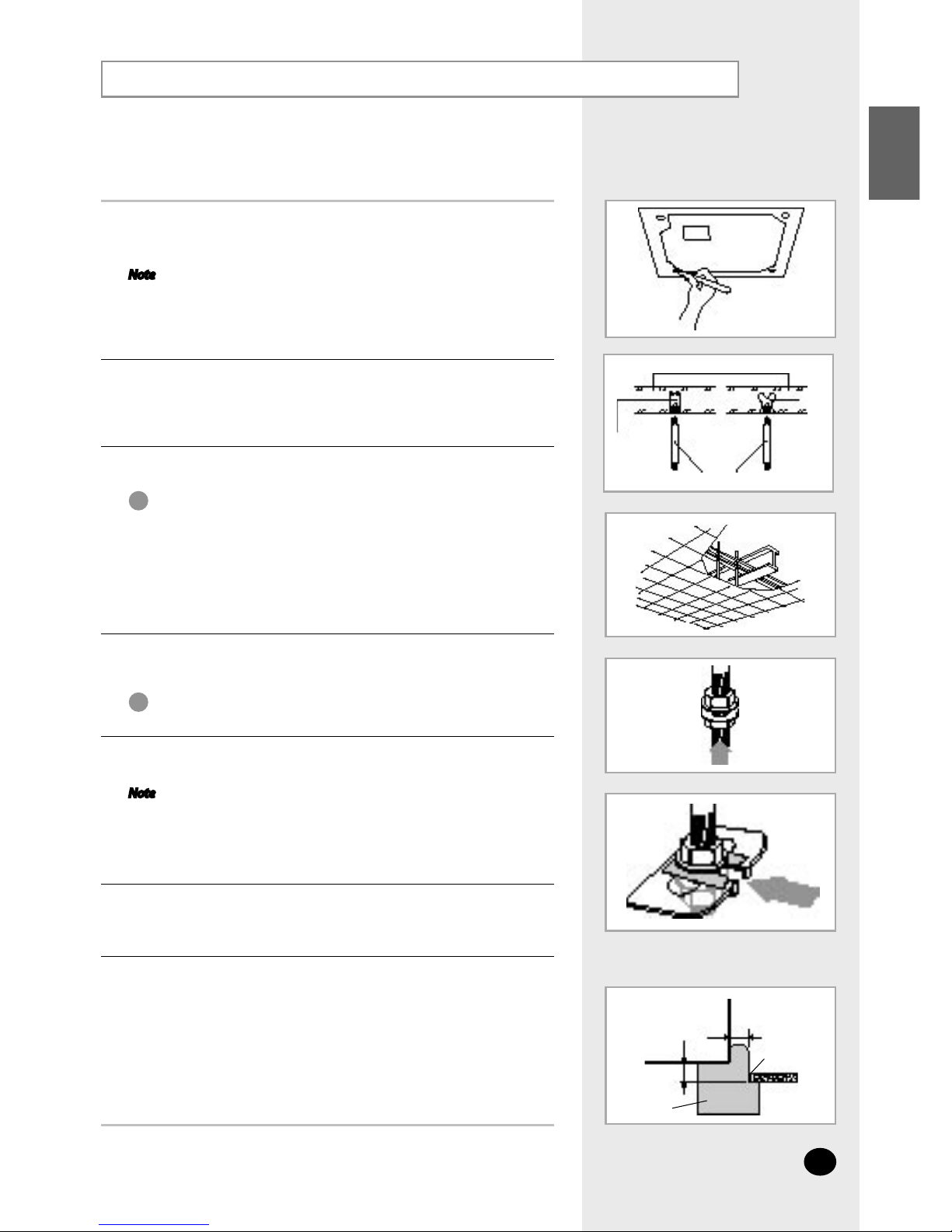

Indoor Unit Installation
It is recommended to install the refnet joint before installing the indoor unit.
1
Place the pattern sheet on the ceiling at the spot where you want to install
the indoor unit.
Note  Since the diagram is made of paper, it may shrink or stretch
slightly due to temperature or humidity. For this reason,
before drilling the holes maintain the correct dimensions between
the markings; refer to page 6.
2
Insert bolt anchors, use existing ceiling supports or construct a suitable
support as shown in figure.
3
Install the suspension bolts depending on the ceiling type.
IMPORTANT

Ensure that the ceiling is strong enough to support
the weight of the indoor unit. Before hanging the unit,
test the strength of each attached suspension bolt.
If the length of suspension bolt is more than 1.5m,
it is required to prevent vibration.
4
Screw eight nuts to the suspension bolts making space for hanging the
indoor unit.
IMPORTANT You must install the suspension bolts more than four
when installing the indoor unit.
5
Hang the indoor unit to the suspension bolts between two nuts.
Note Piping must be laid and connected inside the ceiling when
suspending the unit. If the ceiling is already constructed, lay the
piping into position for connection to the unit before placing the unit
inside the ceiling.
6
Screw the nuts to suspend the unit. Cut a pad stopper and place it on the
bracket at this time.
7
Adjust the unit to the appropriate position considering the installation area for the
front panel.
7-1 Place the pattern sheet on the indoor unit.
7-2 Adjust a space between the ceiling and the indoor unit by using the gauge
of dimensions.
7-3 Fix the indoor unit securely after adjusting level of the unit by using a leveler.
7-4 Remove the pattern sheet, connect the other cables and install the front panel.
Concrete
Suspension bolt(M8)-field supply
Hole in anchor
Hole in plug
Insert
Ceiling support
Pad stopper
Bracket

E-8

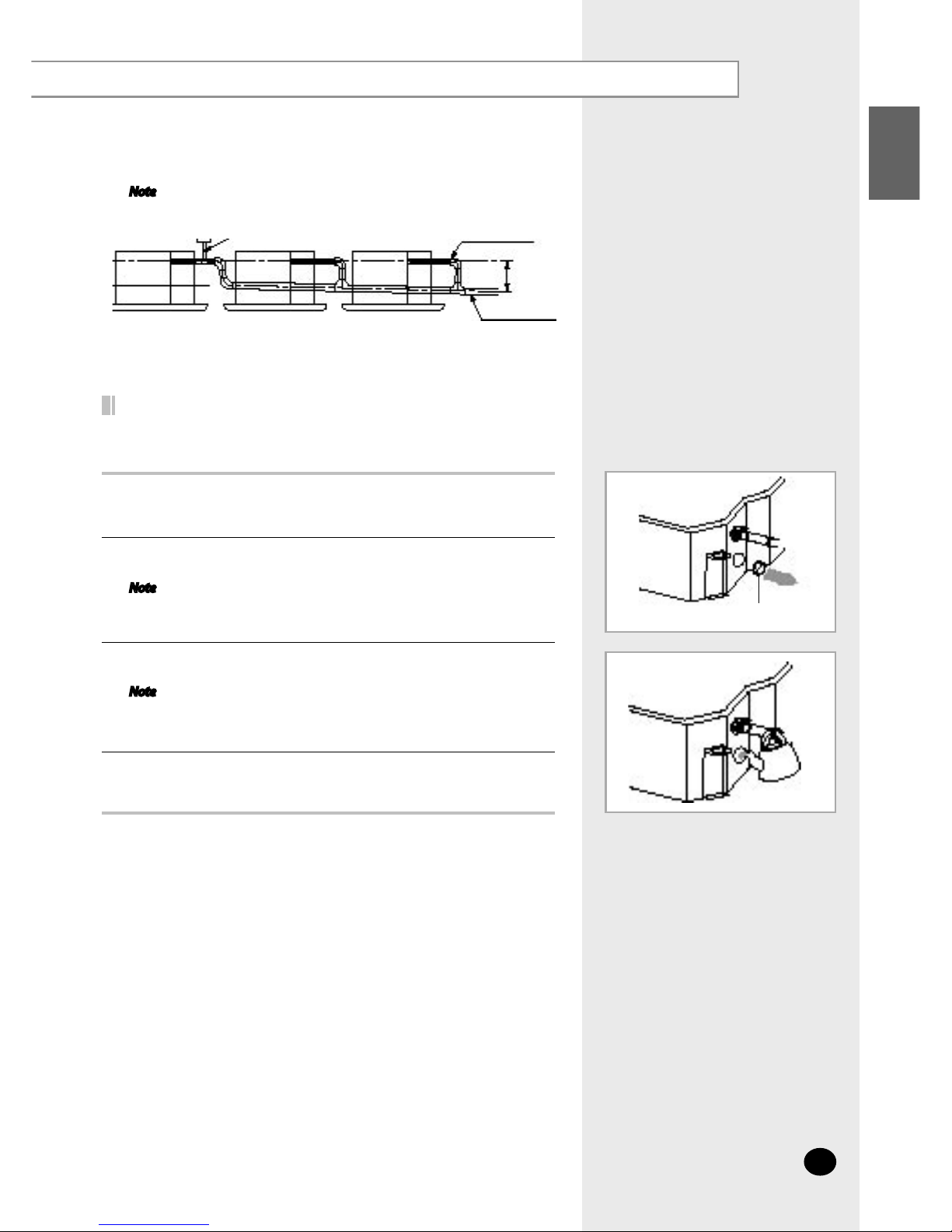

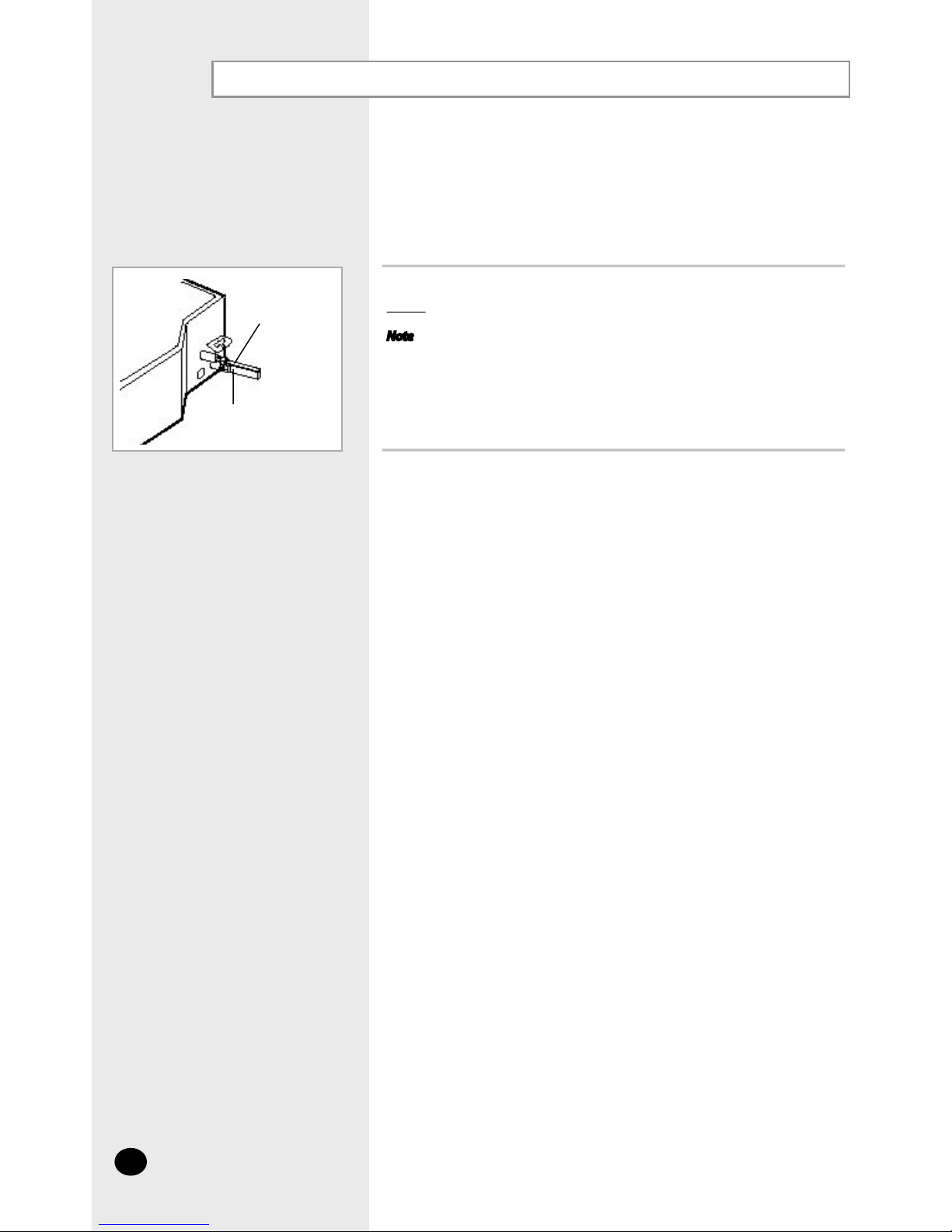

Purging the Unit
Liquid refrigerant
port
Gas refrigerant port
On delivery, the indoor unit is loaded with Nitrogen gas.
All this gas must therefore be purged before connecting the assembly piping.
To purge the inert gas, proceed as follows.
Unscrew the pinch pipe at the end of each refrigerant pipe.
Result: All inert gas escapes from the indoor unit.
Note

To prevent dirt or foreign objects from getting into the pipes during
installation, do NOT remove the pinch pipe completely until you are ready
to connect the piping.

E-9

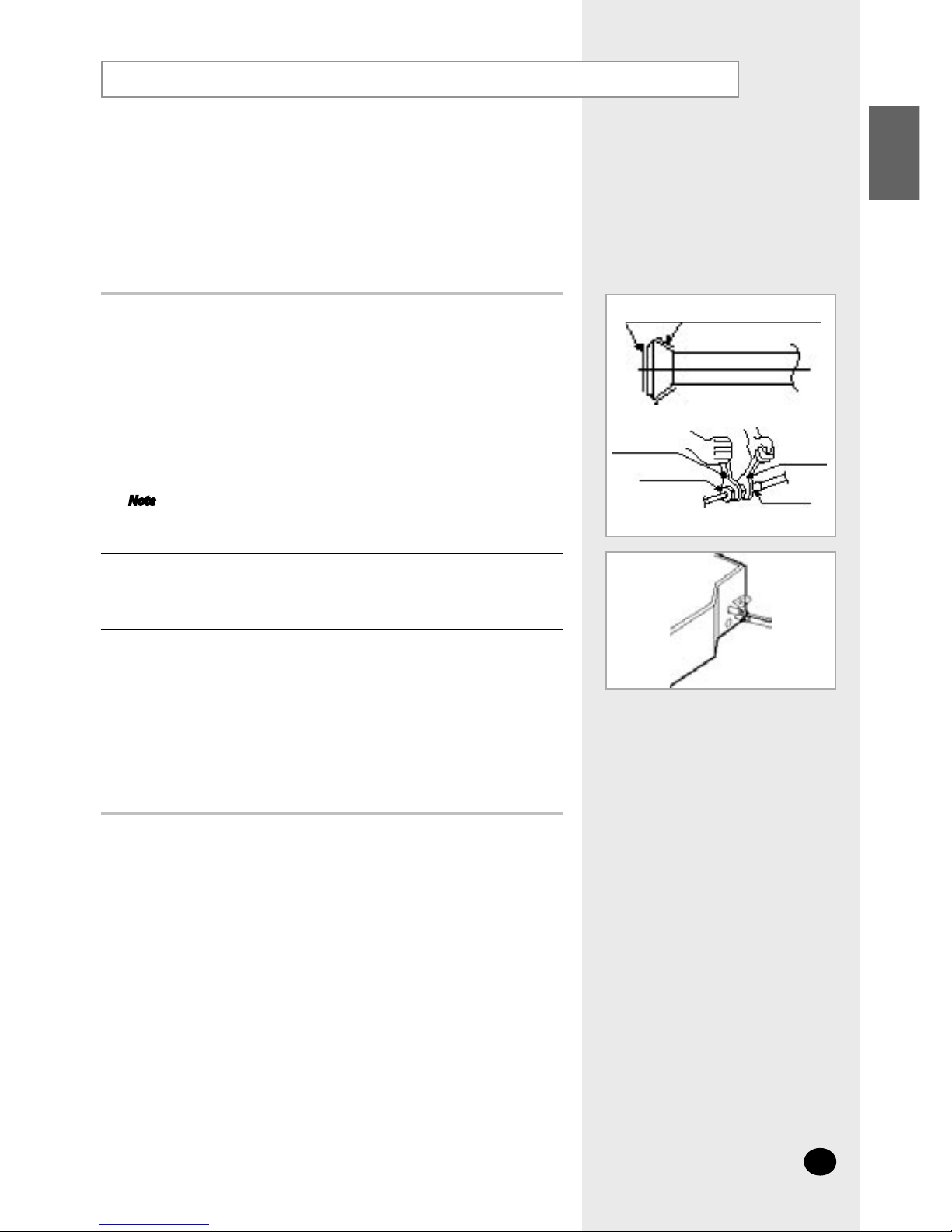

Connecting the Refrigerant Pipe
ENGLISH
There are two refrigerant pipes of differing diameters:

A smaller one for the liquid refrigerant

A larger one for the gas refrigerant

The inside of copper pipe must be clean & has no dust.
1Remove the pinch pipe on the pipes and connect the assembly pipes to
each pipe, tightening the nuts, first manually and then with a torque wrench,
a spanner applying the following torque.
Outer Diameter Torque (kgf•cm)
9.52 mm (3/8")
12.70 mm (1/2")
15.88 mm (5/8")
19.05 mm (3/4")
22.23 mm (7/8")
250~280
380~420
440~480
990~1210
990~1210
Note

If the pipes must be shortened refer to page 10.
2Must use insulator which is thick enough to cover the refrigerant pipe to
protect the condensate water on the outside of pipe falling onto the floor
and the efficiency of the unit will be better.
3Cut off any excess foam insulation.
4Be sure that there must be no crack or wave on the bended area.
5It would be necessary to double the insulation thickness (10mm or more)
to prevent condensation even on the insulator when if the installed area is
warm and humid.
Refrigerant oil
Torque wrench
Flare nut
Union
Spanner

E-10

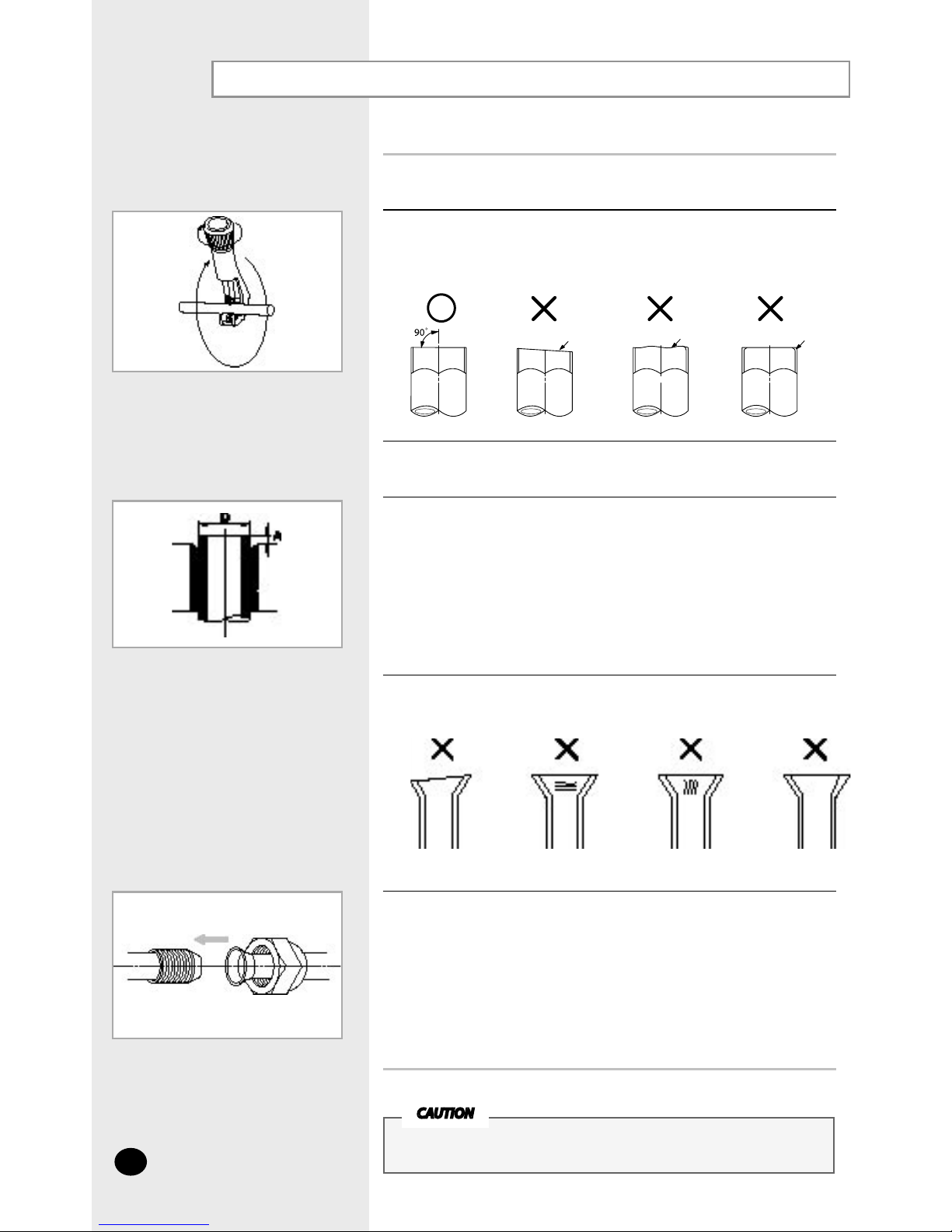

Cutting/Flaring the Pipes

CAUTION
In case of welding the pipe, you must weld with nitrogen gas
blowing.
1
Make sure that you have the required tools available (pipe cutter, reamer,
flaring tool and pipe holder).
2If you wish to shorten the pipes, cut it with a pipe cutter, taking care to ensure
that the cut edge remains at a 90° angle with the side of the pipe. Refer to the
illustrations below for examples of edges cut correctly and incorrectly.
Oblique Rough Burr
3
To prevent any gas from leaking out, remove all burrs at the cut edge of the
pipe, using a reamer.
4
Slide a flare nut on to the pipe and modify the flare.
Outer Diameter (D) Depth (A)
6.35 mm (1/4")
9.52 mm (3/8")
12.70 mm (1/2")
15.88 mm (5/8")
19.05 mm (3/4")
22.23 mm (7/8")
1.3mm
1.8mm
2.0mm
2.2mm
2.2mm
2.2mm
5
Check that the flaring is correct, referring to the illustrations below for
examples of incorrect flaring.
Inclined Damaged Surface Cracked Uneven Thickness
6
Align the pipes and tighten the flare nuts first manually and then with
a torque wrench, applying the following torque.
Outer Diameter Torque (kgf•cm)
6.35 mm (1/4")
9.52 mm (3/8")
12.70 mm (1/2")
15.88 mm (5/8")
19.05 mm (3/4")
22.23 mm (7/8")
140~170
250~280
380~420
440~480
990~1210
990~1210

E-11

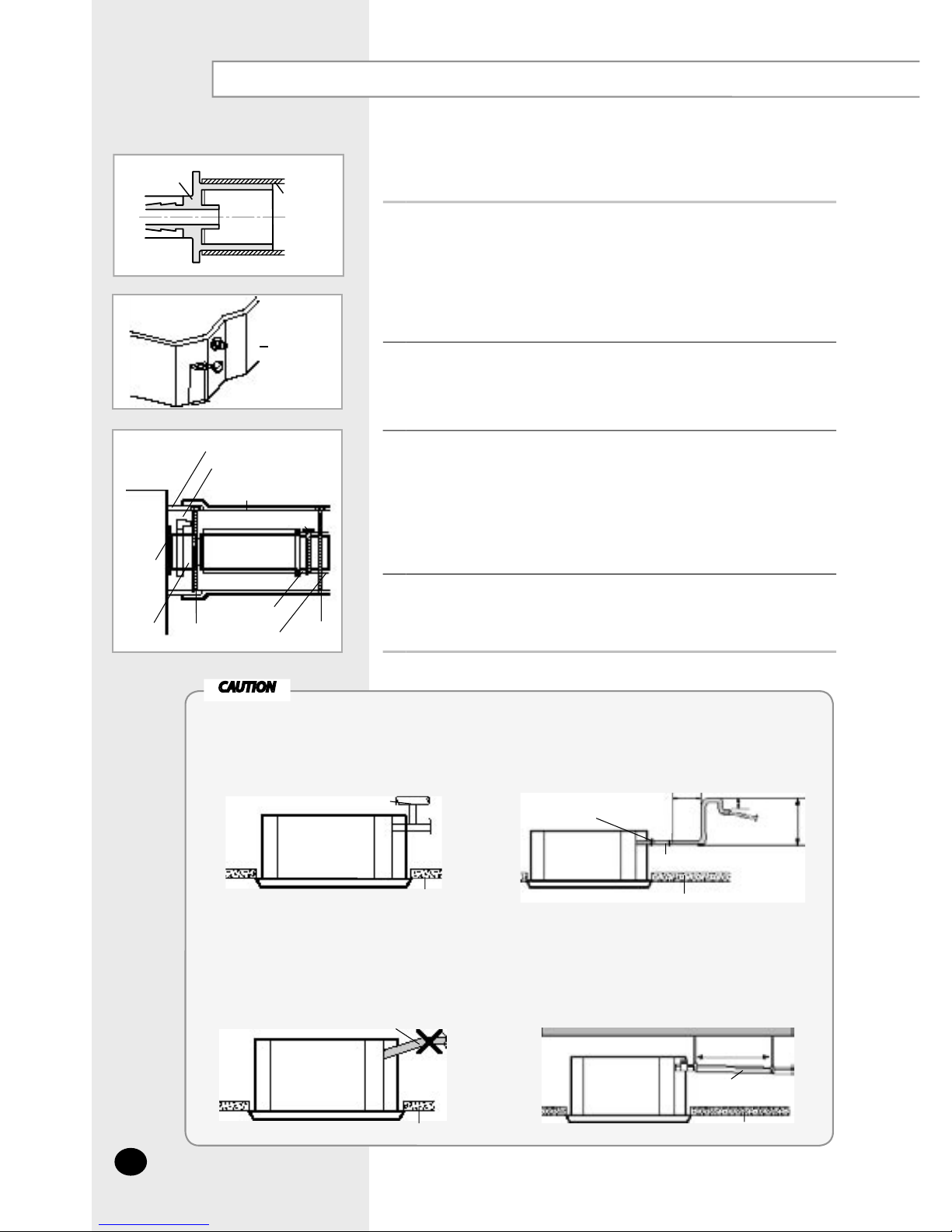

Performing Leak Test & Insulation
ENGLISH
Insulation
cover pipe
Be sure to overlap
the insulation
Indoor Unit
Insulation pipe

CAUTION
Must fit tightly against body
without any gap.
No gap
NBR(T13.0 or thicker)
To check for gas leaks on the indoor unit, check the connection part of each
refrigerant pipe by using a leak detector.
Leak Test
Insulation
Once you have checked that there are no leaks in the system,
you can insulate the piping and hose.
1
To avoid condensation problems, place T13.0 or thicker Acrylonitrile
Butadiene Rubber around each refrigerant pipe.
Note

Always make the seam of pipes face upwards.
2
Wind insulating tape around the pipes and drain hose.
3
Finish wrapping insulating tape around the rest of the pipes leading to the
outdoor unit.

E-12
Drain hose
port
Insulation drainpipe
Band Band
Flexible
hose
Drain
hose
port
Drain hose
Adhesives
Insulation cover band
Insulation cover drain
Band(Not supplied)
Indoor
Unit
CAUTION
Install air ventilation to drain condensate water
smoothly.
Check that the indoor unit is level with the ceiling by using the leveler.
Air ventilation
Ceiling
Do not give the hose and upward gradient
after the connection port.
This will cause water to flow backwards when
the unit is stopped, resulting in water leaks.
Do not apply force to the piping on the unit side when
connecting the drain hose. The hose should not be
allowed to hang loose from its connection to the unit.
Fasten the hose to a wall, frame or other support as close
to the unit as possible.
Support pieces
1~1.5m
1/100 or more
Upward gradient
Ceiling Ceiling
If it is necessary to increase the height of the drainpipe, install
the drainpipe straightly within 300 mm from the
flexible hose port. If it is raised higher than 550 mm,
there can be water leaks.
300mm or less
1/100 or more
Flexible hose
Band joint
Ceiling
550mm or less
20mm or more
Drainpipe
Flexible
hose
Care must be taken when installing the drainpipe and drain hose for the
indoor unit so that condensate water is drained correctly outside.
1
Fix the flexible hose to the drainpipe.
The connection port of the flexible hose and PVC drainpipe must be
fixed with PVC adhesives.
Check out that the connected part doesn’t leak.
2
Connect the flexible hose to the flexible hose port.
Make sure that a rubber ring is installed on the drain hose port.
3
Install the drainpipe as shortly as possible.
Give a slightly slant to the drainpipe for proper drainage of condensate
water.
There must be no gap on the connected part so that the drainpipe is
not separated from the flexible hose .
4
Insulate the drainpipe, and then fix it as indicated.
Drainpipe and Drain Hose Installation

E-13
ENGLISH
Drainpipe and Drain Hose Installation
You should test the drainage after completing the installation.
Prepare a little water about 2.0 liters.
1
Turn the cover drain pump, then pull it out.
2
Pour water into the indoor unit as shown in figure.
Note If you do not pour water inside the water supply intake,
water may spill from the indoor unit.
3
Confirm that the water flows out through the drain hose.
Note You can check the drainage only when the air conditioner is
in cool mode.
4
Reassemble the cover drain pump.
Air ventilation Drain clamp
Concentrated drain hose
1/100 or
more slope
100mm or
more
Testing the drainage
Note   If a concentrated drain hose is installed, refer to the figure below.
Cover drain pump

E-14
Connecting the Connection Cord

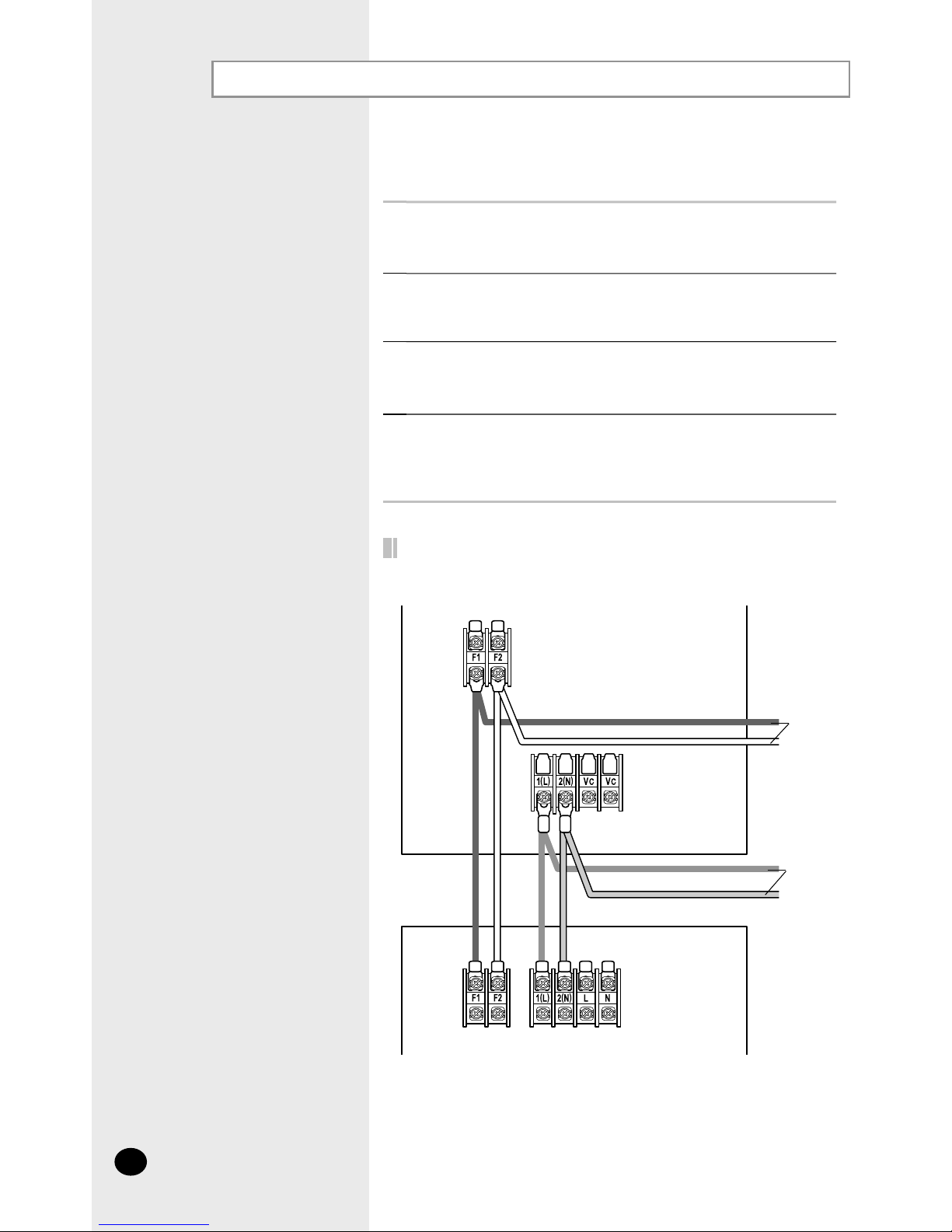

Wiring Diagram
Indoor Unit
Outdoor Unit
Communication Power
Next Indoor unit
(Communication)
Next Indoor
unit(Power)
The indoor unit is powered from the outdoor unit via the connection cord.
1
Remove the screw on the electrical component box and remove the cover
plate.
2
Route the connection cord through the side of the indoor unit and connect
the cable to terminals; refer to the figure below.
3
Route the other end of the cable to the outdoor unit through the ceiling &
the hole on the wall.
4
Reassemble the electrical component box cover, carefully tightening the
screw.

E-15
Assigning Address to Indoor Unit
ENGLISH
1
Before installing the indoor unit, assign an address to the indoor unit
according to the air conditioning system plan.
2
The address of the indoor unit is assigned by adjusting MAIN(SW02) and
RMC(SW04) rotary switches.
K 1K 2 K 3K 4
K 5K 6 K 7K 8
K 9 K 1 0K 1 1K 1 2
K 1K 2 K 3K 4
K 5K 6 K 7K 8
K 9 K 1 0K 1 1K 1 2
SW02 MAIN SW04 RMC SW05 SW06 SW07
3
The MAIN address is for communication between the indoor unit and the outdoor
unit. Therefore, you must set it to operate the air conditioner properly.

E-16
Assigning Address to Indoor Unit (continued)
4If you install optional accessories such as the wired remote controller, centralized
controller, etc. see an appropriate installation manual.
5
If an optional accessory is not installed, you do not have to set the RMC
address. However, adjust K1 and K2 switches of the SW05 DIP switch to "ON"
position in this case.
6Set the MAIN address by adjusting the rotary switch(SW02) from 0 to 9. Each
indoor unit connected to the same outdoor unit must have different address.
i. e. If an indoor unit does not have an optional accessory
and its MAIN address is "0"
SW02 MAIN SW04 RMC SW05 SW06 SW07

E-17
ENGLISH
Installing the Safety Net
The electric
component
box cover
The safety net
Install the safety net after installing the connection cord and fixing
electric component box cover. For your safety, you must install the safety net.
For details about installing the panel, refer to the manual for the panel.
1
Uncover the wrap of safety net.
2
Fix the safety net to the electric component cover box with four screws as
indicated.

E-18

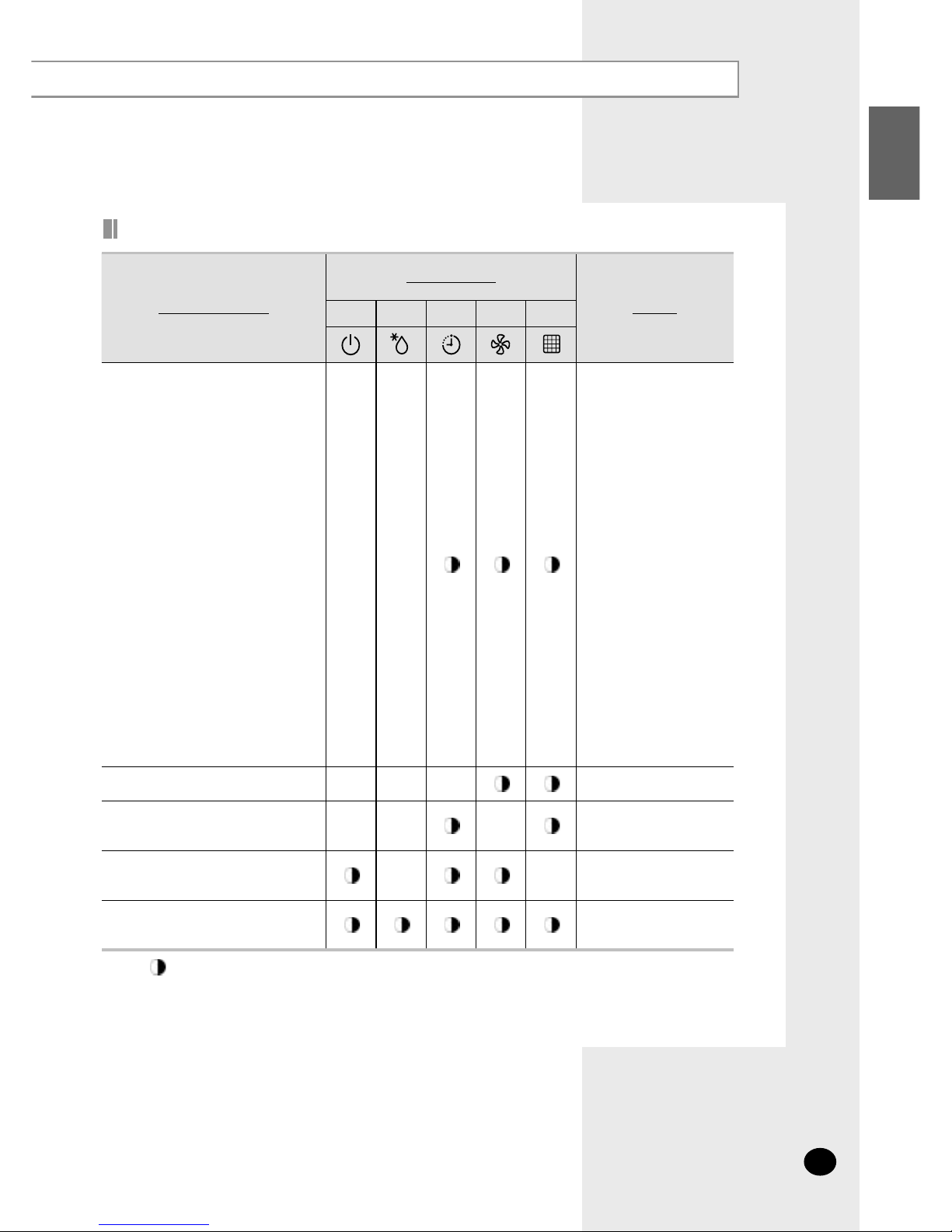

Detection of errors
 If an error occurs during the operation, one or more LED flickers and the operation is stopped except the LED.
 If you re-operate the air conditioner, it operates normally at first, then detect an error again.
LED Display
LED Display on the receiver & display unit
On Flickering X Off
 If you turn off the air conditioner when the LED is flickering, the LED is also turned off.
Abnormal conditions
LED lamp display
Remarks
Green Red Yellow Green Orange
Power reset X X X X
Error of temperature sensor
in the indoor unit (Open/Short) X X X X
Error of heat exchanger sensor
in the indoor unit X X
Error of the outdoor temperature sensor
Error of the condensor temperature sensor
Error of the discharge temperature sensor
X X X
Indoor and outdoor unit time out
Abnormal data reception more than 60
packet
Indoor unit is not connected
Communication error between the outdoor
unit Main-Inverter Micom(After 1 minute of
Main-Inverter detection)
X X X
1. Indoor unit error
(Display is unrelated
with operation)
2. Outdoor unit error
(Display is unrelated
with operation)
Troubleshooting

E-19
ENGLISH
Troubleshooting
LED Display
On Flickering X Off
 If you turn off the air conditioner when the LED is flickering, the LED is also turned off.
Abnormal conditions
LED lamp display
Remarks
Green Red Yellow Green Orange
[Self diagnosis]Power voltage detection
between indoor and outdoor unit
communication cable
[Self diagnosis]Outdoor unit refrigerant
leakage(Gas leak)
[Self diagnosis]Outdoor fan restriction error
[Inverter]Inverter compressor operation
failure
[Inverter] DC peak error
[Inverter]DC Link voltage 150V or less,
410V or more
[Inverter] Compressor rotation error
[Inverter]Electric current error
[Inverter]DC Link sensor error
[Inverter]EEPROM READ/WRITE error
[Inverter]Inverter zerocrossing error
Setting the outdoor unit capacity option
error
X X
Detection of the float switch X X X
Error of setting option switches for optional
accessories X X X
EEPROM error X X
EEPROM option error

E-20
Outdoor unit
Display Explanation
IPM Over Current(O.C)
Comp starting error
Comp lock error
DC-Link voltage under/over error
Outdoor temp sensor error
Discharge over temperature
Discharge temp sensor error
Current sensor error
Comp Vlimit error
Coil temp sensor error
1min. time out Comm.
Fan error
OTP error
Comp rotation error
/
(main/main) Operation condition secession
DC-Link voltage sensor error
I_Trip error/PFC Over current
GAS Leak error
AC Line Zero Cross Signal out
Capacity miss match
Troubleshooting (continued)
Wired remote controller
 If an error occurs, is displayed on the wired remote controller.
If you would like to see an error code, press the Test button.
