Samsung GT-B7610 User manual

GSM TELEPHONE
GT-B7610
1. Safety Precautions
2. Specification
3. Product Function
4. Array course control
5. Exploded View and Parts list
6. MAIN Electrical Parts List
7. Block Diagrams
8. PCB Diagrams
9. Chart of Troubleshooting
10. Reference data
11. Disassembly and Assembly
Instructions
GSM TELEPHONE CONTENTS

SAMSUNG Proprietary-Contents may change without notice
1. Safety Precautions
1-1
This Document can not be used without Samsung's authorization
1-1. Repair Precaution
●Repair in Shield Box, during detailed tuning.
Take specially care of tuning or test,
because specipicty of cellular phone is sensitive for surrounding interference(RF noise).
●Be careful to use akind of magnetic object or tool,
because performance of parts is damaged by the influence of manetic force.
●Surely use astandard screwdriver when you disassemble this product,
otherwise screw will be worn away.
●Use athicken twisted wire when you measure level.
Athicken twisted wire has low resistance, therefore error of measurement is few.
●Repair after separate Test Pack and Set because for short danger (for example an
overcurrent and furious flames of parts etc) when you repair board in condition of
connecting Test Pack and tuning on.
●Take specially care of soldering, because Land of PCB is small and weak in heat.
●Surely tune on/off while using AC power plug, because arepair of battery charger is
dangerous when tuning ON/OFF PBA and Connector after disassembing charger.
●Don't use as you pleases after change other material than replacement registered on SEC
System.
Otherwise engineer in charge isn't charged with problem that you don't keep this rules.

SAMSUNG Proprietary-Contents may change without notice
Safety Precautions
1-2
This Document can not be used without Samsung's authorization
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Several semiconductor may be damaged easilly by static electricity. Such parts are called by
ESD(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.
You can prevent from ESD damage by static electricity.
●Remove static electricity remained your body before you touch semiconductor or parts with
semiconductor. There are ways that you touch an earthed place or wear static electricity
prevention string on wrist.
●Use earthed soldering steel when you connect or disconnect ESD.
●Use soldering removing tool to break static electricity. ,otherwise ESD will be damaged by
static electricity.
●Don't unpack until you set up ESD on product. Because most of ESD are packed by box
and aluminum plate to have conductive power,they are prevented from static electricity.
●You must maintain electric contact between ESD and place due to be set up until ESD is
connected completely to the proper place or acircuit board.

2. Specification
2-1
2-1. GSM General Specification
GSM850
Phase 1 EGSM 900 Phase 2 DCS1800 Phase 1 PCS1900 WCDMA2100 WCDMA900
Freq.
Band[MHz]
Uplink/Downli
nk
824~849
869~894 880~915 925~960 1710~1785 1805~1880 1850~1910 1930~1990 1922~1977 2112~2167 882~912
927~957
ARFCN
range 128~251 0~124 &
975~1023 512~885 512~810 UL:9612~98
88DL:10562
~10838
UL:2712~286
3DL:2937~30
88
Tx/Rx
spacing 45MHz 45MHz 95MHz 80MHz 190MHz 45MHz
Mod. Bit
rate/
Bit Period
270.833kbp
s
3.692us
270.833kbp
s
3.692us
270.833kbps
3.692us 270.833kbps 3.692us 3.84Mcps 3.84Mcps
Time Slot
Period/Frame
Period
576.9us
4.615ms 576.9us 4.615ms 576.9us 4.615ms 576.9us 4.615ms
FrameLengt
h:
10ms
Slotlength:
0.667ms
FrameLengt
h:
10ms
Slotlength:
0.667ms
Modulation 0.3GMSK 0.3GMSK 0.3GMSK 0.3GMSK QPSKHQPS
KQPSKHQPS K
MS Power 33dBm~5dB
m33dBm~5d Bm 30dBm~0dB m30dBm~0dBm 24dBm~- 50dBm 24dBm~- 50dBm
Power Class 5pcl ~
19pcl 5pcl ~19
pcl 0pcl ~15 pcl 0pcl ~15 pcl 3(max+24dB
m) 3(max+24dB m)
Sensitivity -102dBm -102dBm -100dBm -100dBm -106.7dBm -106.7dBm
TDMA Mux 8 8 8 8 88
Cell Radius 35Km 35Km 2Km 2Km 2Km 2Km

Specification
2-2
2-2. GSM Tx Power Class
TX Power
control
level
GSM850
533±2
dBm
631±2
dBm
729±2
dBm
827±2
dBm
925±2
dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control
level
EGSM900
533±2
dBm
631±2
dBm
729±2
dBm
827±2
dBm
925±2
dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control
level
DCS1800
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control
level
PCS1900
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm

SAMSUNG Proprietary-Contents may change without notice
3. Product Function
3-1
This Document can not be used without Samsung's authorization
Main Function
-Microsoft Windows Mobile 6.1 PPC
-HSDPA 7.2Mbps /HSUPA 5.76Mbps
-5
MP AF Camera /dual Power LED
-3.7"WVGA 16M AMOLED
-SD (480p) Camcording /Playback
-WMA,WMV,MP3,AAC,AAC+,DivX,XviD
-Accelerometer (3 Axis),Geo Magnetic (3 Axis),Luminance,Proximity Sensor
-Advanced R-Touch,Touchwiz 2.0
-TV Out /DNIE /DNSe
-Wi-Fi
-BT2.0
-USB2.0 High Speed

SAMSUNG Proprietary-Contents may change without notice
4. Array course control
4-1
This Document can not be used without Samsung's authorization
4-1. Software Adjustments
There is 2set to download the binary image into your device.
[First set]
[Second set]
1. USB DATA Link Cable :GH39-01028A
2. Battery :GH43-03310A
4-2. Software Download

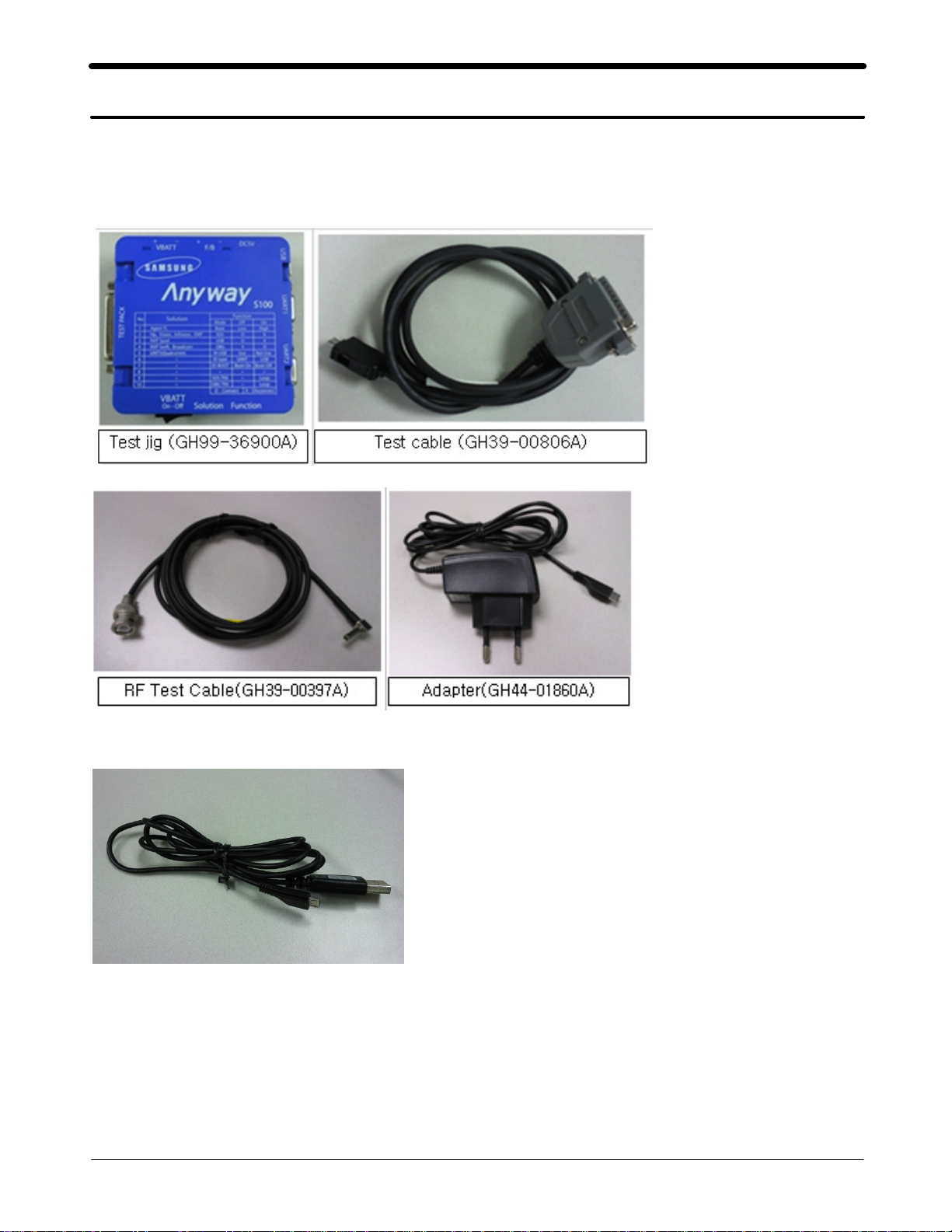

1-1. Equipment for Software Download

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-2
This Document can not be used without Samsung's authorization
1-2. Pre-requisite for Download
▶Downloader Program
-OCTANS Downloader v1.71
▶USB Driver
-PDA :Samsung MITs USB Sync [Samsung MITs USB Sync.zip]
-Phone :Samsung CDMA Modem [Samsung CDMA Modem.zip]
▶Driver Installation
2-1. Driver Installation (PDA)
▶Make sure that you install drivers.
▶If you installed the latest ActiveSync program, you don’t need to install the pda driver. Please
install the latest ActiveSync program.
2-2. Driver Installation (Phone)
When you download the phone image, you need the driver of Samsung CDMA Modem.
If you want to download the phone image, install the Samsung CDMA Modem driver.
FAfter you install the driver of Samsung CDMA Modem, please restart ahost computer.
3. Execute the Downloader Program. [OCTANS Downloader v1.71]
4. Check the EBoot,PDA,MultiCSC,MoviNand,Phone.
5. Click the detect.
6. Connect your device to ahost computer by using USB DATA Link Cable.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-3
This Document can not be used without Samsung's authorization
6. Wait until 'START' button is activated.
FIf ‘START’button is not activated, terminate the application and reconnect USB data link cable a
nd retry.
7. Please click “START”button.
8. When the download is finished, the phone is rebooted automatically.
FDownload Procedure
[Downloading EBOOT ]

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-4
This Document can not be used without Samsung's authorization
[Downloading PDA ]
[Downloading PHONE ]

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-5
This Document can not be used without Samsung's authorization

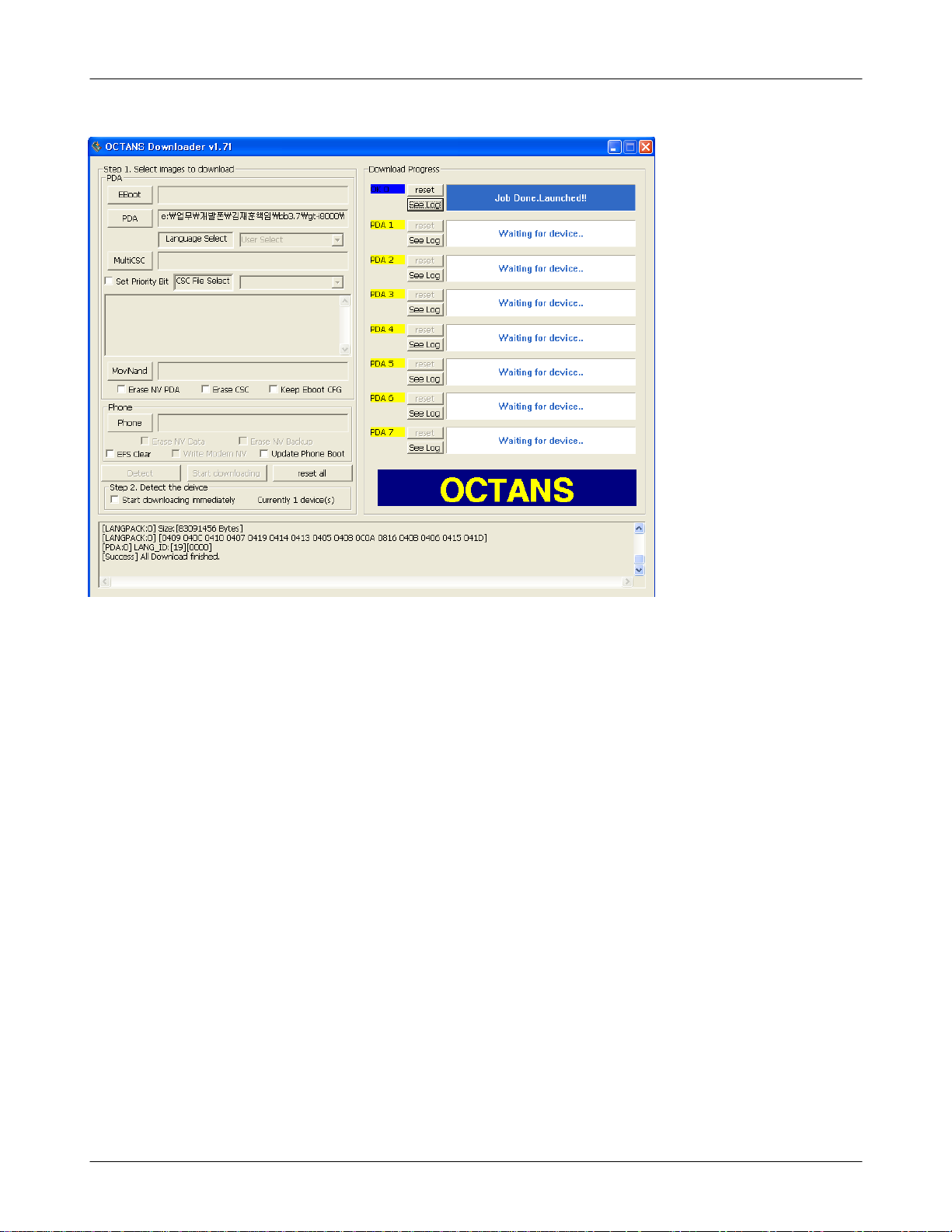

[Job Done ]

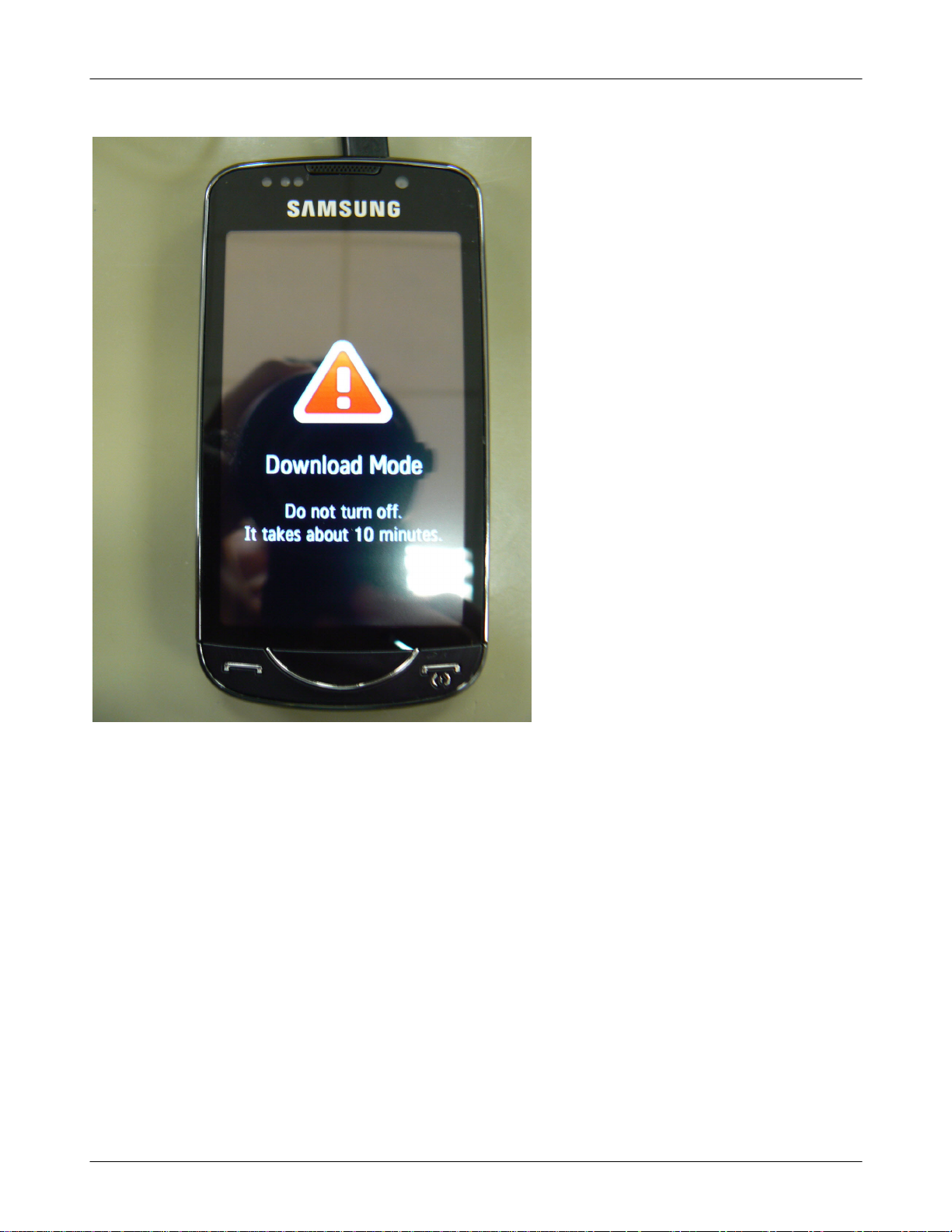

FThe Display of your Device
FTrouble Shooting
1. “PDA Device not found”message
FMake sure that your device is connected ahost computer by USB DATA Link cable.
2. “Port Open Failed”message or application hang
FAfter you install “phone USB driver (Samsung CDMA Modem)”at first time, you may see “Port
open failed…” message or application hang while downloading aphone image. If so, terminate th
eapplication and then try the download again.
FIf USB port is changed, at first time you may see “Port open failed…” message or application
hang. If so, terminate the application and then try the download again.
FIf USB cable to the mobile device is not connected tightly, you may see “Port open failed…” m
essage or application hang. If so, terminate the application and then try the download again.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-6
This Document can not be used without Samsung's authorization
.
FIf you always see “port open failed”message or application hang,
1. When failed application is activated, go to the device manager, remove the SAMSUNG CD
MA Modem and SAMSUNG USB Composite Device.
2. Rename C:\WINDOWS\system32\drivers\Modem.sys to other name. (ex. Modem-.sys)
3. Go to control panel->program add/remove, and then remove Samsung CDMA Modem drive
ror Samsung USB driver(MCCI)
4. Restart your PC.
5. Install attached SAMSUNG CDMA Modem_4.34
6. Try the download again.
3. “Write Failed”message
FIf battery level is low, use charged battery and try again.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-7
This Document can not be used without Samsung's authorization
-Reference -
How to deal with the an error in the computer USB port of the computer.
Symptom: Device is not identified after connecting it.
Cause: The device is connected before the previous connection is complete. All devices should be
connected one by one. Otherwise, an error may occur in the computer USB port of the computer.
Solution:
Proceed with the following action in order only when the previous action does not work.
1) Unplug the USB port from the computer and plug it again.
2) Open the Device Manager and remove the USB hub and install it again.
3) Reboot the computer.

SAMSUNG Proprietary-Contents may change without notice
6-1
This Document can not be used without Samsung's authorization
6. MAIN Electrical Parts List
6-1. Main
SEC CODE Design LOC Description
0401-001144 D400 DIODE-SWITCHING
0403-001749 D800 DIODE-ZENER
0404-001172 D300 DIODE-SCHOTTKY
0406-001223 ZD502 DIODE-TVS
0406-001231 ZD504 DIODE-TVS
0406-001231 ZD505 DIODE-TVS
0406-001231 ZD700 DIODE-TVS
0406-001231 ZD701 DIODE-TVS
0406-001231 ZD702 DIODE-TVS
0406-001231 ZD703 DIODE-TVS
0406-001231 ZD802 DIODE-TVS
0406-001231 ZD803 DIODE-TVS
0406-001231 ZD804 DIODE-TVS
0406-001231 ZD805 DIODE-TVS
0406-001231 ZD806 DIODE-TVS
0406-001231 ZD807 DIODE-TVS
0406-001231 ZD808 DIODE-TVS
0406-001254 ZD800 DIODE-TVS
0406-001254 ZD801 DIODE-TVS
0406-001267 ZD500 DIODE-TVS
0406-001267 ZD501 DIODE-TVS
0406-001267 ZD503 DIODE-TVS
0406-001305 F707 DIODE-TVS
0504-000168 Q400 TR-DIGITAL
0504-001138 Q800 TR-DIGITAL
0505-001518 Q700 FET-SILICON
0505-002088 Q300 FET-SILICON
0601-002268 LED800 LED
0601-002268 LED801 LED
0601-002268 LED802 LED
0601-002268 LED803 LED
0801-003024 U700 IC-CMOS LOGIC
0801-003065 U301 IC-CMOS LOGIC
0801-003130 U303 IC-CMOS LOGIC
0801-003200 U308 IC-CMOS LOGIC
0801-003213 U300 IC-CMOS LOGIC

SAMSUNG Proprietary-Contents may change without notice
MAIN Electrical Parts List
6-2
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Description
0801-003213 U603 IC-CMOS LOGIC
0801-003265 U302 IC-CMOS LOGIC
0902-002440 UAP600 IC-MICROPROCESSOR
1001-001410 U502 IC-ANALOG SWITCH
1001-001461 U307 IC-ANALOG SWITCH
1001-001481 U702 IC-ANALOG SWITCH
1001-001481 U703 IC-ANALOG SWITCH
1001-001481 U707 IC-ANALOG SWITCH
1001-001488 U504 IC-ANALOG SWITCH
1001-001580 U806 IC-ANALOG MULTIPLEX
1003-002047 U408 IC-MOTOR DRIVER
1003-002185 U304 IC-LEVEL DRIVER
1003-002185 U305 IC-LEVEL DRIVER
1003-002185 U309 IC-LEVEL DRIVER
1003-002185 U604 IC-LEVEL DRIVER
1009-001045 U600 IC-HALL EFFECT S/W
1107-001837 UME600 IC-NAND FLASH
1201-002147 U605 IC-VIDEO AMP
1201-002581 F201 IC-RF AMP
1201-002740 PAM100 IC-POWER AMP
1201-002864 U503 IC-AUDIO AMP
1201-002888 U102 IC-POWER AMP
1201-002889 U103 IC-POWER AMP
1201-002890 U101 IC-POWER AMP
1202-001079 U505 IC-VOLTAGE COMP.
1202-001079 U506 IC-VOLTAGE COMP.
1203-004340 U704 IC-MULTI REG.
1203-004776 U407 IC-POSI.FIXED REG.
1203-004806 U500 IC-POSI.FIXED REG.
1203-004807 U203 IC-POSI.FIXED REG.
1203-004925 U602 IC-POSI.FIXED REG.
1203-005420 U701 IC-MULTI REG.
1203-005434 U401 IC-POWER SUPERVISOR
1203-005503 U705 IC-DC/DC CONVERTER
1203-005574 U601 IC-POSI.FIXED REG.

SAMSUNG Proprietary-Contents may change without notice
MAIN Electrical Parts List
This Document can not be used without Samsung's authorization
6-3
SEC CODE Design LOC Description
1203-005667 U409 IC-POWER SUPERVISOR
1203-005690 U708 IC-DC/DC CONVERTER
1203-005772 U402 IC-VOL. DETECTOR
1203-005783 U400 IC-BATTERY
1204-003026 U200 IC-TUNER
1205-003297 U100 IC-TRANSCEIVER
1205-003467 U306 IC-SWITCH
1205-003488 U501 IC-CODEC
1205-003726 UCP300 IC-MODEM
1209-001823 U404 IC-SENSOR
1209-001872 U403 IC-SENSOR
1404-001221 TH600 THERMISTOR-NTC
1405-001093 U807 VARISTOR
1405-001093 V807 VARISTOR
1405-001093 V808 VARISTOR
1405-001093 V809 VARISTOR
1405-001093 V810 VARISTOR
1405-001093 V811 VARISTOR
1405-001177 V500 VARISTOR
1405-001177 VR800 VARISTOR
1405-001177 VR801 VARISTOR
1405-001177 VR802 VARISTOR
1405-001177 VR803 VARISTOR
1405-001177 VR804 VARISTOR
1405-001177 VR805 VARISTOR
1405-001177 VR806 VARISTOR
2007-000138 R338 R-CHIP
2007-000138 R437 R-CHIP
2007-000138 R516 R-CHIP
2007-000138 R522 R-CHIP
2007-000138 R701 R-CHIP
2007-000138 R702 R-CHIP
2007-000138 R712 R-CHIP
2007-000148 R914 R-CHIP
2007-000148 R915 R-CHIP
2007-000148 R936 R-CHIP
2007-000148 R937 R-CHIP

SAMSUNG Proprietary-Contents may change without notice
MAIN Electrical Parts List
6-4
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Description
2007-000148 R938 R-CHIP
2007-000148 R939 R-CHIP
2007-000148 R946 R-CHIP
2007-000148 R947 R-CHIP
2007-000157 R900 R-CHIP
2007-000157 R902 R-CHIP
2007-000157 R903 R-CHIP
2007-000157 R905 R-CHIP
2007-000157 R943 R-CHIP
2007-000157 R945 R-CHIP
2007-000162 R311 R-CHIP
2007-000162 R414 R-CHIP
2007-000162 R436 R-CHIP
2007-000162 R706 R-CHIP
2007-000162 R707 R-CHIP
2007-000162 R713 R-CHIP
2007-000162 R714 R-CHIP
2007-000169 R528 R-CHIP
2007-000169 R529 R-CHIP
2007-000170 R438 R-CHIP
2007-000170 R645 R-CHIP
2007-000172 R800 R-CHIP
2007-000172 R801 R-CHIP
2007-000172 R803 R-CHIP
2007-000172 R805 R-CHIP
2007-001119 R514 R-CHIP
2007-001119 R523 R-CHIP
2007-001244 R316 R-CHIP
2007-001298 R204 R-CHIP
2007-001298 R205 R-CHIP
2007-001319 R415 R-CHIP
2007-001323 R412 R-CHIP
2007-003014 R422 R-CHIP
2007-007014 R812 R-CHIP
2007-007131 R408 R-CHIP
2007-007142 R505 R-CHIP
2007-007142 R508 R-CHIP

SAMSUNG Proprietary-Contents may change without notice
MAIN Electrical Parts List
This Document can not be used without Samsung's authorization
6-5
SEC CODE Design LOC Description
2007-007306 R530 R-CHIP
2007-007307 R425 R-CHIP
2007-007307 R426 R-CHIP
2007-007313 R504 R-CHIP
2007-007317 R513 R-CHIP
2007-007317 R521 R-CHIP
2007-007480 R405 R-CHIP
2007-007528 R515 R-CHIP
2007-007528 R531 R-CHIP
2007-007698 R402 R-CHIP
2007-007741 R420 R-CHIP
2007-007741 R503 R-CHIP
2007-007875 R703 R-CHIP
2007-007942 R524 R-CHIP
2007-007942 R525 R-CHIP
2007-007942 R527 R-CHIP
2007-007942 R648 R-CHIP
2007-007943 R817 R-CHIP
2007-008045 R300 R-CHIP
2007-008045 R304 R-CHIP
2007-008045 R310 R-CHIP
2007-008045 R326 R-CHIP
2007-008045 R328 R-CHIP
2007-008045 R337 R-CHIP
2007-008045 R619 R-CHIP
2007-008045 R620 R-CHIP
2007-008045 R621 R-CHIP
2007-008045 R622 R-CHIP
2007-008045 R623 R-CHIP
2007-008045 R624 R-CHIP
2007-008045 R625 R-CHIP
2007-008045 R709 R-CHIP
2007-008047 R115 R-CHIP
2007-008047 R116 R-CHIP
2007-008049 R309 R-CHIP
2007-008052 R417 R-CHIP
2007-008052 R418 R-CHIP

SAMSUNG Proprietary-Contents may change without notice
MAIN Electrical Parts List
6-6
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Description
2007-008052 R502 R-CHIP
2007-008052 R618 R-CHIP
2007-008052 R626 R-CHIP
2007-008052 R627 R-CHIP
2007-008052 R635 R-CHIP
2007-008052 R636 R-CHIP
2007-008052 R639 R-CHIP
2007-008052 R640 R-CHIP
2007-008052 R646 R-CHIP
2007-008052 R647 R-CHIP
2007-008055 R206 R-CHIP
2007-008055 R315 R-CHIP
2007-008055 R403 R-CHIP
2007-008055 R406 R-CHIP
2007-008055 R427 R-CHIP
2007-008055 R428 R-CHIP
2007-008055 R430 R-CHIP
2007-008055 R435 R-CHIP
2007-008055 R601 R-CHIP
2007-008055 R602 R-CHIP
2007-008055 R603 R-CHIP
2007-008055 R604 R-CHIP
2007-008055 R605 R-CHIP
2007-008055 R606 R-CHIP
2007-008055 R607 R-CHIP
2007-008055 R615 R-CHIP
2007-008055 R616 R-CHIP
2007-008055 R617 R-CHIP
2007-008055 R649 R-CHIP
2007-008055 R650 R-CHIP
2007-008055 R651 R-CHIP
2007-008055 R653 R-CHIP
2007-008055 R705 R-CHIP
2007-008055 U809 R-CHIP
2007-008057 R644 R-CHIP
2007-008354 R432 R-CHIP
2007-008419 R102 R-CHIP

SAMSUNG Proprietary-Contents may change without notice
MAIN Electrical Parts List
This Document can not be used without Samsung's authorization
6-7
SEC CODE Design LOC Description
2007-008419 R103 R-CHIP
2007-008419 R104 R-CHIP
2007-008419 R105 R-CHIP
2007-008419 R106 R-CHIP
2007-008419 R400 R-CHIP
2007-008420 R519 R-CHIP
2007-008420 R520 R-CHIP
2007-008420 U811 R-CHIP
2007-008483 R329 R-CHIP
2007-008483 R629 R-CHIP
2007-008483 R633 R-CHIP
2007-008483 R641 R-CHIP
2007-008483 R652 R-CHIP
2007-008483 R704 R-CHIP
2007-008483 R806 R-CHIP
2007-008483 R807 R-CHIP
2007-008483 R808 R-CHIP
2007-008483 R809 R-CHIP
2007-008483 R810 R-CHIP
2007-008483 R811 R-CHIP
2007-008516 R201 R-CHIP
2007-008516 R302 R-CHIP
2007-008516 R305 R-CHIP
2007-008516 R306 R-CHIP
2007-008516 R312 R-CHIP
2007-008516 R424 R-CHIP
2007-008516 R433 R-CHIP
2007-008516 R434 R-CHIP
2007-008516 R700 R-CHIP
2007-008516 R816 R-CHIP
2007-008579 R117 R-CHIP
2007-008579 R118 R-CHIP
2007-008686 R643 R-CHIP
2007-008766 R327 R-CHIP
2007-008798 R637 R-CHIP
2007-008798 R638 R-CHIP
2007-008806 U810 R-CHIP
