Samsung GT-E1125 User manual

GSM TELEPHONE
GT-E1125
GSM TELEPHONE CONTENTS
1. Safety Precautions
2. Specification
3. Product Function
4. Array course control
5. Exploded View and Parts List
6. Main Electrical Parts List
7. Block Diagrams
8. PCB Diagrams
9. Flow Chart of Troubleshooting
10. Reference data
11. Disassembly and Assembly
instructions
12. Schematic Diagram

SAMSUNG Proprietary-Contents may change without notice
1. Safety Precautions
1-1
This Document can not be used without Samsung's authorization
1-1. Repair Precaution
―Repair in Shield Box, during detailed tuning.
Take specially care of tuning or test, because the specification of cellular phone is sensitive for
surrounding interference(RF noise).
―Be careful to use akind of magnetic object or tool, because performance of parts is damaged by
the influence of magnetic force.
―Surely use astandard screwdriver when you disassemble this product, otherwise screw will be
worn away.
―Use athicken twisted wire when you measure level.
Athicken twisted wire has low resistance, therefore error of measurement is few.
―Repair after separate Test Pack and Set because for short danger (for example an overcurrent
and furious flames of parts etc) when you repair board in condition of connecting Test Pack and
tuning on.
―Take specially care of soldering, because Land of PCB is small and weak in heat.
―Surely tune on/off while using AC power plug, because arepair of battery charger is dangerous
when tuning ON/OFF PBA and Connector after disassembling charger.
―Don't use as you pleases after change other material than replacement registered on SEC System.
Otherwise engineer in charge isn't charged with problem that you don't keep this rules.

SAMSUNG Proprietary-Contents may change without notice
Safety Precautions
1-2
This Document can not be used without Samsung's authorization
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Several semiconductor may be damaged easily by static electricity. Such parts are called by ESD
(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.
You can prevent from ESD damage by static electricity.
―Remove static electricity remained your body before you touch semiconductor or parts with
semiconductor. There are ways that you touch an earthed place or wear static electricity prevention
string on wrist.
―Use earthed soldering steel when you connect or disconnect ESD.
―Use soldering removing tool to break static electricity. Otherwise ESD will be damaged by static
electricity.
―Don't unpack until you set up ESD on product. Because most of ESD are packed by box and
aluminum plate to have conductive power,they are prevented from static electricity.
―You must maintain electric contact between ESD and place due to be set up until ESD is
connected completely to the proper place or acircuit board.

SAMSUNG Proprietary-Contents may change without notice
2. Specification
2-1
This Document can not be used without Samsung's authorization
2-1. GSM/DCS1800/PCS1900 General Specification
EGSM 900
Phase 2 DCS1800 Phase 1
Freq.
Band[MHz]
Uplink/Downlink
880~915
925~960 1710~1785 1805~1880
ARFCN range 0~124 & 975~1023 512~885
Tx/Rx spacing 45MHz 95MHz
Mod. Bit rate/
Bit Period 270.833kbps
3.692us 270.833kbps 3.692us
Time Slot
Period/Frame
Period
576.9us
4.615ms 576.9us 4.615ms
Modulation 0.3GMSK 0.3GMSK
MS Power 33dBm~5dBm 30dBm~0dBm
Power Class 5pcl ~19
pcl 0pcl ~15 pcl
Sensitivity -102dBm -100dBm
TDMA Mux 88
Cell Radius 35Km 2Km

SAMSUNG Proprietary-Contents may change without notice
Specification
2-2
This Document can not be used without Samsung's authorization
2-2. GSM TX power class
TX Power
control level DCS1800
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control level GSM900
5 33±2 dBm
6 31±2 dBm
7 29±2 dBm
8 27±2 dBm
9 25±2 dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3dBm
18 7±3 dBm
19 5±3 dBm

SAMSUNG Proprietary-Contents may change without notice
3. Product Function
3-1
This Document can not be used without Samsung's authorization
Main Function
-Simple and modern bar design
-Speaker Phone Function
-Mobile Tracker, My Menu, Living world
-FM Radio

SAMSUNG Proprietary-Contents may change without notice
4. Array course control
4-1
This Document can not be used without Samsung's authorization
4-1. Software Adjustments
Test Cable (GH39-01160A)
Test Jig (GH99-36900A)
RF Test Cable (GH39-00985A) Adapter (GH99-38251A)

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-2
This Document can not be used without Samsung's authorization
4-2. Software Downloading
4-2-1. Downloading Binary Files
•2binary files for downloading E1125.
–E1125DXIxx.cla
–E1125DXIxx.tfs
4-2-2. Pre-requsite for Downloading
•Downloader Program(PNX4900_SEA_Downloader_v1.1_For_SAMSUNG_Lite.exe)
•E1125 Mobile Phone
•JIG BOX
•Test Cable
•Serial Cable
•Binary files

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-3
This Document can not be used without Samsung's authorization
4-2-3. S/W Downloader Program
1. Load the binary download program by executing the “PNX4900_SEA_Downloader_
v1.1_For_SAMSUNG_Lite.exe”.
2. Select the Port, Baud Rate and Mode.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-4
This Document can not be used without Samsung's authorization

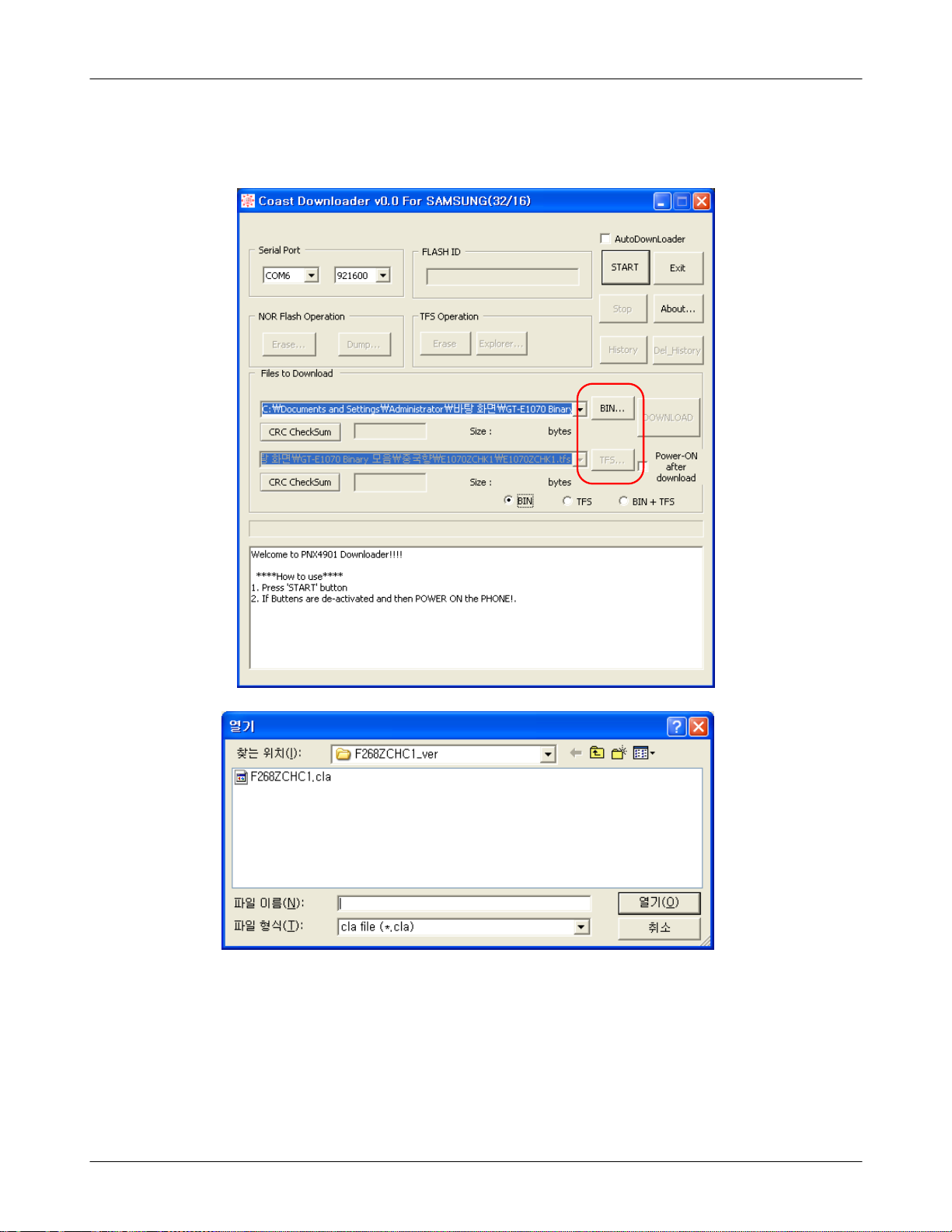

3. Select the binary fileswhat you want to download

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-5
This Document can not be used without Samsung's authorization

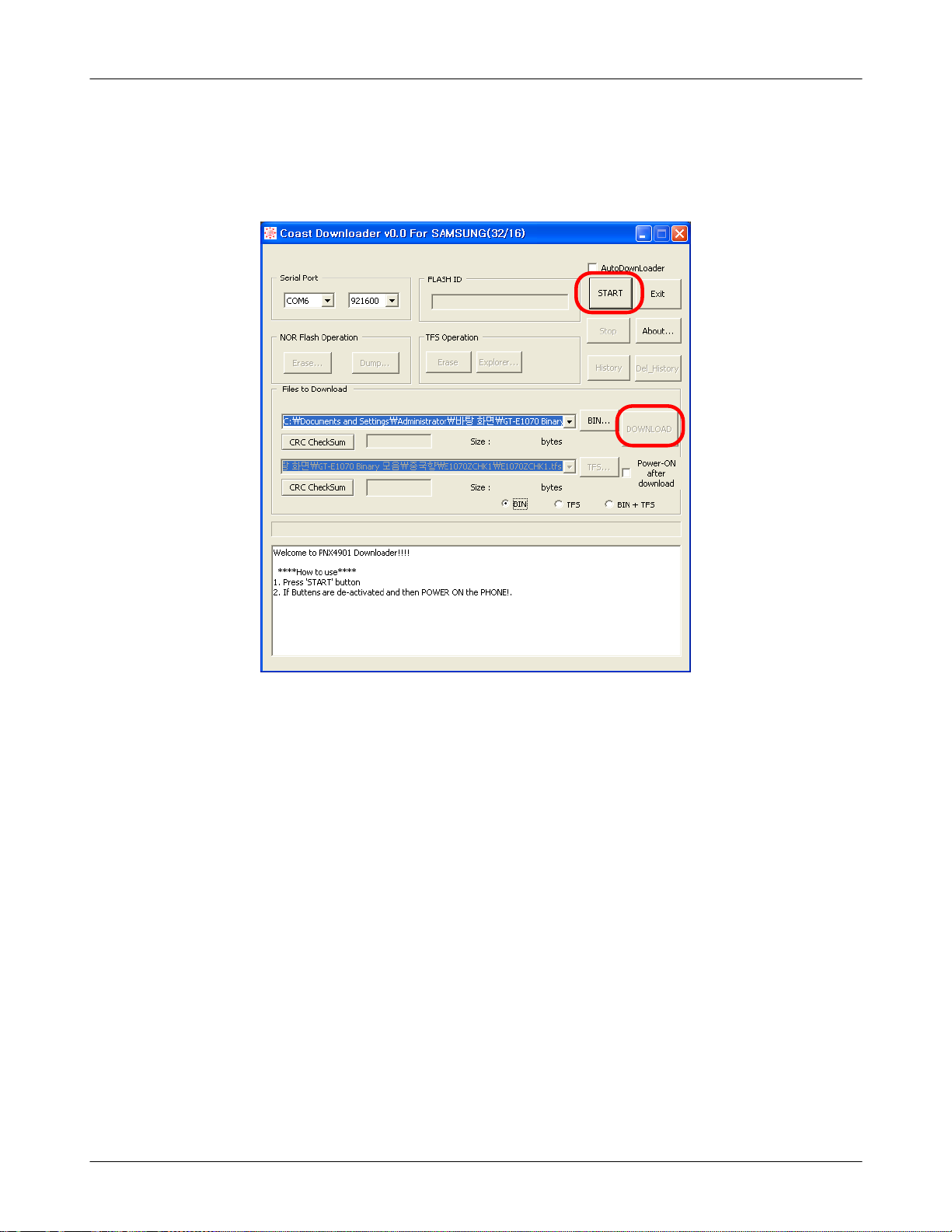

4. Press the "Start" button and connect the Handset.
Then Press the "Download" button.

SAMSUNG Proprietary-Contents may change without notice
5. Exploded View and Parts List
5-1
This Document can not be used without Samsung's authorization
5-1. Cellular phone Exploded View

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
5-2
This Document can not be used without Samsung's authorization
Design LOC Discription SEC CODE
QAN02 INTENNA-GT_E1120 GH42-01932A
QBA00 ASSY COVER-BATT GH98-11512A
QBA01 INNER BATTERY PACK-800MAH,BLK,ENG,M GH43-02483A
QKP01 ASSY KEYPAD-(XEN/ZK) GH98-11509A
QLC01 ASSY LCD-MODULE ASSY(GT-E1100) GH96-03565A
QME01 DOME SHEET-GT-E1100 MAIN GH59-06751A
QMI01 MICROPHONE-ASSY-GT_E1120 GH30-00572A
QMO01 MOTOR DC-SCH-S369 GH31-00392A
QMP01 ASSY PBA MAIN-GTE1125 GH92-05371A
QRE01 ASSY CASE-REAR GH98-11511A
QSH01 ICT SHIELD-CAN GH70-04601A
QSP01 SPEAKER 3001-002476
QFR01 ASSY CASE-FRONT GH98-12481A
QMW02 PMO WINDOW-MAIN GH72-52571A
5-2. Cellular phone Parts list

SAMSUNG Proprietary-Contents may change without notice
6. MAIN Electrical Parts List
6-1
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
D200,D201 0401-001110 DIODE-SWITCHING
ZD200 0403-001547 DIODE-ZENER
D300,D301,D302,D303 0406-001288 DIODE-TVS
D304 0406-001306 DIODE-TVS
ZD304 0406-001322 DIODE-TVS
LED300,LED301,LED302 0601-002674 LED
LED303,LED304,LED305 0601-002674 LED
TR100 1003-001440 IC
UME200 1108-000217 MEMORY
PAM102 1201-002829 IC
U201 1203-005498 IC
U301 1203-005512 IC
U101 1203-005686 IC
U100 1204-002979 IC
UCP200 1205-003679 IC
TH200 1404-001221 THERMISTOR
R304 2007-000139 R-CHIP
R100 2007-000140 R-CHIP
R301,R308,R311,R314 2007-000141 R-CHIP
R104,R105 2007-000143 R-CHIP
C315,R116,R117,R221 2007-000148 R-CHIP
R222 2007-000148 R-CHIP
R118 2007-000151 R-CHIP
R108,R210 2007-000162 R-CHIP
R207,R317,R318,R319 2007-000172 R-CHIP
R320,R321 2007-000172 R-CHIP
R302,R303 2007-000173 R-CHIP
R310 2007-000174 R-CHIP
R211 2007-001301 R-CHIP
R213 2007-001333 R-CHIP
R107 2007-003025 R-CHIP
R212 2007-007698 R-CHIP
R205 2007-008500 R-CHIP
C103 2203-000233 C-CERAMIC,CHIP
C128 2203-000278 C-CERAMIC,CHIP
C227,C231 2203-000425 C-CERAMIC,CHIP
C111,C112 2203-000438 C-CERAMIC,CHIP
C308,C309,C310 2203-000585 C-CERAMIC,CHIP
C303,C305,C306 2203-000679 C-CERAMIC,CHIP
C107,C108,C121,C229 2203-000812 C-CERAMIC,CHIP
C327,C328,C329 2203-000812 C-CERAMIC,CHIP
C325 2203-000995 C-CERAMIC,CHIP
C218,C219,C220,C221 2203-001153 C-CERAMIC,CHIP
C236,C318 2203-001153 C-CERAMIC,CHIP

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-2
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
C317 2203-001239 C-CERAMIC,CHIP
C223 2203-001405 C-CERAMIC,CHIP
C100,C104,C230,C234 2203-002709 C-CERAMIC,CHIP
C235 2203-002709 C-CERAMIC,CHIP
C129 2203-003054 C-CERAMIC,CHIP
C113,C115 2203-005158 C-CERAMIC,CHIP
C114,C116 2203-005281 C-CERAMIC,CHIP
C105 2203-005288 C-CERAMIC,CHIP
C232,C302,C304,C314 2203-005482 C-CERAMIC,CHIP
C316 2203-005482 C-CERAMIC,CHIP
C120,C203,C204,C216 2203-006048 C-CERAMIC,CHIP
C206,C207 2203-006208 C-CERAMIC,CHIP
C101,C102 2203-006260 C-CERAMIC,CHIP
C224 2203-006348 C-CERAMIC,CHIP
C202,C205,C208,C209 2203-006399 C-CERAMIC,CHIP
C210,C211,C319,C320 2203-006399 C-CERAMIC,CHIP
C109,C311,C312 2203-006562 C-CERAMIC,CHIP
C212,C213 2203-006824 C-CERAMIC,CHIP
C222 2203-006841 C-CERAMIC,CHIP
C228,TA301 2404-001377 C-TA,CHIP
TA101 2404-001381 C-TA,CHIP
TA300 2404-001430 C-TA,CHIP
L306,L307 2703-001723 INDUCTOR-SMD
L103,L110 2703-002198 INDUCTOR-SMD
C110 2703-002200 INDUCTOR-SMD
L104 2703-002204 INDUCTOR-SMD
L106,L107 2703-002208 INDUCTOR-SMD
L100 2703-002269 INDUCTOR-SMD
L105 2703-002281 INDUCTOR-SMD
L308,L309 2703-002309 INDUCTOR-SMD
L310 2703-003064 INDUCTOR-SMD
L201 2703-003297 INDUCTOR-SMD
R101 2203-005552 INDUCTOR-SMD
OSC200 2801-003856 CRYSTAL-UNIT)
OSC201 2801-004552 CRYSTAL-UNIT
F100 2904-001879 FILTER-SAW
L200 3301-001158 CORE-FERRITE BEAD
Please consult the GSPN website (Samsung Portal) for the most recent version of the product's part list.

SAMSUNG Proprietary-Contents may change without notice
7. Block Diagrams
7-1
This Document can not be used without Samsung's authorization
7-1. RF Solution Block Diagram
PNX 4900
(PBGA-256 BALL)
GSM/GPRS
ARM926EJ-S
(ARM 9 + CEVA TEAK DSP CORE)
AERO 4210 RF SUBSYSTEM
PMU
( INTERNAL CHARGER
6 CHANNEL LDO
1 DC-DC REGULATOR
VRTC
SIM INTERFACE )
AUDIO AMP
KBI
IIC
RTC
UART 1
IrDA
40 POLY
UFB- LCD
128 x 128
65K color
MEMORY
Flash/pSRAM MCP
K5N3217ATA-AT80
32Mb x 16Mb
(BURST MODE)
SPK & EARSPK
Keypad
Tx module
( RF4180)
Battery
(463446
800mA)
OVP
(SSUUSS66116600MMNNTTBBGG
)
External Interface PIN
(PC Interface)

SAMSUNG Proprietary-Contents may change without notice

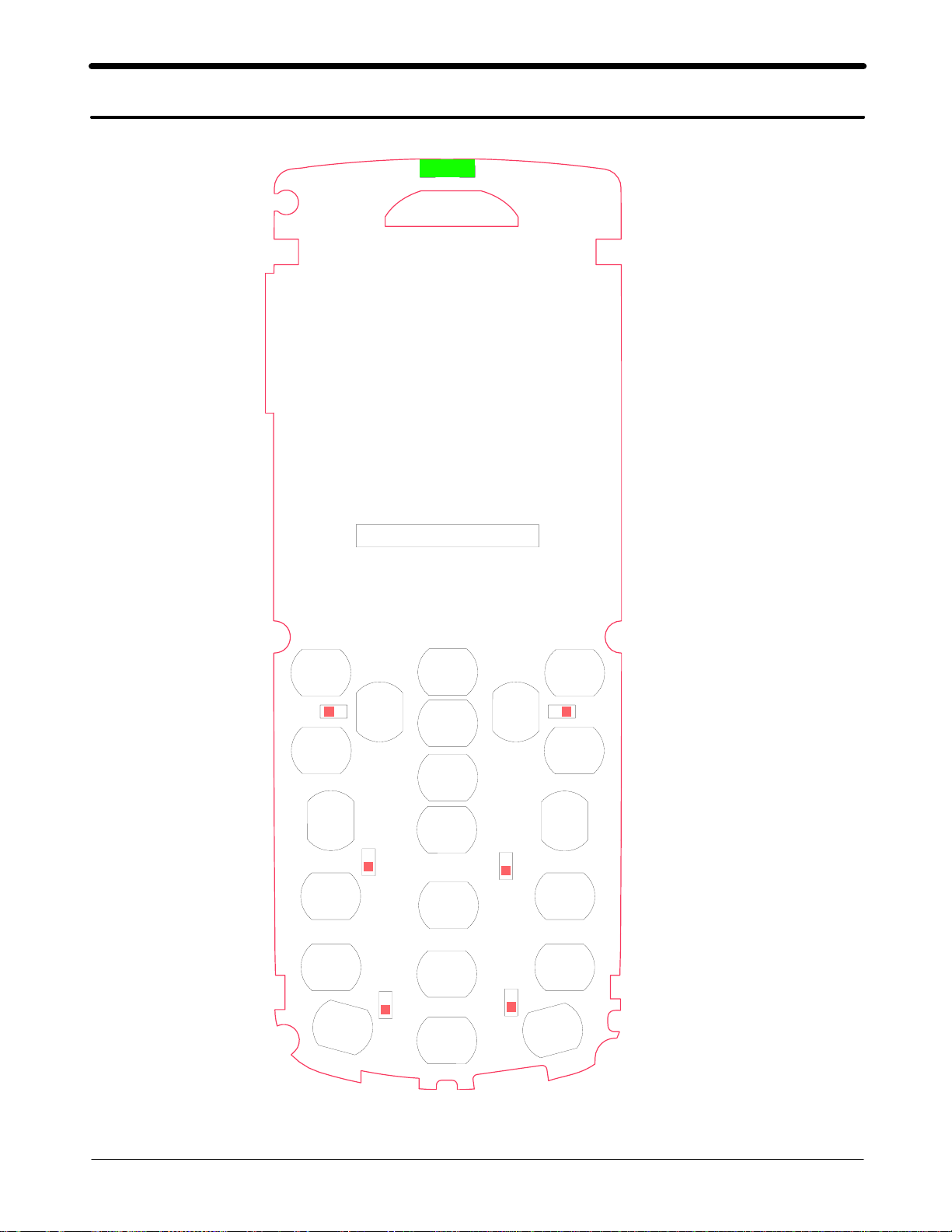

8. PCB Diagrams
8-1
This Document can not be used without Samsung's authorization
Top
0
0
3
T
I
G
I
D
DIGIT301
2
0
3
T
I
G
I
D
DIGIT303 DIGIT304 DIGIT305
DIGIT306 DIGIT307 DIGIT308
DIGIT309
DOWN
END
HDC300
INT
0
0
3
D
E
L
1
0
3
D
E
L
LED302 LED303
4
0
3
D
E
L
5
0
3
D
E
L
LED306
T
F
E
L
T
H
G
I
R
SEND
P
R
A
H
S
SOFT300 SOFT301
R
A
T
S
UP

SAMSUNG Proprietary-Contents may change without notice
PCB Diagrams
8-2
This Document can not be used without Samsung's authorization
Bottom

SAMSUNG Proprietary-Contents may change without notice
9. Flow Chart of Troubleshooting
This Document can not be used without Samsung's authorization
9-1

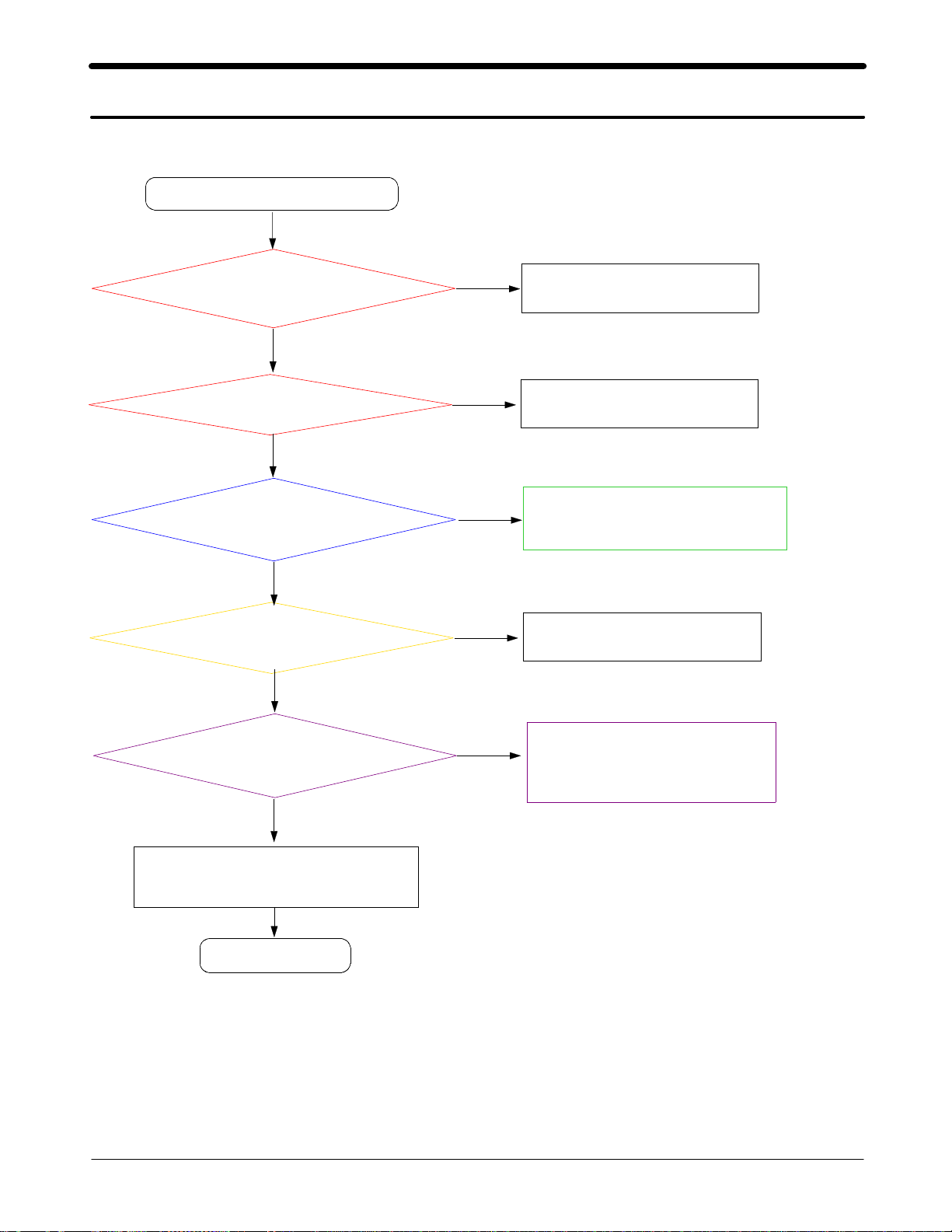

9-1. Power On
Check the Battery Voltage
is more than 3.7V
'Power On 'does not work
Change the Battery
END
No
Yes
PMU_VIO =2.8 V? Check the Main Chip related to
VGPIO_2.8V
No
Yes
Check the Clock at
UCP200 L16pin
(CLK32K)=32KHZ Check the Main Chip
No
Yes
R210(+VGPIO)=" H"? Check the related circuit
No
Yes
+VCORE_1.25V
=1.25
V? Resolder C202 and L201
No
Yes
Check the initial operation
Yes
Yes

SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Flow Chart of Troubleshooting
9-2
ANT100
ANT101
C105
C107
8
0
1
C
0
1
1
C
C111
C112
C113
C114
C115
C116
C120
C121
C128 C129
C202
3
0
2
C
4
0
2
C
C205
6
0
2
C
7
0
2
C
8
0
2
C
9
0
2
C
0
1
2
C
1
1
2
C
2
1
2
C
3
1
2
C
C216
C218
C219 C220
C221
C227
C228
C231
4
3
2
C
5
3
2
C
C236
C237
1
0
3
C
C302
3
0
3
C
C304
C305
C306
3
1
3
C
4
1
3
C
5
1
3
C
6
1
3
C
7
1
3
C
C325 C326
C327
D302 D303
0
0
1
F
L100
L101
L103
5
0
1
L
4
0
1
L
L106
7
0
1
L
L110
L201
8
0
3
L
9
0
3
L
MIC300
0
0
2
C
S
O
1
0
2
C
S
O
PAM102
R100
1
0
1
R
R104
R105
R207
R208
R210
R211
2
1
2
R
R221
1
0
3
R
4
0
3
R
R308
1
1
3
R
4
1
3
R
0
0
1
S
F
R
0
0
1
C
S
1
0
1
C
S
SC102
SC103
4
0
1
C
S
5
0
1
C
S
SC106
SC107
SC108
1
0
1
A
T
1
0
3
A
T
0
0
2
H
T
]
2
2
[
A
_
P
T
]
3
2
[
A
_
P
T
TP_LB
D
M
_
P
T
n
E
O
_
P
T
TP_UB
U306
UCP200
0
0
2
E
M
U
E1100T
* CLK
* F-RDY/R-WAIT#
* AVD#
E1100
E1105
E1105L
E1105T
NEAR POWER DOMAIN SUPPLY NEAR VOLTAGE REGULATOR
5
0
0
1
VBAT
C227
C207
TH200
VBG
1005
0ohm
R216
C203
5
0
0
1
VMEM_1.8V
5
0
0
1
R222
C210
0
0
2
L
5
0
0
1
VSIM_3.0V
R218
0ohm
1005
1005
R207
VRF_2.85V
C231
5
0
0
1
VPERM_3.0V
C228
5
0
0
1
C205
5
0
0
1
C209
VBG
0
1
2
R
SHORT
R220
1005
VGPIO_2.8V VGPIO_2.8V
VCORE_1.25V
VCORE_1.25V
D200
VPERM_3.0V
R215
0ohm
1005
VCORE_1.25V
VANA_2.85V
VANA_2.85V
D201
R211
1005
R212
5
0
0
1
VRF_2.85V
VBAT
6
1
2
C
5
0
0
1
1
D
N
G
2
42
D
N
G
1T
O
H
T
O
H
3
VMEM_1.8V
OSC201
C206
VCORE_1.25V VSIM_3.0V
5
0
0
1
C211
UCP200
3
1
2
C
C237
VGPIO_2.8V
5
0
0
1
C204 VBAT
VMEM_1.8V
VGPIO_2.8V
R217
1005
0ohm
C208
0ohm
1005
5
0
0
1
R223
23
41
BAT200
NEG
2POS
1
VPERM_3.0V
OSC200
2
1
2
C
NC
VANA_2.85V
R208
1005
SHORT
L201
5
0
0
1
C202
VRF_2.85V
VANA_2.85V
VGPIO_2.8V
UART1_RD
UART1_RTS
ICHGN
ICHGP
MIC_BIAS
FM_SCL
FM_SDA
LCD_BL_EN
TMS
RSTON
ONKEY_2
VSIM_3.0V
VMEM_1.8V
VCM_OUT
UART1_TD
VF
UART1_CTS
ONKEY_1
AUX_DET
CHG_SW
VPERM_3.0V
VRF_2.85V
UART0_RD
MOD_STANDBY
32KHz_DIGIT
UART0_TD
RAMP
TRST_N
TDI
TDO
TCK
RTCK
CHG_REG
DCSRX_P
LB
SYSRST
DCSRX_N
UB
OEn
EGSMRX_P
EGSMRX_N
SIM_RST
SIM_DATA
SIM_CLK
VC1
PON_PA
DCS_TX
NCSRAM
NCS0
EGSM_TX
WEn
NCSFLASH
A(19)
A(20)
A(21)
A(22)
A(17)
KEYOUT(0)
JIG_ON
FM_RST
TORCH_EN
A(23)
SPK_P
SPK_N
EAR_SW_REF
EAR_SW
FM_L
FM_R
VCORE_1.25V
VCHG_P
A(17:22)
A(18)
MD(14)
MD(15)
KEY_LED_ON
FM_INT
VIB_EN
LCD_DET
KEYOUT(0:3)
KEYOUT(3)
KEYOUT(2)
KEYOUT(1)
KEYIN(0:2)
KEYIN(2)
KEYIN(1)
KEYIN(0)
KEYIO(0:2)
KEYIO(2)
KEYIO(1)
KEYIO(0)
MIC_P
MIC_N
EAR_MIC_P
EAR_MIC_N
EAR_P
EAR_N
A(13)
A(14)
A(15)
MD(0:15) MD(0)
MD(1)
MD(2)
MD(3)
MD(4)
MD(5)
MD(6)
MD(7)
MD(8)
MD(9)
MD(10)
MD(11)
MD(12)
MD(13)
