Samsung GT S3650 User manual

GSM TELEPHONE
GT-S3650
1. Safety Precautions
2. Specification
3. Product Function
4. Array course control
5. Exploded View and Parts list
6. MAIN Electrical Parts List
7. Block Diagrams
8. PCB Diagrams
9. Chart of Troubleshooting
10. Reference data
11. Disassembly and Assembly
Instructions
GSM TELEPHONE CONTENTS

This Service Manual is aproperty of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.
Samsung Electronics Co.,Ltd.
2009. 09. Rev.1.0
ⓒ
Country Web Site
North America service.samsungportal.com
Latin America latin.samsungportal.com
CIS cis.samsungportal.com
Europe europe.samsungportal.com
China china.samsungportal.com
Asia asia.samsungportal.com
Mideast &Africa mea.samsungportal.com
GSPN (Global Service Partner Network)

2. Specification
2-1
2-1. GSM General Specification
GSM900
Phase 1
GSM850
Phase 1
DCS1800
Phase 1 PCS1900
Freq.
Band[MHz]
Uplink/Downlink
880~915
925~960
824.2~848.8
869.2~893.8
1710~1785
1805~1880
1850~1910
1930~1990
ARFCN range 0~124 &
975~1023 128~251 512~885 512~810
Tx/Rx spacing 45MHz 45MHz 95MHz 80MHz
Mod. Bit rate/
Bit Period
270.833kbps
3.692us
270.833kbps
3.692us
270.833kbps
3.692us
270.833kbps
3.692us
Time Slot
Period/Frame
Period
576.9us
4.615ms
576.9us
4.615ms
576.9us
4.615ms
576.9us
4.615ms
Modulation 0.3GMSK 0.3GMSK 0.3GMSK 0.3GMSK
MS Power 33dBm~5dBm 33dBm~5dBm 30dBm~0dBm 30dBm~0dBm
Power Class 5pcl ~ 19pcl 5pcl ~ 19pcl 0pcl ~15
pcl 0pcl ~15 pcl
Sensitivity -102dBm -102dBm -100dBm -100dBm
TDMA Mux 8 888
Cell Radius 35Km 35Km 2Km -

Speclflcation
2-2
TX Power
control level
GSM850
GSM900
533±3
dBm
631±3
dBm
729±3
dBm
827±3
dBm
925±3
dBm
10 23±3 dBm
11 21±3 dBm
12 19±3 dBm
13 17±3 dBm
14 15±3 dBm
15 13±3 dBm
16 11±5 dBm
17 9±5 dBm
18 7±5 dBm
19 5±5 dBm
TX Power
control level DCS1800
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control level PCS1900
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
2-2. GSM Tx Power Class

Speclflcation
2-3
TX Power
control level
GSM900
GSM850
827±3
dBm
925±3
dBm
10 23±3 dBm
11 21±3 dBm
12 19±3 dBm
13 17±3 dBm
14 15±3 dBm
15 13±3 dBm
16 11±5 dBm
17 9±5 dBm
18 7±5 dBm
19 5±5 dBm
TX Power
control level DCS1800
2 26±3 dBm
3 24±3 dBm
4 22±3 dBm
5 20±3 dBm
6 18±3 dBm
7 16±3 dBm
8 12±3 dBm
9 10±3 dBm
10 14±3 dBm
11 12±4 dBm
12 10±4 dBm
13 8±4dBm
14 6±4 dBm
15 4±4 dBm
2-3. GSM EDGE TX power class
TX Power
control level PCS1900
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
812±3
dBm
910±3
dBm
10 14±3 dBm
11 12±4 dBm
12 10±4 dBm
13 8±4dBm
14 6±4 dBm
15 4±4 dBm
Only in Master

SAMSUNG Proprietary-Contents may change without notice
5. Exploded View and Parts List
5-1
This Document can not be used without Samsung's authorization
5-1. Cellular phone Exploded View
QME03
QFR01
QLC01
QAR01
QMP01
QMO01
QSH01
QCR72
QRE01
QBR05
QVK01
QCA01
QKP01
QSP01
QCR101
QCR101
QBA01
QBC00
QBC01
QBC02
QME02
QCA02
QLB01
QMI01
QVO01
QIF01
QCK01

Exploded View and Parts List
5-1
This Document can not be used without Samsung's authorization
Design LOC Discription SEC CODE
QAR01 AUDIO-RECEIVER 3009-001387
QBA01 INNER BATTERY PACK-960MAH,BLK,UNI,MAIN GH43-03216A
QBC00 ASSY COVER-BATTERY GH98-13936A
QBC01 ASSY COVER-BATTERY(IK) GH98-13936E
QBC02 ASSY COVER-BATTERY ADDED GH98-15010A
QBR05 ASSY BRACKET-CAMERA GH98-15105A
QCA01 CAMERA MODULE-GT-S3650_2.0M GH59-08173A
QCA02 KEY FPCB-GT-S3650 CAM FPCB GH59-07882A
QCR101 SCREW-MACHINE 6001-002005
QCR72 SCREW-MACHINE 6001-002051
QFR01 ASSY CASE-FRONT GH98-13888A
QKP01 ASSY KEYPAD-(BLACK/OPEN) GH98-13935A
QLC01 ELA MODULE-GT_S3650 LCD GH96-04006A
QME02 DOME SHEET-SUB KEY(GT-S3650) GH59-07885A
QME03 TOUCH/PANEL-GTS3650 GH59-08114A
QMO01 MOTOR DC-SCHC250 GH31-00323A
QMP01 A/S ASSY-PBA MAIN GT_S3650L GH82-04094A
QSH01 ASSY BRACKET-SHIELD REAR GH98-13934A
QSP01 MODULE-GTS3650L_SPK GH59-08421A
QVK01 KEY FPCB-GT-S3650 VOL FPCB GH59-07881A
QLB01 ASSY BRACKET-LCD V2 GH98-14828A
QMI03 RMO RUBBER-MIC UP GH73-13137A
QRE01 ASSY CASE-REAR GH98-13889A
QIF01 PMO COVER-IF V3 GH72-56516A
QCK01 ASSY KEY-CAMERA GH98-15162A
QVO01 ASSY KEY-VOLUME GH98-15163A
5-2. Cellular phone Parts list

SAMSUNG Proprietary-Contents may change without notice
6. MAIN Electrical Parts List
6-1
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Description
0403-001688 ZD300 DIODE-ZENER
0406-001286 ZD404 DIODE-TVS
0406-001286 ZD406 DIODE-TVS
0406-001288 ZD301 DIODE-TVS
0406-001288 ZD400 DIODE-TVS
0406-001288 ZD401 DIODE-TVS
0406-001288 ZD402 DIODE-TVS
0406-001288 ZD403 DIODE-TVS
0406-001288 ZD500 DIODE-TVS
0406-001288 ZD503 DIODE-TVS
0406-001288 ZD504 DIODE-TVS
0502-001322 Q300 TR-POWER
0505-001518 Q200 FET-SILICON
0801-003026 U301 IC
0801-003130 U200 IC
1001-001410 U400 IC
1108-000296 UME200 MEMORY
1201-002494 U302 IC
1201-002932 U504 IC
1201-002943 PAM100 IC
1203-004604 U501 IC
1203-004925 U401 IC
1203-005521 U502 IC
1203-005562 U300 IC
1205-003656 UCP200 IC
1205-003839 U102 IC
1404-001221 VR200 THERMISTOR
2007-000138 R208 R-CHIP
2007-000138 R305 R-CHIP
2007-000138 R412 R-CHIP
2007-000140 R107 R-CHIP
2007-000140 R111 R-CHIP
2007-000141 R404 R-CHIP
2007-000141 R406 R-CHIP
2007-000143 R207 R-CHIP
2007-000143 R413 R-CHIP

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-2
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Description
2007-000144 R209 R-CHIP
2007-000144 R210 R-CHIP
2007-000144 R211 R-CHIP
2007-000144 R212 R-CHIP
2007-000144 R310 R-CHIP
2007-000148 R313 R-CHIP
2007-000152 R215 R-CHIP
2007-000157 R308 R-CHIP
2007-000157 R309 R-CHIP
2007-000157 R311 R-CHIP
2007-000157 R312 R-CHIP
2007-000162 R102 R-CHIP
2007-000162 R104 R-CHIP
2007-000162 R220 R-CHIP
2007-000162 R306 R-CHIP
2007-000162 R317 R-CHIP
2007-000162 R401 R-CHIP
2007-000162 R405 R-CHIP
2007-000162 R408 R-CHIP
2007-000162 R411 R-CHIP
2007-000162 R416 R-CHIP
2007-000162 R500 R-CHIP
2007-000162 R501 R-CHIP
2007-000164 R314 R-CHIP
2007-000164 R315 R-CHIP
2007-000165 R307 R-CHIP
2007-000172 R407 R-CHIP
2007-001319 R203 R-CHIP
2007-001319 R204 R-CHIP
2007-001319 R217 R-CHIP
2007-001319 R222 R-CHIP
2007-001319 R417 R-CHIP
2007-001319 R418 R-CHIP
2007-001333 R213 R-CHIP
2007-001339 R214 R-CHIP
2007-002796 R409 R-CHIP

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-3
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Description
2007-002796 R410 R-CHIP
2007-003014 R206 R-CHIP
2007-003018 R105 R-CHIP
2007-003018 R106 R-CHIP
2007-007100 R304 R-CHIP
2007-007132 R113 R-CHIP
2007-007156 R414 R-CHIP
2007-007156 R415 R-CHIP
2007-007193 R200 R-CHIP
2007-007312 R216 R-CHIP
2007-007315 R219 R-CHIP
2007-007981 R201 R-CHIP
2007-007981 R202 R-CHIP
2007-008275 R301 R-CHIP
2007-008401 R205 R-CHIP
2007-010071 R302 R-CHIP
2203-000233 C118 C-CERAMIC,CHIP
2203-000233 C235 C-CERAMIC,CHIP
2203-000233 C342 C-CERAMIC,CHIP
2203-000254 C104 C-CERAMIC,CHIP
2203-000254 C222 C-CERAMIC,CHIP
2203-000254 C237 C-CERAMIC,CHIP
2203-000254 C309 C-CERAMIC,CHIP
2203-000254 C336 C-CERAMIC,CHIP
2203-000254 C435 C-CERAMIC,CHIP
2203-000278 C100 C-CERAMIC,CHIP
2203-000278 C103 C-CERAMIC,CHIP
2203-000311 C419 C-CERAMIC,CHIP
2203-000311 C429 C-CERAMIC,CHIP
2203-000386 C416 C-CERAMIC,CHIP
2203-000386 C417 C-CERAMIC,CHIP
2203-000386 C420 C-CERAMIC,CHIP
2203-000386 C423 C-CERAMIC,CHIP
2203-000386 C426 C-CERAMIC,CHIP
2203-000425 C219 C-CERAMIC,CHIP
2203-000438 C233 C-CERAMIC,CHIP

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-4
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Description
2203-000438 C424 C-CERAMIC,CHIP
2203-000489 C332 C-CERAMIC,CHIP
2203-000489 C343 C-CERAMIC,CHIP
2203-000550 C310 C-CERAMIC,CHIP
2203-000550 C311 C-CERAMIC,CHIP
2203-000654 C108 C-CERAMIC,CHIP
2203-000679 C129 C-CERAMIC,CHIP
2203-000812 C119 C-CERAMIC,CHIP
2203-000812 C130 C-CERAMIC,CHIP
2203-000812 C134 C-CERAMIC,CHIP
2203-000812 C135 C-CERAMIC,CHIP
2203-000812 C307 C-CERAMIC,CHIP
2203-000812 C401 C-CERAMIC,CHIP
2203-000812 C402 C-CERAMIC,CHIP
2203-000812 C430 C-CERAMIC,CHIP
2203-000854 C232 C-CERAMIC,CHIP
2203-000854 C236 C-CERAMIC,CHIP
2203-000995 C205 C-CERAMIC,CHIP
2203-000995 C216 C-CERAMIC,CHIP
2203-000995 C231 C-CERAMIC,CHIP
2203-001101 C223 C-CERAMIC,CHIP
2203-001153 C432 C-CERAMIC,CHIP
2203-001153 C433 C-CERAMIC,CHIP
2203-001221 C127 C-CERAMIC,CHIP
2203-005234 C112 C-CERAMIC,CHIP
2203-005281 C115 C-CERAMIC,CHIP
2203-005450 C124 C-CERAMIC,CHIP
2203-005482 C105 C-CERAMIC,CHIP
2203-005482 C107 C-CERAMIC,CHIP
2203-005482 C128 C-CERAMIC,CHIP
2203-005482 C313 C-CERAMIC,CHIP
2203-005482 C422 C-CERAMIC,CHIP
2203-005482 C425 C-CERAMIC,CHIP
2203-006048 C201 C-CERAMIC,CHIP
2203-006048 C208 C-CERAMIC,CHIP
2203-006048 C210 C-CERAMIC,CHIP

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-5
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Description
2203-006048 C211 C-CERAMIC,CHIP
2203-006048 C212 C-CERAMIC,CHIP
2203-006048 C213 C-CERAMIC,CHIP
2203-006048 C217 C-CERAMIC,CHIP
2203-006048 C218 C-CERAMIC,CHIP
2203-006048 C306 C-CERAMIC,CHIP
2203-006048 C418 C-CERAMIC,CHIP
2203-006048 C434 C-CERAMIC,CHIP
2203-006048 C436 C-CERAMIC,CHIP
2203-006048 C437 C-CERAMIC,CHIP
2203-006048 U506 C-CERAMIC,CHIP
2203-006257 C406 C-CERAMIC,CHIP
2203-006257 C407 C-CERAMIC,CHIP
2203-006260 C404 C-CERAMIC,CHIP
2203-006260 C405 C-CERAMIC,CHIP
2203-006348 C308 C-CERAMIC,CHIP
2203-006399 C101 C-CERAMIC,CHIP
2203-006399 C102 C-CERAMIC,CHIP
2203-006399 C126 C-CERAMIC,CHIP
2203-006399 C132 C-CERAMIC,CHIP
2203-006399 C133 C-CERAMIC,CHIP
2203-006399 C207 C-CERAMIC,CHIP
2203-006399 C229 C-CERAMIC,CHIP
2203-006399 C230 C-CERAMIC,CHIP
2203-006399 C304 C-CERAMIC,CHIP
2203-006399 C338 C-CERAMIC,CHIP
2203-006399 C340 C-CERAMIC,CHIP
2203-006399 C341 C-CERAMIC,CHIP
2203-006399 C514 C-CERAMIC,CHIP
2203-006399 C515 C-CERAMIC,CHIP
2203-006399 C521 C-CERAMIC,CHIP
2203-006562 C209 C-CERAMIC,CHIP
2203-006562 C319 C-CERAMIC,CHIP
2203-006562 C328 C-CERAMIC,CHIP
2203-006562 C333 C-CERAMIC,CHIP
2203-006562 C400 C-CERAMIC,CHIP

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-6
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Description
2203-006562 C410 C-CERAMIC,CHIP
2203-006562 C415 C-CERAMIC,CHIP
2203-006562 C502 C-CERAMIC,CHIP
2203-006562 C503 C-CERAMIC,CHIP
2203-006562 C504 C-CERAMIC,CHIP
2203-006562 C505 C-CERAMIC,CHIP
2203-006562 C507 C-CERAMIC,CHIP
2203-006562 C508 C-CERAMIC,CHIP
2203-006562 C524 C-CERAMIC,CHIP
2203-006562 C525 C-CERAMIC,CHIP
2203-006681 C214 C-CERAMIC,CHIP
2203-006681 C215 C-CERAMIC,CHIP
2203-006681 C225 C-CERAMIC,CHIP
2203-006681 C227 C-CERAMIC,CHIP
2203-006681 C431 C-CERAMIC,CHIP
2203-006824 C326 C-CERAMIC,CHIP
2203-006824 C330 C-CERAMIC,CHIP
2203-006825 C327 C-CERAMIC,CHIP
2203-006825 C329 C-CERAMIC,CHIP
2203-006841 C202 C-CERAMIC,CHIP
2203-006841 C438 C-CERAMIC,CHIP
2203-006841 C439 C-CERAMIC,CHIP
2203-006872 C106 C-CERAMIC,CHIP
2203-006872 C125 C-CERAMIC,CHIP
2203-006872 C203 C-CERAMIC,CHIP
2203-006872 C204 C-CERAMIC,CHIP
2203-006872 C206 C-CERAMIC,CHIP
2203-006872 C220 C-CERAMIC,CHIP
2203-006872 C221 C-CERAMIC,CHIP
2203-006872 C224 C-CERAMIC,CHIP
2203-006872 C302 C-CERAMIC,CHIP
2203-006872 C303 C-CERAMIC,CHIP
2203-006872 C314 C-CERAMIC,CHIP
2203-006872 C315 C-CERAMIC,CHIP
2203-006872 C316 C-CERAMIC,CHIP
2203-006872 C317 C-CERAMIC,CHIP

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-7
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Description
2203-006872 C318 C-CERAMIC,CHIP
2203-006872 C320 C-CERAMIC,CHIP
2203-006872 C321 C-CERAMIC,CHIP
2203-006872 C322 C-CERAMIC,CHIP
2203-006872 C323 C-CERAMIC,CHIP
2203-006872 C324 C-CERAMIC,CHIP
2203-007271 C403 C-CERAMIC,CHIP
2203-007271 C428 C-CERAMIC,CHIP
2203-007271 C506 C-CERAMIC,CHIP
2404-001339 C312 C-TA,CHIP
2404-001381 TA301 C-TA,CHIP
2404-001381 TA400 C-TA,CHIP
2404-001414 TA401 C-TA,CHIP
2404-001430 TA300 C-TA,CHIP
2404-001496 TA100 C-TA,CHIP
2703-001726 L114 INDUCTOR-SMD
2703-001726 L115 INDUCTOR-SMD
2703-002199 L108 INDUCTOR-SMD
2703-002199 L111 INDUCTOR-SMD
2703-002203 L104 INDUCTOR-SMD
2703-002203 L105 INDUCTOR-SMD
2703-002208 L102 INDUCTOR-SMD
2703-002208 L106 INDUCTOR-SMD
2703-002208 L107 INDUCTOR-SMD
2703-002208 L112 INDUCTOR-SMD
2703-002208 L122 INDUCTOR-SMD
2703-002281 L113 INDUCTOR-SMD
2703-002281 L116 INDUCTOR-SMD
2703-002281 L117, INDUCTOR-SMD
2703-002281 L120 INDUCTOR-SMD
2703-002308 L109 INDUCTOR-SMD
2703-002313 L402 INDUCTOR-SMD
2703-002313 L403 INDUCTOR-SMD
2703-002314 L103 INDUCTOR-SMD
2703-002314 L118 INDUCTOR-SMD
2703-002314 L119 INDUCTOR-SMD

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-8
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Description
2703-002369 L110 INDUCTOR-SMD
2703-003476 L412 INDUCTOR-SMD
2703-003476 L413 INDUCTOR-SMD
2703-003476 L414 INDUCTOR-SMD
2703-003545 L300 INDUCTOR-SMD
2703-003545 L301 INDUCTOR-SMD
2801-004373 OSC300 CRYSTAL-UNIT
2801-004815 OSC200 CRYSTAL-UNIT
2901-001435 F500 FILTER-EMI SMD
2901-001435 F501 FILTER-EMI SMD
2901-001435 F502 FILTER-EMI SMD
2901-001544 F400 FILTER-EMI SMD
2904-001912 F101 FILTER-SAW
2904-001913 F102 FILTER-SAW
2909-001312 F100 FILTER-DUPLEXER
3003-001138 MIC400 MIC-CONDENSOR
3003-001138 MIC401 MIC-CONDENSOR
3301-001659 L100 CORE-FERRITE BEAD
3301-001659 L101 CORE-FERRITE BEAD
3301-001659 L121 CORE-FERRITE BEAD
3301-001659 L200 CORE-FERRITE BEAD
3301-001659 L201 CORE-FERRITE BEAD
3301-001885 L405 CORE-FERRITE BEAD
3301-001885 L406 CORE-FERRITE BEAD
3301-001885 L407 CORE-FERRITE BEAD
3301-001885 L408 CORE-FERRITE BEAD
3301-001885 L409 CORE-FERRITE BEAD
3301-001885 L411 CORE-FERRITE BEAD
3301-001970 L501 CORE-FERRITE BEAD
3301-001970 L502 CORE-FERRITE BEAD
3705-001503 RFS100 CONNECTOR-COAXIAL
3708-002015 SLC400 CONNECTOR-FPC/FFC/PIC
3709-001488 SIM300 CONNECTOR-CARD EDGE
3709-001580 CD300 CONNECTOR-CARD EDGE
3710-002534 IFC400 CONNECTOR-SOCKET
3711-006105 HEA505 CONNECTOR-HEADER

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-9
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Description
3711-006405 HEA504 CONNECTOR-HEADER
3711-006808 BTC300 CONNECTOR-HEADER
4202-001463 ANT102 ANTENNA-CHIP
4302-001180 BAT300 BATTERY
GH70-03276A SC100 ICT SHIELD-CAN CLIP
GH70-03276A SC101 ICT SHIELD-CAN CLIP
GH70-03276A SC103 ICT SHIELD-CAN CLIP
GH70-03276A SC104 ICT SHIELD-CAN CLIP
GH71-08426A ANT100 NPR-CONTACT ANT;HJ-ICT-02
GH71-08426A ANT101 NPR-CONTACT ANT;HJ-ICT-02
GH80-03320A R103 SOLDER-CREAM/SMT KOREA(FREE)
GH80-03320A R316 SOLDER-CREAM/SMT KOREA(FREE)
GH80-03320A R318 SOLDER-CREAM/SMT KOREA(FREE)
GH80-03320A R419 SOLDER-CREAM/SMT KOREA(FREE)
Please consult the GSPN website (Samsung Portal) for the most recent version of the product's part list.

SAMSUNG Proprietary-Contents may change without notice
9. Flow Chart of Troubleshooting
This Document can not be used without Samsung's authorization
9-1

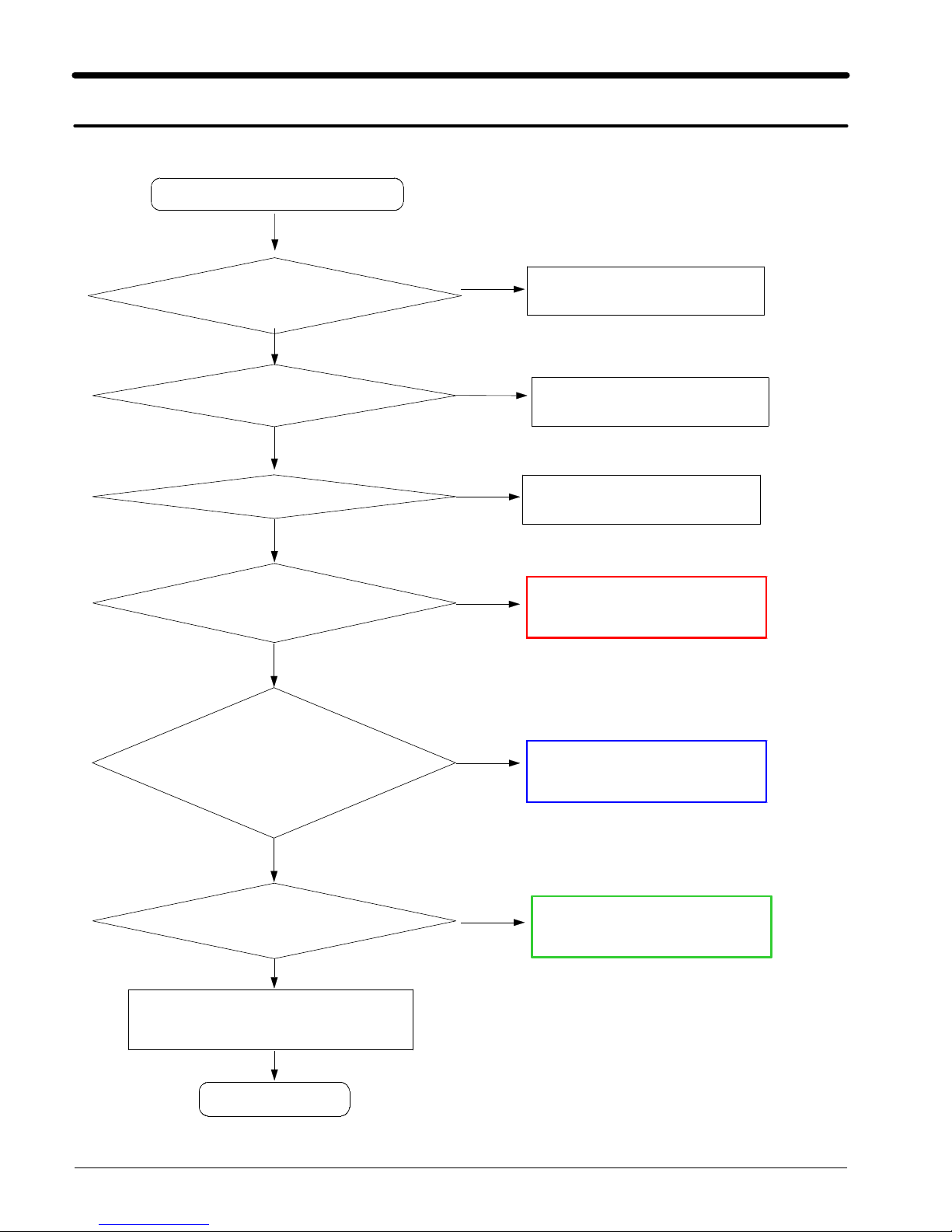

9-1. Power On
Check the current
consumption more than
100mA
'Power On 'does not work
Yes
Yes
No
Download again
Check the VBAT
more than 3.3V
No
Check the Battery
Yes
Check the related circuit
No
C300(VBAT)=3.0 V?
Yes
①
Check the U300 and L300
No
Check the MEM_1.8V of U300
is more than 1.8V
1.8V
Yes
Check U300
3.0V_DIG =3.0V
3.0V_ANLG =3.0V
1.2V_ANLG =1.2V
②
No
Check the U300 and C324, C323, C315
Yes
③
Yes
Yes
Check the clock 32KHz_DIGIT
No
Check CLK32K
Freq =32 KHz
Check the initial operation
END

SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization

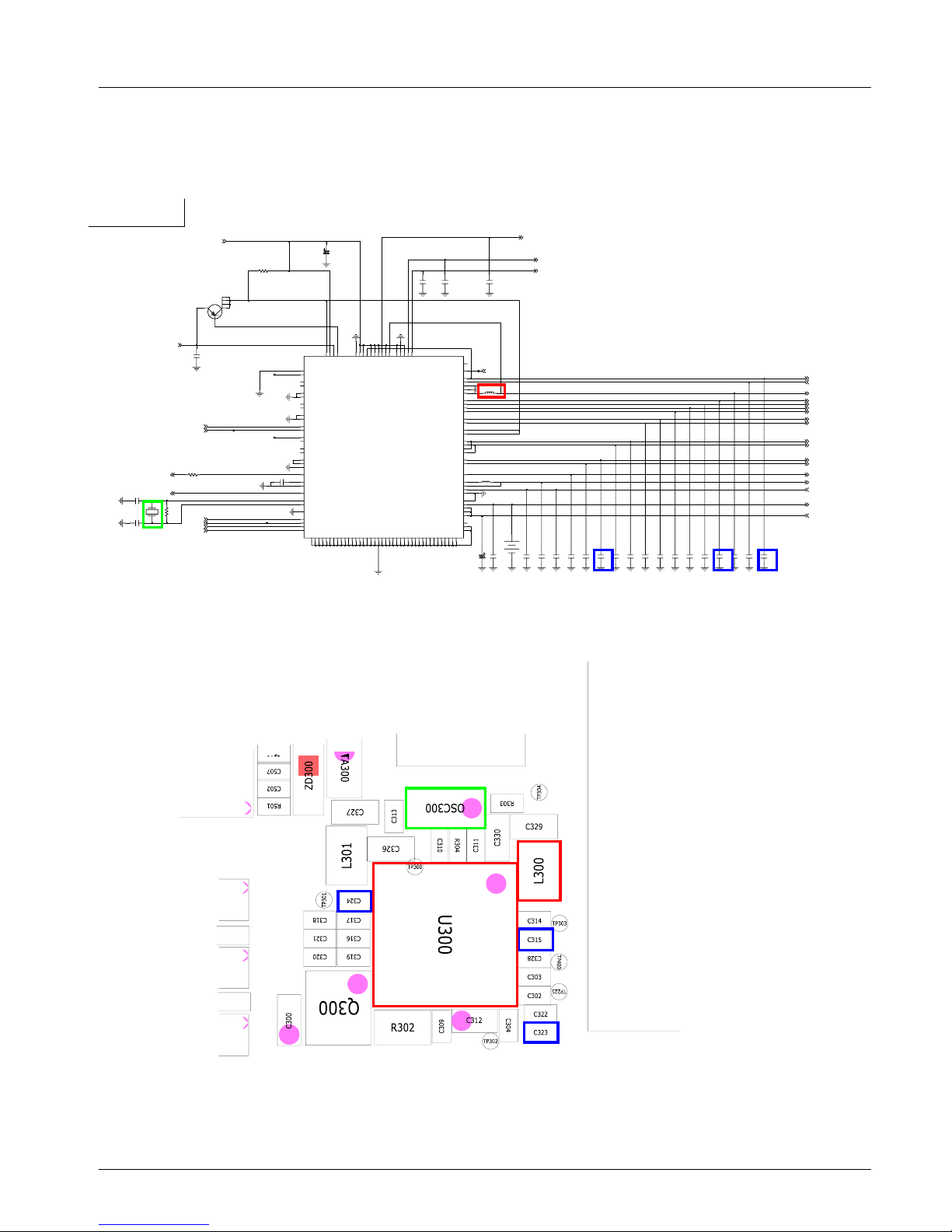

Flow Chart of Troubleshooting
9-2
.GNUSMASYBDEZIROHTUASATPECX
UMP
103PT
613C
113C
E
4
3
B
1
1C
2
2C
3C
5
4C
6
003Q
303C
323C
203C
623C 033C
003CSO
513C
203PT
023C
303R
823C 413C
403R
813C
203R
923C
POS
1
BAT300
NEG
2
903C
913C
713C
013C
213C
403PT
003PT
3L
ODLOIV
4L
1ODLCHV 5L
2ODLCHV
6L
1ODLSMV 7L
2ODLSMV
8L
1ODLXUAV 9L
2ODLXUAV
K6AVSS
K7
VMSBAT
K8
VAXBAT
9K SAIB_CTN
1L
DNGRSCV
L10
BAT_PRSNT
11L DNG_PBFER
2L
LRSCV
9J 2TSETANA
1K
TABRSCV
01K DNG_CTN
11K PBFER 2K
BFRSCV
K3
VIVCC
K4
VHBAT1K5
VHBAT2
11J
TABBV
J2AVSS
3J 2DELMWP
4J
SNS_1ODLCHV 5J
SNS_2ODLCHV
J6AVSS
J7AVSS
8J CTN
H4AVSS
H5AVSS
H6AVSS
H7AVSS
H8AVSS
9H 1TSETANA
1J
\YKNOP
J10
PDRIVE
G7AVSS
G8AVSS
G9AVSS
1H 23KLC
01H
PCC
H11
VCHGR
2H TUO_DI
H3
VOFFBUS\
1G 1TATS
G10
VMBAT_SNS
11G
BFBV
2G 2TATS
3G 2OIPG
G4AVSS
G5AVSS
G6AVSS
2F \NDHSGTO|1OIPG
F3VSSC
F4AVSS
F5AVSS
F6AVSS
F7AVSS
F8AVSS
9F NI_DI
E5AVSS
E6AVSS
E7AVSS
E8AVSS
E9AVSS
F1
VDDO
F10
RSENSE
11F
1SUBTSBV
D8AVSS
D9AVSS
1E
RGHCSIDV
01E
1WSBV 11E
2WSBV
2E ADS
3E LCS
E4AVSS
01D DNGU 11D
2SUBTSBV
2D \TESER
3D \TNI
D4AVSS
D5AVSS
D6AVSS
D7AVSS
3C 1TSETGID
4C 0TSETGID
C5AVSS
C6AVSS
C7AVSS
C8AVSS
9C 2CP
1D ILATX
B6
VRFBAT
B7
VABAT
B8
VLCLDOB9
VLSBAT
1C OLATX
C10AVSS
11C \DCA
C2AVSS
9A
ODLMISV
1B
TABRSOIV
01B
CN
11B 1SNSGF
2B
BFRSOIV
3B
2ODLVLV
4B
1ODLVLV
B5AVSS
11A 2SNSGF
2A
LRSOIV
3A 1DELMWP
A4
VLVVDD
A5
VRFLDO1A6
VRFLDO2
7A
2ODLAV
8A
1ODLAV
003U
1
CN 2
CN
1A
DNGRSOIV
01A 1CP
123C
103L
803C
423C
003L
523C
403C
313C
723C 223C
303PT
003C
TABV
TABV
DC
L_V9.2
MARVN_BSU_V3.3
CCVMIS
GID_V0.3
V5_NI_CD
YEKNOP
SUBV
DS_V2.3
1PMA_V2.3
GLNA_V0.3
A_MAC_V8.2
BIV_V2.3
V8.1_E
ROC_MAC
EROCV_V2.1
TABV
TESER_BB
OXCV_V3.1
GLNA_V2.1
FRV_V3.1
FRV_V7.2
GTOBSU_V5.2
MEM_V8.1
PUKCAB
LCS
ADS
QRI_UMP
TED_CCA
K23KLC
CP
QER_KLC

SAMSUNG Proprietary-Contents may change without notice
Flow Chart of Troubleshooting
This Document can not be used without Samsung's authorization
9-3
9-2. Initial
Initial Failure
Yes
U300 pin D2 (RESET/)=" H"?
(check the test point) No Check the circuit related to reset
Yes
Check the 16bit data signal
&memory CE
END
Yes

SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Flow Chart of Troubleshooting
9-4
.GNUSMASYBDEZIROHTUASATPECX
UMP
103PT
613C
113C
E
4
3
B
1
1C
2
2C
3C
5
4C
6
003Q
303C
323C
203C
623C 033C
003CSO
513C
203PT
023C
303R
823C 413C
403R
813C
203R
923C
POS
1
BAT300
NEG
2
903C
913C
713C
013C
213C
403PT
003PT
3L
ODLOIV
4L
1ODLCHV 5L
2ODLCHV
6L
1ODLSMV 7L
2ODLSMV
8L
1ODLXUAV 9L
2ODLXUAV
K6AVSS
K7
VMSBAT
K8
VAXBAT
9K SAIB_CTN
1L
DNGRSCV
L10
BAT_PRSNT
11L DNG_PBFER
2L
LRSCV
9J 2TSETANA
1K
TABRSCV
01K DNG_CTN
11K PBFER 2K
BFRSCV
K3
VIVCC
K4
VHBAT1K5
VHBAT2
11J
TABBV
J2AVSS
3J 2DELMWP
4J
SNS_1ODLCHV 5J
SNS_2ODLCHV
J6AVSS
J7AVSS
8J CTN
H4AVSS
H5AVSS
H6AVSS
H7AVSS
H8AVSS
9H 1TSETANA
1J
\YKNOP
J10
PDRIVE
G7AVSS
G8AVSS
G9AVSS
1H 23KLC
01H
PCC
H11
VCHGR
2H TUO_DI
H3
VOFFBUS\
1G 1TATS
G10
VMBAT_SNS
11G
BFBV
2G 2TATS
3G 2OIPG
G4AVSS
G5AVSS
G6AVSS
2F \NDHSGTO|1OIPG
F3VSSC
F4AVSS
F5AVSS
F6AVSS
F7AVSS
F8AVSS
9F NI_DI
E5AVSS
E6AVSS
E7AVSS
E8AVSS
E9AVSS
F1
VDDO
F10
RSENSE
11F
1SUBTSBV
D8AVSS
D9AVSS
1E
RGHCSIDV
01E
1WSBV 11E
2WSBV
2E ADS
3E LCS
E4AVSS
01D DNGU 11D
2SUBTSBV
2D \TESER
3D \TNI
D4AVSS
D5AVSS
D6AVSS
D7AVSS
3C 1TSETGID
4C 0TSETGID
C5AVSS
C6AVSS
C7AVSS
C8AVSS
9C 2CP
1D ILATX
B6
VRFBAT
B7
VABAT
B8
VLCLDOB9
VLSBAT
1C OLATX
C10AVSS
11C \DCA
C2AVSS
9A
ODLMISV
1B
TABRSOIV
01B
CN
11B 1SNSGF
2B
BFRSOIV
3B
2ODLVLV
4B
1ODLVLV
B5AVSS
11A 2SNSGF
2A
LRSOIV
3A 1DELMWP
A4
VLVVDD
A5
VRFLDO1A6
VRFLDO2
7A
2ODLAV
8A
1ODLAV
003U
1
CN 2
CN
1A
DNGRSOIV
01A 1CP
123C
103L
803C
423C
003L
523C
403C
313C
723C 223C
303PT
003C
TABV
TABV
DC
L_V9.2
MARVN_BSU_V3.3
CCVMIS
GID_V0.3
V5_NI_CD
YEKNOP
SUBV
DS_V2.3
1PMA_V2.3
GLNA_V0.3
A_MAC_V8.2
BIV_V2.3
V8.1_E
ROC_MAC
EROCV_V2.1
TABV
TESER_BB
OXCV_V3.1
GLNA_V2.1
FRV_V3.1
FRV_V7.2
GTOBSU_V5.2
MEM_V8.1
PUKCAB
LCS
ADS
QRI_UMP
TED_CCA
K23KLC
CP
QER_KLC
