Table of Contents 5
Table of Contents
Table of Contents
Section 1: Getting Started .................................. 9
Turning Your Phone On and Off ........................................ 10
Setting Up Voicemail ........................................................10
Understanding this User Manual .......................................11
Section 2: Understanding Your Phone ............. 13
Features of Your Phone ....................................................14

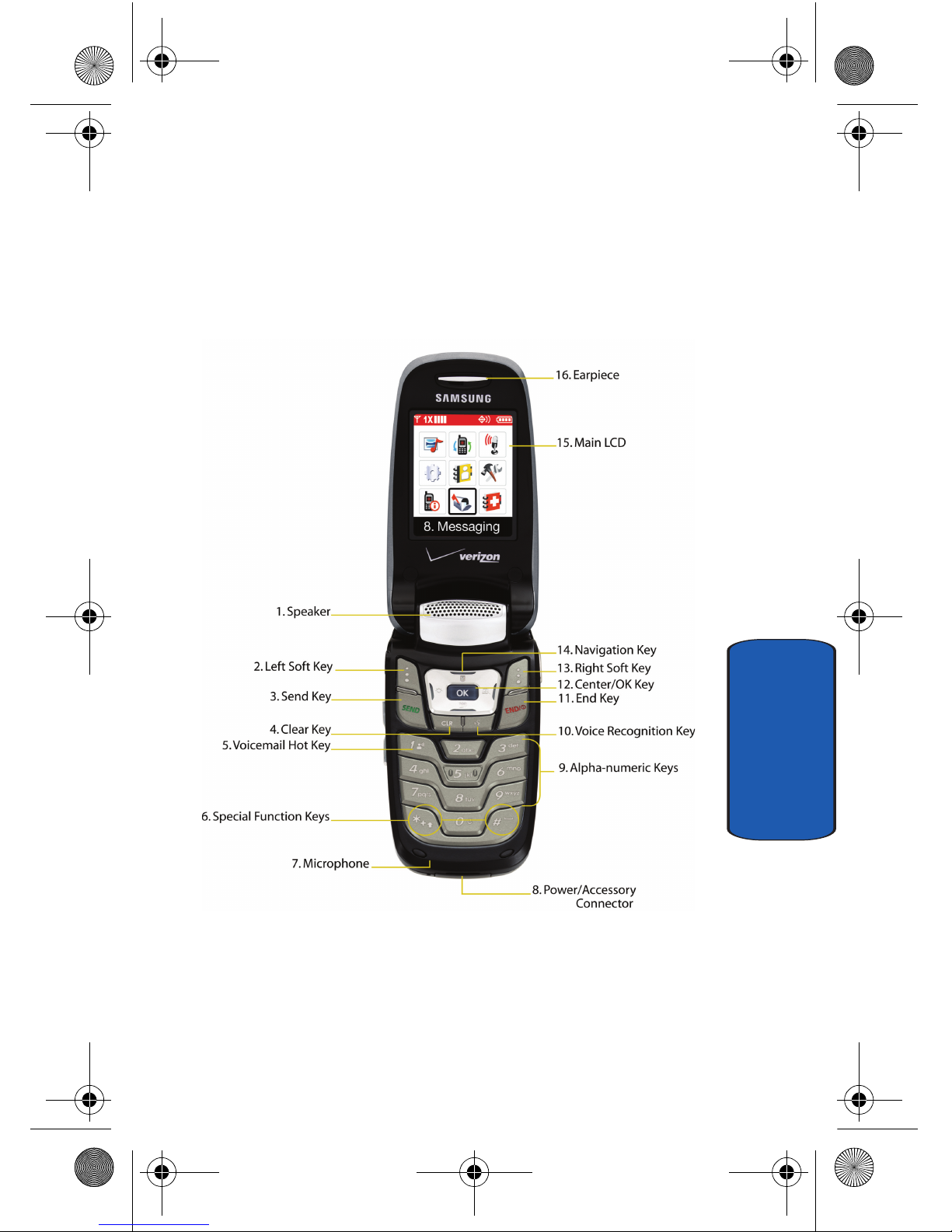

Open View of Your Phone .................................................15

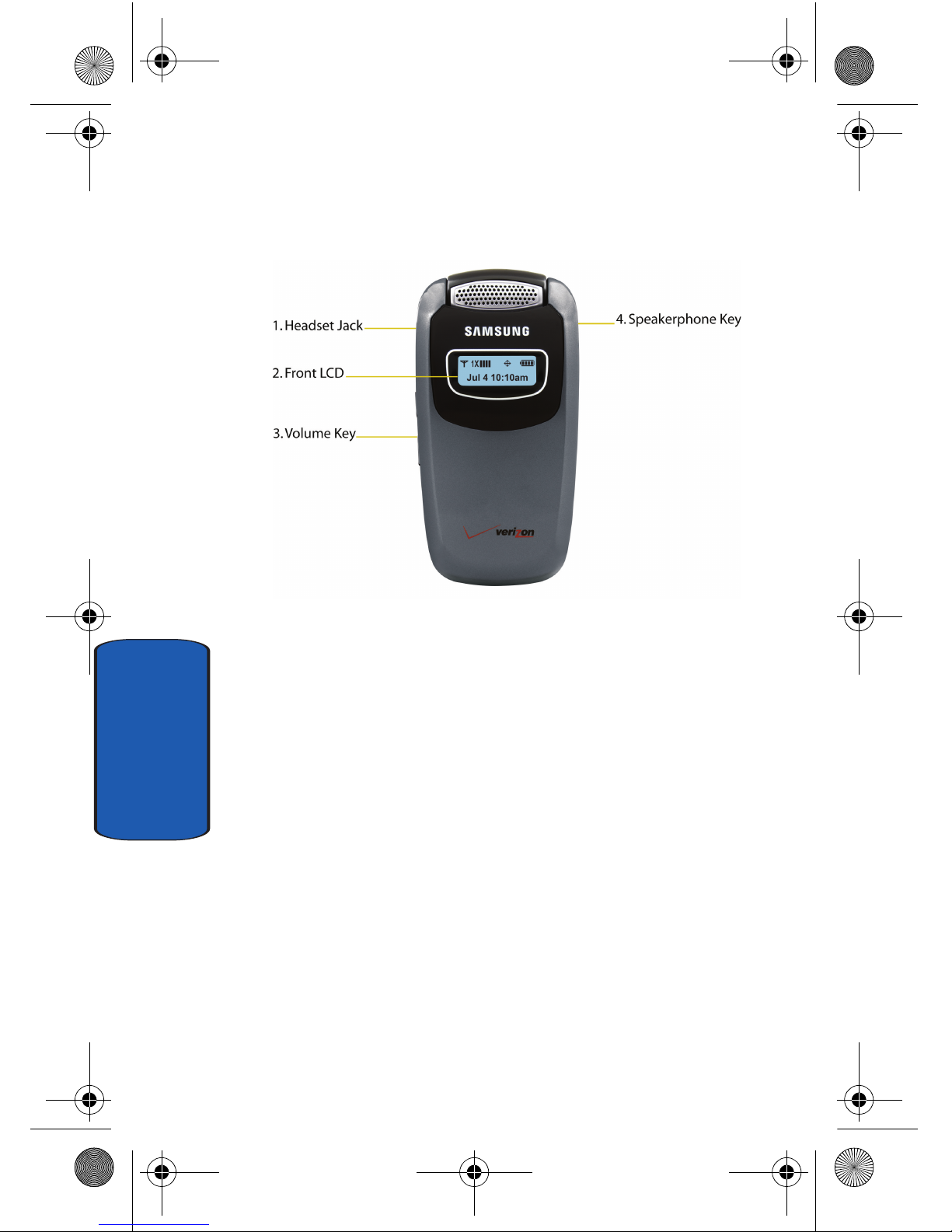

Closed View of Your Phone ............................................... 18
Command Keys ................................................................19
Understanding the Display Screen .................................... 21
Battery .............................................................................25
Section 3: Call Functions .................................. 29
Making a Call ................................................................... 30
Answering a Call ..............................................................31
Recent Calls .....................................................................31
Roaming ..........................................................................35
TTY ..................................................................................36
VoiceSignal® ................................................................... 37
Section 4: Menu Navigation ............................. 41
Menu Navigation ..............................................................42
Menu Outline ...................................................................44
Section 5: Entering Text ................................... 49
Changing the Text Entry Mode ..........................................50
Using Word Mode .............................................................51
Entering Upper and Lower Case .......................................52
Entering Symbols .............................................................53
Entering Numbers ............................................................54
Section 6: Understanding Your Contacts ......... 55
Opening Contacts Menu ...................................................56
a645.book Page 5 Monday, June 26, 2006 10:00 AM

Table of Contents
6
Adding a Contact ..............................................................57
Adding Pauses .................................................................59
Contact Groups .................................................................60
Finding a Contacts Entry ...................................................63
Editing an Existing Contact Entry ......................................63
Deleting a Contact Entry ...................................................64
Storing Numbers After a Call ............................................64
Speed Dialing ...................................................................65
Finding My Phone Number ...............................................67
Section 7: Messaging ....................................... 69
Types of Messages ...........................................................70
Retrieving New Messages ................................................70
Creating and Sending TXT Messages ................................71
Message Folders ..............................................................73
Changing Message Settings .............................................78
Voicemail .........................................................................79
Section 8: Changing Your Settings .................. 81
Sounds Settings ...............................................................82
Display Settings ...............................................................85
Phone Settings .................................................................91
Call Settings .....................................................................97
Phone Info ......................................................................101
Emergency Contacts .......................................................102
Media Gallery .................................................................102
Section 9: Tools .............................................. 105
Calendar .........................................................................106
Calculator .......................................................................108
Alarm Clock ....................................................................109
World Clock ....................................................................112
Notepad .........................................................................112
Section 10: Health and Safety Information .... 115
Health and Safety Information .........................................116
a645.book Page 6 Monday, June 26, 2006 10:00 AM

Table of Contents 7
Table of Contents
UL Certified Travel Adaptor ............................................. 118
Consumer Information on Wireless Phones ..................... 118
Road Safety ...................................................................128
Operating Environment ...................................................130
Using Your Phone Near Other Electronic Devices ............ 131
Potentially Explosive Environments .................................134
Emergency Calls ............................................................134
FCC Notice and Cautions ................................................136
Other Important Safety Information .................................136
Product Performance .....................................................137
Availability of Various Features/Ring Tones .....................139
Battery Standby and Talk Time .......................................139
Battery Precautions ........................................................ 139
Care and Maintenance ...................................................141
Section 11: Warranty Information .................. 143
Standard Limited Warranty .............................................144
Index ............................................................... 151
a645.book Page 7 Monday, June 26, 2006 10:00 AM

Table of Contents
8
a645.book Page 8 Monday, June 26, 2006 10:00 AM

Section 1: Getting Started 9
Section 1
Section 1: Getting Started
Topics Covered
• Turning Your Phone On and Off
• Setting Up Voicemail
• Understanding this User Manual
This section allows you to start using your phone by
activating your service, setting up your voicemail,
contacting customer support, or getting an
understanding of how this manual is put together.
a645.book Page 9 Monday, June 26, 2006 10:00 AM

10
Section 1
Turning Your Phone On and Off
Turning Your Phone On
1. Open the flip, then press .
Note: As with any other radio-transmitting device, do not touch the internal
antenna as it affects call quality and may cause the phone to operate at a
higher power level than is necessary. The internal antenna is located along
the top on the back side of your phone.
Your service provider's name momentarily appears in the
display and the phone begins searching for a network
signal.
2. Once the phone finds a signal, the time, date, and day
appear in the display.
3. You’re now ready to place and receive calls.
If your phone is outside the Verizon Wireless coverage
area the roaming icon appears in the top of the
display.
Turn Your Phone Off
Press and hold for two or more seconds. Your phone
powers off.
Setting Up Voicemail
Voicemail allows callers to leave voice messages, which
can be retrieved any time.
Note: Once your voicemail account has been set up, you can use the
Voicemail selection 5 (under the Messaging menu) to view details of voice
messages in your voicemail box.
a645.book Page 10 Monday, June 26, 2006 10:00 AM

Section 1: Getting Started 11
Understanding this User Manual
Section 1
Voicemail Setup
1. In standby mode, press and hold the key or press
, , , .
2. Follow the prompts in the new user tutorial to setup your
mailbox.
Listen to Voicemail
1. In standby mode, press and hold the key or press
, , , .
2. You are then prompted to enter your password followed
by key.
3. Follow the recorded prompts to listen to messages,
change administrative options, and so on.
Understanding this User Manual
The chapters of this manual generally follow the same
order as the menus and sub-menus in your phone. A
robust index for quick reference to most features begins
on page 151.
Also included is important safety information that you
should know before using your phone. Most of this
information is near the back of the guide, beginning on
page 116.
Notes and Tips
Throughout this guide are icons and text that are set apart
from the rest. These are intended to point out important
information, quick methods for activating features, to
defineterms,andmore.Thedefinitionsforthesemethods
are as follows:
a645.book Page 11 Monday, June 26, 2006 10:00 AM

12
Section 1
• Notes: Explain alternative options within the current feature,
menu, or sub-menu.
• Tips: Provide quick or innovative methods for performing
functions related to the subject at hand.
• Important: Points out important information about the current
feature that could affect performance, or even damage your
phone.
a645.book Page 12 Monday, June 26, 2006 10:00 AM

Section 2: Understanding Your Phone 13
Section 2
Section 2: Understanding Your Phone
Topics Covered
• Features of Your Phone
• Open View of Your Phone
• Closed View of Your Phone
• Command Keys
• Understanding the Display Screen
• Battery
This section outlines some key features of your phone. It
also displays the screen and the icons that are displayed
when the phone is in use.
a645.book Page 13 Monday, June 26, 2006 10:00 AM

14
Section 2
Features of Your Phone
• Domestic and international voice service (available on
participating networks).
• High speed data (CDMA 2000 1x Technology)
• Global Positioning (GPS) Technology
• 128 x 160 pixel color Liquid Crystal display
• PIM functions (Scheduler, To Do List, etc.)
• TXT Messaging
• Enhanced Message Service (EMS)
• Voice Dial
• Speaker phone
• 32-Tone Polyphonic Ringtones
a645.book Page 14 Monday, June 26, 2006 10:00 AM

Section 2: Understanding Your Phone 15
Open View of Your Phone
Section 2
Open View of Your Phone
The following illustrations show the main elements of
your phone:
a645.book Page 15 Monday, June 26, 2006 10:00 AM

16
Section 2
Features
1. Speaker: Ringtones and Sounds are played through the
speaker.
2. Left Soft Key: This key is used to navigate through
menus and applications by selecting the choice available
in the Left Soft key Option.
3. Send Key: Allows you to place or receive a call. In
standby mode, press the key once to access the recent
call log.
4. Clear Key: Deletes characters from the display when you
are in text entry mode. Press to return to the previous
menu or screen when navigating features on your phone.
5. Voicemail Hot Key: Press and hold to launch voicemail.
6. Special Function Keys: Enters special characters.
Performs various functions.
7. Microphone: The Microphone allows the other caller to
hear you clearly when you are speaking to them.
8. Power/Accessory Connector: The power/accessory
interface connector is used to plug in the charging
accessories and also connect any available accessory
cables to your phone.
9. Alpha-numeric Keys: Use these keys to enter numbers,
letters, and characters.
10. Voice Recognition Key: Press to launch VoiceSignal®.
11. End Key: Ends a call. If you press and hold the END key,
the power goes On or Off. When you receive an incoming
call, press to send the call to voicemail.
a645.book Page 16 Monday, June 26, 2006 10:00 AM

Section 2: Understanding Your Phone 17
Open View of Your Phone
Section 2
12. Center/OK Key: Pressing when navigating through a
menu accepts the highlighted choice in a menu.
13. Right Soft Key: This key is used to navigate through
menus and applications by selecting the choice available
in the Right Soft key Option.
14. Navigation Key: This key allows you to scroll through
the phone menu options.
15. Main LCD: Indicates the status of your phone, including
status icons, message indicators, signal strength, etc.
16. Earpiece: The earpiece allows you to hear the other
caller.
a645.book Page 17 Monday, June 26, 2006 10:00 AM

18
Section 2
Closed View of Your Phone
Features
1. Headset Jack: Allows you to plug in an optional headset
for safe, convenient, hands-free conversations.
2. Front LCD Display: External LCD shows signal and
battery strength, alarm, time, day, and date. It also
displays incoming calls or messages.
3. Volume Key: Allows you to adjust the master volume in
standby mode (with the flip open) or adjust the voice
volume during a call. To mute the ringer during an
incoming call, press the volume key up or down. When
the flip is closed, press and hold the key, and sub LCD
displays.
4. Speakerphone Key: Press this key to enable/disable the
speakerphone option.
a645.book Page 18 Monday, June 26, 2006 10:00 AM

Section 2: Understanding Your Phone 19
Command Keys
Section 2
Command Keys
Functions for the soft keys are defined by what appears
above each in the display. There are two soft keys, the left
soft key and the right soft key .
Left Soft Key
Some functions of the left soft key are as follows.
• In standby mode, press the Message (left) soft key to open
the Message menu.
• When the left soft key function is Settings, press the Settings
(left) soft key to view settings for the feature.
• When the left soft key function is Edit, press the Edit (left) soft
key to edit a Contact or Profile setting.
Right Soft Key
Some functions of the right soft key are as follows.
• In standby mode, press the Contacts (right) soft key to
open your Contacts list.
• When the right soft key function is Options, press the Options
(right) soft key to view more options for the current menu.
Clear Key
The CLR key is used to erase or clear numbers, text, or
symbols from the display. You can also use to return
to a previous menu or to return to standby mode from any
menu.
• If you enter an incorrect character, briefly press to
backspace (and delete) the character.
a645.book Page 19 Monday, June 26, 2006 10:00 AM

20
Section 2
• To erase the previous word in a sentence, press and hold .
• To back up one menu level, briefly press .
• To return to standby mode from any menu, press and hold
until you return to standby mode.
End Key
• Press and hold the End key to turn your phone on or off.
• Briefly press once to disconnect a call.
• Press to return to standby mode from any menu, or to
cancel the last input.
Send Key
The Send key is used to answer calls, dial calls, and to
recall the last number(s) dialed, received, or missed.
• Press once to answer calls.
• Enter a number and briefly press to make a call.
• Briefly press in standby mode to display a list of recent
calls to and from your phone.
• Press twice in standby mode to call the most recently
dialed, received, or missed number.
• Press to pick up a waiting call. Press again to switch
back to the other call.
