Samsung SGH-C160L User manual

GSM TELEPHONE
SGH-C160L
GSM TELEPHONE CONTENTS
1. Safety Precautions
2. Specification
3. Operation Instruction and
Installation
4. Array course control
5. Exploded View/Disassembly
and Assembly Instructions
6. MAIN Electrical Parts List
7. Block Diagrams
8. PCB Diagrams
9. Flow Chart of Troubleshooting
10. Reference data

SAMSUNG Proprietary-Contents may change without notice
1. Safety Precautions
1-1
This Document can not be used without Samsung's authorization
1-1. Repair Precaution
―Repair in Shield Box, during detailed tuning. Take specially care of tuning or test, because the
specification of cellular phone is sensitive for surrounding interference(RF noise).
―Be careful to use a kind of magnetic object or tool, because performance of parts is damaged by
the influence of magnetic force.
―Surely use a standard screwdriver when you disassemble this product, otherwise screw will be
worn away.
―Use a thicken twisted wire when you measure level. A thicken twisted wire has low resistance,
therefore error of measurement is few.
―Repair after separate Test Pack and Set because for short danger (for example an overcurrent
and furious flames of parts etc) when you repair board in condition of connecting Test Pack and
tuning on.
―Take specially care of soldering, because Land of PCB is small and weak in heat.
―Surely tune on/off while using AC power plug, because a repair of battery charger is dangerous
when tuning ON/OFF PBA and Connector after disassembling charger.
―Don't use as you pleases after change other material than replacement registered on SEC System.
Otherwise engineer in charge isn't charged with problem that you don't keep this rules.

SAMSUNG Proprietary-Contents may change without notice
Safety Precautions
1-2
This Document can not be used without Samsung's authorization
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Several semiconductor may be damaged easily by static electricity. Such parts are called by ESD
(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.
You can prevent from ESD damage by static electricity.
―Remove static electricity remained your body before you touch semiconductor or parts with
semiconductor. There are ways that you touch an earthed place or wear static electricity prevention
string on wrist.
―Use earthed soldering steel when you connect or disconnect ESD.
―Use soldering removing tool to break static electricity. , otherwise ESD will be damaged by static
electricity.
―Don't unpack until you set up ESD on product. Because most of ESD are packed by box and
aluminum plate to have conductive power,they are prevented from static electricity.
―You must maintain electric contact between ESD and place due to be set up until ESD is
connected completely to the proper place or a circuit board.

SAMSUNG Proprietary-Contents may change without notice
2. Specification
This Document can not be used without Samsung's authorization
2-1
EGSM 900 DCS1800
Freq. Band[MHz]
Uplink/Downlink 880~915 925~960 1710~1785 1805~1880
ARFCN range 0~124 & 975~1023 512~885
Tx/Rx spacing 45MHz 95MHz
Mod. Bit rate/
Bit Period 270.833kbps 3.692us 270.833kbps 3.692us
Time Slot Period/Frame Period 576.9us
4.615ms 576.9us 4.615ms
Modulation 0.3GMSK 0.3GMSK
MS Power 33dBm~5dBm 30dBm~0dBm
Power Class 4
(max +33dBm) 1 (max +30dBm)
Sensitivity -102dBm -100dBm
TDMA Mux 8 8
Cell Radius 35Km 2Km
2-1. GSM General Specification

SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Specification
2-2
TX Power
control level GSM900
533±2dBm
631±2dBm
729±2dBm
827±2dBm
925±2dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control level DCS1800
030±3dBm
128±3dBm
226±3dBm
324±3dBm
422±3dBm
520±3dBm
618±3dBm
716±3dBm
814±3dBm
912±4dBm
10 10±4 dBm
11 8±4dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
2-2. GSM TX power class

SAMSUNG Proprietary-Contents may change without notice
3. Operation Instruction and Installation
3-1
This Document can not be used without Samsung's authorization
Main Function
 DC-Jack TA (700mA)
NoJava
MMS(30K)
WAP2.0
10PolyS/WMIDI
 Dual band(900/1800MHz)
GPRSClass10

SAMSUNG Proprietary-Contents may change without notice
Operation Instruction and Installation
3-2
This Document can not be used without Samsung's authorization

SAMSUNG Proprietary-Contents may change without notice
4. Array course control
4-1
This Document can not be used without Samsung's authorization
4-1. Software Adjustments
(5)
1. JIG Box: Download, Trace, Calibration, etc
2. RF test cable: RF test
3. Test cable: JIG to phone
4. Serial cable: PC to JIG
5. TA (Travel Adaptor)
6. Download JIG: Download, Calibration

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-2
This Document can not be used without Samsung's authorization
4-2. Software Downloading
4-2-1. Downloading Binary Files
• 2 binary files for downloading C160L.
– C160XAFK4.cla
– C160XAFK4.tfs
4-2-2. Pre-requsite for Downloading
• Downloader Program(Virtuous 64X32 Downloader v2.exe)
• SGH-C160L Mobile Phone
•JIGBOX
• Download JIG
• Test Cable
• Serial Cable
• Binary files

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-3
This Document can not be used without Samsung's authorization
4-2-3. S/W Downloader Program
1. Load the binary download program by executing the “Virtuous 64X32 Downloader
v2.exe”.
2. Select the Port, Baud Rate and Mode.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-4
This Document can not be used without Samsung's authorization
3. Select the binary files what you want to download

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-5
This Document can not be used without Samsung's authorization
4. Press the "Start" button and connect the Handset
5. When downloading is complete, automatically the small window was showed up..

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-6
This Document can not be used without Samsung's authorization

SAMSUNG Proprietary-Contents may change without notice
5-1
This Document can not be used without Samsung's authorization
5. Exploded View/Disassembly&Assembly Instructions

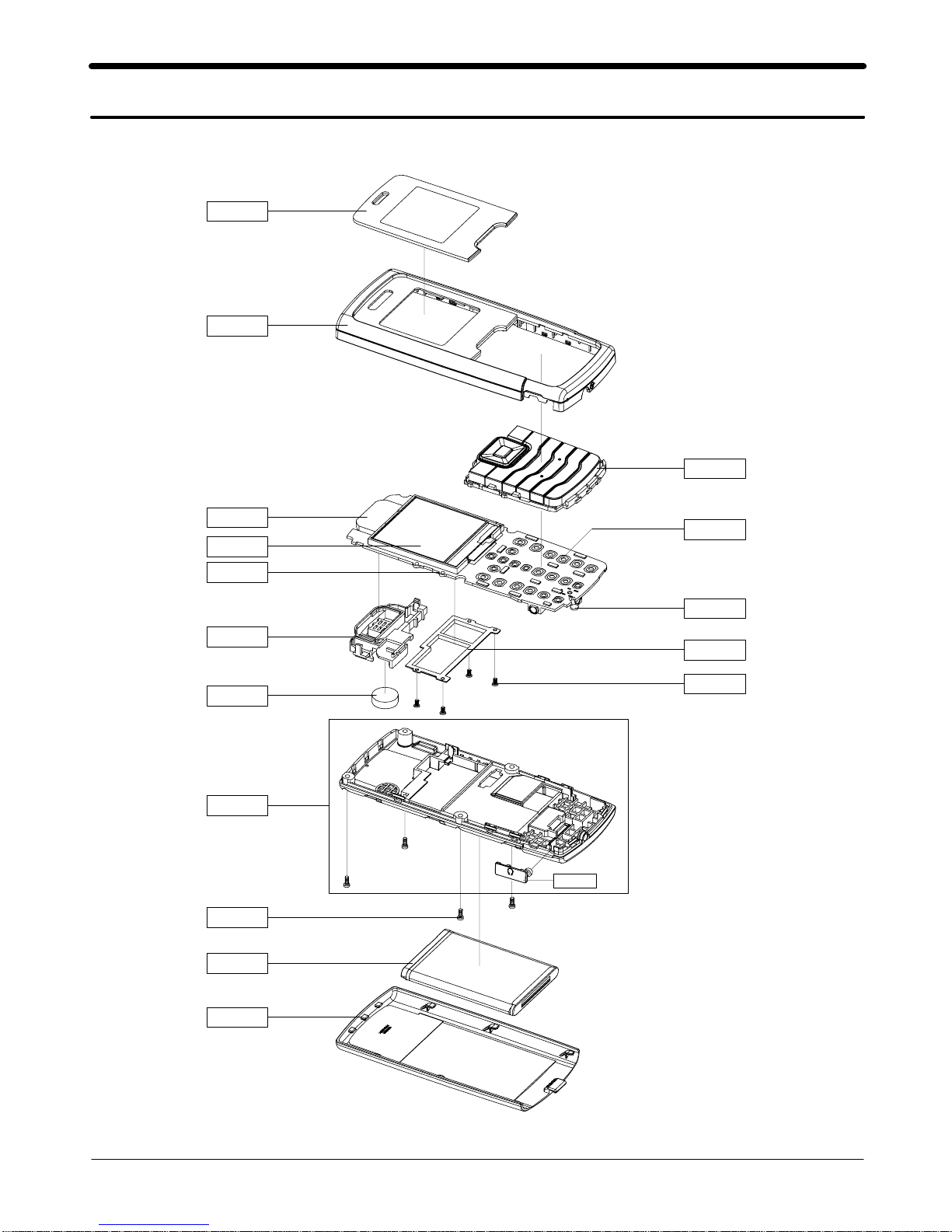

5-1. Cellular phone Exploded View
QMW02
QFR01
QSP01
QLC01
QMP01
QAN02
QMO01
QRE01
QCR68
QBA01
QBA00
QKP01
QME01
QMI01
QSH01
QRF03
QCR17

SAMSUNG Proprietary-Contents may change without notice
Exploded View/Disassembly&Assembly Instructions
5-2
This Document can not be used without Samsung's authorization
5-2. Cellular phone Parts list
Design LOC Description Sec Code
QAN02 INTENNA-SGHC160 GH42-01137A
QBA00 PMO-COVER BATTERY V3 GH72-37763H
QBA01 INNER BATTERY PACK-750MAH BLK GH43-02489A
QCR17 SCREW-MACHINE 6001-001460
QCR68 SCREW-TAPPING 6002-001399
QFR01 ASSY CASE-FRONT GH98-03095H
QKP01 ASSY KEYPAD-(CHE/BLK) GH98-03719A
QLC01 LCD-LCD MODULE GH07-01056A
QME01 UNIT-METAL DOME GH59-03976A
QMI01 MICROPHONE-ASSY-SGHC160 GH30-00177H
QMO01 MOTOR DC-SGHC160 GH31-00296A
QMP01 A/S ASSY-PBA MAIN GH82-02348A
QMW02 PCT-COVER MAIN WINDOW V3 GH72-37764A
QSH01 ASSY BRACKET-SHIELD CAN GH98-04066A
QSP01 SPEAKER 3001-002100
QRE01 ASSY CASE-REAR GH98-03096B
QRF03 PMO-COVER EAR V3 GH72-37762B

SAMSUNG Proprietary-Contents may change without notice
Exploded View/Disassembly&Assembly Instructions
5-3
This Document can not be used without Samsung's authorization
Description Sec Code
BAG PE 6902-000634
ADAPTOR-SGHC266, MEXC ,BLK GH44-01632A
LABEL(R)-WATER SOAK GH68-09361A
LABEL(P)-MIAMI GH68-12219A
LABEL(R)-MAIN(LTN) GH68-14194H
MANUAL USERS-LTN ENGLISH GH68-14402A
MANUAL USERS-LTN SPANISH GH68-14403A
BOX-UNIT(LTN) GH69-05175H
MPR-TAPE MAIN WINDOW GH74-29030A
MPR-VINYL BOHO FRONT GH74-31440A
MPR-VINYL BOHO WINDOW GH74-31711A

SAMSUNG Proprietary-Contents may change without notice
Exploded View/Disassembly&Assembly Instructions
5-4
This Document can not be used without Samsung's authorization
Notice 1)
Don't leave any scratch or spot on structure.
Notice 1)
Don't leave any scratch or spot on structure.
Notice 1)
Don't damage any parts.
Notice 1)
Don't damage speaker & wire.
5-3. Disassembly and Assembly Instructions
5-3-1. Disassembly
3Disassemble a locker on PBA. 4Disassemble a speaker using tweezers.
1) Unfasten rear 4 screws.
11) After disassemble both side lockers,
separate the FRONT & REAR.
2

SAMSUNG Proprietary-Contents may change without notice
Exploded View/Disassembly&Assembly Instructions
5-5
This Document can not be used without Samsung's authorization
Notice 1)
Reach in good condition holes around the 3*4
KET on FRONT structure.
Notice 1)
Don't stain any bow on LCD.
Notice 2)
Don't be down the speaker wire.
Notice 1)
Don't leave any scratch or spot on structure.
Notice 1)
Don't leave any scratch or spot on structure.
5-3-2. Assembly
1 2
3 4
1) Reach in good condition a KEYPAD on
FRONT structure.
1) Insert speaker & LCD on FRONT structure.
1) After pull out the earjack cover, assemble
first the top & after the lower locker.
1) Fasten rear 4 screws.

SAMSUNG Proprietary-Contents may change without notice
Exploded View/Disassembly&Assembly Instructions
5-6
This Document can not be used without Samsung's authorization

SAMSUNG Proprietary-Contents may change without notice
6. MAIN Electrical Parts List
6-1
This Document can not be used without Samsung's authorization
Design LOC Description SEC Code STATUS
BAT300 HEADER-BATTERY 3711-006228 SA
C100 C-CER,CHIP 2203-005050 SA
C102 C-CER,CHIP 2203-000425 SA
C103 C-CER,CHIP 2203-006048 SA
C104 C-CER,CHIP 2203-005444 SA
C105 C-CER,CHIP 2203-006361 SA
C106 C-CER,CHIP 2203-000812 SA
C107 C-CER,CHIP 2203-000812 SA
C108 C-CER,CHIP 2203-000812 SA
C109 C-CER,CHIP 2203-000489 SA
C110 C-CER,CHIP 2203-000278 SA
C111 C-CER,CHIP 2203-000854 SA
C112 C-CER,CHIP 2203-000278 SA
C113 C-CER,CHIP 2203-001607 SA
C114 C-CER,CHIP 2203-001259 SA
C115 C-CER,CHIP 2203-001397 SA
C116 C-CER,CHIP 2203-001259 SA
C117 C-CER,CHIP 2203-001017 SA
C118 C-CER,CHIP 2203-006048 SA
C119 C-CER,CHIP 2203-006048 SA
C120 C-CER,CHIP 2203-000233 SA
C121 C-CER,CHIP 2203-000854 SA
C122 C-CER,CHIP 2203-000278 SA
C123 C-CER,CHIP 2203-006562 SA
C125 C-CER,CHIP 2203-001153 SA
C126 C-CER,CHIP 2203-000254 SA
C127 C-CER,CHIP 2203-005234 SA
C128 C-CER,CHIP 2203-000233 SA
C129 C-CER,CHIP 2203-005446 SA
C130 C-CER,CHIP 2203-005446 SA
C131 C-CER,CHIP 2203-005446 SA
C132 C-CER,CHIP 2203-001153 SA
C133 C-CER,CHIP 2203-000254 SA
C134 C-CER,CHIP 2203-000278 SA
C135 C-CER,CHIP 2203-000854 SA
C136 C-CER,CHIP 2203-000679 SA
C137 C-CER,CHIP 2203-000278 SA
C138 C-CER,CHIP 2203-006681 SA
C139 C-CER,CHIP 2203-005234 SA
C140 C-CER,CHIP 2203-000995 SA
C143 C-CER,CHIP 2203-005234 SA
C144 C-CER,CHIP 2203-000679 SA
C145 C-CER,CHIP 2203-000995 SA
C146 C-CER,CHIP 2203-005050 SA
C201 C-CER,CHIP 2203-006562 SA
C202 C-CER,CHIP 2203-005061 SA
C203 C-CER,CHIP 2203-005061 SA
C204 C-CER,CHIP 2203-005061 SA
C205 C-CER,CHIP 2203-005061 SA
C206 C-CER,CHIP 2203-000254 SA
C207 C-CER,CHIP 2203-005061 SA
C208 C-CER,CHIP 2203-005061 SA
C209 C-CER,CHIP 2203-000254 SA
