Samsung SGH-F480I User manual

GSM TELEPHONE
SGH-F480i
1. Safety Precautions
2. Specification
3. Product Function
4. Array course control
5. Exploded View and Parts list
6. MAIN Electrical Parts List
7. Disassembly and Assembly
Instructions
8. Block Diagrams
9. PCB Diagrams
10. Chart of Troubleshooting
11. Reference data
GSM TELEPHONE CONTENTS

SAMSUNG Proprietary-Contents may change without notice
1. Safety Precautions
1-2
This Document can not be used without Samsung's authorization
1-1. Repair Precaution
●Repair in Shield Box, during detailed tuning.
Take specially care of tuning or test,
because specipicty of cellular phone is sensitive for surrounding interference(RF noise).
●Be careful to use akind of magnetic object or tool,
because performance of parts is damaged by the influence of manetic force.
●Surely use astandard screwdriver when you disassemble this product,
otherwise screw will be worn away.
●Use athicken twisted wire when you measure level.
Athicken twisted wire has low resistance, therefore error of measurement is few.
●Repair after separate Test Pack and Set because for short danger (for example an
overcurrent and furious flames of parts etc) when you repair board in condition of
connecting Test Pack and tuning on.
●Take specially care of soldering, because Land of PCB is small and weak in heat.
●Surely tune on/off while using AC power plug, because arepair of battery charger is
dangerous when tuning ON/OFF PBA and Connector after disassembing charger.
●Don't use as you pleases after change other material than replacement registered on SEC
System.
Otherwise engineer in charge isn't charged with problem that you don't keep this rules.

SAMSUNG Proprietary-Contents may change without notice
Safety Precautions
1-2
This Document can not be used without Samsung's authorization
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Several semiconductor may be damaged easilly by static electricity. Such parts are called by
ESD(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.
You can prevent from ESD damage by static electricity.
●Remove static electricity remained your body before you touch semiconductor or parts with
semiconductor. There are ways that you touch an earthed place or wear static electricity
prevention string on wrist.
●Use earthed soldering steel when you connect or disconnect ESD.
●Use soldering removing tool to break static electricity. ,otherwise ESD will be damaged by
static electricity.
●Don't unpack until you set up ESD on product. Because most of ESD are packed by box
and aluminum plate to have conductive power,they are prevented from static electricity.
●You must maintain electric contact between ESD and place due to be set up until ESD is
connected completely to the proper place or acircuit board.

SAMSUNG Proprietary-Contents may change without notice
2. Specification
This Document can not be used without Samsung's authorization
2-1
2-1. GSM General Specification
EGSM900 DCS1800 PCS1900 WCDMA
2100
Freq.
Band[MHz]
Uplink/Downlink
880~915
925~960
1710~1785
1805~1880
1850~1910
1930~1990
1920~1980
2110~2170
ARFCN range 0~124 &
975~1023 512~885 512~810 UL : 9612~9888 DL : 10562~10838
Tx/Rx spacing 45MHz 95MHz 80MHz 190MHz
Mod. Bit rate/
Bit Period
270.833kbps
3.692us
270.833kbps
3.692us
270.833kbps
3.692us 3.84Mcps
Time lot Period/
Frame Period
576.9us
4.615ms
576.9us
4.615ms
576.9us
4.615ms
Frame length : 10ms
Slot length : 0.667ms
Modulation 0.3GMSK 0.3GMSK 0.3GMSK QPSK
HQPSK
MS Power 33dBm~5dBm 30dBm~0dBm 30dBm~0dBm 24dBm~ -50dBm
Power Class 4
(Max +33dBm)
1
(Max +30dBm)
1
(Max +30dBm)
3
(Max +24dBm)
Sensitivity -102dBm -100dBm -100dBm -106.7dBm
TDMA Mux 8 8 8 NA
Cell Radius 35Km 2Km 2Km 2Km

SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Specification
2-2
2-2. GSM Tx Power Class
TX Power
control level GSM900 TX Power control level DCS1800 TX Power control level PCS1800
5 33±2 dBm 0 30±3 dBm 0 30±3 dBm
6 31±2 dBm 1 28±3 dBm 1 28±3 dBm
7 29±2 dBm 2 26±3 dBm 2 26±3 dBm
8 27±2 dBm 3 24±3 dBm 3 24±3 dBm
9 25±2 dBm 4 22±3 dBm 4 22±3 dBm
10 23±2 dBm 5 20±3 dBm 5 20±3 dBm
11 21±2 dBm 6 18±3 dBm 6 18±3 dBm
12 19±2 dBm 7 16±3 dBm 7 16±3 dBm
13 17±2 dBm 8 14±3 dBm 8 14±3 dBm
14 15±2 dBm 9 12±4 dBm 9 12±4 dBm
15 13±2 dBm 10 10±4 dBm 10 10±4 dBm
16 11±3 dBm 11 8±4 dBm 11 8±4 dBm
17 9±3 dBm 12 6±4 dBm 12 6±4 dBm
18 7±3 dBm 13 4±4 dBm 13 4±4 dBm
19 5±3 dBm 14 2±5 dBm 14 2±5 dBm
15 0±5 dBm 15 0±5 dBm

SAMSUNG Proprietary-Contents may change without notice
3. Product Function
3-1
This Document can not be used without Samsung's authorization
Main Function
－HSDPA 7.2Mbps
－Touch Screen
－Bluetooth 2.1
－FM radio
－External Memory: micro SD
－High speed USB
－GPRS/EDGE :c
lass 12
－BT :Braodcom BCM2070
－Battery: 1000mAh
－Weight: 85.4g (Include Battery :106
g)
－Memory: 3Gb NAND +1
Gb SDRAM
－Camera: 5Mega (LSI)
－LCD :2.8"
QVGA TFT
－Size: 98.4x54.8x11.9mm
－Band: GSM900/1800/1900, W2100
－BB: Broadcom BCM2153, BCM59035
－RF: STN AERO4228

SAMSUNG Proprietary-Contents may change without notice
4. Array course control
4-1
This Document can not be used without Samsung's authorization
4-1. Software Adjustments
Test Cable (GH39-01160A)
Test Jig (GH99-36900A)
RF Test Cable (GH39-00985A) Adapter (GH99-38251A)

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-2
This Document can not be used without Samsung's authorization
4-2. Software Downloading
4-2-1. Downloading Binary Files
•2binary files for downloading F480i.
–F480IXXI○○_BIN folder includes 2 folders
-APPS : boot1a, boot1b, boot2, FUSE_APPS, nandpreboot_le
-COMMS : COMMS, LE_HEDGE_NVRAM6_RF_SS_F480i_01, patch_dsp, sysparm_dep,
sysparm_ind
–F480IXX○○_TFS : F480IXX○○, F480IXX○○.rc1, F480IXX○○.tfs
4-2-2. Pre-requsite for Downloading
•Downloader Program(BcomDownloader Lite v1.4 for BCM2153(Nand3G))
•SGH-F480i Mobile Phone
•JIG BOX
•Test Cable
•Serial Cable
•Binary files

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-3
This Document can not be used without Samsung's authorization
4-2-3. S/W Downloader Program
1. Load the binary download program by executing the "BcomDownloader Lite v1.4 for
BCM2153(Nand3G)"IF you chage the bootloader, go to number 2. Normally go to number 6
2. Change the UART port and adjust the UART speed(normally 921K)

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-4
This Document can not be used without Samsung's authorization
3. Check the START butten and power on the phone, "UART Download mode >>> Available "

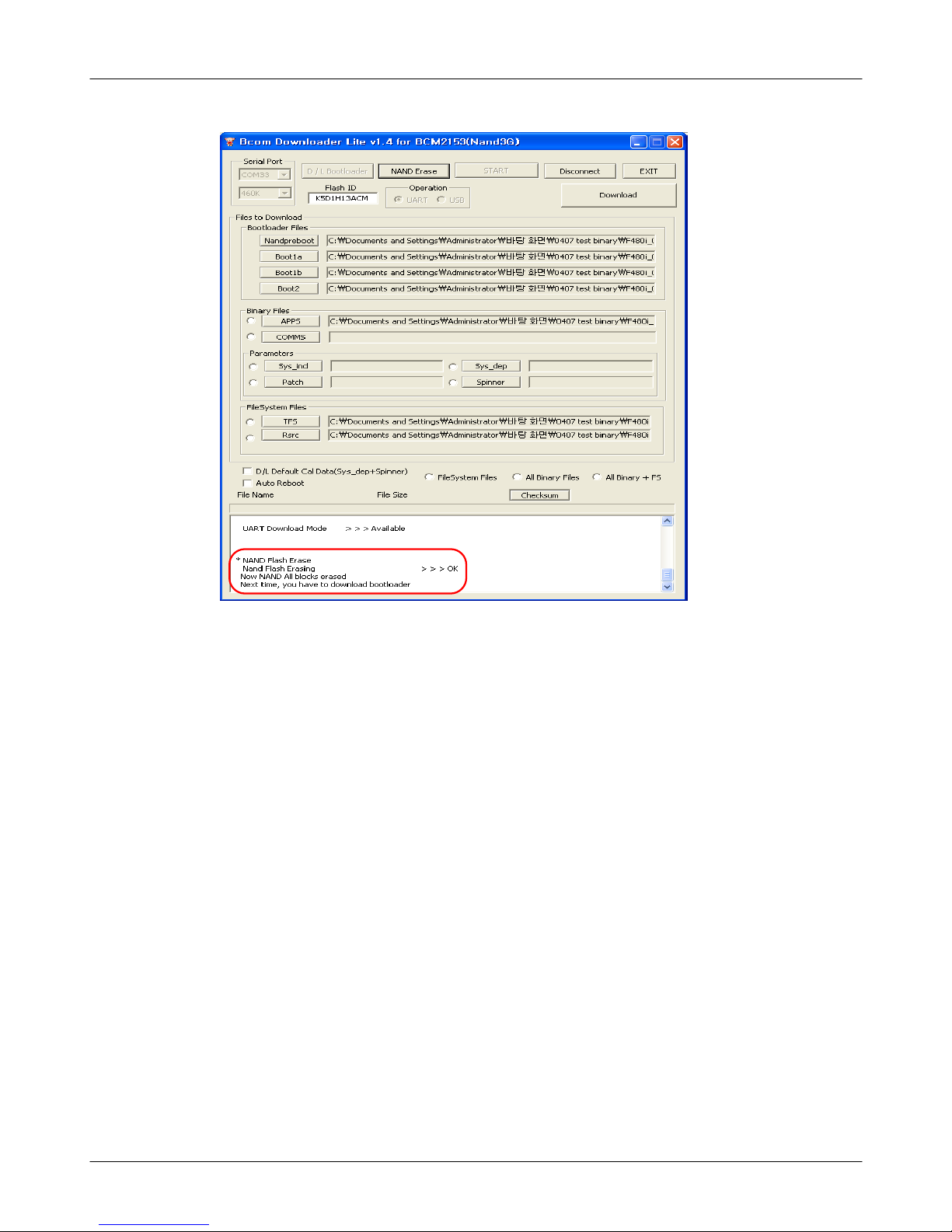

4. Check the NAND Erase butten, "Next time, you have to download bootloader"

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-5
This Document can not be used without Samsung's authorization
5. Check the Disconnect buttern and Bootloader butten, "Download complete"

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-6
This Document can not be used without Samsung's authorization
6. Change the USB Operation and port number. Push the START buttern and power on the phone.
you see the "USB Download Mode >>> Available"

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-7
This Document can not be used without Samsung's authorization
7. Check the Nandpreboot, and you click the Nandpreboot_le"F480I???_BIN\APPS". so Bootloader Files
and Binary files is automatically loaded.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-8
This Document can not be used without Samsung's authorization
8. Check the TFS"F480I???_TFS" and Rsrc"F480I???_TFS" file.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-9
This Document can not be used without Samsung's authorization

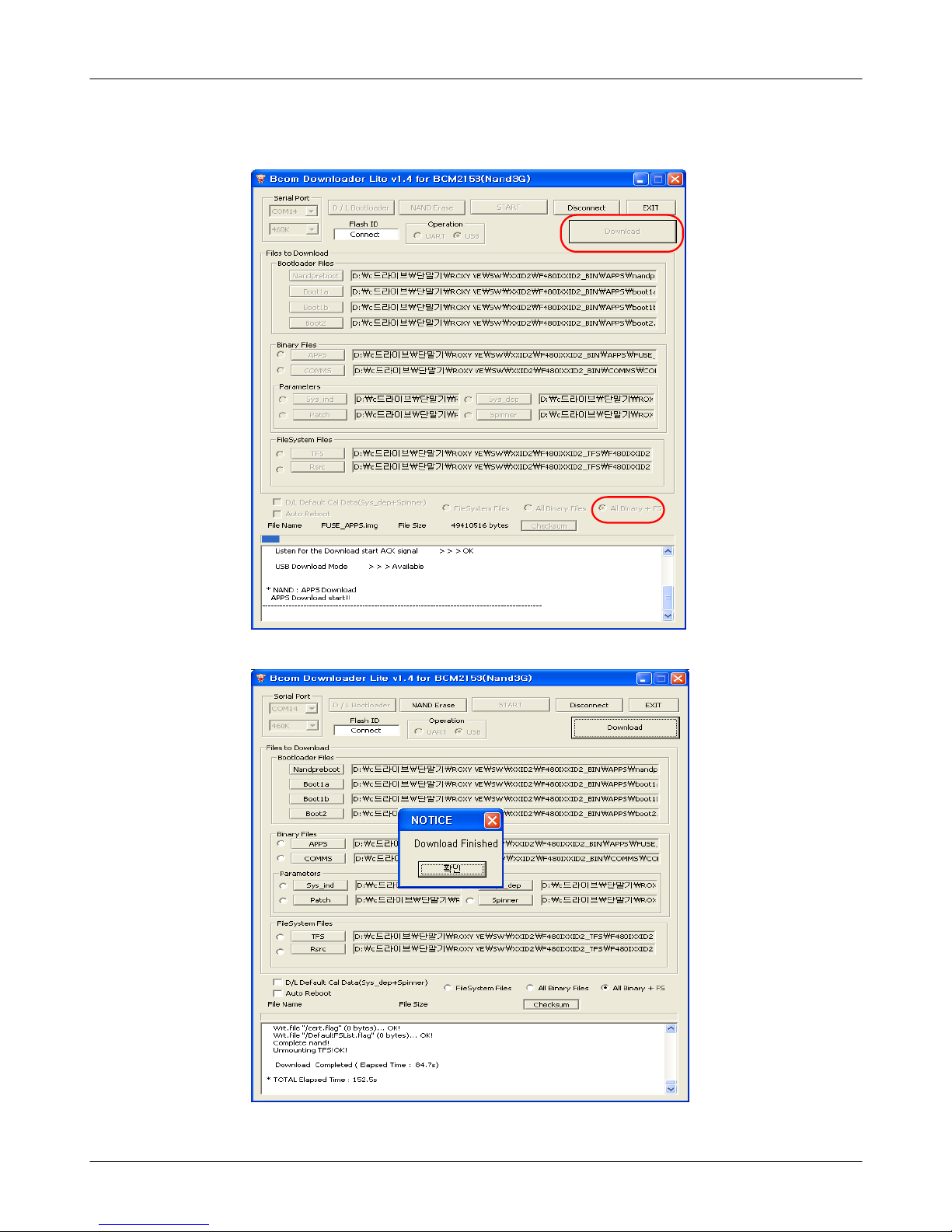

9. Check the All Binary +FS and push the Download buttern
10. "Download Finished" window(pop up) is appered. Download is finished.

SAMSUNG Proprietary-Contents may change without notice
5. Exploded View and Parts List
5-1
This Document can not be used without Samsung's authorization

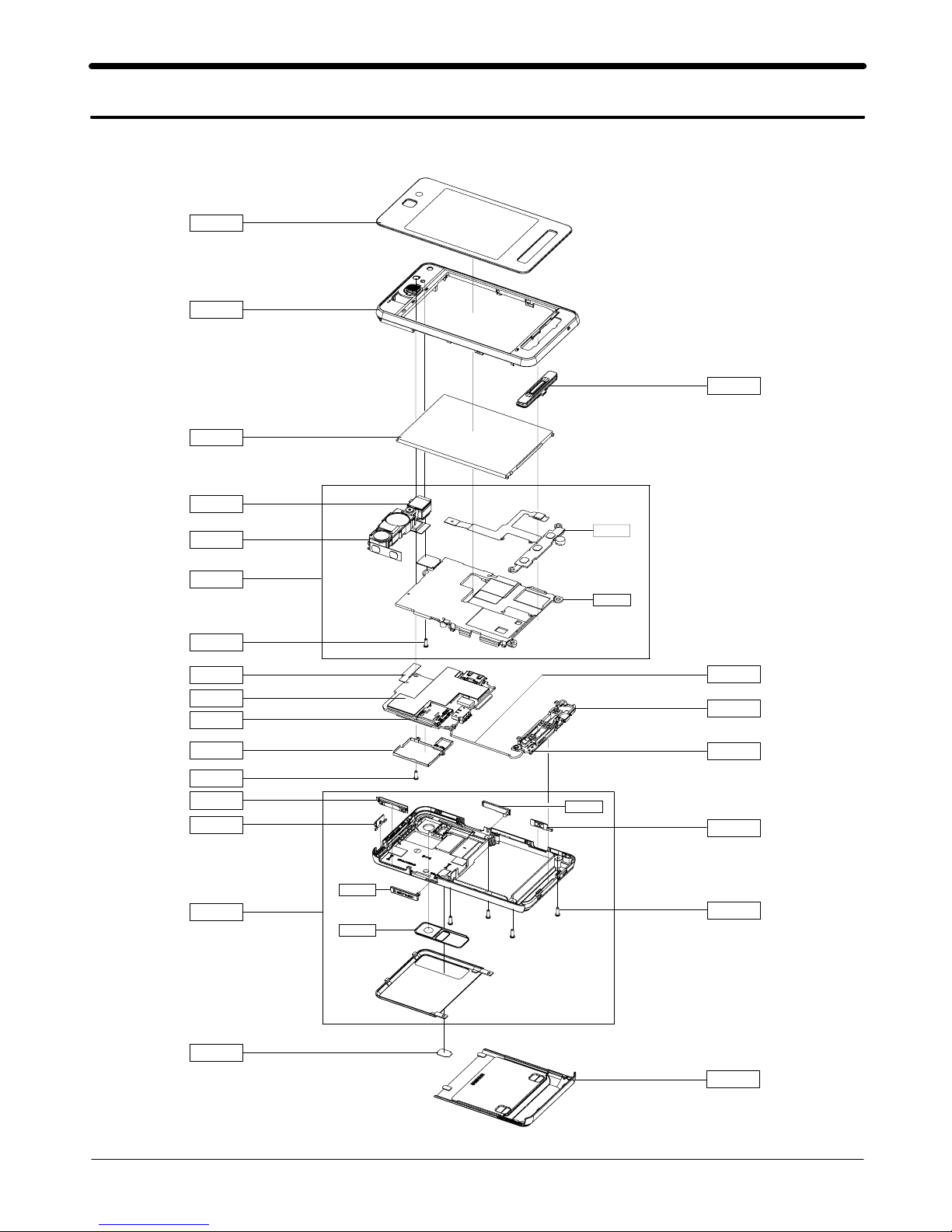

5-1. Cellular phone Exploded View
QFR01
QME03
QLC01
QCA01
QME00
QSH01
QMP01
QAN01
QSP01
QSH02
QCR32
QCR32
QRE01
QCK02
QVO01
QRF01
QBA00
QKP01
QAN19
QAN02
QCB01
QCK01
QCR91
QME01
QBR01
QCA04
QIF01
QSD01

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
5-2
This Document can not be used without Samsung's authorization
Design LOC Description SEC CODE
QAN01 FPCB ANTENNA CHIP-SGH F480 GH42-01496A
QAN02 INTENNA-SGH F480 GH42-01506A
QAN19 PMO CASE-INTENNA CARRIER GH72-48495A
QBA00 ASSY COVER-BATTERY(G) GH98-10008A
QCA01 CAMERA MODULE GH59-07398A
QCB01 CBF COAXIAL CABLE-SGHF480 GH39-01061A
QCK01 PMO KEY-CAMERA GH72-45768A
QCK02 PMO KEY-HOLD GH72-45770A
QCR32 SCREW-MACHINE 6001-001700
QCR32 SCREW-MACHINE 6001-001700
QCR91 SCREW-MACHINE 6001-002260
QFR01 ASSY CASE-FRONT GH98-07382A
QKP01 ASSY KEYPAD-(EU/SIL) GH98-07495A
QLC01 LCD GH07-01428A
QME03 TOUCH/PANEL-EU BRN(F480) GH59-05546A
QMP01 A/S ASSY-PBA MAIN(SGH-F480I SVC) GH82-03722A
QRF01 TAPE-RF SHEET GH74-38134A
QSH01 ASSY COVER-SHIELD CAN A(I) GH98-12479A
QSH02 ASSY COVER-SHIELD CAN B(I) GH98-13369A
QSP01 UNIT-SPK/MOT/KEYFPCB GH59-05577A
QVO01 PMO KEY-VOLUME GH72-45769A
QME00 ASSY MODULE-SUB KEY FPC BRACKET ASS'Y GH96-03887A
QME01 KEY FPCB-SUB KEY (SGH-F480I) GH59-07690A
QBR01 ASSY BRACKET-SHIELD CAN GH98-07497A
QRE01 ASSY CASE-REAR(G) GH98-10010A
QIF01 PMO COVER-IF GH72-45766A
QSD01 PMO COVER-SD GH72-45767A
QCA04 ASSY COVER-CAMERA GH98-07496A
5-2. Cellular phone Parts list

SAMSUNG Proprietary-Contents may change without notice
6. MAIN Electrical Parts List
6-1
This Document can not be used without Samsung's authorization
SEC Code Design LOC Description
0403-001547 D705 DIODE-ZENER
0403-001547 ZD601 DIODE-ZENER
0404-001172 D603 DIODE-SCHOTTKY
0406-001208 U744 DIODE-TVS
0406-001208 U745 DIODE-TVS
0406-001208 ZD401 DIODE-TVS
0406-001267 D502 DIODE-TVS
0406-001286 ZD600 DIODE-TVS
0406-001288 D500 DIODE-TVS
0406-001288 D501 DIODE-TVS
0406-001288 D704 DIODE-TVS
0406-001306 ZD602 DIODE-TVS
0502-001322 Q400 TR-POWER
0601-002456 LED600 LED
0801-002882 U300 IC-CMOS LOGIC
1001-001470 U504 IC-ANALOG SWITCH
1003-002047 U610 IC-MOTOR DRIVER
1108-000266 UME300 IC-MCP
1201-002304 U501 IC-AUDIO AMP
1201-002742 PAM100 IC-POWER AMP
1201-002765 PAM201 IC-POWER AMP
1201-002864 U500 IC-AUDIO AMP
1203-004540 U611 IC-DC/DC CONVERTER
1203-004857 U608 IC-DC/DC CONVERTER
1203-005409 U601 IC-POWER SUPERVISOR
1203-005512 U612 IC-POSI.FIXED REG.
1203-005809 U400 IC-POWER SUPERVISOR
1204-003026 U502 IC-TUNER
1205-003754 U100 IC-BLUETOOTH
1205-003761 U200 IC-TRANSCEIVER
1205-003764 UCP300 IC-MODEM
1404-001221 V300 THERMISTOR-NTC
2007-000148 R101 R-CHIP
2007-000156 R708 R-CHIP
2007-000157 R209 R-CHIP
2007-000157 R210 R-CHIP
2007-000164 R625 R-CHIP
2007-000173 R505 R-CHIP

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-2
This Document can not be used without Samsung's authorization
2007-000173 U741 R-CHIP
2007-000775 R204 R-CHIP
2007-000775 R208 R-CHIP
2007-001291 R609 R-CHIP
2007-003014 R308 R-CHIP
2007-007001 R206 R-CHIP
2007-007100 R421 R-CHIP
2007-007132 R506 R-CHIP
2007-007132 R509 R-CHIP
2007-007137 R502 R-CHIP
2007-007137 R508 R-CHIP
2007-007137 R513 R-CHIP
2007-007137 R515 R-CHIP
2007-007148 R207 R-CHIP
2007-007156 R713 R-CHIP
2007-007156 U747 R-CHIP
2007-007189 R507 R-CHIP
2007-007189 U743 R-CHIP
2007-007309 R629 R-CHIP
2007-007318 R512 R-CHIP
2007-007318 R519 R-CHIP
2007-007489 R305 R-CHIP
2007-007592 R637 R-CHIP
2007-007981 R309 R-CHIP
2007-008045 R347 R-CHIP
2007-008045 R348 R-CHIP
2007-008045 R349 R-CHIP
2007-008045 R350 R-CHIP
2007-008045 R550 R-CHIP
2007-008055 R105 R-CHIP
2007-008055 R106 R-CHIP
2007-008055 R312 R-CHIP
2007-008055 R345 R-CHIP
2007-008055 U600 R-CHIP
2007-008213 R343 R-CHIP
2007-008218 R627 R-CHIP
2007-008354 R626 R-CHIP
2007-008401 R318 R-CHIP
2007-008419 R107 R-CHIP

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-3
This Document can not be used without Samsung's authorization
2007-008419 R108 R-CHIP
2007-008419 R109 R-CHIP
2007-008419 R110 R-CHIP
2007-008419 R303 R-CHIP
2007-008516 R211 R-CHIP
2007-008516 R418 R-CHIP
2007-008516 R705 R-CHIP
2007-008588 R301 R-CHIP
2007-008588 R302 R-CHIP
2007-008588 R703 R-CHIP
2007-008588 R704 R-CHIP
2007-008785 R605 R-CHIP
2007-008785 R640 R-CHIP
2007-008798 R103 R-CHIP
2007-008809 R320 R-CHIP
2007-008809 R321 R-CHIP
2007-008809 R325 R-CHIP
2007-008809 R326 R-CHIP
2007-008809 R422 R-CHIP
2007-008809 R444 R-CHIP
2007-009084 R401 R-CHIP
2007-009084 R602 R-CHIP
2007-009111 R711 R-CHIP
2007-009157 R313 R-CHIP
2007-009157 R524 R-CHIP
2007-009157 R712 R-CHIP
2007-009170 R600 R-CHIP
2007-009212 R416 R-CHIP
2007-010071 R443 R-CHIP
2203-000233 C223 C-CER,CHIP
2203-000233 L210 C-CER,CHIP
2203-000254 C202 C-CER,CHIP
2203-000254 C204 C-CER,CHIP
2203-000254 C278 C-CER,CHIP
2203-000278 C128 C-CER,CHIP
2203-000386 C222 C-CER,CHIP
2203-000425 C409 C-CER,CHIP
2203-000425 C410 C-CER,CHIP
2203-000438 C218 C-CER,CHIP
