Samsung SGH-i710 Series User manual

GSM TELEPHONE
SGH-i710
GSM TELEPHONE CONTENTS
1. Safety Precautions
2. Specification
3. Operation Instruction and
Installation
4. Array course control
5. Exploded View/Disassembly
and Assembly Instructions
6. MAIN Electrical Parts List
7. Block Diagrams
8. PCB Diagrams
9. Flow Chart of Troubleshooting
10. Reference data

Samsung Electronics Co.,Ltd.
2007.05 Rev.1.0
ⓒ
This Service Manual is a property of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.
Country Web Site
North America service.samsungportal.com
Latin America latin.samsungportal.com
CIS cis.samsungportal.com
Europe europe.samsungportal.com
China china.samsungportal.com
Asia asia.samsungportal.com
Mideast & Africa mea.samsungportal.com
GSPN (Global Service Partner Network)

SAMSUNG Proprietary-Contents may change without notice
1. Safety Precautions
1-1
This Document can not be used without Samsung's authorization
1-1. Repair Precaution
―Repair in Shield Box, during detailed tuning. Take specially care of tuning or test, because
specipicty of cellular phone is sensitive for surrounding interference(RF noise).
―Be careful to use a kind of magnetic object or tool, because performance of parts is damaged by
the influence of magnetic force.
―Surely use a standard screwdriver when you disassemble this product, otherwise screw will be
worn away.
―Use a thicken twisted wire when you measure level. A thicken twisted wire has low resistance,
therefore error of measurement is few.
―Repair after separate Test Pack and Set because for short danger (for example an overcurrent
and furious flames of parts etc) when you repair board in condition of connecting Test Pack and
tuning on.
―Take specially care of soldering, because Land of PCB is small and weak in heat.
―Surely tune on/off while using AC power plug, because a repair of battery charger is dangerous
when tuning ON/OFF PBA and Connector after disassembling charger.
―Don't use as you pleases after change other material than replacement registered on SEC System.
Otherwise engineer in charge isn't charged with problem that you don't keep this rules.

SAMSUNG Proprietary-Contents may change without notice
Safety Precautions
1-2
This Document can not be used without Samsung's authorization
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Several semiconductor may be damaged easily by static electricity. Such parts are called by ESD
(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.
You can prevent from ESD damage by static electricity.
―Remove static electricity remained your body before you touch semiconductor or parts with
semiconductor. There are ways that you touch an earthed place or wear static electricity prevention
string on wrist.
―Use earthed soldering steel when you connect or disconnect ESD.
―Use soldering removing tool to break static electricity. , otherwise ESD will be damaged by static
electricity.
―Don't unpack until you set up ESD on product. Because most of ESD are packed by box and
aluminum plate to have conductive power,they are prevented from static electricity.
―You must maintain electric contact between ESD and place due to be set up until ESD is
connected completely to the proper place or a circuit board.

2. Specification
2-1
2-1. GSM General Specification
GSM850
Phase 1 EGSM 900 Phase 2 DCS1800 Phase 1 PCS1900
Freq.
Band[MHz]
Uplink/Downlink
824~849
869~894 880~915 925~960 1710~1785 1805~1880 1850~1910 1930~1990
ARFCN range 128~251 0~124 &
975~1023 512~885 512~810
Tx/Rx spacing 45MHz 45MHz 95MHz 80MHz
Mod. Bit rate/
Bit Period 270.833kbps 3.692us 270.833kbps 3.692us 270.833kbps 3.692us 270.833kbps 3.692us
Time Slot
Period/Frame
Period
576.9us
4.615ms 576.9us 4.615ms 576.9us 4.615ms 576.9us 4.615ms
Modulation 0.3GMSK 0.3GMSK 0.3GMSK 0.3GMSK
MS Power 33dBm~5dBm 33dBm~5dBm 30dBm~0dBm 30dBm~0dBm
Power Class 5pcl ~ 19pcl 5pcl ~ 19pcl 0pcl ~ 15pcl 0pcl ~ 15pcl
Sensitivity -102dBm -102dBm -100dBm -100dBm
TDMA Mux 8 8 8 8
Cell Radius 35Km 35Km 2Km 2Km

Specification
2-2
2-2. GSM Tx Power Class
TX Power
control
level
GSM850
533±2dBm
631±2dBm
729±2dBm
827±2dBm
925±2dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control
level
EGSM900
533±2dBm
631±2dBm
729±2dBm
827±2dBm
925±2dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control
level
DCS1800
030±3dBm
128±3dBm
226±3dBm
324±3dBm
422±3dBm
520±3dBm
618±3dBm
716±3dBm
814±3dBm
912±4dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control
level
PCS1900
030±3dBm
128±3dBm
226±3dBm
324±3dBm
422±3dBm
520±3dBm
618±3dBm
716±3dBm
814±3dBm
912±4dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm

SAMSUNG Proprietary-Contents may change without notice
3. Operation Instruction and Installation
3-1
This Document can not be used without Samsung's authorization
Main Function
- Slim Bar Design 2.5G MITS
- 2 Megapixel Camera with AutoFocus
- 2.8" QVGA 262K Color TFT Screen
- External Memory microSD (T-Flash)
- Video Recording & Messaging
- Music Player(MP3/AAC/AAC+)
- Bluetooth Wireless Technology V 2.0 + EDR
- Multimedia Message Service (MMS)/SMS/E-mail
- Voice recorder
- Speaker Phone
- Java MIDP 2.0/ WAP2.0
- GSM/GPRS Class 10
- Quad-band(850/900/1800/1900MHz)

SAMSUNG Proprietary-Contents may change without notice
Operation Instruction and Installation
3-2
This Document can not be used without Samsung's authorization

SAMSUNG Proprietary-Contents may change without notice
4. Array course control
4-1
This Document can not be used without Samsung's authorization
4-1. Software Adjustments

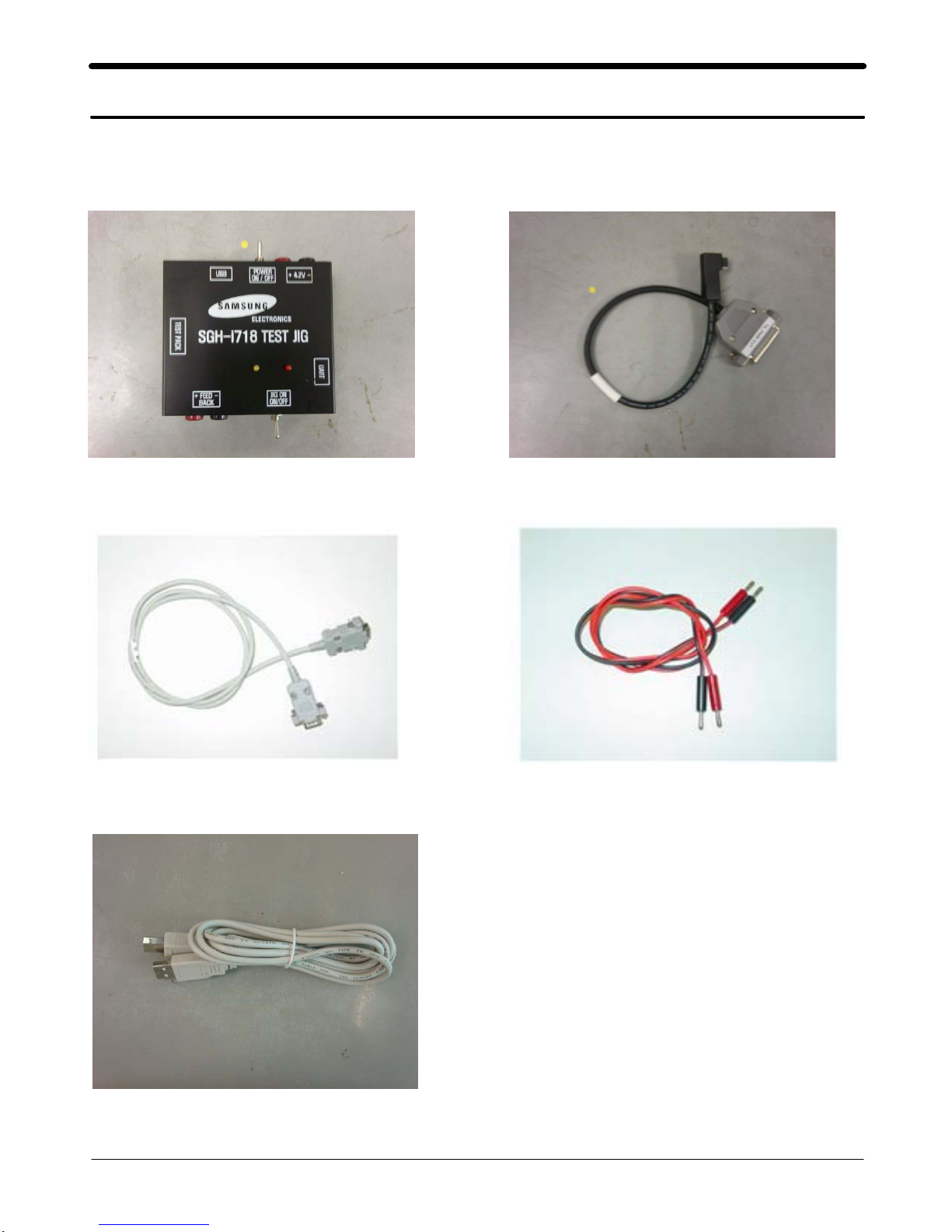

Test Jig
Serial Cable(CSA LL64151-A) Power Cable
USB DATA CABLE (CSA LL11105 AWM)
Jig cable (GH39-00777A)

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-2
This Document can not be used without Samsung's authorization
4-2. Software Downloading
4-2-1. Pre-requests for Downloading
• Downloader Program(Becks_Downloader_v01.exe)
• SGH-i710 Mobile Phone
• USB Data Cable
• UART Data Cable(Serial Cabel)
• Binary files (PDA & Phone binary)
4-2-2. S/W Downloader Program
4-2-2-1. Phone S/W Downloading
■Load the binary download program by executing the
“Becks_Downloader_v01.exe”
1. Select the connected serial port and the rate of speed
2. Select the file what you want to download
3. Then, click the start button.
1

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-3
This Document can not be used without Samsung's authorization

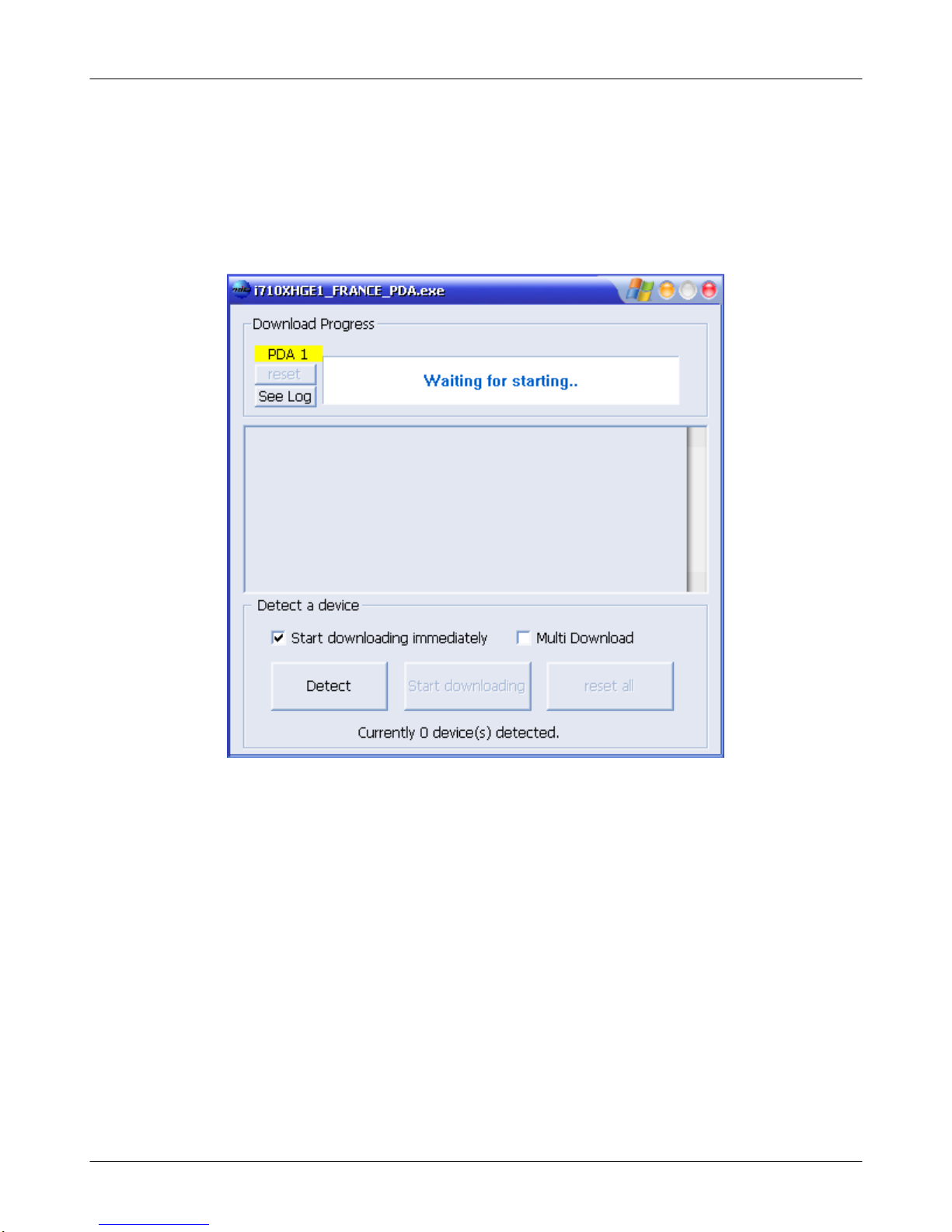

4-2-2-2. PDA S/W Downloading
■Load the binary download program by executing the
“i710XHGE1_FRANCE_PDA.exe” (It's up to binary version)
1. Click the Detect button.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-4
This Document can not be used without Samsung's authorization

SAMSUNG Proprietary-Contents may change without notice
5-2
This Document can not be used without Samsung's authorization
5. Exploded View/Disassembly&Assembly Instructions
5-1. Cellular phone Exploded View
QFR01
QKP01
QIF01
QMI01
QAR01
QLC01
QBR01
QVK02
QME03
QMP01
QVK01
QBR11
QCR04
QMO01
QCK02
QST01
QVO01
QCR10
QSC01
QRF01
QME01
QAN02
QCR04
QCA01
QCK03
QCK01
QSD01
QRE01
QCR04
QBA01
QBA00
QBA03
QBA02
QSP01
QCB01

SAMSUNG Proprietary-Contents may change without notice
Exploded View/Disassembly&Assembly Instructions
5-2
This Document can not be used without Samsung's authorization
5-2. Cellular phone Parts list
Design LOC Description SEC CODE
QAN02 INTENNA-SGHI718 GH42-01078A
QAR01 AUDIO-RECEIVER 3009-001250
QBA00 PMO-COVER BATTERY GH72-35831A
QBA01 INNER BATTERY PACK-1300MAH,BLK GH43-02827A
QBA02 INNER BATTERY PACK-1800MAH,BLK GH43-02781A
QBA03 PMO-COVER EXT BATT GH72-38333A
QBR01 ASSY BRACKET-BRACKET SHIELD GH98-03033A
QBR11 ASSY BRACKET-CAMERA HOUSING GH98-03032A
QCA01 UNIT-CAMERA GH59-03771A
QCB01 CBF COAXIAL CABLE-SGHI718 COAX GH39-00755A
QCK01 PMO-CAMERA KEY GH72-35838A
QCK02 PMO-POWER KEY GH72-35832A
QCK03 PMO-REC KEY GH72-35837A
QCR04 SCREW-MACHINE 6001-001479
QCR10 SCREW-MACHINE 6001-001633
QFR01 ASSY CASE-FRONT GH98-04392A
QIF01 PMO-COVER IF V2 GH72-37119A
QKP01 ASSY KEYPAD-(CUH/BLK) GH98-03036A
QLC01 LCD-MODULE SGHI718 GH07-01016A
QME01 KEY FPCB-KEY FPCB ASSY GH59-03798A
QME03 KEY FPCB-RECORD KEY ASSY GH59-03786A
QMO01 MOTOR DC-SGHI718 GH31-00289A
QMP01 PBA-SGH-I710 GH92-03706A
QRE01 ASSY CASE-REAR GH98-03035A
QRF01 MPR-TAPE RF HOLE GH74-29317A
QSC01 PMO-COVER SCREW GH72-35840A
QSD01 PMO-COVER M SD GH72-35835A
QSP01 SPEAKER 3001-002091
QST01 ASSY ACCE-STYLUS PEN(SILVER) GH98-03060A
QVK01 KEY FPCB-VOLUME KEY ASSY GH59-03801A
QVK02 KEY FPCB-POWER KEY ASSY GH59-03803A
QVO01 ASSY KEY-VOLUME KEY GH98-03809A

SAMSUNG Proprietary-Contents may change without notice
Exploded View/Disassembly&Assembly Instructions
5-3
This Document can not be used without Samsung's authorization
Description SEC CODE
CBF INTERFACE-DATA LINK CABLE GH39-00444A
ADAPTOR-SGHE690,BLK,EU,A_TYPE GH44-01361A
CHARGER-SGHI601,BTC,BLK GH44-01664A
EARPHONE-B-TYPE GH59-03883A
MPR-SPONGE MIC GH74-29899A
MPR-INSU TAPE GH74-30639A
MPR-INSU TAPE GH74-29721A
MPR-INSU TAPE GH74-29722A
MPR-INSU TAPE SPK GH74-29723A
MPR-TAPE RESET SWITCH GH74-30295A
MPR-TAPE MAIN FPCB A GH74-17751A
MPR-VINYL BOHO LCD TSTC GH74-31131A
BAG PE 6902-000634
LABEL(P)-UNIT SEAL GH68-00518B
LABEL(R)-MAIN(XEF) GH68-14706C
BOX-UNIT(EU) GH69-05353B
CUSHION-CASE(EU) GH69-05357A
LABEL(P)-OPEN MP3 GH68-11246A
S/W CD-SGHI710(FRAN ) COMPANIO GH46-00456A
MANUAL USERS-XEFFRENCH QRG GH68-15012A

Exploded View/Disassembly&Assembly Instructions
5-3. Disassembly and Assembly Instructions
―Disassembly
1) Remove the SCREW COVER on the left side by using tweezers and
separate the STYLUS PEN on the right side. 1) Unscrew the 6 points.
1) Separate the REAR COVER from the bottom to the top on the VOLUME KEY
side. 2) Separate the REAR COVER from the bottom to the top on the
CAMERA KEY side.
- Be careful of the damage of HOOKs on the COVER.
1) Separate the REAR COVER without damage of HOOKs on the top side.
2) Remove the KEYs(CAMERA, RECORD, POWER, VOLUME).
2
1
34
5-4

Exploded View/Disassembly&Assembly Instructions
1) Unscrew the 2 marked points on the picture and disconnect the CAMERA, MOTOR,
SPKEAKER CONNECTOR from PBA.
1) Separate the CAMERA KEY FPCB from the FRONT COVER by using tweezers.
2) Remove the TAPE on theKEY FPCB CONNECTOR by using tweezers.
3) Push the Hooks to out side on the FRONT COVER and Separate the FRAME from it.
1) Hold up the PBA ASS'Y, and Separate the RECEIVER SPEAKER from the FRONT COVER
by putting the tweezers into the marked point on the picture.
- Be careful of damage of the COVER and SPEAKER WIRE.
1) Separate the CAMERA ASS'Y and the LCD CONNECTOR from the PBA.
6
5
78
5-5

Exploded View/Disassembly&Assembly Instructions
1) Separate KEY FPCBs(POWER, VOLUME, RECORD) from the FRAME by using tweezers.
- Be careful of damage of FPCBs
1) Hold up the PBA slowly and disconnect the INTENNA CABLE on the back side of the
PBA.
1) Unscrew the 2 marked points and separate the INTENNA. 1) Detach the INTENNA CABLE from the INTENNA.
10
9
11 12
5-6

Exploded View/Disassembly&Assembly Instructions
1) Detach the FPCB from the FRAME by using tweezers
-Be careful of damage of the FPCB.
1) Hold up the LCD from the bottom and detach the LCD from the LCD FRAME.
-Be careful of damage of the LCD and the FRAME
14
13
5-7

Exploded View/Disassembly&Assembly Instructions
―Assembly
1) Attach the KEY FPCB on the FRAME along by red marked hole on the picture.
- Be careful of damage of FPCB.
1) Attach the INTENNA CABLE to the connection point on the INTENNA
1) Screw the 2 points to the INTENNA to fix the FRAME.
2) Hold the INTENNA CABLE in the FRAME.
1) Remove the release paper(both-sided TAPE) from the FRAME and attach the LCD
to the FRAME along by the guide line on the left-top side of the frame.
2
1
34
5-8
