1. Specification
2. Circuit Description

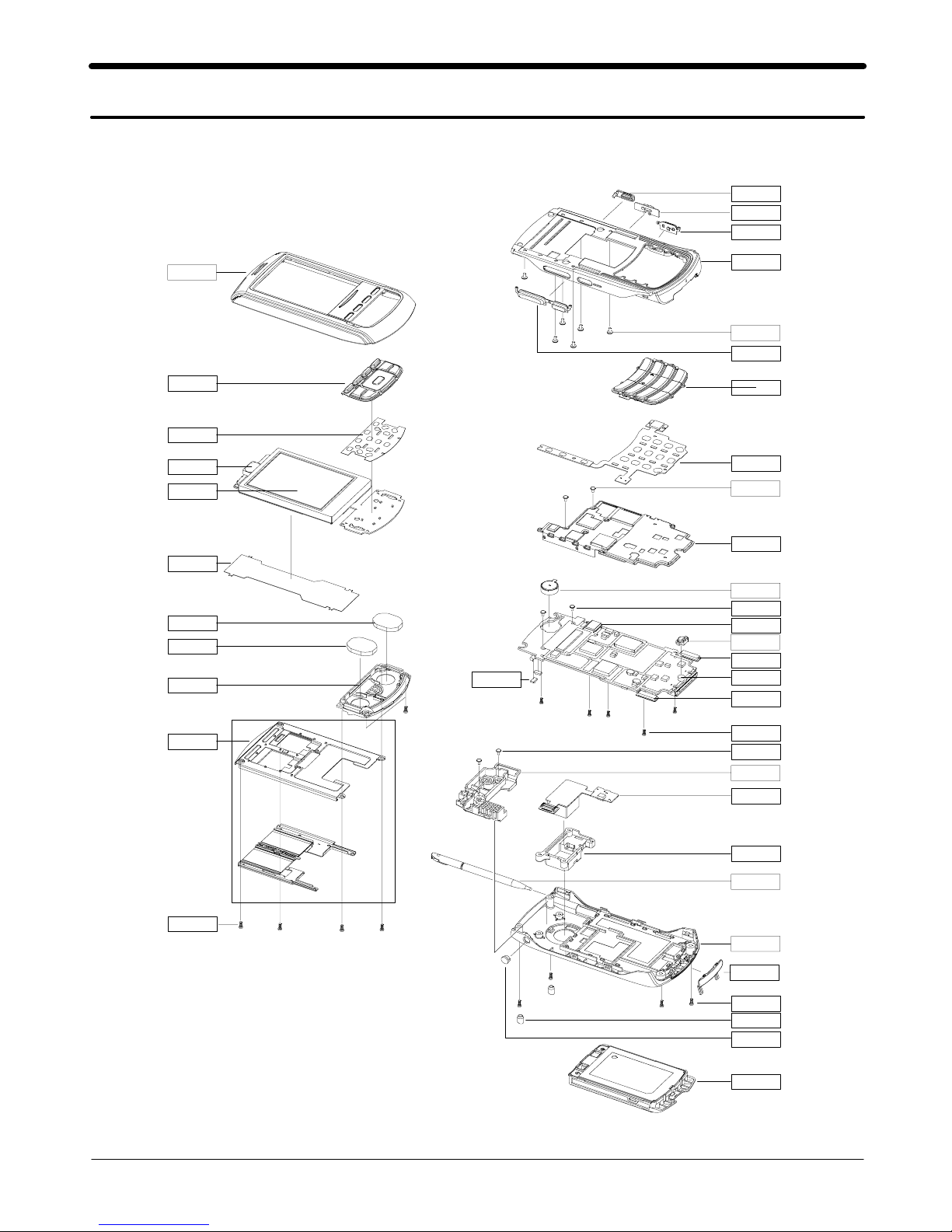

3. Exploded Views and Parts List
4. Electrical Parts List
5. Block Diagrams
6. PCB Diagrams
7. Flow Chart of Troubleshooting
8. Disassembly and
Assembly instructions

SAMSUNG Proprietary-Contents may change without notice
1. Specification
This Document can not be used without Samsung's authorization
1-1
PCS1900
1850~1910
1930~1990
512~810
80MHz
270.833kbps
3.692us
576.9us
4.615ms
0.3GMSK
30dBm~0dBm
0pcl ~ 15pcl
-100dBm
8
-
GSM900
Phase 1 EGSM 900 Phase 2 DCS1800 Phase 1
Freq. Band[MHz]
Uplink/Downlink 890~915 935~960 880~915 925~960 1710~1785 1805~1880
ARFCN range 1~124 0~124 &
975~1023 512~885
Tx/Rx spacing 45MHz 45MHz 95MHz
Mod. Bit rate
/BitPeriod 270.833kbps 3.692us 270.833kbps 3.692us 270.833kbps 3.692us
Time Slot Period
/ Frame Period 576.9us 4.615ms 576.9us 4.615ms 576.9us 4.615ms
Modulation 0.3GMSK 0.3GMSK 0.3GMSK
MS Power 33dBm~5dBm 33dBm~5dBm 30dBm~0dBm
Power Class 5pcl ~ 19pcl 5pcl ~ 19pcl 0pcl ~ 15pcl
Sensitivity -102dBm -102dBm -100dBm
TDMA Mux 8 8 8
Cell Radius 35Km 35Km 2Km
1-1. GSM General Specification

SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Specification
1-2
TX Power
control level PCS1900
0 30±3 dBm
1 28±3 dBm
2 26±3 dBm
3 24±3 dBm
4 22±3 dBm
5 20±3 dBm
6 18±3 dBm
7 16±3 dBm
8 14±3 dBm
9 12±4 dBm
10 10±4 dBm
11 8±4dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control level DCS1800
0 30±3 dBm
1 28±3 dBm
2 26±3 dBm
3 24±3 dBm
4 22±3 dBm
5 20±3 dBm
6 18±3 dBm
7 16±3 dBm
8 14±3 dBm
9 12±4 dBm
10 10±4 dBm
11 8±4dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control level GSM900
5 33±3 dBm
6 31±3 dBm
7 29±3 dBm
8 27±3 dBm
9 25±3 dBm
10 23±3 dBm
11 21±3 dBm
12 19±3 dBm
13 17±3 dBm
14 15±3 dBm
15 13±3 dBm
16 11±5 dBm
17 9±5 dBm
18 7±5 dBm
19 5±5 dBm
1-2. GSM TX power class

SAMSUNG Proprietary-Contents may change without notice
2. Circuit Description
This Document can not be used without Samsung's authorization
2-1
2-1. SGH-i750 RF Circuit Description
2-1-1. ANTENNA SWITCH (U101:LMG003S-5091A)
→Switching Tx, Rx path for EGSM900, DCS1800 and PCS1900 by logic controlling.
<TruthTable>
2-1-2. FILTER
To convert Electromagnetic Field Wave to Acoustic Wave and then pass the specific frequency band.
- GSM FILTER (F101) →For filtering the frequency band between 925 and 960 MHz
- DCS FILTER (F103) →For filtering the frequency band between 1805 and 1880 MHz.
- PCS FILTER (F102) →For filtering the frequency band between 1930 and 1990 MHz.
2-1-3. TRANSCEIVER (U102:UAA3587EHN/C2)
This chip is fully integrated GSM GPRS quad-band transceiver with transmit baluns, loop filters and
most of the
passive component in it.
And also fully integrated fractional N RF synthesizer with AFC control possibility, RF VCO with
integrated supply
regulator. Semi integrated reference oscillator with integrated supply regulator.
RF Receiver front-end amplifies the EGSM900, DCS1800 and PCS1900 aerial signal, convert the
chosen channel
down to a low IF of 100kHz.
In IF section, further amplifies the wanted channel output level to the desired value and rejects DC.
The transmitter is fully differential using a direct up conversion architecture. It consists of a signal side
band
power up mixer. Gain is controlled by 6 dB via 3-wire serial bus programing. The fully integrated
VCO and power
mixer achieve LO suppression, quadrature phase error, quadrature amplitude balance and low noise
floor specification.
Output matching/balun components drive a standard 50 ohms single ended load.
VC1 VC2 VC3
Tx Mode (GSM900) L H L
Tx Mode (DCS1800/1900) L L H
Rx Mode (GSM900) L L L
Rx Mode (DCS1800) L L L
Rx Mode (PCS1900) H L L

SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Circuit Description
2-2
2-1-4. Power Amplifier Module (PAM101:BGY290E)
This chip is a GSM/EDGE compliant quad band Power amplifier module (PAM) with integrated power
control loop (PCL). The GSM (GMSK) line up is similar to the EDGE line-up, in the EDGE mode the
power control loop is disabled and the EDGE biasing (fine-tuning) control is enabled.
In the EDGE mode the device can be considered as a linear constant gain amplifier, the output
power adjustment and ramping profiles have to be provided by controlling the output power of the
transceiver
2-1-5. TCXO(TCX101:TCO-5871U 26MHz)
This system uses the 26MHz TCXO, TCO-5871U, Toyocom. AFC control signal form PCF5213
controls
frequency from 26MHz x-tal. It generates the clock frequency. This clock is connected to UAA3587.
This module generates the 26MHz reference clock to drive the logic and RF.
It is turned on when the supply voltage Vcc(SYN) is applied.
After buffering a reference clock of 26MHz is supplied to the other parts of the system
through the transceiver pin CLKOUT.
2-2. Logic Circuit description of SGH-i750
2-2-1. Power Supply(U204:PCF50603)
8 low-dropout regulators designed specifically for GSM applications power the terminal and help
ensure optimal system performance and long battery life. Dedicated SIM supply supports 3.0 V and
1.8 V cards including a power saving ECO mode for the power down mode of the SIM card.
Serial 400 kHz I2C interface to transfer the control data between the PCF50603 and the host
controller.
I2C BUS serial interface provides access to control and configuration registers. This interface gives a
microprocessor full control of the PCF50603 and enables system designers to maximize both standby
and talk times.
Supervisory functions. including a reset generator, an input voltage monitor, and a temperature sensor,
support reliable system design. These functions work together to ensure proper system behavior
during start-up or in the event of a fault condition(low microprocessor voltage, insufficient battery
energy, or excessive die temperature).
The CGU (clock generator unit) generates all internal and external clocks for the PCF50603.
The CGU offers the following features:
A free-running oscillator generating the internal high clock frequency (clkcco). The typical frequency of
the high clock frequency is 3.6 MHz.

SAMSUNG Proprietary-Contents may change without notice
Circuit Description
This Document can not be used without Samsung's authorization
2-3
A 32.768 kHz crystal oscillator which provides an accurate low clock frequency for the PCF50603 and
external circuitry.
For the POWER ON, the PHONE_ON pulse signal(logical low) for 200ms from PDA turns on
U204(PCF50603).
For the POWER OFF, by pressing POWER KEY of the phone application, the PHONE_ON pulse
signal(logical low) for 1s from PDA turns off U204(PCF50603) and all phone device.
The regulated voltage(U204,+VDD_GSM_CORE) is used in Core block of PCF5213.
The regulated voltage(U204,+VDD_IO_HIGH, +VDD_IO_LOW) is used in the digital part of PCF5213.
The regulated voltage(U204,+AVDD, +AVDD_HFA) is used in the analog part of PCF5213.
The regulated volgtage(U204,+VDD_RX_TX) is used in the RX and TX RF part.
The regulated Voltage(U204,+VCC_SYN) is used in the RF part.
2-2-2. Logic Part
The logic part consists of internal CPU of MODEM, Memory.
GSM MODEM(UCP201:PCF5213EL1)
The PCF5213EL1 is mainly composed of embeded DSP and ARM core.The DSP subsystem includes
the Saturn DSP core with embedded RAM and ROM, and a set of peripherals. It has 24kx16 bits
PRAM, 104k*16 bits, 32k*16 XYRAM and 63k*16 XYROM in the DSP.
The ARM946E-S consists of an ARM9E-S processor core, 8 kbyte instruction cache and 8 kbyte data
cache, tightly-coupled ITCM(Instruction Tightly Coupled Memory) and DTCM(Data Tightly Coupled
Memory) memories, a memory protection unit, and an AMBA(Advanced Microcontroller Bus
Architecture) AHB(Advanced High-performance Bus) bus interface with a write buffer.
HD(0:15), data lines and HA(0:23), address lines are connected to S71WS256NC0(memory). It has 64
kbyte SC RAM (0.5 Mbit) and 32 kbyte SC program ROM for bootstrap loader in the ARM core.
HD(0:15), data lines and HA(0:23), address lines are connected to memory and YMU765 to
communicate. OEn, WEn control the access of memory. KROW, and KCOL recognize the key string
input status.
It has J-TAG control pins (TDI/TDO/TCK) for ARM and DSP core. J-SEL signal controls different
access to ARM and DSP core. ADC(Analog to Digital Convertor) receives battery voltage.
MCP : FLASH ROM and UtRAM (UME201:S71WS256NC0)
This system uses Spansion's memory, S71WS256NC0. The S71WS256NC0 is a Multi Chip Package
Memory which combines 256Mbit Synchronous Burst Multi Bank NOR Flash Memory and 64Mbit
Synchronous Burst U tRAM. It has 16 bit data line, HD[1~16] which is connected to PCF5213, also
has 24 bit address lines, HA[1~24]. There are 2 chip select signals, CS0n_FLASH and CS1n_RAM.

SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Circuit Description
2-4
In the Wrting process, WEn is fallen to low and it enables writing process to operate. During reading
process, OEn is fallen to low and it enables reading process to operate. Each chip select signals in
the PCF5213 choose different memories.
DPRAM Memory(UME401:70P248L55BYI) - 4Kx16 dual port RAM
It is accessed by Phone and PDA, but not accessed simultaneously.
Generally, Instructions and data used by Phone and PDA are stored.
Clock(TCX101:TCO-5871U 26MHz)
This system uses the 26MHz TCXO, TCO-5871U, Toyocom. AFC control signal form PCF5213
controls frequency from 26MHz x-tal. It generates the clock frequency. This clock is connected to
PCF5213 (UCP201) and UAA3587(U102).
2-2-3. Audio Part
EAR1 and EAR2 from PCF5213 are connected to the main speaker and receiver via Audio
Codec(WM9712). MIC_P and MIC_N are connected to the main MIC as well.
2-2-4. PDA PART
The PDA logic part consists of power supply part, MPU & memory part, LCD part, audio part
and all the peripherals.
⑴POWER SUPPLY
When the battery is inserted to the handset,
VBAT makes VCC_BATT, VCORE14, VPLL13, VSRAM11 via U604(MAX1587) which is a CPU
voltage VCC30 via U604(MAX1587) which is CPU & peripheral voltage,
VMODOC30 via U619(AS1352-C0CF) which is a M-DOC memory voltage,
VDPRAM18 via U619(AS1352-C0CF) which is a DPRAM voltage,
VAUDIO30 via U619(AS1352-C0CF) which is a Audio Codec voltage,
VAUDIO30A via U501(R1114D301D) which is a Audio Codec Analog voltage,
VWLAN18,VWLAN30 via U619(AS1352-7BC0) which is a WLAN voltage,
VTV29,VTV25 via U619(AS1352-7BC0) which is a TV-Out voltage,
VMOTOR33 via U619(AS1352-7BC0) which is a vibrator voltage,
VBT30 via U618(XC6401EE27DR) whichisaBuletoothvoltage,

SAMSUNG Proprietary-Contents may change without notice
Circuit Description
This Document can not be used without Samsung's authorization
2-5
VBAT33 via U618(XC6401EE27DR) which is a backup battery charging voltage,
VMICBAIS via UCD501(WM9712LEFL) which is a MIC vias voltage,
VCAM15,VCAM-8,VCAM30,VCAM18 via U703(BD6020GU) which is a Camera voltage,
VCAM31 via U701(BH31FB1WHFV) which is a Camera voltage.
Backup Battery(ML1220-TT2)
The SGH-i750 has a back-up battery(ML1220-TT2) that stores data of SDRAM when the battery
removed or becomes low battery state that is below 2.8V.
The low battery state is checked by voltage detector or R3111Q281C(U607).
If the battery level is below 2.8V, nPOWER_FAIL signal is asserted. Then the backup DC/DC
converter(U603, MAX1676) output path is connected to VDD30 which is MPU, SDRAM voltage.
Backup battery supply main voltage or VDD30. If backup battery voltage is below 2V, discharging
path is disabled.
⑵MPU & Memory part
MCP(UCP301:RTPXA270C5C416)
●ARM Architecture
●Built in Memory Controller, LCD Controller, AC97 Controller and MMC Controller
●Intel® PXA270 processor
●Clock and Power Controllers
●It has a variety of different system peripherals and controls all the peripheral circuitry.
●13x13mm VFBGA package
NAND FLASH Memory(UME402:MD4331-D1G-V3Q18-X)
●M-Systems Mobile Disk On Chip
●NAND-based flash technology that enables high dencity
●128MByte flash memory is used to store the PDA executable program and necessary data files.
SDRAM Memory(UME403:K4M513233E)
Samsung CMOS technology
●64MByte capacity Mobile Synchronous Dynamic RAM.
●It is used as a application program execution space, temporary data space to store the internal
flag information, timer data, and user data files.

SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Circuit Description
2-6
DPRAM Memory(UME401:70P248L55)
4Kx16bit dual port RAM
●It is accessed by Phone and PDA, but not accessed simultaneously.
●Generally, Instructions and data used by Phone and PDA are stored.
⑶LCD part
PXA270 has a LCD controller.
LCD module
●A transmissive type color active matrix TFT
●It is composed of a TFT LCD module(TFT LCD panel, driver ICs), a Backlight unit and a touch
screen panel.
●The resolution of 2.4inch contains 240x320 pixels and can display 65K colors.
⑷Audio part
PDA plays audio files via WM9712 and the voice of the phone is connected to the WM9712.
Audio Codec(UCD501:WM9712LEFL)
The WM9712 is a high quality stereo codec with an integrated touch screen controller.
Interfaced to PXA270 via AC'97 protocol.
●AC'97 Rev 2.2 specification
●Headphone outputs
●A complete 4-wire touch screen controller
⑸Wireless Part
Antenna(C1103RS)
Antenna receives signal from AP(Access Point) or other devices.
It is a ISM(industrial, Scientific, Medical frequencies) Band Antenna that covers only 2.4 GHz.

SAMSUNG Proprietary-Contents may change without notice
Circuit Description
This Document can not be used without Samsung's authorization
2-7
Module(MOD800:LBWA1UDBD7-093)
The Wi-Fi Module which uses Philips Chip is manufactured by MuRata. It only supports 802.11b
Specification and communicates with CPU through SPI Interface. The data throughput is up to 11
Mbps in the abstractly but typically supports 4Mbps in the real field.
Modulation method is DSSS(Direct Sequence Spread Spectum).
Its channel spacing is 5MHz and bandwidth is 22 MHz.
⑹Bluetooth Part
Antenna(C1103LJ)
Antenna receives signal from AP(Access Point) or other devices.
It is a ISM(industrial, Scientific, Medical frequencies) Band Antenna that covers only 2.4 GHz.
Module(U801:BTEZ1702SA)
The Bluetooth Module which uses CSR's BC02-Audio is manufactured by SEMCO. It only supports
802.15 Specification(Bluetooth Specification 1.1) and communicates with CPU through UART Interface.
The data throughput is up to 1 Mbps in the abstractly but typically supports 723 / 57.6 Kbps in an
asynchronous mode and 432.6 kbps in a synchronous mode.
Modulation method is FHSS(Frequency hopping spread spectrum) and it hops 1600 times a second.
Its channel spacing is 1MHz and bandwidth is 1MHz.
⑺All the Peripherals
Camera
A highly integrated single chip CCD color sensor implemented by 2M CCD sensor process realizing
high sensitivity and wide dynamic range.
Total pixel array size is 1632x1224.
Memory card
The MultiMediaCard Controller on the Intel PXA270 can communicate with either:
●a MultiMediaCard (MMC)
●a Secure Digital (SD) Memory Card
●aSecureDigitalI/O(SDIO)Card

SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Circuit Description
2-8
IrDA(HSDL-3002)
IrDA Data Compliant 115.2kbit/s with Remote Control Transmission Infrared Transceiver.
A small form factor single enhanced infrared transceiver module that provides the combination of
Interface between logic and IR signals for through-air, serial, half-duplex IR data link, and IR remote
control transmission operating at 940nm for universal remote control applications.
USB
There is a USB Client in the Phone part and PDA part each.
The USB signals are switched to the interface connector via MUX(U712, MAX4636).
The USB interface of the Phone part is used for data service.
The USB of the PDA part is used for downloading user files and application programs by ActiveSync
to PC.
UART
There is a UART port in the Phone part and PDA part each.
The UART interface of the Phone part is used for downloading.
KEYPAD
For user interface, a keypad is used for function. For key recognition, a key matrix is set up using
signals KBC_(0)~(6) and KBR_(0)~(4) of the PXA270.

SAMSUNG Proprietary-Contents may change without notice
3. Exploded View and Parts List
3-1
This Document can not be used without Samsung's authorization
3-1. Exploded View
QFU01 QFR01
QCK01
QVO03
QVO01
QCR49
QKP01
QME01
QSH01
QCR12
QMI01
QAN03
QAN04
QCR12
QCH01
QCR21
QBA01
QIF01
QKP02
QSP02
QAR01
QPC01
QLC01
QSR01
QSP01
QFL01
QCR26
QRE01
QST01
QRF01
QSC01
QAN06
QCR05
QAN02
QMO01
QCR12
QMP01
QCA01
QRF03
QME03
QMI03

SAMSUNG Proprietary-Contents may change without notice
Exploded view and Part List
3-2
This Document can not be used without Samsung's authorization
3-2. Parts List
Location No Description SEC CODE
QAN02 INTENNA-SGHI750 GH42-00619A
QAN03 INTENNA-CHIP INTENNA GH42-00621A
QAN04 INTENNA-CHIP INTENNA GH42-00622A
QAN06 MEC-RUBBER INT CON GH75-09093A
QAR01 AUDIO-RECEIVER 3009-001158
QBA01 BATTERY-1100MAH,BLK,ENG,M GH43-02057A
QCA01 UNIT-CAMERA GH59-02704A
QCH01 MEC-BRACKET CAMERA GH75-07501A
QCR05 SCREW-MACHINE 6001-001478
QCR12 SCREW-MACHINE 6001-001530
QCR21 SCREW-MACHINE 6001-001507
QCR26 SCREW-MACHINE 6001-001850
QCR49 SCREW-MACHINE 6001-001823
QFL01 MEC-SLIDE LOWER GH75-09092A
QFU01 MEC-SLIDE UPPER GH75-07491A
QIF01 PMO-IF COVER GH72-22903A
QKP01 MEC-KEYPAD MAIN GH75-07495A
QKP02 MEC-KEYPAD SUB GH75-07496A
QLC01 LCD-SCHI819 MODULE GH07-00748A
QME01 UNIT-KEY PAD GH59-02271A
QME03 UNIT-SUB FPCB GH59-02270A
QMI01 MICROPHONE-ASSY-SGHE640 GH30-00201A
QMI03 RMO-MIC HOLDER A GH73-06639A
QMO01 MOTOR DC-SGHI750 GH31-00224A
QMP01 PBA MAIN-SGHI750 GH92-02276A
QPC01 MEA-SLIDE FPCB KIT GH97-05723A
QRF01 RMO-RF COVER GH73-04999A
QSC01 PMO-SCREW COVER GH72-29968A
QSH01 MEC-SHIELD COVER GH75-07500A
QSP01 0.7W,8OHM 3001-001936
QSP02 0.7W,8OHM 3001-001937
QSR01 MEC-BRACKET SPK GH75-07497A
QST01 MEC-STYLUS GH75-06671A
QRE01 MEC-REAR COVER GH75-07498A
QCR12 SCREW-MACHINE 6001-001530
QFR01 MEC-FRONT COVER GH75-07494A
QCK01 MEC-KEY CAMERA GH75-09113A
QRF03 PMO-COVER EAR V2 GH72-28948A
QVO01 PMO-VOLUME KEY GH72-26236A
QVO03 PMO-KEY SLIDE GH72-27078A

SAMSUNG Proprietary-Contents may change without notice
Exploded view and Part List
3-3
This Document can not be used without Samsung's authorization
Description SEC CODE
BAG PE 6902-000634
CBF INTERFACE-AV CABLE GH39-00410A
CBF INTERFACE-PC DATA LINK CAB GH39-00567A
CHARGER-BLK DTC GH44-01153A
CHARGER-SGHI750 TC GH44-01193A
S/W CD-USER GUIDE CD GH46-00195A
S/W CD-COMPANION CD(ENG) GH46-00207A
EARPHONE-STEREO EAR PHONE GH59-02236A
LABEL(P)-IMEI GH68-01335D
LABEL(P)-WATER SOAK GH68-02026A
MANUAL USERS-QRG GH68-08984A
LABEL(R)-MAIN (EU) GH68-09316A
MANUAL USERS-BIZCARD LEAFLET GH68-09551A
CUSHION-CASE MAIN(NEW) GH69-03631A
BOX(P)-UNIT(EU) GH69-03666A
RMO-RUBBER WIFI GH73-06322A
RMO-CUSION RUBBER BT GH73-07074A
RMO-RUBBER CAMERA UPPER GH73-07177A
MPR-BOHO VINYL LCD CONN GH74-15350A
MPR-SPONGE BATTERY GH74-20583A
MPR-TAPE CONN A GH74-20584A
MPR-TAPE CONN B GH74-20585A
MPR-TAPE CONN C GH74-20586A
MPR-TAPE CONNECTER GH74-20587A
MPR-TAPE INTENNA GH74-20589A
MPR-SPONGE KEY CONN GH74-20591A
MPR-SPONGE CAMERA CONN GH74-20592A
MPR-VINYL BOHO REAR GH74-20594A
MPR-VINYL BOHO REAR GH74-20594A
MPR-VINYL BOHO CAM OUT GH74-20907A
MPR-VINYL BOHO CAM IN GH74-20908A
MPR-VINYL BOHO LCD GH74-21233A
MPR-TAPE BT/WLAN GH74-21680A
MPR-TAPE GASKET CONNECTOR GH74-22014A
MPR-SPONGE CAMERA GH74-22017A
MPR-TAPE CAMERA BASE GH74-23796A
AS-DOME SHEET GH81-03692A

SAMSUNG Proprietary-Contents may change without notice
Exploded view and Part List
3-4
This Document can not be used without Samsung's authorization

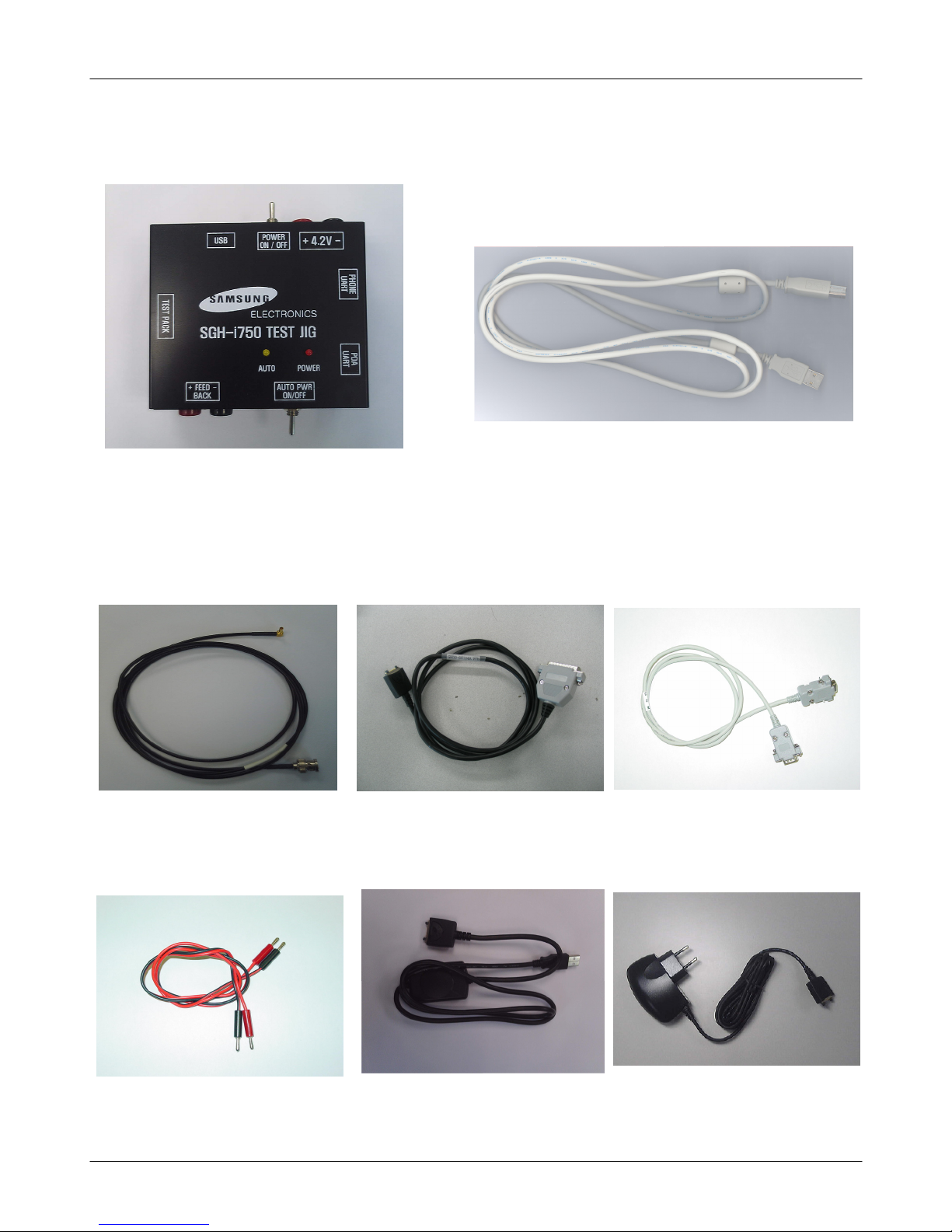

3-3. Test Jig
(GH80-03308A)
3-3-2. RF Test Cable
(GH39-00261A)
3-3-3. Test Cable
(GH39-00477A)
3-3-5. Power Supply Cable 3-3-6. DATA CABLE
(GH39-00350A]
3-3-7. TC
(GH44-01193A)
3-3-1. USB JIG Cable
3-3-4. Serial Cable
(CSA LL64151-A)

SAMSUNG Proprietary-Contents may change without notice
4. Electrical Parts List
4-1
This Document can not be used without Samsung's authorization
Ddsign LOC Discription SEC Code STATUS
BTC601 HEADER-BATTERY 3711-005897 SA
C100 C-CER,CHIP 2203-000233 SA
C104 C-CER,CHIP 2203-000233 SA
C107 C-CER,CHIP 2203-000425 SA
C111 C-CER,CHIP 2203-000233 SA
C114 C-CER,CHIP 2203-000278 SA
C115 C-CER,CHIP 2203-000233 SA
C116 C-CER,CHIP 2203-000233 SA
C117 C-CER,CHIP 2203-000696 SA
C119 C-CER,CHIP 2203-000425 SA
C121 C-CER,CHIP 2203-000386 SA
C123 C-CER,CHIP 2203-006260 SA
C124 C-CER,CHIP 2203-000254 SA
C125 C-CER,CHIP 2203-000812 SA
C127 C-CER,CHIP 2203-000233 SA
C128 C-CER,CHIP 2203-000679 SA
C130 C-CER,CHIP 2203-005446 SA
C131 C-CER,CHIP 2203-000679 SA
C132 C-CER,CHIP 2203-002709 SNA
C134 C-CER,CHIP 2203-000854 SA
C137 C-CER,CHIP 2203-000254 SA
C138 C-CER,CHIP 2203-000854 SA
C140 C-CER,CHIP 2203-000585 SA
C141 C-CER,CHIP 2203-000530 SA
C142 C-CER,CHIP 2203-000585 SA
C143 C-CER,CHIP 2203-000585 SA
C144 C-CER,CHIP 2203-000812 SA
C145 C-CER,CHIP 2203-002677 SA
C148 C-CER,CHIP 2203-000425 SA
C149 C-CER,CHIP 2203-001072 SA
C152 C-CER,CHIP 2203-005234 SA
C154 C-CER,CHIP 2203-000233 SA
C155 C-CER,CHIP 2203-002709 SNA
C201 C-CER,CHIP 2203-006423 SA
C202 C-CER,CHIP 2203-006423 SA
C203 C-CER,CHIP 2203-006423 SA
C204 C-CER,CHIP 2203-006824 SA
C205 C-CER,CHIP 2203-000254 SA
C206 C-CER,CHIP 2203-006423 SA
C208 C-CER,CHIP 2203-006423 SA
C209 C-CER,CHIP 2203-006423 SA
C210 C-CER,CHIP 2203-006423 SA
C211 C-CER,CHIP 2203-000812 SA
C212 C-CER,CHIP 2203-006423 SA
C213 C-CER,CHIP 2203-006423 SA
C214 C-CER,CHIP 2203-005736 SA
C215 C-CER,CHIP 2203-005682 SA
C216 C-CER,CHIP 2203-005683 SA
C217 C-CER,CHIP 2203-006423 SA
C218 C-CER,CHIP 2203-006423 SA

SAMSUNG Proprietary-Contents may change without notice
Electrical Parts List
4-2
This Document can not be used without Samsung's authorization
Ddsign LOC Discription SEC Code STATUS
C220 C-CER,CHIP 2203-006048 SA
C221 C-CER,CHIP 2203-006626 SA
C222 C-CER,CHIP 2203-006048 SA
C223 C-CER,CHIP 2203-000278 SA
C224 C-CER,CHIP 2203-006257 SA
C225 C-CER,CHIP 2203-000278 SA
C226 C-CER,CHIP 2203-006048 SA
C227 C-CER,CHIP 2203-006048 SA
C228 C-CER,CHIP 2203-006646 SA
C229 C-CER,CHIP 2203-006646 SA
C230 C-CER,CHIP 2203-000812 SA
C232 C-CER,CHIP 2203-006562 SA
C234 C-CER,CHIP 2203-000812 SA
C235 C-CER,CHIP 2203-006824 SA
C236 C-CER,CHIP 2203-006257 SA
C237 C-CER,CHIP 2203-006824 SA
C238 C-CER,CHIP 2203-006562 SA
C239 C-CER,CHIP 2203-006257 SA
C240 C-CER,CHIP 2203-006824 SA
C241 C-CER,CHIP 2203-006048 SA
C244 C-CER,CHIP 2203-006824 SA
C245 C-CER,CHIP 2203-006257 SA
C246 C-CER,CHIP 2203-006824 SA
C247 C-CER,CHIP 2203-006257 SA
C248 C-CER,CHIP 2203-006646 SA
C249 C-CER,CHIP 2203-006562 SA
C250 C-CER,CHIP 2203-001259 SA
C301 C-CER,CHIP 2203-006562 SA
C303 C-CER,CHIP 2203-006047 SA
C304 C-CER,CHIP 2203-006562 SA
C305 C-CER,CHIP 2203-006626 SA
C306 C-CER,CHIP 2203-006423 SA
C307 C-CER,CHIP 2203-006562 SA
C309 C-CER,CHIP 2203-006423 SA
C310 C-CER,CHIP 2203-006423 SA
C311 C-CER,CHIP 2203-006423 SA
C312 C-CER,CHIP 2203-006423 SA
C313 C-CER,CHIP 2203-006423 SA
C314 C-CER,CHIP 2203-006626 SA
C315 C-CER,CHIP 2203-006562 SA
C316 C-CER,CHIP 2203-006423 SA
C317 C-CER,CHIP 2203-006423 SA
C318 C-CER,CHIP 2203-006423 SA
C319 C-CER,CHIP 2203-006423 SA
C320 C-CER,CHIP 2203-006423 SA
C321 C-CER,CHIP 2203-006423 SA
C322 C-CER,CHIP 2203-006423 SA
C323 C-CER,CHIP 2203-006423 SA
C324 C-CER,CHIP 2203-006423 SA
C325 C-CER,CHIP 2203-006626 SA

SAMSUNG Proprietary-Contents may change without notice
Electrical Parts List
4-3
This Document can not be used without Samsung's authorization
Ddsign LOC Discription SEC Code STATUS
C326 C-CER,CHIP 2203-006423 SA
C327 C-CER,CHIP 2203-006423 SA
C328 C-CER,CHIP 2203-006423 SA
C329 C-CER,CHIP 2203-006423 SA
C330 C-CER,CHIP 2203-006423 SA
C331 C-CER,CHIP 2203-006423 SA
C332 C-CER,CHIP 2203-002709 SNA
C333 C-CER,CHIP 2203-002709 SNA
C334 C-CER,CHIP 2203-002709 SNA
C335 C-CER,CHIP 2203-006423 SA
C336 C-CER,CHIP 2203-006423 SA
C339 C-CER,CHIP 2203-006562 SA
C340 C-CER,CHIP 2203-002709 SNA
C341 C-CER,CHIP 2203-006423 SA
C342 C-CER,CHIP 2203-006423 SA
C343 C-CER,CHIP 2203-006423 SA
C401 C-CER,CHIP 2203-006562 SA
C402 C-CER,CHIP 2203-006260 SA
C403 C-CER,CHIP 2203-006562 SA
C404 C-CER,CHIP 2203-002709 SNA
C405 C-CER,CHIP 2203-002709 SNA
C407 C-CER,CHIP 2203-002709 SNA
C408 C-CER,CHIP 2203-006562 SA
C409 C-CER,CHIP 2203-006562 SA
C410 C-CER,CHIP 2203-002709 SNA
C411 C-CER,CHIP 2203-002709 SNA
C412 C-CER,CHIP 2203-006626 SA
C413 C-CER,CHIP 2203-002709 SNA
C414 C-CER,CHIP 2203-006562 SA
C415 C-CER,CHIP 2203-006048 SA
C416 C-CER,CHIP 2203-006048 SA
C418 C-CER,CHIP 2203-002709 SNA
C419 C-CER,CHIP 2203-002709 SNA
C420 C-CER,CHIP 2203-002709 SNA
C423 C-CER,CHIP 2203-002709 SNA
C502 C-CER,CHIP 2203-006048 SA
C508 C-CER,CHIP 2203-000812 SA
C516 C-CER,CHIP 2203-000679 SA
C517 C-CER,CHIP 2203-005050 SA
C521 C-CER,CHIP 2203-000278 SA
C522 C-CER,CHIP 2203-000278 SA
C523 C-CER,CHIP 2203-000812 SA
C524 C-CER,CHIP 2203-000812 SA
C529 C-CER,CHIP 2203-002709 SNA
C531 C-CER,CHIP 2203-000679 SA
C532 C-CER,CHIP 2203-005050 SA
C533 C-CER,CHIP 2203-002709 SNA
C534 C-CER,CHIP 2203-000585 SA
C535 C-CER,CHIP 2203-000278 SA
C536 C-CER,CHIP 2203-000278 SA

SAMSUNG Proprietary-Contents may change without notice
Electrical Parts List
4-4
This Document can not be used without Samsung's authorization
Ddsign LOC Discription SEC Code STATUS
C537 C-CER,CHIP 2203-000812 SA
C538 C-CER,CHIP 2203-000812 SA
C539 C-CER,CHIP 2203-000585 SA
C543 C-CER,CHIP 2203-002709 SNA
C549 C-CER,CHIP 2203-006562 SA
C550 C-CER,CHIP 2203-006562 SA
C551 C-CER,CHIP 2203-006048 SA
C552 C-CER,CHIP 2203-001201 SA
C553 C-CER,CHIP 2203-000679 SA
C554 C-CER,CHIP 2203-006048 SA
C555 C-CER,CHIP 2203-006626 SA
C562 C-CER,CHIP 2203-000278 SA
C563 C-CER,CHIP 2203-000278 SA
C571 C-CER,CHIP 2203-002709 SNA
C573 C-CER,CHIP 2203-002709 SNA
C574 C-CER,CHIP 2203-000628 SA
C575 C-CER,CHIP 2203-000628 SA
C577 C-CER,CHIP 2203-002709 SNA
C578 C-TA,CHIP 2404-001366 SA
C579 C-CER,CHIP 2203-006562 SA
C580 C-CER,CHIP 2203-006048 SA
C581 C-CER,CHIP 2203-000585 SA
C582 C-CER,CHIP 2203-001259 SA
C583 C-CER,CHIP 2203-000679 SA
C584 C-CER,CHIP 2203-001259 SA
C585 C-CER,CHIP 2203-002709 SNA
C586 C-CER,CHIP 2203-006562 SA
C589 C-TA,CHIP 2404-001381 SA
C590 C-CER,CHIP 2203-002709 SNA
C591 C-CER,CHIP 2203-002709 SNA
C592 C-TA,CHIP 2404-001381 SA
C593 C-CER,CHIP 2203-002709 SNA
C594 C-CER,CHIP 2203-002709 SNA
C595 C-CER,CHIP 2203-006562 SA
C602 C-CER,CHIP 2203-006626 SA
C603 C-CER,CHIP 2203-006626 SA
C604 C-CER,CHIP 2203-002525 SA
C605 C-CER,CHIP 2203-000654 SA
C606 C-CER,CHIP 2203-006824 SA
C607 C-CER,CHIP 2203-006646 SA
C608 C-CER,CHIP 2203-006824 SA
C609 C-CER,CHIP 2203-006562 SA
C610 C-CER,CHIP 2203-002443 SA
C611 C-CER,CHIP 2203-006646 SA
C612 C-CER,CHIP 2203-006474 SA
C614 C-CER,CHIP 2203-006646 SA
C616 C-CER,CHIP 2203-002443 SA
C617 C-CER,CHIP 2203-006048 SA
C618 C-CER,CHIP 2203-006562 SA
C619 C-CER,CHIP 2203-006646 SA

SAMSUNG Proprietary-Contents may change without notice
Electrical Parts List
4-5
This Document can not be used without Samsung's authorization
Ddsign LOC Discription SEC Code STATUS
C620 C-CER,CHIP 2203-000138 SA
C621 C-CER,CHIP 2203-006048 SA
C622 C-CER,CHIP 2203-000254 SA
C625 C-CER,CHIP 2203-006562 SA
C627 C-CER,CHIP 2203-006562 SA
C629 C-CER,CHIP 2203-006824 SA
C630 C-CER,CHIP 2203-006048 SA
C632 C-CER,CHIP 2203-006562 SA
C633 C-CER,CHIP 2203-006646 SA
C634 C-CER,CHIP 2203-006474 SA
C635 C-CER,CHIP 2203-006562 SA
C636 C-CER,CHIP 2203-006562 SA
C639 C-CER,CHIP 2203-006646 SA
C642 C-CER,CHIP 2203-006824 SA
C643 C-CER,CHIP 2203-002709 SNA
C644 C-CER,CHIP 2203-006562 SA
C645 C-CER,CHIP 2203-002709 SNA
C646 C-CER,CHIP 2203-002709 SNA
C647 C-CER,CHIP 2203-006562 SA
C648 C-CER,CHIP 2203-006562 SA
C649 C-CER,CHIP 2203-006562 SA
C650 C-CER,CHIP 2203-006562 SA
C651 C-CER,CHIP 2203-006562 SA
C652 C-CER,CHIP 2203-006562 SA
C653 C-CER,CHIP 2203-006562 SA
C654 C-CER,CHIP 2203-006562 SA
C655 C-CER,CHIP 2203-006562 SA
C656 C-CER,CHIP 2203-006562 SA
C657 C-CER,CHIP 2203-006562 SA
C658 C-CER,CHIP 2203-006562 SA
C659 C-CER,CHIP 2203-006562 SA
C660 C-CER,CHIP 2203-006562 SA
C661 C-CER,CHIP 2203-006257 SA
C662 C-CER,CHIP 2203-006824 SA
C663 C-CER,CHIP 2203-006562 SA
C664 C-TA,CHIP 2404-001381 SA
C665 C-CER,CHIP 2203-006048 SA
C701 C-TA,CHIP 2404-001381 SA
C702 C-CER,CHIP 2203-006824 SA
C703 C-CER,CHIP 2203-006824 SA
C704 C-CER,CHIP 2203-006824 SA
C705 C-CER,CHIP 2203-006348 SA
C706 C-CER,CHIP 2203-006048 SA
C707 C-CER,CHIP 2203-006324 SA
C708 C-CER,CHIP 2203-006562 SA
C713 C-CER,CHIP 2203-002709 SNA
C715 C-CER,CHIP 2203-000192 SA
C716 C-CER,CHIP 2203-006562 SA
C717 C-CER,CHIP 2203-006562 SA
C718 C-CER,CHIP 2203-006562 SA
