Samsung SGH T509 User manual

GSM TELEPHONE
SGH-T509
GSM TELEPHONE CONTENTS
1. Specification
2. Circuit Description
3. Exploded Views and Parts List
4. Electrical Parts List
5. Block Diagrams
6. PCB Diagrams
7. Flow Chart of Troubleshooting

Samsung Electronics Co.,Ltd. March. 2006
Printed in Korea.
Code No.: GH68-09816A
BASIC.
This Service Manual is a property of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.
ⓒ

SAMSUNG Proprietary-Contents may change without notice
1. Specification
This Document can not be used without Samsung's authorization
1-1
GSM850
Phase 2 DCS1800 Phase 1 PCS1900
Freq. Band[MHz]
Uplink/Downlink 824~849
869~894 1710~1785
1805~1880 1850~1910 1930~1990
ARFCN range 128~251 512~885 512~810
Tx/Rx spacing 45MHz 95MHz 80MHz
Mod. Bit rate
/BitPeriod 270.833kbps 3.692us 270.833kbps 3.692us 270.833kbps 3.692us
Time Slot Period
/ Frame Period 576.9us 4.615ms 576.9us 4.615ms 576.9us 4.615ms
Modulation 0.3GMSK 0.3GMSK 0.3GMSK
MS Power 33dBm~5dBm 30dBm~0dBm 30dBm~0dBm
Power Class 5pcl ~ 19pcl 0pcl ~ 15pcl 0pcl ~ 15pcl
Sensitivity -102dBm -100dBm -100dBm
TDMA Mux 8 8 8
Cell Radius 35Km 2Km -
1-1. GSM General Specification

SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Specification
1-2
TX Power
control level PCS1900
0 30±3 dBm
1 28±3 dBm
2 26±3 dBm
3 24±3 dBm
4 22±3 dBm
5 20±3 dBm
6 18±3 dBm
7 16±3 dBm
8 14±3 dBm
9 12±4 dBm
10 10±4 dBm
11 8±4dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control level DCS1800
0 30±3 dBm
1 28±3 dBm
2 26±3 dBm
3 24±3 dBm
4 22±3 dBm
5 20±3 dBm
6 18±3 dBm
7 16±3 dBm
8 14±3 dBm
9 12±4 dBm
10 10±4 dBm
11 8±4dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control level GSM850
5 33±3 dBm
6 31±3 dBm
7 29±3 dBm
8 27±3 dBm
9 25±3 dBm
10 23±3 dBm
11 21±3 dBm
12 19±3 dBm
13 17±3 dBm
14 15±3 dBm
15 13±3 dBm
16 11±5 dBm
17 9±5 dBm
18 7±5 dBm
19 5±5 dBm
1-2. GSM TX power class

SAMSUNG Proprietary-Contents may change without notice
2. Circuit Description
This Document can not be used without Samsung's authorization
2-1
2-1. SGH-T509 RF Circuit Description
2-1-1. RX PART
- FRONT END MODULE(ANTENNA SWITCH MODULE + RX SAW FILTER) (F102)
→Switching Tx, Rx path for GSM850, DCS1800 and PCS1900 by logic controlling.
- FRONT END MODULE Control Logic (F102) →Truth Table
VC1 VC2
Tx Mode (GSM850) H L
Tx Mode (DCS1800/1900) L H
Rx Mode (GSM850) L L
Rx Mode (DCS1800) L L
Rx Mode (PCS1900) L L
- VC-TCXO (TCX100)
This module generates the 26MHz reference clock to drive the logic and RF.
It is turned on when the supply voltage REFVCC is applied.
After buffering a reference clock of 26MHz is supplied to the other parts of the system
through the transceiver pin OUT.
- TRANSCEIVER (U102)
This chip is fully integrated GSM GPRS tri-band transceiver with VCO, loop filters and most of the
passive component in it.
And also fully integrated fractional N RF synthesizer with AFC control possibility, RF VCO with integrated supply
regulator. Semi integrated reference oscillator with integrated supply regulator.
RF Receiver front-end amplifies the GSM850, DCS1800 and PCS1900 aerial signal, convert the chosen channel
down to a low IF of 100kHz.
In IF section, further amplifies the wanted channel output level to the desired value and rejects DC.
2-1-2. TX PART
The transmitter is fully differential using a direct up conversion architecture. It consists of a signal side band
power up mixer. Gain is controlled by 6 dB via 3-wire serial bus programing. The fully integrated VCO and power
mixer achieve LO suppression, quadrature phase error, quadrature amplitude balance and low noise floor specification.
Output matching/balun components drive a standard 50 ohms single ended load.

SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Circuit Description
2-2
2-2. Baseband Circuit description of SGH-T509
2-2-1. PCF50603 (U400)
- Power Management
Eight low-dropout regulators designed specifically for GSM applications power the terminal and help ensure optimal
system performance and long battery life. A programmable boost converter provides support for 1.8V, 3.0V SIMs,
while a self-resetting, electronically fused switch supplies power to external accessories. Ancillary support functions,
such as RTC module and High Voltage Charge pump, Clock generator, aid in reducing both board area and system
complexity.
I2C BUS serial interface provides access to control and configuration registers. This interface gives a microprocessor
full control of the PCF50603 and enables system designers to maximize both standby and talk times.
Supervisory functions. including a reset generator, an input voltage monitor, and a temperature sensor, support reliable
system design. These functions work together to ensure proper system behavior during start-up or in the event of a
fault condition(low microprocessor voltage, insufficient battery energy, or excessive die temperature).
- Backlight Brightness Modulator
The Backlight Brightness Modulator (BBM) contains a programmable Pulse-width modulator (PWM) and FET to
modulate the intensity of a series of LED’ s or to control a DC/DC converter that drives LCD backlight.
This phone (SGH-E350E) use PWM control to contrast the backlight brightness.
- Clock Generator
The Clock Generator (CG) generates all clocks for internal and external usage. The 32.768 kHz crystal oscillator
provides an accurate low clock frequency for the PCF50603 and other circuitry.
2-2-2. LCD Connector
LCD is consisted of main LCD(color 6.5K TFT LCD).
Chip select signals in the U303, LCD_MAIN_CS, can enable LCD. BACKLIGHT signal enables white LED of main LCD.
These signal is from U400.
16-bit data lines(LD(0)~LD(15)) transfers data and commands to LCD. Data and commands use "RS" signal. If this signal
is high, Inputs to LCD are commands. If it is low, Inputs to LCD are data. The signal which informs the input or output
state to LCD, is required. But this system is not necessary this signal. So "L_WR" signal is used to write data or
commands to LCD. Power signals for LCD are "VDD_IO_HIGH".

SAMSUNG Proprietary-Contents may change without notice
Circuit Description
This Document can not be used without Samsung's authorization
2-3
2-2-3. Key
This is consisted of key interface pins KEY_ROW(0:4) and KEY_COL(0:4) in PCF5213EL1. These signals compose the
matrix. Result of matrix informs the key status to key interface in the PCF5213EL1. Power on/off key is seperated from
the matrix. So power on/off signal is connected with PCF50603 to enable PCF50603. Key LED is consisted of sixteen
blue LEDs.
key LED use the 3.3V LDO(U601) for a supply voltage. KEY_LED_ON signal enables eight white LED.
2-2-4. EMI ESD Filter(U501,U505)
This system uses the EMI ESD filter, U501,U505 to protect noise from IF CONNECTOR part.
2-2-5. IF connetor(IFC500)
It is 20-pin connector. They are designed to use VBAT, V_EXT_CHARGE, USB_D+, +VBUS, USB_D-, TXD1, RXD1,
AUX_ON, and GND. They connected to power supply IC, microprocessor and signal processor IC.
2-2-6. Battery Charge Management IC(U503)
A complete constant-current/constant-voltage linear charger for single cell lithium-ion batteries is used.
If TA connected to phone, "V_EXT_CHARGE" enable charger IC and supply current to battery.
When fault condition caused, "CHG_ON" signal level change low to high and charger IC stop charging process.
2-2-7. Audio
HFR_P and HFR_N from PCF5213EL1 are connected to the main speaker. MIC_P and MIC_N are connected to the
main MIC via analog switch. EAR1 is the source of External Speaker. YMU762 is a synthesizer LSI for mobile phones.
This LSI has a built-in speaker amplifier for outputting sounds that are used by mobile phones in addition to game
sounds and ringing melodies that are replayed by a synthesizer.
The synthesizer section adopts “stereophonic hybrid synthesizer system”that are given advantages of both FM
synthesizers and Wave Table synthesizers to allow simultaneous generation of up to 32 FM voices and 32 Wave
Table voices.
It provides simultaneous generation of up to 40 tones by stereophonic hybrid synthesizer.
YMU762 has built a speaker amplifier of which maximum out is 580 mW at SPVDD=3.6V in this device.
There is Stereophonic analog output for Headphone.
2-2-8. Memory(UME300)
This system uses Samsung's memory, KAP17YG00M-DUUU. The KAP17YG00M-DUUU is a Multi Chip Package
Memory which combines 256Mbit Synchronous Burst Multi Bank NOR Flash Memory and 128Mbit OneNAND
Flash and 128Mbit Synchronous Burst UtRAM.
It has 16 bit data line, HD[1~16] which is connected to PCF5213EL1 and MV3017SAQ, also has 24 bit address lines,
HA[1~24]. There are 3 chip select signals, CS0n_FLASH, CS4n_NAND, and CS1n_RAM.
In the Wrting process, WEn is fallen to low and it enables writing process to operate. During reading process,
OEn is fallen to low and it enables reading process to operate. Each chip select signals in the PCF5213EL1 choose
different memories.

SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Circuit Description
2-4
2-2-9. PCF5213EL1(UCP200)
The PCF5213EL1 is mainly composed of embeded DSP and ARM core. The DSP subsystem includes the Saturn
DSP core with embedded RAM and ROM, and a set of peripherals. It has 24kx16 bits PRAM, 104k*16 bits,
32k*16 XYRAM and 63k*16 XYROM in the DSP.
The ARM946E-S consists of an ARM9E-S processor core, 8 kbyte instruction cache and 8 kbyte data cache,
tghtly-coupled ITCM(Instruction Tightly Coupled Memory) and DTCM(Data Tightly Coupled Memory) memories, a
memory protection unit, and an AMBA(Advanced Microcontroller Bus Architecture) AHB(Advanced
High-performance Bus) bus interface with a write buffer.
HD(0:15), data lines and HA(0:23), address lines are connected to KAP17YG00M-DUUU (memory), MV3017SAQ
(image dsp) and YMU762 (melody IC). It has 64 kbyte SC RAM (0.5 Mbit) and 32 kbyte SC program ROM for
bootstrap loader in the ARM core.
HD(0:15), data lines and HA(0:23), address lines are connected to memory and YMU762 to communicate.
MV3017SAQ (Camera DSP Chip) controls the communication between ARM core and DSP core.
OEn, WEn control the access of memory. KROW, and KCOL recognize the key string input status.
It has J-TAG control pins (TDI/TDO/TCK) for ARM and DSP core. J-SEL signal controls different access to ARM
and DSP core.
ADC(Analog to Digital Convertor) receives the condition of temperature, battery type and battery voltage.
2-2-10. VC-TCXO-214C6(26MHz)(TCX100)
This system uses the 26MHz TCXO, VC-TCXO-214C6, Kinseki. AFC control signal form PCF5213EL1 controls
frequency from 26MHz x-tal. It generates the clock frequency. This clock is connected to PCF5213EL1, YMU762 and
UAA3587EHN.
2-2-11. Camera DSP(MV3017SAQ)(U303)
MV3017SAQ provides rich video functions up to 30-frame display with minimized tasks in the handset main processor
as well as hardware based real-time JPEG compression and decompression. MV3017SAQ directly transmits and
previews the RGB data to the LCD graphic memory by processing the sensor output data according to the
handset's command. It can save the raw RGB data up to VGA resoultion into its image buffer and allows the
host processor to download with scalable sized compressed data.
It utilizes 16 bit data bus for communication with the main processor, including bus interface types.

SAMSUNG Proprietary-Contents may change without notice
3. Exploded View and Parts List
3-1
This Document can not be used without Samsung's authorization

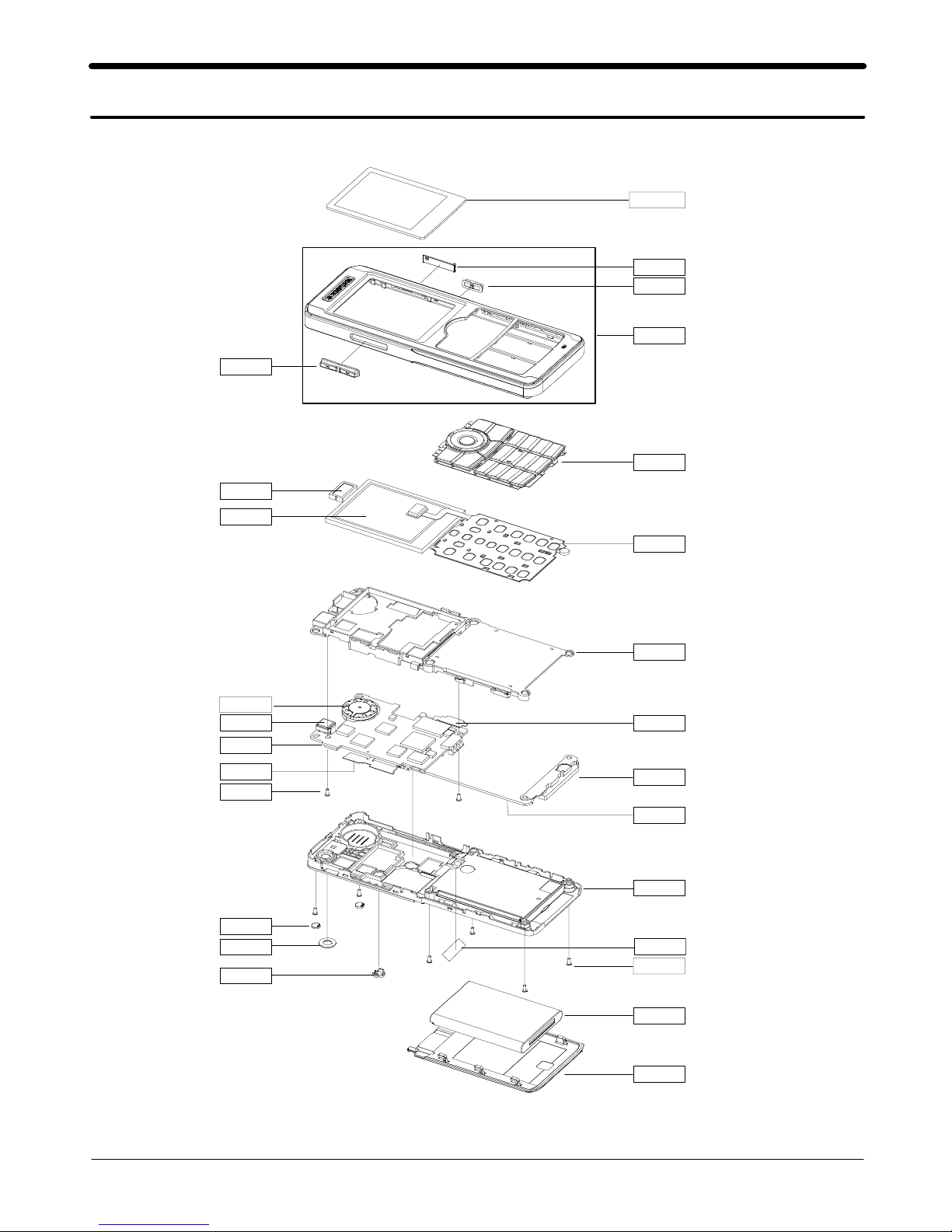

3-1. Exploded View
QMW02
QFR01
QVO01
QRF03
QCK01
QAR01
QLC01
QLB01
QCA01
QMP01
QCA05
QSC01
QRF01
QCR12
QVK01
QSP01
QKP01
QAN02
QCB01
QCR04
QBA01
QBA00
QCA02
QME01
QRE01
QSC13

SAMSUNG Proprietary-Contents may change without notice
Exploded view and Part List
3-2
This Document can not be used without Samsung's authorization
3-2. Parts List
QAN02 INTENNA-SGHT509 GH42-00755A
QAR01 AUDIO-RECEIVER 3009-001167
QBA00 ASSY MEC-CASE BATT GH75-09394B
QBA01 INNER BATTERY PACK-800MAH,BLAC GH43-02321A
QCA01 UNIT-CAMERA GH59-02861A
QCA02 UNIT-CAMERA KEY GH59-02805A
QCA05 ASSY MEC-DECO CAMERA GH75-09342A
QCB01 CBF COAXIAL CABLE GH39-00518A
QCR04 SCREW-MACHINE 6001-001479
QCR12 SCREW-MACHINE 6001-001530
QKP01 ASSY MEC-KEYPAD(TMB/DVA) GH75-09340B
QLB01 ASSY MEC-BRACKET LCD GH75-09341A
QLC01 LCD-LCD MODULE GH07-00800A
QME01 UNIT-KEY PAD GH59-02862A
QMP01 PBA MAIN-SGHT509 GH92-02599A
QMW02 PCT-COVER MAIN WINDOW GH72-29522A
QRE01 ASSY MEC-CASE REAR GH75-09339B
QRF01 ASSY COVER-RF GH98-01104B
QSC01 RMO-COVER SCREW GH73-06393F
QSC13 MPR-TAPE REAR SHEET GH74-21416B
QSP01 UNIT-MULTI MODE SPEAKER GH59-02891A
QVK01 UNIT-VOLUME KEY GH59-02806A
QFR01 ASSY MEC-CASE FRONT GH75-09338B
QCK01 ASSY MEC-CAMERA KEY GH75-09150A
QRF03 PMO-COVER EAR JACK GH72-27739F
QVO01 ASSY MEC-VOLUME KEY GH75-09149A

SAMSUNG Proprietary-Contents may change without notice
Exploded view and Part List
3-3
This Document can not be used without Samsung's authorization
MPR-VINYL BOHO MAIN WIN GH74-23190A
MPR-VINYL BOHO DC JACK GH74-26513A
RMO-CUSHION MSM GH73-06586A
RMO-CUSHION MEMORY GH73-06587A
MPR-TAPE INSULATOR FPCB GH74-21414A
MPR-TAPE LCD CONECTOR GH74-21522A
MPR-TAPE J TAG GH74-22262A
MPR-TAPE TP GH74-22264A
MPR-TAPE V BAT GH74-22265A
MPR-TAPE CAMERA FPCB GH74-22266A
MPR-TAPE MIC GH74-22267A
MPR-TAPE SPK SHEET GH74-22278A
MPR-VINYL BOHO CAMERA GH74-22188A
RMO-RUBBER MELODY CHIP GH73-07372A
RMO-RUBBER CAMERA CHIP GH73-07373A
MPR-TAPE LCD RMS GH74-24443A
MPR-TAPE MASKING HALL IC GH74-22078A
MPR-VINYL BOHO KEY PAD GH74-20858A
MPR-VINYL BOHO F/CASE GH74-21424A
MPR-VINYL BOHO WIN MAIN GH74-21426A
MPR-TAPE MAIN WINDOW GH74-21417A
MPR-VINYL BOHO WIN CAM GH74-20855A
MPR-VINYL BOHO REAR CASE GH74-21425A
LABEL(R)-WATER SOAK T_MOBILE GH68-05914A
MPR-VINYL BOHO REAR CASE GH74-21425A
BAG PE 6902-000634
CUSHION-CASE UPPER(T809_NEW) GH69-03561A
BOX(P)-UNIT(DARK VIOLET) GH69-03594C
CUSHION-CASE LOW(T509) GH69-03596A
PAA ETC-SGH T509 TMB GH99-19944A
EARPHONE-MONO HEADSET GH59-03202A
ADAPTOR-SGHT809 BLK CKD(USA) GH44-01265A

SAMSUNG Proprietary-Contents may change without notice
Exploded view and Part List
3-4
This Document can not be used without Samsung's authorization
3-3. Disassembling Manual
1) Be careful of the damage of cover and scratch.1) Be careful of the damage of cover and scratch.
1) Be careful not to detach antenna cable from the PCB
1) Be careful of the damage of cover and scratch.
1Remove the RF conn. & screw cover
Separate the marked
3 points
2Unscrew 6 screws in rear
3Separate the rear cover 4Separate the LCD metal bracket
from front case
Unscrew marked
6 points
321
From the bottom part separte the rear cover

SAMSUNG Proprietary-Contents may change without notice
Exploded view and Part List
3-5
This Document can not be used without Samsung's authorization
5

SAMSUNG Proprietary-Contents may change without notice
Exploded view and Part List
3-6
This Document can not be used without Samsung's authorization
3-4. Assembling Manual
Do not twist the wire of speaker & Receiver
1Inserting the LCD FPCB to the PBA
Inserting the LCD FPCB
to the LCD conn. on
the PBA
.
3Insert key conn. & camera conn.
to the PBA
4
screw the PBA to the LCD bracket
2
.
place speaker & Receiver on the LCD
bracket
screwing point

SAMSUNG Proprietary-Contents may change without notice
Exploded view and Part List
3-7
This Document can not be used without Samsung's authorization
Be careful of intenna cable.
Cablemustbeplacedbelowthebrackethook.
5Put the LCD bracket to the front case 6
78Screw the rear cover
1 2 3
Assemble the rear case
Screw marked 6 points

SAMSUNG Proprietary-Contents may change without notice
Exploded view and Part List
3-8
This Document can not be used without Samsung's authorization
3-5. Test Jig (GH80-03306A)
3-5-2. RF Test Cable
(GH39-00397A) 3-5-3. Test Cable (GH39-00499A)
3-5-5. Power Supply Cable 3-5-6. DATA CABLE
(GH39-00444B ) 3-5-7. TA
(GH44-01077B)
3-5-1. USB JIG Cable
3-5-4. Serial Cable
(CSA LL64151-A)

SAMSUNG Proprietary-Contents may change without notice
4. Electrical Parts List
4-1
This Document can not be used without Samsung's authorization
Design LOC Description SEC CODE STATUS
ANT600 ANTENNA-CHIP 4202-001120 SA
BAT400 BATTERY-LI(2ND) 4302-001180 SA
BTC500 CONNECTOR-BATTERY 3711-006003 SA
C100 C-CER,CHIP 2203-000233 SA
C101 C-CER,CHIP 2203-000812 SA
C102 C-CER,CHIP 2203-000278 SA
C104 C-CER,CHIP 2203-000812 SA
C105 C-CER,CHIP 2203-000812 SA
C106 C-CER,CHIP 2203-000812 SA
C107 C-CER,CHIP 2203-000812 SA
C109 C-CER,CHIP 2203-001201 SA
C112 C-CER,CHIP 2203-005234 SA
C113 C-CER,CHIP 2203-000812 SA
C114 C-CER,CHIP 2203-000812 SA
C115 C-CER,CHIP 2203-000585 SA
C116 C-CER,CHIP 2203-000233 SA
C118 C-CER,CHIP 2203-000812 SA
C120 C-CER,CHIP 2203-000585 SA
C121 C-CER,CHIP 2203-000425 SA
C122 C-CER,CHIP 2203-000254 SA
C124 C-CER,CHIP 2203-000812 SA
C125 C-CER,CHIP 2203-000425 SA
C126 C-CER,CHIP 2203-005552 SA
C129 C-CER,CHIP 2203-000995 SA
C130 C-CER,CHIP 2203-000654 SA
C131 C-CER,CHIP 2203-000233 SA
C132 C-CER,CHIP 2203-002668 SA
C134 C-CER,CHIP 2203-000812 SA
C137 C-CER,CHIP 2203-002968 SA
C138 C-CER,CHIP 2203-000854 SA
C139 C-CER,CHIP 2203-000233 SA
C200 C-CER,CHIP 2203-006824 SA
C201 C-CER,CHIP 2203-000254 SA
C202 C-CER,CHIP 2203-006048 SA
C203 C-CER,CHIP 2203-006048 SA
C204 C-CER,CHIP 2203-000812 SA
C205 C-CER,CHIP 2203-006048 SA
C206 C-CER,CHIP 2203-006048 SA
C207 C-CER,CHIP 2203-006048 SA
C208 C-CER,CHIP 2203-006048 SA
C209 C-CER,CHIP 2203-006048 SA
C210 C-CER,CHIP 2203-000812 SA
C211 C-CER,CHIP 2203-006048 SA
C212 C-CER,CHIP 2203-006048 SA
C213 C-CER,CHIP 2203-006048 SA
C214 C-CER,CHIP 2203-006048 SA
C301 C-CER,CHIP 2203-006048 SA
C302 C-CER,CHIP 2203-006048 SA
C303 C-CER,CHIP 2203-000679 SA
C304 C-CER,CHIP 2203-006048 SA

SAMSUNG Proprietary-Contents may change without notice
Electrical Parts List
4-2
This Document can not be used without Samsung's authorization
Design LOC Description SEC CODE STATUS
C305 C-CER,CHIP 2203-006048 SA
C306 C-CER,CHIP 2203-006963 SA
C307 C-CER,CHIP 2203-000725 SA
C308 C-CER,CHIP 2203-000438 SA
C309 C-CER,CHIP 2203-006048 SA
C310 C-CER,CHIP 2203-006048 SA
C311 C-CER,CHIP 2203-006048 SA
C314 C-CER,CHIP 2203-002525 SA
C315 C-CER,CHIP 2203-006048 SA
C316 C-CER,CHIP 2203-005344 SA
C318 C-CER,CHIP 2203-000438 SA
C319 C-CER,CHIP 2203-006257 SA
C320 C-CER,CHIP 2203-000233 SA
C321 C-CER,CHIP 2203-006048 SA
C322 C-CER,CHIP 2203-006048 SA
C323 C-CER,CHIP 2203-006048 SA
C324 C-CER,CHIP 2203-006048 SA
C325 C-CER,CHIP 2203-006562 SA
C400 C-CER,CHIP 2203-006562 SA
C401 C-CER,CHIP 2203-006824 SA
C402 C-CER,CHIP 2203-006047 SA
C403 C-CER,CHIP 2203-006562 SA
C405 C-CER,CHIP 2203-000254 SA
C406 C-CER,CHIP 2203-006048 SA
C407 C-CER,CHIP 2203-000386 SA
C408 C-CER,CHIP 2203-006257 SA
C409 C-CER,CHIP 2203-000233 SA
C410 C-CER,CHIP 2203-000386 SA
C412 C-CER,CHIP 2203-000254 SA
C414 C-CER,CHIP 2203-006562 SA
C416 C-CER,CHIP 2203-006257 SA
C417 C-CER,CHIP 2203-006257 SA
C419 C-CER,CHIP 2203-006824 SA
C420 C-CER,CHIP 2203-006048 SA
C423 C-CER,CHIP 2203-006824 SA
C424 C-CER,CHIP 2203-006257 SA
C426 C-CER,CHIP 2203-006824 SA
C427 C-CER,CHIP 2203-006824 SA
C500 C-CER,CHIP 2203-001437 SA
C501 C-CER,CHIP 2203-001259 SA
C502 C-CER,CHIP 2203-001437 SA
C503 C-CER,CHIP 2203-000254 SA
C505 C-CER,CHIP 2203-003054 SA
C508 C-CER,CHIP 2203-006048 SA
C510 C-CER,CHIP 2203-002759 SA
C511 C-CER,CHIP 2203-000812 SA
C512 C-CER,CHIP 2203-006348 SA
C513 C-CER,CHIP 2203-006048 SA

SAMSUNG Proprietary-Contents may change without notice
Electrical Parts List
4-3
This Document can not be used without Samsung's authorization
Design LOC Description SEC CODE STATUS
C601 C-CER,CHIP 2203-000278 SA
C602 C-CER,CHIP 2203-000278 SA
C603 C-CER,CHIP 2203-006048 SA
C604 C-CER,CHIP 2203-000278 SA
C605 C-CER,CHIP 2203-000995 SA
C606 C-CER,CHIP 2203-006048 SA
C607 C-CER,CHIP 2203-000679 SA
C609 C-CER,CHIP 2203-000278 SA
C610 C-CER,CHIP 2203-000278 SA
C611 C-CER,CHIP 2203-006562 SA
C614 C-CER,CHIP 2203-006048 SA
C615 C-CER,CHIP 2203-005281 SA
C616 C-CER,CHIP 2203-005056 SA
C617 C-CER,CHIP 2203-006048 SA
C623 C-CER,CHIP 2203-006562 SA
C624 C-CER,CHIP 2203-006562 SA
C627 C-CER,CHIP 2203-006562 SA
C628 C-CER,CHIP 2203-006048 SA
C629 C-CER,CHIP 2203-006562 SA
C630 C-CER,CHIP 2203-006562 SA
C701 C-CER,CHIP 2203-006260 SA
C702 C-CER,CHIP 2203-006562 SA
C703 C-CER,CHIP 2203-006562 SA
C704 C-CER,CHIP 2203-006562 SA
C705 C-CER,CHIP 2203-000550 SA
C706 C-CER,CHIP 2203-006562 SA
C710 C-CER,CHIP 2203-006562 SA
C711 C-CER,CHIP 2203-006048 SA
C713 C-CER,CHIP 2203-000438 SA
C714 C-CER,CHIP 2203-000438 SA
C716 C-CER,CHIP 2203-006423 SA
C717 C-CER,CHIP 2203-006423 SA
C718 C-CER,CHIP 2203-006562 SA
C719 C-CER,CHIP 2203-006562 SA
CPL600 BLUETOOTH MODULE 4709-001422 SA
D500 DIODE-SCHOTTKY 0404-001172 SA
D600 DIODE-SWITCHING 0401-001141 SA
D700 DIODE-TVS 0406-001235 SA
D701 DIODE-TVS 0406-001235 SA
D702 DIODE-TVS 0406-001235 SA
D703 DIODE-TVS 0406-001235 SA
D704 DIODE-TVS 0406-001235 SA
D705 DIODE-TVS 0406-001235 SA
D706 DIODE-TVS 0406-001235 SA
F101 FILTER-EMI SMD 2901-001254 SA
F102 DUPLEXER-FEM 2911-000031 SA
F103 FILTER-SAW 2904-001502 SA
F500 FILTER-EMI/ESD 2901-001322 SA
F501 FILTER-EMI SMD 2901-001315 SA
F701 FILTER-EMI/ESD 2901-001319 SA

SAMSUNG Proprietary-Contents may change without notice
Electrical Parts List
4-4
This Document can not be used without Samsung's authorization
Design LOC Description SEC CODE STATUS
F702 FILTER-EMI/ESD 2901-001319 SA
F703 FILTER-EMI/ESD 2901-001319 SA
F704 FILTER-EMI/ESD 2901-001319 SA
F705 FILTER-EMI/ESD 2901-001319 SA
F706 FILTER-EMI/ESD 2901-001319 SA
F707 FILTER-EMI/ESD 2901-001319 SA
F708 FILTER-EMI/ESD 2901-001319 SA
F709 FILTER-EMI/ESD 2901-001319 SA
HDC700 HEADER-BOARD TO BOARD 3711-005345 SA
HDC701 HEADER-BOARD TO BOARD 3711-005659 SNA
IFC500 SOCKET-INTERFACE 3710-002363 SA
L100 INDUCTOR-SMD 2703-001749 SA
L101 INDUCTOR-SMD 2703-001722 SA
L102 INDUCTOR-SMD 2703-002586 SA
L103 INDUCTOR-SMD 2703-001751 SA
L104 INDUCTOR-SMD 2703-002586 SA
L105 INDUCTOR-SMD 2703-002597 SA
L107 INDUCTOR-SMD 2703-001729 SA
L108 INDUCTOR-SMD 2703-002586 SA
L109 INDUCTOR-SMD 2703-002636 SA
L111 INDUCTOR-SMD 2703-001409 SA
L112 INDUCTOR-SMD 2703-002155 SA
L400 BEAD-SMD 3301-001120 SA
L401 INDUCTOR-SMD 2703-002653 SA
L601 BEAD-SMD 3301-001438 SA
L602 BEAD-SMD 3301-001438 SA
L603 BEAD-SMD 3301-001438 SA
L604 BEAD-SMD 3301-001438 SA
L701 BEAD-SMD 3301-001756 SA
OSC400 CRYSTAL-SMD 2801-004339 SA
PAM100 IC-POWER AMP 1201-002275 SA
R101 R-CHIP 2007-000171 SA
R102 R-CHIP 2007-000171 SA
R103 R-CHIP 2007-000171 SA
R106 R-CHIP 2007-000148 SA
R107 R-CHIP 2007-000172 SA
R108 R-CHIP 2007-000148 SA
R110 R-CHIP 2007-000162 SA
R111 R-CHIP 2007-000171 SA
R113 R-CHIP 2007-000171 SA
R114 R-CHIP 2007-000171 SA
R115 R-CHIP 2007-000171 SA
R116 R-CHIP 2007-000171 SA
R117 R-CHIP 2007-000566 SA
R118 R-CHIP 2007-000566 SA
R119 R-CHIP 2007-000171 SA
R200 R-CHIP 2007-000148 SA
R203 R-CHIP 2007-000242 SA
R204 R-CHIP 2007-000242 SA
