Samsung SM-T530 User manual

N
GSM TELEPHONE
SM-T530
1. Safety Precautions
2. Specification
3. Product Function
4. Exploded View and Parts list
5. MAIN Electrical Parts List

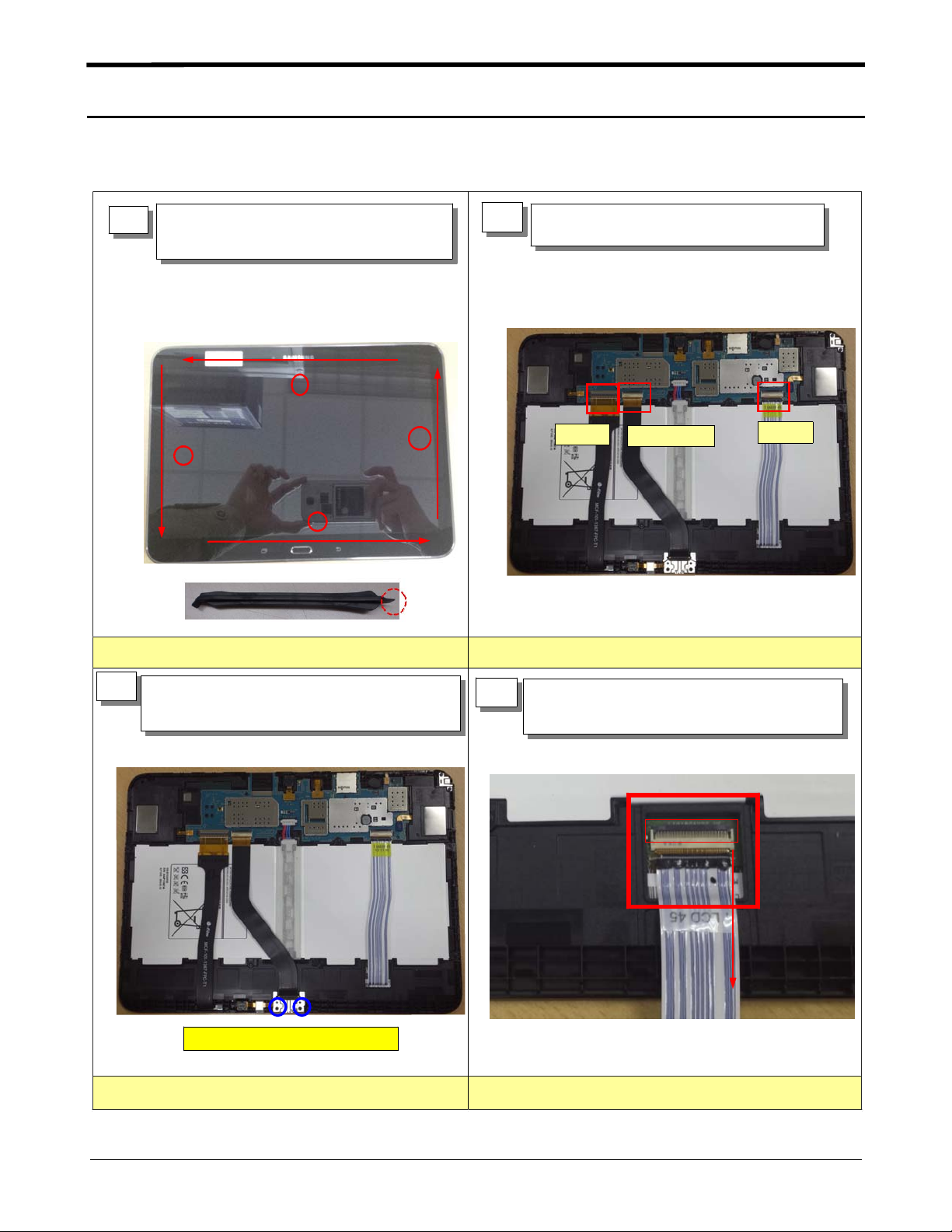

6. Level 1Repair

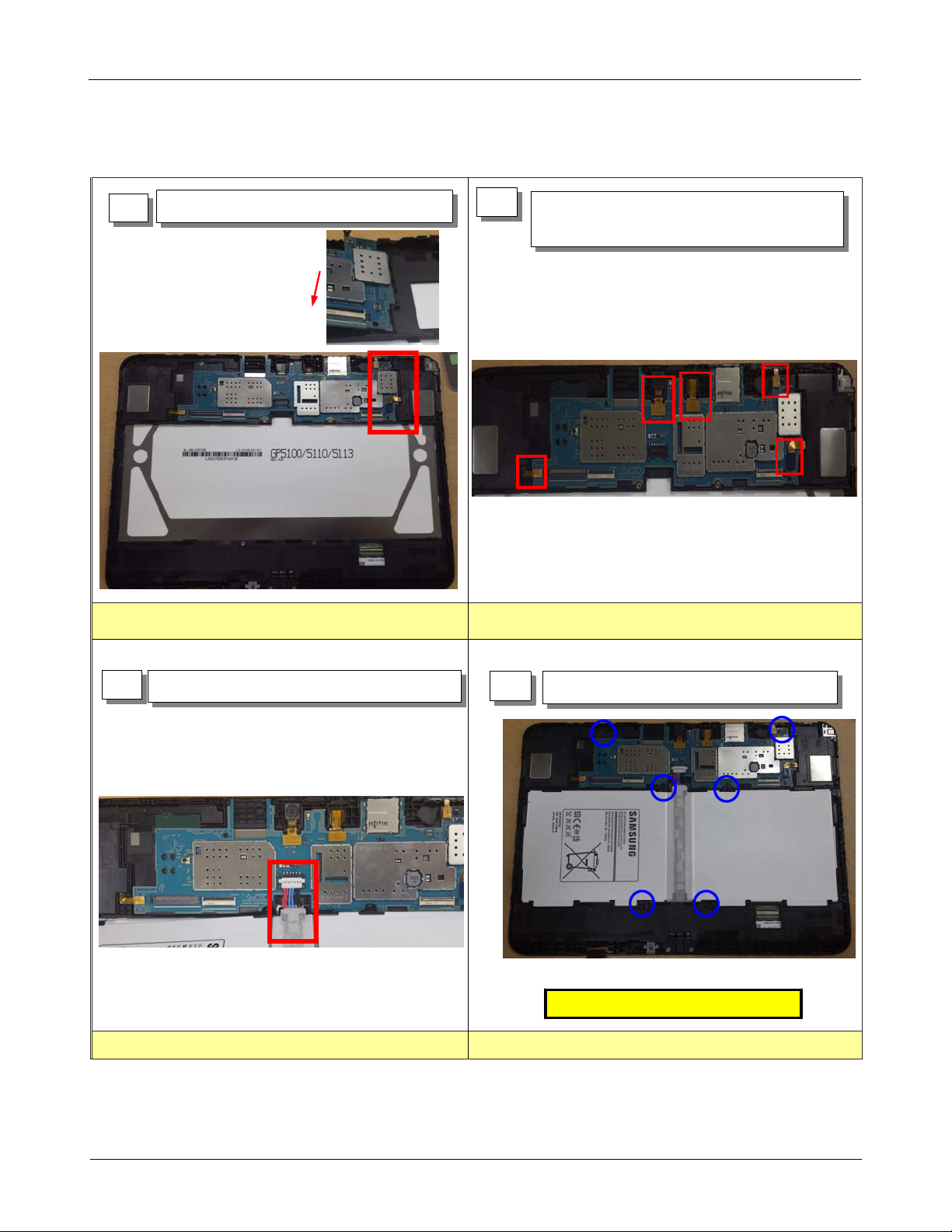

7. Level 2Repair
8. Level 3Repair
9. Reference data
Notice: All functionality, features, specifications, and
other product information provided in this document,
including but not limited to, benefits, design, pricing,
components, performance, availability, and capabiliti
-es of the product are subject to change without
notice. Samsung reserves the right to alter this doc
-ument or the product described herein at anytime,
without obligation to provide notification of such
changes.
GSM TELEPHONE CONTENTS

This Service Manual is aproperty of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.
Samsung Electronics Co.,Ltd.
2014. 03. Rev.1.0
ⓒ

2. Specification
2-1
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
2-1. GSM General Specification
GSM850 EGSM 900 DCS1800 PCS1900 WCDMA
2100 WCDMA 1900 WCDMA 900 WCMDA 850
Freq.
Band[MHz]
Uplink/
Downlink
824~849
869~894 880~915 925~960 1710~1785 1805~1880 1850~1910 1930~1990 1922~1977 2112~2167 1852~1907 1932~1987 880~915 925~960 824~849 869~894
ARFCN
range 128~251 0~124 &
975~1023 512~885 512~810 UL:
9612~9888
DL:
10562~10838
UL:
9262~9538
DL:
9662~9938
UL:
2712~2863
DL:
2937~3088
UL:
4132~4233
DL:
4357~4458
Tx/Rx
spacing 45MHz 45MHz 95MHz 80MHz 190MHz 80MHz 45MHz 45MHz
Mod. Bit
rate/
Bit Period
270.833kbps
3.692us 270.833kbps 3.692us 270.833kbps 3.692us 270.833kbps 3.692us 3.84Mcps 3.84Mcps 3.84Mcps 3.84Mcps
Time Slot
Period/
Frame
Period
576.9us
4.615ms 576.9us 4.615ms 576.9us 4.615ms 576.9us 4.615ms
FrameLength:
10ms
Slotlength:
0.667ms
FrameLength:
10ms
Slotlength:
0.667ms
FrameLength:
10ms
Slotlength:
0.667ms
FrameLength:
10ms
Slotlength:
0.667ms
Modulation 0.3GMSK 0.3GMSK 0.3GMSK 0.3GMSK QPSKHQPSK QPSKHQPSK QPSKHQPSK QPSKHQPSK
MS Power 33dBm~5dBm 33dBm~5dBm 30dBm~0dBm 30dBm~0dBm 24dBm~
-50dBm 24dBm~ -50dBm 24dBm~ -50dBm 24dBm~ -50dBm
Power
Class 5pcl ~19
pcl 5pcl ~19
pcl 0pcl ~15 pcl 0pcl ~15 pcl 3(max+24dBm) 3(max+24dBm) 3(max+24dBm) 3(max+24dBm)
Sensitivity -102dBm -102dBm -100dBm -100dBm -106.7dBm -106.7dBm -106.7dBm -106.7dBm
TDMA Mux 8 8 8 8 8888
Cell Radius 35Km 35Km 2Km 2Km 2Km 2Km 2Km 2Km

Specification
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
2-2
2-2. GSM Tx Power Class
TX Power
control
level
GSM850
533±2
dBm
631±2
dBm
729±2
dBm
827±2
dBm
925±2
dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control
level
EGSM900
533±2
dBm
631±2
dBm
729±2
dBm
827±2
dBm
925±2
dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control
level
DCS1800
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control
level
PCS1900
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm

4. Exploded View and Parts List
4-1
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.

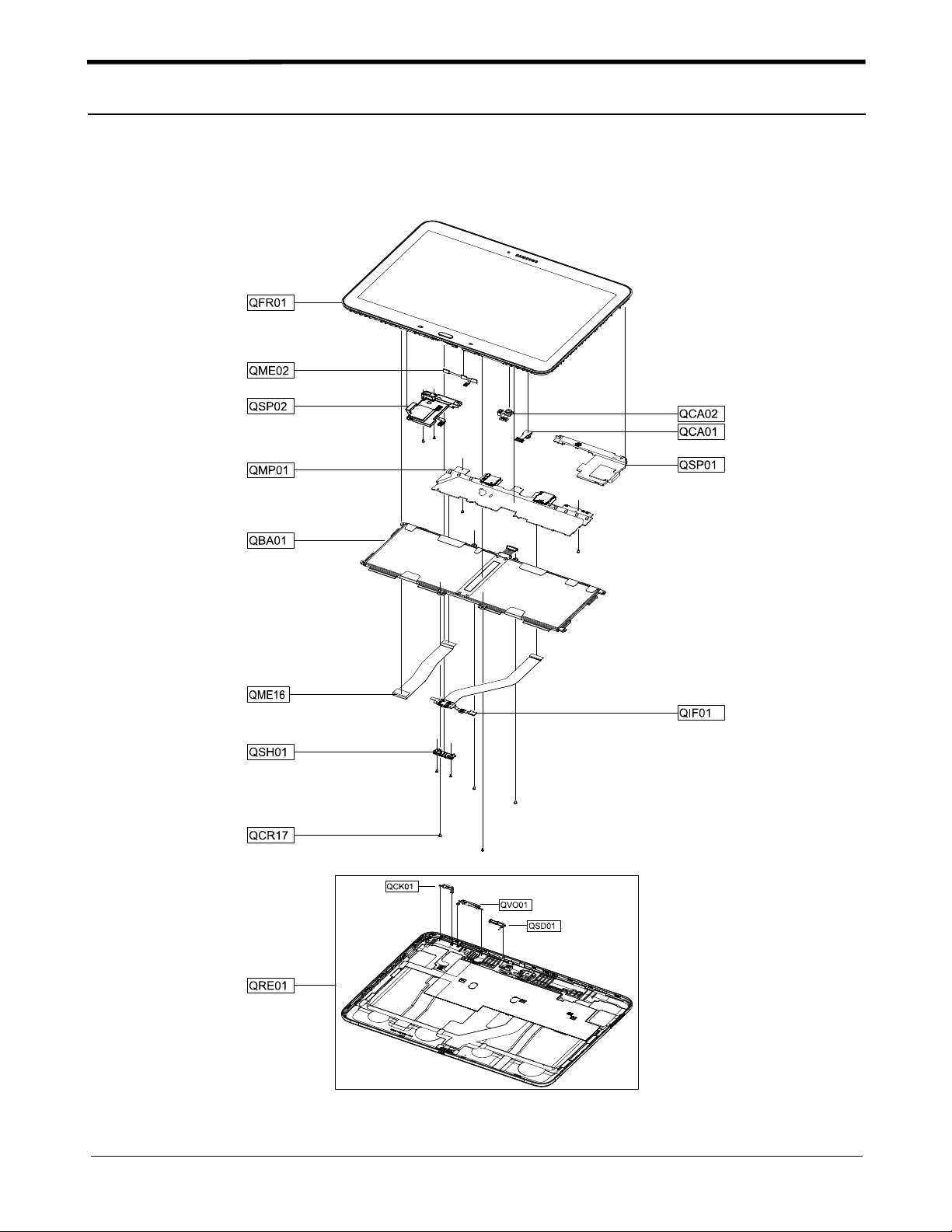

4-1. Cellular phone Exploded View

5. MAIN Electrical Parts List
5-1
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
SEC CODE Design LOC Description
0403-001972 ZD700 DIODE-ZENER
0403-002001 ZD606 DIODE-ZENER
0404-001250 D700 DIODE-SCHOTTKY
0404-001669 D800 DIODE-SCHOTTKY
0406-001267 ZD306,ZD600,ZD601 DIODE-TVS
0406-001267 ZD610 DIODE-TVS
0406-001293 ZD701,ZD702 DIODE-TVS
0406-001361 ZD300 DIODE-TVS
0406-001390 ZD900 DIODE-TVS
0406-001413 ZD502 DIODE-TVS
0406-001505 D500,D501,ZD500 DIODE-TVS
0406-001505 ZD501 DIODE-TVS
0406-001549 ZD607,ZD608,ZD609 DIODE-TVS
0406-001561 ZD602 DIODE-TVS
0406-001606 ZD504,ZD505,ZD506 DIODE-TVS
0406-001606 ZD507,ZD508 DIODE-TVS
0505-002088 TR600,TR700,TR704 FET-SILICON
0505-002341 Q900,TR703 FET-SILICON
0505-002384 TR500 FET-SILICON
0505-002720 TR702,U606 FET-SILICON
0801-003437 U501 IC-CMOS LOGIC
0902-003071 UCP401 IC-MICROPROCESSOR
1001-001841 U703 IC-ANALOG MULTIPLEX
1001-001846 U500 IC-ANALOG MULTIPLEX
1009-001066 U605 IC-HALL EFFECT S/W
1105-002593 UCP401UP IC-DDR2 SDRAM
1107-002297 UME300 IC-EMMC
1201-003126 U505,U506 IC-AUDIO AMP
1201-003564 U200 IC-IF/RF AMP

Main Electrical Parts List
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
5-2
1202-001122 U502,U503 IC-VOLTAGE COMP.
1203-004818 U900,U901 IC-POSI.FIXED REG.
1203-004819 U902,U903 IC-POSI.FIXED REG.
1203-006044 U905 IC-DC/DC CONVERTER
1203-006182 U601 IC-VOL. DETECTOR
1203-006768 U801 IC-DC/DC CONVERTER
1203-006874 U800 IC-MULTI REG.
1203-007623 TR701 IC-BATTERY ISOLATOR
1203-007834 U702 IC-BATTERY
1203-007977 U802 IC-SWITCH REG.
1203-008057 U701 IC-POWER SUPERVISOR
1203-008192 U600 IC-VOL. DETECTOR
1205-004548 U803 IC-TRANSMITTER
1205-004803 U904 IC-COMM. CONTROLLER
1205-004825 U201 IC-WIFI
1205-004833 U504 IC-CODEC
1205-004963 U202 IC-GPS RECEIVER
1209-002275 U604 IC-SENSOR
1404-001724 TH401 THERMISTOR-NTC
2007-000138 R727,R738 R-CHIP
2007-000140 R739 R-CHIP
2007-000141 R405,R406,R409,R410 R-CHIP
2007-000141 R411,R412,R413,R414 R-CHIP
2007-000141 R415,R416 R-CHIP
2007-000148 R502,R503,R607,R900 R-CHIP
2007-000148 R902,R903,R904,R908 R-CHIP
2007-000162 R302,R523,R526,R604 R-CHIP
2007-000162 R606,R719,R729,R730 R-CHIP
2007-000162 R735,R736,R740,R741 R-CHIP
2007-000162 R915 R-CHIP

Main Electrical Parts List
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
5-3
2007-000165 R732 R-CHIP
2007-000170 R500,R501,R609,R737 R-CHIP
2007-000566 R518 R-CHIP
2007-001298 R508 R-CHIP
2007-001325 R613 R-CHIP
2007-003015 R608,R906 R-CHIP
2007-007107 R734 R-CHIP
2007-007131 R913 R-CHIP
2007-007137 R510 R-CHIP
2007-007142 R724,R916 R-CHIP
2007-007315 R417 R-CHIP
2007-007316 R901,R907 R-CHIP
2007-007317 R521,R522,R524,R525 R-CHIP
2007-007318 R509 R-CHIP
2007-007480 R516 R-CHIP
2007-007573 R512 R-CHIP
2007-007590 R912 R-CHIP
2007-007741 R435 R-CHIP
2007-007942 R513,R519 R-CHIP
2007-007981 R914 R-CHIP
2007-008045 R910 R-CHIP
2007-008049 R602,R603,R619 R-CHIP
2007-008055 R610,R801,R917 R-CHIP
2007-008312 R517 R-CHIP
2007-008354 R803 R-CHIP
2007-008419 R918 R-CHIP
2007-008420 R705 R-CHIP
2007-008516 R319,R400,R437,R440 R-CHIP
2007-008516 R441,R445,R459,R720 R-CHIP
2007-008516 R911 R-CHIP

Main Electrical Parts List
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
5-4
2007-008588 R407,R408,R456,R457 R-CHIP
2007-008721 R802 R-CHIP
2007-008774 R425,R614,R615,R905 R-CHIP
2007-008774 R909 R-CHIP
2007-008806 R507,R514,R515 R-CHIP
2007-009084 R438,R439,R453,R800 R-CHIP
2007-009111 R317,R427 R-CHIP
2007-009157 R402,R700 R-CHIP
2007-009920 R442,R443,R449 R-CHIP
2007-010856 R728 R-CHIP
2007-011043 R421 R-CHIP
2203-000254 C803,C938 C-CER,CHIP
2203-000278 C252 C-CER,CHIP
2203-000330 C238 C-CER,CHIP
2203-000386 C508,C509,C519 C-CER,CHIP
2203-000425 C502,C503,C504 C-CER,CHIP
2203-000438 C246 C-CER,CHIP
2203-000812 C600,C601 C-CER,CHIP
2203-000854 C812,C815 C-CER,CHIP
2203-001101 C620 C-CER,CHIP
2203-001153 C507,C510,C520 C-CER,CHIP
2203-001239 C501,C505,C506,C612 C-CER,CHIP
2203-002687 C767,C769,C783,C784 C-CER,CHIP
2203-005056 C231 C-CER,CHIP
2203-005234 C245 C-CER,CHIP
2203-005288 C235,C814 C-CER,CHIP
2203-005552 C250 C-CER,CHIP
2203-005682 C233,C236,C485,C602 C-CER,CHIP
2203-005729 C928,C940 C-CER,CHIP
2203-005736 C201,C202,C213,C215 C-CER,CHIP

Main Electrical Parts List
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
5-5
2203-005736 C216,C218,C219,C223 C-CER,CHIP
2203-005736 C244 C-CER,CHIP
2203-005740 C941 C-CER,CHIP
2203-005777 C229 C-CER,CHIP
2203-005806 C430,C500,C702 C-CER,CHIP
2203-006047 C776 C-CER,CHIP
2203-006048 C240,C241,C243,C514 C-CER,CHIP
2203-006048 C516,C518,C524,C528 C-CER,CHIP
2203-006048 C529,C532,C534,C537 C-CER,CHIP
2203-006048 C538,C604,C609,C802 C-CER,CHIP
2203-006048 C901,C902,C903,C904 C-CER,CHIP
2203-006305 C325 C-CER,CHIP
2203-006348 C908 C-CER,CHIP
2203-006377 C766 C-CER,CHIP
2203-006399 C522,C523,C531 C-CER,CHIP
2203-006400 C200,C205 C-CER,CHIP
2203-006423 C300,C302,C400,C415 C-CER,CHIP
2203-006423 C416,C417,C418,C419 C-CER,CHIP
2203-006423 C420,C421,C423,C426 C-CER,CHIP
2203-006423 C436,C438,C439,C440 C-CER,CHIP
2203-006423 C441,C442,C443,C444 C-CER,CHIP
2203-006423 C445,C446,C447,C448 C-CER,CHIP
2203-006423 C449,C450,C451,C452 C-CER,CHIP
2203-006423 C453,C456,C458,C459 C-CER,CHIP
2203-006423 C460,C461,C463,C466 C-CER,CHIP
2203-006423 C468,C469,C470,C471 C-CER,CHIP
2203-006423 C472,C476,C477,C478 C-CER,CHIP
2203-006423 C479,C480,C487,C606 C-CER,CHIP
2203-006423 C718,C720,C765,C905 C-CER,CHIP
2203-006423 C906,C912,C913,C914 C-CER,CHIP

Main Electrical Parts List
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
5-6
2203-006562 C511,C775,C779,C785 C-CER,CHIP
2203-006562 C807,C808,C809,C821 C-CER,CHIP
2203-006562 C900,C916,C917,C918 C-CER,CHIP
2203-006562 C919,C920,C921,C926 C-CER,CHIP
2203-006562 C927,C930,C931,C933 C-CER,CHIP
2203-006562 C934,C935,C939 C-CER,CHIP
2203-006647 C422,C427 C-CER,CHIP
2203-006648 C435 C-CER,CHIP
2203-006681 C818,C909,C911 C-CER,CHIP
2203-006712 C607 C-CER,CHIP
2203-006824 C615 C-CER,CHIP
2203-006839 C721,C800,C801,C804 C-CER,CHIP
2203-006839 C805,C806 C-CER,CHIP
2203-006841 C239,C242 C-CER,CHIP
2203-006844 C786 C-CER,CHIP
2203-006872 C533,C932 C-CER,CHIP
2203-006978 C610,C617,C777 C-CER,CHIP
2203-007133 C936 C-CER,CHIP
2203-007210 C437 C-CER,CHIP
2203-007230 C762 C-CER,CHIP
2203-007269 C613,C614,C781,C782 C-CER,CHIP
2203-007270 C768,C770,C811,C816 C-CER,CHIP
2203-007270 C817 C-CER,CHIP
2203-007271 C304,C616,C705,C706 C-CER,CHIP
2203-007271 C707,C708,C710,C771 C-CER,CHIP
2203-007271 C773,C923,C924,C929 C-CER,CHIP
2203-007279 C207,C780 C-CER,CHIP
2203-007317 C301,C303,C311,C730 C-CER,CHIP
2203-007317 C731,C732,C735,C738 C-CER,CHIP
2203-007317 C744,C745,C750,C751 C-CER,CHIP

Main Electrical Parts List
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
5-7
2203-007317 C752,C753,C756,C778 C-CER,CHIP
2203-007317 C789 C-CER,CHIP
2203-007391 C225,C226,C424,C425 C-CER,CHIP
2203-007391 C455,C467 C-CER,CHIP
2203-007393 C228,C230,C515,C530 C-CER,CHIP
2203-007393 C539,C723,C774 C-CER,CHIP
2203-007449 C401,C402,C403,C404 C-CER,CHIP
2203-007449 C405,C406,C407,C408 C-CER,CHIP
2203-007449 C409,C414,C428,C431 C-CER,CHIP
2203-007449 C432,C433,C434,C462 C-CER,CHIP
2203-007449 C464,C465,C512,C719 C-CER,CHIP
2203-007449 C728,C729,C733,C734 C-CER,CHIP
2203-007449 C736,C737,C741,C742 C-CER,CHIP
2203-007449 C743,C746,C747,C749 C-CER,CHIP
2203-007449 C754,C755,C788,C907 C-CER,CHIP
2203-007449 C922 C-CER,CHIP
2203-007474 C208,C214,C608 C-CER,CHIP
2203-007693 C772,C937 C-CER,CHIP
2203-007759 C942 C-CER,CHIP
2203-007781 C703,C704 C-CER,CHIP
2203-007790 C813,C820 C-CER,CHIP
2203-007795 C819 C-CER,CHIP
2203-008097 C910,C915 C-CER,CHIP
2203-008123 BAT700 C-CER,CHIP
2203-008217 C787 C-CER,CHIP
2203-008242 C454 C-CER,CHIP
2203-008243 C209,C210,C211,C212 C-CER,CHIP
2203-008243 C217,C222,C227 C-CER,CHIP
2203-008312 C206,C224,C760,C761 C-CER,CHIP
2203-008312 C763,C764 C-CER,CHIP

Main Electrical Parts List
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
5-8
2203-008394 C925 C-CER,CHIP
2404-001506 TA500 C-TA,CHIP
2703-002198 L213,L214 INDUCTOR-SMD
2703-002204 L217 INDUCTOR-SMD
2703-002269 L215 INDUCTOR-SMD
2703-003485 L902 INDUCTOR-SMD
2703-003686 R419 INDUCTOR-SMD
2703-003913 L801 INDUCTOR-SMD
2703-004030 L206 INDUCTOR-SMD
2703-004086 L201 INDUCTOR-SMD
2703-004127 L703 INDUCTOR-SMD
2703-004289 L202 INDUCTOR-SMD
2703-004530 L803 INDUCTOR-SMD
2703-004599 L702,L706 INDUCTOR-SMD
2703-004697 L503,L504,L510,L511 INDUCTOR-SMD
2703-004751 L700,L701 INDUCTOR-SMD
2801-005154 OSC200 CRYSTAL-SMD
2801-005300 OSC700 CRYSTAL-SMD
2901-001625 F600 FILTER-EMI/ESD
2901-001690 C410,C411,C412,C413 FILTER-EMI SMD
2901-001690 C457 FILTER-EMI SMD
2901-001732 F800,F802,F900,F901 FILTER-EMI SMD
2901-001743 F801 FILTER-EMI/ESD
2904-001988 F200 FILTER-GPS SAW
2904-001990 F205 FILTER-GPS SAW
2909-001307 F203 FILTER-LC
3301-001806 L509 BEAD-SMD
3301-001885 L500,L505,L506,L507 BEAD-SMD
3301-001895 L508,L704,L705 BEAD-SMD
3301-001895 L200 BEAD-SMD

Main Electrical Parts List
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
5-9
3301-001901 L900,L901 BEAD-SMD
3301-002037 L802 BEAD-SMD
3301-002078 L501,L502 BEAD-SMD
3301-002085 L800 BEAD-SMD
3301-002236 L601 BEAD-SMD
3301-002248 L207 BEAD-SMD
3301-002254 L602,L707 BEAD-SMD
3301-002279 L804 BEAD-SMD
3705-001731 RFS200 CONNECTOR-COAXIAL
3708-002183 SLC600,SLC800 CONNECTOR-FPC/FFC/PIC
3708-002781 SLC900 CONNECTOR-FPC/FFC/PIC
3709-001811 CD300 CONNECTOR-CARD EDGE
3711-006925 HDC900,HDC901 HEADER-BOARD TO BOARD
3711-007173 HDC400,HDC500 HEADER-BOARD TO BOARD
3711-008010 HDC501,HDC600 HEADER-BOARD TO BOARD
3711-008421 BTC700 CONNECTOR-HEADER
4709-002021 F204 FREQ-DISTRIBUTER
4709-002243 F202 FREQ-DISTRIBUTER
GH62-00029A CON900 SOCKET-PCB GASKET
GH62-00029A CON900 SOCKET-PCB GASKET
GH62-00033A CON100,CON102,CON104 SOCKET-SMD GASKET(SM-T530)
GH62-00033A CON105,CON106,CON107 SOCKET-SMD GASKET(SM-T530)
GH62-00033A CON105,CON106,CON107 SOCKET-SMD GASKET(SM-T530)
GH98-31204A SC100 ASSY COVER-SHIELD CAN E
GH98-31205A SC101 ASSY COVER-SHIELD CAN C
GH98-31206A SC103 ASSY COVER-SHIELD CAN B
GH98-31207A SC102 ASSY COVER-SIELD FRAME D
Please consult the GSPN website (Samsung Portal) for the most recent version of the product's part list.

7. Level 2Repair
7-1
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Follow the numbered sequence when you disjoint Be careful not to damage the FPCBs
Be careful not to damage the FPCBs Be careful not to damage the FPCBs
7-1. Disassembly and assembly Instructions
7-1-1. Disassembly
Disengage the rear cover with the front
cover by using the hook
1Separate the 7PIN I/F connector, TSP
connector, LCD connector from the PBA.
2
3Release the screw at 2points
(Torque: 1.1±0.1 kgf.cm) 4
1
2
3
4
◆blue:L1.5 (2Point)
Open the black thin bar and Separate the
LCD FPCB from the Front.
7 PIN I/F
TSP LCD

Level 2Repair
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
7-2
Be careful not to damage the FPCBs Be careful not to damage the wires
Be careful not to damage the FPCBs Be careful not to scratch cover
Carefully release the screws at 6different
locations from the Front.
(Torque 1.1 ± 0.1 kgf.cm)
5Separate the Battery from PBA
6
Separate all connector(Key, 1.3M, 3M
Camera, Speaker) from the PBA.
7Separate the PBA from Ass'y 8
◆blue:L1.5 (6Points)

Level 2Repair
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
7-3
Be careful not to scratch cover Be careful not to damage the FPCBs
Be careful not to damage the wires Be careful not to scratch cover
7-1-2. assemble
Insert the PBA in the hook
1Assemble all connector(Key, 1.3M, 3M
Camera, Speaker) to the PBA.
2
Attach the battery
3screws at 6points
4
◆blue:L1.5 (6Points)

Level 2Repair
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
7-4
Be careful not to damage the FPCBs Be careful not to damage the FPCBs
Be careful not to damage the FPCBs Follow the order
Put the LCD FPCB and Close the black
thin bar
6screws at 2Points
5
7Insert the 7PIN I/F, TSP, LCD Connector and
Close the black thin bar
8Joint the Rear and the Front.
◆blue:L1.5 (2Point)
7 PIN I/F
TSP LCD
1
23
4
1

8. Level 3Repair
8-1
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.

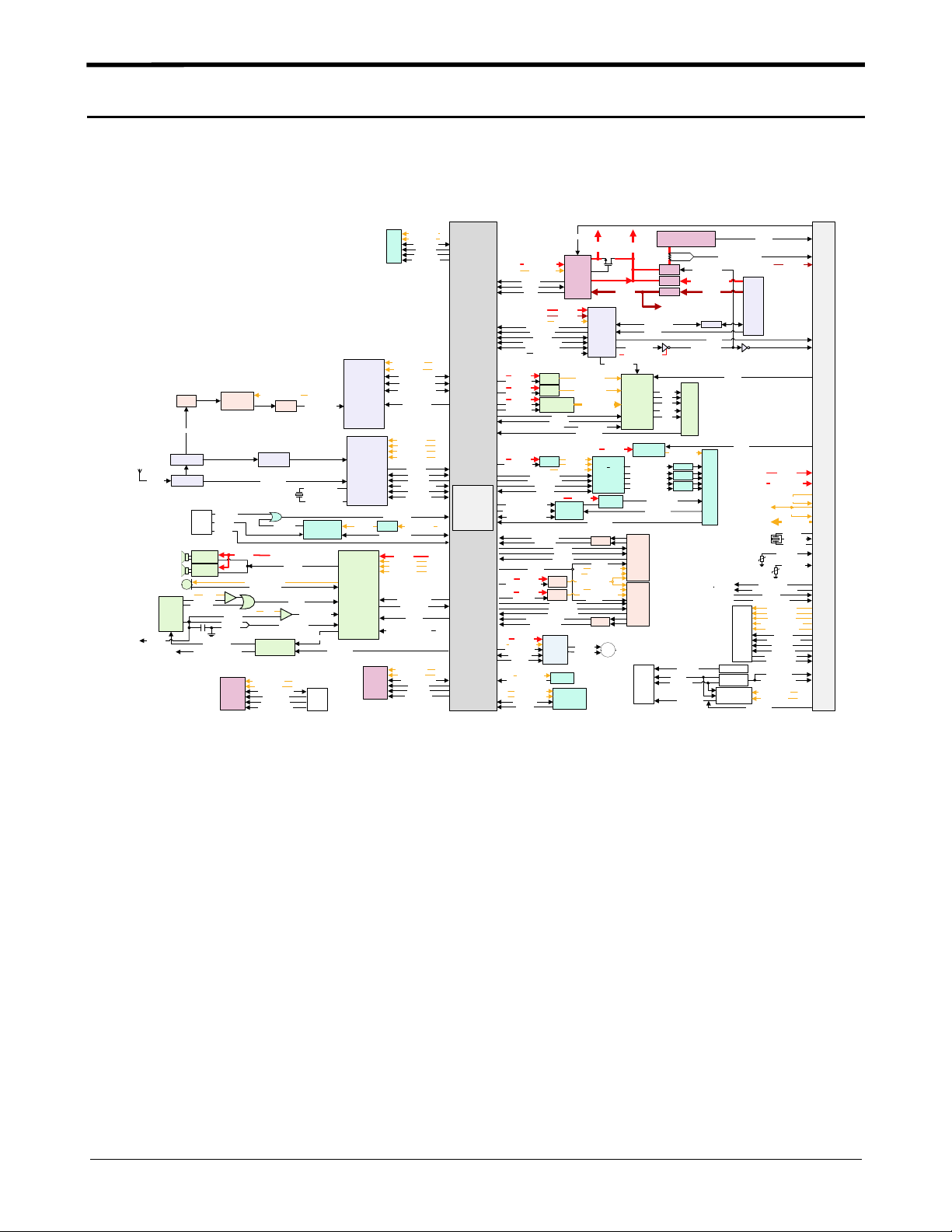

8-1. Block Diagram
V_BUS_5V
VREG_L6_1P8
VREG_L17_2P95
EMMC_DATA[0:7]
EMMC_CLK
EMMC_CMD
MSM_RESOUT
MicroSD
VREG_L6_1P8
VREG_L18_2P95
T_FLASH_D([0:3])
T_FLASH_CLK
T_FLASH_CMD
T_FLASH_DETECT
MATISSE WIFI SM-T530 rev0.4 BLOCK DIAGRAM
VREG_L6_1P8
VREG_S4_2P1
VREG_L4_1P2
CODEC_RESET_N
SLI MBUS
SLIMBUS_CLK, SLIMBUS_DATA
VPH_PWR
PMIC_AUDIO_REF_CLK
from PM8226, PMIC
CODEC_I NT_N
EAR_VPS_L / R
Analog Switch
FSA2270
EAR_L / R_CRADLE_CON
EAROUT_L / R
LINEOUT_ON
3.5ø
Ear Jack
EAR_G_DET
EAR_L_DET
1.353V DET_3.5
(Active Low)
SPK_L / R
AMP
YDA168
AMP
YDA168
VPH_PWR
EAR_MIC+
EAR_MIC- EAR_ MI C_ P / N
EAR_ADC EAR_SEND_END
0.77V
(Active Low)
MAIN_MICBIAS_2.8V
MAIN_MIC_P / N
Main MI C
Speaker
AUDIO
to SM5502, MUIC
-
+
-
+
VREG_L6_1P8
VREG_L24_1P3
VREG_L16_3P0
VREG_L10_1P8
BT/WIFI DIPLEXER
KEY_ANT WL_RFIO_5G
Band Pass
Filter
WLAN_SET
WLAN_CLK
WLAN_DATA[ 0:2]
WLAN_I/Q
Bluetooth SBI
BT_WIFI _CLK_I N
BT_WIFI_CLK_OUT
OSC
DIPLEXER
HIGH
HIGH
LOW
LOW
BT_SSBI, BT_DATA, BT_CTL
WIFI 2.4GHz
WIFI 5GHz
GPS_ANT
WT R_GNSS_ P/ M
LNA
RDALN16 SAW
Filter
VDD_FEM/GPS_2P75
GPS SAW
Filter
3M_CLK_P / N Filter
3M_DP / N
CAM_ANALOG_EN
VPH_PWR
3M_MCLK
CAM I 2C
3M_nRST
3M_nSTBY
VTCAM_EN
VPH_PWR
VTCAM_MCLK
VT_CAM_CLK_P / N
VT_CAM_DP / N
CAM I 2C
VT_CAM_nRST
VT_CAM_nSTBY
VREG_L28_1P8
CAM_AVDD_2.8V
VREG_L26_1P225
VTCAM_CORE_1. 8V
Filt er
CAM I 2C VREG_L28_1P8
VT CAM
3M CAM
LDO
LDO
SI M
card
VREG_L6_1P8
VREG_L22_3P0
UI M1_RESET
UIM1_CLK
UIM1_DATA
UI M1 _DETECT
ADJ_DET_D
GRIP_1P8
GRI P Sensor
SX9500I ULTRT
RF_TOUCH
RF_TOUCH_AP
ANT_COM
GRI P Se nsor I 2 C
Main
ANT LDO VREG_L15_2P8
ADJ_DET
GRIP Sensor
EAR_ADC
to PM8226
PMIC
STORTAGE
AP
MSM8926
LCD
TSP
Camera
MOTOR
SENSOR
CHARGER
USB
MIPI LVDS
Transmitt er
TC358764
VREG_L5_1P2
LVDS_3V3
LVDS_1V8
VPH_PWR
LVDS_LDO_EN
LCD_CLK_P / N
LCD_D[0:3] _P / N
LVDS I2C
LVDS_RX_0P / N_F Filter
LVDS_RST LVDS_CLK_P / N_F
LVDS_RX_1P / N_F
LVDS_RX_2P / N_F
LVDS_RX_3P / N_F Filter
3.3V BUCK
TPS63010
VPH_PWR DISPLAY_3.3V LCD_EN
Backlight
Driver
LM8558
LED_BACKLI GHT_RESET
BACKLIGHT_PWM_AP
LED_BACKLI GHT I2C
LED_VOUT_18V
LED_K([1:4])
VPH_PWR
LCD_SELECT
LDO
Filter
TSP IC
MXT1188S1
VPH_PWR
TSP_LDO_ON LDO TSP_VDD_1.8V
VPH_PWR
TSP_LDO_ON LDO TSP_AVDD_2.8V
VPH_PWR
TSP_LDO_ON Booster
RT8517GQW TSP_XVDD_9.1V
TSP_SW3 _EN Y[0:42]
X[0:24]
TX25
TX26
RX43
TSP_RST
TSP I2C
TSP_nINT TA_nCONNECT
TSP_VENDOR
TSP
from SM5502, MUIC
MOTOR
ISA1200
MOTOR I2C
VIBTONE_PWM
MOT_EN
MOTOR_P
MOTOR_N
VREG_L6_1P8 M
VPH_PWR
ACC Sensor
K2HH
VREG_L19_2P85
VREG_LVS1_1P8
SENSOR I 2 C
ACC_ I NT
HALL I C
VREG_L6_1P8
DET ECT_FLI PCOVER Side Key
Home Key
WARM RESET
FT8010MPX
MSM_RES_IN VREG_L6_1P8
VREG_L19_2P85
PM_KYPD_PWR_N
PM_RESI N_N
VOL_UP
VOL_DOWN
MSM_RES_IN
HOME_KEY
VREG_S3_1P35
VREG_S3_2P1
VREG_S1_1P15
VREG_S2_1P05
AP
MSM8926
to WCD9306
CODEC
VREG_L[1:28]
VREF_LPDDR2
PMIC_AUDIO_REF_CLK
BAT_UI M_ALARM
GRFC(12)
VREF_MSM_PX_MPP1
VREF_LDO_MPP3
PA_THERM0_MPP5
EAR_ADC
BBCLK_MSM
BBCLK_MSM_EN
MSM_PS_HOLD
RFCLK1_19.2M
SLEEP_CLK
to WCD9306, CODEC
to WTR2605, Transceiver
from Ear Jack
from Thermistor for PA
Thermistor AP AP_THERM
Thermistor SYSTEM
SYS_THERM
XO_THERM
19.2M_IN
19.2M_OUT
OSC
to All System
Micro USB
Sw it ch I C
SM5502
VREG_L6_1P8
V_BUS_5V
VPH_PWR
MUIC_DP / DM
MUIC_ID
Filter
VBUS_IN
OVP
MUIC I2C
MUIC_INT_N
PMI C_JI GONB IF_CON_SENSE
MSM_UART_RX / TX
USB_HS_DP / DM
OTG_I D
EAR_L / R_CRADLE_CON IF_VOUT_CHATGER
BATT_ID
TA_INT
CHG I 2C
TA_nCHG
VOUT_CHARGER
VREG_L6_1P8
TA_ENABLE
VPH_PWR
(Root) VOUT_CHARGER
(Root)
IF_VOUT_CHATGER
Swit ch
BMS_SENSE_P / N
IF_CON_SENSE
(CHGOUT)
(USBI N)
(FETDRV)
(VSYS)
CHARGER
SMB358
Battery
Swit ch
to PM8226, PMI C
CBL_PWR_N
from FSA2270
Analog Switch
UART_BOOT_ON
TA_nCONNECT
(EN)
AP
MSM8926
for LDOs
(USBI N)
V_BUS_5V
VPH_PWR
(VPH_PWR, VDD_x)
VOUT_CHARGER
(VBAT, VBAT_SNS)
Micro
USB
CON
16GB
eMMC
PMI C
PM8926
Audio CODEC
WCD9306
Bluetooth
WIFI
WCN3660A
AP / CP
MSM8926
LCD
POP RAM
LPDDR3
1.5G
WCSS_XO
GPS
WGR7640
VREG_L1_1P225
VREG_L10_1P8
CH0_SSBI _TX_GPS
GPS_BB_RX_I M/IP
GPS_BB_ RX_QM/ QP
RFCLK1_19.2M
from PM8226, PMIC

Level 3Repair
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
8-2

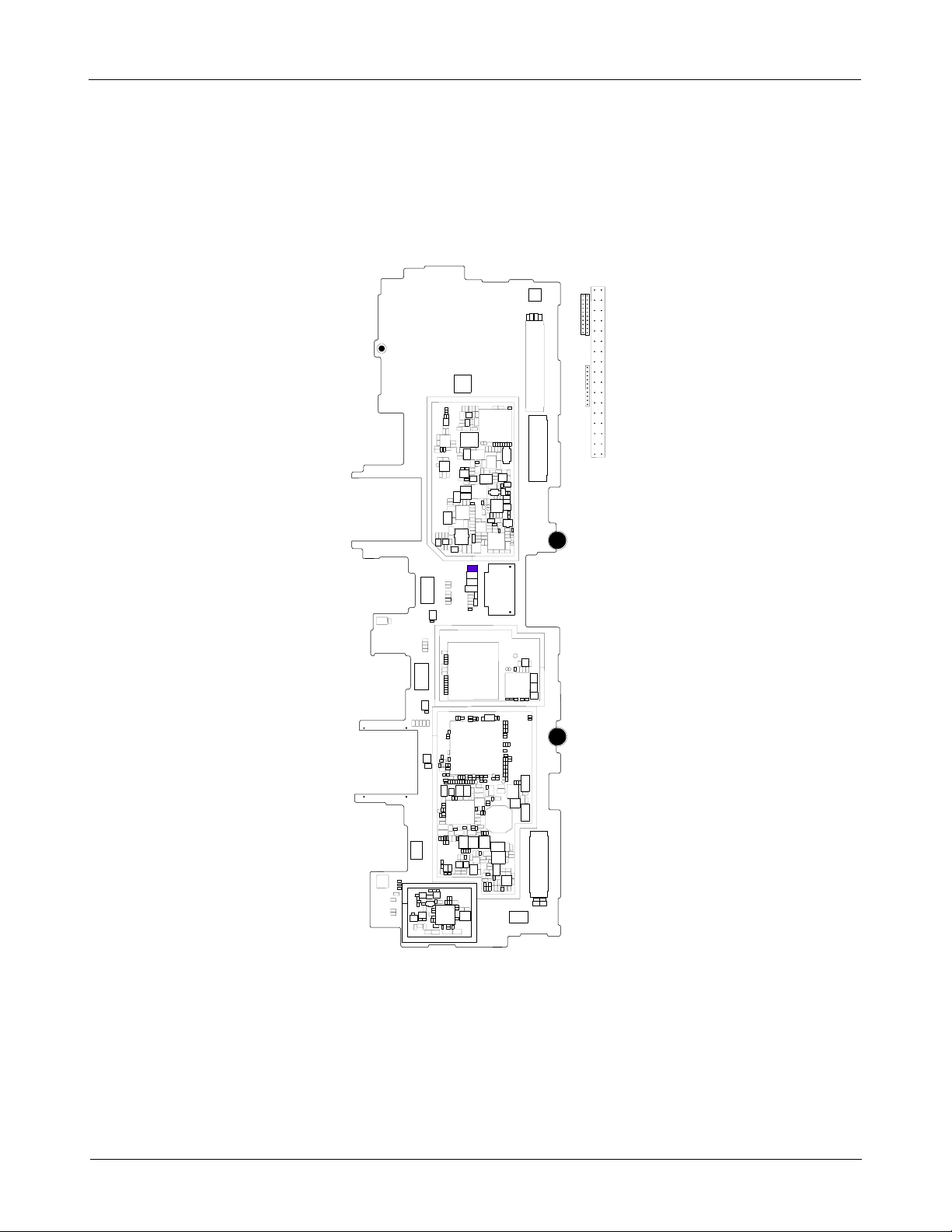

8-2. PCB Diagrams
8-2-1. Top
