High Resolution Varifocal Dome Camera SCD-2080 User Guide
Before installing and operating this product,
please read this manual thoroughly.
ENGLISH

Before operating the camera, confirm the camera model and correct input power
voltage. To help you understand this manual thoroughly, we'll introduce our model
description.
n SCD-2080 SERIES
 •NTSCMODEL •PALMODEL
SCD-2080N SCD-2080P
nMODEL DESCRIPTION
 •SCD-2080X
_
 •SIGNALSYSTEM
NNTSCMODEL
PPALMODEL
This installation should be made by a qualified service person and
should conform to all local codes.

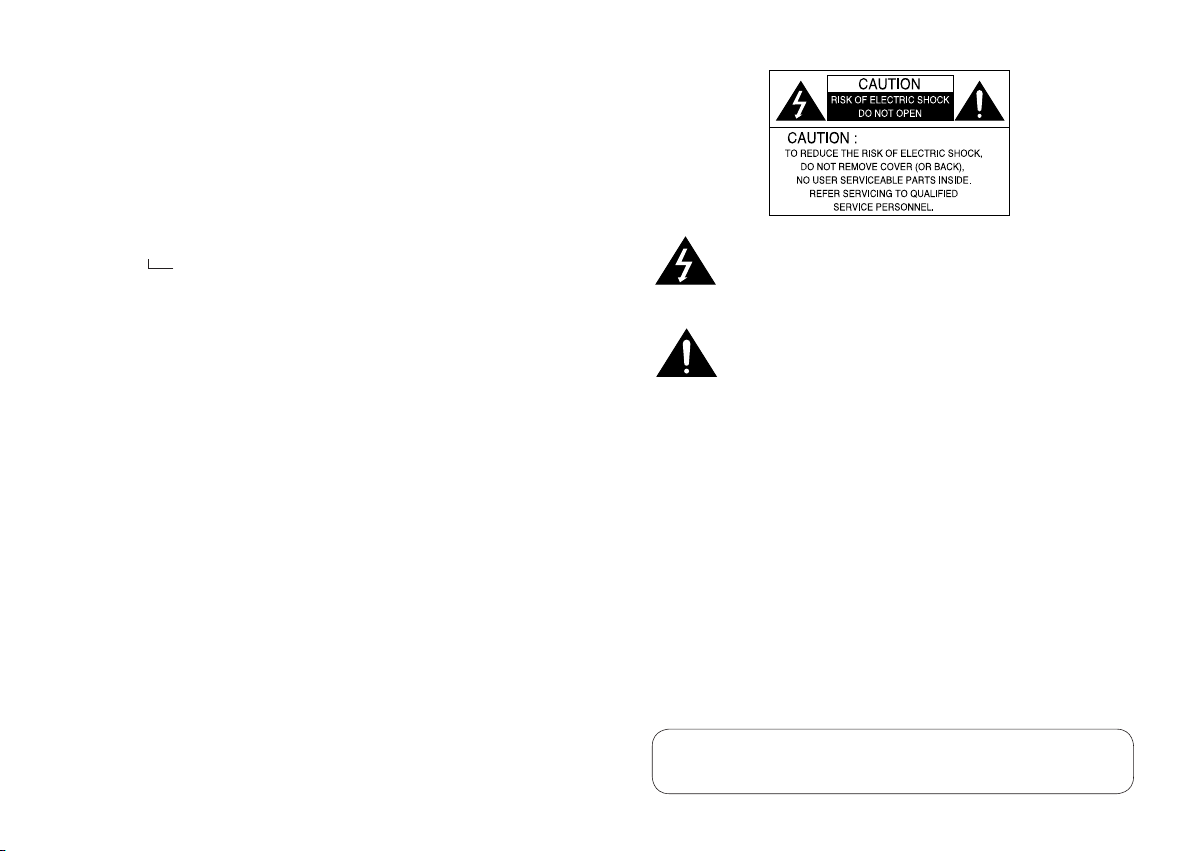

The lightning flash with an arrowhead symbol, within an equilateral triangle is
intended to alert the user to the presence of uninsulated “dangerous voltage”
within the product's enclosure that may be of sufficient magnitude to constitute
a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user
to the presence of important operating and maintenance (servicing) instructions
in the literature accompanying the appliance.
This equipment has been tested and found to comply with limits for a Class A
digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction manual, may cause harmful
interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference
at his own expense.
WARNING-Changes or modifications not expressly approved by the
manufacturer could void the user's authority to operate the equipment.
WARNING-To prevent electric shock and risk of fire hazards:
◆ Do NOT use power sources other than that specified.
◆ Do NOT expose this appliance to rain or moisture.
SIGNALSYSTEM

COLOR DOME CAMERA User Guide
4
COLOR DOME CAMERA User Guide
5
Contents
Contents Features
• Features ………………………………………………………………………… 5
• Precautions …………………………………………………………………… 7
• Components and Accessories …………………………………………… 8
• Overview ………………………………………………………………………… 9
• Installation ……………………………………………………………………… 9
nInstallation
 

n
Adjustthepanning,tiltingandrotatingwhilewatchingthemonitor 
• Connection ……………………………………………………………………… 13
nConnectingtoMonitor
  

nConnectingtoPower
 

nUsingCoaxialCommunications
 
• Operating your Camera …………………………………………………… 15
nMenuConfiguration
 

nMenuSetup
  

•LENS
 

•EXPOSURE
  

•WHITEBALANCE
  

•SSDR
 

•BACKLIGHT
 

•SSNR3
  

•DAY/NIGHT
  

•SPECIAL
  

•EXIT
  
• Troubleshooting ……………………………………………………………… 31
• Specification …………………………………………………………………… 32
• Dimension ……………………………………………………………………… 33
Excellent Sensitivity
The built-in high sensitivity COLOR CCD produces
a clear image.
- Color : 0.15Lux(50IRE, @F1.2), 0.0003LUX
(SENS-UP, x512)
- B/W : 0.001Lux(50IRE, @F1.2), 0.000002LUX
(SENS-UP, x512)
DAY&NIGHT(ICR)
This camera has a function that automatically
selects the mode that is appropriate for daytime
or night-time conditions.
The COLOR mode operates in daytime
conditions to provide optimum colors, and B/W
mode operates in night-time conditions to
enhance the definition of the image.
DIS (Digital Image Stabilizer)
The DIS function compensates for any camera
movement, to produce more stable pictures.
Communication
Coaxial communication methods are supported.
- Protocol : Pelco Coaxitron
Miscellaneous Functions
HLC(High Light Compensation), SENS-UP, FLIP
(H/V-REV), D-ZOOM, SHARPNESS and PRIVACY
functions are provided.
OSD
The camera’s OSD is complimented by 18 languages.
- NTSC : Korean, English, French, Spanish, Japanese,
Portuguese, Taiwanese
- PAL : English, Chinese, German, Italian, French,
Spanish, Russian, Czech, Polish, Romanian,
Serbian, Swedish, Danish, Turkish, Portuguese
SSNR3 (Samsung Super Noise
Reduction) Function
The high-performance W-V DSP chip effectively
removes low-light gain noise and afterimage to
provide clear images even in dark environments.
High Resolution
By adopting a diagonal 6mm(1/3") 410,000 (NTSC)
pixel, 470,000(PAL) pixel SONY CCD, the camera
produces clear picture quality with a horizontal
resolution of 600 TV lines in color and a horizontal
resolution of 700 TV lines in B/W mode.
SSDR
(Samsung Super Dynamic Range)
For images with high contrast between bright
and dark areas from difficult lighting
conditions such as backlighting, this camera
selectively illuminates darker areas while
retaining the same light level for brighter
areas to even out the overall brightness.
Motion Detection
Since the camera detects motion without any
additional external sensor, you can monitor
activity more efficient.

COLOR DOME CAMERA User Guide
6
COLOR DOME CAMERA User Guide
7
SamsungTechwincaresfortheenvironmentatallproductmanufacturing
stages to preserve the environment, and is taking a number of steps to provide
customerswithmore environment-friendly products.The Ecomark represents
SamsungTechwin’swilltocreateenvironment-friendlyproducts,andindicates
thattheproductsatisfiestheEURoHSDirective.
This information is provided to ensure your safety and to prevent any losses, financial or
otherwise.Pleasereaditcarefullyandusetheproductaccordingly.
* For product inquiries, please contact the retail shop where you bought the camera. The use of equipment such as
anaerialladderwhileprovidingafter-salesserviceshallbeatyourexpense.
 *Separatethepowerplugduringathunderstorm.
 *Thisproductissupportequipmentforsurveillancesystem.Therefore,wecan'tcompensateformateriallossand/or
personalinjuriesbyrobbery,fire,naturaldisasterorothersuchevents.
Ignoringthisinformationmay
resultinmateriallossand/or
seriouspersonalinjuriesincluding
death.
Indicates“NeverAllowed.”
Ignoringthisinformationmay
resultinmateriallossand/ora
slightinjuries.
Indicates“NoDisassembling.”
Warnings & Cautions
Warning/Attention/Special Mark Messages
Do not install under extreme
temperature conditions.
Do not install in high humidity
environment.
The lens is the most important component of
the camera. Be careful not to smear it with
fingerprints.
Severe lighting changes or flickering may hinder
normal camera operation.
May lower image quality.Use only under temperature conditions between
-10ºC and +50ºC. Provide good ventilation when
using in high temperature conditions.
Avoid touching the camera lens.
Do not drop the camera or subject
it to physical shock.
May damage the CCD.May cause a product malfunction.
Never keep the camera face to
strong light directly.
Do not install under unstable
lighting conditions.
Precautions

COLOR DOME CAMERA User Guide
8
COLOR DOME CAMERA User Guide
9
Overview
Precautions
•Exposuretoaspotlightoranobjectemittingstronglightmaycausesmearorblooming.
•Ensurethatthepowersourcecomplieswithnormalspecifications beforesupplyingitto
the camera.
Notes

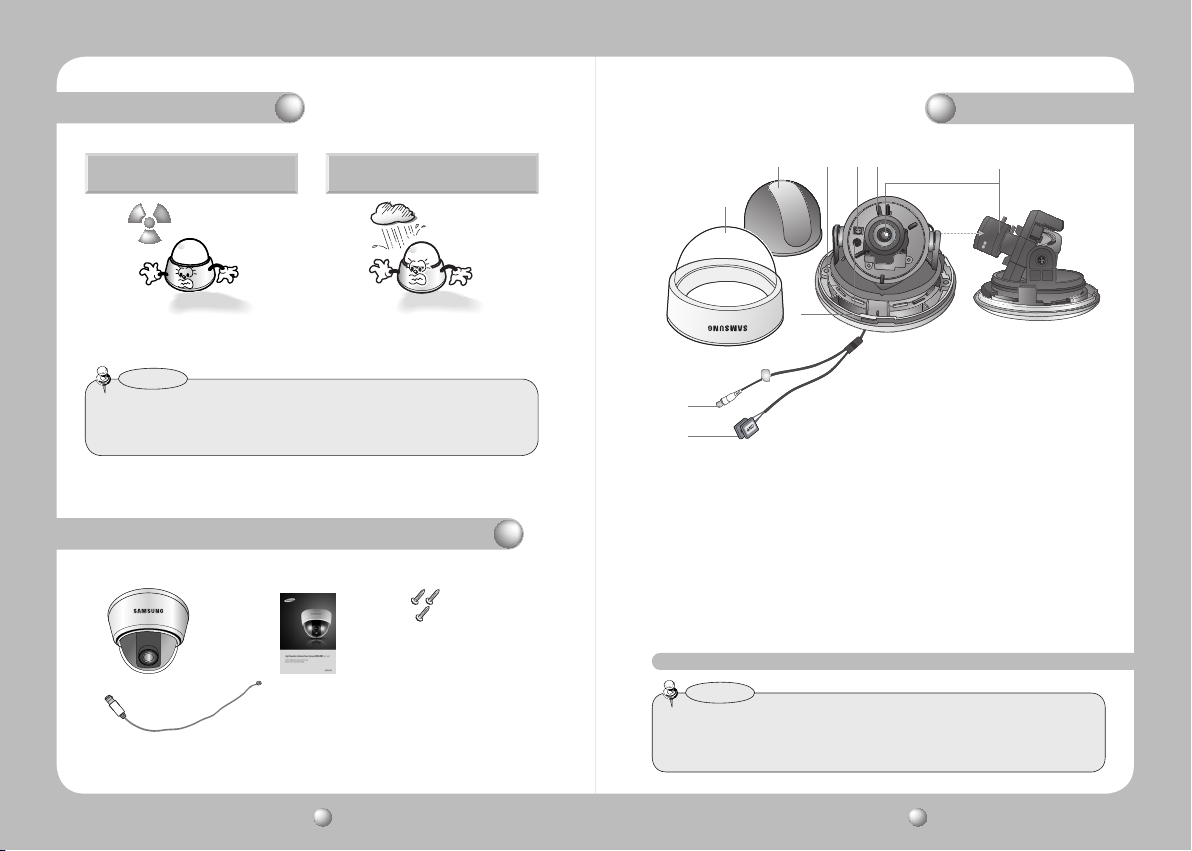

Do not expose the camera to
radioactivity.
Do not expose the camera to rain
or other types of liquids.
❶ SCD-2080
2 InstructionManual
3 M4TappingScrew3EA
4 InstallationVideoOutputCable
❶
4
2 3
If exposed to radioactivity, the CCD will fail. May cause a product malfunction.Wipe dry any
liquids. Liquids may contain minerals that are
corrosive to electronic components.
Components and Accessories
❶Pan Base : Control panning angle of camera.
2Rotate Base : Control rotating angle of camera.
3x3.6 Vari-focal Lens Module 2.8 ~ 10.0mm (F1.2)
4Video Output Terminal to Monitor
5
Function Setup switch : Display the menu on the screen and move the cursor to four
directions to confirm status or after changing a selected item.
6Video Output Jack
7Power Input Terminal
8Dome Cover
9Shield Case
•Theinstallationshouldbedonebyqualifiedservicepersonnelorsysyteminstallers.
•Iftheceilingmaterialisnotstrongenoughtoholdtheinstallationscrews,thecamera
mayfalloff.Reinforcetheceilingasneeded.
Notes
Installation
3
7
6
8
9❶
5
24

COLOR DOME CAMERA User Guide
10
COLOR DOME CAMERA User Guide
11
Anarrowforinstalling
directions

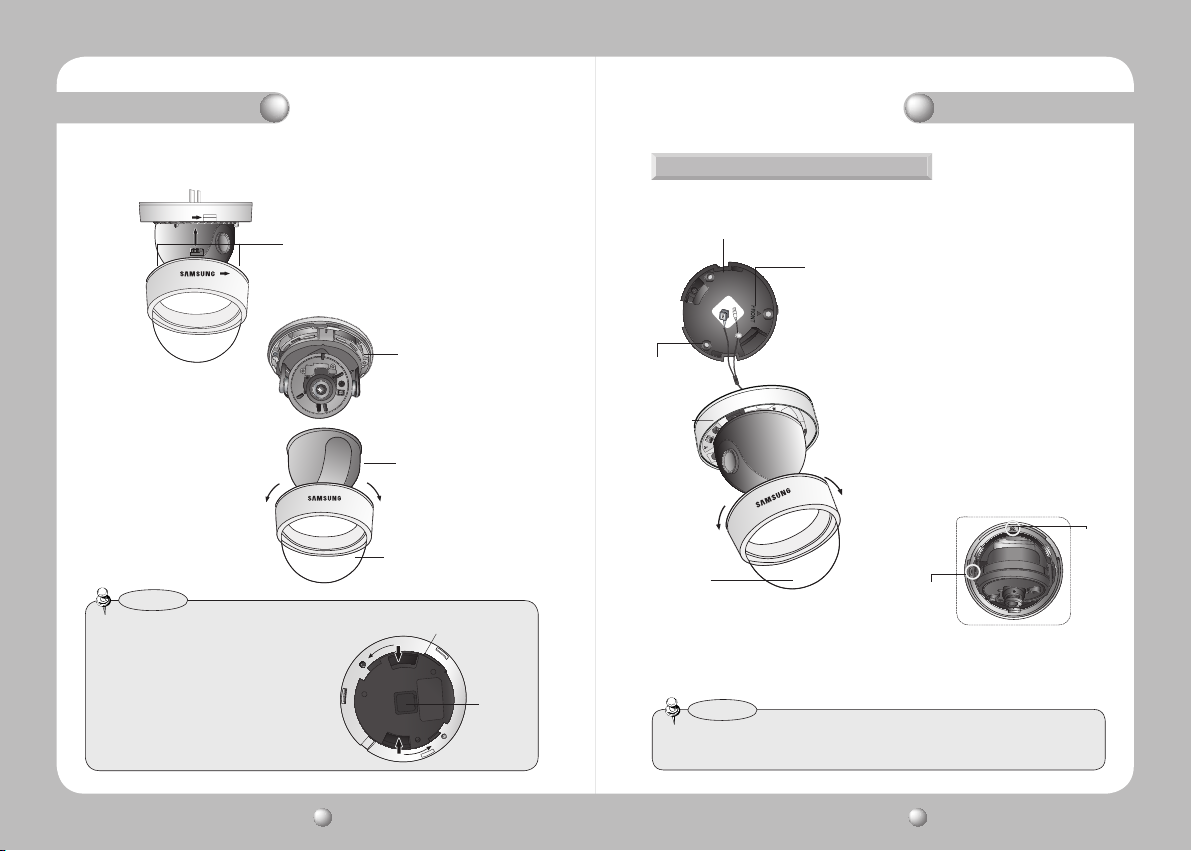

1) Separate the dome cover by turning anti-clockwise.
2) Separate the shield case by pulling from the camera body.
* To install the dome cover on the camera
body, turn the latches in locking direction
as shown in the figure 1.
Latch
Lockingdirection
[Figure1]
Lockingdirection
(Clockwise)
MainBody
(Camera)
ShieldCase
Domecover
Unlocking direction
(Anti-clockwise)
Installation
When using the Ceiling bracket
Installation
•The installation should be done by qualified
service personnel or system installers.
•Iftheceilingmaterialisnotstrongenoughto
hold the installation screws, the camera may
falloff.Reinforcetheceilingasneeded.
•Tochangethepositionofthecable,take
awaytheHoleCoverandpassthecable
through.
Notes
Originalpositionof
the cable
HoleCover
[Figure-2]
M4tapping
screw
PanBase
fixation
screw
Unlocking
direction
M4tapping
screw (provided)
Domecover
CAMERA
Locking
direction
Ceilingbracket
1) Hold the ceiling bracket (located where the arrow
points to) and separate it from the main body of
the camera by rotating it anti-clockwise.
(refer to the picture in 'Notes' on page 10)
2) Place the separated ceiling bracket so that the
“Front” side faces the area to be monitored and
install it with the M4 tapping screws.
3) To combine the main body with the ceiling bracket,
make sure that the pan base fixation screw face the
opposite side of the “Front” side of the ceiling
bracket and rotate it clockwise.
4)Adjust the camera lens to face the area to be
monitored and fix the main body and the dome
cover by aligning the grooves and rotating the
body clockwise.
• Ifyouwanttoinstallthecamerawiththeceilingbracketcombined,fixitusingtwoM4tapping
screwsatthesideofthemainbody(refertothe[Figure-2]onpage11).
Notes

COLOR DOME CAMERA User Guide
12
COLOR DOME CAMERA User Guide
13
1) You can adjust camera to any direction by using Pan,Tilt, Rotate mechanism.
 •PanBasemovesby176˚toeachsidedirectionand352˚onthewhole.
 •TiltBasecoverstotal73˚angle(0˚~73˚).
 •RotateBasemovesby174°toeachsidedirectionand348°onthewhole.
2) Methods of adjustment
 •The case of wall installation
1 After mounting the camera on a wall, adjusting the panning angle so that the camera can
face the direction to monitor when tilted.
2 Adjust the tilting angle by rotating the tilt base.
3 Loosen the rotate base hold screw and adjust rotate base for the best view.
4 Tighten the rotate base hold screw.
 •The case of ceiling installation
1 After mounting the camera on a ceiling, adjusting the panning angle to the correct viewing
position by rotating the pan base.
2 Adjust the tilting angle by rotating the tilt base.
3 Loosen the rotate base hold screw and adjust rotate base for the best view.
4 Tighten the rotate base hold screw.
Adjust the panning and tilting, rotating while watching the monitor
Installation
Connect the Video Output jack to the VIDEO-IN jack of monitor.
CCTVCamera Monitor
• As the connecting method varies with the instruments, refer to the manual supplied with the
instrument.
• If necessary, you can connect the monitor to the REMOTE jack on the back of your camera.
• Only connect the cable when the power is turned off.
Connect the adaptor to the power input terminal as shown in the figure below. The
recommended adaptor specification for SCD-2080N/SCD-2080P is DC 12V / 500mA or AC 24V
/ 300mA.
Connection
Connecting to Monitor
Connecting to Power
73˚
174˚
176˚
Pan Base
Tilt Base
Rotate Base
----PowerInputTerminal
• As shown in the table above, voltage decreases as the wire gets longer. Therefore
use of an excessively long adaptor output line for connection to the camera may
affect the performance of the camera.
*Standard voltage for camera operation : DC 12V ± 10%, AC 24V ±10%
* There may be some deviation in voltage drop depending on the type of wire and the manufacturer.
When the resistance value of copper wire is at [20˚C(68˚F)]
Copper wire size (AWG)
#24(0.22mm2)#22(0.33mm2)#20(0.52mm2)#18(0.83mm2)
Resistance (Ω/m) 0.078 0.050 0.030 0.018
Voltage Drop (V/m) 0.028 0.018 0.011 0.006

COLOR DOME CAMERA User Guide
14
COLOR DOME CAMERA User Guide
15
Operating Your Camera
•Besuretoconnectpoweronlyafteralltheinstallationiscomplete.
•NotethatAC/DCadaptorisnotsuppliedwithcamera.
•GroundshouldbeconnectedtotheGNDterminal.
Notes Menu Configuration
Connection
MAIN SETUP
LENS
DC 
EXPOSURE
BRIGHTNESS  SHUTTER  AGC 
SENS-UP RETURN
WHITE BAL
ATW  OUTDOOR  INDOOR 
MANUAL  AWC→SET
SSDR
OFF  ON
BACKLIGHT
OFF  BLC  HLC
SSNR3
OFF  ON
DAY/NIGHT
COLOR  B/W  AUTO
SPECIAL
IMAGE ADJ  MONITOR  CAM TITLE 
SYNC MOTION DET  PRIVACY 
DIS  LANGUAGE  RETURN
EXIT
SAVE  NOT SAVE  RESET
• Coaxial Communications System
• OSD Control method
Using Coaxial Communications
Distance Recommended Cable Specification
300m 3C2V(RG-59/U)
450m 5C2V(RG-6/U)
600m 7C2V(RG-11/U)
• Video Cable
The camera's video output port is connected to the monitor with a BNC coaxial
cable, shown below : If the distance between the camera and the monitor
exceeds the recommended maximum, please use an auxiliary video amp.
•Itisrecommendedthatpurecoppercoaxcableisusedandnotcoppercoated
steel, as this will cause issues with the communication over the coaxial cable.
Notes
CAMERA DVR CONTROLLER
SET MENU/ENTER OSD KEY
UP UP KEY JOYSTICK UP
DOWN DOWN KEY JOYSTICK DOWN
LEFT LEFT KEY JOYSTICK LEFT
RIGHT RIGHT KEY JOYSTICK RIGHT
DVD
DVR
• :BNC
•---- :RS-485

COLOR DOME CAMERA User Guide
16
COLOR DOME CAMERA User Guide
17
Operating Your Camera
Use the Function Setup switch within the camera.
Function Setup switch
Menu Setup
2. Select a desired function using the Function Setup switch.
 •Placethecursoroveradesireditem.
3. Set up a selected item by using the Function Setup switch.
4.To finish the setting, select ‘EXIT’ and press the Function Setup switch.
•Anitemwiththe icon also has sub menus. To select a sub menu, select an item with
theiconandpresstheFunctionSetupswitch.
•Anitemwiththe---iconisunavailableduetofunctionsettings.
Notes
MAIN SETUP
1.LENS DC
2.EXPOSURE
3.WHITE BAL ATW
4.SSDR OFF
5.BACKLIGHT OFF
6.SSNR3 ON
7.DAY/NIGHT AUTO
8.SPECIAL
9.EXIT SAVE
Selectthefunctionusing
theFunctionSetupswitch.
Changethestatususing
theFunctionSetupswitch.
1. Press the Function Setup switch.
 •Mainsetupmenuisdisplayedonthemonitorscreen.
Using this function, you can control the screen brightness.
1.When the SETUP menu screen is displayed, selectLENSby using the Function
Setup switch so that the arrow indicatesLENS.
LENS
MAIN SETUP
1.LENS DC
2.EXPOSURE
2.The Lens mode has sub menu site as listed below.
- BRIGHTNESS :Adjusts the video brightness.
- FOCUS ADJ : To adjust the lens focus correctly, you must activate the Focus Settings
mode. To activate the Focus Settings mode, adjust the lens focus, and then deactivate
the settings mode.
- You can adjust the shutter value of ESC shutter mode.
MAIN SETUP
1.LENS DC
2.EXPOSURE
3.WHITE BAL ATW
EXPOSURE
1.When the SETUP menu screen is displayed, select 'EXPOSURE’ by using the Function
Setup switch so that the arrow indicates 'EXPOSURE’.
2. Select a desired mode using the Function Setup switch.
BRIGHTNESS : Adjusts the video brightness.

COLOR DOME CAMERA User Guide
18
COLOR DOME CAMERA User Guide
19
Operating Your Camera
EXPOSURE SETUP
1.BRIGHTNESS 25
2.SHUTTER ---
3.AGC HIGH
4.SENS-UP OFF
5.RETURN
SHUTTER :You can select the shutter.
- A.FLK : Select this when you experience picture flicker, this happens when there
is a clash with the installed lighting frequency.
- ESC : Select this to control the shutter speed automatically. If ESC is selected,
the shutter speed is automatically controlled depending on the ambient
illumination of the subject.
- MANUAL : You can control shutter speed manually.
(NTSCMODEL:1/60~1/120,000,PALMODEL:1/50~1/120,000)
- --- : Shutter speed is fixed at 1/60sec(1/50sec).
AGC(AUTO GAIN CONTROL) : The higher the gain level, the brighter the screen - but
the greater the noise.
- OFF : Deactivates the AGC function.
- LOW :Allows automatic gain control from 5.3dB to 32dB.
- HIGH : Allows automatic gain control from 5.3dB to 37dB.
SENS-UP :When it is night or dark, the camera automatically detects the light level
and maintains a clear picture if this mode is activated.
- OFF : Deactivates the SENS-UP function.
- AUTO :Activates the SENS-UP function.
•Settheshuttermodeto---ifcolorrollingoccurs.
•Whenthe SHUTTER isset toESC afterselecting theInternalSynchronizationType,the
picture may become unstable if the camera faces a bright fluorescent light. Therefore,
take care when choosing the installation position.
•WhentheSHUTTERissettoMANUALorA.FLKmode,SENS-UPwillbedisabled.
Notes
•If you set the Function Setup switch to ‘AUTO’ mode,You can adjust the brightness by
increasingordecreasingtheshutterspeed.(x2~x512)
•Notethatthehigherthezoomlevel,thebrighterthescreen,butthemorelikelyitisthatan
after-imagewillappear.
•AlthoughNoise,Spots,andWhitishsymptomsmayoccurinSENS-UPoperationwhenthe
zoomlevelisincreased,thisisnormal.
Notes
RETURN : Select this to save the changes in the EXPOSURE menu and return to the
SETUP menu.
Use the White Balance function to adjust the screen color.
1.When the SETUP menu screen is displayed, select ‘White Bal’ by using the Function
Setup switch so that the arrow indicates ‘White Bal’ .
2. Select a desired mode using the Function Setup switch.
White Bal (White Balance)
MAIN SETUP
1.LENS DC
2.EXPOSURE
3.WHITE BAL ATW
4.SSDR OFF
Select one of the following 5 modes, as appropriate for your purpose.
ATW : Select this when the color temperature is between 1,700˚K and
11,000˚K.
OUTDOOR : Select this when the color temperature is between 1,700˚K and
11,000˚K. (sodium light inclusion)
INDOOR : Select this when the color temperature is between 4,500˚K and
8,500˚K.
MANUAL : Select this to fine-tune White Balance manually. Set White Balance
first by using the ATW or AWC mode.After that switch to MANUAL
mode, fine-tune the White Balance and the Function Setup switch.

COLOR DOME CAMERA User Guide
20
COLOR DOME CAMERA User Guide
21
Operating Your Camera
•WhiteBalancemaynotworkproperlyunderthefollowingconditions.Inthiscaseselect
theAWCmode.
❶ Whenthecolortemperatureoftheenvironmentsurroundingthesubjectisoutofthe
control range (e.g. clear sky or sunset).
2
Whentheambientilluminationofthesubjectisdim.
3
 Ifthecamera isdirectedtowardsafluorescentlight orisinstalled inaplacewhere
illumination changes dramatically, the White Balance operation may become unstable.
Notes
AWC SET : To find the optimal luminance level for the current environment, point
the camera towards a sheet of white paper and press the Function
Setup switch. If the environment changes, readjust it.
MAIN SETUP
1.LENS DC
2.EXPOSURE
3.WHITE BAL ATW
4.SSDR OFF
5.BACKLIGHT OFF
SSDR (Samsung Super Dynamic Range)
SSDR illuminates darker areas of an image while retaining the same light level for brighter
areas to even out the overall brightness of images with high contrast between bright and
dark areas.
SSDROFF
1.When the SETUP menu screen is displayed, select ‘SSDR’ by using the Function Setup
switch so that the arrow indicates ‘SSDR’.
2. Use the Function Setup switch to change the SSDR level in the sub menu according to
the contrast between bright and dark areas.
SSDRON
BACKLIGHT
Unlike conventional cameras, the SCD-2080 is designed so that it delivers a distinctive
subject and background at the same time, even when the subject is in backlight, by
adopting a function of the proprietary W-V DSP chip.
1.When the SETUP menu screen is displayed, select ‘BACKLIGHT’ by using the Function
Setup switch so that the arrow indicates ‘BACKLIGHT’.
2. Select a desired mode using the Function Setup switch depending on the camera purpose.
MAIN SETUP
1.LENS DC
2.EXPOSURE
3.WHITE BAL ATW
4.SSDR OFF
5.BACKLIGHT OFF
6.SSNR3 ON
BLC :
Enables a user to select a desired area on a picture and view that area more clearly.
- LEVEL :Adjust level of the BLC function.
- TOP/BOTTOM/LEFT/RIGHT :Adjust the area to be enhanced.

COLOR DOME CAMERA User Guide
22
COLOR DOME CAMERA User Guide
23
Operating Your Camera
OFF : Not being used
HLC (High Light Compensation) :
If the scene contains extremely bright light areas such as; from car headlight, the
light can mask out much of the on-screen detail.
- LEVEL :Adjust level of the HLC function.
- LIMIT : Enable to change the operating condition.
- MASK COLOR/TONE : Change the color / brightness of the masking area.
(Black, Red, Blue, Cyan, Magenta)
- TOP/BOTTOM/LEFT/RIGHT :Adjust the area to be enhanced.
3. Select a desired mode using the Function Setup switch.
Select ‘BLC’ to adjust the area to be
enhanced then adjust the level.
HLC : Enable the user to change the level,
limit, mask color/tone and area.
•BecausetherecanbeadifferenceintheeffectivenessofHLCaccordingtotheamountof
lightareainthescreen,optimizetheinstallationangleforthebestHLCperformance.
•Whendark,the HLCis onlyactivated whena brightlight exceedinga specificsize.(In
NIGHTONLYmode.)
•TheHLCisnotactivatedindaylightorwhenbrightlightisnotpresentatnight.(InNIGHT
ONLYmode.)
•WhenHLCfunctionisused,D-ZOOMandDISfunctionsarenotactivated.
Notes
This function reduces the background noise in a low luminance environment.
1.When the SETUP menu screen is displayed, select ‘SSNR3’ by using the Function Setup
switch so that the arrow indicates ‘SSNR3’ .
SSNR3
MAIN SETUP
1.LENS DC
2.EXPOSURE
3.WHITE BAL ATW
4.SSDR OFF
5.BACKLIGHT OFF
6.SSNR3 ON
7.DAY/NIGHT AUTO
2. Select a desired mode using the Function Setup switch.
OFF : Deactivates SSNR3. Noise is not reduced.
ON : Activates SSNR3 so that noise is reduced.
3. Set the SSNR3 mode to ‘ON’ and press the Function Setup switch. Then you can adjust
the noise reduction level.
•YoucannotsettheSSNR3to‘ON’or‘OFF’whentheAGCmodeoftheEXPOSUREmenuis
‘OFF’.
•WhenadjustingthenoisereductionlevelintheSSNR3mode,rememberthatthehigher
the level set, the more the noise level will be reduced, as will the brightness of the image.
Notes

COLOR DOME CAMERA User Guide
24
COLOR DOME CAMERA User Guide
25
Operating Your Camera
You can display pictures in color or in black and white.
1.When the SETUP menu screen is displayed, select ‘DAY/NIGHT’ by using the Function
Setup switch so that the arrow indicates ‘DAY/NIGHT’.
DAY/NIGHT
MAIN SETUP
1.LENS DC
2.EXPOSURE
3.WHITE BAL ATW
4.SSDR OFF
5.BACKLIGHT OFF
6.SSNR3 ON
7.DAY/NIGHT AUTO
8.SPECIAL
2. Select a desired mode using the Function Setup switch according to the picture display
you want.
COLOR : The picture is always displayed in color.
B/W : The picture is always displayed in black and white.
You can turn on or off the burst signal on B/W mode.
AUTO :The mode is switched to ’Color‘ in a normal environment, but switches to
’B/W‘ mode when ambient illumination is
low.To set up the switching time for AUTO
mode, press the Function Setup switch.
You can turn on or off the burst signal on
B/W mode.
  -DURATION:Youcanselecttheday/nightswitching
point.
•WhenAGCintheEXPOSUREmenuis'OFF','---'modeoperatesasselecting'COLOR'
modeand'AUTO'modecannotbeselected.
Notes
*Theday/nightswitchingpointofthe
camera can be adjusted.
Color ➞B/W B/W ➞Color
Early 2.5 lux 5 lux
Late 1 lux 10 lux
1.When the SETUP menu screen is displayed, select ‘SPECIAL’ by using the Function Setup
switch so that the arrow indicates ‘SPECIAL’.
SPECIAL
MAIN SETUP
1.LENS DC
2.EXPOSURE
3.WHITE BAL ATW
4.SSDR OFF
5.BACKLIGHT OFF
6.SSNR3 ON
7.DAY/NIGHT AUTO
8.SPECIAL
  -DWELLTIME:Youcanselectthedurationtimeaboutchangingtheday/nightmode.
3s,5s,7s,10s,15s,20s,30s,40,60s

COLOR DOME CAMERA User Guide
26
COLOR DOME CAMERA User Guide
27
Operating Your Camera
IMAGE ADJ :
1) When the SPECIAL menu screen is displayed, select ‘IMAGE ADJ’ by using the
Function Setup switch so that the arrow indicates ’IMAGE ADJ‘.
IMAGE SETUP
1. V-REV OFF
2. H-REV OFF
3. D-ZOOM OFF
4. FONT COLOR WHITE
5. SHARPNESS ON
6. RETURN
2) Select a desired mode using the Function Setup switch.
 •V-REV :You can flip the picture vertically on the screen.
 •H-REV :You can flip the picture horizontally on the screen.
 •D-ZOOM :You can use a digital zoom of x1 ~ x16.
 •FONT COLOR :You can change the OSD font color. (White,Yellow, Green, Red, Blue)
•WhentheV-REVorH-REVmodeisenabled,thetextonthescreendoesnotflip.
•If youincrease the  SHARPNESS leveltoo high,thepicture may becomedistorted or
noise may appear.
Notes

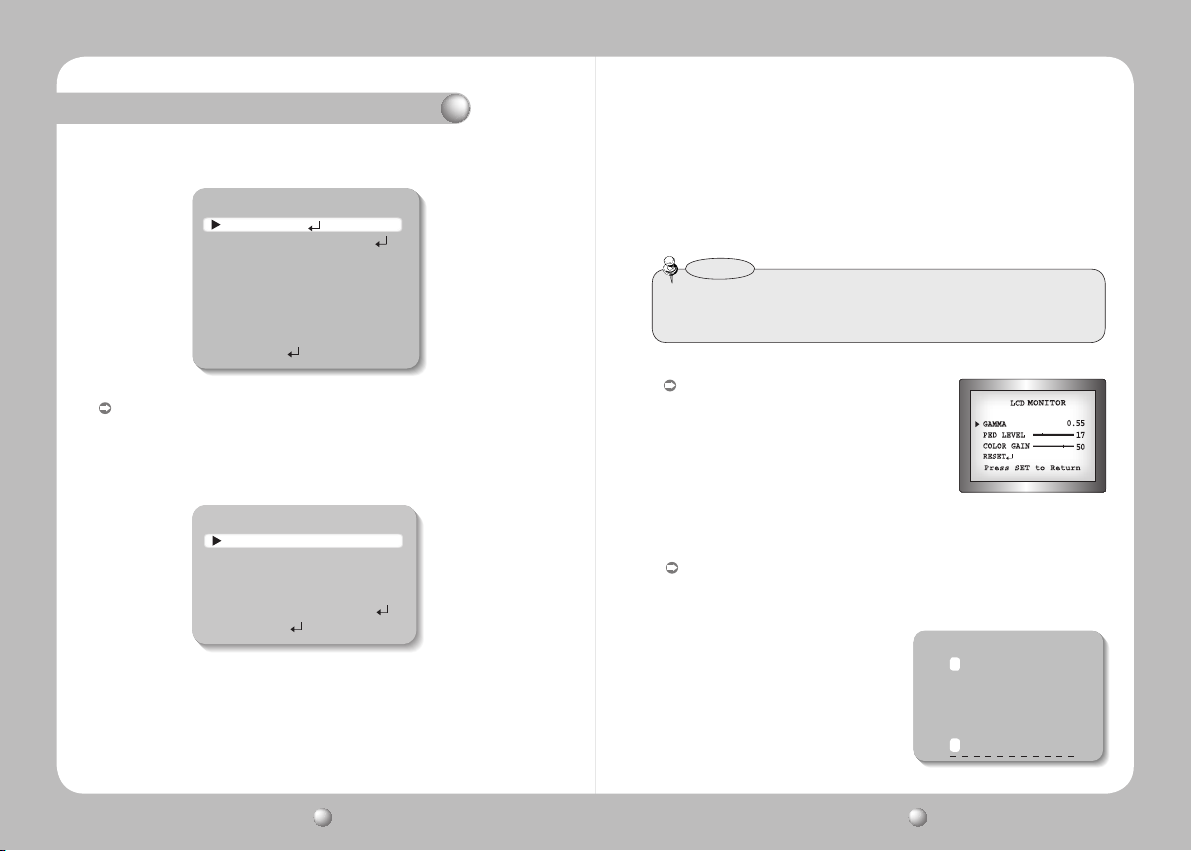

Monitor : Please change the settings value of video
appropriate to your monitor.
  -LCD :Pleaseselectthismenuitemwhenusingan
LCD monitor.
Youcanchangethegamma,PEDleveland
color gain in the sub menus.
  -CRT : PleaseselectthismenuitemwhenusingaCRT
monitor.
  -USER: Pleaseusethismenuitemwhenusingamonitorotherthanstandardones.You
canchangethegamma,PEDlevel,andcolorgaininthesubmenus.
CAM TITLE : If you enter a title, the title will appear on the monitor.
1) If the SPECIAL menu screen is displayed, use the Function Setup switch so that the
arrow indicates ‘CAM TITLE’.
SPECIAL
1. IMAGE ADJ
2. MONITOR LCD
3. CAM TITLE OFF
4. SYNC INT
5. MOTION DET OFF
6. PRIVACY OFF
7. DIS OFF
8. LANGUAGE ENGLISH
9. RETURN
2. Select a desired mode using the Function Setup switch.
 •SHARPNESS :As you increase this value, the picture outline becomes stronger and
clearer. Adjust this value appropriately depending on the sharpness of
the picture.
 •RETURN : Select this to save the settings for the IMAGE ADJ menu and to return
to the SPECIAL menu.
2) Set it to ‘ON’ by using the Function Setup
switch.
3) Press the Function Setup switch.
4) Use the Function Setup switch to move
to a desired letter and select the letter by
pressing the Function Setup switch.
Repeat this to enter multiple letters. You
can enter up to 15 letters.
CAMERA TITLE SETUP
ABCDEFGHIJKLM
NOPQRSTUVWXYZ
abcdefghijklm
nopqrstuvwxyz
-.0123456789
CLR POS END

COLOR DOME CAMERA User Guide
28
COLOR DOME CAMERA User Guide
29
Operating Your Camera
•WhentheCAMTITLEmenuis‘OFF’,notitlewillbedisplayedonthemonitorscreeneven
if you enter one.
•OnlyEnglishisavailableinthismode.
•Ifyoumovethe cursortoCLR and presstheFunctionSetup switch,alltheletters are
deleted. To edit a letter, change the cursor to the bottom left arrow and press the
FunctionSetupswitch.Movethecursoroverthelettertobeedited,movethecursorto
thelettertobeinsertedandthenpresstheFunctionSetupswitch.
Notes
SYNC : In areas where the supply is at 60Hz(NTSC),
50Hz(PAL), you can synchronize the output
phase of multiple cameras using the power
synchronization function (Line-Lock) without
using a synchronization signal generator.
  -INT :InternalSynchronizationType
 -L/L :PowerSynchronizationType,Line-lock
• Press the Function Setup switch.
• You can select a desired phase from 0 to 359 when select 'phase'.
•WhenusingACpowerat60Hz(NTSC),50Hz(PAL)frequency,youcanusetheL/L
typesynchronization.
•WhenthepowerisDC12V,theSYNCmenuisfixedtothe‘INT’mode.
Notes
MOTION DET :
This product has a feature that allows you to observe
movement of objects in 8 different areas on the
screen, and the words 'MOTION DETECTED' appear
on the screen when movement is detected.You can
monitor activity more efficient.
1) When the SPECIAL menu screen is displayed, press the Function Setup switch so
that the arrow indicatesMOTION DET.
2) Set up the mode using the Function Setup switch.
  -SENSITIVITY:Youcanselectupto8MDareas.WhenSENSITIVITYnumberishigh,
motiondetectionsensitivityisincreasedtorecognizeevensmall
movement.
  -AREAMODE:DetermineswhethertousetheMDareaselectedinSENSITIVITY.
  -SELPOS:Determineswhichofthe4verticesofeachMDareaistobeused.
  -XPOS:DeterminesthecoordinateofthehorizontalaxisforSELPOS.
  -YPOS:DeterminesthecoordinateoftheverticalaxisforSELPOS.
- FILLSET:FillsinaselectedMDarea.Thecoloroffillingissequentiallyselectedas
brown, orange, blue, cyan, green, yellow, magenta and red.
  -RETURN:SelectthistosavetheMOTIONDETmenusettingsandreturntothe
SPECIALmenu.
FRONT DOOR
5) Enter a title, move the cursor to ‘POS’ and press
the Function Setup switch. The entered title
appears on the screen. Select the position to
display the title on the screen by using the
Function Setup switch and press the Function
Setup switch. When the position is determined,
select ‘END’ and press the Function Setup
switch to return to the SPECIAL menu.
PRIVACY : Mask an area you want to hide on the screen.
PRIVACY AREA SETUP
1. AREA AREA1
2. MODE OFF
3. MASK COLOR GREEN
4. MASK TONE 1
5. TOP 39
6. BOTTOM 79
7. LEFT 13
8. RIGHT 52
9. RETURN

COLOR DOME CAMERA User Guide
30
COLOR DOME CAMERA User Guide
31
Select a desired EXIT mode using the Function Setup switch depending on the camera
purpose.
- SAVE : Save the current settings and exit the MAIN SETUP menu.
- NOT SAVE : Do not save the current settings and exit the MAIN SETUP menu.
- RESET : Resets the camera settings to the factory defaults. Language and Monitor
settings are not initialized.
EXIT
  -MASKTONE :AdjustthebrightnessofMASKCOLOR.
  -TOP/BOTTOM/LEFT/RIGHT:Adjustthesizeandpositionoftheselectedarea.
  -RETURN :Selectthis to save thePRIVACYmenu settings andreturntothe
SPECIALmenu.
1) When the SPECIAL menu screen is displayed, press the Function Setup switch so
that the arrow indicates ‘PRIVACY’.
2) Set up the mode using the Function Setup switch.
  -AREA :Youcanselectupto12PRIVACYareas.
  -MODE :DetermineswhethertousetheareaselectedintheAREA.
  -MASKCOLOR :Determineareacolor.YoucanselectGreen,Red,Blue,Black,White,
Gray.
Operating Your Camera

DIS (Digital Image Stabilizer) :This function mitigates any picture movement due to
external factors such as wind.
Troubleshooting
If you have trouble operating your camera, refer to the following table.
If the guidelines do not enable you to solve the problem, contact an authorized technician.
• Nothing appears on the screen.
▶Check that the power cord and line connection between the camera and monitor are
properly connected.
▶CheckthatyouhaveproperlyconnectedBNCcabletothecamera.
• The image on the screen is dim.
▶Is the lens stained with dirt? Clean your lens with soft, clean cloth.
▶Set the monitor to the proper condition.
▶If the camera is exposed to very strong light, change the camera position.
• The image on the screen is dark.
▶Adjust the contrast feature of the monitor.
▶Ifyouhaveanintermediatedevice,setthe75Ω/Hi-zproperly.
• The camera is not working properly, and the surface of the camera is hot.
▶Check that you have properly connected the camera to an appropriate power source.
• The SENS-UP function does not work.
▶CheckthatAGCofEXPOSURESETUPmenuis‘OFF’.
▶CheckthatSHUTTERofEXPOSURESETUPmenuis‘A.FLK’or‘MANUAL’.
• The Motion Detection function does not work.
▶CheckthatMOTIONDETofSPECIALSETUPmenuis‘OFF’.
• Color is not correct.
▶CheckthesettingofWHITEBALSETUPmenu.
• The screen flickers continually.
▶Check that direction of camera turns toward the Sun.
• When coaxial communication is not available:
▶Make sure that the camera and monitor are installed within the recommended distance.
▶Use the video amplifier equivalent to coaxitron if the recommended installation distance
is exceeded.
•As the DIS function uses the digital zoom, the camera's resolution will decrease.
•DIS doesn’t operate when background illumination is too low.
•DIS doesn’t operate when object pattern is monotonic as like sky or white wall.
Notes
LANGUAGE :You can select the menu language according to your requirements.
- NTSC : Korean, English, French, Spanish, Japanese, Portuguese,Taiwanese
- PAL : English, Chinese, German, Italian, French, Spanish, Russian, Czech, Polish,
Romanian, Serbian, Swedish, Danish,Turkish, Portuguese
RETURN : Select this to save the SPECIAL menu settings and return to the MAIN SETUP
menu.

COLOR DOME CAMERA User Guide
32
COLOR DOME CAMERA User Guide
33
Specifications
The specification for this product may change without prior notice for product improvement.
SCD-2080N SCD-2080P
ELECTRICAL
Input Voltage DC 12V / AC 24V
Power Consumption Max 3.5W
VIDEO
Imaging Device 1/3 inch, Diagonal 6mm Super HAD CCD
Total Pixels 811(H) x 508(V) 795(H) x 596(V)
Effective Pixels 768(H) x 494(V) 752(H) x 582(V)
Scanning System 2:1 Interlace
Synchronization Internal / Line-Lock
Frequency H : 15.734KHz V:59.94Hz H: 15.625KHz V: 50.00Hz
Horizontal Resolution COLOR : 600TVL, B/W : 700TVL
Min. Illumination COLOR : 0.15 Lux (50IRE, @F1.2), 0.0003Lux (SENS-UP, x512)
B/W : 0.001Lux (50IRE, @F1.2), 0.000002Lux (SENS-UP, x512)
S/N (Y Signal) 52dB (Weight On, AGC Off)
Video Output CVBS : 1.0Vp-p, 75Ω composite
LENS
Zoom Ratio 3.6x (Manual)
Focus Length 2.8 ~ 10.0mm (F1.2)
Angular Field of View Tele : 28°(H) x 21°(V), Wide : 94.4°(H) x 69.2°(V)
PAN / TILT / ROTATE
Pan / Tilt / Rotate Range 0°~352° / 0°~73° / 0°~348°
OPERATIONAL
Electronic Shutter Speed 1/60 ~ 1/120k sec 1/50 ~ 1/120k sec
ON Screen Display
NTSC : Korean, English, Japanese, Spanish, French, Portuguese, Taiwanese
PAL : English, Chinese, German, Italian, French, Spanish, Russian, Czech, Polish,
Romanian, Serbian, Swedish, Danish, Turkish, Portuguese
SSDR On / Off (Level adjustable)
Backlight Compensation BLC / HLC / OFF
Day & Night COLOR / BW / AUTO (ICR Type)
Gain Control Low / High / Off
White Balance ATW / Outdoor / Indoor / Manual / AWC (1,700°K ~ 11,000°K)
SENS-UP (frame Integration) Auto / Off (Selectable x2 ~ x512)
Motion Detection On / Off (8 Programmable zones)
Privacy Masking On / Off (12 Programmable zones)
3D Noise Filter (SSNRIII) On / Off (Level adjustable)
Digital Zoom On / Off (x1 ~ x16)
Digital Image Stabilization(DIS) On / Off
Camera Title On / Off (Displayed 15 Characters)
Sharpness On / Off (Level adjustable)
Flip / Mirror On / Off
Communication Coaxial(Pelco Coaxitron)
ENVIRONMENTAL
Operating Temperature / Humidity -10°C ~ +50°C / 30% ~ 80% RH
Storage Temperature / Humidity -20°C ~ +60°C / 20% ~ 90% RH
MECHANICAL
Dimension / Weight Ø115.8 x 92.7(H)mm / 345g
Dimension
Ø115.8
Ø97
92.7

COLOR DOME CAMERA User Guide
34
COLOR DOME CAMERA User Guide
35
DECLARATION OF CONFORMITY
Application of Council Directive(s) 2004 / 108 / EC
Manufacturer's Name SAMSUNG TECHWIN CO., LTD
Manufacturer's Address SAMSUNG TECHWIN CO., LTD
42, SUNGJU-DONG CHANGWON-CITY,
KYUNGNAM, KOREA, 641-716
European Representative Name
European Representative Address
Equipment Type/Environment CCTV Camera
Model Name SCD-2080P
Beginning Serial NO. C5CZ6V3Z200001X
Year of Manufacture 2010.02.01
Conformance to EN 55022 : 2006
EN 50130-4 : 2003
We, the undersigned, hereby declare that the equipment specified above conforms
to the above Directive(s).
Manufacturer SAMSUNG TECHWIN CO., LTD Legal Representative in Europe
Signature Signature
Full Name BONJENG GU Full Name
Position QUALITY CONTROL MANAGER Position
Place CHANGWON, KOREA Place
Date 2010.02.01 Date
MEMO

P/No. : Z6806-1138-01A
VAN 10. 02
www.samsungtechwin.com
www.samsungsecurity.com
•SAMSUNG TECHWIN CO., LTD.
145-3, Sangdaewon 1-dong, Jungwon-gu, Seongnam-si Gyeonggi-do, Korea, 462-703
TEL : [phone]~8 FAX : [phone]
•SAMSUNG TECHWIN EUROPE LTD.
Samsung House, 1000 Hillswood Drive, Hillswood Business
Park Chertsey, Surrey, UNITED KINGDOM KT16 OPS
TEL : [phone] FAX : [phone]
•SAMSUNG TECHWIN AMERICA Inc.
1480 Charles Willard St, Carson, CA 90746, UNITED STATES
Tol Free : [phone] FAX : [phone]
www.samsungcctvusa.com
SALES NETWORK
