Samsung WEP420 - Headset - Over-the-ear User manual

GH68-xxxxxA

1
English Contents
BEFORE USING YOUR HEADSET
Checking phone compatibility .......................................................... 3
Checking the accessories ................................................................ 3
Your headset overview.................................................................... 4
Charging the headset ..................................................................... 5
Storage of the headset ................................................................... 6
BASIC OPERATIONS
Turning the headset on/off .............................................................. 7
Pairing with your Bluetooth phone.................................................... 8
Wearing the headset .................................................................... 10
Making a call............................................................................... 11
Ending a call ............................................................................... 12
Answering a call .......................................................................... 13
Adjusting the volume ................................................................... 13
Switching on the microphone......................................................... 14
Transferring a call from the phone to the headset............................. 14
Turning the indicator light on or off................................................. 14
Using enhanced features............................................................... 15
APPENDIX
Frequently asked questions........................................................... 17
Certification ................................................................................ 19
Warranty and parts replacement .................................................... 22
Correct disposal of this product....................................................... 24

2
Thank you for purchasing the Samsung Bluetooth Mono
Headset WEP420, we hope you will be delighted with its
operation.
Please read this user’s guide to get started, and to make the
best use of the headset’s many features.
Driving safety
• When you are driving a car, driving is your first
responsibility.
• When using your headset while driving, follow local
regulations in the country or region you are in.

3
English BEFORE USING YOUR HEADSET
Your headset is compatible with most Bluetooth phones that are
compliant with Bluetooth version 2.0 and support the headset
and/or hands-free profile(s). Ensure that your phone has
Bluetooth capability by visiting your phone manufacturer’s web
site.
Make sure you have the following items with your headset:
headset holder, travel adapter, User’s Guide
Checking phone compatibility
Some devices, especially those that are not tested or
approved by SIG, may be incompatible with your headset.
Checking the accessories

4
Your headset overview
Volume control
buttons
Indicator light
Multi-Function
button
Earpiece
Microphone
Headset cover
Earhook

5
English
Your headset uses a rechargeable battery. You must charge the
battery fully before using the headset for the first time.
1 Insert your headset into the slot of the headset holder.
2 Plug the travel adapter into the jack on the holder.
Charging the headset

6
3 Plug the travel adapter into the electrical outlet.
• Charge the headset until the red light on the headset
turns to blue.
• The headset will be fully charged in approximately 2
hours.
4 Remove the travel adapter from the headset holder.
• Always store the headset with the power off and make sure
it is safely protected.
• Avoid storage at high temperatures (above 40° C / 104° F).
such as in a hot vehicle or in direct sunlight. Storage at high
temperatures can damaged performance and reduce battery
life.
• Do not expose the headset or any of its supplied parts to
rain or other liquids.
Do not attempt to charge the headset with anything other
than the travel adapter provided. Using unauthorised
travel adapter may damage the headset.
The headset is not able to operate while charging. Try
connecting after charging is completed.
Storage of the headset

7
English BASIC OPERATIONS
Meaning of the indicator light
Turning the headset on/off
To Press and hold You will hear You will see
turn the
headset on the Multi-Function button for 3 seconds
until you see 4 blue
flashes on the
indicator light.
a tone. the indicator light
flashes while the
power is on (see
Meaning of the
indicator light ).
turn the
headset off the Multi-Function button for 3 seconds
until you see 3 blue
and red flashes on
the indicator light.
series of 2
tones. the indicator light stops flashing.
Light Tone Status
Flashes in
blue every 8
seconds.
Quick series of 2
tones.
(Active mode starts.)
The headset is in Active mode.
• The headset has an active call in
progress.
• You can talk up to 4 hours.
*

8
Pairing will create a unique and encrypted wireless link between
two Bluetooth-enabled devices, such as your Bluetooth phone
and Bluetooth headset.
1 Ensure that the headset is off (see Turning the headset
on/off
).
Flashes in
blue every 3
seconds.
Quick series of 2
tones.
(Standby mode
starts.)
The headset is in Standby mode.
• The headset is waiting for a call.
• The headset can be in Standby
mode up to 70 hours. *
Flashes in red. 5 tones every 20
seconds. The battery of the headset is low. • There is less than 10% of battery
power left. Recharge the battery.
* Depending on the phone type and usage, the actual time may vary.
Pairing with your Bluetooth phone
When you turn on your headset for the first time, the
headset proceeds into Pairing mode so that you can
immediately pair it with other devices.
Light Tone Status

9
English

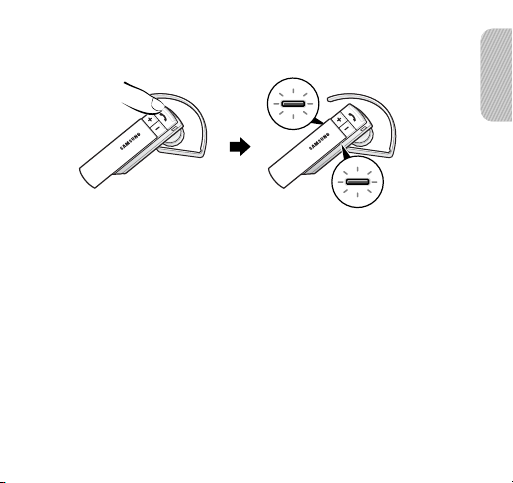

2 Press and hold the Multi-Function button until the indicator
light turns on in blue (approximately 8 seconds).
3 Set your Bluetooth phone to discover the headset by
following your phone’s guide.
Typically, the steps involve going to a ‘Settings,’
‘Connection’, or ‘Bluetooth’ menu on your phone and then
selecting the option to discover Bluetooth devices.
4 Your phone will find the Samsung WEP420 headset and ask
if you want to pair with it. Confirm this by pressing the
Yes
or
OK key.

10
5 Enter a passkey or PIN, 0000 (4 zeros), then press the Yes
or
OK key.
Wear the headset on your ear. In
general, you will get better
performance when there are no
obstructions (including parts of your
body) between the headset and the
phone.
If pairing was successful, the indicator light will flash in
blue 10 times rapidly before going to flashing every 3
seconds. If unsuccessful, the light remains on, and you
will need to re-attempt pairing.
Wearing the headset

11
English
Depending on what ear you are going to wear the headset,
simply adjust the ear hook accordingly.
Making a voice activated call
If the voice recognition feature is on, you can make a voice
activated call.
1 Press the Multi-Function button. You will hear the
voice-activation tone.
2 Say the name of the person you wish to call.
Depending on your phone, this feature is not supported.
Making a call
▲ Left ▲ Right

12
Redialling the last number
When the headset is connected with the phone via the
Headset profile:
1 Press the Multi-Function button to access the recent call list.
2 If necessary, press [ + ] or [ - ] to scroll to the number you
want.
3 Press the Multi-Function button to dial the selected number.
When the headset is connected with the phone via the
Hands-free profile:
Press and hold the Multi-Function button. When you release the
button, the phone dials the last dialled or received number.
Close the headset cover or press the Multi-Function button.
Depending on your phone, how to redial the last number
may vary.
Ending a call

13
English
When a call comes in, the headset sounds the ring tone and
flashes the blue indicator twice. Choose either of the following
ways to answer the call:
• When the headset cover is closed, open the cover.
• When the headset cover is open, press the Multi-Function
button.
Press [ + ] on the side of the headset to increase the volume
level and [
- ] to decrease the volume level.
Answering a call
Do not hold the Multi-Function button down too long
when making a call with your voice, ending, or answering
a call. This should only be a quick tap.
Adjusting the volume
At very high volumes, prolonged listening to the
headset can damage your hearing.

14
Press and hold [ + ] or [ - ] to switch off the headset's
microphone. To switch it back on, press and hold either one
again.
If you answer the call with your phone, you can transfer the call
to the headset by pressing the Multi-Function button.
You can deactivate the use of the indicator light in Standby
mode and in Active mode.
Press and hold [
+ ] or [ - ] to turn the indicator light on or off.
Switching on the microphone
Transferring a call from the phone to the
headset
Turning the indicator light on or off

15
English
Enhanced features are available for phones that support the
hands-free Bluetooth profile and enhanced features.
•
Rejecting a call
When you receive a call, close the headset cover or press
and hold the Multi-Function button.
Depending on your phone’s setting or type, you may only be
able to mute the ringer or this feature may not be
supported.
•
Placing a call on hold
While you are on a call, press and hold the Multi-Function
button.
To retrieve the call, press and hold the Multi-Function button
again.
Depending on your phone, this feature is not supported.
Using enhanced features
If the headset cover is closed, you will be unable to
reject a call.

16
• Answering a second call
When your phone notifies you of another incoming call while
you are on a call, press and hold the Multi-Function button
for 1 second to place the call on hold. Then press the
Multi-Function button to answer the second call.
You can switch between calls by pressing and holding the
Multi-Function button.
Depending on your phone, this feature is not supported.

17
English APPENDIX
Frequently asked questions
How far away from
my phone will the
headset work?
The operating range is typically up to 30 feet
(10 metres).
Will the headset
work with my
cordless phone at
home?
The headset is not designed for use with
cordless phones.
Will the headset
work with laptops,
PCs, and PDAs?
The headset will work with devices that are
compliant with Bluetooth version 2.0 and
support the headset and/or hands-free
profile(s).
Will anything
cause interference
with my
conversation when
I’m using the
headset?
Appliances such as cordless phones and
wireless networking equipment may cause
interference with your conversation. To
reduce any interference, keep the headset
away from other devices that use or produce
radio waves.

18
Will the headset
interfere with my
car’s electronics,
radio, or
computer?
The headset produces significantly less power
than a typical mobile phone. It also only emits
signals that are in compliance with the
international Bluetooth standard. Therefore,
you should not expect any interference with
standard consumer-grade electronics
equipment.
Can other
Bluetooth phone
users hear my
conversation?
When you pair the headset to your Bluetooth
phone, you are creating a private link
between only these two Bluetooth devices.
The wireless Bluetooth technology used in the
headset is not easily monitored by third
parties, because Bluetooth wireless signals
are significantly lower in radio frequency
power than those produced by a typical
mobile phone.
How do I take care
of the headset?
To clean the headset, use a clean, soft cloth
that is slightly damp.

19
English
Declaration of Conformity (R&TTE)
For the following product:
Bluetooth Ear-phone
(Product description)
WEP420
(Model name)
Manufactured at:
- Samsung Electronics Co., Ltd, 94-1, Imsoo-Dong, Gumi City, Kyung-Buk, Korea, 730-350
*
(factory name, address)
to which this declaration relates, is in conformity with the following standards and/or other normative documents.
Safety :
EMC :
Radio :
We hereby declare the [all essential radio test suites have been carried out and that] the above named product is in
conformity to all the essential requirements of Directive 1999/5/EC.
The conformity assessment procedure referred to in Article 10 and detailed in Annex[
IV ] of Directive 1999/5/EC has
been followed with the involvement of the following Notified Body(ies):
BABT, Balfour House, Churchfield Road,
Walton-on-Thames, Surrey, KT12 2TD, UK*
Identification mark: 0168
The technical documentation kept at:
Samsung Electronics QA Lab.
which will be made available upon request.
(Representative in the EU)
Samsung Electronics Euro QA Lab.
Blackbushe Business Park, Saxony Way,
Yateley, Hampshire, GU46 6GG, UK*
Yong-Sang Park / S. Manager
Certification
* It is not the address of Samsung Service Centre. For the address or the phone number of Samsung Service Centre, see the warranty
card or contact the retailer where you purchased your phone.
