Samsung shs-2920 User manual

Instruction
Manual
Convenient Opening of the
Door
Simple operation via card and
passcode
Automatic card recognition
feature
Convenient card recognition when
contacting the card
Dual-Authentication
Feature
Dual-Authentication feature through
card and passcode
Dual-Lock Feature
With dual-lock feature, the security
is enhanced
Fire Detection Feature
Built-in fire detection sensor
Crime prevention feature
when going outside
Alarm feature for inside activation
when going outside
Internet Home Page
SamsungSNS(Inc.)
ServiceCenter
Representative
PhoneNumber
Anywhere in the country If you accurately provide the product name,
fault condition, and contact number, then
we will always provide kind assistance and
quick service to customers' questions.
Precautions for Safety
Warning
Precautions for safety protect the user's safety and prevent damages
and inconvenience due to accidents. Please read this and use the
product properly.
Do not install or repair the product
randomly as you want.
Properly fit the battery into the product
onto its accurate (+/-) terminals. When
the battery is incorrectly placed in its
direction or charge as displayed into
the battery room, leakage and breakage
may occur, so please be careful.
When the battery life is ended, replace
all the batteries at once, and avoid
using new and used batteries at the
same time.
When cleaning the product, do not
wipe it with water, benzene, or alcohol,
and instead, use a dry cloth.
Replace the batteries to new ones
within one week of first hearing the
battery replacement notification alarm.
Do not install the product in a location
where the gap between the door and
doorframe is more than 5mm.
Cautiously manage the passcode so
that other people cannot know it, and
regularly change the number.
Do not operate the product when your
hand is wet, and be careful to not let
water, beverages, and other liquid to
get inside the product.
Do not forcibly press or use a sharp
tool to hit the button.
When you are going out, always check
the ensure that the door was fully
locked.
Product Components
Product components may be changed depending on the
installation environment.
Outside of Main Unit
Inside of Main Unit
Number Keypad
Turned Off Number Keypad On
Number Keypad
Battery replacement
notification
External Power
Contact Area
Registration Button
OPEN Button
Manual Switchgear
Deadbolt
Deadbolt
Door Opening Sensor
Automatic/Manual
Lock Conversion
Switch
Card Recognition Area
Reset hole
Number Keypad
Touch
Doorframe Strike Plate
(Strike)
Key-Tag (2EA)
'AA' Battery (LR6) (4EA)
Spacer
Instruction Manual
Installation Screw
Installation
Paper Diagram
Fixed Panel
Names and Features (Intside)
Opening the cover of the main unit on the inside
Gently press the battery cover of the main unit on the inside
and pull the cover in the direction shown in the arrow.
Opening the door from the outside
(passcode)
Opening the door from the outside
(card, key tag) Passcode Registration
Opening and closing the door from
the inside
When the product is first purchased, it is set in dual-security
mode. To set the product into normal mode, please refer to
the 'dual-security mode setting" method.
Passcode can be registered in 4~12 digits, and only one
can be registered to use.
When the product is first purchased, it is set in automatic
detection mode. To set it to manual detection mode, please
refer to "card automatic/manual detection setting" method.
Card and Key Tag Registration
When card or key tag is registered, previously registered card
and key tag information are all deleted, so try to register all
cards and key tags at once. Total of 20 card keys and key tags
can be registered (ISO 14443 Type A support)
[Number Keypad] is touched.
Contact the card and key tag
to the [card recognition area].
The door will open within one
second.
1. Tuch the [Number keypad] Automatic
Detection
Mode
Manual
Detection
Mode
1. Press the [Register] button. 2. Register the new passcode.
1. Press the [Register] button.
3. End card key registration
2. Contact card and key tag.
Open the battery cover and shortly
press [register] button.
Enter the new passcode (4~12
digits) and press the [*] button.
Open the battery cover and shortly
press [register] button.
Contact the card or key tag that
needs to be registered.
To end registration, press the
[register] button of the main unit on
the inside.
Electrically opening the door Electrically closing the door
Mechanically opening the
door
Mechanically closing the
door
Two buttons randomly lit up,
so press the two numbers in
the sequence.
Touch the [number pad]
When the number pad is lighted up,
contact the card or key tag in the
[card recognition area].
After 1 seconds, the door is opened.
With the door locked, pressing
the [OPEN] button of the main unit
on the inside opens the door.
With the door manually locked,
pressing the [OPEN] button of the
main unit on the inside locks the
already closed door.
With the door locked, turn the
manual switchgear to direction.
With the door closed in manual
lock status, turn the manual
switchgear to direction.
When all of the lights in the
number keypad show up, enter
the passcode and press [*]
button.
When all of the lights in the number keypad show
up, enter the passcode and press [*] button.
Success :
↑‘Beelililic’ melody
Fail : Short beep~
Success :↑‘Beelililic’
Fail : Short beep~
Beep Beelililic
Beep Beelililic
↑Beelililic
Success : ↑‘Beelililic’ melody
Fail : Short beep~
2. Enter the passcode.
Dual-security mode
Reference
Reference
Passcode must be entered when the number keypad is lighted up,
so if the lights are not on, then touch the [number keypad] and then
re-enter the passcode.
When the passcode is incorrectly entered to cancel the input, press
the [ ]button and start from the beginning.
If the passcode is incorrectly entered for five consecutive sounds, a
different alarm sound is played for about 10 seconds, and the
operation of doorlock is paused for roughly 3 minutes. During the
operation pause status, "beep" sound is played every 10 seconds,
and after 3 minutes, a long "beep" sound is played, and the pause
status is automatically disabled.
In the case of a card or a key tag which is not recognized
automatically, the door will be open after touch the number
pad and place it.
Warning
You must carry or keep at least one
emergency key outside.
In the case of an emergency, please
read and learn the instruction for
manual switchgear.
Names and Features (Outside)
↑Beelillic ↓Beellic
※ All registration and setting up can only
be operative while the door is open.
Caution
Caution
To prevent theft accidents, it is recommended to use the passcode
that is 6 digits or longer (only 0~9 numbers are usable).
Please be careful to manage the passcode so that other people will
not know. Using the same passcode for a long period of time may
lead to its exposure, so regularly change the passcode for use.
Registered passcode cannot be deleted, so register a new passcode
to use.
Check with the new passcode to see if the passcode was registered
normally, and then close the door.
To register various cards and key tags continuously, register the card or
key tag, and contact another card or key tag within 10 seconds. If another
card or key tag is not registered within 10 seconds, the registration
automatically ends.
To check if the card or key tag is normally registered, check the card and
key tag, and then close the door.
"Samsung SNS Doorlock" abides to the "ISO 14443 Type A standards, and
the cards, key tags, and NFC-use smartphones that completed
certification from "Samsung SNS Doorlock" are able to be registered on the
doorlock for use.

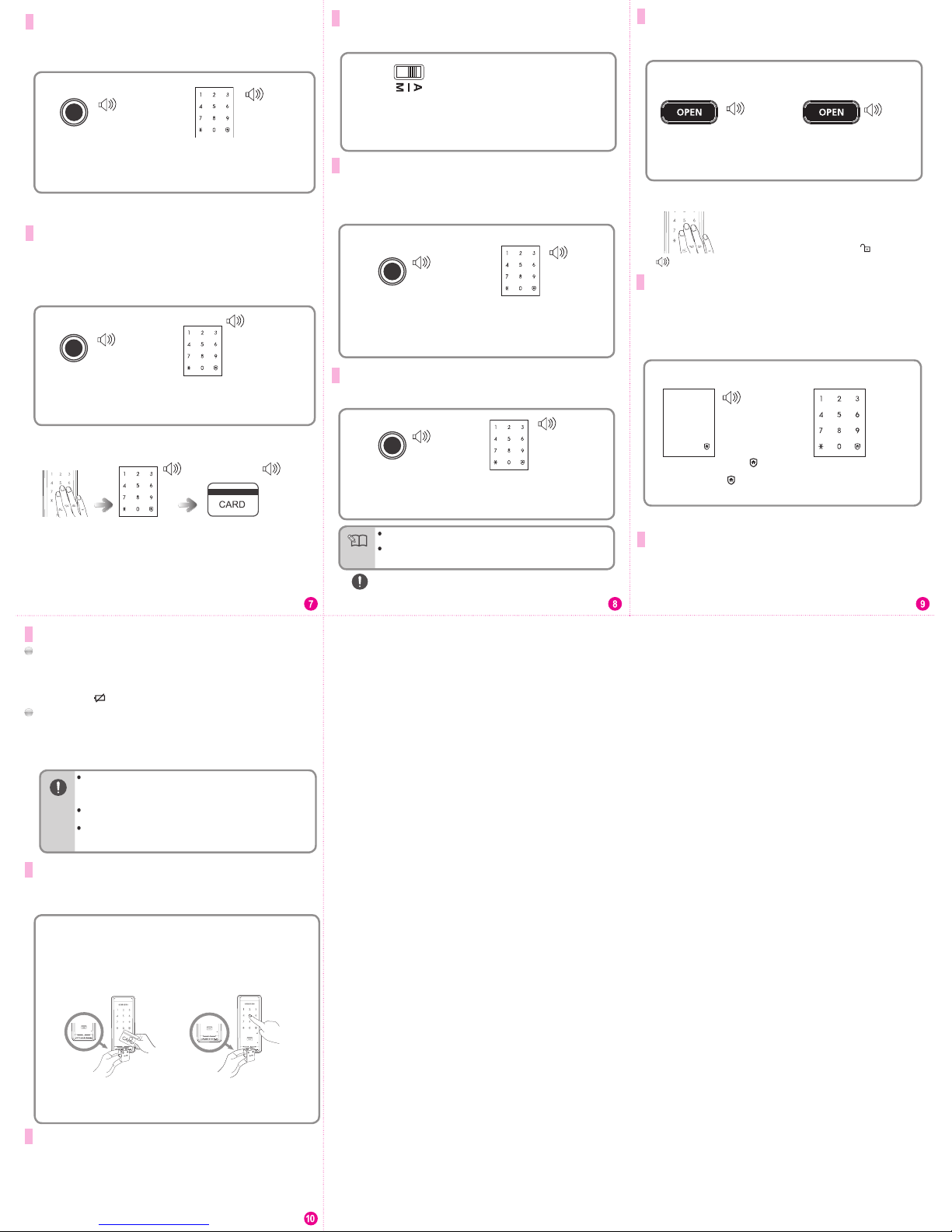

Setting/Disabling Dual-Security Mode
Setting/Disabling Dual-Authentication Mode
Dual-Security Mode is a mode for prevention of passcode
exposure by first pressing two random numbers and then
entering the actual passcode.
Automatic/Manual Lock Feature
It is possible to set the automatic lock feature that automati-
cally locks the door when it is closed.
Setting/Disabling Dual-Lock
Dual-Lock Feature is a feature to prevent the door from opening
from the outside.
Setting/Disabling Crime Prevention Feature
To prevent the intrusion from the outside when you are going
out, this feature triggers an emergency sound when the
doorlock is operated from the inside.
With the crime prevention in setting, pressing [OPEN] button
from the main unit on the inside triggers an emergency sound
for 5 minutes.
After opening the battery cover on the main unit of the inside,
press the [register] button or take out the battery. Then,
contact the registered card or key tag, or enter the passcode,
and then press the [*] button.
When the product is first purchased, it is set in automatic
detection mode, and when it is set to manual detection,
batteries can be used for a longer period of time.
Sound Setting/Disabling
Card automatic/manual detection setting
The sound from entering the passcode, locking the door, or
opening the locked door can be adjusted. When the product
is first purchased, the default setting is to play all the sounds.
(Two levels)
This is a feature for setting automatic or manual detection for
card or key tag.
Dual-Authentication Mode is a mode with enhanced security
that only opens the door when both passcode and card are
recognized.
To set the dual-authentication mode, at least 1 card needs to
be registered.
1. Press the [Register]
button.
Setting Dual-Lock
Feature
Dual-Lock Action
Disabling Dual-Lock
Feature
Setting Crime
Prevention Feature
Opening the door with emergency batteries
Disabling Crime
Prevention Feature
2. Sound setting
Dual-Authentication Mode Gestures
Battery Replacement
Prank Prevention Feature
When the doorlock is erroneously operated from the outside,
this feature sounds an alarm as well as prevents the doorlock
from working.
Trying to open the door with unregistered card or key tag, or
incorrectly entering the passcode for five times or more, an
alarm is sounded, and the doorlock does not operate for 3
minutes.
Purchase the emergency battery (9V) from nearby
convenience store or electronics store.
- Rather than regular manganese battery or rechargeable battery, it
is best to use alkaline battery, which has longer operation life.
Use of Emergency Batteries
Not changing the batteries and continuing to use them when it
is time to replace the batteries will cause them to discharge,
preventing the doorlock from properly operating.
With the 9V battery contacting the outside power (emergency
battery) contact area on the outer side of the main unit, contact
the card or key tag, or enter the passcode.
When the battery replacement notification alarm sounds
If opening the door with passcode, card, or key tag triggers
"Fur Elise" melody, then it is time to replace the batteries.
(When the replacement alarm rings, the battery replace-
ment alarm LED will be lit on. )
Replacing the battery
All 4 batteries must be replaced to new ones within 1
week of first sounding of the alarm.
- Depending on the door lock usage situation, following
number of batteries are inserted to be used.
Disabling Alarm Sound/Emergency Sound
Open the battery cover and
shortly press the [register]
button.
Press [7] or [9] button, and
then [*] button to set or
disable the dual-security
mode.
Open the battery cover and
shortly press the [register]
button.
When the door is locked, [ ] button
on the number keypad on the outside
lights up. Pressing [ ] button within
3 seconds sets the crime prevention
feature.
After contacting registered card
or key tag, or entering the
passcode, press the [*] button.
With the door locked, press
the [OPEN] button on the
inside for 3 seconds.
With the dual-lock feature in setting,
touching the number keypad from the
outside sounds an alarm, and the door
cannot be opened. But, if the manual
switchgear is changed to direction,
then the door can be opened.
Shortly press the [OPEN]
button on the inside.
- [0] button: Silence (excluding the alarm sound, all sound is disabled.)
- [1]~[3] button: As the levels go up, the sound becomes larger.
Press the numbers between
[0~3] and then, [*] button to
set the sound.
Set the [automatic/manual lock]
switch inside the main unit to
"automatic A" / "manual M" position.
- Automatic Method : When the door is closed, the door locks automatically
in two seconds. But, it does not operate when the battery discharges.
- Manual Method : The door does not lock automatically even when it is
closed, so the door locks when the [OPEN] button on the main unit of the
inside is pressed, or the number keypad is touched.
Beep
↑Beelililic
Beep
↑Beelililic
Beelilic
Beelilic
Beelilic~Beelilic~
BeeliBeeli
[7] button:
dual-security mode
[9] button:
normal mode
Open the battery cover and
shortly press the [register]
button.
Open the battery cover and
shortly press the [register]
button.
Press [5] or [8] button, and
then [*] button to Card
automatic/manual detection is
completed.
Touch the
[number keypad]
When the number
keypad lights up,
enter the passcode
and press the [*]
button.
Contact the card to the
[card recognition area]
Press [4] or [6] button, and then
[*] button to set or disable the
dual-authentication mode.
Beep
Beep
↑Beelililic
↑Beelililic
[4] button:
dual-authentication
mode setting
[6] button:
dual-authentication
mode disabled
[5] Button: Automatic
Detection Setting
[8] Button: Manual
Detection Setting
Success : Beelililic
Fail : Short beep~
Success : Beelililic
Fail : Short beep~
Caution
Caution
Battery life for use may vary depending on its manufacturer,
manufactured date, and user environment.
(With 4 AA-type alkaline 1.5V batteries, about 10 months of use
based on 10 uses per day is possible.)
Liquid coming from batteries can damage the product, so please
check on this in regular basis (about once in 6 months).
After the battery replacement notification alarm is sounded, pass
code/card registration, changes, or feature setting cannot be
made until the batteries are replaced.
When setting the automatic detection, contacting to the card
recognition area will open the door.
When setting the manual detection, contacting to the card recognition
area after touching the [number pad] will open the door.
Reference
