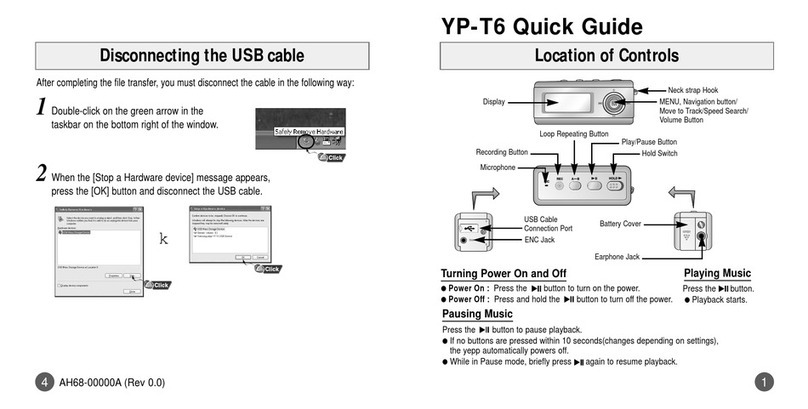

Samsung YP-T6 H User manual

PORTABLE DIGITAL AUDIO
PLAYER
YP-T6 H (128MB)
YP-T6 V (256MB)
YP-T6 X (512MB)
SERVICE Manual
PORTABLE DIGITAL AUDIO PLAYER CONTENTS
1. Exploded Views and Parts List
2. Electrical Parts List
3. Block Diagrams
4. Schematic Diagrams
- Confidential -

© Samsung Electronics Co.,Ltd. OCT. 2004
Printed in Korea
Code no. AH68-01427V
YP-T6H(128MB) YP-T6V(256MB) YP-T6X(512MB)
ELECTRONICS

Samsung Electronics 1-1
1.Exploded Views and Parts List
1-1. Total Exploded View and Parts List

Samsung Electronics
1-2
* Parts List of Total Exploded view
No. Code No. Description Specification Q’ty REMARK
1 AH64-03256A WINDOW-LCD ACRYL 1.0T WHT 1 WHT
AH64-03256B ACRYL 1.0T BLK BLK
2 AH64-03231B CABINET-FRONT PC ABS WHT 1 WHT
AH64-03231C PC ABS BLK BLK
3 AH64-03229B DECO-VOLUME ABS NATURAL 1
4 AH67-00328A LENS-VOLUME PMMA MILKY 1
5 AH61-01798A HOLDER-LENS ABS GRAY 1
6 AH61-01817A HOLDE-PLAY ABS BLK 1
7 AH64-03224B KNOB-MENU ABS NATURAL 1
8 AH61-01612A BRKT-SPRING Be-Cu 0.2T 1
9 AH61-01629A SPRING-BATTERY SWPB •ı0.5 1
10 AH61-01633A BRKT-B SECC 0.5T 2
11 AH64-03230A CABINET-BOTTOM PC ABS BLK 1
12 AH63-00864A COVER-USB Elastomer WHT 1
AH63-00864B Elastomer BLK
13 AH63-00866B COVER-ENC PC ABS WHT 1
AH63-00866C PC ABS BLK
14 AH63-00742B SHEET-HOLD PC 0.125T EMBO 1
15 AH64-03227B KNOB-PLAY ABS NATURAL 1
16 AH64-03226B DECO-SIDE,L Zn 1 GREEN
AH64-03226C BLUE
AH64-03226D RED
AH64-03226E SILVER
17 AH64-03225B DECO-SIDE,R Zn 1 GREEN
AH64-03225C BLUE
AH64-03225D RED
AH64-03225E SILVER
18 AH64-03228B KNOB-HOLD ABS GRAY 1
19 AH61-01821A BRKT-REAR SUS 0.5T 2
20 AH63-00867B COVER-REAR PC ABS WHT 1 128MB
AH63-00867C PC ABS WHT 256MB
AH63-00867D PC ABS BLK 512MB
AH63-00867E PC ABS WHT 1GB
AH63-00867F PC ABS BLK 256MB
AH63-00867G PC ABS WHT 512GB
21 AH61-01827A BRKT-STOPPER SUS 0.5T 1
22 AH63-00868B COVER-TOP PC ABS WHT 1
AH63-00868C PC ABS BLK
23 AH61-01799A BRKT-STRAP Zn 1
24 AH61-01631A PIN-BATTERY SUS 303 1
25 AH61-01611A BRKT-BATTERY B PBS 0.5T 1
26 AH61-01800A BRKT-BATTERY,A PBS 0.5T 1
27 AH63-00865B COVER-BATTERY PC ABS WHT 1 WHT+GREEN
AH63-00865C PC ABS WHT WHT+BLUE
AH63-00865D PC ABS WHT WHT+RED
AH63-00865E PC ABS BLK BLK+SILVER
AH63-00865F PC ABS WHT WHT+SILVER
28 AH63-00863B COVER-DECO,L AL 0.3T 1 GREEN
AH63-00863C BLUE
AH63-00863D RED
AH63-00863E BLK
AH63-00863F SILVER
29 AH63-00862B COVER-DECO,R AL 0.3T 1 GREEN
AH63-00862C BLUE
AH63-00862D RED
AH63-00862E BLK
AH63-00862F SILVER
AH63-00862G GREEN : ONLY America
AH63-00862H BLUE : ONLY America
AH63-00862J BLK : ONLY America
AH63-00862K SILVER: ONLY America
30 AH97-01371A ASSY-LCD YP-T6 1
31 ASSY-PCB YP-T6H 1
32 6003-001508 SCREW-TAP TITE M1.4,L3, Ni Coating 3
33 6003-001490 SCREW-MACHINE M1.7,L3, Ni Coating 3
No. Code No. Description Specification Q’ty REMARK

**** YP-T6 Parts List ****
AA000 AH64-03230B CABINET-BOTTOM,ASSY;-,-,-,-,-,-,-,-
AB055 AH61-01800A BRACKET-BATTERY A;YP-T6,PBS,-,-,-,-,-
AB181 AH61-01631A BRACKET-HDD;YP-T5,SUS ,-,-,-,-,PIN-BAT.
AB285 AH61-01821B BRACKET-REAR;-,-,-,-,-,-,-
AB321 AH61-01612A BRKT-SPRING;YP-T5,-,-,-,-,-,-,-,-,-,BRKT
AB326 AH61-01827A BRACKET-STOPPER;YP-T6,SUS,0.3,-,-,-,-
AB327 AH61-01799A BRACKET-STRAP;YP-T6,Zn,-,-,-,-,SILVER
AC010 AH64-03231C CABINET-FRONT;YP-T6,PC ABS,-,-,-,-,BLK,-
AC010 AH64-03231E CABINET-FRONT;YP-T6,-,-,-,-,-,BLK,ASSY
AC180 AH63-00865E COVER-BATTERY;YP-T6,PC ABS,-,-,-,-,-,BLK
AC225 AH63-00863E COVER-DECO,L;YP-T6,AL,-,-,-,-,-,BLK,-
AC226 AH63-00862J COVER-DECO,R;YP-T6,AL,0.3,-,-,-,-,BLK,XA
AC290 AH63-00867J COVER-REAR;YP-T6,-,-,-,-,-,-,-,128MB
AC310 AH63-00868C COVER-TOP;YP-T6,PC ABS,-,-,-,-,-,BLK,-
AD330 AH64-03226E DECORATION-SIDE,L;YP-T6,Ni,-,-,-,-,SILVE
AD340 AH64-03225E DECORATION-SIDE,R;YP-T6,Ni,-,-,-,-,SILVE
AD370 AH64-03229B DECORATION-VOLUME;YP-T6,ABS,-,-,-,-,-,PL
AH010 AH61-01414B HANGER-NECK;YP-T6,PVC,-,-,-,-,SAMSUNG
AH315 AH61-01798A HOLDER-LENS;YP-T6,ABS,-,-,-,-,WHITE
AH355 AH61-01817A HOLDER-PLAY;YP-MT6,ABS 94HB,-,-,-,-,-
AK200 AH64-03228B KNOB-HOLD;YP-T6,ABS,-,-,-,-,-,-,SILVER
AK240 AH64-03224B KNOB-MENU;YP-T6,ABS,-,-,-,-,-,-,PLATING
AK280 AH64-03227B KNOB-PLAY;YP-T6,ABS,-,-,-,-,-,-,PLATING
AL210 AH67-00328A LENS-VOLUME;YP-T6,PMMA,TRANSPARENT,-,-,-
AS040 6003-001479 SCREW-TAPTITE;BH,+,B,M1.7,L4,ZN
AS040 6003-001508 SCREW-TAPTITE;PH,+,B,M1.4,L3,NI PLT,SWRC
AS082 AH63-00742B SHEET-HOLD;YP-T6,PC,0.125,-,-,-,-
AS100 AH63-00894A SHEET-LCD;YP-T6,PORON,0.3,-,-,-,-
AS106 AH63-00894E SHEET-MIC;YP-T6,PORON,0.3,-,-,-,-
AS235 AH61-01630A SPRING ETC;YP-T5,PHOSPHOR BRONZE 0.1,-,
AS235 AH61-01611A SPRING ETC;YP-T5,-,-,-,-,-,-,-,-,-,BRKT-
AS310 AH61-01629A SPRING-BATTERY;YP-T5,SWPB P10.5,-,-,-,-,
AW120 AH64-03256B WINDOW-LCD;YP-T6,ACRYL,1.0,-,-,-,BLK,-
C20 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,1005
C29 2203-002793 C-CER,CHIP;1000nF,+80-20%,25V,Y5V,2012
C31 2203-002717 C-CER,CHIP;10nF,+80-20%,50V,Y5V,TP,1005
C32 2203-006090 C-CER,CHIP;10000nF,10%,6.3V,X5R,2012
C37 2203-006093 C-CER,CHIP;1000nF,+80-20%,6.3V,Y5V,1005
C42 2203-002709 C-CER,CHIP;100nF,+80-20%,16V,Y5V,1005
C46 2203-005390 C-CER,CHIP;4pF,0.1pF,50V,NPO,TP,1005,-
C7 2203-000330 C-CER,CHIP;0.012NF,5%,50V,C0G,TP,1005
CON2 3708-001069 CONNECTOR-FPC/FFC/PIC;20P,0.5mm,SMD-A,SN
CON3 3722-001954 ACK-MINI USB;5P/1C,AU30U,-,SMD-A,-
DR2 2007-000162 R-CHIP;100Kohm,5%,1/16W,TP,1005
DR3 2007-000142 R-CHIP;2.7KOHM,5%,1/16W,TP,1005
IC2 0902-001743 IC-MICROPROCESSOR;STMP3520B,24MHZ,24BIT,
IC3 1107-001341 IC-FLASH MEMORY;K9F1G08U0A,128Mx8Bit,TSO
IC5 AH40-00015L TUNER-FM-MODULE;DA-202,YP-T5,FM,-,225 ##
J1 3722-001605 JACK-PHONE;3P,-,AG,BLK,-
J2 3722-001952 JACK-EAR PHONE;5P,-,AU,BLK,-
J3 3003-001069 MIC-CONDENSOR;2V,0.5mA,-40dB,2.2Kohm
L3 2703-001513 INDUCTOR-SMD;100nH,5%,1608
L4 3301-001328 BEAD-SMD;1000ohm,1608,100mA,TP,780ohm/6
L5 2703-002346 INDUCTOR-SMD;4.7uH,20%,3225
L6 3301-001477 BEAD-SMD;60ohm,2.0x1.2x0.6mm,3000mA,TP,
LED1 0601-001602 LED;SMD,BLUE,1.1X0.8MM,472.5NM,1.6
PF1 2901-001307 FILTER-EMI SMD;25V,2A,-,-,2.0x1.25x0.8mm
Q5 0505-001174 FET-SILICON;SI2302ADS,N,20V,2.4A,65mohm,
Q8 0505-001426 FET-SILICON;IRLML6401,P,-12V,-4.3A,0.05o
Q9 0504-000211 TR-DIGITAL;DTC143TU,NPN,200mW,4.7K,SC-70
R17 2007-002965 R-CHIP;15OHM,5%,1/16W,DA,TP,1005
R2 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005
R25 2007-000137 R-CHIP;2KOHM,5%,1/16W,TP,1005
R27 2007-001313 R-CHIP;330OHM,5%,1/16W,TP,1005
R29 2007-000141 R-CHIP;2.2Kohm,5%,1/16W,TP,1005
R48 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005
R57 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005
R60 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005
R62 2007-007155 R-CHIP;620OHM,5%,1/16W,TP,1005
R75 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005
SW3 3404-001121 SWITCH-TACT;12V DC,50mA,160gf,4.8x4.8x0.
SW4 3408-001038 SWITCH-SLIDE;4V,300mA,SPST,ON-ON,-
SW5 3404-001268 SWITCH-TACT;Min 1V,Max 50mA,2350gf,7.5 *
TC1 2404-001338 C-TA,CHIP;220UF,20%,4V,WT,TP,3528
TC4 2404-001064 C-TA,CHIP;10UF,20%,6.3V,WT,TP,2012
TC9 2404-001134 C-TA,CHIP;100UF,20%,6.3V,LZ,TP,4028
V5 1405-001093 VARISTOR;14V,20A,1x0.5x0.6mm,TP
Y1 2801-004277 CRYSTAL-SMD;24MHz,50ppm,28-ACF,12pF,50oh
AH97-01206E ASSY-SPRING;-,YP-T6,-
AH97-01371A ASSY-LCD ASSY,YP-T6;FSTN,96*64,PA040630-
AH63-00766A SHEET-CLAMSHELL BACK;YP-55,ART PAPER,-,-
AH61-00901C HOLDER-BAND;YP-T6,Fe,-,-,-,-,-
AH63-00894B SHEET-LED;YP-T6,PORON,0.3,-,-,-,-
AH61-01618A CASE-CARRYING-CASE;YP-T5,-,-,-,-,-,YP-T5
AH63-00866E COVER-ENC,ASS’Y;-,-,-,-,-,-,-,-,-
4301-000115 BATTERY-ALKALINE;1.5V,750mAH,AAA,10.5x44
AH30-00085D PHONE-EAR(EP-360);BLACK,EP-360,16ohm,NOR
AH39-00488A CBF CABLE-STEREO CORD;NOA-C130G(D&S),YP-
AH39-00590B CBF CONNECTOR-USB ADAPTOR;USB ADAPTOR,YP
AH39-00692A CBF CABLE-USB;SCB-656-1,YEPP ALL MODEL,-
AH68-00508D LABEL BAR CODE;-,-,ART PAPER,-,80x95mm,-
AH68-00701J LABEL SERIAL;YP-W3,-,-,-,-,-,-,-,-,-
AH68-01633L MANUAL USERS;YP-T6X,SEA,ENG(US),-,PAPER,
AH68-01647F MANUAL-QG;YP-T6X,SEA,ENG(US),-,-,115,115
AH68-50119B LABEL-EAN(B);ART-PAPER,T0.05,L29,W47,WHT
AH69-00955M PAD-ASSY;yp-mt6/xaa,-,-,-,-,-,-,-,-
AH80-00078A INSTALL-CD,KOR;YP-T6,-,CD,KOR,1.3,-,-,-
AH92-02256A ASSY PCB;YP-T6H,128M,ASSY-CHIP YP-T6 H
AH92-02257A ASSY PCB;YP-T6V,256M,ASSY-CHIP YP-T6 V
AH92-02258A ASSY PCB;YP-T6X,512M,ASSY-CHIP YP-T6 X
Location no. Code no. Description & Specification Remarks Location no. Code no. Description & Specification Remarks
Samsung Electronics 2-1
2. Electrical Parts List
*S.N.A. : Service Not Available

3-1 Samsung Electronics
3. Block Diagram

Samsung Electronics 4-1
- This Document can not be used without Samsung’s authorization -
4. Schematic Diagram
4-1 Main
